VQ35DE engine
1. Power steering fluid reservoir (P. 8-12)
2. Engine coolant reservoir (P. 8-7)
3. Drive belt location (P. 8-17)
4. Fuse box (P. 8-22)
5. Engine oil filler cap (P. 8-9)
6. Brake fluid reservoir (P. 8-13)
7. Air cleaner (P. 8-18)
8. Fuse box (P. 8-22)
9. Fuse box/fusible links (P. 8-22)
10. Fuse box (P. 8-22)
11. Battery (P. 8-14)
12. Engine oil dipstick (P. 8-9)
13. Radiator cap (P. 8-7)
14. Windshield-washer fluid reservoir
(P. 8-14)
Refer to the page number indicated in pa-
rentheses for operating details.
LDI2498
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warninglight Name Page
Anti-lock Braking
System (ABS) warn-
ing light 2-9
or
Brake warning light 2-9
Charge warning
light
2-9
Engine oil pressure
warning light2-10
Low tire pressure
warning light2-10
Low windshield-
washer fluid warning
light2-11
Master warning light 2-11
Warning
light Name Page
Power steering
warning light 2-12
Seat belt warning
light and chime2-12
Supplemental air
bag warning light2-12
Indicator
light Name Page
Fog light indicator
light 2-13
Front passenger air
bag status light2-13
High beam indicator
light (blue)2-13
Intelligent Brake
Assist (IBA) off indi-
cator light (if so
equipped)2-13
Indicator
light Name Page
Malfunction indica-
tor light (MIL) 2-13
Security indicator
light2-14
Side light and head-
light indicator light
(green) (if so
equipped)2-14
Slip indicator light 2-14
Turn signal/hazard
indicator lights
2-14
Vehicle Dynamic
Control (VDC) off
indicator light2-14
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9

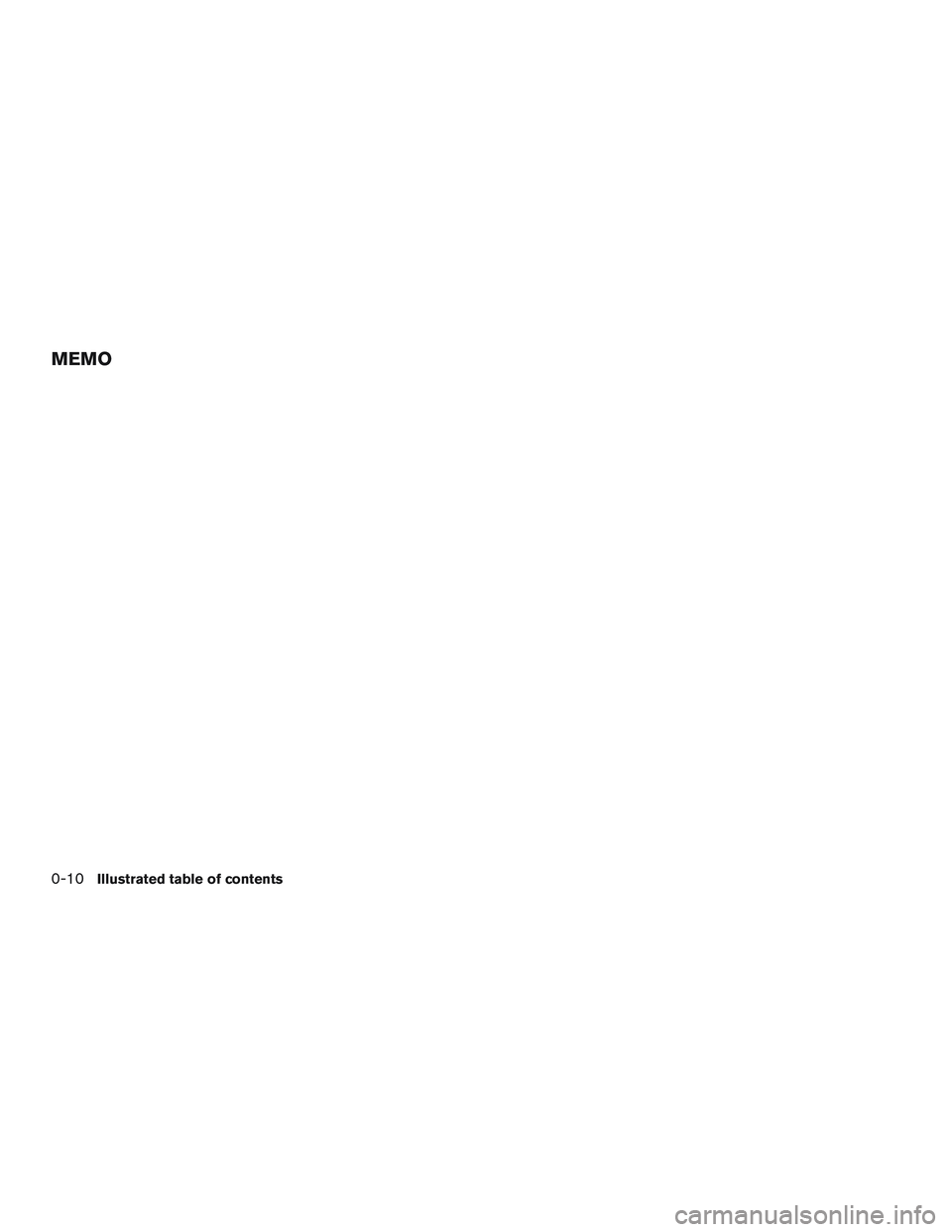

MEMO
0-10Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front power seat adjustment .....................1-3
2nd row bench seat adjustment ..................1-5
3rd row bench seat adjustment ..................1-7
Armrests ......................................1-8
Flexible seating .................................1-8
Head restraints/headrests ......................... 1-11
Adjustable head restraint/headrest
components .................................. 1-12
Non-adjustable head restraint/headrest
components .................................. 1-12
Remove ...................................... 1-13
Removable (without Dual head restraint/
headrest DVD system only) .....................1-13
Install ........................................ 1-14
Adjust ........................................ 1-14
Folding head restraint/headrest .................1-15
Seat belts ....................................... 1-16
Precautions on seat belt usage ..................1-16
Seat belt warning light ......................... 1-19
Pregnant women .............................. 1-19
Injured persons ................................ 1-19
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ....................1-19Three-point type seat belt with retractor
..........1-20
Seat belt extenders ............................ 1-23
Seat belt maintenance ......................... 1-24
Child safety ...................................... 1-24
Infants ........................................ 1-25
Small children ................................. 1-25
Larger children ................................ 1-25
Child restraints ................................... 1-26
Precautions on child restraints ..................1-26
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-28
Rear-facing child restraint installation using
LATCH....................................... 1-31
Rear-facing child restraint installation using
the seat belts ................................. 1-33
Forward-facing child restraint installation
using LATCH .................................. 1-36
Forward-facing child restraint installation
using the seat belts ............................ 1-40
Booster
seats................................. 1-45
Supplemental Restraint System (SRS) ..............1-48
Precautions on SRS ........................... 1-48
Supplemental air bag warning labels .............1-66
Supplemental air bag warning light ..............1-66

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. For additional
information, refer to “Precautions on
seat belt usage” in this section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of con-
trol of the vehicle.
● The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

FRONT POWER SEAT ADJUSTMENT
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
For additional information, refer to “Automatic
drive positioner” in the “Pre-driving checks and
adjustments” section of this manual.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward. The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in P (Park) .
LRS2130
Safety—Seats, seat belts and supplemental restraint system1-3

Seat lifter
Push the switch up or push down to adjust the
angle and height of the seat cushion.Lumbar support (driver’s seat)
The lumbar support feature provides adjustable
lower back support to the driver. Move the lever
up or down (manual) or move the switch forward
or backward (power) to adjust the seat lumbar
area.
LRS2131
Manual (if so equipped)
LRS2132
Power (if so equipped)
LRS2133
1-4Safety—Seats, seat belts and supplemental restraint system

2ND ROW BENCH SEAT
ADJUSTMENT
Forward and backward
Pull the center of the bar1up and hold it while
you slide the seat forward or backward to the
desired position. Release the bar to lock the seat
in position.
Reclining
To recline the seatback, pull up on the lever2
and lean back. To bring the seatback forward, pull
the lever
2up and lean your body forward.
Release the lever to lock the seatback in position. The recline feature allows adjustment of the seat-
back for occupants of different sizes for added
comfort and to help obtain proper seat belt fit. For
additional information, refer to “Precautions on
seat belt usage” in this section. Also, the seat-
back can be reclined to allow occupants to rest
when the vehicle is stopped and the shift lever is
in P (Park) .
WARNING
●
After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.
● For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat and adjust the seat belt properly.
For additional information, refer to
“Precautions on seat belt usage” in this
section.
One touch walk-in function
The 3rd row can be accessed from outside the
vehicle by using the seatback release lever lo-
cated on the upper outboard side of the seatback
on the 2nd row bench seat. If a child safety seat is
installed on the passenger’s side of the 2nd row
seat, the 3rd row can be accessed without re-
moving the child safety seat.
Outboard seats
LRS2143LRS2142
