2015 Hyundai Santa Fe Owner's Manual

Specifications, Consumer information and Reporting safety defects
28
DIMENSIONS
*1with roof rackItem in (mm)
Overall length 193.11 (4,905)
Overall width 74.21 (1,885)
Overall height 66.54 (1,690), 66.93 (1,700) *
1
Front tread 235/60R18 64.09 (1,628)P235/55R1964.09 (1,628)
Rear tread235/60R1864.53 (1,639)
P235/55R19 64.53 (1,639)
Wheelbase 110.24 (2,800)
ItemLambda 3.3
Displacement cu. in (cc)
203.9 (3,342)
Bore x Stroke in. (mm)
3.6x3.3 (92x83.8)
Firing order
1-2-3-4-5-6
No. of cylinders
6
ENGINE

83
Specifications, Consumer information and Reporting safety defects

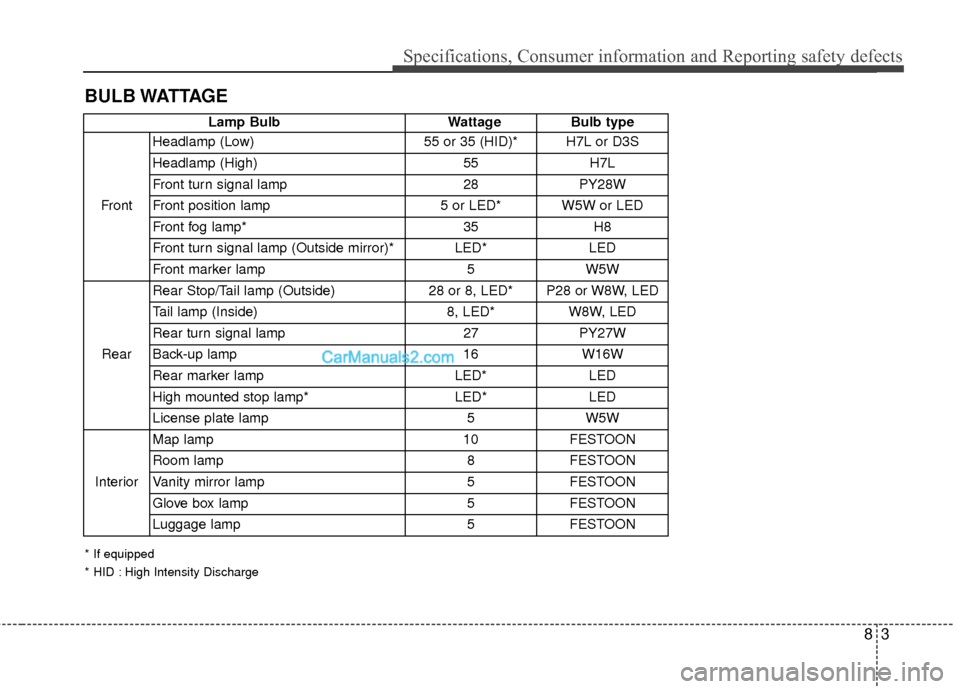

BULB WATTAGE
Lamp BulbWattageBulb type
Front Headlamp (Low)
55 or 35 (HID)* H7L or D3S
Headlamp (High) 55H7L
Front turn signal lamp 28PY28W
Front position lamp 5 or LED* W5W or LED
Front fog lamp* 35H8
Front turn signal lamp (Outside mirror)* LED* LED
Front marker lamp 5W5W
Rear Rear Stop/Tail lamp (Outside)
28 or 8, LED* P28 or W8W, LED
Tail lamp (Inside) 8, LED*W8W, LED
Rear turn signal lamp 27PY27W
Back-up lamp 16W16W
Rear marker lamp LED*LED
High mounted stop lamp* LED*LED
License plate lamp 5W5W
Interior Map lamp
10FESTOON
Room lamp 8FESTOON
Vanity mirror lamp 5FESTOON
Glove box lamp 5FESTOON
Luggage lamp 5FESTOON
* If equipped
* HID : High Intensity Discharge

Specifications, Consumer information and Reporting safety defects
48
TIRES AND WHEELS
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.Using tires of a different size can damage the related parts or make it work irregularly.
Item Tire size Wheel size Inflation pressure [psi (kPa)]
Wheel lug nut torque lb•ft, N
Normal load
()Maximum load()
Front Rear Front Rear
Full size tire 235/60R18 7.5J×18
33
(230) 33
(230) 33
(230) 33
(230) 65~79, 88~107
(9~11)
P235/55R19 7.5J×19
Compact spare tire (if equipped) T165/90R17 4.0T×17 60
(420) 60
(420) 60
(420) 60
(420)

85
Specifications, Consumer information and Reporting safety defects
GROSS VEHICLE WEIGHT
LUGGAGE VOLUME
Item6 Seater7 Seater
SAE 1 Seat
2265
l(79 cu f)
2 Seat 1159
l(40.9 cu f)
3 Seat383 l(13.5 cu f)
ItemLambda 3.3
2WD AWD
Automatic transaxle
2500 kg (5510 lbs) 2550 kg (5620 lbs)

Specifications, Consumer information and Reporting safety defects
68
RECOMMENDED LUBRICANTS AND CAPACITIES
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo -
my by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant VolumeClassification
Engine oil *
1*2
(drain and refill)
Recommends Gasoline
Engine Lambda 3.3
6.02 US qt. (5.7
l) API Service SM *3,
ILSAC GF-4 (or above), ACEA A5 (or above)
Automatic transaxle fluid Gasoline
Engine Lambda 3.3
8.24 US qt. (7.8
l)MICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV or other brands meeting the above specification approved by HYUNDAI Motor Company
Coolant Gasoline
Engine Lambda 3.3
9.6 US qt. (9.1
l)Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluid0.74 ~ 0.85 US qt. (0.7 ~ 0.8 l)FMVSS116 DOT-3 or DOT-4
Rear differential oil (AWD) 0.56 US qt. (0.53 l)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (AWD) Lambda 3.30.72 US qt. (0.68
l)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel18.95 US gal. (71 l)Refer to “Fuel requirements” in section 1

Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity engine
oils are required for satisfactory lubri-
cation in hot weather. Using oils of any
viscosity other than those recommend-
ed could result in engine damage.When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drainplug, or dipstick before check-ing or draining any lubricant.This is especially important industy or sandy areas and whenthe vehicle is used on unpavedroads. Cleaning the plug anddipstick areas will prevent dirtand grit from entering theengine and other mechanismsthat could be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
10W-30
5W-30, 5W-40
1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-30 (API SM/ILSAC GF-4). However, if the
engine oil is not available in your country, select the proper engine
oil using the engine oil viscosity chart.
87
Specifications, Consumer information and Reporting safety defects

Specifications, Consumer information and Reporting safety defects
88
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the
engine compartment bulkhead.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
ONCEVS2001
Frame number
VEHICLE CERTIFICATION
LABEL
OEN086004N
VIN label
OCM056002

89
Specifications, Consumer information and Reporting safety defects
REFRIGERANT LABEL
TIRE SPECIFICATION AND
PRESSURE LABEL ENGINE NUMBER
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle. The engine number is stamped on
the engine block as shown in the
drawing.
The refrigerant label is located at the
front of the engine room.
The label contains the following infor-
mation:
Type of refrigerant
Amount of refrigerant
ONCNMC2016
ONCNMC2001
ONCEVS2002
■Gasoline engine
