2015 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

Specifications & Consumer information
8 8

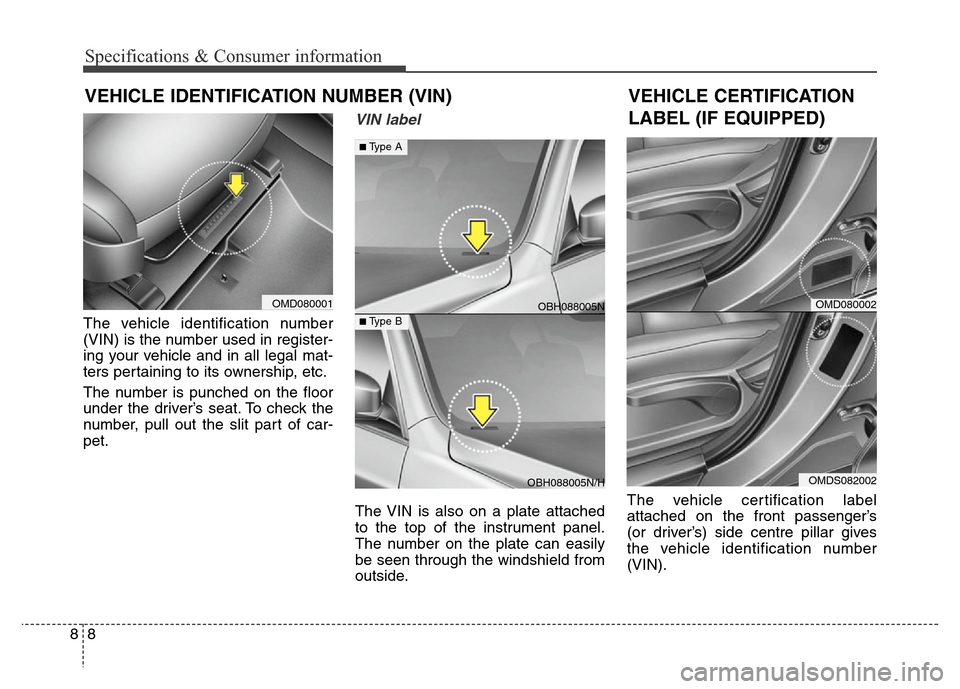

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the driver’s seat. To check the
number, pull out the slit part of car-
pet.
VIN label
The VIN is also on a plate attached
to the top of the instrument panel.
The number on the plate can easily
be seen through the windshield from
outside.The vehicle certification label
attached on the front passenger’s
(or driver’s) side centre pillar gives
the vehicle identification number
(VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OMD080001OMD080002
OMDS082002
VEHICLE CERTIFICATION
LABEL (IF EQUIPPED)
OBH088005N
OBH088005N/H
■Type A
■Type B

89
Specifications & Consumer information

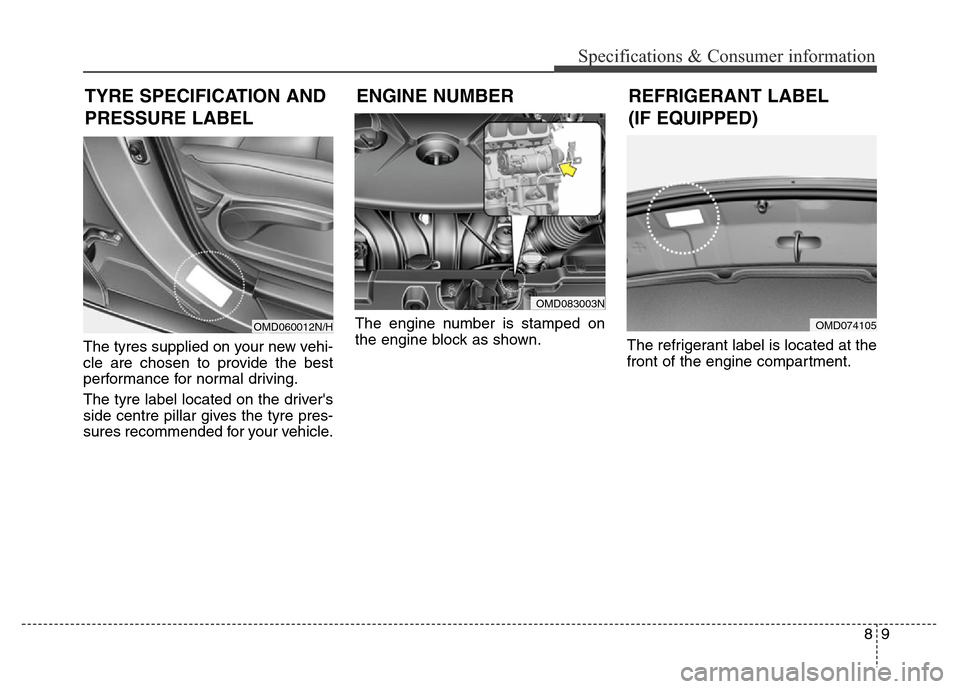

The tyres supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tyre label located on the driver's
side centre pillar gives the tyre pres-
sures recommended for your vehicle.The engine number is stamped on
the engine block as shown.
The refrigerant label is located at the
front of the engine compartment.
TYRE SPECIFICATION AND
PRESSURE LABEL
OMD060012N/H
OMD083003N
ENGINE NUMBER REFRIGERANT LABEL
(IF EQUIPPED)
OMD074105
