2015 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

4121
Features of your vehicle

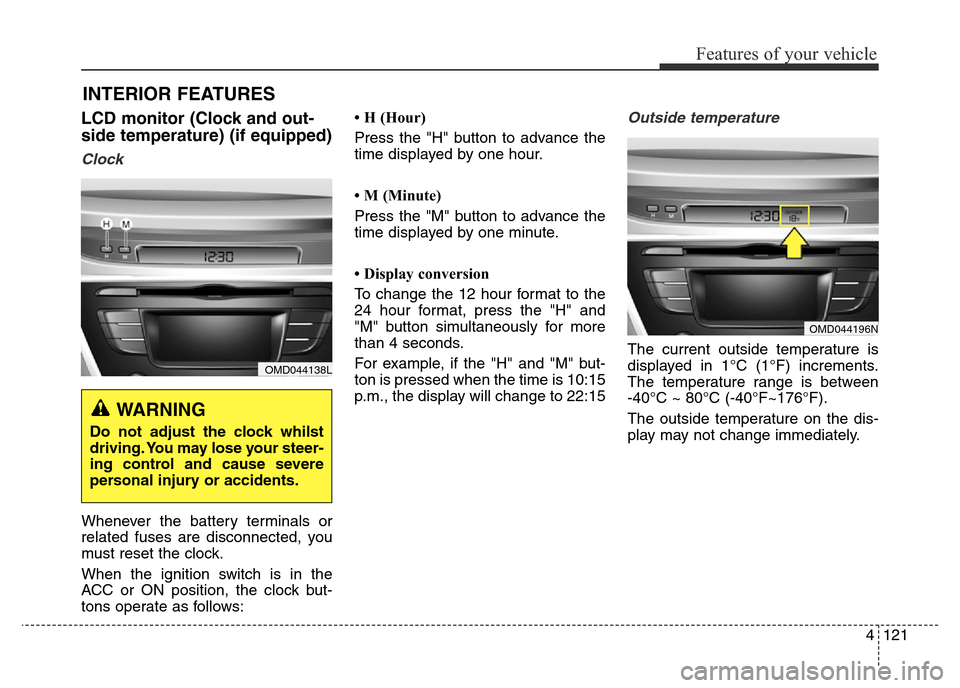

INTERIOR FEATURES
LCD monitor (Clock and out-
side temperature) (if equipped)
Clock
Whenever the battery terminals or
related fuses are disconnected, you
must reset the clock.
When the ignition switch is in the
ACC or ON position, the clock but-
tons operate as follows:• H (Hour)
Press the "H" button to advance the
time displayed by one hour.
• M (Minute)
Press the "M" button to advance the
time displayed by one minute.
• Display conversion
To change the 12 hour format to the
24 hour format, press the "H" and
"M" button simultaneously for more
than 4 seconds.
For example, if the "H" and "M" but-
ton is pressed when the time is 10:15
p.m., the display will change to 22:15
Outside temperature
The current outside temperature is
displayed in 1°C (1°F) increments.
The temperature range is between
-40°C ~ 80°C (-40°F~176°F).
The outside temperature on the dis-
play may not change immediately.
OMD044138L
WARNING
Do not adjust the clock whilst
driving. You may lose your steer-
ing control and cause severe
personal injury or accidents.
OMD044196N

Features of your vehicle
122 4

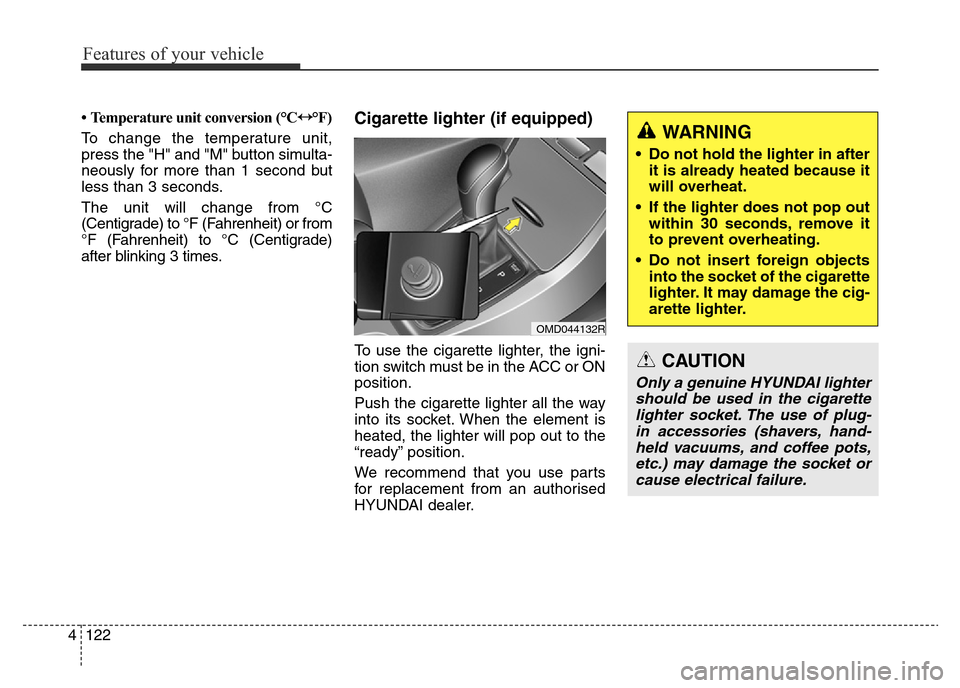

• Temperature unit conversion (°C↔

4123
Features of your vehicle

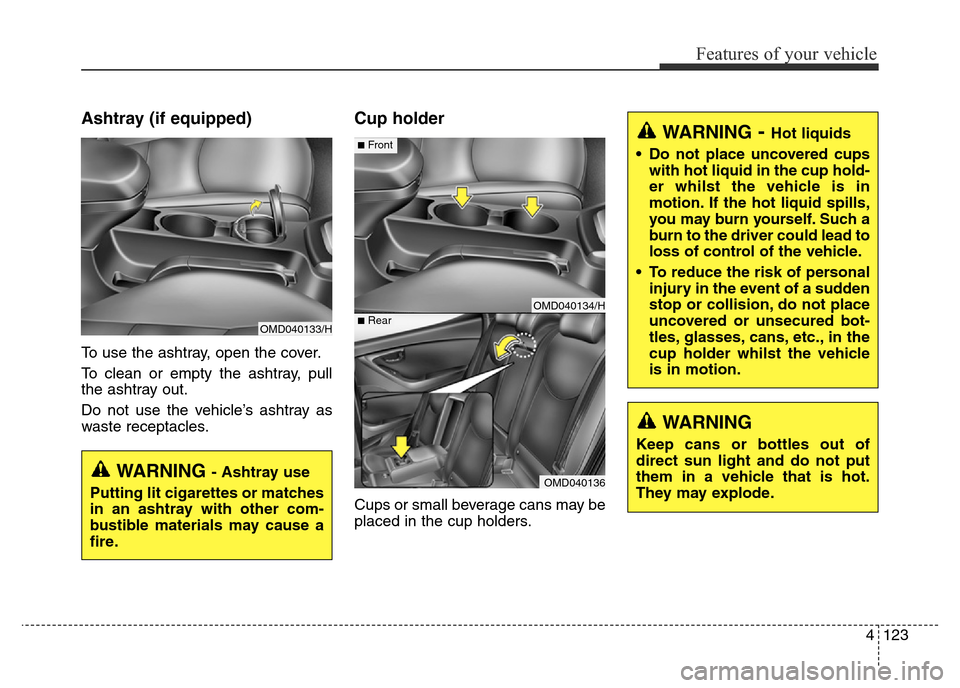

Ashtray (if equipped)
To use the ashtray, open the cover.
To clean or empty the ashtray, pull
the ashtray out.
Do not use the vehicle’s ashtray as
waste receptacles.
Cup holder
Cups or small beverage cans may be
placed in the cup holders.
WARNING - Ashtray use
Putting lit cigarettes or matches
in an ashtray with other com-
bustible materials may cause a
fire.
OMD040133/H
OMD040134/H
OMD040136
■Rear
■FrontWARNING- Hot liquids
• Do not place uncovered cups
with hot liquid in the cup hold-
er whilst the vehicle is in
motion. If the hot liquid spills,
you may burn yourself. Such a
burn to the driver could lead to
loss of control of the vehicle.
• To reduce the risk of personal
injury in the event of a sudden
stop or collision, do not place
uncovered or unsecured bot-
tles, glasses, cans, etc., in the
cup holder whilst the vehicle
is in motion.
WARNING
Keep cans or bottles out of
direct sun light and do not put
them in a vehicle that is hot.
They may explode.

Features of your vehicle
124 4

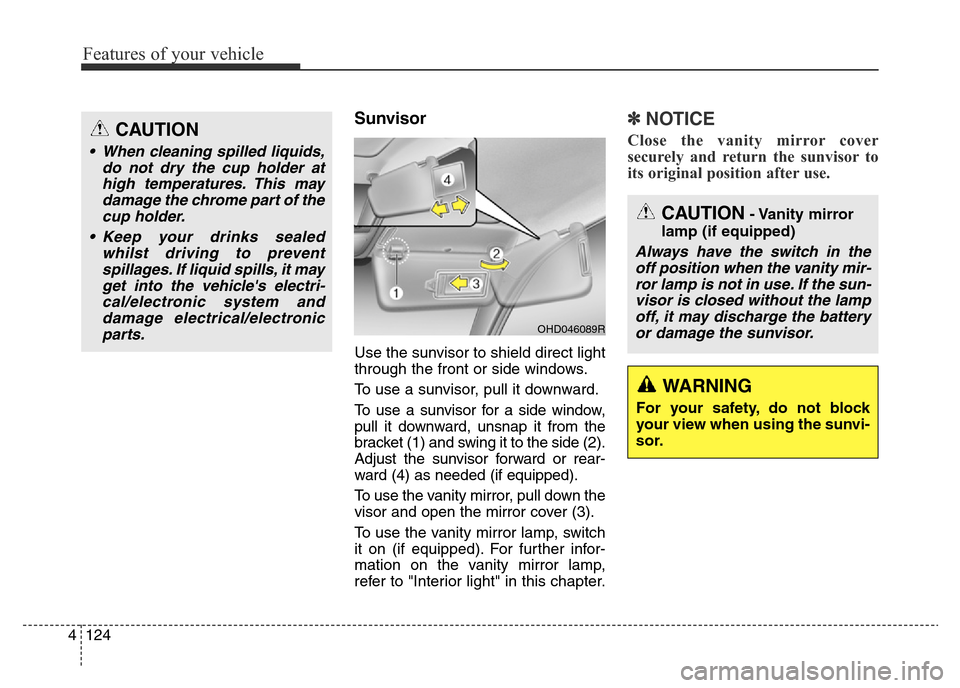

Sunvisor
Use the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket (1) and swing it to the side (2).
Adjust the sunvisor forward or rear-
ward (4) as needed (if equipped).
To use the vanity mirror, pull down the
visor and open the mirror cover (3).
To use the vanity mirror lamp, switch
it on (if equipped). For further infor-
mation on the vanity mirror lamp,
refer to "Interior light" in this chapter.
✽NOTICE
Close the vanity mirror cover
securely and return the sunvisor to
its original position after use.
OHD046089R
CAUTION
• When cleaning spilled liquids,
do not dry the cup holder at
high temperatures. This may
damage the chrome part of the
cup holder.
• Keep your drinks sealed
whilst driving to prevent
spillages. If liquid spills, it may
get into the vehicle's electri-
cal/electronic system and
damage electrical/electronic
parts.
CAUTION- Vanity mirror
lamp (if equipped)
Always have the switch in the
off position when the vanity mir-
ror lamp is not in use. If the sun-
visor is closed without the lamp
off, it may discharge the battery
or damage the sunvisor.
WARNING
For your safety, do not block
your view when using the sunvi-
sor.

4125
Features of your vehicle

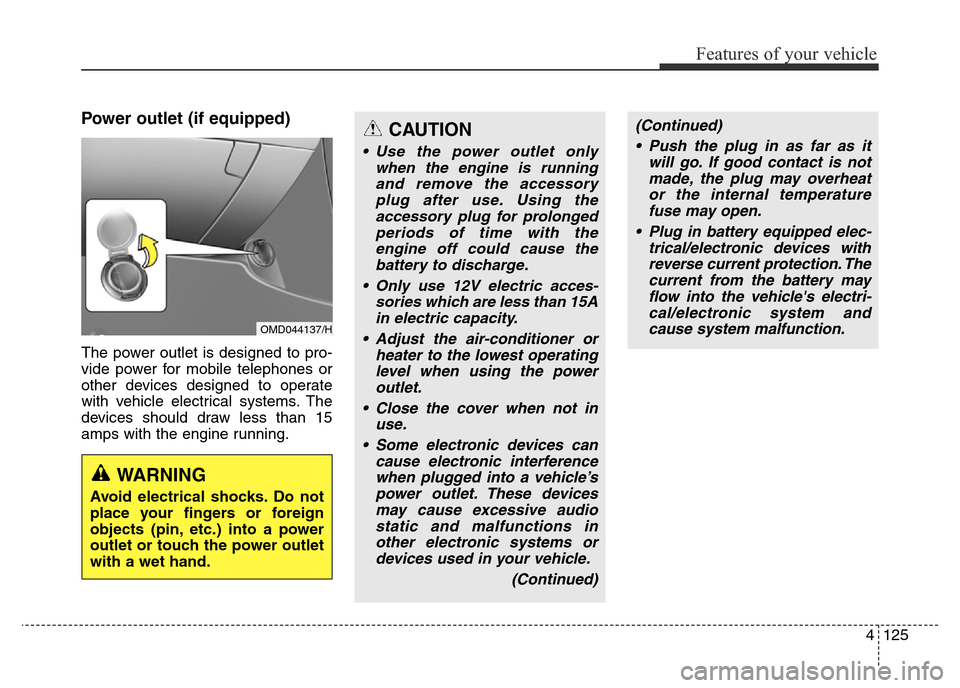

Power outlet (if equipped)
The power outlet is designed to pro-
vide power for mobile telephones or
other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 15
amps with the engine running.
OMD044137/H
CAUTION
• Use the power outlet only
when the engine is running
and remove the accessory
plug after use. Using the
accessory plug for prolonged
periods of time with the
engine off could cause the
battery to discharge.
• Only use 12V electric acces-
sories which are less than 15A
in electric capacity.
• Adjust the air-conditioner or
heater to the lowest operating
level when using the power
outlet.
• Close the cover when not in
use.
• Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices
may cause excessive audio
static and malfunctions in
other electronic systems or
devices used in your vehicle.
(Continued)
WARNING
Avoid electrical shocks. Do not
place your fingers or foreign
objects (pin, etc.) into a power
outlet or touch the power outlet
with a wet hand.
(Continued)
• Push the plug in as far as it
will go. If good contact is not
made, the plug may overheat
or the internal temperature
fuse may open.
• Plug in battery equipped elec-
trical/electronic devices with
reverse current protection. The
current from the battery may
flow into the vehicle's electri-
cal/electronic system and
cause system malfunction.

Features of your vehicle
126 4

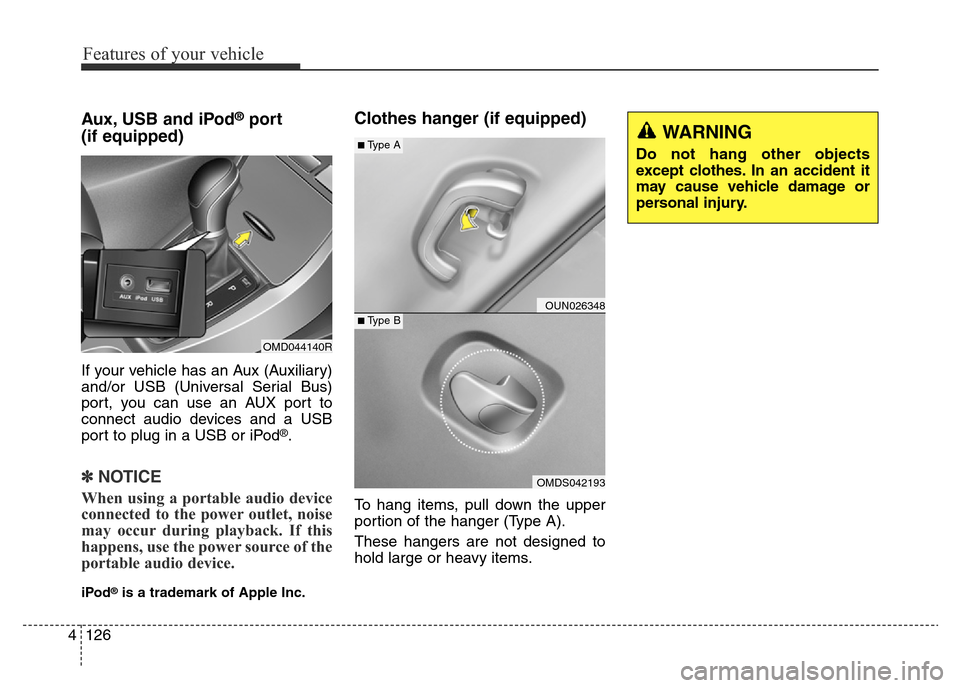

Aux, USB and iPod®port
(if equipped)
If your vehicle has an Aux (Auxiliary)
and/or USB (Universal Serial Bus)
port, you can use an AUX port to
connect audio devices and a USB
port to plug in a USB or iPod
®.
✽NOTICE
When using a portable audio device
connected to the power outlet, noise
may occur during playback. If this
happens, use the power source of the
portable audio device.
iPod®is a trademark of Apple Inc.
Clothes hanger (if equipped)
To hang items, pull down the upper
portion of the hanger (Type A).
These hangers are not designed to
hold large or heavy items.
OUN026348
OMDS042193
■Type A
■Type B
OMD044140R
WARNING
Do not hang other objects
except clothes. In an accident it
may cause vehicle damage or
personal injury.

4127
Features of your vehicle

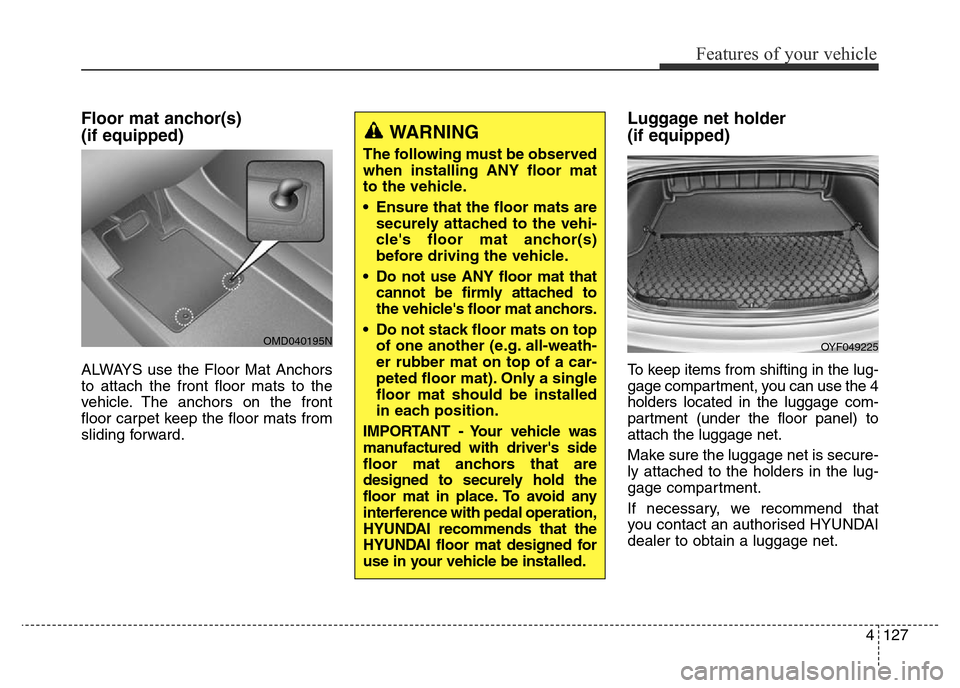

Floor mat anchor(s)
(if equipped)
ALWAYS use the Floor Mat Anchors
to attach the front floor mats to the
vehicle. The anchors on the front
floor carpet keep the floor mats from
sliding forward.
Luggage net holder
(if equipped)
To keep items from shifting in the lug-
gage compartment, you can use the 4
holders located in the luggage com-
partment (under the floor panel) to
attach the luggage net.
Make sure the luggage net is secure-
ly attached to the holders in the lug-
gage compartment.
If necessary, we recommend that
you contact an authorised HYUNDAI
dealer to obtain a luggage net.
WARNING
The following must be observed
when installing ANY floor mat
to the vehicle.
• Ensure that the floor mats are
securely attached to the vehi-
cle's floor mat anchor(s)
before driving the vehicle.
• Do not use ANY floor mat that
cannot be firmly attached to
the vehicle's floor mat anchors.
• Do not stack floor mats on top
of one another (e.g. all-weath-
er rubber mat on top of a car-
peted floor mat). Only a single
floor mat should be installed
in each position.
IMPORTANT - Your vehicle was
manufactured with driver's side
floor mat anchors that are
designed to securely hold the
floor mat in place. To avoid any
interference with pedal operation,
HYUNDAI recommends that the
HYUNDAI floor mat designed for
use in your vehicle be installed.
OMD040195NOYF049225

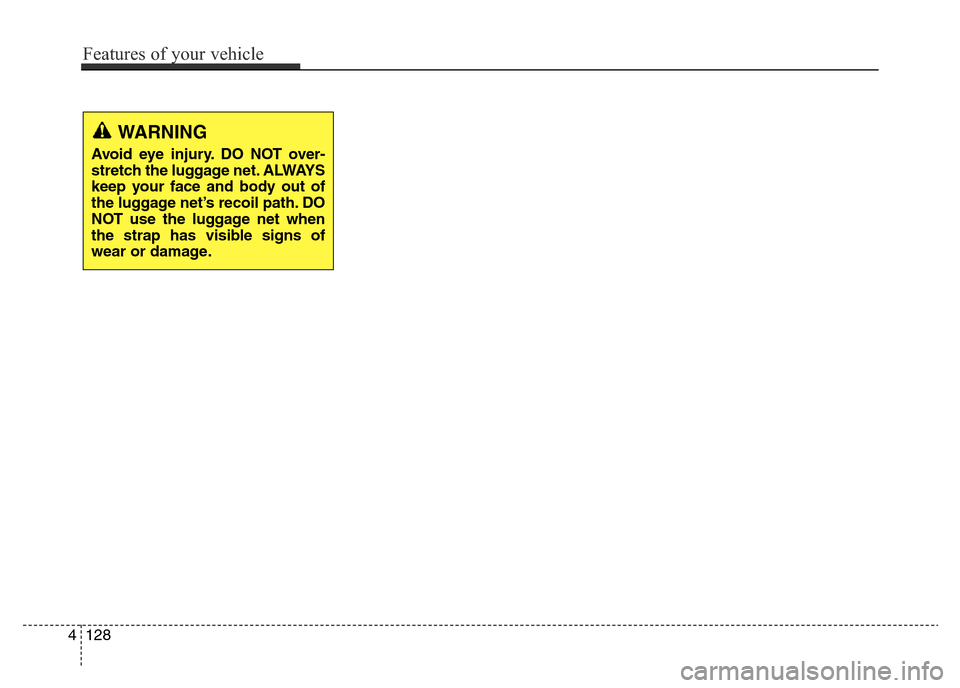

WARNING
Avoid eye injury. DO NOT over-
stretch the luggage net. ALWAYS
keep your face and body out of
the luggage net’s recoil path. DO
NOT use the luggage net when
the strap has visible signs of
wear or damage.
4 128
Features of your vehicle
