2015 Hyundai Azera Owner's Manual

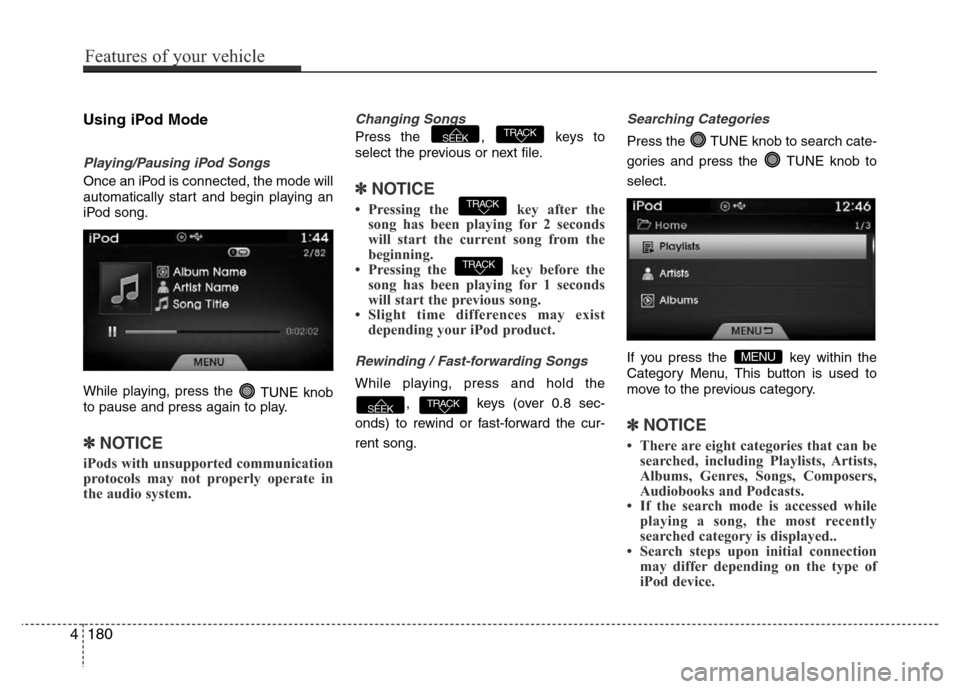

Using iPod Mode
Playing/Pausing iPod Songs
Once an iPod is connected, the mode will
automatically start and begin playing an
iPod song.
While playing, press the
TUNE knob
to pause and press again to play.
✽NOTICE
iPods with unsupported communication
protocols may not properly operate in
the audio system.
Changing Songs
Press the , keys to
select the previous or next file.
✽NOTICE
• Pressing the key after the
song has been playing for 2 seconds
will start the current song from the
beginning.
• Pressing the key before the
song has been playing for 1 seconds
will start the previous song.
• Slight time differences may exist
depending your iPod product.
Rewinding / Fast-forwarding Songs
While playing, press and hold the
, keys (over 0.8 sec-
onds) to rewind or fast-forward the cur-
rent song.
Searching Categories
Press the TUNE knob to search cate-
gories and press the TUNE knob to
select.
If you press the key within the
Category Menu, This button is used to
move to the previous category.
✽NOTICE
• There are eight categories that can be
searched, including Playlists, Artists,
Albums, Genres, Songs, Composers,
Audiobooks and Podcasts.
• If the search mode is accessed while
playing a song, the most recently
searched category is displayed..
• Search steps upon initial connection
may differ depending on the type of
iPod device.
MENU
TRACKSEEK
TRACK
TRACK
TRACKSEEK
4180
Features of your vehicle

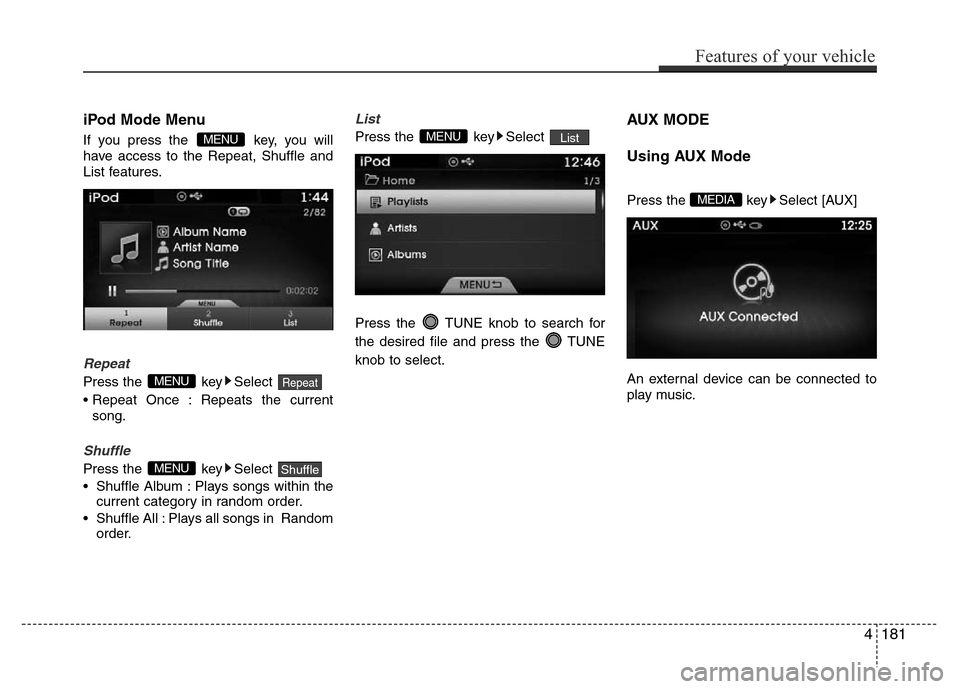

iPod Mode Menu
If you press the key, you will
have access to the Repeat, Shuffle and
List features.
Repeat
Press the key Select
• Repeat Once : Repeats the current
song.
Shuffle
Press the key Select
• Shuffle Album : Plays songs within the
current category in random order.
• Shuffle All : Plays all songs in Random
order.
List
Press the key Select
Press the TUNE knob to search for
the desired file and press the TUNE
knob to select.
AUX MODE
Using AUX Mode
Press the key Select [AUX]
An external device can be connected to
play music.MEDIA
ListMENU
ShuffleMENU
RepeatMENU
MENU
Features of your vehicle
181 4

✽NOTICE
• If an external device connector is con-
nected with the AUX terminal, then
AUX mode will automatically operate.
Once the connector is disconnected,
the previous mode will be restored.
• AUX mode can be used only when an
external audio player (camcorder, car
VCR, etc.) has been connected.
• The AUX volume can be controlled
separately from other audio modes.

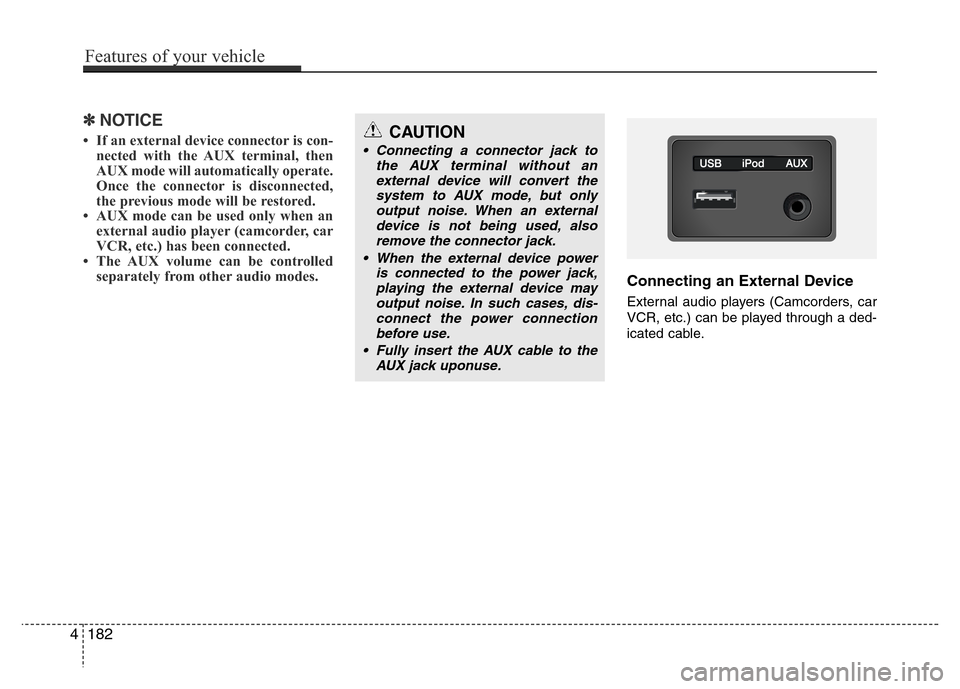

Connecting an External Device
External audio players (Camcorders, car
VCR, etc.) can be played through a ded-
icated cable.
4182
Features of your vehicle
CAUTION
• Connecting a connector jack to
the AUX terminal without an
external device will convert the
system to AUX mode, but only
output noise. When an external
device is not being used, also
remove the connector jack.
• When the external device power
is connected to the power jack,
playing the external device may
output noise. In such cases, dis-
connect the power connection
before use.
• Fully insert the AUX cable to the
AUX jack uponuse.

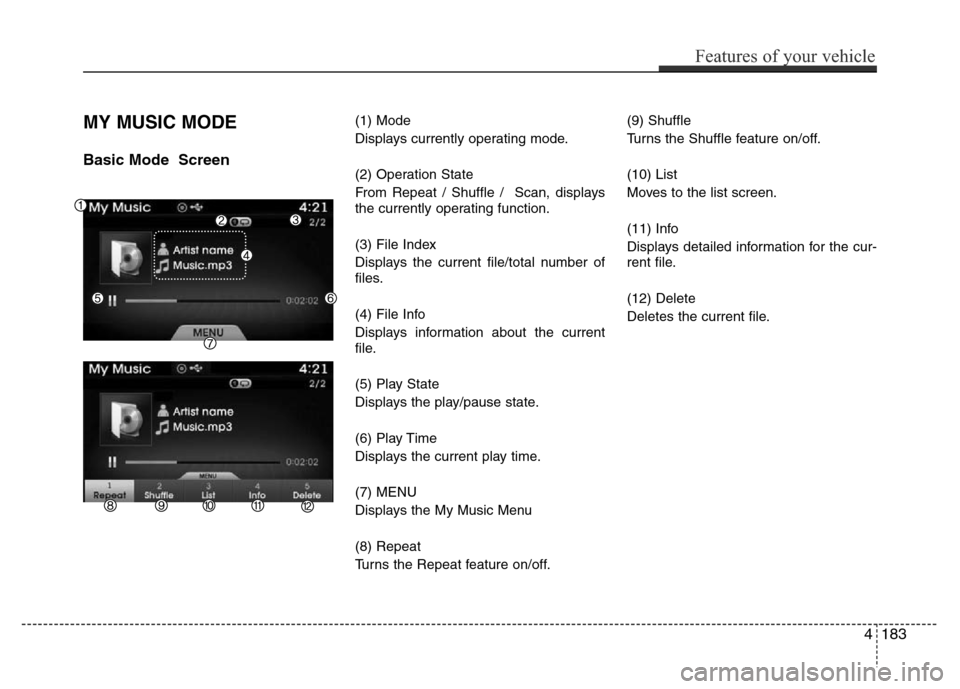

MY MUSIC MODE
Basic Mode Screen
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat / Shuffle / Scan, displays
the currently operating function.
(3) File Index
Displays the current file/total number of
files.
(4) File Info
Displays information about the current
file.
(5) Play State
Displays the play/pause state.
(6) Play Time
Displays the current play time.
(7) MENU
Displays the My Music Menu
(8) Repeat
Turns the Repeat feature on/off.(9) Shuffle
Turns the Shuffle feature on/off.
(10) List
Moves to the list screen.
(11) Info
Displays detailed information for the cur-
rent file.
(12) Delete
Deletes the current file.
Features of your vehicle
183 4

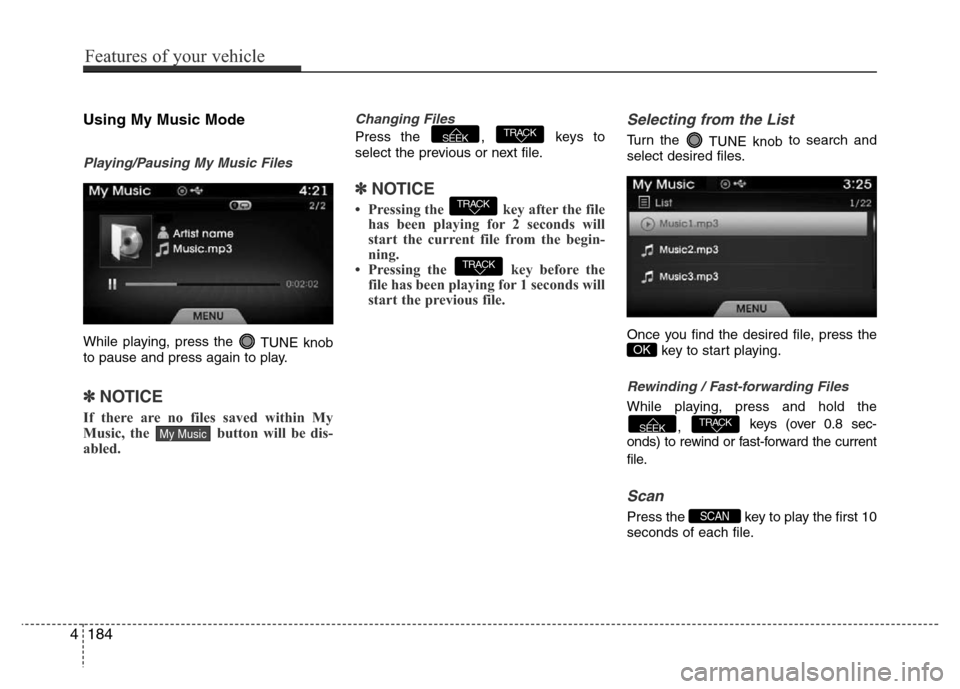

Using My Music Mode
Playing/Pausing My Music Files
While playing, press the
TUNE knob
to pause and press again to play.
✽NOTICE
If there are no files saved within My
Music, the button will be dis-
abled.
Changing Files
Press the , keys to
select the previous or next file.
✽NOTICE
• Pressing the key after the file
has been playing for 2 seconds will
start the current file from the begin-
ning.
• Pressing the key before the
file has been playing for 1 seconds will
start the previous file.
Selecting from the List
Turn the
TUNE knobto search and
select desired files.
Once you find the desired file, press the
key to start playing.
Rewinding / Fast-forwarding Files
While playing, press and hold the
, keys (over 0.8 sec-
onds) to rewind or fast-forward the current
file.
Scan
Press the key to play the first 10
seconds of each file.SCAN
TRACKSEEK
OK
TRACK
TRACK
TRACKSEEK
My Music
4184
Features of your vehicle

My Music Mode Menu
If you press the key, you will
have access to the Repeat, Shuffle, List,
Info and Delete features.
Repeat
Press the key Select
Repeat : Repeats the current file.
Shuffle
Press the key Select
Shuffle : Plays all files in random order.
✽NOTICE
The , keys are shortcut keys to
set the Repeat and Shuffle features.
List
Press the key Select
Turn the TUNE knob to search for the
desired file and press the knob to select.
Info
Press the key Select
Details for the currently playing file are
displayed.
✽NOTICE
The title, artist and album info are dis-
played only when such information is
recorded within the MP3 file ID3 tag.
Deleting Files
Press the key Select
The currently playing file is deleted.DeleteMENU
InfoMENU
ListMENU
21
ShuffleMENU
RepeatMENU
MENU
Features of your vehicle
185 4

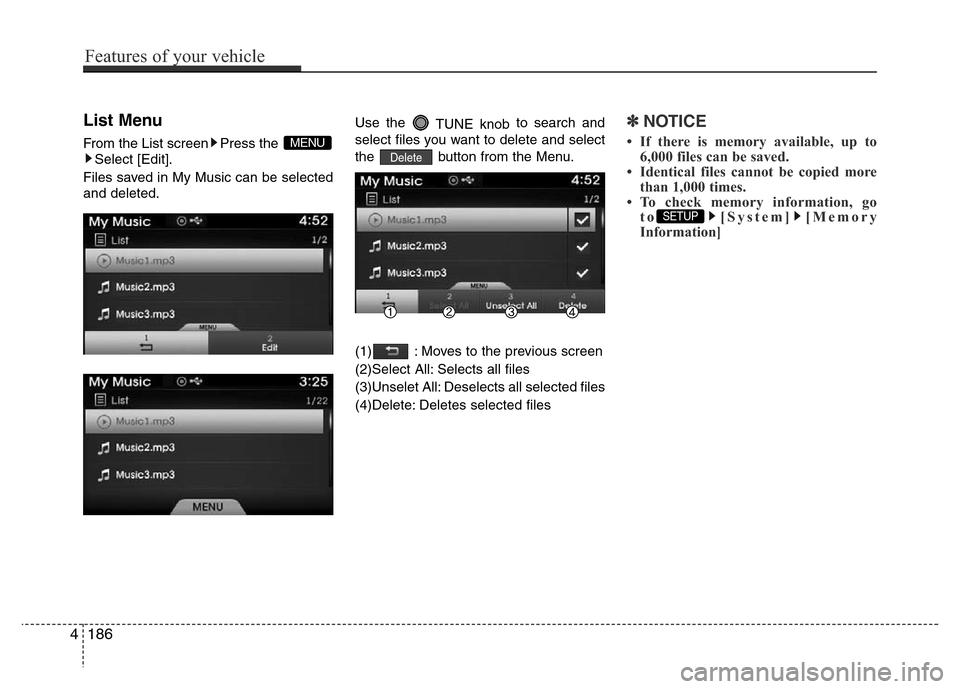

List Menu
From the List screen Press the
Select [Edit].
Files saved in My Music can be selected
and deleted.Use the
TUNE knobto search and
select files you want to delete and select
the button from the Menu.
(1) : Moves to the previous screen
(2)Select All: Selects all files
(3)Unselet All: Deselects all selected files
(4)Delete: Deletes selected files
✽NOTICE
• If there is memory available, up to
6,000 files can be saved.
• Identical files cannot be copied more
than 1,000 times.
• To check memory information, go
to [System] [Memory
Information]
SETUP
DeleteMENU
4186
Features of your vehicle

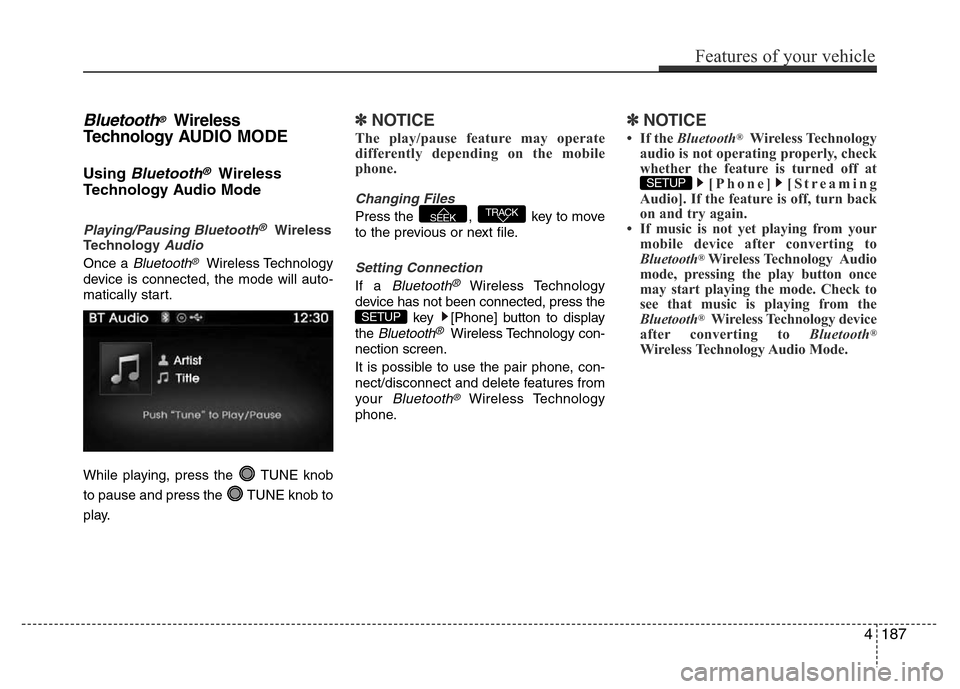

Bluetooth®Wireless
Technology AUDIO MODE
Using Bluetooth®Wireless
Technology Audio Mode
Playing/Pausing Bluetooth®Wireless
TechnologyAudio
Once a Bluetooth®Wireless Technology
device is connected, the mode will auto-
matically start.
While playing, press the TUNE knob
to pause and press the TUNE knob to
play.
✽NOTICE
The play/pause feature may operate
differently depending on the mobile
phone.
Changing Files
Press the , key to move
to the previous or next file.
Setting Connection
If a Bluetooth®Wireless Technology
device has not been connected, press the
key [Phone] button to display
the
Bluetooth®Wireless Technology con-
nection screen.
It is possible to use the pair phone, con-
nect/disconnect and delete features from
your
Bluetooth®Wireless Technology
phone.
✽NOTICE
• If the Bluetooth®Wireless Technology
audio is not operating properly, check
whether the feature is turned off at
[Phone] [Streaming
Audio]. If the feature is off, turn back
on and try again.
• If music is not yet playing from your
mobile device after converting to
Bluetooth
®Wireless Technology Audio
mode, pressing the play button once
may start playing the mode. Check to
see that music is playing from the
Bluetooth
®Wireless Technology device
after converting to Bluetooth®
Wireless Technology Audio Mode.
SETUP
SETUP
TRACKSEEK
Features of your vehicle
187 4
