2015 HONDA FIT display

119
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Controls
If you open the driver’s door when the power mode is set to ACCESSORY, a warning
buzzer sounds.
Warning buzzers may sound from inside or/
and outside the vehicle to remind you that the
smart entry remote is out of the vehicle. If the
buzzer continues even after the remote is put
back inside, place it to be within its
operational range.
■When the power mode is in ON
If the smart entry remote is taken out of the
vehicle, and the driver’s door is closed,
warning buzzers sound from both inside and
outside the vehicle. A warning message on
the information display notifies the driver
inside that the remote is out.
■When the power mode is in
ACCESSORY
If the smart entry remote is taken out of the
vehicle, and all the doors are closed, a
warning buzzer sounds from outside the
vehicle.
■Power Mode Reminder
■Smart Entry Remote Reminder1 Smart Entry Remote Reminder
When the smart entry remote is within the system’s
operational range, and the driv er’s door is closed, the
warning function cancels.
If the smart entry remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the smart entry remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the smart entr y remote on the dashboard
or in the glove box. It may cause the warning buzzer
to go off. Under some other conditions that can
prevent the vehicle from locating the remote, the
warning buzzer may al so go off even if the remote is
within the system’s operational range.
15 US FIT-31T5A6000.book 119 ページ ２０１４年３月６日　木曜日　午後７時５分

128
uuOperating the Switches Around the Steering Wheel uBrightness Control
Controls
Brightness Control
When the parking lights are turned on and the
ignition switch is in ON
(w*1, you can use the
(select/reset) knob to adjust instrument
panel brightness.
Brighten: Turn the knob to the right.
Dim: Turn the knob to the left.
You will hear a beep when the brightness
reaches minimum or maximum. The
information display will return to its original
state several seconds after you adjust the
brightness.
■Brightness level indicator
The brightness level is shown on the
information display while you are adjusting it.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Brightness Control
Instrument panel brightne ss varies, depending on
whether the exterior lights are on or off. The
instrument panel dims to reduce glare when they are
on.
Pressing the knob switches the display.
If you turn the knob to the right until the brightness
display is up to max, the beeper sounds. This cancels
the reduced instrument panel brightness when the
parking lights are on.
(Select/Reset) Knob
15 US FIT-31T5A6000.book 128 ページ ２０１４年３月６日　木曜日　午後７時５分

157Continued
Controls
Climate Control System*
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Select the AUTO icon.
2. Adjust the interior temperature us ing the temperature control icons.
3. Select the icon to cancel.1Using Automatic Climate Control
If any icons are selected while using the climate
control system in auto, the function of the icon that
was selected will take priority.
The AUTO indicator will go off, but functions
unrelated to the icon that was selected will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO icon
is selected.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
You can raise or lower the temperature or fan speed
setting flicking either control icon.
Dashboard
vents Dashboard
and floor
ventsFloor vents Floor and
defroster
vents
Temperature Control
Icons
AUTO Icon Mode Control Icon
Fan Control Icons
(On/Off) Icon
(Recirculation) IconA/C (Air Conditioning) Icon (Fresh Air) Icon
* Not available on all models
15 US FIT-31T5A6000.book 157 ページ ２０１４年３月６日　木曜日　午後７時５分

159
uuClimate Control System*uUsing Automatic Climate Control
Controls
You hear the beep when operating the climate control system on the touch screen.
This can be turned on and off.
To turn off the beep:
1.Set the power mode to ON.
2. Touch the of the temperature control
icon five times while pressing and holding
the .
3. Release the , after -- blinks five times
and OF is displayed.
To turn on the beep:
1. Set the power mode to ON.
2. Touch the of the temperature control
icon five times while pressing and holding
the .
3. Release the , after OF blinks five times
and -- is displayed.

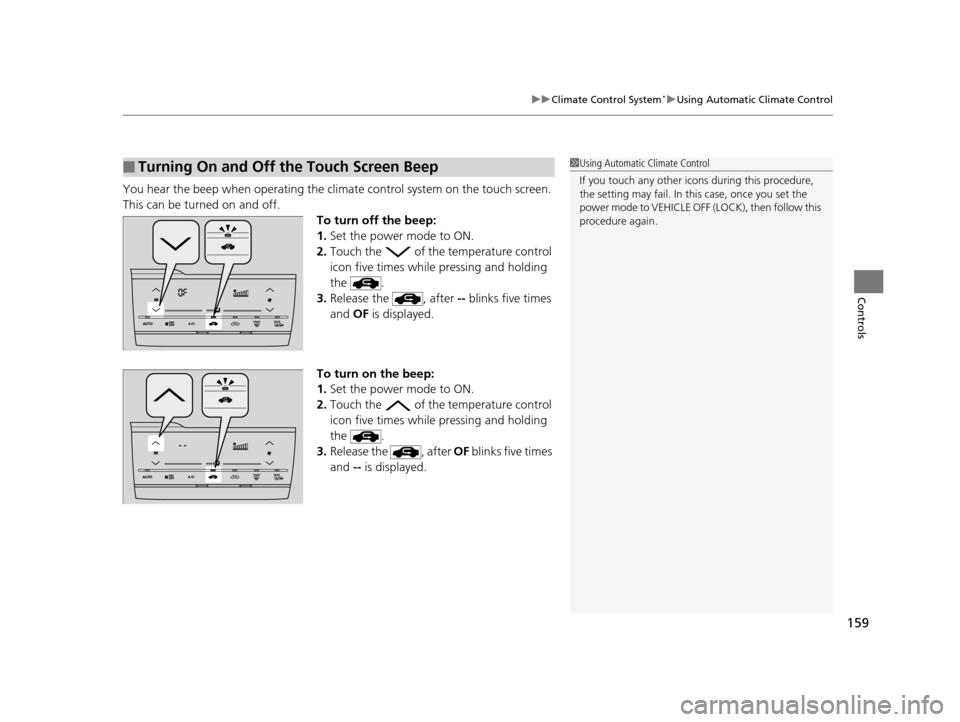

■Turning On and Off the Touch Screen Beep1Using Automatic Climate Control
If you touch any other icon s during this procedure,
the setting may fail. In th is case, once you set the
power mode to VEHICLE OFF (LOCK), then follow this
procedure again.
15 US FIT-31T5A6000.book 159 ページ ２０１４年３月６日　木曜日　午後７時５分

161
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System .................... 162
USB Port(s) ........................................... 163
HDMI ® Port
*........................................ 164
Auxiliary Input Jack*............................. 165
Audio Antenna .................................... 166
Audio System Theft Protection ............. 167
Audio Remote Controls
*...................... 168
Audio System Basic Operation ............. 170
Audio/Information Screen .................... 171
Adjusting the Sound ............................ 175
Display Setup ....................................... 176
Playing the AM/FM Radio ..................... 177
Playing a CD ........................................ 179
Models with color audio system
Playing an iPod .................................... 182
Playing a USB Flash Drive ..................... 185
Playing Bluetooth ® Audio..................... 188
Audio System Basic Operation ............ 191
Audio/Information Screen .................... 192
Adjusting the Sound ............................ 197
Display Setup ....................................... 198
Playing the AM/FM Radio..................... 199
Playing a CD ........................................ 202
Playing an iPod .................................... 205
Playing Internet Radio .......................... 208
Playing a USB Flash Drive ..................... 210
Playing Bluetooth ® Audio..................... 213
Playing a Video Using the HDMI ®......... 215
Models with display audio system
Smartphone Apps................................. 217
Siri Eyes Free......................................... 218
Audio Error Messages ........................... 219
General Information on the Audio
System ............................................. 223
Customized Features ............................. 226
Bluetooth ® HandsFreeLink ®
Using HFL ............................................. 248
Using HFL ............................................. 271
Models with color audio system
Models with display audio system
* Not available on all models
15 US FIT-31T5A6000.book 161 ページ ２０１４年３月６日　木曜日　午後７時５分

163
uuAudio System uUSB Port(s)
Features
USB Port(s)
1. Open the cover.
2. Install the iPod dock connector or the USB
flash drive to the USB port.1USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an ex tension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
USB Port
USB Port*
* Not available on all models
15 US FIT-31T5A6000.book 163 ページ ２０１４年３月６日　木曜日　午後７時５分

164
uuAudio System uHDMI ® Port*
Features

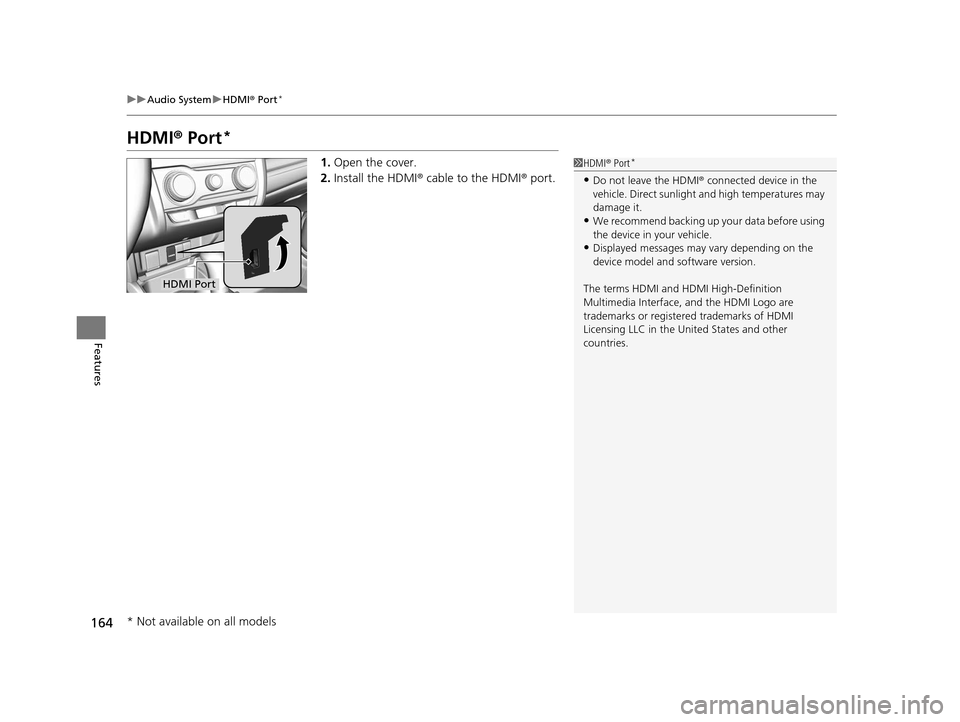

HDMI ® Port*
1. Open the cover.
2. Install the HDMI ® cable to the HDMI ® port.1 HDMI ® Port*
•Do not leave the HDMI ® connected device in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
HDMI Port
* Not available on all models
15 US FIT-31T5A6000.book 164 ページ ２０１４年３月６日　木曜日　午後７時５分

167
uuAudio System uAudio System Theft Protection
Features
Audio System Theft Protection
The audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display ENTER CODE
*2/Enter code*3. If this occurs, r eactivate the audio
system.
■Reactivating the audio system
1. Turn the ignition switch to ON
(w*1.
2. Turn on the audio system.
3. Press and hold the audio system powe r button for more than two seconds.
u The audio system is reac tivated when the audio co ntrol unit establishes a
connection with the vehicl e control unit. If the control unit fails to recognize
the audio unit, you must go to a deal er and have the audio unit checked.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2 : Models with color audio system.
*3 : Models with display audio system.
15 US FIT-31T5A6000.book 167 ページ ２０１４年３月６日　木曜日　午後７時５分
