2015 HONDA FIT alarm

11
Quick Reference Guide
Instrument Panel (P69)
Lights Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
IndicatorAnti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Electric Power
Steering (EPS) System
Indicator Lights On Indicator High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE MAIN
Indicator*
Supplemental
Restraint System
Indicator Starter System
Indicator
*
Door and Tailgate
Open Indicator
Tachometer
Speedometer
Fuel Gauge
Security System
Alarm Indicator*
Shift Lever Position Indicator*
Low Fuel Indicator
Gauges (P82)/Information Display (P83)/System Indicators (P70)
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator (Red)
Low Temperature
Indicator (Blue)
System Indicators
System Indicators
Low Tire Pressure/
TPMS Indicator
U.S. models only
Parking Brake
and Brake System
Indicator (Red)
CRUISE CONTROL
Indicator*
System Indicators
Charging System
Indicator
U.S. U.S.
Canada
Smart Entry System
Indicator*
Washer Level
Indicator*
ECON Mode
Indicator*
Maintenance
Minder Indicator
Fog Light Indicator
*
Canada
Brake System
Indicator (Amber)
Canada
U.S.
M
(7-speed manual shift mode)
Indicator/Shift Indicator*
Information Display
* Not available on all models
15 US FIT-31T5A6000.book 11 ページ ２０１４年３月６日　木曜日　午後７時５分

79
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Security System
Alarm Indicator*
●Blinks when the security system alarm
has been set.
2Security System Alarm* P. 110
CRUISE MAIN
Indicator*
●Comes on when you press the CRUISE
button.2 Cruise Control* P. 329
CRUISE CONTROL
Indicator*
●Comes on if you have set a speed for
cruise control.2 Cruise Control* P. 329
Washer Level
Indicator*●Comes on when the washer fluid is low.
●Refill washer fluid.
2Refilling Window Washer Fluid P. 372
Maintenance
Minder Indicator●Comes on when the scheduled
maintenance is due soon.2Maintenance MinderTM P. 357
Indicator
* Not available on all models
15 US FIT-31T5A6000.book 79 ページ ２０１４年３月６日　木曜日　午後７時５分

87
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.............................................................. 88
Locking and Unlocking the Doors Key Types and Functions ............................. 90
Low Smart Entry Remote Signal Strength*.......92Locking/Unlocking the Doors from the Outside ....93
Locking/Unlocking the Doors from the Inside .......99
Childproof Door Locks .............................. 102
Auto Door Locking/Unlocking ................... 103
Opening and Closing the Tailgate ............ 107
Security System .......................................... 110
Immobilizer System ......... ..................... ..... 110
Security System Alarm
*............................. 110
Opening and Closing the Windows .......... 113
Opening and Closing the Moonroof
*....... 115 Operating the Switches Around the Steering
Wheel
Ignition Switch.......................................... 116
ENGINE START/STOP Button ..................... 117
Ignition Switch and Power Mode Comparison ... 120Turn Signals .............................................. 121
Light Switches .......................................... 121
Fog Lights
*............................................... 124
Daytime Running Lights ............................ 125
Wipers and Washers ................................. 126
Brightness Control .................................... 128
Rear Defogger/Heated Door Mirror* Button ...... 129Adjusting the Steering Wheel ................... 130
Models without smart entry system
Models with smart entry system
Adjusting the Mirrors .................................131
Interior Rearview Mirror .............................131
Power Door Mirrors ...................................131
Adjusting the Seats .................................... 133
Adjusting the Seat Positi ons....................... 133
Rear Seats .................................................140
Interior Lights/Interior Convenience Items....... 144Interior Lights ............................................144
Interior Convenience Items ........................146
Heating and Cooling System
*....................154
Using Vents, Heating and A/C*.................154
Climate Control System*............................157
Using Automatic Climate Control ..............157
Automatic Climate Control Sensors ...........160
* Not available on all models
15 US FIT-31T5A6000.book 87 ページ ２０１４年３月６日　木曜日　午後７時５分

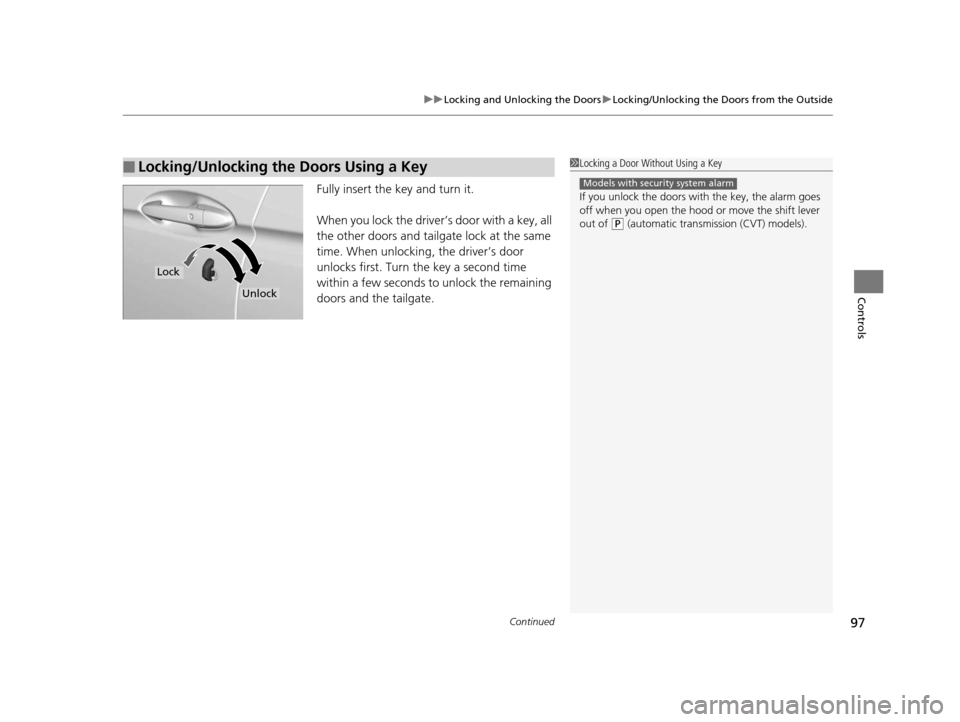

Continued97
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Fully insert the key and turn it.
When you lock the driver’s door with a key, all
the other doors and tailgate lock at the same
time. When unlocking, the driver’s door
unlocks first. Turn the key a second time
within a few seconds to unlock the remaining
doors and the tailgate.
■Locking/Unlocking the Doors Using a Key1Locking a Door Without Using a Key
If you unlock the doors with the key, the alarm goes
off when you open the hood or move the shift lever
out of
(P (automatic transmission (CVT) models).
Models with security system alarm
Lock
Unlock
15 US FIT-31T5A6000.book 97 ページ ２０１４年３月６日　木曜日　午後７時５分

110
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when inserti ng the key into the ignition switch or
pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ignition switch or the
ENGINE START/STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the ignition
switch.
Security System Alarm*
The security system alarm activates when the tailgate, hood or doors are forcibly
opened. The alarm does not go off if the tailgate or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm goes off when a door is opened with the key, then the shift
lever is moved out of
(P (automatic transmission (CVT) models) or the hood is
opened before the ignition switch is turned to ON
(w*1.
■When the security system alarm activates
The horn sounds intermittently and all of the exterior lights flash.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Immobilizer System
NOTICE
Leaving the ignition key in the vehicle can result in
theft or accidental move ment of the vehicle.
Always take the ignition key with you whenever you
leave the vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm*
The security alarm continues for a maximum of two
minutes until the security system deactivates.
* Not available on all models
15 US FIT-31T5A6000.book 110 ページ ２０１４年３月６日　木曜日　午後７時５分

Continued111
uuSecurity System uSecurity System Alarm*
Controls
■To deactivate the security system alarm
Unlock the vehicle using the remote transmi tter or smart entry remote, or turn the
ignition switch to ON
(w*1. The system, along with the horn and flashing lights, is
deactivated.
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The ignition switch is in LOCK
(0*1, and the key has been removed from the
ignition switch.
• The hood is closed.
• All doors and the tailgate are locked from outside with the key, remote
transmitter, or smart entry system.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 se conds, the security system alarm is set.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter or smart entry system, or th e ignition switch is turned to ON
(w*1. The
security system alarm indicato r goes off at the same time.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Security System Alarm*
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the hood with the hood release handle.
•Moving the shift lever out of ( P.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the ke y, remote transmitter,
or smart entry system.
Do not attempt to alter th is system or add another
device to it.
Automatic transmission (CVT) models
* Not available on all models
15 US FIT-31T5A6000.book 111 ページ ２０１４年３月６日　木曜日　午後７時５分

112
uuSecurity System uSecurity System Alarm*
Controls
■The panic button on the remote
transmitter
If you press the panic button for
approximately one seco nd, the following will
occur for about 30 seconds:
• The horn sounds.
• Some exterior lights flash.
■Canceling panic mode
Press any button on the remote transmitter, or turn the ignition switch to ON
(w*1.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Panic Mode
Panic Button
15 US FIT-31T5A6000.book 112 ページ ２０１４年３月６日　木曜日　午後７時５分

448
Index
Headlights................................................. 121
Aiming .................................................... 373
Dimming ......................................... 121, 125
Operating ................................................ 121
Heated Door Mirrors ................................ 129
Heating and Cooling System .................... 154
Cooling ................................................... 156
Defrosting the Windshield and
Windows ............................................... 156
Dust and Pollen Filter ............................... 397
Heating ................................................... 155
HFL (HandsFreeLink ®)............................... 248
High-Beam Indicator .................................. 77
I
Identification Numbers ............................ 434
Engine and Transmission.......................... 434
Vehicle Identification ............................... 434
Ignition Switch .......................................... 116
Illumination Control ................................. 128
Knob ....................................................... 128
Immobilizer System .................................. 110
Indicator .................................................... 78
Indicators ..................................................... 70
ABS (Anti-lock Brake System) ..................... 73
Brake System ............................................. 70
Charging System ............................... 71, 419
CRUISE CONTROL .............................. 79, 330
CRUISE MAIN .................................... 79, 329
Door and Tailgate Open....................... 31, 75 ECON Mode .............................................. 78
EPS (Electric Power Steering)
System ............................................ 75, 421
Fog Light ................................................... 77
High Temperature ..................................... 74
High-Beam ................................................ 77
Immobilizer System ................................... 78
Lights On .................................................. 77
Low Fuel ................................................... 73
Low Oil Pressure ................................ 71, 419
Low Temperature ...................................... 74
Low Tire Pressure .............................. 76, 336
Maintenance Minder
TM...................... 79, 357
Malfunction Indicator Lamp............... 71, 420
Parking Brake and Brake System ........ 70, 421
Seat Belt Reminder .............................. 33, 72
Security System Alarm ............................... 79
Shift Position ............................................. 72
Starter System ........................................... 77
Supplemental Restraint System ............ 51, 73
TPMS ........................................................ 76
Transmission ............................................. 72
Turn Signal ................................................ 77
VSA ® (Vehicle Stability Assist)
System ............................................ 74, 332
VSA ® OFF .......................................... 74, 333
Washer Level ............................................. 79
Information .............................................. 431
Information Display ................................... 83
Instrument Panel ........................................ 69
Brightness Control................................... 128 Interior Lights
........................................... 144
Interior Rearview Mirror ......................... 131
Internet Radio .................................. 208, 209
J
Jack (Wheel Nut Wrench) ................ 404, 408
Jump Starting ........................................... 414
K
Keyless Lockout Prevention ....................... 98
Keys ............................................................. 90
Lockout Prevention ................................... 98
Rear Door Won’t Open ........................... 102
Remote Transmitter .................................. 93
Types and Functions.................................. 90
Won’t Turn ............................................... 24
Kickdown (Automatic Transmission) ...... 318
15 US FIT-31T5A6000.book 448 ページ ２０１４年３月６日　木曜日　午後７時５分
