2015 HONDA CROSSTOUR seat memory

87
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock................................ 88
Locking and Unlocking the Doors Key Types and Functions .................... 91
Low Smart Entry Remote Signal Strength*.. 93Locking/Unlocking the Doors from the Outside ............................................ 94
Locking/Unlocking the Doors from the
Inside ............................................... 99
Childproof Door Locks ..................... 100
Auto Door Locking/Unlocking .......... 101
Opening and Closing the Tailgate ... 105
Security System ................................ 107
Immobilizer System .......................... 107
Security System Alarm ...................... 107
Opening and Closing the Windows ..... 110
Opening and Closing the Moonroof.. 113Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 114
ENGINE START/STOP Button*........... 115
Ignition Switch and Power Mode Comparison ................................... 118
Turn Signals ..................................... 119
Light Switches.................................. 119
Fog Lights ........................................ 122
Daytime Running Lights ................... 122
Wipers and Washers ........................ 123
Brightness Control ........................... 125
Rear Defogger/Heated Door Mirror Button.. 126Driving Position Memory System*.... 127 Adjusting the Steering Wheel .......... 129
Adjusting the Mirrors ....................... 130
Interior Rearview Mirror ................... 130
Power Door Mirrors ......................... 131
Adjusting the Seats .......................... 133
Adjusting the Seat Positions ............. 133
Interior Lights/Interior Convenience Items ................................................ 142
Interior Lights .................................. 142
Interior Convenience Items .............. 144
Heating and Cooling System
*......... 154
Using Vents, Heating and A/C.......... 154
Climate Control System
*.................. 157
Using Automatic Climate Control .... 157
Automatic Climate Control Sensors ... 162
* Not available on all models
15 CROSSTOUR-31TP66500.book 87 ページ ２０１４年７月３１日　木曜日　午後３時２３分

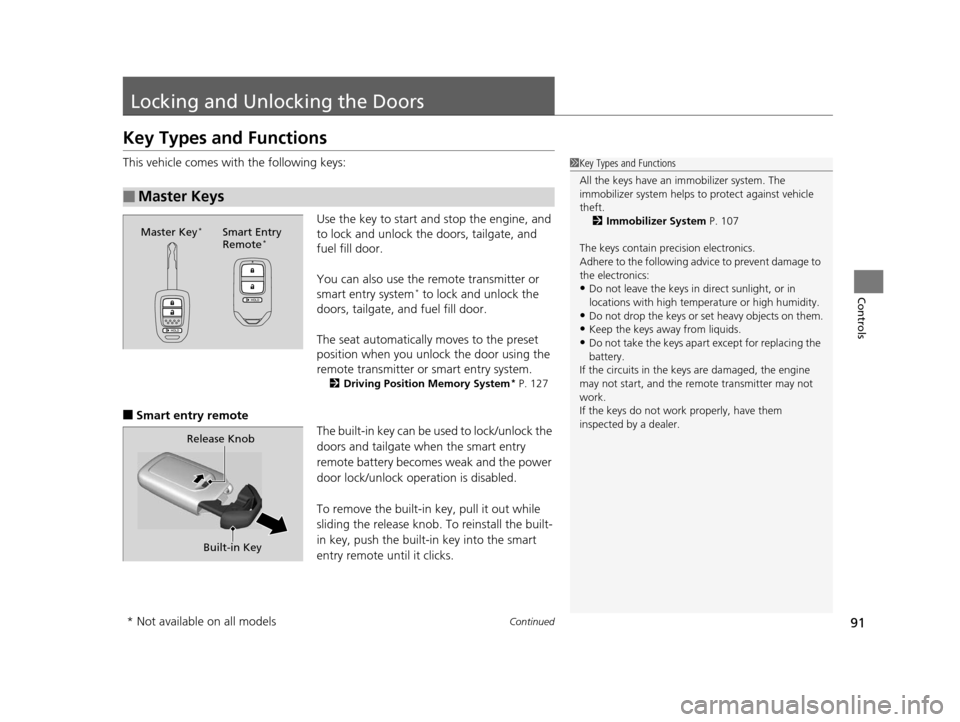

91Continued
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, and
to lock and unlock the doors, tailgate, and
fuel fill door.
You can also use the remote transmitter or
smart entry system
* to lock and unlock the
doors, tailgate, and fuel fill door.
The seat automatically moves to the preset
position when you unlock the door using the
remote transmitter or smart entry system.
2 Driving Position Memory System* P. 127
■Smart entry remote
The built-in key can be used to lock/unlock the
doors and tailgate when the smart entry
remote battery becomes weak and the power
door lock/unlock operation is disabled.
To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.
■Master Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 107
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
Master Key*Smart Entry
Remote*
Built-in Key
Release Knob
* Not available on all models
15 CROSSTOUR-31TP66500.book 91 ページ ２０１４年７月３１日　木曜日　午後３時２３分

127
uuOperating the Switches Around the Steering Wheel uDriving Position Memory System*
Continued
Controls
Driving Position Memory System*
You can store two driver’s seat and door mirror positions with the driving position
memory system.
When you unlock and open the driver’s door with a remote, the seat and door
mirrors adjust automatically to on e of the two preset positions.
Select either remote you use to unlock the vehicle when you enter.
• DRIVER 1 transmitter is linked to memory button 1.
• DRIVER 2 transmitter is linked to memory button 2.1Driving Position Memory System*
Using the audio/informati on screen, you can disable
the automatic seat adjustment function. 2 Customized Features
* P. 280
Models with audio/information screen
DRIVER 1
DRIVER 2Models with smart entry system
Models without smart entry system
* Not available on all models
15 CROSSTOUR-31TP66500.book 127 ページ ２０１４年７月３１日　木曜日　午後３時２３分

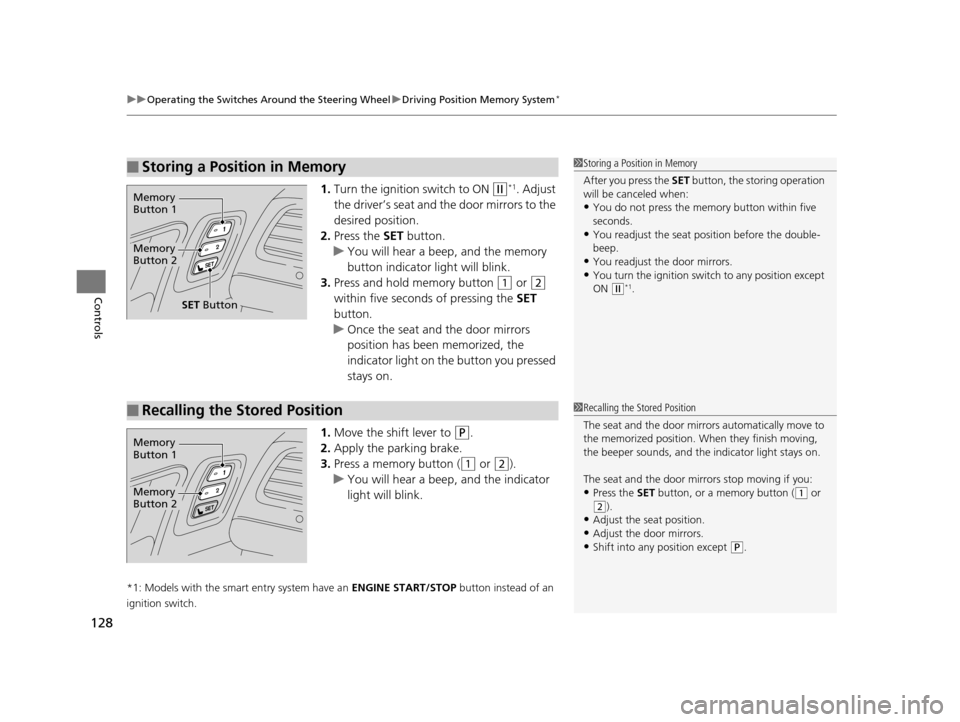

uuOperating the Switches Around the Steering Wheel uDriving Position Memory System*
128
Controls
1. Turn the ignition switch to ON (w*1. Adjust
the driver’s seat and th e door mirrors to the
desired position.
2. Press the SET button.
u You will hear a beep, and the memory
button indicator light will blink.
3. Press and hold memory button
(1 or (2
within five seconds of pressing the SET
button.
u Once the seat and the door mirrors
position has been memorized, the
indicator light on the button you pressed
stays on.
1. Move the shift lever to
(P.
2. Apply the parking brake.
3. Press a memory button (
(1 or (2).
u You will hear a beep, and the indicator
light will blink.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Storing a Position in Memory1 Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
•You do not press the memory button within five
seconds.
•You readjust the seat position before the double-
beep.
•You readjust the door mirrors.•You turn the ignition switch to any position except
ON
( w*1.
Memory
Button 1
Memory
Button 2
SET Button
■Recalling the Stored Position1 Recalling the Stored Position
The seat and the door mirrors automatically move to
the memorized position. Wh en they finish moving,
the beeper sounds, and the indicator light stays on.
The seat and the door mirrors stop moving if you:
•Press the SET button, or a memory button ((1 or
(2).
•Adjust the seat position.•Adjust the door mirrors.
•Shift into any position except ( P.
Memory
Button 1
Memory
Button 2
15 CROSSTOUR-31TP66500.book 128 ページ ２０１４年７月３１日　木曜日　午後３時２３分

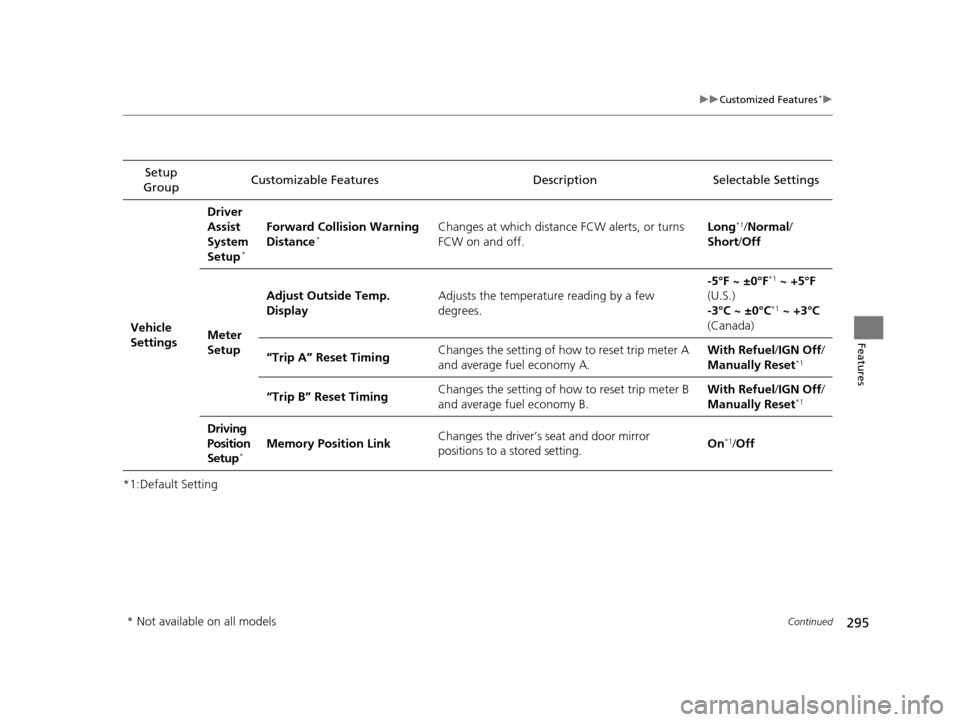

295
uuCustomized Features*u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
SettingsDriver
Assist
System
Setup
*
Forward Collision Warning
Distance*Changes at which distance FCW alerts, or turns
FCW on and off.
Long*1/
Normal /
Short /Off
Meter
Setup Adjust Outside Temp.
Display
Adjusts the temperature reading by a few
degrees. -5°F ~ ±0°F
*1
~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A
and average fuel economy A. With Refuel
/IGN Off /
Manually Reset
*1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B
and average fuel economy B. With Refuel
/IGN Off /
Manually Reset*1
Driving
Position
Setup
*Memory Position Link Changes the driver’s seat and door mirror
positions to a stored setting.
On*1/
Off
* Not available on all models
15 CROSSTOUR-31TP66500.book 295 ページ ２０１４年７月３１日　木曜日　午後３時２３分

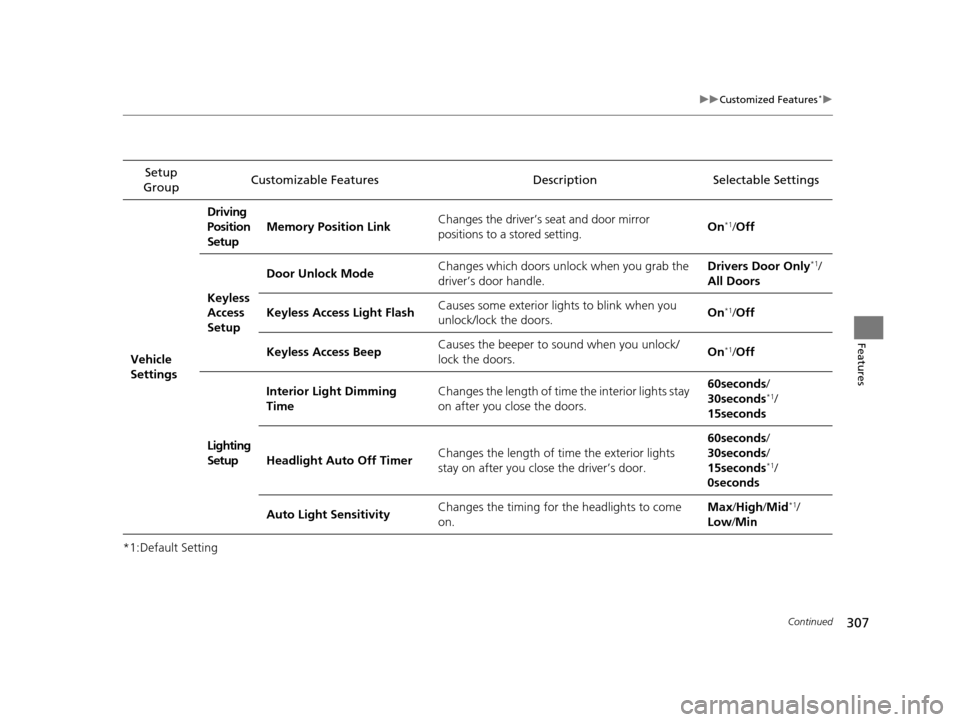

307
uuCustomized Features*u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings Driving
Position
Setup
Memory Position Link
Changes the driver’s seat and door mirror
positions to a stored setting. On
*1/
Off
Keyless
Access
Setup Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle. Drivers Door Only
*1/
All Doors
Keyless Access Light Flash Causes some exterior lights to blink when you
unlock/lock the doors. On
*1/
Off
Keyless Access Beep Causes the beeper to
sound when you unlock/
lock the doors. On
*1/
Off
Lighting
Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay
on after you close the doors. 60seconds
/
30seconds
*1/
15seconds
Headlight Auto Off Timer Changes the length of time the exterior lights
stay on after you close the driver’s door. 60seconds
/
30seconds /
15seconds
*1/
0seconds
Auto Light Sensitivity Changes the timing for the headlights to come
on. Max
/High /Mid
*1/
Low /Min
15 CROSSTOUR-31TP66500.book 307 ページ ２０１４年７月３１日　木曜日　午後３時２３分

539
uuFuses uFuse Locations
Continued
Handling the Unexpected
Locate the fuse in question by the fuse
number and label number.
Located under the dashboard.
Fuse locations are shown on the label under
the dashboard.
■Interior Fuse Box
Fuse Label
Fuse Box
Driver side
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the fuse box
cover.
Passenger side
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2Seat Memory*7.5 A
3Washer15 A
4Wiper10 A
5ODS7.5 A
6ABS/VSA7.5 A
7−−
8−−
9Fuel Pump20 A
10VB SOL 210 A
11Meter7.5 A
12ACG15 A
13SRS10 A
14−−
15Daytime Running Lights7.5 A
16A/C7.5 A
Driver side
* Not available on all models
15 CROSSTOUR-31TP66500.book 539 ページ ２０１４年７月３１日　木曜日　午後３時２３分

564
Index
Doors........................................................... 91
Auto Door Locking .................................. 101
Auto Door Unlocking ............................... 101
Door and Tailgate Open Indicator .............. 74
Door Open Indicator .................................. 31
Keys .......................................................... 91
Locking/Unlocking the Doors from the Inside ....................................................... 99
Locking/Unlocking the Doors from the Outside .................................................... 94
Lockout Prevention System ........................ 98
DOT Tire Quality Grading ........................ 500
Driver’s Seat Lumbar Support .................. 133
Driving ....................................................... 409
Automatic Transmission ........................... 425
Braking .................................................... 449
Cruise Control ......................................... 432
Shifting Gear ................................... 426, 428
Starting the Engine .......................... 420, 422
Driving Position Memory System ............. 127
Dust and Pollen Filter ............................... 509
E
Electric Power Steering (EPS) System
Indicator ............................................ 74, 536
Electronic Stability Control (ESC) ............. 442
Emergency ................................................. 542
Emissions Testing (Readiness Codes) ....... 553
Engine ....................................................... 550
Coolant ................................................... 478 Jump Starting .......................................... 528
Oil ........................................................... 472
Starting ........................................... 420, 422
Switch Buzzer.......................................... 114
Engine Coolant ......................................... 478
Adding to the Radiator ............................ 479
Adding to the Reserve Tank..................... 478
Overheating ............................................ 532
Temperature Gauge .................................. 83
Engine Oil ................................................. 472
Adding .................................................... 475
Checking................................................. 473
Displaying Oil Life .................................... 465
Low Oil Pressure Indicator ................. 70, 534
Recommended Engine Oil ....................... 472
ENGINE START/STOP Button .................... 115
EPS (Electric Power Steering)
System ............................................... 74, 536
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Exterior Care (Cleaning) ........................... 512
Exterior Mirrors ........................................ 131
F
Features.................................................... 163
Filters Dust and Pollen ....................................... 509
Oil ........................................................... 476
Flat Tire ..................................................... 517
Floor Mats ................................................. 511 Fluids
Automatic Transmission .......................... 480
Brake ...................................................... 481
Engine Coolant ....................................... 478
Windshield Washer ................................. 483
Fog Light Indicator .................................... 79
Folding Down the Rear Seats .................. 139
Foot Brake ................................................ 450
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 133
Adjusting ................................................ 133
Fuel ..................................................... 21, 456
Economy................................................. 459
Gauge ...................................................... 83
Low Fuel Indicator ..................................... 72
Recommendation.................................... 456
Refueling ................................................ 456
Fuel Economy ........................................... 459
Fuel Fill Cap ........................................ 21, 458
Message ................................................. 535
Fuel Fill Door ............................................ 457
Fuses ......................................................... 538
Inspecting and Changing ........................ 541
Locations ........................................ 538, 539
G
Gasoline (Fuel) Economy................................................. 459
Gauge ...................................................... 83
Information............................................. 456
15 CROSSTOUR-31TP66500.book 564 ページ ２０１４年７月３１日　木曜日　午後３時２３分
