2015 HONDA ACCORD HYBRID Owners Manual

72

73
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 74
Multi-Information Display Warning and Information Messages ...................... 86
Gauges and Multi-Information Display Gauges .............................................. 95
Multi-Information Display .................. 97

74Instrument Panel
IndicatorsIndicator
Name
On/Blinking
Explanation
Message
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off if the parking brake
has been released.●Comes on when the parking brake
is applied, and goes off when it is
released.●Comes on when the brake fluid
level is low.●Comes on if there is a problem
with the brake system.●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 536
●Comes on along with the brake
system indicator (amber) - Immediately
stop in a safe place. Contact a dealer for
repair. The brake pedal becomes harder
to operate. Depress the pedal further
than you normally do.●Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 536
Brake System
Indicator
(Amber)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.●Comes on if there is a problem
with the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
●Stays on constantly - Avoid high speeds
and sudden braking. Take the vehicle to a
dealer immediately.
U.S.Canada(Red)U.S.Canada(Amber)

75
uuIndicators u
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
POWER
SYSTEM
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.●Comes on if there is a problem
with the electric vehicle system.●Comes on when the High Voltage
battery temperature becomes high
while the battery is being charged.
●Have your vehicle checked by a dealer.
READY Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.●Comes on when the vehicle is
ready to drive.
2Turning on the Power P. 420
EV Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.●Comes on when the vehicle is
moved by the motor, and the
engine is not operating.
—
—
EV Mode
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.●Comes on when the vehicle is in EV
mode.
2 SPORT HYBRID i-MMD
(intelligent Multi Mode
Drive) P. 10
—

76
uuIndicators u
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Low Oil Pressure
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 534
Malfunction
Indicator Lamp
●Comes on when you set the power
mode to ON, and goes off either
when the power system is on or
after several seconds if the vehicle
did not start. If “readiness codes”
have not been set, it blinks five
times before it goes off.●Comes on if there is a problem
with the emissions control system.●Blinks when a misfire in the
engine's cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 549
●Comes on while driving - Have your
vehicle checked by a dealer.●Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the power system for 10
minutes or more, and wait for the engine
to cool down. Then, take the vehicle to a
dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 535
12-Volt Battery
Charging System
Indicator
●Comes on when you set the power
mode to ON, and goes off when
the power system is on.●Comes on when the 12-volt
battery is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption.
2 If the 12-Volt Battery Charging
System Indicator Comes On P. 534

77
uuIndicators u
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Shift Lever
Position Indicator
●Indicates the current shift lever
position.
2Shifting P. 424
—
Transmission
Indicator
●Blinks if the transmission system
has a problem.
●Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer immediately.
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you set the power mode to
ON.●If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.●Blinks while driving if either you or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.●Stays on after you or the front
passenger has fastened the seat belt
- A detection error may have occurred in
the sensor. Have your vehicle checked by
a dealer.
2 Seat Belt Reminder P. 39

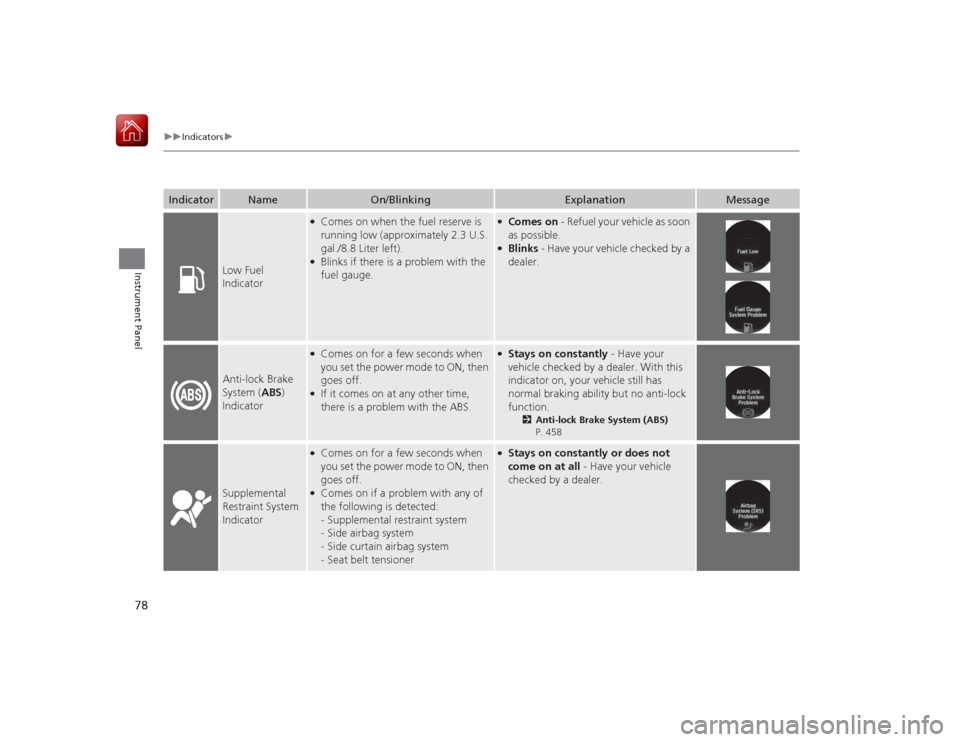

78
uuIndicators u
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 2.3 U.S.
gal./8.8 Liter left).●Blinks if there is a problem with the
fuel gauge.
●Comes on - Refuel your vehicle as soon
as possible.●Blinks - Have your vehicle checked by a
dealer.
Anti-lock Brake
System ( ABS)
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have your
vehicle checked by a dealer. With this
indicator on, your vehicle still has
normal braking ability but no anti-lock
function.
2 Anti-lock Brake System (ABS)
P. 458
Supplemental
Restraint System
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●Stays on constantly or does not
come on at all - Have your vehicle
checked by a dealer.

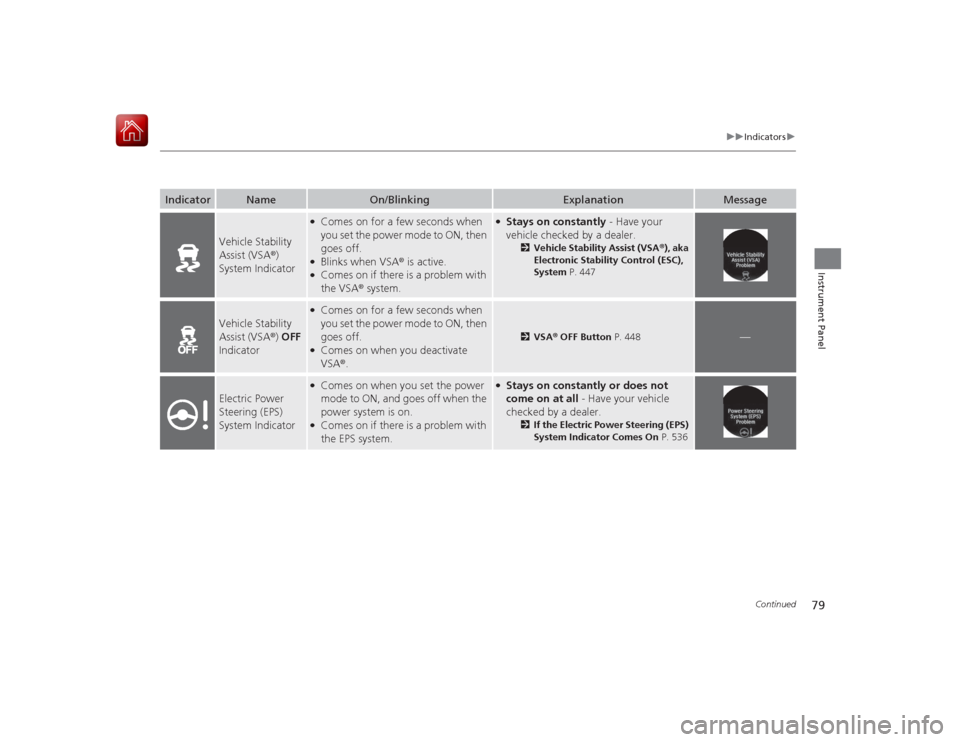

79
uuIndicators u
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Vehicle Stability
Assist (VSA ®)
System Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Blinks when VSA ® is active.●Comes on if there is a problem with
the VSA® system.
●Stays on constantly - Have your
vehicle checked by a dealer.
2 Vehicle Stability Assist (VSA ®), aka
Electronic Stability Control (ESC),
System P. 447
Vehicle Stability
Assist (VSA®) OFF
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on when you deactivate
VSA ®.
2VSA ® OFF Button P. 448
—
Electric Power
Steering (EPS)
System Indicator
●Comes on when you set the power
mode to ON, and goes off when the
power system is on.●Comes on if there is a problem with
the EPS system.
●Stays on constantly or does not
come on at all - Have your vehicle
checked by a dealer.
2If the Electric Power Steering (EPS)
System Indicator Comes On P. 536
