2015 FORD POLICE INTERCEPTOR SEDAN Owners Manual

TECHNICAL SPECIFICATIONS
Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
Brake fluid
1
Between MIN and
MAX on reservoirMotorcraft DOT 4 Low
Viscosity High
Performance Motor
Vehicle Brake FluidPM-20 / WSS-M6C65-A2
Door latch, hood
latch, auxiliary hood
latch, seat tracks,
trunk and liftgate
latches—Motorcraft Multi-Purpose
Grease SprayXL-5 /
ESB-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Automatic
transmission fluid
2,3
6F35 transmission
9.0 qt (8.5L)
Motorcraft
MERCON LVXT-10-QLVC (U.S.);
CXT-10-LV12 (Canada) /
MERCON LV 6F50 transmission
10.9 qt (10.3L)
6F55 transmission
11.6 qt (11.0L)
Rear differential
fluid2.4 pt (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
296Capacities and Specifications
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
Sedan and Utility
Power Transfer Unit
fluid
(All Wheel Drive)
4
18 oz (0.53L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
2.0L EcoBoost
engine oil
5, 6, 7
5.7 qt (5.4L)Motorcraft SAE 5W-30
Premium Synthetic Blend
Motor Oil or Motorcraft
SAE 5W-30 Full Synthetic
Motor OilXO-5W30–QSP or
XO-5W30–QFS (U.S.) /
WSS-M2C946–A
CXO-5W30–LSP12 or
CXO-5W30–LFS12
(Canada) /
WSS-M2C946–A
3.5L V6
engine oil
5, 6, 7
6.0 qt (5.7L)
Motorcraft SAE 5W-20
Premium Synthetic Blend
Motor Oil or Motorcraft
SAE 5W-20 Full Synthetic
Motor OilXO-5W20–QSP or
XO-5W20–QFS (U.S.) /
WSS-M2C945–A
3.7L V6
engine oil
5, 6, 7
6.0 qt (5.7L)CXO-5W20–LSP12 or
CXO-5W20–LFS12
(Canada) /
WSS-M2C945–A
Capacities and Specifications297
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification

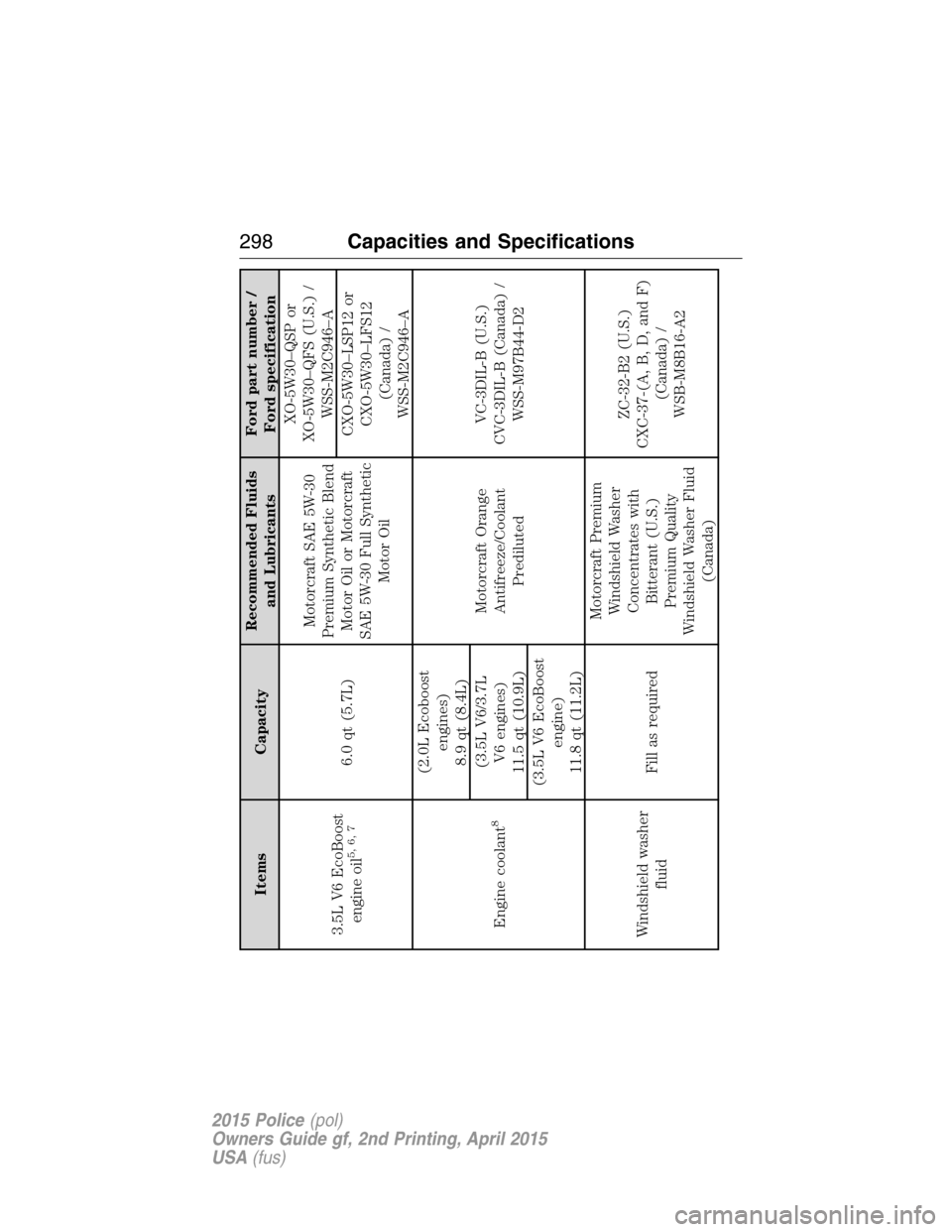

3.5L V6 EcoBoost
engine oil
5, 6, 7
6.0 qt (5.7L)Motorcraft SAE 5W-30
Premium Synthetic Blend
Motor Oil or Motorcraft
SAE 5W-30 Full Synthetic
Motor OilXO-5W30–QSP or
XO-5W30–QFS (U.S.) /
WSS-M2C946–A
CXO-5W30–LSP12 or
CXO-5W30–LFS12
(Canada) /
WSS-M2C946–A
Engine coolant
8
(2.0L Ecoboost
engines)
8.9 qt (8.4L)
Motorcraft Orange
Antifreeze/Coolant
PredilutedVC-3DIL-B (U.S.)
CVC-3DIL-B (Canada) /
WSS-M97B44-D2 (3.5L V6/3.7L
V6 engines)
11.5 qt (10.9L)
(3.5L V6 EcoBoost
engine)
11.8 qt (11.2L)
Windshield washer
fluidFill as requiredMotorcraft Premium
Windshield Washer
Concentrates with
Bitterant (U.S.)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-B2 (U.S.)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2
298Capacities and Specifications
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
Fuel tankSedan
19.0 gal (72L)
Utility
18.6 gal (70L)——
Sedan
A/C refrigerant
(Without auxiliary
A/C)
9
2.0L/3.5L GTDI:
1.63 lb (0.74 kg)
Motorcraft R-134a
RefrigerantYN-19 (U.S.)
CYN-16-R (Canada) /
WSH-M17B19-A 3.5L/3.7L TiVCT
1.81 lb (0.82 kg)
Utility
A/C refrigerant
(Without auxiliary
A/C)
9
3.7L TiVCT:
1.63 lb (0.74 kg)
Motorcraft R-134a
RefrigerantYN-19 (U.S.)
CYN-16-R (Canada) /
WSH-M17B19-A 3.5L GTDI:
2.1 lb (0.95 kg)
Utility
A/C refrigerant
(With auxiliary
A/C)
9
3.7L TiVCT:
2.31 lb (1.04 kg)
Motorcraft R-134a
RefrigerantYN-19 (U.S.);
CYN-16-R (Canada) /
WSH-M17B19-A 3.5L GTDI
2.94 lb (1.33 kg)
Capacities and Specifications299
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification
Sedan
A/C compressor oil
(Without auxiliary
A/C)2.0L/3.5L GTDI and
3.5L/3.7L TiVCT
5.24 fl oz (155 ml)
Motorcraft PAG
Refrigerant Compressor
OilYN-12-D /
WSH-M1C231-B Utility
A/C compressor oil
(Without auxiliary
A/C)3.7L TiVCT:
5.24 fl oz (155 ml)
3.5L GTDI
5.58 fl oz (165 ml)
Utility
A/C compressor oil
(With auxiliary A/C)3.7L TiVCT:
7.9 fl oz (235 ml)
3.5L GTDI
7.27 fl oz (215 ml)
1Ford recommends using Motorcraft (Ford) DOT 4 Low Viscosity High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may
cause degraded brake performance and not meet the Ford performance standards. Keep brake
fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may
result in brake system damage and possible failure.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.4See your authorized dealer for fluid level checking or filling.
300Capacities and Specifications
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

Items CapacityRecommended Fluids
and LubricantsFord part number /
Ford specification

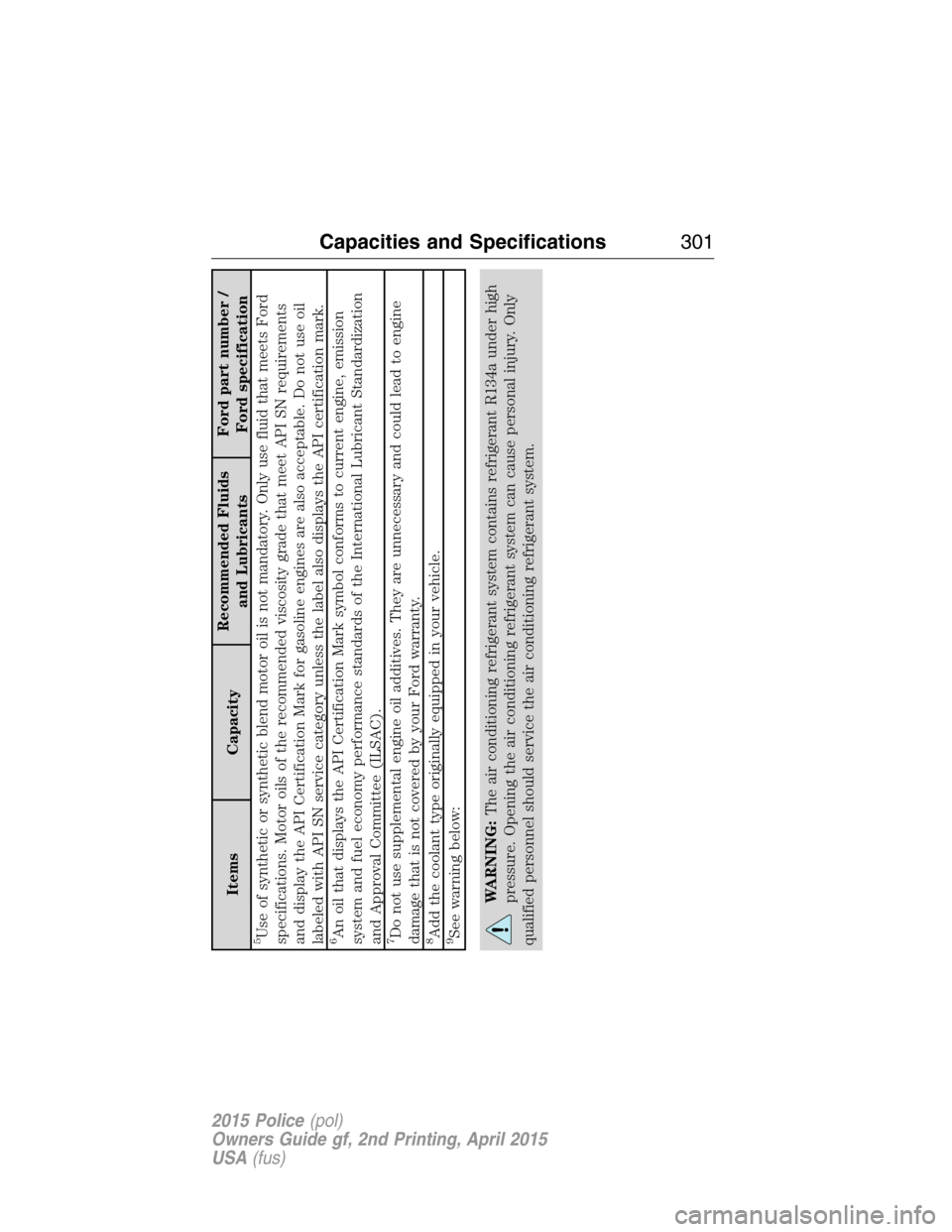

5Use of synthetic or synthetic blend motor oil is not mandatory. Only use fluid that meets Ford
specifications. Motor oils of the recommended viscosity grade that meet API SN requirements
and display the API Certification Mark for gasoline engines are also acceptable. Do not use oil
labeled with API SN service category unless the label also displays the API certification mark.6An oil that displays the API Certification Mark symbol conforms to current engine, emission
system and fuel economy performance standards of the International Lubricant Standardization
and Approval Committee (ILSAC).7Do not use supplemental engine oil additives. They are unnecessary and could lead to engine
damage that is not covered by your Ford warranty.8Add the coolant type originally equipped in your vehicle.9See warning below:
WARNING:The air conditioning refrigerant system contains refrigerant R134a under high
pressure. Opening the air conditioning refrigerant system can cause personal injury. Only
qualified personnel should service the air conditioning refrigerant system.
Capacities and Specifications301
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

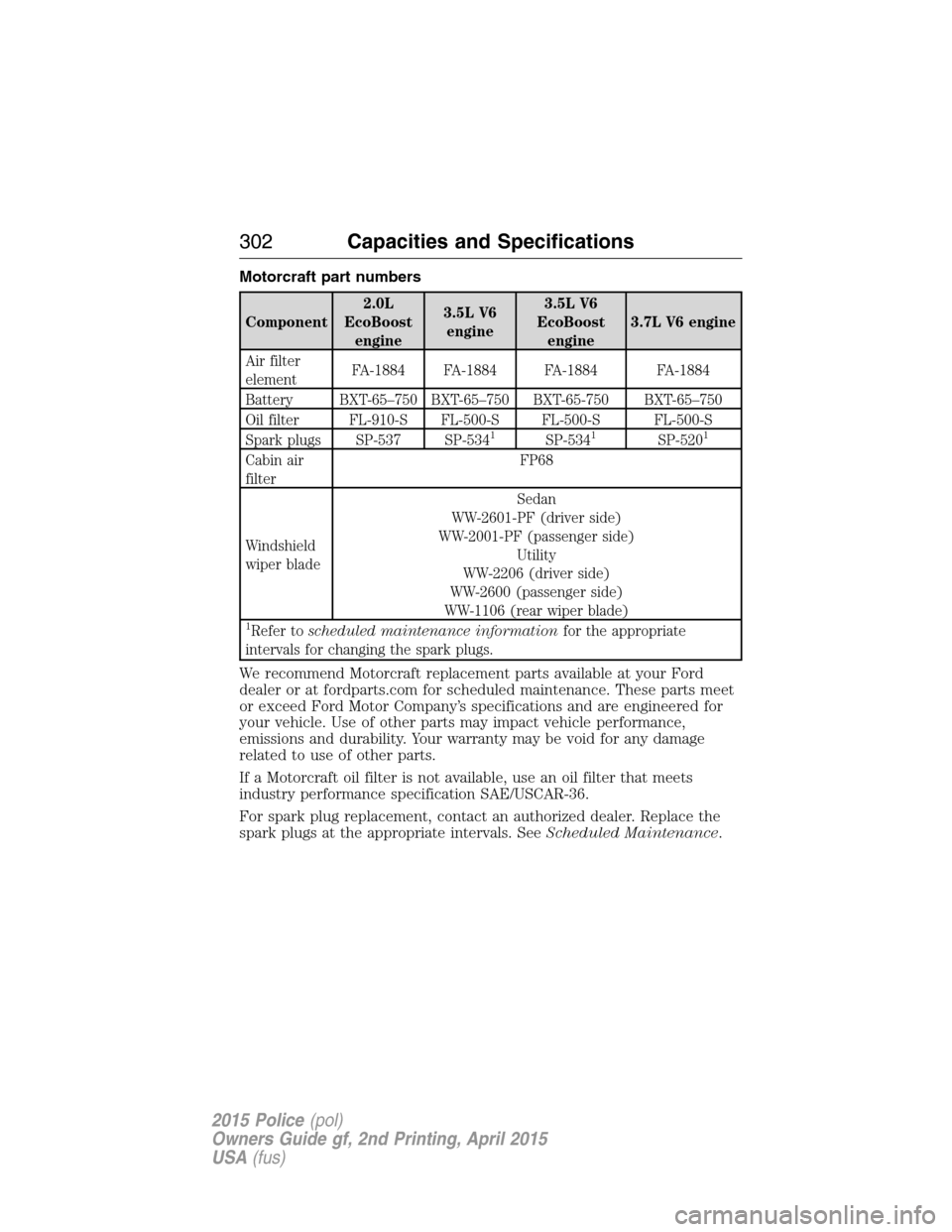

Motorcraft part numbers
Component2.0L
EcoBoost
engine3.5L V6
engine3.5L V6
EcoBoost
engine3.7L V6 engine
Air filter
elementFA-1884 FA-1884 FA-1884 FA-1884
Battery BXT-65–750 BXT-65–750 BXT-65-750 BXT-65–750
Oil filter FL-910-S FL-500-S FL-500-S FL-500-S
Spark plugs SP-537 SP-534
1SP-5341SP-5201
Cabin air
filterFP68
Windshield
wiper bladeSedan
WW-2601-PF (driver side)
WW-2001-PF (passenger side)
Utility
WW-2206 (driver side)
WW-2600 (passenger side)
WW-1106 (rear wiper blade)
1Refer toscheduled maintenance informationfor the appropriate
intervals for changing the spark plugs.
We recommend Motorcraft replacement parts available at your Ford
dealer or at fordparts.com for scheduled maintenance. These parts meet
or exceed Ford Motor Company’s specifications and are engineered for
your vehicle. Use of other parts may impact vehicle performance,
emissions and durability. Your warranty may be void for any damage
related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets
industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the
spark plugs at the appropriate intervals. SeeScheduled Maintenance.
302Capacities and Specifications
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number.
XXXXXXXXXXXXXXXXX
