2015 FORD POLICE INTERCEPTOR SEDAN Owners Manual

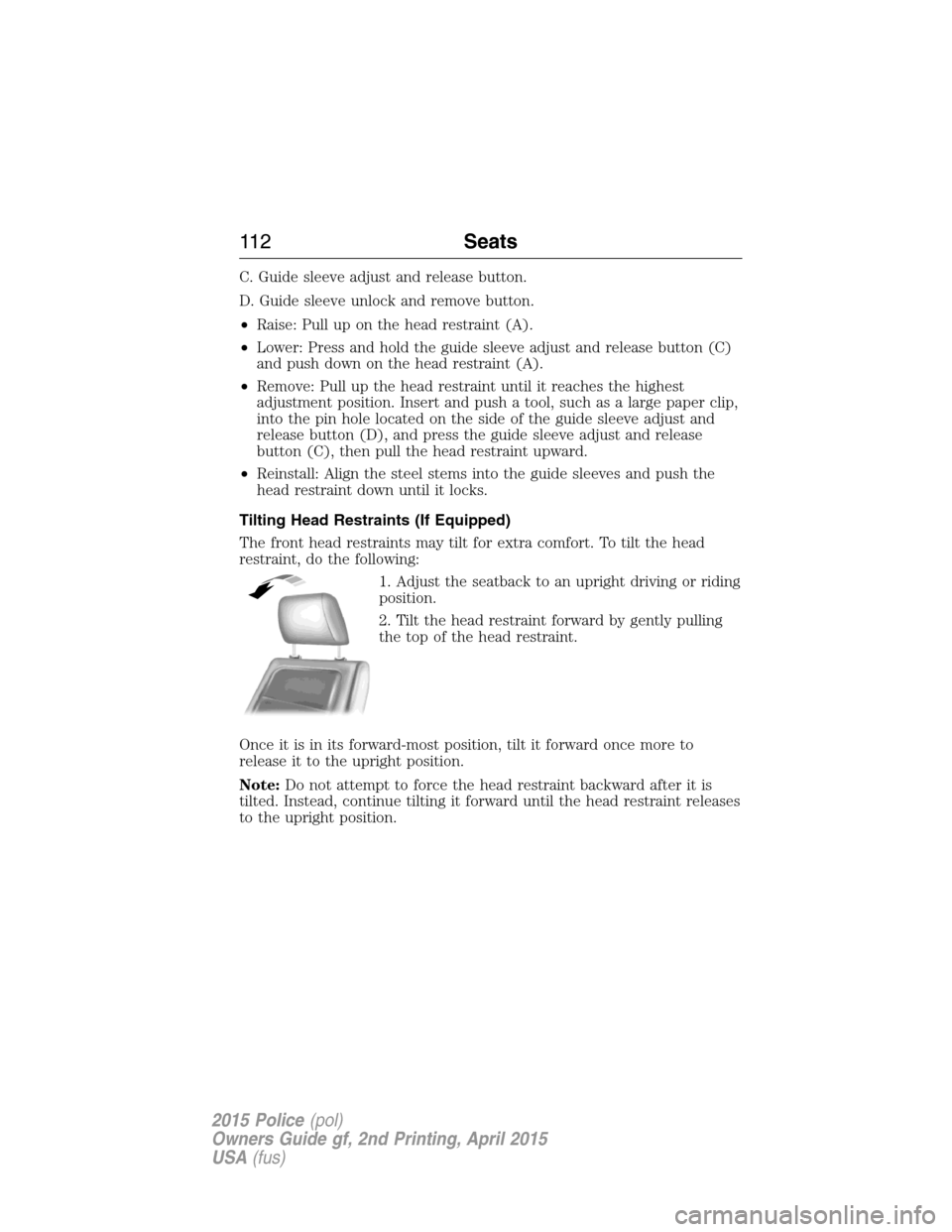

C. Guide sleeve adjust and release button.
D. Guide sleeve unlock and remove button.
•Raise: Pull up on the head restraint (A).
•Lower: Press and hold the guide sleeve adjust and release button (C)
and push down on the head restraint (A).
•Remove: Pull up the head restraint until it reaches the highest
adjustment position. Insert and push a tool, such as a large paper clip,
into the pin hole located on the side of the guide sleeve adjust and
release button (D), and press the guide sleeve adjust and release
button (C), then pull the head restraint upward.
•Reinstall: Align the steel stems into the guide sleeves and push the
head restraint down until it locks.
Tilting Head Restraints (If Equipped)
The front head restraints may tilt for extra comfort. To tilt the head
restraint, do the following:
1. Adjust the seatback to an upright driving or riding
position.
2. Tilt the head restraint forward by gently pulling
the top of the head restraint.
Once it is in its forward-most position, tilt it forward once more to
release it to the upright position.
Note:Do not attempt to force the head restraint backward after it is
tilted. Instead, continue tilting it forward until the head restraint releases
to the upright position.
11 2Seats
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

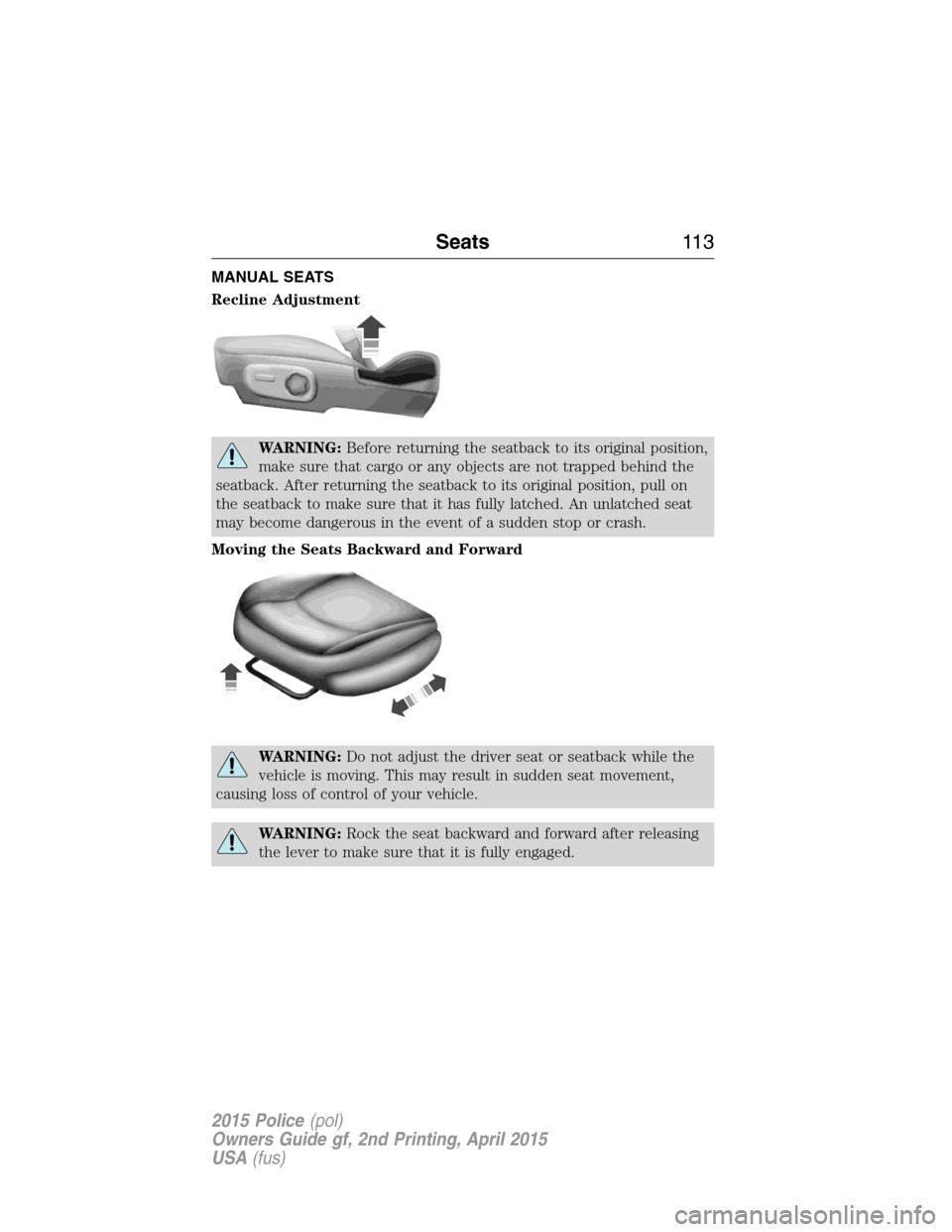

MANUAL SEATS
Recline Adjustment
WARNING:Before returning the seatback to its original position,
make sure that cargo or any objects are not trapped behind the
seatback. After returning the seatback to its original position, pull on
the seatback to make sure that it has fully latched. An unlatched seat
may become dangerous in the event of a sudden stop or crash.
Moving the Seats Backward and Forward
WARNING:Do not adjust the driver seat or seatback while the
vehicle is moving. This may result in sudden seat movement,
causing loss of control of your vehicle.
WARNING:Rock the seat backward and forward after releasing
the lever to make sure that it is fully engaged.
Seats11 3
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

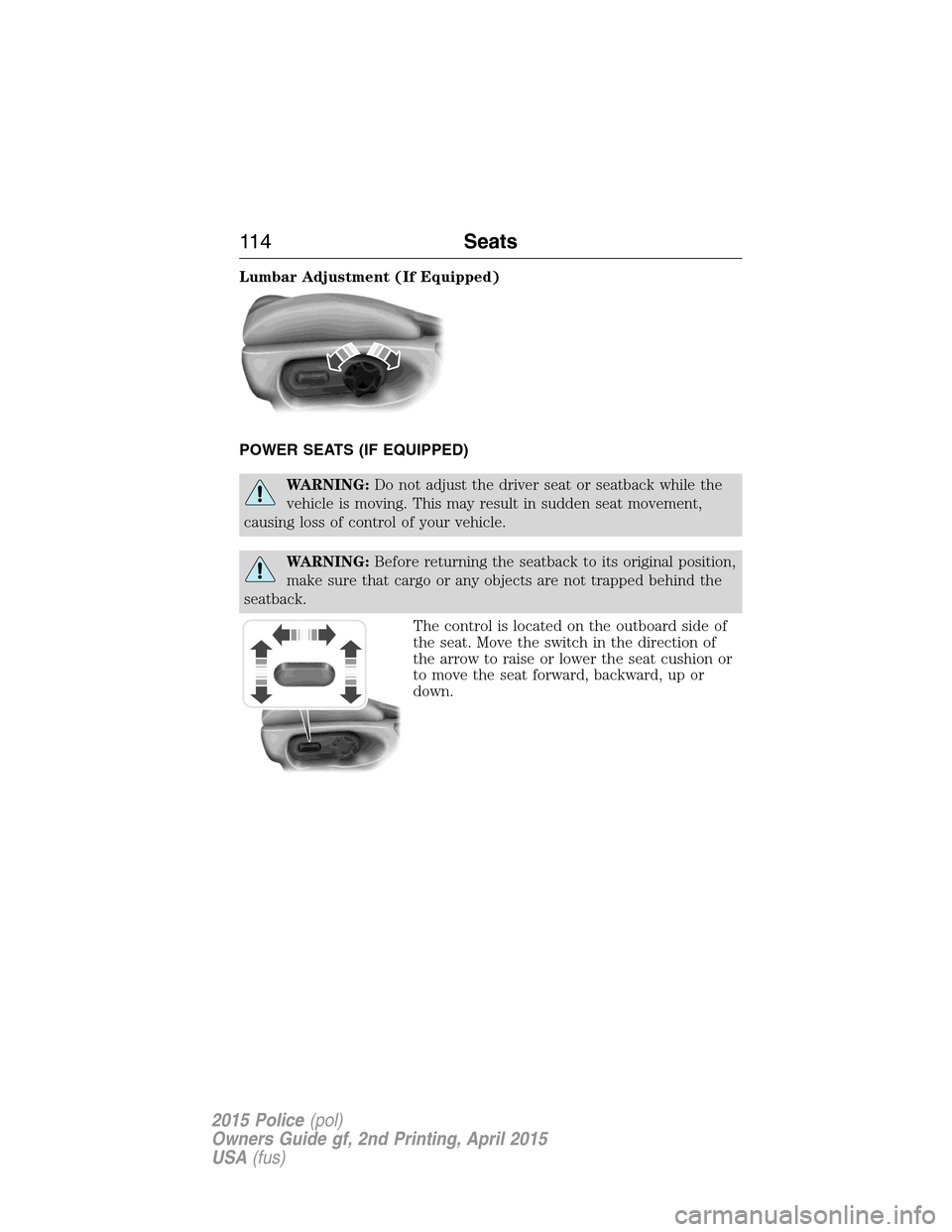

Lumbar Adjustment (If Equipped)
POWER SEATS (IF EQUIPPED)
WARNING:Do not adjust the driver seat or seatback while the
vehicle is moving. This may result in sudden seat movement,
causing loss of control of your vehicle.
WARNING:Before returning the seatback to its original position,
make sure that cargo or any objects are not trapped behind the
seatback.
The control is located on the outboard side of
the seat. Move the switch in the direction of
the arrow to raise or lower the seat cushion or
to move the seat forward, backward, up or
down.
11 4Seats
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

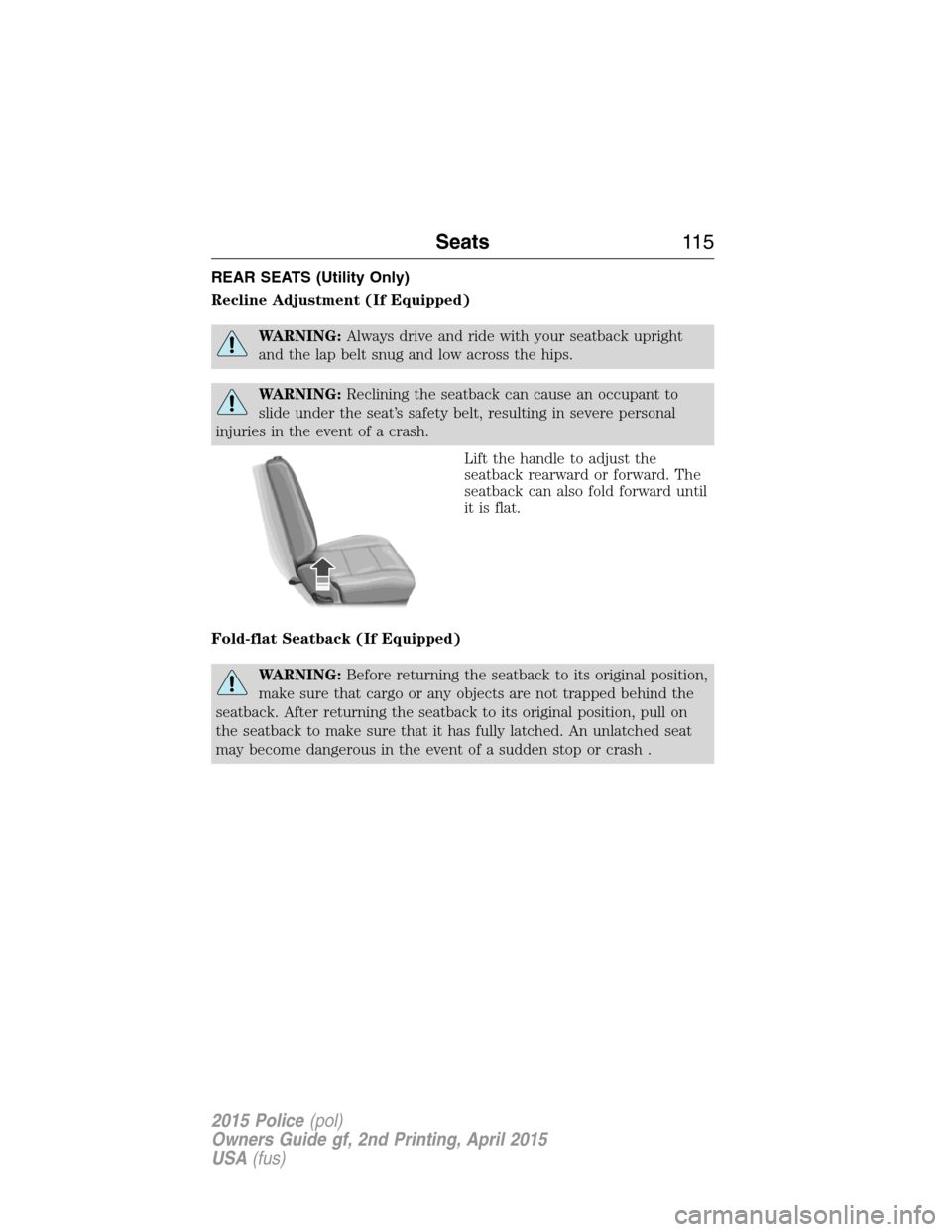

REAR SEATS (Utility Only)
Recline Adjustment (If Equipped)
WARNING:Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a crash.
Lift the handle to adjust the
seatback rearward or forward. The
seatback can also fold forward until
it is flat.
Fold-flat Seatback (If Equipped)
WARNING:Before returning the seatback to its original position,
make sure that cargo or any objects are not trapped behind the
seatback. After returning the seatback to its original position, pull on
the seatback to make sure that it has fully latched. An unlatched seat
may become dangerous in the event of a sudden stop or crash .
Seats11 5
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

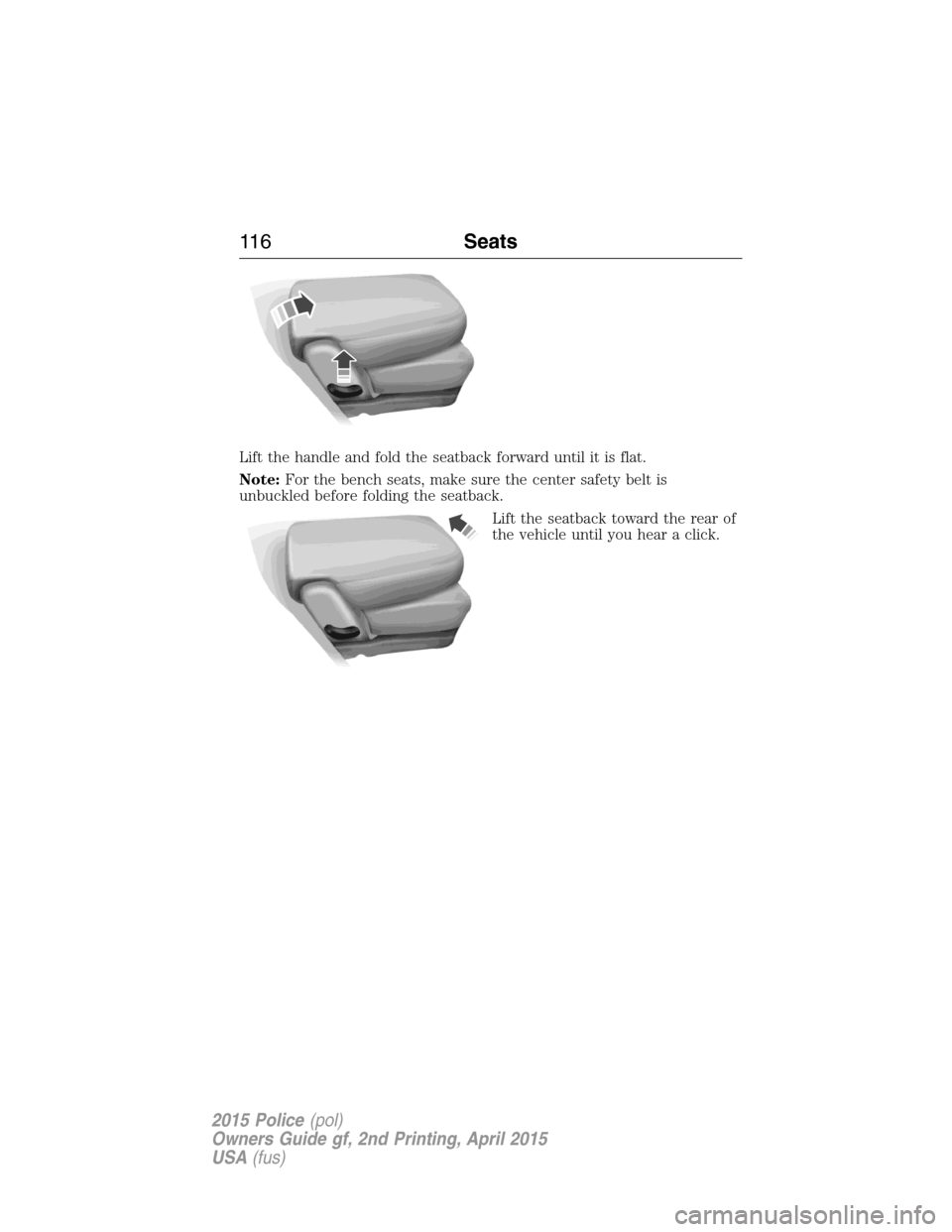

Lift the handle and fold the seatback forward until it is flat.
Note:For the bench seats, make sure the center safety belt is
unbuckled before folding the seatback.
Lift the seatback toward the rear of
the vehicle until you hear a click.
11 6Seats
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

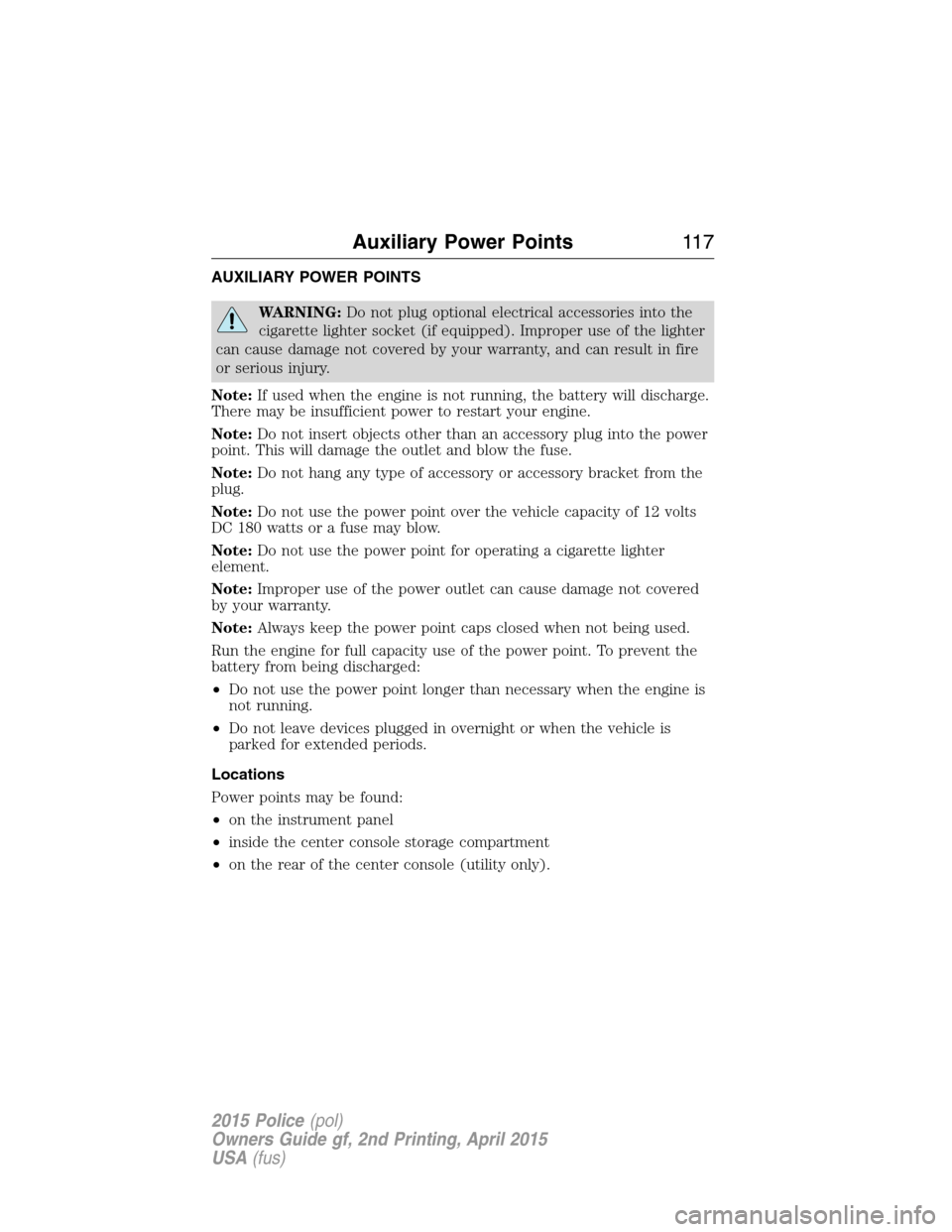

AUXILIARY POWER POINTS
WARNING:Do not plug optional electrical accessories into the
cigarette lighter socket (if equipped). Improper use of the lighter
can cause damage not covered by your warranty, and can result in fire
or serious injury.
Note:If used when the engine is not running, the battery will discharge.
There may be insufficient power to restart your engine.
Note:Do not insert objects other than an accessory plug into the power
point. This will damage the outlet and blow the fuse.
Note:Do not hang any type of accessory or accessory bracket from the
plug.
Note:Do not use the power point over the vehicle capacity of 12 volts
DC 180 watts or a fuse may blow.
Note:Do not use the power point for operating a cigarette lighter
element.
Note:Improper use of the power outlet can cause damage not covered
by your warranty.
Note:Always keep the power point caps closed when not being used.
Run the engine for full capacity use of the power point. To prevent the
battery from being discharged:
•Do not use the power point longer than necessary when the engine is
not running.
•Do not leave devices plugged in overnight or when the vehicle is
parked for extended periods.
Locations
Power points may be found:
•on the instrument panel
•inside the center console storage compartment
•on the rear of the center console (utility only).
Auxiliary Power Points11 7
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

CENTER CONSOLE (IF EQUIPPED)
Stow items in the cupholder carefully as items may become loose during
hard braking, acceleration or collisions, including hot drinks which may
spill.
Available console features include:
Sedan
A. Cupholders.
B. Utility compartment.
Utility
Available console features include:
A. Cupholders.
B. Utility storage compartment with
powerpoint.
C. Auxiliary AV connections, USB
ports and powerpoint.
Console Mounting Plates (If Equipped)
The mounting plates should only be removed and replaced during the
upfitting process. They should not be removed permanently.
Universal Top Tray
The trim on the top of the instrument panel can be removed to aid in
upfitting aftermarket accessories or mounting equipment.
B
C
A
11 8Storage Compartments
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)

OVERHEAD CONSOLE
The appearance of the overhead console will vary according to your
option package.
Press near the rear edge of the door
to open it.
Storage Compartments11 9
2015 Police(pol)
Owners Guide gf, 2nd Printing, April 2015
USA(fus)
