2015 FORD MUSTANG Owners Manual

Front Exterior Overview
See Locking and Unlocking (page 56).
A
See
Driving Aids (page 159).
B
See
Changing the Wiper Blades (page 222).
C
See
Maintenance (page 210).
D
See
Changing a Bulb (page 224).
E
Tire pressures. See
Technical Specifications (page 266).
F
See
Changing a Road Wheel (page 260).
G
14
Mustang (), enUSA, First Printing At a GlanceE177478

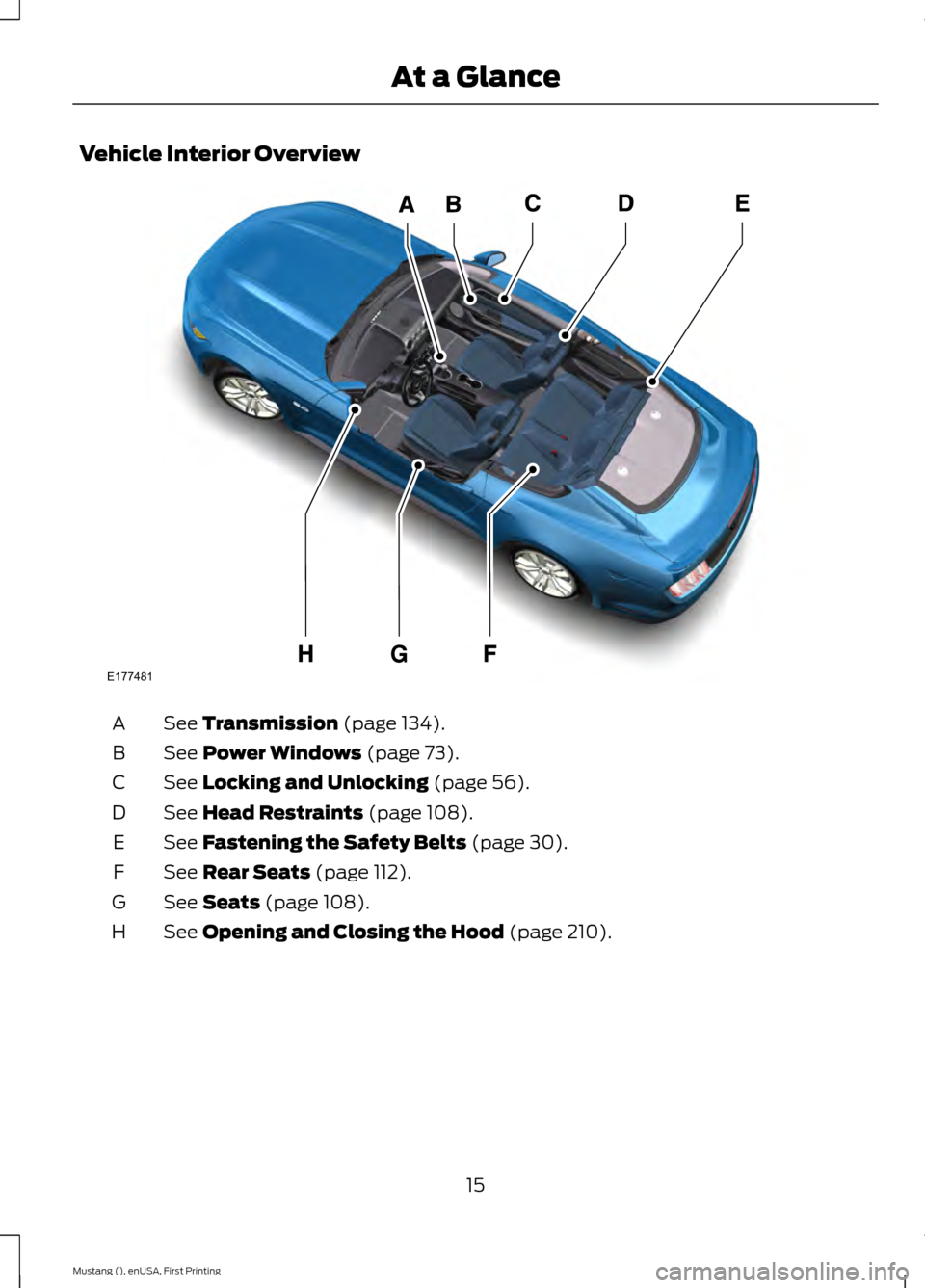

Vehicle Interior Overview
See Transmission (page 134).
A
See
Power Windows (page 73).
B
See
Locking and Unlocking (page 56).
C
See
Head Restraints (page 108).
D
See
Fastening the Safety Belts (page 30).
E
See
Rear Seats (page 112).
F
See
Seats (page 108).
G
See
Opening and Closing the Hood (page 210).
H
15
Mustang (), enUSA, First Printing At a GlanceE177481

Instrument Panel Overview
Air vents. See Hints on Controlling the Interior Climate (page 104).
A
Direction indicators. See
Direction Indicators (page 71).
B
Instrument cluster and information displays. See
Instrument Cluster (page
77). See Information Displays (page 83).
C
Wiper lever. See
Wipers and Washers (page 66).
D
Information and entertainment display. See
MyFord Touch ™ (page 334).
E
Audio unit. See
Audio System (page 283).
F
Steering. See
Drive Control (page 166).
G
Climate control.
See Climate Control (page 101).
H
Climate controlled seats. See
Climate Controlled Seats (page 113).
I
Hazard warning flasher switch. See
Hazard Warning Flashers (page 192).
J
Start-stop button. See
Keyless Starting (page 121).
K
Audio control. See
Audio Control (page 64).
L
Steering wheel adjustment. See
Adjusting the Steering Wheel (page 64).
M
16
Mustang (), enUSA, First Printing At a GlanceE177480

Horn.
N
Cruise control. See Cruise Control (page 152).
O
Information display controls. See
Information Display Control (page 65).
P
Luggage compartment switch. See Interior Luggage Compartment Release
(page
60).
Q
Lighting control. See
Lighting Control (page 68).
R

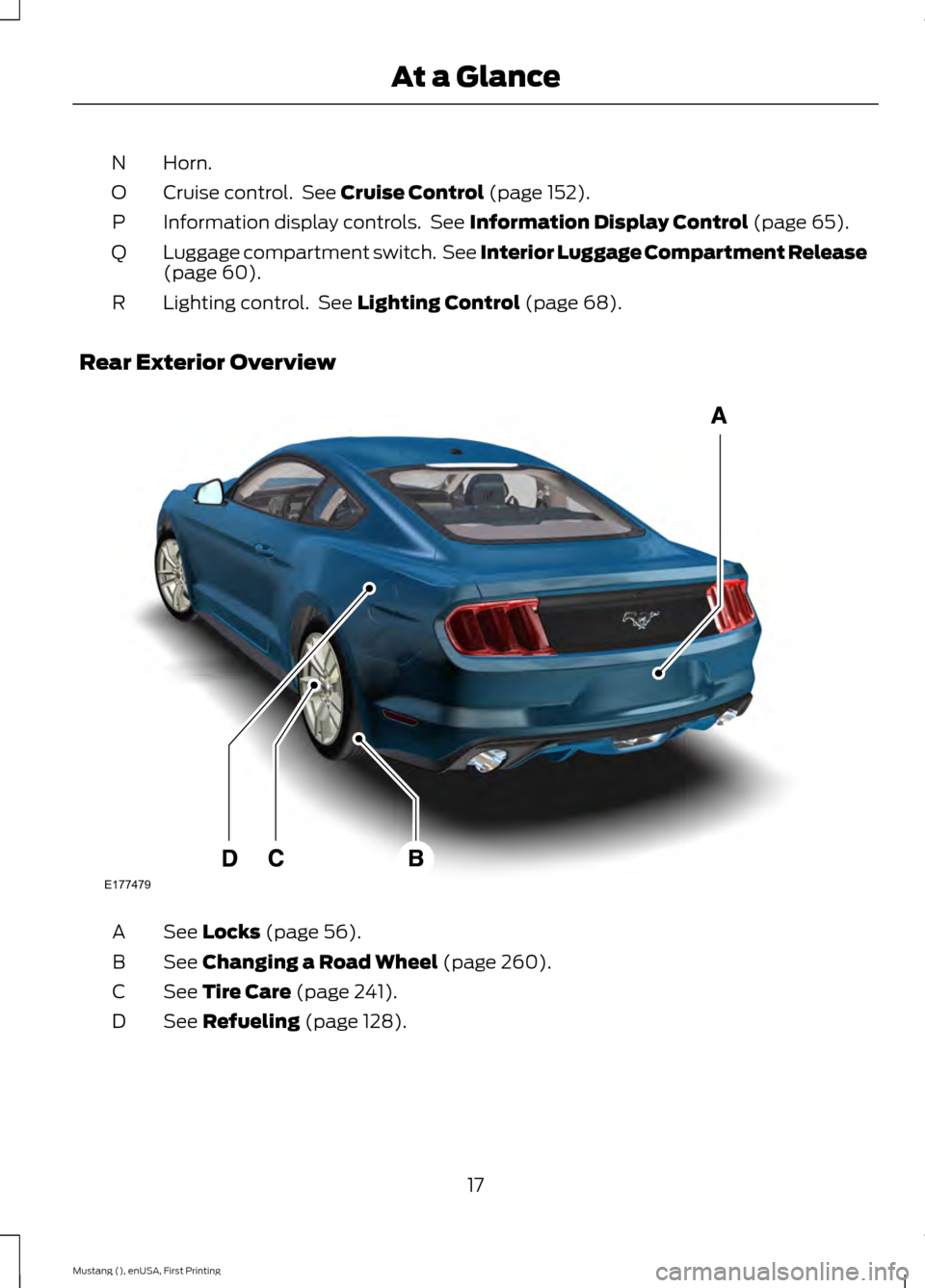

Rear Exterior Overview See
Locks (page 56).
A
See
Changing a Road Wheel (page 260).
B
See
Tire Care (page 241).
C
See
Refueling (page 128).
D
17
Mustang (), enUSA, First Printing At a GlanceE177479

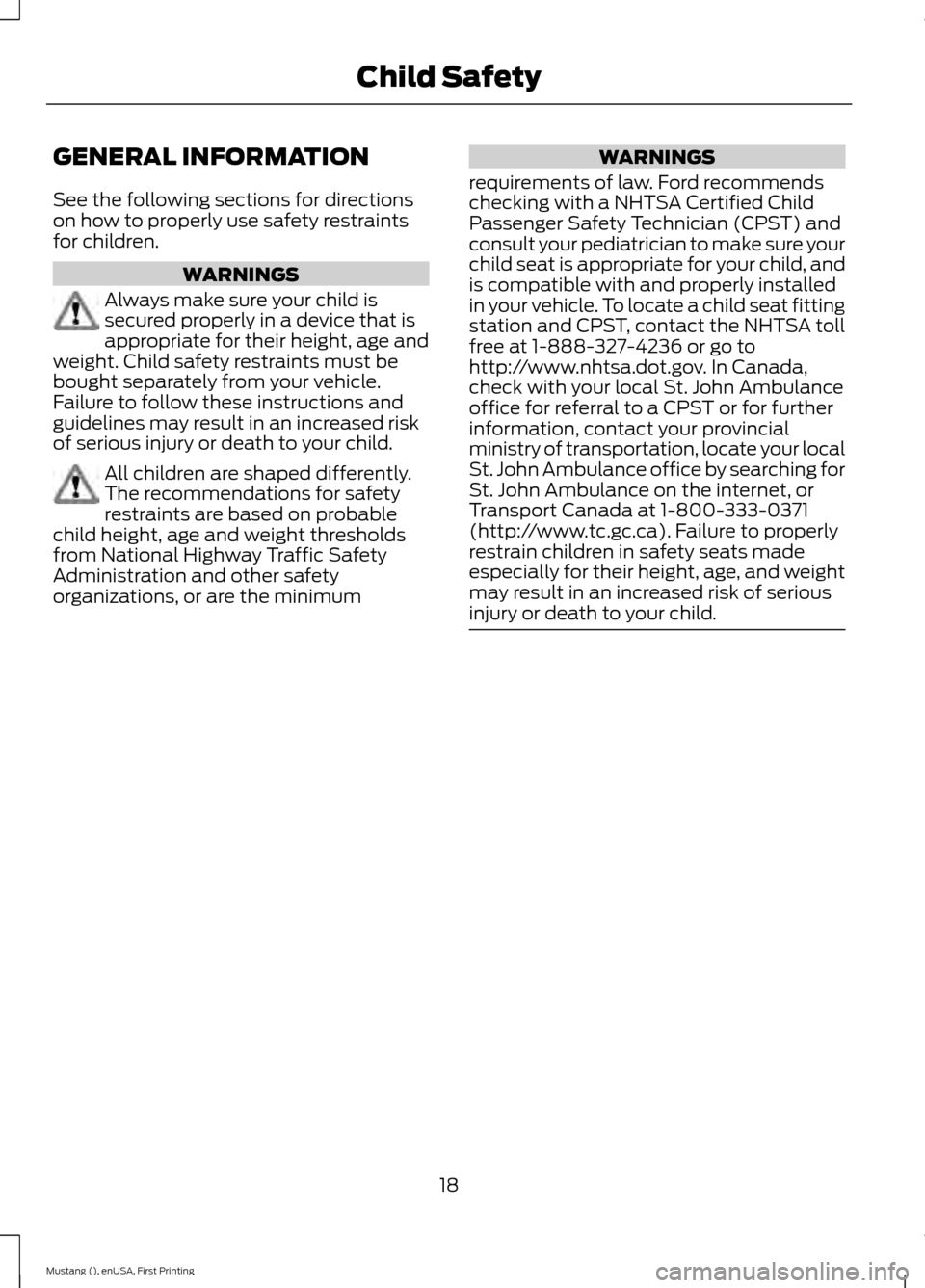

GENERAL INFORMATION
See the following sections for directions
on how to properly use safety restraints
for children.
WARNINGS
Always make sure your child is
secured properly in a device that is
appropriate for their height, age and
weight. Child safety restraints must be
bought separately from your vehicle.
Failure to follow these instructions and
guidelines may result in an increased risk
of serious injury or death to your child. All children are shaped differently.
The recommendations for safety
restraints are based on probable
child height, age and weight thresholds
from National Highway Traffic Safety
Administration and other safety
organizations, or are the minimum WARNINGS
requirements of law. Ford recommends
checking with a NHTSA Certified Child
Passenger Safety Technician (CPST) and
consult your pediatrician to make sure your
child seat is appropriate for your child, and
is compatible with and properly installed
in your vehicle. To locate a child seat fitting
station and CPST, contact the NHTSA toll
free at 1-888-327-4236 or go to
http://www.nhtsa.dot.gov. In Canada,
check with your local St. John Ambulance
office for referral to a CPST or for further
information, contact your provincial
ministry of transportation, locate your local
St. John Ambulance office by searching for
St. John Ambulance on the internet, or
Transport Canada at 1-800-333-0371
(http://www.tc.gc.ca). Failure to properly
restrain children in safety seats made
especially for their height, age, and weight
may result in an increased risk of serious
injury or death to your child. 18
Mustang (), enUSA, First Printing Child Safety

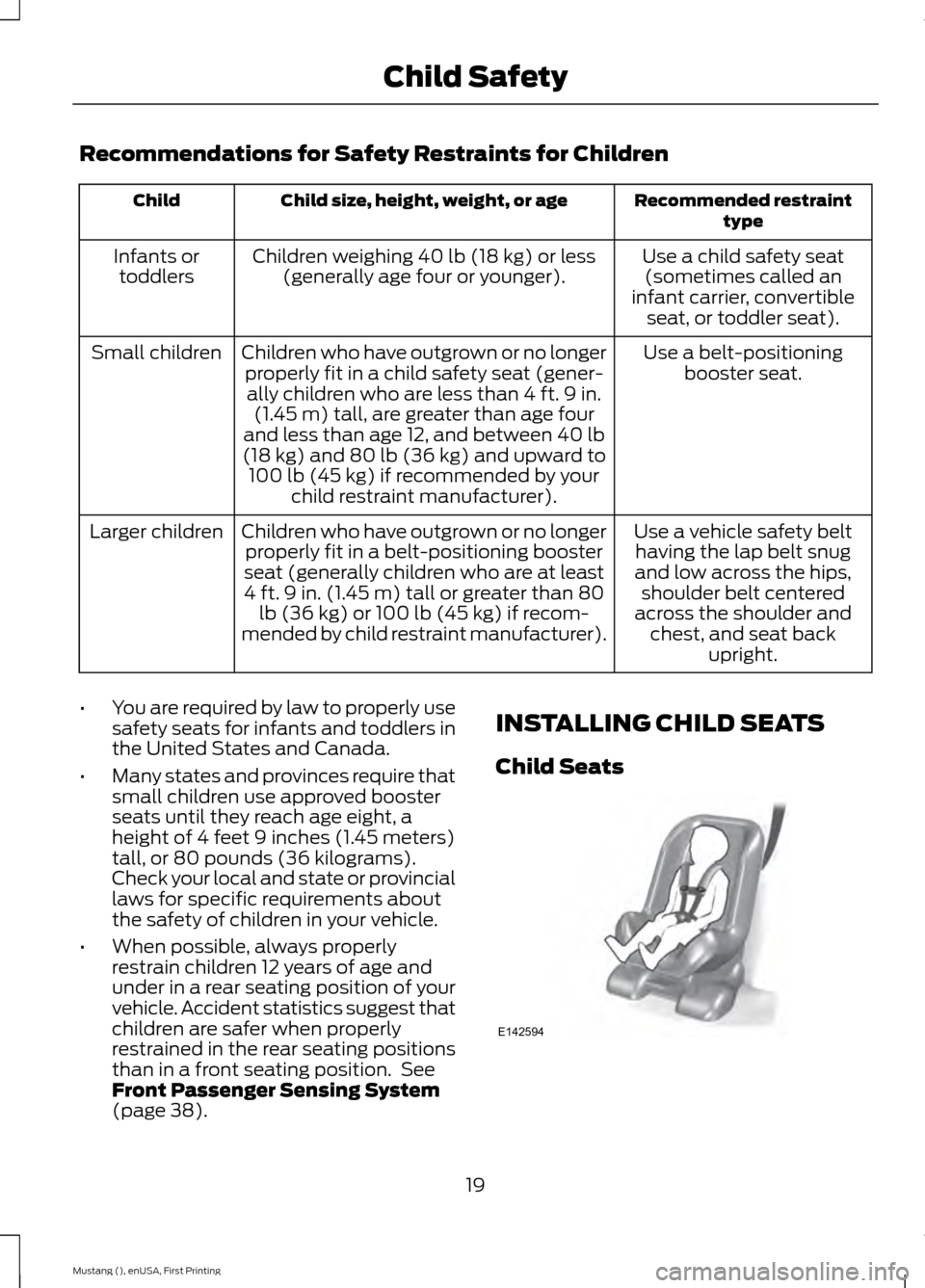

Recommendations for Safety Restraints for Children
Recommended restraint
type
Child size, height, weight, or age
Child
Use a child safety seat(sometimes called an
infant carrier, convertible seat, or toddler seat).
Children weighing 40 lb (18 kg) or less
(generally age four or younger).
Infants or
toddlers
Use a belt-positioningbooster seat.
Children who have outgrown or no longer
properly fit in a child safety seat (gener-ally children who are less than 4 ft. 9 in. (1.45 m) tall, are greater than age four
and less than age 12, and between 40 lb
(18 kg) and 80 lb (36 kg) and upward to 100 lb (45 kg) if recommended by your child restraint manufacturer).
Small children
Use a vehicle safety belthaving the lap belt snug
and low across the hips, shoulder belt centered
across the shoulder and chest, and seat back upright.
Children who have outgrown or no longer
properly fit in a belt-positioning booster
seat (generally children who are at least
4 ft. 9 in. (1.45 m) tall or greater than 80 lb (36 kg) or 100 lb (45 kg) if recom-
mended by child restraint manufacturer).
Larger children
• You are required by law to properly use
safety seats for infants and toddlers in
the United States and Canada.
• Many states and provinces require that
small children use approved booster
seats until they reach age eight, a
height of 4 feet 9 inches (1.45 meters)
tall, or 80 pounds (36 kilograms).
Check your local and state or provincial
laws for specific requirements about
the safety of children in your vehicle.
• When possible, always properly
restrain children 12 years of age and
under in a rear seating position of your
vehicle. Accident statistics suggest that
children are safer when properly
restrained in the rear seating positions
than in a front seating position. See
Front Passenger Sensing System
(page 38). INSTALLING CHILD SEATS
Child Seats
19
Mustang (), enUSA, First Printing Child SafetyE142594

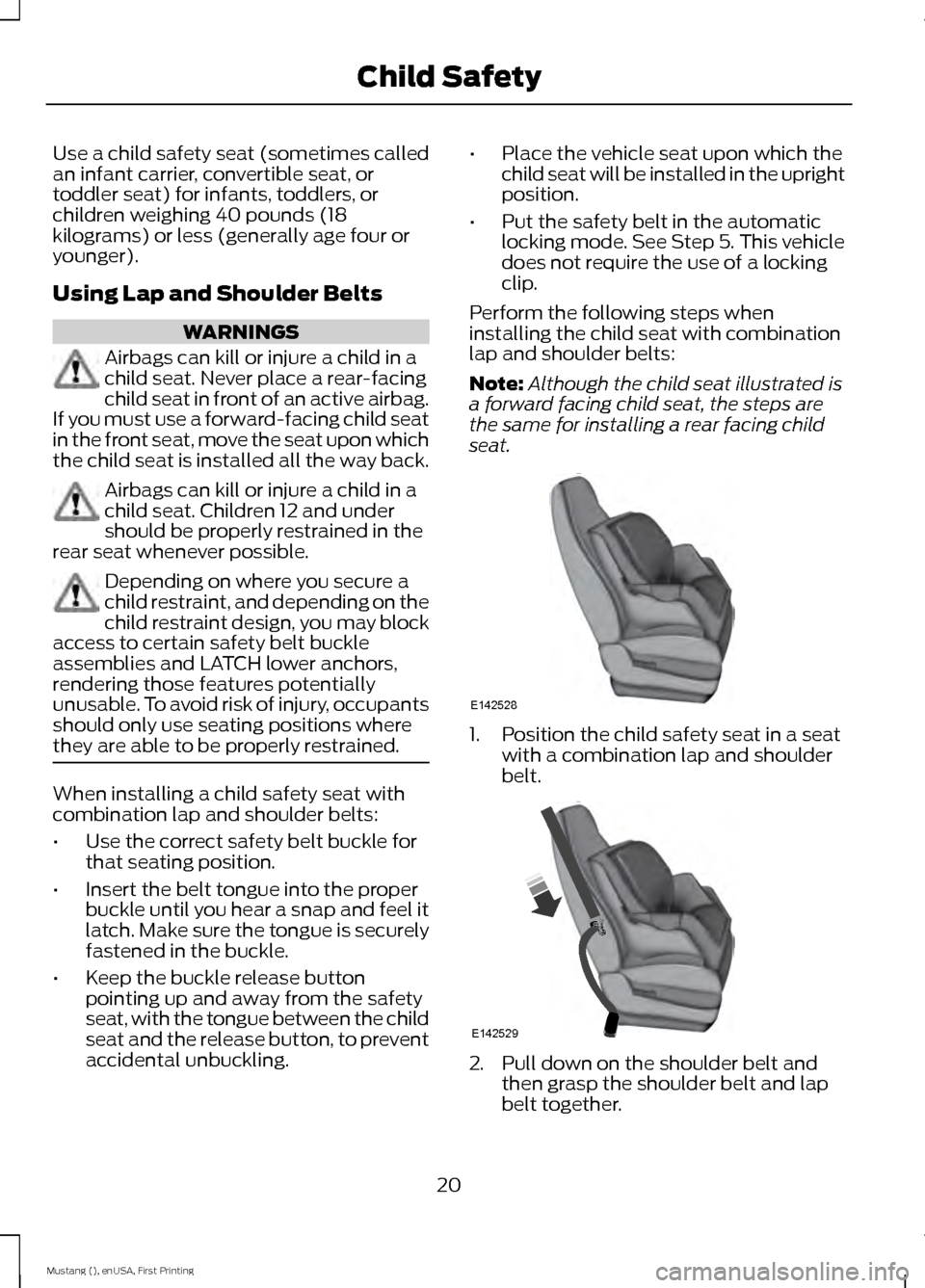

Use a child safety seat (sometimes called
an infant carrier, convertible seat, or
toddler seat) for infants, toddlers, or
children weighing 40 pounds (18
kilograms) or less (generally age four or
younger).
Using Lap and Shoulder Belts
WARNINGS
Airbags can kill or injure a child in a
child seat. Never place a rear-facing
child seat in front of an active airbag.
If you must use a forward-facing child seat
in the front seat, move the seat upon which
the child seat is installed all the way back. Airbags can kill or injure a child in a
child seat. Children 12 and under
should be properly restrained in the
rear seat whenever possible. Depending on where you secure a
child restraint, and depending on the
child restraint design, you may block
access to certain safety belt buckle
assemblies and LATCH lower anchors,
rendering those features potentially
unusable. To avoid risk of injury, occupants
should only use seating positions where
they are able to be properly restrained. When installing a child safety seat with
combination lap and shoulder belts:
•
Use the correct safety belt buckle for
that seating position.
• Insert the belt tongue into the proper
buckle until you hear a snap and feel it
latch. Make sure the tongue is securely
fastened in the buckle.
• Keep the buckle release button
pointing up and away from the safety
seat, with the tongue between the child
seat and the release button, to prevent
accidental unbuckling. •
Place the vehicle seat upon which the
child seat will be installed in the upright
position.
• Put the safety belt in the automatic
locking mode. See Step 5. This vehicle
does not require the use of a locking
clip.
Perform the following steps when
installing the child seat with combination
lap and shoulder belts:
Note: Although the child seat illustrated is
a forward facing child seat, the steps are
the same for installing a rear facing child
seat. 1. Position the child safety seat in a seat
with a combination lap and shoulder
belt. 2. Pull down on the shoulder belt and
then grasp the shoulder belt and lap
belt together.
20
Mustang (), enUSA, First Printing Child SafetyE142528 E142529

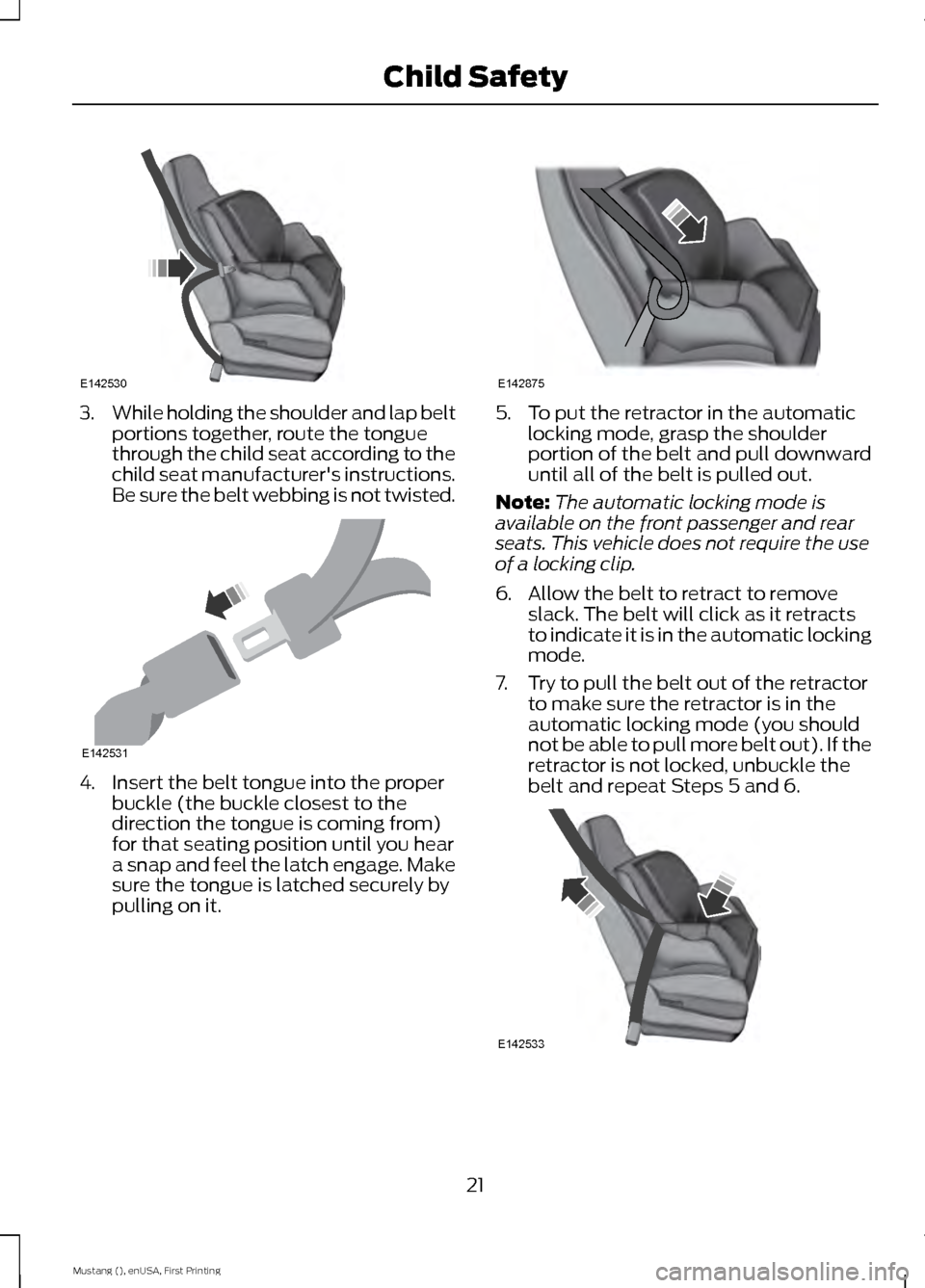

3.
While holding the shoulder and lap belt
portions together, route the tongue
through the child seat according to the
child seat manufacturer's instructions.
Be sure the belt webbing is not twisted. 4. Insert the belt tongue into the proper
buckle (the buckle closest to the
direction the tongue is coming from)
for that seating position until you hear
a snap and feel the latch engage. Make
sure the tongue is latched securely by
pulling on it. 5. To put the retractor in the automatic
locking mode, grasp the shoulder
portion of the belt and pull downward
until all of the belt is pulled out.
Note: The automatic locking mode is
available on the front passenger and rear
seats. This vehicle does not require the use
of a locking clip.
6. Allow the belt to retract to remove slack. The belt will click as it retracts
to indicate it is in the automatic locking
mode.
7. Try to pull the belt out of the retractor to make sure the retractor is in the
automatic locking mode (you should
not be able to pull more belt out). If the
retractor is not locked, unbuckle the
belt and repeat Steps 5 and 6. 21
Mustang (), enUSA, First Printing Child SafetyE142530 E142531 E142875 E142533
