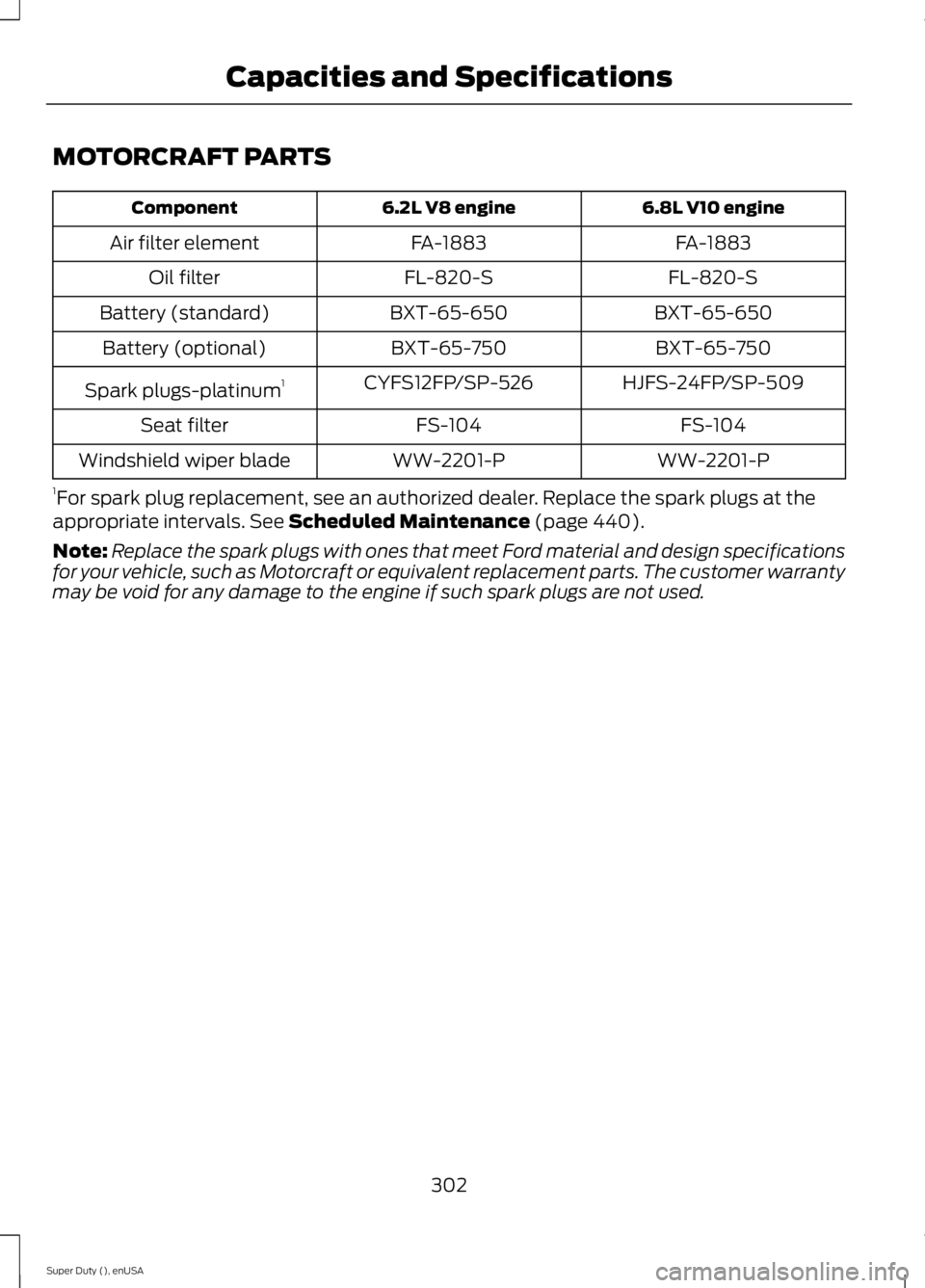

MOTORCRAFT PARTS
6.8L V10 engine6.2L V8 engineComponent
FA-1883FA-1883Air filter element
FL-820-SFL-820-SOil filter
BXT-65-650BXT-65-650Battery (standard)
BXT-65-750BXT-65-750Battery (optional)
HJFS-24FP/SP-509CYFS12FP/SP-526Spark plugs-platinum1
FS-104FS-104Seat filter
WW-2201-PWW-2201-PWindshield wiper blade
1For spark plug replacement, see an authorized dealer. Replace the spark plugs at theappropriate intervals. See Scheduled Maintenance (page 440).
Note:Replace the spark plugs with ones that meet Ford material and design specificationsfor your vehicle, such as Motorcraft or equivalent replacement parts. The customer warrantymay be void for any damage to the engine if such spark plugs are not used.
302
Super Duty (), enUSA
Capacities and Specifications

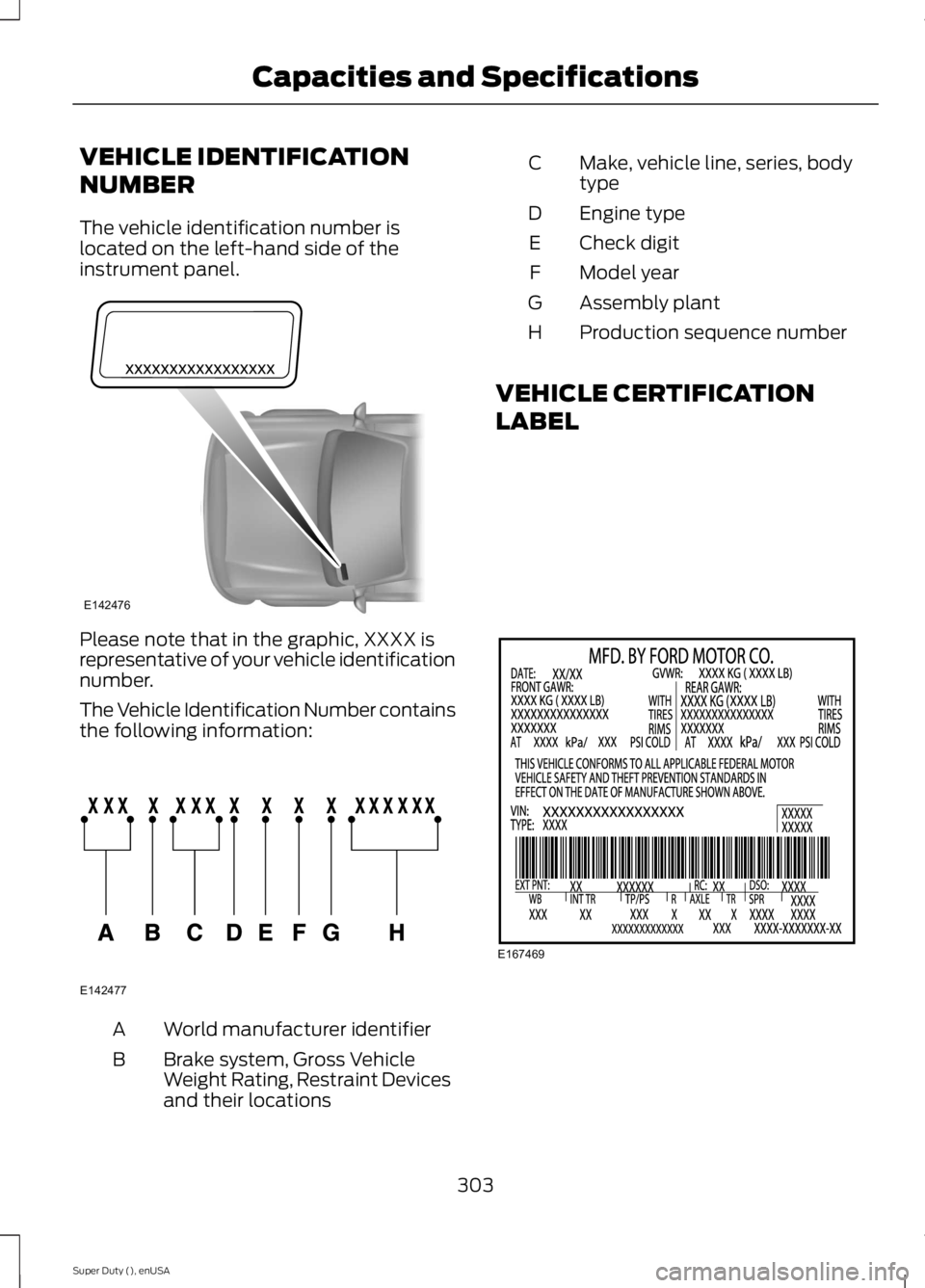

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number islocated on the left-hand side of theinstrument panel.
Please note that in the graphic, XXXX isrepresentative of your vehicle identificationnumber.
The Vehicle Identification Number containsthe following information:
World manufacturer identifierA
Brake system, Gross VehicleWeight Rating, Restraint Devicesand their locations
B
Make, vehicle line, series, bodytypeC
Engine typeD
Check digitE
Model yearF
Assembly plantG
Production sequence numberH
VEHICLE CERTIFICATION
LABEL
303
Super Duty (), enUSA
Capacities and SpecificationsE142476 E142477 E167469

The National Highway Traffic SafetyAdministration Regulations require that aSafety Compliance Certification Label beaffixed to a vehicle and prescribe wherethe Safety Compliance Certification Labelmay be located. The Safety ComplianceCertification Label shall be affixed to eitherthe door hinge pillar, the door latch post,or the edge of the door near the door latch,next to the driver's seating position.

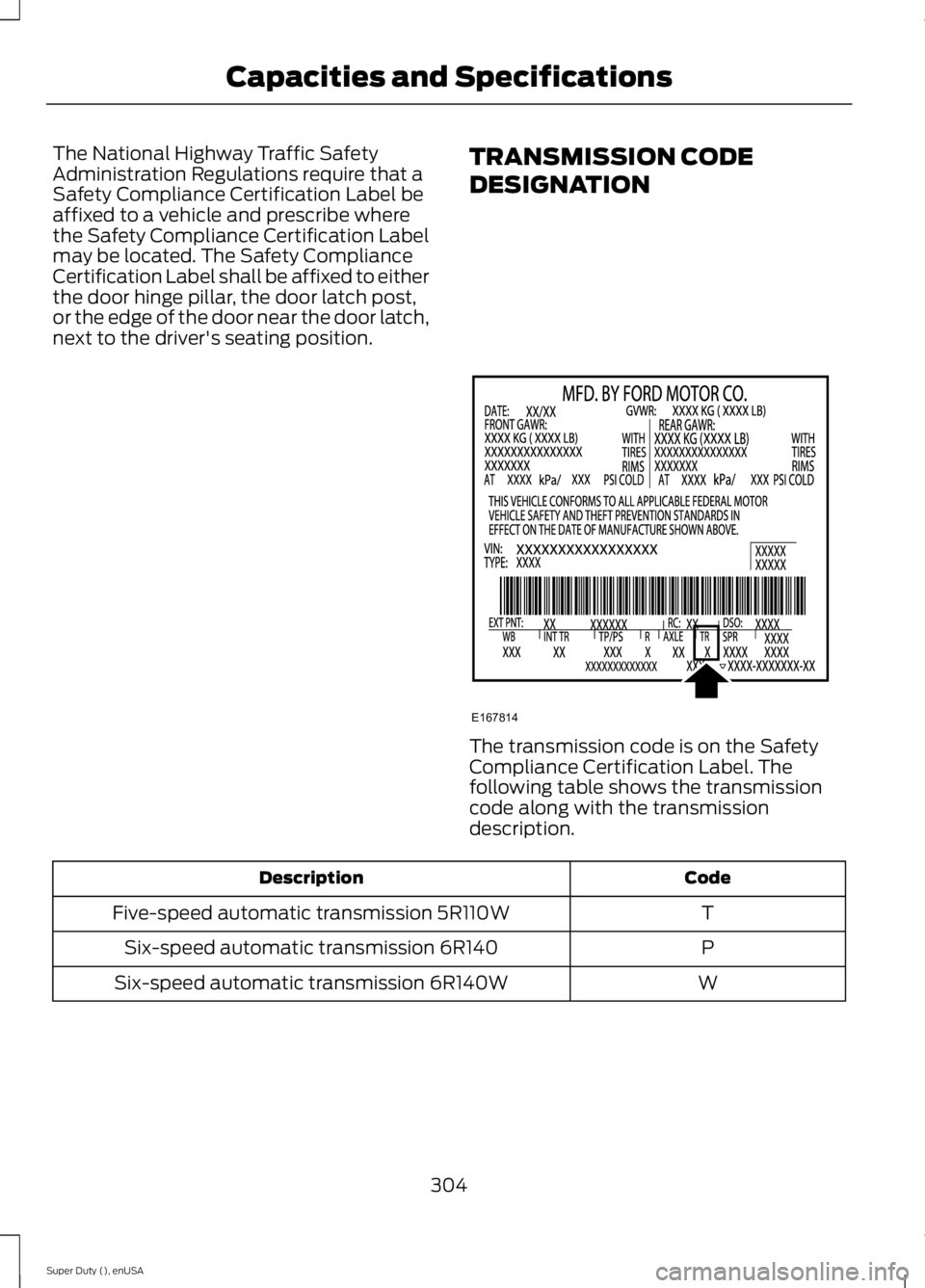

TRANSMISSION CODE
DESIGNATION
The transmission code is on the SafetyCompliance Certification Label. Thefollowing table shows the transmissioncode along with the transmissiondescription.
CodeDescription
TFive-speed automatic transmission 5R110W
PSix-speed automatic transmission 6R140
WSix-speed automatic transmission 6R140W
304
Super Duty (), enUSA
Capacities and SpecificationsE167814

TECHNICAL SPECIFICATIONS
Ford part number /Ford specificationFord part name orequivalentCapacityItem
XY-80W-90–QL /Motorcraft SAE80W-90 PremiumRear Axle Lubricant
5.8 pints (2.8L)Front axleWSP-M2C197–A
XG-11 /High Temperature4X4 Front Axle andWheel BearingGrease
—Spindle bearingWSS-M1C267-A1
XY-75W140–QL(U.S.) /Motorcraft SAE75W-140 SyntheticRear Axle Lubricant
6.9 pints (3.3L)Rear axle - F-250/350
(10.50 inch axle)1WSL-M2C192-A
CXY-75W140-1L(Canada) /WSL-M2C192-A
XY-75W90–QLS /Motorcraft SAE75W-90 SyntheticRear Axle Lubricant
8.5 pints (4.0L)Rear axle - F-350 (DanaM80)WSS–M2C918–A
XY-75W140–QL(U.S.) /Motorcraft SAE75W-140 SyntheticRear Axle Lubricant
14.0 pints (6.6L)
Rear axle - F-450/550(Dana S110/S130)
WSL-M2C192-A
CXY-75W140-1L(Canada) /WSL-M2C192-A
PM-20 / WSS-M6C65-A1Motorcraft HighPerformance DOT 3LV Motor VehicleBrake Fluid
Between MIN/MAX on brakefluid reservoir
Brake fluid2
PM-20 / WSS-M6C65-A2Motorcraft HighPerformance DOT 4LV Motor VehicleBrake Fluid
VC-3DIL-B (U.S.) /Motorcraft OrangeAntifreeze/CoolantPrediluted
21.3 quarts(20.2L)Engine coolant (6.2L
V8)3WSS-M97B44-D2
CVC-3DIL-B(Canada) /WSS-M97B44-D2
305
Super Duty (), enUSA
Capacities and Specifications

Ford part number /Ford specificationFord part name orequivalentCapacityItem
VC-3DIL-B (U.S.) /Motorcraft OrangeAntifreeze/CoolantPrediluted
26.7 quarts(25.3L)Engine coolant (6.8L
V10)3WSS-M97B44-D2
CVC-3DIL-B(Canada) /WSS-M97B44-D2
Refer to the diesel supplement.Engine and fuel coolant(diesel engine)

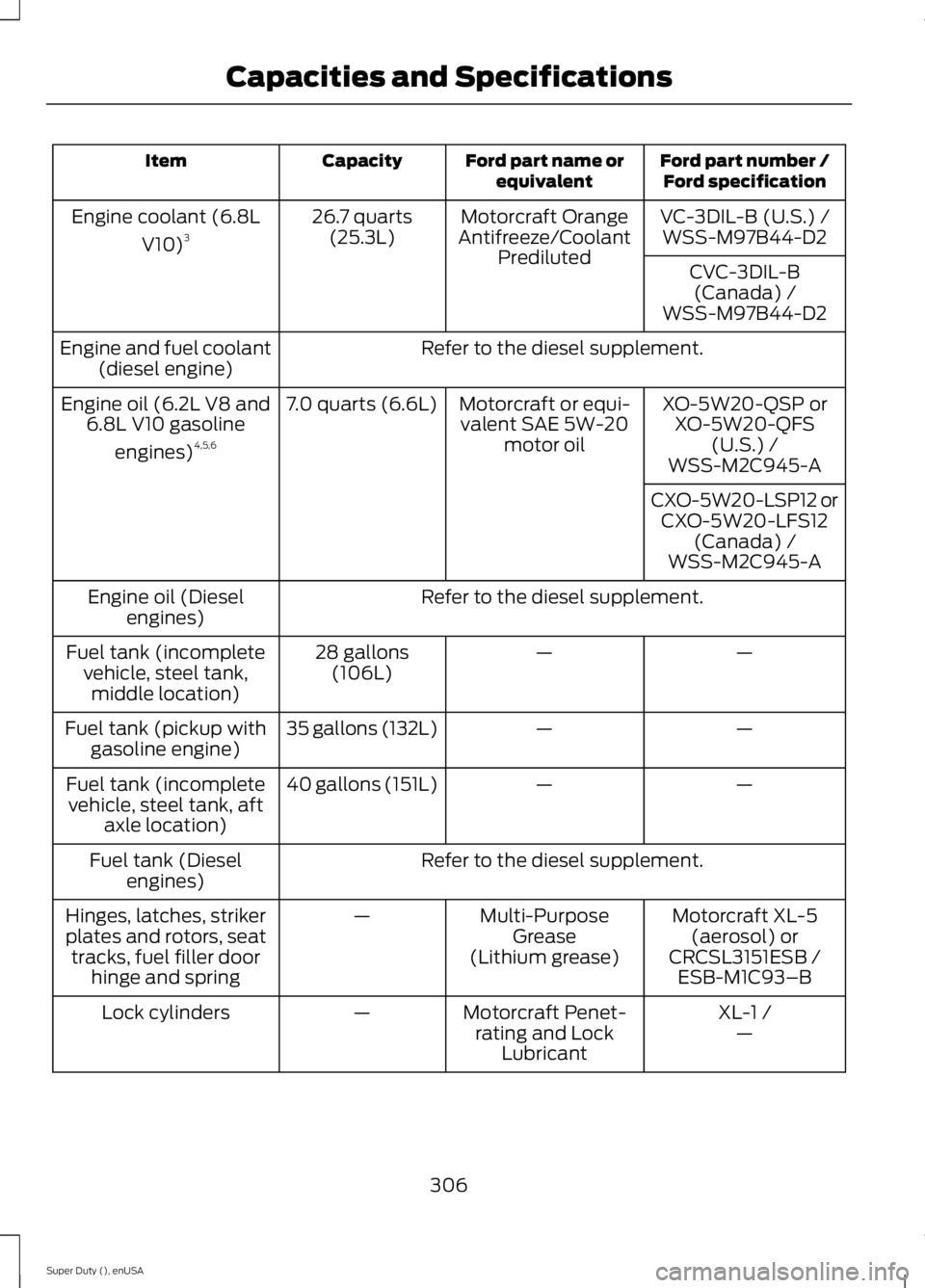

XO-5W20-QSP orXO-5W20-QFS(U.S.) /
Motorcraft or equi-valent SAE 5W-20motor oil
7.0 quarts (6.6L)Engine oil (6.2L V8 and6.8L V10 gasoline
engines)4,5,6WSS-M2C945-A
CXO-5W20-LSP12 orCXO-5W20-LFS12(Canada) /WSS-M2C945-A
Refer to the diesel supplement.Engine oil (Dieselengines)
——28 gallons(106L)Fuel tank (incompletevehicle, steel tank,middle location)
——35 gallons (132L)Fuel tank (pickup withgasoline engine)
——40 gallons (151L)Fuel tank (incompletevehicle, steel tank, aftaxle location)
Refer to the diesel supplement.Fuel tank (Dieselengines)
Motorcraft XL-5(aerosol) orCRCSL3151ESB /
Multi-PurposeGrease(Lithium grease)
—Hinges, latches, strikerplates and rotors, seattracks, fuel filler doorhinge and springESB-M1C93–B
XL-1 /Motorcraft Penet-rating and LockLubricant
—Lock cylinders—
306
Super Duty (), enUSA
Capacities and Specifications

Ford part number /Ford specificationFord part name orequivalentCapacityItem
XG-1-E /Motorcraft PremiumLong-Life Grease—Transmission, parkingbrake linkages andpivots, brake pedal shiftWSD-M1C227-A

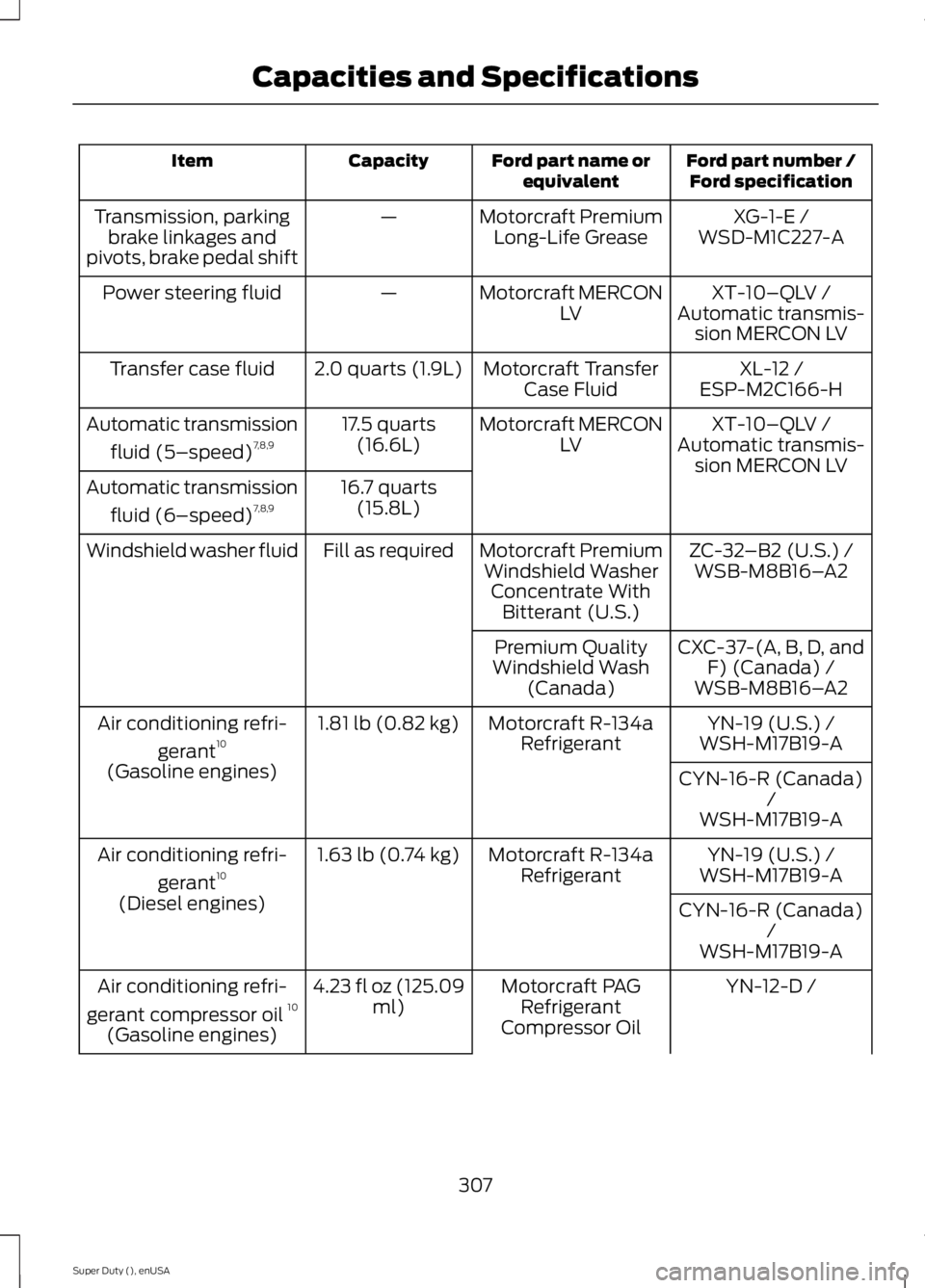

XT-10–QLV /Motorcraft MERCONLV—Power steering fluidAutomatic transmis-sion MERCON LV
XL-12 /Motorcraft TransferCase Fluid2.0 quarts (1.9L)Transfer case fluidESP-M2C166-H
XT-10–QLV /Motorcraft MERCONLV17.5 quarts(16.6L)Automatic transmission
fluid (5–speed)7,8,9Automatic transmis-sion MERCON LV16.7 quarts(15.8L)Automatic transmission
fluid (6–speed)7,8,9
ZC-32–B2 (U.S.) /Motorcraft PremiumWindshield WasherConcentrate WithBitterant (U.S.)
Fill as requiredWindshield washer fluidWSB-M8B16–A2
CXC-37-(A, B, D, andF) (Canada) /Premium QualityWindshield Wash(Canada) WSB-M8B16–A2
YN-19 (U.S.) /Motorcraft R-134aRefrigerant1.81 lb (0.82 kg)Air conditioning refri-
gerant10WSH-M17B19-A
(Gasoline engines)CYN-16-R (Canada)/WSH-M17B19-A
YN-19 (U.S.) /Motorcraft R-134aRefrigerant1.63 lb (0.74 kg)Air conditioning refri-
gerant10WSH-M17B19-A
(Diesel engines)CYN-16-R (Canada)/WSH-M17B19-A
YN-12-D /Motorcraft PAGRefrigerantCompressor Oil
4.23 fl oz (125.09ml)Air conditioning refri-
gerant compressor oil 10
(Gasoline engines)
307
Super Duty (), enUSA
Capacities and Specifications

Ford part number /Ford specificationFord part name orequivalentCapacityItem
WSH-M1C231-B3.53 fl oz (104.39ml)Air conditioning refri-
gerant compressor oil 10
(Diesel engines)
308
Super Duty (), enUSA
Capacities and Specifications

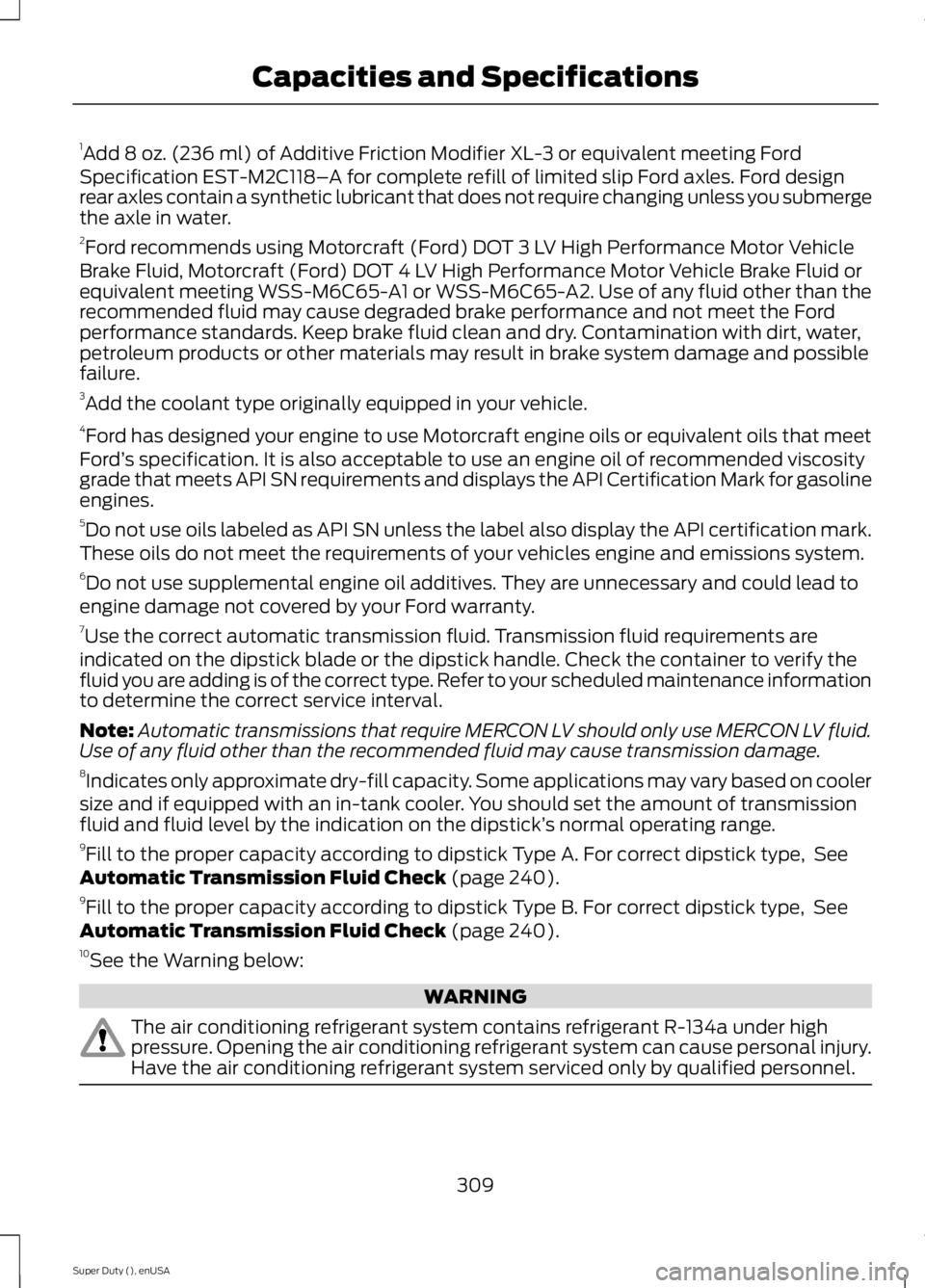

1Add 8 oz. (236 ml) of Additive Friction Modifier XL-3 or equivalent meeting FordSpecification EST-M2C118–A for complete refill of limited slip Ford axles. Ford designrear axles contain a synthetic lubricant that does not require changing unless you submergethe axle in water.2Ford recommends using Motorcraft (Ford) DOT 3 LV High Performance Motor VehicleBrake Fluid, Motorcraft (Ford) DOT 4 LV High Performance Motor Vehicle Brake Fluid orequivalent meeting WSS-M6C65-A1 or WSS-M6C65-A2. Use of any fluid other than therecommended fluid may cause degraded brake performance and not meet the Fordperformance standards. Keep brake fluid clean and dry. Contamination with dirt, water,petroleum products or other materials may result in brake system damage and possiblefailure.3Add the coolant type originally equipped in your vehicle.4Ford has designed your engine to use Motorcraft engine oils or equivalent oils that meetFord’s specification. It is also acceptable to use an engine oil of recommended viscositygrade that meets API SN requirements and displays the API Certification Mark for gasolineengines.5Do not use oils labeled as API SN unless the label also display the API certification mark.These oils do not meet the requirements of your vehicles engine and emissions system.6Do not use supplemental engine oil additives. They are unnecessary and could lead toengine damage not covered by your Ford warranty.7Use the correct automatic transmission fluid. Transmission fluid requirements areindicated on the dipstick blade or the dipstick handle. Check the container to verify thefluid you are adding is of the correct type. Refer to your scheduled maintenance informationto determine the correct service interval.
Note:Automatic transmissions that require MERCON LV should only use MERCON LV fluid.Use of any fluid other than the recommended fluid may cause transmission damage.8Indicates only approximate dry-fill capacity. Some applications may vary based on coolersize and if equipped with an in-tank cooler. You should set the amount of transmissionfluid and fluid level by the indication on the dipstick’s normal operating range.9Fill to the proper capacity according to dipstick Type A. For correct dipstick type, SeeAutomatic Transmission Fluid Check (page 240).9Fill to the proper capacity according to dipstick Type B. For correct dipstick type, SeeAutomatic Transmission Fluid Check (page 240).10See the Warning below:
WARNING
The air conditioning refrigerant system contains refrigerant R-134a under highpressure. Opening the air conditioning refrigerant system can cause personal injury.Have the air conditioning refrigerant system serviced only by qualified personnel.
309
Super Duty (), enUSA
Capacities and Specifications
