WARNING
Fit the child restraint system according
to the instructions, which must be
included.
Main recommendations to carry children
safely:
❒ Install the child restraint systems on the rear seat,
which is the most protected position in the event
of an accident.
❒ Keep children in rear facing restraint systems for as
long as possible, until 3–4 years old if possible.
❒ Should a rear facing child restraint system be
installed on the rear seats, it is advisable to
position it as far forward as the position of the
front seat allows.
❒ If the passenger's front airbag is deactivated always
check the warning light on the instrument panel
to make sure that it has actually been deactivated.
❒ Carefully follow the child restraint manufacturer's
instruction supplied with the child restraint
system. Keep the instructions in the car along with
the other documents and this handbook. Do not
use second-hand child restraint systems without
instructions.
❒ Only one child is to be strapped into each
retaining system; never carry two children using
one child restraint system. ❒
Always check that the seat belts do not interfere
with the child's throat.
❒ Always check that the seat belt is well fastened by
pulling on it.
❒ While travelling, do not let the child sit incorrectly
or unfasten the belts.
❒ Never allow a child to put the belt's diagonal
section under an arm or behind their back.
❒ Never carry children on your lap, even newborns.
No-one can restrain a child in the event of an
accident.
❒ In the event of an accident, replace the child
restraint system with a new one.
125GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FRONT AIRBAGSThe car is fitted with front airbags for the driver and
the passenger, and with a knee bag on the driver's
side (for versions/markets, where provided).
The front driver/passenger airbags and the driver's
knee bag (for versions/markets, where provided)
have been designed to protect the front seat
occupants in the event of frontal impacts of
medium/high severity, by placing the bag between the
occupant and the steering wheel or dashboard.
Therefore non-deployment in other types of impacts
(side impacts, rear shunts, roll-overs, etc.) does not
indicate a system malfunction.
In the event of a frontal impact, an electronic control
unit triggers the inflation of the bags if required.
The cushions immediately inflate, placing themselves
between the front occupants' bodies and structures
that could cause injuries. Immediately after, the
cushions deflate.
The front driver/passenger airbags and the driver's
knee bag (for versions/markets, where provided) are
not a replacement for, but rather complement the
use of, seat belts, which should always be worn,
as specified by law in Europe and most non-European
countries.
In the event of an impact, those not wearing a seat
belt will move forward and come into contact with
the bag which is still inflating. The protection offered
by the bag is compromised in these circumstances.Front airbags may not be activated in the following
situations:
❒
frontal impacts against highly deformable objects
not involving the front surface of the car (e.g.
wing collision against guard rail, etc.);
❒ car wedging under other vehicles or protective
barriers (e.g. trucks or guard rails);
Failure to activate in the conditions described above
is due to the fact that they may not provide any
additional protection compared with seat belts, so
their activation would be inappropriate.
In these cases, non-deployment does not indicate a
system malfunction.
WARNING
Do not apply stickers or other objects
on the steering wheel, on the dashboard
in the passenger side airbag area, on side
upholstery on the roof or on the seats. Never
put objects (e.g. mobile phones) on the
passenger's side dashboard since they could
interfere with correct inflation of the airbag
and also cause serious injur y to the passengers.
126GETTING TO KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FRONT AIRBAG DRIVER'S SIDE
This consists of an instantly inflating bag contained in
a special compartment in the centre of the steering
wheel fig. 112.
WARNING
Always drive with both hands on the
steering wheel so that , if the airbags
must be deployed, they may do so freely. Do not
drive with your body bent forward. Keep your
back straight against the backrest . FRONT AIRBAG PASSENGER'S SIDE
This consists of an instantly inflating bag contained in
a special recess in the dashboard: this bag has a
larger volume than that of the driver fig. 113.
The front driver and passenger airbags are designed
and calibrated to best protect front-seat passengers
wearing seat belts.
The volume of the front airbags at max. inflation fills
most of the space between the steering wheel and
the driver and between the dashboard and the
passenger.
fig. 112
F0Q0624
fig. 113
F0Q0700
127GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
SEVERE DANGER When an active
passenger airbag is fitted, DO NOT
install rearward facing child restraint
systems on the front seat . Deployment
of the airbag in an accident could cause fatal
injuries to the child regardless of the severity of
the impact .Therefore, always deactivate the
passenger airbag when a rearward facing child
restraint system is installed on the front
passenger seat .The front passenger seat must
also be positioned back as far as possible in
order to avoid the child restraint system from
coming into contact with the dashboard.
Immediately reactivate the passenger airbag as
soon as the child restraint system has been
removed. FRONT PASSENGER AIRBAG AND CHILD
RESTRAINT SYSTEMS
WARNING
When an active passenger airbag is
fitted, DO NOT install rear facing child
restraint systems on the front seat . Deployment
of the airbag in an accident could cause fatal
injuries to the child regardless of the severity of
the impact .
A LWAY S comply with the instructions on the label
stuck on the passenger side sun visor fig. 114.
fig. 114
F0Q0920
128GETTING TO KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

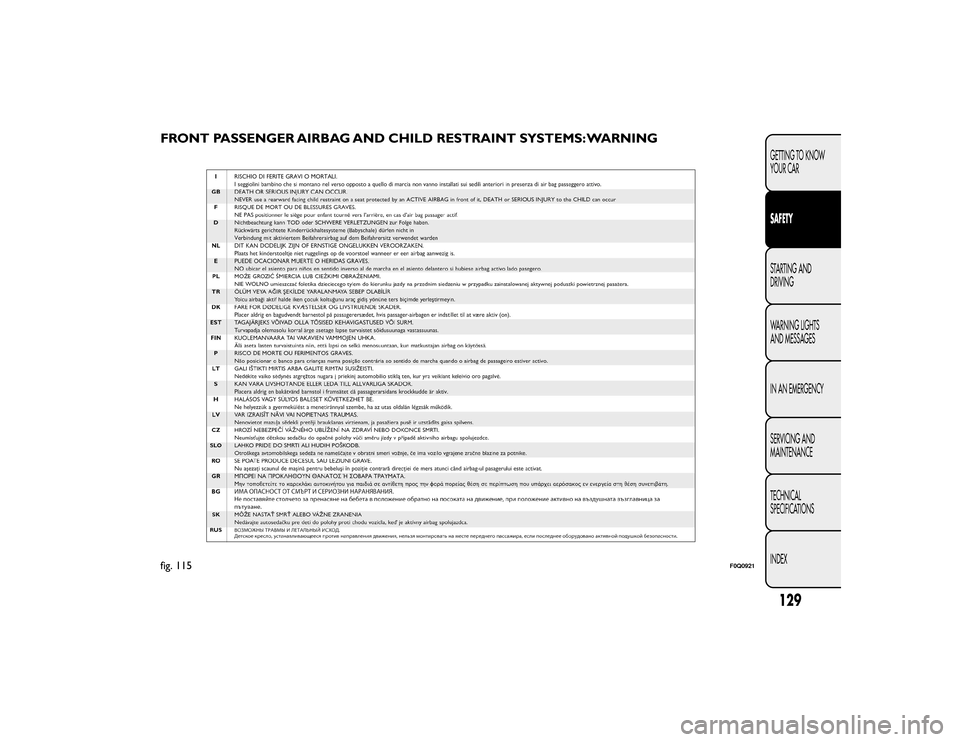

FRONT PASSENGER AIRBAG AND CHILD RESTRAINT SYSTEMS: WARNINGfig. 115
F0Q0921
129GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DRIVER SIDE KNEE BAG
(for versions/markets, where provided)
It is located in a special compartment under the
dashboard and is protected by a dedicated cover
fig. 116. It provides protection to the lower limbs in
the event of frontal impact .Deactivation of passenger side airbags: front
airbag and side bag for pelvis-chest-shoulder
protection (for versions/markets, where
provided)
If a child must be carried on the front seat in
backward-facing child restraint system, deactivate the
passenger side front airbag and front side bag for
pelvis, chest and shoulder protection (for
versions/markets, where provided).
With the airbags deactivated, the
warning light
switches on in the instrument panel.
IMPORTANT To deactivate the airbags see the
description in the "Knowing your car" chapter, "Menu
Options" paragraph.
A U
T O
fig. 116
F0Q0702
130GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SIDE AIRBAGS
(Side bag - Window bag)The car is fitted with front side bags for driver and
passenger, protecting the chest/pelvis, and window
bags for protecting front and rear passengers’ heads.
Side airbags protect occupants from side impacts
of medium/high severity by placing the bag between
the occupant and the internal parts of the side
structure of the car.
Non-activation of side bags in other types of
collisions (frontal impacts, rear shunts, roll-overs,
etc...) is not an indication of system malfunction.
In the event of a side impact, an electronic control
unit triggers the inflation of the bag if required.
The cushion immediately inflates, placing itself
between the occupant's body and structures that
could cause injuries. Immediately after, the cushion
deflates.
Side bags are not a replacement of, but rather a
complement to, seat belts, which you are
recommended to wear at all times, as specified by
law in Europe and most non-European countries.SIDE BAGS
(for versions/markets, where provided)
These comprise two types of bags located in the
front seat backrests fig. 117 which protect the pelvis,
chest and shoulder area of the occupants in the
event of a side impact of medium/high severity.
fig. 117
F0Q0701
131GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

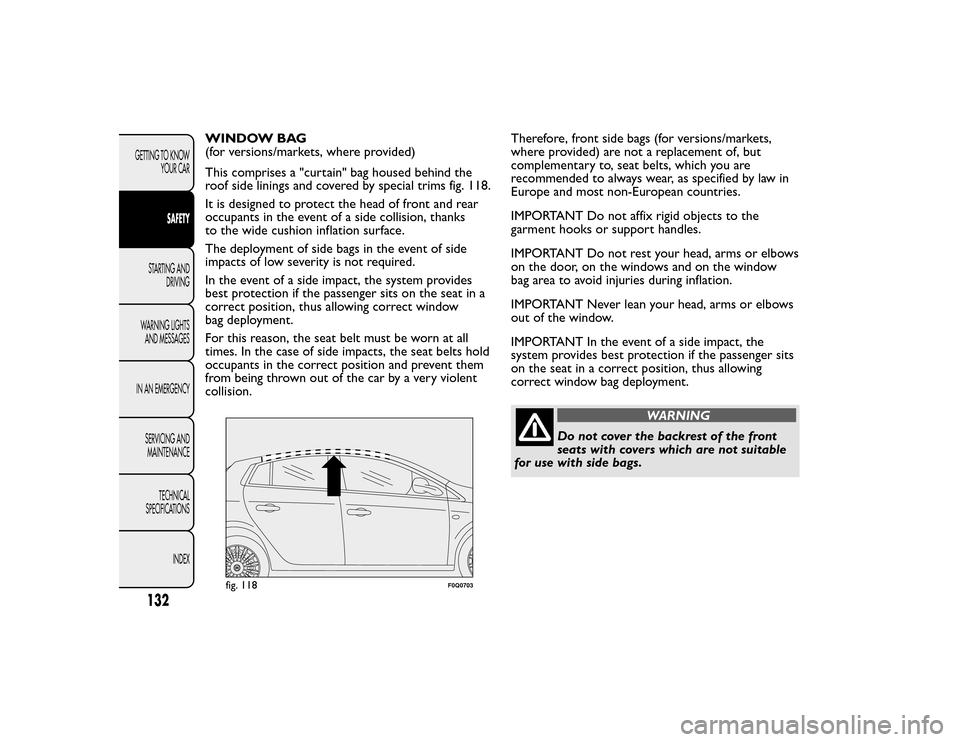

WINDOW BAG
(for versions/markets, where provided)
This comprises a "curtain" bag housed behind the
roof side linings and covered by special trims fig. 118.
It is designed to protect the head of front and rear
occupants in the event of a side collision, thanks
to the wide cushion inflation surface.
The deployment of side bags in the event of side
impacts of low severity is not required.
In the event of a side impact, the system provides
best protection if the passenger sits on the seat in a
correct position, thus allowing correct window
bag deployment.
For this reason, the seat belt must be worn at all
times. In the case of side impacts, the seat belts hold
occupants in the correct position and prevent them
from being thrown out of the car by a very violent
collision.Therefore, front side bags (for versions/markets,
where provided) are not a replacement of, but
complementary to, seat belts, which you are
recommended to always wear, as specified by law in
Europe and most non-European countries.
IMPORTANT Do not affix rigid objects to the
garment hooks or support handles.
IMPORTANT Do not rest your head, arms or elbows
on the door, on the windows and on the window
bag area to avoid injuries during inflation.
IMPORTANT Never lean your head, arms or elbows
out of the window.
IMPORTANT In the event of a side impact, the
system provides best protection if the passenger sits
on the seat in a correct position, thus allowing
correct window bag deployment.
WARNING
Do not cover the backrest of the front
seats with covers which are not suitable
for use with side bags.
fig. 118
F0Q0703
