2015 Citroen C1 Owner's Manual

63
C1_en_Chap04_amenagements_ed01-2015
It permits the connection of a portable device
to listen to your music files via the vehicle's
speakers.
The management of the files is done using your
portable device.
It permits the connection of a portable device,
such as a digital audio player of the iPod® type
or USB memory stick.
It reads the audio files, which are sent to your
audio system to be heard via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or those on the audio system
control panel.
Auxiliary socket
USB port
For more information on the use of
this equipment, refer to the "Audio and
telematics" section.
For more information on the use of
this equipment, see the "Audio and
telematics" section.
Connected to the USB port, the
portable device charges automatically
while in use.
4
Fittings

64
C1_en_Chap04_amenagements_ed01-2015
To remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

u
nclip the fixings,
F

r
emove the mat.
Mats
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet. To avoid any risk of jamming of the
pedals:
-

o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-
n
ever fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access
to the pedals and hinder the operation
of the speed limiter or ETG electronic
gearbox.
To refit the mat on the driver's side:
F
p
osition the mat correctly,
F r efit the fixings by pressing,
F c heck that the mat is secured correctly.
FittingRemoval
Refitting
Fittings

65
C1_en_Chap04_amenagements_ed01-2015

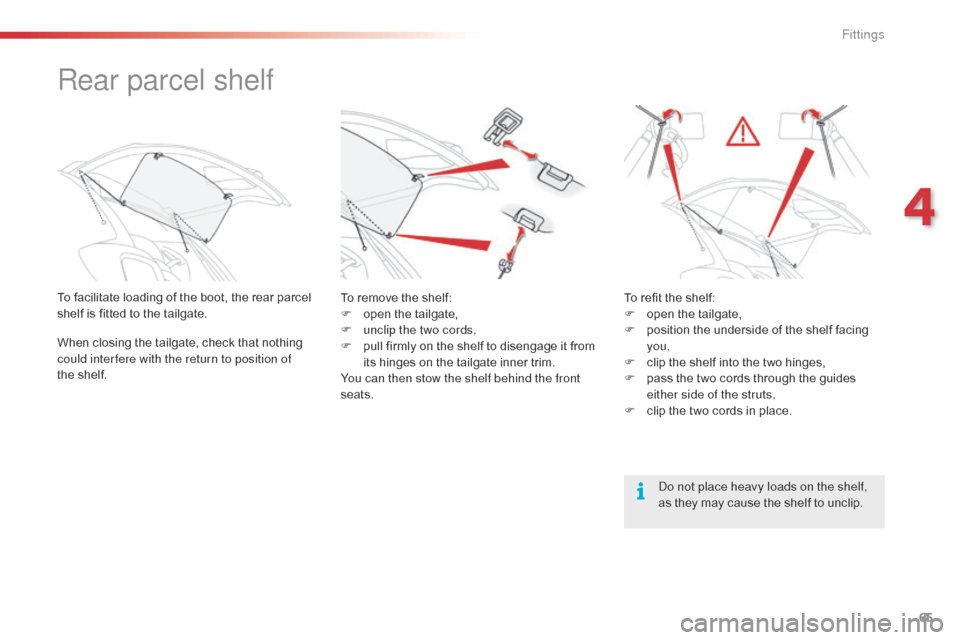

Rear parcel shelf
To facilitate loading of the boot, the rear parcel
shelf is fitted to the tailgate.
When closing the tailgate, check that nothing
could inter fere with the return to position of
the
s
helf.
Do not place heavy loads on the shelf,
as they may cause the shelf to unclip.
To remove the shelf:
F

o
pen the tailgate,
F

u
nclip the two cords,
F

p
ull firmly on the shelf to disengage it from
its hinges on the tailgate inner trim.
You can then stow the shelf behind the front
seats. To refit the shelf:
F

o
pen the tailgate,
F

p
osition the underside of the shelf facing
you,
F

c
lip the shelf into the two hinges,
F

p
ass the two cords through the guides
either side of the struts,
F

c
lip the two cords in place.
4
Fittings

66
C1_en_Chap04_amenagements_ed01-2015
Boot fittings
1. Hooks.
2. Temporary use spare wheel and tools.


or
St

orage box.
The wheel or storage box must be put
in place under the carpet before loading
the boot.
Fittings

67
C1_en_Chap04_amenagements_ed01-2015
Storage box
F Remove the boot carpet for access to the storage box.
Depending on the configuration, it is laid out for
storing:
-

a t
owing eye,
-

a t
emporary puncture repair kit,
-
... F

or versions with storage box: it must
be in place before loading the boot.
The hooks can be used to secure shopping
bags.
Hooks
Maximum authorised load on the
hooks:
2 kg.
4
Fittings

68
A few driving recommendations
Observe the driving regulations at all times and
remain vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass,
dead leaves...) might come into contact
with the hot exhaust system - Risk of
fire!
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position


N, depending on the type of
gearbox.
Driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
Important!If you are obliged to drive through water:
-

c
heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-

d
eactivate the Stop & Start system,
-

d
rive as slowly as possible without
stalling. In all cases, do not exceed 6 mph
(10
km/h),
-

d
o not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a CITROËN dealer or a qualified workshop.
Driving

69
Starting - switching off the engine with the key
1. "LOCK " position.
2. " AC
C" position.
3.


"ON " position.
4.
" S

TA R T" position.
Ignition switch
For vehicle fitted with a manual gearbox:
F
I nsert the key in the ignition switch.
F

T
urn the key to position 2 .
F

U
nlock the steering column, by turning the
wheel slightly.
F

F
ully depress the clutch pedal.
F

P
ut the gear lever into neutral.
F

O
perate the starter by turning the key to
position 4 (S TA R T ) .
F

O
nce the engine is running, release
the
key.
T

he key returns automatically to position 3
(ON) .
Starting using the key
For vehicles fitted with an ETG gearbox:
F
I nsert the key in the ignition switch.
F

T
urn the key to position 2 .
F

U
nlock the steering column, by turning the
wheel slightly.
F

P
ress and hold the brake pedal.
F

P
ut the gear selector into position N .
F

O
perate the starter by turning the key to
position 4 (S TA R T ) .
F

O
nce the engine is running, release
the
key.
T

he key returns automatically to position 3
(ON) .
If you use the accessories for a
prolonged period (key in position 2
or

3 ), you risk discharging the battery.
Starting your vehicle will then no longer
be possible. Be aware.
Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death. In very severe
winter conditions (temperatures
below

-23°C), it is necessary to allow
the engine to run for 4 minutes before
setting off, in order to ensure the
correct operation and durability of
the mechanical components of your
vehicle, the engine and gearbox.
5
Driving

70
If you use the accessories for a
prolonged period, the vehicle will
automatically switch to "OFF" mode
after about 20 minutes.
Be aware in order to avoid discharging
the battery.
Starting - switching off the engine with the
Keyless Entry and Starting system
Changing the mode of
the vehicle
With the electronic key inside the
vehicle; each press on the " S TA R T/
STOP " button, with no action on
the pedals , changes the vehicle's
mode:
F

F

irst press (" ACC" mode).
T

he accessories (radio, 12V socket...) can
be used.
F

S

econd press (" ON" mode).
I

gnition on.
F

T

hird press (" OFF" mode).
Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
Key in ignition
If the key has been left in the ignition,
an audible signal is heard on opening
the driver's door.
F

I

mmobilise the vehicle.
Switching off
F With a manual gearbox: put the gear lever
into neutral.
F

W
ith an ETG gearbox: place the selector at
position N .
F

T
urn the key towards you to position 2
(ACC) .
F

P
ress in and turn the key to position 1
(LOCK) .
F

R
emove the key from the ignition switch.
F

T
urn the steering until the steering column
locks.
Driving
