Instruments and warning/indicator lights 21
The IJI symbol illuminates when there is an
engine control malfunction. The
[3i indicator
light in the instrument cluster also illumi­
nates . The engine speed is limited to the
speed d isplayed in the driver information sys­
tem . Keep in mind that the eng ine speed will
not exceed the value displayed in the drive r in­
formation system , for example when down­
shifting.
Drive to your authorized Aud i dealer immedi ­
ately to have the malfunct ion corrected.
'l=cr .., Engine oil sensor
• Oil level! Sen sor defective
If the symbol illuminates, contact your au­
thor ized Audi dealer and have the o il sensor
i nspected . Until you have th is done, check the
oil level each time you refuel just to be on the
safe side
c::> page 216.
Bil Tank system
mJ Please refuel
If the indicator light turns on for the first
time and the message appears, there are
about 2.1- 2.4 gallons (7 -9 liters) of fuel left
in the tank. Time to refuel
c::> page 209 .
DD Fuel tank system malfunction! Contact
dealer
If the indicator light turns on and th is mes ­
sage appears, there is a malfunction in the
tank system .
Drive to your authori zed Aud i dealer immedi­
ately to have the malfunction corrected.
<:o Windshield washer fluid level
B Please refill washer fluid
If the symbol illumina tes, add windshield
washer fluid to the washer system and also to the headlight washer system *
c::> page 225.
~ Windshield wipers
m Windshield wiper defective
There is a malfunction with the windshie ld
wipers .
Drive to your authorized Audi dealer immed i­
ate ly to have the malfunction corrected .
~/ }D 10$ Defective light bulb warning
If the f:I indicator light turns on, a bulb has
failed. Th e message indicates the location of
the bu lb .
- If the
II indicator light also turns on, then
a fog light has failed . The position of the in­
dicator light corresponds with the location
on the vehicle .
- If the
IJ indicator light also turns on, then
a rear fog* light has failed . The position of
the indicator light corresponds with the lo­
cation on the vehicle.
T his warning can also occ ur if the light switch
is in an unengaged position between two sym­
bols.
Vehicle lights : System fault!
If the message appears, there is a malfunc­
tion in the headlights or light sw itch.
Drive to your au thorized Audi dealer immedi­
ately to have the malfunction corrected .
A WARNING
-Light bulbs a re p ressurized and could ex­
plode wh ile they are being changed caus­
ing serious personal injury.
- Work with due care when hand ling the
high-voltage section of gas discharge
(xenon) lights*. Failure to do so could re­
sult in death or serious injury .
(D Tips
Have the bu lb replaced or the connection
r epaired by your authorized Audi Service
department .
i,0 Headlight range control
Applies to veh icles : w ith headli ght ra nge control
liJ Headlight range control defective !

M N
~ co
rl I.O
"' rl
"' rl
Driver information
display
Introduction
The Driver information display inside the in ­
strument cluster provides you, the driver ,
with important information .
Fig. 7 In strum en t cl ust er: center displa y
Fi g. 8 Wi per lever: con trols fo r the menu display
Cent er d ispla y
With the ignition on, the display in the Dr iver
I nforma tion System shows the fo llowing in­
formation :
- CD* inserted or Radio* station set
- Outs ide temperature* : At temperatures be-
low 41 °F (+S
0 (), a snowflake symbol ap­
pears in front of the temperature display
c::> &_ .
- Warning if one of the doors, front lid or en-
gine compartment lid is not closed .
Additional function s
You can open the following functions in the
Driver Informat ion System display by pressing
the
! R ES ET I button c::> fig . 8 one or more times:
Digital speedometer *
Tire pressure monitoring*
c::> page 257
Dri ver inform ation di spl ay 23
Trip computer* c::> page24
Effi ciency program* c::> page 26
Service in terval display c::> page 28
Speed war ning c::> page 89
Gearshift selector positions <=> page94
Automatic transmission
Adaptive cr uise control *
c::> page 101
Auto Check C ontrol
Some f unctions and vehicle components are
scanned for their operating sta tus when yo u
switch the ign ition on and wh ile you are driv ­
ing . Malfunctions or required s ervice proce­
dures are signaled audib ly and indicated by
red and yellow illuminated symbols and re­
minders in the display .
A WARNING
-
- Never rely exclusively on the outside
temperature display to determine if a
road surface is icy o r not . Keep in m ind
th at r oad surfaces, espec ia lly br idges
and overpasses, co uld be ice covered and
slippery even at an outside tempe ratu re
above 41 ° F (+S °C).
- Always remember , even if the "snow­
f lake" symbo l (ice warning) does not ap­
pear in the d isp lay, black ice cou ld be on
the road .
- Always reduce your speed and drive with
special care in cold weather conditions
when the chance of encountering icy
road surfaces increases.
{I) Tips
If the vehicle is stationary, or if yo u a re
driving at a very lo w speed, the tempera­
ture shown in the display might be s light ly
higher than the actua l outs ide tempera­
ture. This is caused by the heat be ing radi­
ated from the engine .

24 Driver information d isplay
Trip computer
Introduction
Applies to vehicles: wit h trip computer
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time .
Fig. 9 Tri p comp uter d isp lay: Ave rage fuel mileage
The follow ing informat ion is continuously
evaluated by the trip computer and can be dis­
p layed sequentially in the instrument cluster
display:
Fuel range
The estimated cruising range in miles (km)
appears in the display. This tells you how far
your vehicle wi ll be able to t ravel on the cur ­
rent tank of fue l and with the same driving
style. The display changes in increments of
5 miles (10 km).
The cruising range is calculated based on the
fuel consumption for the last 18 miles
(30 km). If you drive conservatively, the cruis­
ing range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in
this display. You can use this disp lay to adjust
your driving technique to achieve a desired mileage .
Current fuel mileage
The instantaneous fuel consumption in miles
per gallon (l/100 km) is shown in this display .
You can use this display to adjust your driving
technique to achieve a desired mileage. Fuel
consumption is recalcu lated at intervals
of 33 yards (30 meters). This disp lay switches
to gallons/hour (liters/hour) when the vehicle is not moving.
Average speed
The average speed in mph (km/h) s ince you
last reset the memory appears in the display.
Elapsed time
The length of time that you have been driving
s ince you last reset the memory appears in
th is disp lay.
Distance
The distance that has been covered since the
last t ime the memory was cleared appears in
the display.
(0 Tips
- Fuel consumptions (average and cur ­
rent), range and speed are displayed in
metric units on Canadian models.
- All stored values will be lost if the vehi­
cle battery is disconnected .
Memories
Applies to veh icles: w ith t rip co mputer
The trip computer is equipped with two fully
automatic memories as well as an efficiency
program* .
Fig. 10 Trip computer d isp lay : memory leve l 1
You can switch between the trip computer 1
and 2 and the efficiency program* by pressing
the
I RESET ! button@<=:> page 25 , fig . 11.
You can tell which memory leve l is cu rrently
active by the number o r the sign in the display
IJ,-

"' N
0 :,,: co ,...., \!) ..,.,
,...., ..,., ,....,

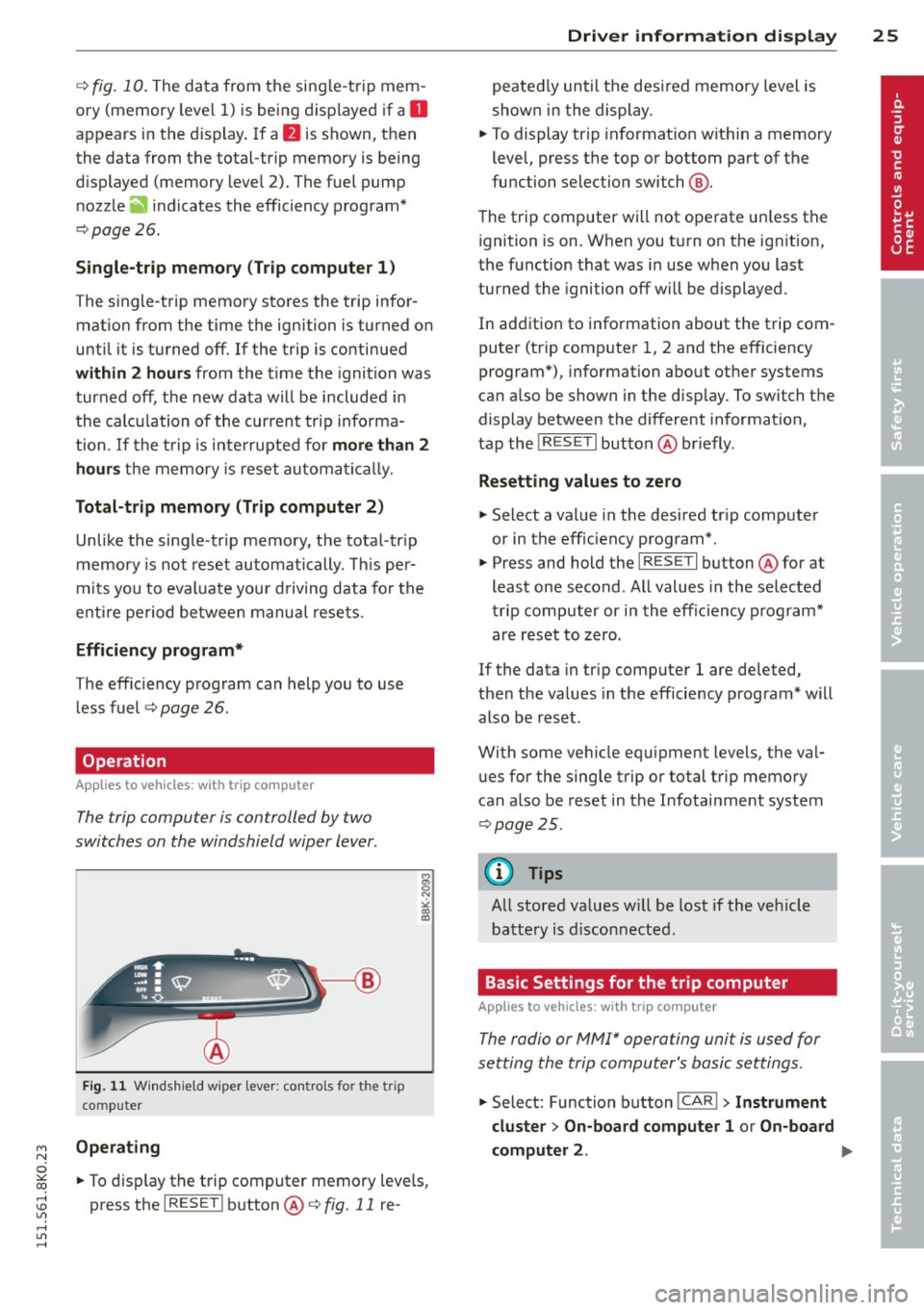

¢fig. 10. The data from the single-trip mem ­
ory (memory leve l 1) is being displayed if a
D
appears in the display. If a fJ is shown, then
the data from the total-trip memory is being
d isplayed (memory level
2). The fuel pump
nozzle
ii indicate s the efficiency program*
¢page 26 .
Single-trip memory (Trip computer 1)
The single -trip memory stores the trip infor­
mat ion from the time the ignition is turned on
until it is turned off. If the trip is continued
within 2 hours from the time the ignition was
turned off, the new data will be included in
the calculation of the current trip informa­
tion. If the trip is interrupted for
more than 2
hours the memory is reset automatically.
Total-trip memory (Trip computer 2)
Unlike the sing le-trip memory, the total-trip
memory is not reset automatically. This per­
mits you to evaluate your driving data for the
enti re pe riod between manual resets.
Efficiency program*
The effic iency program can help you to use
less fuel ¢
page 26.
Operation
Applies to vehicles: with trip computer
The trip computer is controlled by two
switches on the windshield wiper lever.
Fig. 11 Wind shi eld w iper lever: controls for the t rip
comp uter
Operating
~ To display the trip computer memory leve ls,
press the
I RESE T I button @¢ fig. 11 re-
Driver information display 25
peated ly until the desi red memory level is
show n in the display.
~ To display trip informat ion with in a memory
level, press the top or bottom part of the
function selection switch @.
The trip computer will not operate un less the
ignition is on. When you turn on the ign it ion,
the function that was in use when you last
turned the ignition off will be displayed .
In addition to information about the trip com­
puter (trip computer 1, 2 and the efficiency
program*), information about other systems
can also be shown in the disp lay. To switch the
display between the different information ,
tap the
! RESET I button @briefly.
Resetting values to zero
~ Select a value in the desired tr ip computer
or in the eff iciency program".
~ Press and hold the I RESE T I button @for at
least one second . All values in the selected
trip computer or in the efficiency program*
are reset to zero.
If the data in trip computer
1 are deleted ,
then the values in the efficiency program* w ill
also be reset.
With some vehicle equipment levels, the val­
ues for the single trip or total trip memory
can a lso be reset in the Infotainment system
¢page 25 .
(D Tips
All stored va lues w ill be lost if the vehicle
battery is disconnected.
Basic Settings for the trip computer
App lies to vehicles : wit h trip co mputer
The radio or MM!* operating unit is used for
setting the trip computer's basic settings.
~ Select: Function button !CAR !> Instrument
cluster > On-board computer 1
or On-board
computer 2 . .,.

26 Driver information d isplay
The values in the single -trip or the total-trip
memory can a ll be reset to zero at the same
time under
Reset in the menu.
I n addition, you can determine what informa­
tion from the trip computer should be shown
in the instrument cluster d isplay. If one of the
p ieces of driver information is turned
Off, that
driver information will not be shown in the
display. The information will continue to be
calculated by the trip computer and can be
turned back
On at any time .
@ Tips
-This function is not available on all
vehicles.
- The dr iving information in the efficiency
program is also reset to zero with the
s ingle-trip memory.
Gearshift Indicator
App lies to vehicles: with manua l transmission and gear­
shift indicator
This indicator can help conserve fuel.
F ig. 12 Disp lay : Gea rs hift indicator
In order to become familiar with the gearshift
indictor, at first just drive the way you are
used to. If the current gear -and the driving
situa tion -is not the best one for conserving
fuel, then the indicator will display the recom­
mended gear. The display shows the current
gear and the gear that is recommended
¢ fig. 12.
- Upshifting The display will light up to the
right of the gear currently se lected if it is
recommending a higher gear.
-Downshifting: The display will light up to
the
left of the gear currently selected if it is
recommend ing a lower gear.
Sometimes the indicator will recommend
skipping a gear (3
> S).
If there is no gearshift recommendation, then
j us t drive in the appropriate gear for conserv­
ing fuel.
(D Note
This indicator can help you conserve fuel.
This indicator is not meant to show you
which gear you should always be in in all
driving situations . Sometimes, in situa­
tions such as passing, driving through
mountains or when towing a trailer, there
won't be any gearshift recommendation.
@ Tips
The display does not light up when the
clutch pedal is being depressed.
Efficiency program
Description
Applies to vehicles: with trip computer with efficiency
program
Fig. 13 Display: efficie ncy prog ra m
.. Press the I RESE T! button @~ page 25,
fig.
11 repeatedly until the efficiency pro­
gram appears in the display .
T he efficiency program can help you to use
less fue l. It evaluates driving information in
reference to fuel consumption and shows oth­
er equipment influencing consumption as well
as shift recommendat ions . Fuel economy
ll>

M N
~ co
rl I.O
"' rl
"' rl
messages ¢ page 28 provide tips for effi­
cient driving.
The effic iency program uses distance and con ­
sumpt ion data from trip computer
1. If the
data are deleted in the efficiency prog ram,
those values are also reset in trip computer
1.
Enhanced shift indicator
Applies to vehicles: with manual transmission and trip
computer with efficiency program
Fig. 1 4 Display: enhanced shift indicator
~ In the efficiency program, press the function
selection switch ¢
page 25, fig. 11 @ re­
peatedly unt il the enhanced sh ift indicator
appea rs in the di sp lay .
The eff ic iency program also has an enhanced
shift indicator. This enhanced sh ift indicator
follows the same concept as the "standard"
shift indicator¢
page 26. The selected and
the recommended gea rs a re highlig hted in
colors like a traffic light .
The color of the circle indicates if the most
suitab le gear is engaged or if you sho uld sh ift
up or down.
Green circle without No gear or the most
or with a gear suitable gear is en-
gaged
Yellow circle ¢
fig. 14
Shift up or down one
gear
Red circle Shift up two gears
(D Note
This enhanced shift ind icator can help you
conserv e fuel. It is not des ign ed to recom­
mend the cor rect gear in a ll driving situa­
tions. Only the driver ca n dec ide which
Dri ver inform ation di spl ay 2 7
gear is correct in certain d riving situations
such as when passing another vehicle,
driving on hills or towing a trailer .
(D Tips
- The e nhanced shift indicator display is
different in vehicles with a monochrome
display.
- The "standard" shift indicato r* d isap­
pears when the enhanced shift indicator
is displayed.
Other equipment
Appl ies to vehicles : with trip computer with efficiency
program
F ig. 15 Display: othe r equipment
~ In the efficiency program, p ress the function
selectio n sw itch
¢ page 2 5, fig. 11 @ re­
peated ly until the ot her equ ipment appea rs
in the display.
Other equ ipment that is currently affecting
fuel consump tion is listed in the effi ciency
program. The disp lay shows up to th ree other
items of eq uipment @. The equ ipment using
the most fuel is listed first. If more than three
items using fuel a re switched on, the equip­
ment that is currently using the most fuel is
displayed.
A scale @also shows the c urrent tota l con ­
sumption of all othe r equipment .

28 Driver information d isplay
Fuel economy messages
App lies to vehicles: with trip computer w ith eff ici ency
program
Fig. 16 Display: fuel economy message
F ue l economy messages are disp layed when
fuel consumption is increased by certain con­ ditions. If you follow these fuel economy mes­
sages, you can reduce your vehicle's consump­
tion of fuel. The messages appear automati­
cally and are only displayed in the efficiency program. The fuel economy messages turn
off
automatically after a certain period of time.
~ To turn a fuel economy message off immedi­
ately after it appears, press the lRESET I but­
ton
c::> page 25, fig. 11 @ , or
~ Press the function selection switch
c::> page 2 5, fig. 11 @ .
(D Tips
-Once you have turned a fuel economy
message
off, it will only appear again af­
ter you turn the ignition on aga in.
- The fuel economy messages are not dis­
played in every instance, but rather in in­
tervals over a period of time.
Service interval display
The service interval display reminds you when
your next service is due.
Fig. 17 Display: Service interval display
The schedule for the next o il change or inspec­
tion is ca lculated automatically and displayed
accord ingly. The d isp lay works in two stages:
Service reminder
30 days before the next service is due, a serv­
ice reminder appears in the display when you
turn on the ign ition
c::> fig . 17 .
After about 5 seconds the display switches
back to normal. The distance and time re­
main ing are updated each time the ignit ion is
turned on until the date due for serv ice is
reached.
Service due
When the due date for service is reached, the message
Service due! appears in the instru­
ment cluster immed iately after you turn on
the ignition. Additional ly, a warning tone
sounds. After about 5 seconds the disp lay
switches back to normal.
Calling up the service schedules
If or when an oil change or inspection is due,
can be shown in the rad io or MMI* display by
selecting the service interval display in the car
menu. Select !CAR I function button
> Service
interval display
o r! CAR I function button > Car
systems*
control button > Servicing &
checks.

M N
~ co
rl I.O
"' rl
"' rl
Resetting the service interval display
Your authorized Audi dealer w ill rese t the cor­
responding service schedule after performing
the appropriate service on your vehicle. Yo u
also have the possibility to reset the oil
change schedule after having performed an
oil change according to Audi specifications.
Select
I CAR I function button > Service interval
display > Reset oil change interval
or !CARI
function button > Car systems* control but­
ton
> Servicing & checks > Reset oil change
interval.
0 Note
- Only reset the oil change d isplay when
you have completed an oil change.
-If you disconnect the battery terminals,
no calculat ions can be made for the serv­
ic e interval display during this tim e and
no service rem inder will appear. Remem­
ber that observing the proper service in­
terva ls is vitally important to extending
the life of your vehicle, particularly the
engine, and maintaining its va lue. Even if
the mileage dr iven is low, the max imum
period of one year from one serv ice to
the next must not be exceeded .
(D Tips
The informat ion in the Service Reminder
remains stored even when the vehicle bat­
tery is disconnected.
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) ¢..ift in
the instrument cluster is part of the On-Board
Diagnostic (OBD II) system.
The warning/indicator light illuminates when
the ignition is switched on and goes out after
the engine starts and the idle has stabilized .
This indicates that the MIL is work ing proper­
l y.
Driver information display 29
If the light does not go out after the engine
is started, or illuminates while you are driv­
ing , a malfunction may exist in the engine sys ­
tem.
If the light illuminates, the catalytic con­
verter could be damaged.
Continue d rivin g
with reduced power (avoid­
ing su sta ined high speeds and/or rapid accel ­
erations) and have the cond ition corrected.
Contact your authorized Audi dealer.
If the light illuminates, the electronic speed
li miter may also be malfunct ioning. For more
information
c;,page 30, Electronic speed
limiter.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate
c:;, page 210.
On-Board Diagnostics
Fig. 18 Location of Data Link Connector (D LC)
On-Board Diagnostics monitors the compo­
nents of your emission contro l system . Each
monitored component in your engine system
has been assigned a code. In case of a mal­
function, the component will be identified
and the fault stored as a code in the control
module memo ry .
The MIL light may also illuminate if there is a
leak in the on-board fuel vapor recovery sys­
tem. If the light illumi nates afte r a refueling,
stop the vehicle and make sure the fuel filler
cap is properly closed
¢ page 210.
In order to make an accurate diagnosis, the
stored data can on ly be displayed using spe­
c ial diagnostic equipment (generic scan tool
for 080). .,.
