Eme rge ncy ass ista nce
ground. The base @ must be vertical under the
lifting point @.
.. Wind the jack up further until the flat tire
comes off the ground
c> .&_.
Position the vehicle jack onl y under the designat­
ed lifting points on the sill
c> fig. 178. There is ex­
actly
one location for each wheel. The jack must
not be positioned at any other location
c> &c>Q) .
An uns table s urfac e under the jack can cause the
vehicle to slip off the jack. Always provide a firm
base for the jack on the ground . If necessary
place a sturdy board or similar support under the
jack. On
har d, sli ppery su rfaces (such as tiles)
use a rubber mat or similar to prevent the jack
from slipping
c> & .
A WARNING
-
-You or your passengers could be injured
wh ile chang ing a wheel if you do not follow
these safety precautions:
- Position the vehicle jack only at the desig­
nated lifting points and align the jack.
Otherwise, the vehicle jack could slip and
cause an injury if it does not have suff i­
cient hold on the vehicle.
-A soft or unstable surface under the jack may cause the vehicle to slip off the jack.
Always provide a firm base for the jack on
the ground. If necessa ry, use a sturdy
board under the jack.
- On ha rd, slippery surface (such as tiles)
use a rubber mat o r similar to prevent the
jack from slipping .
- On ly raise your vehicle with the vehicle
jack provided by the factory . If you use a
vehicle jack for another vehicle, your vehi­
cle can slide and cause injury.
- Changes in temperature or load can affec t
the height o f the vehicle .
- Never start the engine when the vehicle is
raised, which could cause an accident.
- Support the vehicle securely with appro­
priate stands if work is to be performed
underneath the vehicle; otherwise, there
is a potentia l risk for injury .
244
-To help prevent injury to yourself and your
passengers :
- Do not ra ise the vehicle until you are su re
the jack is securely engaged.
- Passengers must not remain in the veh icle
when it is jacked up.
- Make sure that passengers wait in a safe place away from the veh icle and we ll away
from the road and traffic.
- Make sure jack position is correct, adjust
as necessary and then continue to raise
the jack.
- Changes in temperature or load can affect
the height of the vehicle.
(D Note
Do not lift the vehicle by the sill. Position the
vehicle jack only at the des ignated lifting
po ints on the sill. Otherwise, your vehicle will
be damaged.
Taking the wheel off /installing the spare
Follow these instructions step-by-step for chang­
ing the wheel.
Fig. 180 Chang ing a whee l: us ing the screwdriver hand le
(w ith the blade removed) to turn the bolts
Fig. 181 Changing a w heel: alignment pin inside the top
hole

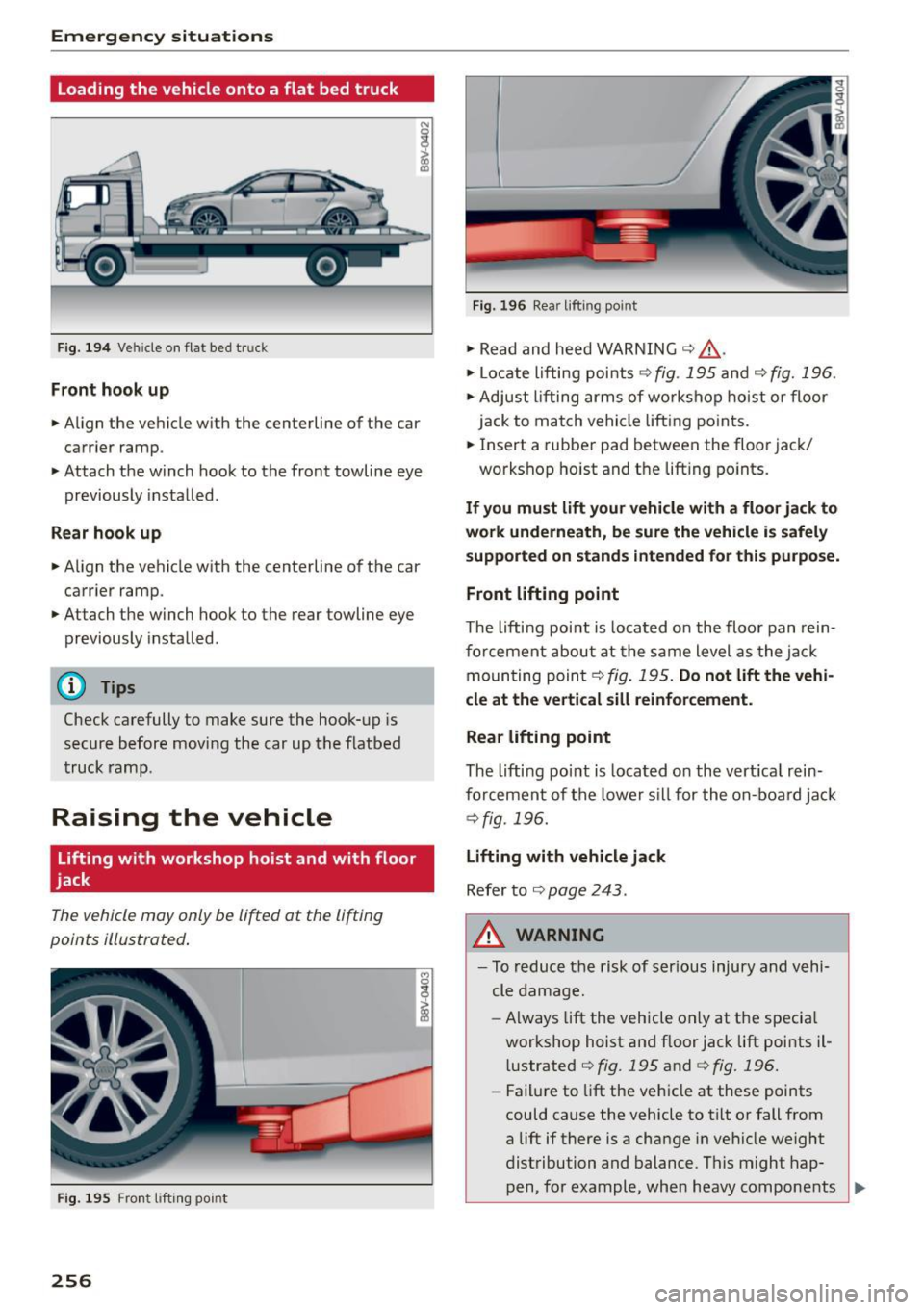

Emergency situation s
Loading the vehicle onto a flat bed truck
Fig. 194 Ve hicle on flat bed tr uck
Front hook up
.. Align the vehicle w ith the centerline of the car
carrier ramp.
.. Attach the winch hook to the front towline eye
previously installed .
Rear hook up
.. Align the vehicle with the centerline of the car
carr ier ramp .
.. At tach the winch hook to the rear towline eye
previously installed .
@ Tips
Check carefully to make sure the hook-up is
secure before moving the car up the flatbed
truck ramp .
Raising the vehicle
Lifting with workshop hoist and with floor
jack
The vehicle may only be lifted at the lifting
points illustrat ed .
F ig . 19 5 Fron t lifti ng po int
256
Fig . 19 6 Rear lift ing po int
.. Read and heed WARNING ¢ .&, .
.. Locate lifting poi nts ¢ fig . 195 and ¢ fig. 196 .
.. Adjust lifting arms of wo rkshop hoist o r floor
jack to match vehicle lift ing points .
.. Insert a rubbe r pad between the floor jack/
workshop hoist and the lift ing po ints .
If you mu st lift your vehicle with a floor jack to
work underneath, be sure the vehicle is safely
supported on stands intended for this pu rpose .
Front lifting point
The lifti ng point is located o n the floo r pan rein­
fo rcement about at the same level as the ja ck
moun ting poin t¢
fig. 195. Do not lift the vehi·
cle at the ve rtical sill reinfor cement.
Rear lifting point
The lifting po int is located o n the vert ica l re in­
forcement of the lower s ill for the on -boa rd ja ck
¢ fig . 196.
Lifting with vehicle jack
Refer to ¢ page 243.
,&. WARNING
-To reduce the risk of serious injury and vehi­
cle damage.
- Always lift the vehicle only at the specia l
wor kshop hoist and f loor jack lift points il­
l ustrated ¢
fig. 195 and¢ fig. 196.
-Fail ure to lift the veh icle at these points
could cause the vehicle to tilt or fall from
a lift if there is a cha nge in vehicle weight
distributi on and balance . This might hap-
pen, for example, when heavy components .,,_

M N
0 > co ,...., \!) 1.1"1
1.1"1
1.1"1
,....,
such as the engine b lock or transmission
are removed .
- When removing heavy components like
these, anchor vehicle to ho ist o r add corre­
sponding weights to maintain the center of
gravity . Otherwise, the vehicle might tilt or
s li p off the hoist , causi ng se rious pe rsonal
injury .
([) Note
-Be awa re of the fo llowing points befo re lift ­
i ng t he ve hicle:
-The vehicle should never be lifted or
jacked up from underneath the engine oil pan, the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage.
- To avoid damage to the underbody or
chassis frame , a rubber pad must be in·
serted between the floo r jack and the lift
points.
- Before driving over a wo rkshop hoist,
check that the veh icle weight does not
e xceed the permiss ible lift ing capacity of
the hoist.
- Before driv ing over a workshop hoist, en­
sure that there is sufficient clearance be­
tween the hoist and low parts of the ve­
hicle .
Emergency s ituations
