2015 AUDI RS5 CABRIOLET rear view mirror

"' N
a: LL co
rl I.O
"' rl
"' rl

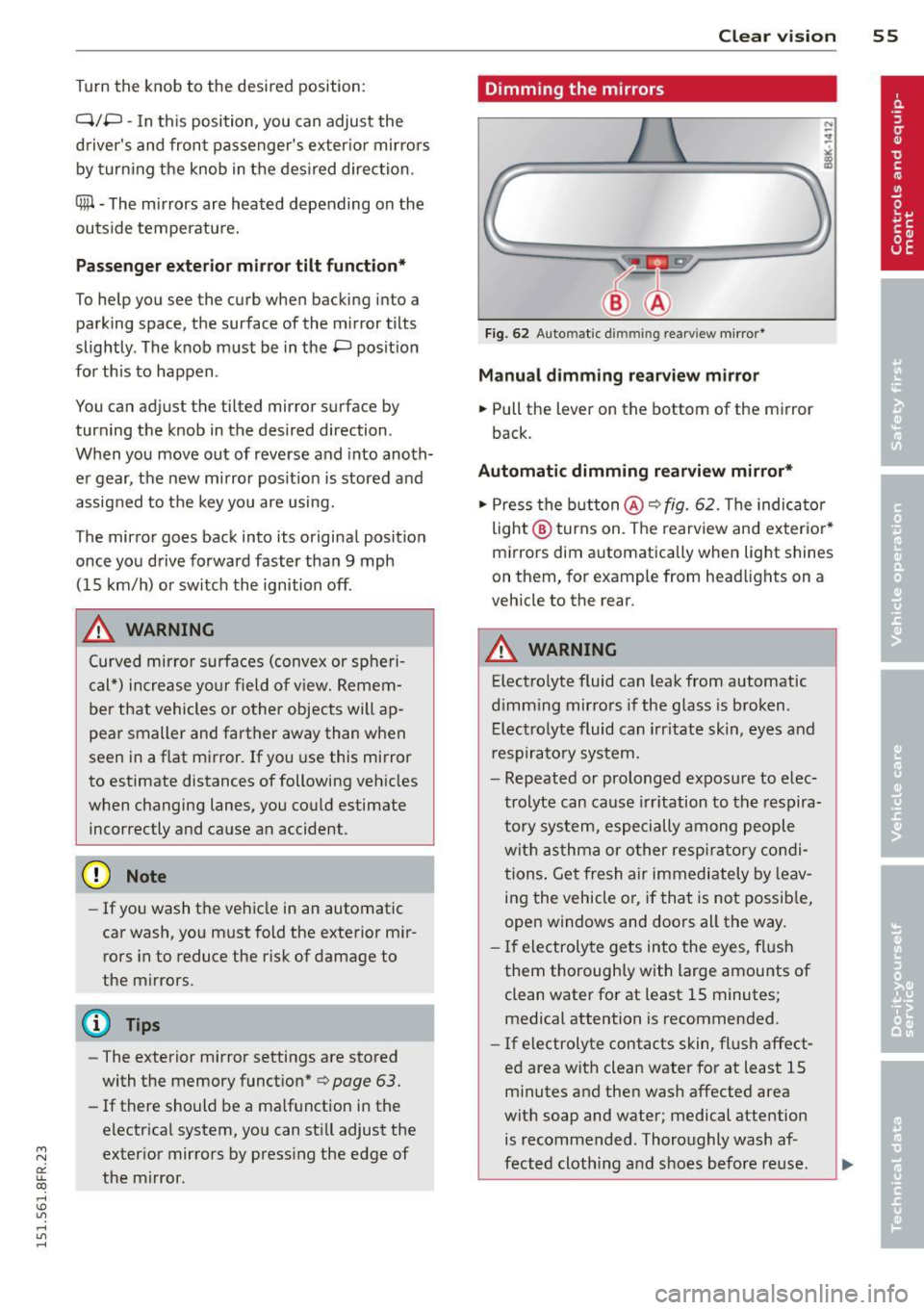

Turn the knob to the desired position:
Q/ P -In this position , you can adjust the
driver's and front passenger's exterior mirrors by turning the knob in the desired direction.
(ijjl -The mirrors are heated depending on the
outside temperature.
Passenger exterior mirror tilt function*
To help you see the curb when backing into a parking space, the surface of the mirror tilts
slightly . The knob must be in the P posit ion
for this to happen .
You can adjus t the tilted mirror sur face by
turning the knob in the desired direction .
When you move out of reverse and into anoth­
er gear, the new mirror position is stored and
assigned to the key you are using.
T he mirror goes back into its original position
once you drive forward faster than 9 mph (15 km/h) or switch the ignition off .
_& WARNING
Curved mirror surfaces (convex or spheri­
cal*) increase your field of view. Remem­
ber that vehicles or other objects will ap­
pear smaller and farther away than when
seen in a flat mirror. If you use this mirror
to estimate distances of following vehicles
when changing lanes, you could estimate
incorrectly and cause an accident .
(D Note
- If you wash the vehicle in an automatic
car wash, you must fold the exterior mir­
rors in to reduce the risk of damage to
the mirrors.
{!) Tips
- The exterior mirror settings are stored
with the memory function*
c:> page 63.
-If there should be a malfunction in the
electrical system, you can still adjust the
exterior mirrors by pressing the edge of
the mirror.
.
Clear vision 55
Dimming the mirrors
N
~
><
~===~=======~ ~
Fig. 62 Auto matic dimmin g rearv iew mirro r*
Manual dimming rearview mirror
.,. Pull the lever on the bottom of the mirror
back .
Automatic dimming rearview mirror*
.,. Press the button @c:>
fig. 62. The indicator
light @ turns on . The rearview and exterior*
mirrors dim automatically when light shines
on them, for example from headlights on a
vehicle to the rear .
_& WARNING
-
Electrolyte fluid can leak from automatic
dimming mirrors if the glass is broken .
Electrolyte fluid can irritate skin, eyes and
respiratory system.
- Repeated or prolonged exposure to elec­
trolyte can cause irritation to the respira­
tory system, especially among people
with asthma or other resp iratory condi­
tions . Get fresh air immediately by leav­
ing the vehicle or, if that is not possible,
open windows and doors all the way.
- If electrolyte gets into the eyes, flush
them thoroughly with large amounts of clean water for at least 15 minutes;
medical attention is recommended.
- If electrolyte contacts skin, flush affect­
ed area with clean water for at least 15
minutes and then wash affected area
with soap and water; medical attention
is recommended. Thoroughly wash af­
fected clothing and shoes before reuse .
.

56 Clear vision
-If swallowed and person is conscious,
rinse mouth with water for at least 15
minutes. Do not induce vomiting unless
instructed to do so by medical professio­
nal. Get medical attention immediately.
d) Note
Liquid electrolyte leaking from broken mir­
ror glass will damage any plastic surfaces
it comes in contact with. Clean up spilled
electrolyte immediately with clean water
and a sponge.
@ Tips
- Switching off the dimming function of
the inside rear view mirror also deacti­
vates the automatic dimming function of
the exterior mirrors.
-Automatic dimming for the mirror only
operates properly if the light striking the inside mirror is not hindered by other ob­
jects.
- The automatic dimming mirrors do not
dim when the interior lighting is turned
on or the reverse gear is selected.
Sun visors
1--~---'
Fig. 63 Driver's side: sun visor
The sun visors for the driver and passenger
can be pulled out of their brackets in the cen­
ter of the vehicle and turned towards the
doors @.
The mirror light switches on when the cover over the vanity mirror@ opens.
Wiper and washer
system
Switching the windshield wipers on
Fig. 64 W indshield w iper lever
Move the windshield wiper lever to the corre­
sponding position:
@ -Windshield wiper off
@ -Interval mode. To extend/shorten the
wiper intervals, move the switch@ to the
left/right. In vehicles with a rain sensor* the
wipers turn on in the rain once the vehicle
speed exceeds approximately 2 mph (4 km/h).
The higher the sensitivity of the rain sensor* is
set (switch @ to the right), the earlier the
windshield wipers react to moisture on the
windshield. In some models, you can switch
rain sensor mode off and switch intermittent
mode on in the MMI*. Select:
!CARI function
button
> Car systems* control button > Driver
assist
> Rain sensor . In intermittent mode,
you can adjust the interval time using the@
switch.
@ -Slow wiping
@ -Fast wiping
@-Single wipe
® -Clean the windshield. To eliminate water
droplets, the windshield wiper performs one
afterwipe operation after several seconds
while driving . You can switch this function off
by moving the lever to position ® within 10
seconds of the afterwipe operation. The after­
wipe function is reactivated the next time the
ignition is switched on.

58 Clear vis ion
• Se lect : I CAR ! function button > Car sys tems*
control button > S erv ici ng & check s > Wiper
s e rv ice po sition
> O n/ Off .
Removing the wip er blade
• Lift the w indshield w iper arm up from the
windshield.
• Press the locking knob
(D c::> fig . 65 on the
wiper blade . Hold the wiper blade firm ly.
• Remove the wiper blade in the direction of
the arrow.
Attach ing th e wip er blade
• Install the new wiper blade in the retainer
on the wiper arm@ until you hear it click in ­
to place on the wiper arm .
• Place the wiper arm back on the windshield.
• Turn the service position off.
_& WARNING
-
For your safety, you should replace the
w iper blades once or tw ice a year . See your
authorized Audi dealer for rep lacement
blades.
(D Note
- The windshield wiper blades must only
be replaced when in the service position!
Otherwise, you risk damaging the paint
on the hood or the w indshield wiper mo­
tor.
- You should not move yo ur vehicle or
press the w indshie ld w iper lever when
t h e wiper arms are folded away from the
windsh ield. The w indshield w ipers would
move back into the ir original position
and could damage the hood and wind­
shield.
- To he lp prevent damage to the wiper sys­
tem, a lways loosen blades which are fro ­
zen to the windsh ield before operat ing
wipers.
- To he lp prevent damage to wiper blades ,
do not use gasoline, kerosene, pa int
th inner, or othe r solvents on or near the
wiper blades . -
To help prevent damage to the wiper
arms or other components, do not at­
tempt to move the wipers by hand.
(D Tips
- Commercial hot waxes applied by auto­
matic car washes affect the how easily
the glass surface can be cleaned .
- Yo u can also use the service position, for
example, if you want to protect the
windshield from icing by using a cover.
Digital compass
Switching the compass on and off
Applies to vehicles: with digita l compass
The compass direction is shown in the rear­
view mirror .
Fig. 66 Rearv iew mirr or: Digita l compass act ivated
• To swi tch the compass on or off, press and
hold the button @until the compass dis ­
p lay in the mirror
c::> fig . 66 appears or disap­
pears.
T he digita l compass on ly works when t he igni­
tion is o n. The directions are indicated with
abbreviations :
N (north), NE (northeast), E
(east), SE (southeast), S (south), SW (south­
west) ,
W (west), NW (northwest).
(D Tips
To prevent inaccurate compass readings,
do not bring any remote contro ls, e lectr i­
ca l devices or metallic objects near the
mirro r.

"' N
a: LL co
rl I.O
"' rl
"' rl
Adjusting the magnetic zone
Applies to vehicles: with digital compass
The magnetic zone must be adjusted correctly
for the compass to read accurately .
Fig. 67 North America: magnet ic def lect ion zone
bounda ries
.. Press and ho ld the button @ ~fig. 67 until
the number of the magnetic zone appears in
the rearv iew mirror .
.. Press the button @repeated ly to select the
correct magnetic zone. The select io n mode
turns off after a few seconds.
Calibrating the compass
Applies to vehicles: with digital compass
You must recalibrate the compass if it does
not display the correct direction .
.. Press and ho ld the button @unti l a C ap­
pears in the rearview mirror .
.. Drive in a circle at about 6 mph (10 km/h)
until a direction is disp layed i n the rearview
mirror .
&, WARNING
- To avoid endang ering yo urse lf and other
dr ivers, calib rate the compass in a n area
w he re there is no traff ic. Clear vi
sion 59
- The digital compass is to be used as a di­
rectional aid on ly. Even though you may
want to look at it while you are dr iving,
you must still pay attent ion to traffic,
road and weather conditions as we ll as
other possible hazards.

"' N
a: LL co
rl I.O
"' rl
"' rl
Audi side assist Lane change assistant
Description
Applies to vehicles: with Audi side assist
Fig. 114 Sensor dete ction ra n ge
Fig. 115 Disp la y on the exterio r mirro r
Side assist he lps you mon itor your blind spot
and traffic behind you r veh icle. With in the
limits of the system, it warns you about
vehicles that are coming closer or that are
traveling w ith you within sensor range
(D
c::, fig . 114 : if a lane change is class ified as crit­
ical, the display@ in the exterior mirror
c::>
fig. 115 turns on.
The display in the left exterior mirror provides
assistance when making a lane change to the
le ft, while the display in the right exterior mir­
r or provides assistance when making a lane
change to the right.
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and classified as crit ical. The display
in the respective mirror turns on, but is d im.
Audi side assist 99
The display remains dim intentionally in the
information stage so that your view toward
the front is not disturbed .
Warning stage
If you activate the turn signal, side assist
warns you about vehicles that are detected
and classified as critical. The display in the re ­
spective mirror blinks brightly . If this hap­
pens, check traff ic by glanc ing in the rearview
mirror and over your shoulder
c::> A in General
information on page 100 .
@ Tips
-You can adjust the brightness of the dis­
play @c::>
page 101.
General information
Applies to vehicles: with A ud i side ass ist
®
®
©
Fig. 116 D riving s it u atio ns
Fig . 117 Rea r of th e ve hicl e: pos it io n of the senso rs

100 Audi side assist
Side assist functions at speeds above approxi­
mately 19 mph (30 km/h).
@ Vehicles that are approaching
In certain cases, a vehicle will be classified as
cr itica l for a lane change even if it is still
somewhat far away . The faster a vehicle ap­
proaches, the sooner the display in the exteri ­
or mirror will turn on.
@ Vehicles traveling with you
Vehicles traveling with you are indicated in the
exterior m irror if they are classified as critica l
for a lane change. All vehicles detected by
side assist are indicated by the time they en­
ter your "blind spot", at the latest.
© Vehicles left behind
If you slowly pass a vehicle that side assist has
detected (the difference in speed between the
vehicle and your vehicle is less than 9 mph
(15 km/h)), the disp lay in the exterior mirror
turns on as soon as the vehicle enters your blind spot.
The display will not turn on if you quickly pass
a vehicle that side assist has detected (the dif­
ference in speed between the vehicle and your
vehicle is greater than 9 mph (15 km/h)).
Functional limitations
The radar sensors are designed to de tect the
l eft and right adjacent lanes when the road
lanes are the normal width. In certain situa­
tions, the display in the exterior mirror may
turn on even though there is no vehicle locat­
ed in the area that is critical for a lane change.
For example:
- if the lanes are narrow or if your are driving
on the edge of your lane. If this is the case,
the system may have detected the vehicle in
another lane that is
not adjacent to your
current lane.
- if you are driving through a curve. Side assist
may react to a veh icle that is one lane over
from the adjacent lane.
- if side assist reacts to other objects (such as
high or displaced guard ra ils). -
In poor weather conditions . The side assist
functions are limited.
Do not cover the rada r sensors
~ fig. 117 with
stickers, deposits, bicycle wheels or other ob­
jects, because this will affect the function . For
information on cleaning, refer to ¢
page 184.
A WARNING
-
-Always pay attention to traffic and to the
area around your vehicle. Side assist can­
not replace a driver's attention. The driv­
er alone is always responsible for lane
changes and similar dr iving maneuvers .
- Improper reliance on the side assist sys­
tem can cause coll is ions and serious per­
sonal injury:
- Never rely on ly on side assist when
changing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles un­
der all conditions- danger of accident!
- Please note that side assist indicates
there are approaching vehicles, or
vehicles in your blind spot, only after
your vehicle has reached a driving speed
of at least 19 mph (30 km/h).
- In certain sit uations, the system may not
function or its function may be limited.
For example:
- if vehicles are approach ing or being left
behind ve ry quickly. The d isp lay may
not turn on in time.
- in poor weather conditions such as
heavy rain, snow or heavy mist.
- on very wide lanes, in tight curves or if
there is a rise in the road surface.
Vehicles in the adjacent lane may not
be detected because they are outside
of the sensor range .
([) Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
u nderbody. This can affect the system. .,..

276 ~l :..:.: nd ~e ~x :._ ______________________________ _
Oil
refer to Engine oil . . . . . . . . . . . . 197, 199
O il consumption ............... .... . 199
On-Board Diagnostic System (OBD) Data Link Connector (DLC) .. .. .. .. .. .. 28
Malfunction Indicator Lamp (MIL) . . . . . 28
Open door or front lid warning . . . . . . . . . 23
Opening Power wind ows . . . . . . . . . . . . . . . . . . . . 38
Opening/clos ing
at the lock cylinder .. .. ... ... .. .. .. .. 35
by remote cont ro l ......... ... .. .. .. 33
with the central locking switch . . . . . . . . 34
with the convenience key . . . . . . . . . . . . . 34
Operate your vehicle econom ically and
minim ize pollution ........ ... .. .. .. . 181
Optiona l equipment
Marked with an asterisk .... .. .. .. .. . .. 6
Outside mirrors
refer to Exterior mirrors . . . . . . . . . . . . . 54
Outside temperature display ....... .. .. 23
Owner 's manual
How the Owner's Manual is organi zed . . . 6
p
Paint damage 186
Paint No ... .... ........... .... .... . 261
Park assist . . . . . . . . . . . . . . . . . . . . . . . . . 105
Cleaning sensors/camera lenses . .. .. . 185
Parking ..... .............. ... .... .. 79
S tron ic transm ission ........ .. .. .. .. 85
Valet parking ............ .... .... .. 39
Parking brake ............. .. .. .. .. .. 78
also refer to E lectromechanica l parking
brake .... .. ................ ..... .. 78
Parking system . ........... .. .. .. .. . 105
Parking system plus ....... .. .. .. .. . 105
Rear view camera ... .... .. .. .. .. .. . 106
Parking system plus
Adjust ing the display ...... .. .. .. .. . 11 1
Adjustingthewarningtones .. .. .. .. . 111
Parking system plus with rear view camera
Parking mode 1 ............ .. .. .. . 109
Park ing mode 2 ........... ... .. .. . 110
Safety precautions ......... ... .. .. . 107 Switching
on/off . . . . . . . . . . . . . . . . . . 108
Switching rear view camera
on/off .. .. 111
Parts replacement .............. .... 266
PASS ENGER AIR BAG OFF light .... .... 142
Passive safety system ................ 112
Pedals . ........ .. ..... ........... . 117
Physical principles of a frontal collision 124
Plastic parts Cleaning .... .. .. ...... ....... .... 187
Polishing ......... ..... ........... . 186
Po llutant filter (automatic A/C system) .. 69
Power seat adjustment .... ....... .... .. .. . 61
Power locking system ................. 30
Emergency locking ....... ...... .. .. . 3S
Power windows .. .......... ...... .. 39
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Selective unlock feature ... ..... .. .. . 35
Settings .. .... .. .................. 35
Power steering
refer to Electro-mechanical power as-
s ist
Power top .. .. .. .. ...... ....... .... .
Cleaning 175
43
1 86
Closing ......... ..... ........... .. 43
Convenience closing ............... .. 44
Convenience opening ....... .... .. .. . 44
Emergency operation . . . . . . . . . . . . . . . . 4 7
General information ............. .. . 43
Malfunction ..... ................ .. 45
Messages ..... .. .................. 4S
Opening .... .. .. ....... ...... .... . 43
Vari able powe r top s torage bay ... .. .. . 4S
Wind deflec tor . . . . . . . . . . . . . . . . . . . . . 46
Power window
Convenience opening/clos ing ........ . 39
Power windows .. .. ....... ..... ..... . 38
Malfunctions . . . . . . . . . . . . . . . . . . . . . . 39
Pregnan t women
Spec ial considerations when wear ing a
safety belt .. .. .. ....... ...... .. .. 128
Proper occupant seating positions . .. .. 113
Proper safety belt position ...... .. .. .. 128
Proper seating position Front passenger . . . . . . . . . . . . . . . . . . . 114
Occupants ....... .......... ...... . 113
Rear passengers .. ... ... .... ... .. .. 115

M N
er
u..
co ,...., \!) ..,.,
,...., ..,., ,....,
Index 277
-----------------------------------.......
Protecting . . . . . . . . . . . . . . . . . . . . . . . . . 186
Q
Quartz clock . ............. .... .. .. .. 12
quattro
refer to all-wheel dr ive .... .. .. .. .. . 176
Question What happens to unbelted occupants? 124
Why safety belts? . . . . . . . . . . . . . . . . . 123
R
Radiator fan
203
Ra in/ light sensor
H eadlig hts . ............. .... .. .... 5 1
I ntermittent (windshield wipe rs) . . . . . . 56
Sensor defective . . . . . . . . . . . . . . . . . . . . 22
Reading lights ............. .. .. .. .... 54
Rear fog lights ............ .... .. .... 51
Rear lid Escape hand le . . . . . . . . . . . . . . . . . . . . . 3 7
Opening and closing ... ... .. .. .. .. .. 36
Rear light Defective . . . . . . . . . . . . . . . . . . . . . . . . . 21
Rear view camera Park ing mode 1
Par king mode 2
Rear view mirror ........... .... .. ... . 109
110
55
Rear w indow heati ng ....... .. .. .. .. .. 7 1
Recirculation mode (automatic climate
control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Refue lling . .. .. ........... .. .. .. ... 192
Rele ase lever for hood ...... .. .. .. .. . 195
Remote control Garage door opener (Homel ink) . .... .. 40
Remote control key . . . . . . . . . . . . . . . . . . . 31
Personalizing . . . . . . . . . . . . . . . . . . . . . . 31
u nl ocking/locking ........ .. .. .. .. .. 33
Remote rear lid release .. ... .. .. .. .. .. 36
Repai r manua ls . ........ .... ... ... .. 264
Repairs Airbag system ........... .. .. .. .. . 144
Replacement key . . . . . . . . . . . . . . . . . . . . 3 1
Replacing bulbs .............. .. .... 253
Replacing tires and whee ls ... .. .. .. .. . 23 1
Replacing w iper blades ..... .. .. .. .. .. 57 Reporting Sa
fety Defects . ..... ... .. .. 120
Reset button . . . . . . . . . . . . . . . . . . . . . . . . 12
Retractor ... .. .. .. ............... .. 127
R ight hand dr ive . . . . . . . . . . . . . . . . . . . . . 53
Rims Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 186
Rollbar
refer to Active ro llover protection sys-
tem ........ .. .. .... ............. 121
s
SAFE ...... .. .. .. ................. . 12
S afe driving habi ts . .... ......... .. .. 112
Safety be lt pos ition .. .. .. ...... .... . 128
Safety be lts worn by pregnan t women . 128
Safety be lt pretensioner ... .... ... .. .. 129
Serv ice and disposa l .. ............. 130
S afety be lts . .. .. .. ... .. .......... .. 1 26
Be lt pos itione r ... .. . .. .. ..... ... .. 126
Cleaning . ... .... .. . .. .. ..... ... .. 187
Danger to passengers who do not wear a
sa fety belt . . . . . . . . . . . . . . . . . . . . . . . 124
Fa sten ing .. ... .. .. . .............. 127
Improperly worn . ... ... ...... ... .. 129
Not wor n . . . . . . . . . . . . . . . . . . . . . . . . 124
Safety be lt pos ition ... .. ...... .... . 128
Safety i nstructions ............. .... 126
Securing child safety se ats ...... .. .. 162
Spe cial considera tions for pregnan t
women ... .. .... ... .. .. ..... ... .. 128
Unfastening ..... .. . .. .. ..... ... .. 129
Warning/indicator light . ..... ... .. .. 123
Warning light .. .. .................. 16
Why YOU MUST wear them ........ .. 123
Wor n properly ... .. . .. .... .... .. .. 125
Safety be lt warning light . ..... ... .. .. 123
Safety comp liance sticker ........ .. .. 261
Safety eq uipment .. ............. .. .. 112
S afety features for oc cupant rest ra in t an d
protection . ... .. .... . ... ...... ... .. 112
Safety gu idelines
Seats ..... .. .. .. ................. . 60
Safety instr uctions
E n gine compartment .......... .... . 195
for using ch ild safety seats .......... 155
•
•
