Tires and wheels
-Temperature grades apply to tires that are properly inflated and not over or underinflated.
-For technical reasons it is not always possible to use wheels
from other vehicles -in some
cases not even wheels from
the same vehicle model.
-Do not use run-flat tires on your vehicle. Using run-flat
tires can lead to vehicle dam­age or crashes.
(D Note
-For technical reasons, it is not generally possible to use the
wheel rims from other
vehicles. This can hold true for
wheels of the same vehicle
type.
-If you should put different wheels and tires on your vehi­
cle (e.g. winter wheels and
tires), you must be certain
that the wheels and tires are compatible with the tire pres­
sure monitoring system. Oth­
erwise the system will register
a malfunction and a fault message will be displayed. For
more information, contact
your authorized Audi dealer.
192
(D Note
-When installing new tires, be careful not to damage the
valves or tire pressure moni­
toring system sensors.
-Never drive without the valve stem cap. The valves could get
damaged.
-If the sensors must be re­ placed, then the valve must
also be replaced at the same
time.
@) For the sake of the environment
Dispose of old tires in accord­
ance with the local require­
ments.
(D Tips
Tires with the identification "ROl" have been specially matched with your Audi. We
recommend using only these
tires because they meet the highest standards regarding
safety and driving characteris­
tics when used correctly. Your authorized Audi RB dealer will
gladly provide you with more information.
· Uniform tire quality grading
- Tread wear
- Traction AA AB C
- Temperature ABC

..... N
r-­N "': ..... \!) 1.1'1
N 1.1'1 .....
Quality grades can be found where applicable on
the tire side wall between tread shoulder and maximum sect ion w idth
r::!:> page 186, fig. 150.
For example: Tread wear 200, Traction AA , Tem­
perature
A.
All passenger car tires must conform to Federal
Safety Requirements in addition to these grades.
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a spec ified gov­
e rnment test course.
For example, a t ire graded
150 would wear one
and one half (1 1/2) times as well on the govern­
ment course as a tire graded
100 .
The relative performance of tires depends upon
the actual conditions of their use, however, and
may depart significantly from the norm due to
variations in driving hab its, serv ice practices and
differences in road characteristics and climate.
Traction
The traction grades, from highest to lowest, are
AA, A, B and
C. Those grades represent the tire's
ab il ity to stop on wet pavement as measured un­
der controlled condit ions on specified govern­
ment test surfaces of asphalt and concrete. A tire
marked C may have poor traction performance
r::!;> .&. .
Temperature
The temperature grades are A (the highest), B,
and C, representing the tire's resistance to the
generation of heat and its ability to dissipate
h eat when tested under controlled cond it ions on
a specified indoor laboratory test wheel.
Sustained high temperature can cause the mate­
rial of the tire to degene rate and reduce tire life,
and excessive temperature can lead to sudden
tire failure
r::!:> .&. .
The grade C corresponds to a level of perform­
ance which all passenger car tires must meet un­
der the Federal Motor Vehicle Safety S tanda rd
No.
109. Grades Band A represent higher levels
Tires and wheels
of performance on the laboratory test whee l than
the minimum required by law .
A WARNING
-
-
The traction grade assigned to th is tire is
based on straight-ahead braking traction
tests, and does not include accelerat ion, cor­
nering, hydroplaning or peak traction charac­
terist ics.
A WARNING
= -
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and
not overloaded. Excessive speed, underinfla­
tion, or excessive loading, either separately or
in combination, can cause heat buildup and
possible tire failure.
Winter tires
Winter tires can improve vehicle handling on
snow and ice . At temperatures below 45 °F (7 °C)
we recommend changing to winter tires .
In some heavy snow areas, local gove rnments
may require true wint er or "snow" tires, those
with very deeply cut tread. These tires should on­
ly be used in pairs and be installed on a ll four
wheels. Make sure you purchase snow tires that
are the same size and construction type as the other tires on your vehicle.
If your vehicle is equipped with all-whee l drive *,
this will improve traction during winter driving,
even with the standard tires. However, we strong­
ly recommend that you always equip all four
wheels on your vehicle with correctly fitted win­
ter tires or all-season tires, when w inter road
condit ions are expected. This also improves the
vehicle's braking pe rformance and reduces stop­
ping distances.
Summer tires provide less grip on ice and snow .
Winter tires (snow tires) must always be fitted on
all four wheels.
Compatible t ire pressure monitoring sensors
must be installed on all four winter tires for the
tire pressure monitoring system to function prop- erly
¢ page 190. ..,.
193

subsequent vehicle start-ups as long as the mal­
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signa l
l ow tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of rep lacement or a lternate tires or
wheels on the vehicle that prevent the TPMS from functioning properly. Always check the
T PMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly .
Introduction
The tire pressure monitoring system monitors air
pressure in all four road wheels while the vehicle
is moving.
As soon as the tire pressure monitoring system
senses a s ignificant loss of a ir pressure in one or
several tires, text messages and ye llow symbo ls
appear in the instrument cluster display to a le rt
the driver. The
[I] warning light in the instru ­
ment cluster comes on when the tire is signifi ­
cantly underinflated .
The warning
light [l'J also illuminates in the case
of a system malfunction.
Be aware that tire p ressure is also dependent on
the temperat ure of the t ire. For every 18 ° F
(10 °() increase in tire temperature, tire pressure
increases by about 1.5 psi (0.1 bar) . The tire
warms up while the vehicle is moving and tire
pressure rises. So you shou ld adjust tire pressure
only when they are
cold, when the temperature
of the tires is roughly the same as the ambient
air temperature.
In order to keep the tire pressure monitoring sys­
tem properly calibrated, tire pressure on all four
tires should be checked at regular intervals .
The tire pressure is shown on the label located on
~ the driver 's side B-pillar (visible when the door is r--
~ open) .
,...., \!) ..,.,
N
"' ,....,
Tires a nd w hee ls
A WARNING
-
When the tire pressure monitoring system
warning light is lit, one or more of your tires is
significantly under- inflated . You should stop
and check your t ires as soon as poss ible, and
i nflate them to the proper pressure as indicat­
ed on the vehicle 's t ire pressure label
¢ page 176. Driving on a significant ly under­
inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also is
likely to impair the vehicle's handling and
stopping ability.
@ For the sake of the environment
Driving with under -inflated tires reduces fuel
efficiency and tire tread life.
(D Tips
- Each tire should be checked monthly when
the temperature of the tires is about the
same as ambient air temperature and set to
the recommended inflation pressure as
specified on the tire pressure label
¢page 176.
- The tire pressure mon itoring system helps
the driver to keep an eye on tire pressures.
But the driver still has the responsib ility for
ma inta ining the correct tire pressure.
- Tire pressure must only be adjusted when
the temperature of the tires is about the
same as amb ient air temperature.
- When tires are replaced, the sensors and
valves should not be exchanged. The valve
core, nut, valve seal ing and seal washer (re­
placement kit) needs to be replaced. If nec­
essary, the valve and the wheel electronics
have to be replaced.
- The tire pressure mon itoring system on your
Audi was calibrated using tires with "RO"
identification. We recommend using these
tires .
- If you sho uld put different wheels and tires
on your vehicle (e .g. winter whee ls and
tires), you must be certain that the wheels
197

Tires and wheels
and tires are compatible with the tire pres­
sure monitoring system. Otherwise the sys­
tem will register a malfunction and a fault message will be displayed. For more infor­
mation, contact your authorized Audi deal­
er.
- For Declaration of Compliance to United
States FCC and Industry Canada regulations
c:> page 218.
Programming a new set of tires
Applies to veh icles: w ith tire pressure monitoring syste m
When driving with a new set of tires, you can pro­
gram them to the tire pressure monitoring sys­
tem using the menu disp lay.
.,. Turn the ignition on .
.,. Select the menu:
Set> Tire pressure > Wheel
change.
.,. Confirm that you would like to begin the pro­
gramming process . The message
Wheel sen­
sors are being initialised. This may take a few
minutes ...
appears in the instrument cluster
display.
You can switch between programmed tire sets at
any time without reinitializing the system.
(D Tips
- If the programming process was not com­
pleted successfully, the message
Wheel
sensors could not be initialised
appears in
the display and them indicator light
turns on. If this happens, repeat the proce­
dure.
- Do not store the tire pressure if there are
snow chains on the tire.
TPMS Tire pressure monitoring system
malfunction
A malfunction can have various causes.
If the [I] warning light in the instrument cluster
flashes for approximately one minute and then
remains continuously illuminated and additional­
ly
the m symbol appears in the display, the tire
pressure monitoring system is not available. The
198
text Tire pressure! System malfunction appears
in the display. This can have various causes.
- A wheel sensor or other component may have
fai led.
- During initialization the system has detected
more than 4 wheels on the vehicle, for example
while driving next to another car with a tire pressure monitoring system.
- Audi replacement parts were not used.
- If snow cha ins are being used, system function
can be compromised due to the shielding prop­
erties of the chains .
- The tire pressure monitoring system may not
be available because of a rad io malfunction.
- Transmitters with the same frequency, such as
radio headphones in the vehicle or radio equip­
ment, can cause a temporary disruption of the
system through excessive electromagnetic
fields .
- Eliminate the interference if you can and then
proceed as follows: Turn off the engine for 20
minutes. Then drive another 10 minutes.
If the
warning light comes on again, you should con­
tact your authorized Audi dealer immediately
to have the problem corrected.
- Do not use commercially available tire sealants.
Otherwise, the electrical components of the
tire pressure monitoring system will no longer
work properly and the sensor for the tire pres­
sure monitoring system will have to be replaced
by a qualified workshop.

What do I do now?
-Repl ace th e fl at ti re with a n ew one and h ave
it ins talled on you r vehicle as soon as
po ssible. Remount the wheel co ve r.
Until th en, driv e with extr a car e and at redu ced
s pe eds .
A WARNING
-If you are go ing to equip your vehicle with
t ires or rims which differ from those wh ich
were factory installed, then be sure to read
the informat ion¢
page 186, New tires and
replacing tires and wheels.
- Always store the tools securely in luggage
compartment . Otherwise, in an accident or
sudden maneuver they cou ld fly forward,
caus ing injury to passengers i n the vehicle .
(D Note
Do not use commercially available t ire sea l­
ants. Otherwise, the electrical components of
the t ire pressure monito ring system* will no
longer wo rk properly and the sensor fo r the
tire pressure monitor ing system will have to
be rep laced by a qualified workshop.
Jump-starting
General
If necessary, the engine can be started by con­
necting it to the battery of another vehicle.
-
If the engine sho uld fail to start because of a d is­
charged or weak battery, the battery can be con­
nected to the battery of
another vehicle, using a
pai r of jumpe r cable s to start the engine.
Both batteries must be rated at 12 vo lts. The
ca ­
pacit y
(Ah) of the booster battery must not be
substantially less than the capacity of the dis­
charged battery.
Jump er c ables
Use only jumper cables of sufficiently large cro ss
s e ctio n
to safely carry the s tarte r cu rrent . Refer
to the manufact urer's specifications.
Use o nly jumper cables wh ich have
insulated ter­
minal clamps and are p roperly marked for d is­
tinction:
206
plu s(+) ca ble : in most cases colo red red
minu s(-) c abl e:
in most cases colo red bla ck
A WARNING
-
Batteries conta in e lectr ic ity, acid, and gas.
Any of these can cause very serious or fata l in ­
jury . Follow the instructions below for sa fe
handling of your vehicle's battery.
- Always shie ld your eyes and avoid leaning
over the battery whenever possib le .
- A discharged battery can a lready freeze at
tempera tures just below 32 °F (0 °C). Befo re
connecting a jumper cab le, the frozen bat­
tery must be thawed comp lete ly, otherwise
it could exp lode.
- Do not allow battery acid to contact eyes or
skin . Flush any contacted area with water
immed iately.
- Improper use of a booster battery to start a
veh icle may cause an explosion.
- Vehicle batter ies generate explosive gases .
Keep sparks, f lame and lighted cigarettes
away from batteries.
- Do not try to jump start any vehicle with a
low acid level in the battery.
- The voltage of the booster battery must al­
so have a 12 -Vo lt rat ing. The capacity (Ah)
of the booster battery should not be lower
than that of the discharged battery. Use of batter ies of different voltage or substantial­
ly different "Ah" rating may cause an explo­
sion and personal injury.
- Never charge a frozen battery. Gas trapped
in the ice may cause an exp losion .
- Never charge or use a battery that has been frozen. The battery case may have be weak­
ened.
- Use of batter ies of different voltage or sub­
stantially d iffe rent capacity (Ah) rating may
cause an exp losion and injury. The capacity
(Ah) of the booster battery sho uld not be
lower than that of the discharged battery.
- Before you check anything in the engine
compa rtment, always re ad and heed all
WARNINGS
¢page 155, Working in the en -
gine comportment. .,,.

..... N
r-­N "': ..... \!) 1.1'1
N 1.1'1 .....

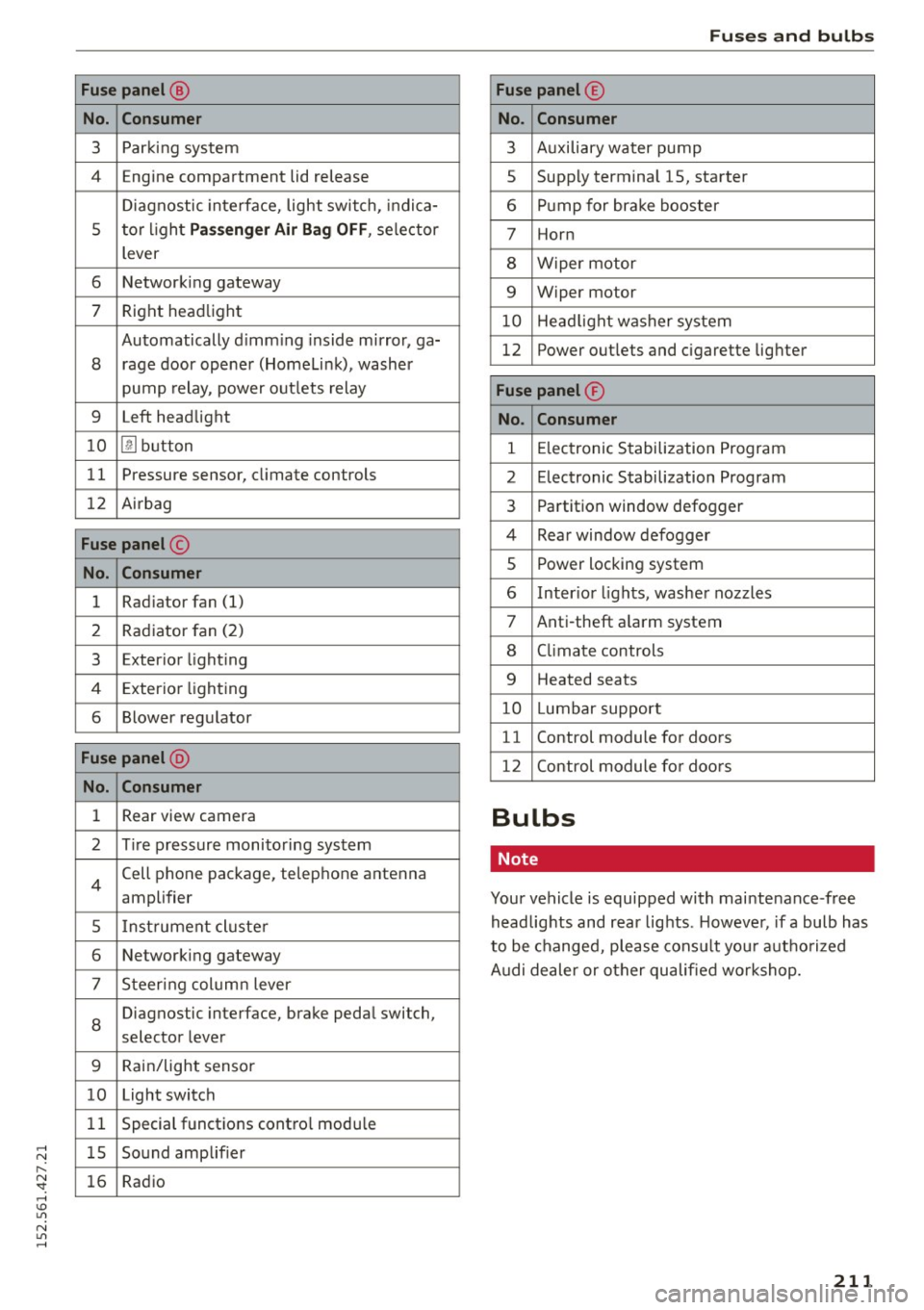

Fuse panel @
No. Con sume r
3 Parking system
4 Engine compartment lid release
Diagnostic interface, light switch, indica-
5 tor l ight
P asse nger A ir Bag OFF , selector
lever
6 Networking gateway
7 Right headlight
Automatically d imm ing inside mirror, ga-
8 rage door opener (Homelink), washer
pump relay, power outlets relay
9 Left headlight
1 0
[!] button
11 Pressure sensor,
climate controls
12 Airbag
Fuse panel @
No. Consumer
1 Radiator
fan (1)
2 Rad
iator fan (2)
3 Exterior lighting
4 Exterior lighting
6 Blower regulator
Fuse pan el @
No. Con sumer
1 Rear view camera
2 Tire pressure monitoring system
4
Cell phone package, telephone antenna
amplifier
5 Instrument cluste r
6 Networking gateway
7 Steering column lever
8
Diagnostic
interface, brake pedal switch,
selector lever
9 Rain/light sensor
10 Light switch
1 1 Special functions contro
l modu le
1 5 Sound amplifier
16 Radio
Fu ses a nd bulb s
Fuse panel @
No . Con sumer
3 Auxiliary water pump
5 Supply terminal
15, starter
6 Pump for brake booster
7 Horn
8 Wiper motor
9 Wiper motor
10 Head light washer system
12 Power
outlets and cigarette lighter
Fuse panel ®
No . Con sumer
1 E lectronic Stabilization Program
2 Electronic Stabilization Program
3 Partition window defogger
4 Rear window defogger
5 Power locking system
6 Inter ior lights, washer nozzles
7 Anti-theft a larm system
8 Climate controls
9 Heated seats
10 Lumbar support
11 Control
module for doors
12 Control module fo r doors
Bulbs
Note
Your vehicle is equipped with maintenance -free
headlights and rear lights . Howeve r, if a bulb has
to be changed, please consult your autho rized
Audi dealer or other qualified workshop.
21 1

Index
Eme rgency r elease
Fr ont lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Park ing lock . . . . . . . . . . . . . . . . . . . . . . . . .
79
Eme rgency sta rting . . . . . . . . . . . . . . . . . . . 206
Eme rgency towing . . . . . . . . . . . . . . . . . . . . 208
Energy management . . . . . . . . . . . . . . . . . . 14 0
Batte ry power . . . . . . . . . . . . . . . . . . . . . . 14 1
Driver notification . . . . . . . . . . . . . . . . . . . 141
Eng ine
Coolan t . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16 1
Data . ... .... .. ... .. ..... ... .. .. ... 214
Eng ine compartment lid . . . . . . . . . . . . . .
155
Starting . . . . . . . . . . . . . . . . . . . . . . . . . 66, 67
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Engine compartmen t . . . . . . . . . . . . . . . . . . 15 7
Safety instructions . . . . . . . . . . . . . . . . . . . 155
Engine compa rtment lid
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 56
Release lever . . . . . . . . . . . . . . . . . . . . . . . 155
Engine coolant system . . . . . . . . . . . . . . . . . 161
Malfunct io n . . . . . . . . . . . . . . . . . . . . . . . . . 14
Temperature ga uge . . . . . . . . . . . . . . . . . . . . 9
En gine oi l . . . . . . . . . . . . . . . . . . . . . . . . . . .
158
Adding .. .. .. .. ............. .. . 160,161
Addit ives. . . . . . . . . . . . . . . . . . . . . . .
160, 161
Checking the eng ine oi l level . . . . . . . 159, 160
Dry s ump lubr ication . . . . . . . . . . . . . . . . . 139
Indications and cond it ions requ iring ext ra
checking . . . . . . . . . . . . . . . . . . . . . . .
159, 160
O il c ons umption . . . . . . . . . . . . . . . . . . . . . 1 58
O il grades . . . . . . . . . . . . . . . . . . . . . . . . . . 15 8
Specification and viscos ity . . . . . . . . . . . . . 158
Temperature disp lay . . . . . . . . . . . . . . . . . . . 8
E ngi ne oi l level . . . . . . . . . . . . . . . . . . . . . . . . 17
Engine oil pressure (malfunction) . . . . . . . . . 14
Engine oi l sensor defective . . . . . . . . . . . . . .
17
Engine speed limitat ion . . . . . . . . . . . . . . . . . 17
E nvironment
Cataly tic converter . . . . . . . . . . . . . . . . . . .
142
Disposing of your vehicle batte ry . . . . . . . 165
Fue l . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Unleaded f uel ..................... .. 15 1
What should I do wi th an old batte ry? . . . 16 5
EPC
refer to Electronic power control . . . . . . . . 16
ESC (Electronic Stabilization Co ntro l)
Warning/indicator lights . . . . . . . . . . . . . . .
15
222
Event Data Recorde r (ED R) . . . . . . . . . . . . . . 134
Exhaust tail pipes Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 7
Expansion tank . . . . . . . . . . . . . . . . . . . . . . .
162
Exterior m irrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . .
49
Dimming . ... .... .. .. .. .. .. .... ... .. . 50
Heating... ...... .. ............... .. . 49
F
Fan ..... .... . .. .. .. .. ... .. ..... ... .. . 62
Faste ning
Boos ter sea ts . . . . . . . . . . . . . . . . . . . . . . .
128
Convertib le child sa fety se ats . . . . . . . . . . 12 7
Infant seats
Flat bed truck
Flat tire 127
208
Changi ng . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Fo ld ing master key with remo te control . . . . 27
Foot peda ls . . . . . . . . . . . . . . . . . . . . . . . . . . .
90
Fo r the sake of the environment
Gasoline fumes and t he env ironme nt . . . . 153
Letting yo ur eng ine warm up . . . . . . . . . . .
67
Ref ueling . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Front a irbags
Des cription . . . . . . . . . . . . . . . . . . . . . . . . .
106
How they wor k . . . . . . . . . . . . . . . . . . . . . . 110
Frontal collis io ns and the laws of phys ics . . . 96
Front lid
Emergency release . . . . . . . . . . . . . . . . . . . . 33
light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49
Power locking system . . . . . . . . . . . . . . . . . 32
Trunk escape handle . . . . . . . . . . . . . . . . . 199
Front passenger
refer to Seating position . . . . . . . . . . . . 87, 88
Front seat s . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Child rest rain ts in the fron t seat . . . . . . . . 103
Front towi ng loop . . . . . . . . . . . . . . . . . . . . . 208
Fuel
Additives.. .. .... .. .. .. ......... .. ..
151
B lended gasoline . . . . . . . . . . . . . . . . . . . . 151
Current fuel mileage . . . . . . . . . . . . . . . . . . 21
Filler neck . . . . . . . . . . . . . . . . . . . . . . . . . .
152
Fuel supply too low . . . . . . . . . . . . . . . . . . . 17
Gasoline . . . . . . . . . . . . . . . . . . . . . . . . . . .
151

Index
Leather cleaning/protection . . . . . . . . . . . . 148
leaving home . . . . . . . . . . . . . . . . . . . . . . . . . 46
Lifting jack . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Light coming/leaving home . . . . . . . . . . . . . . . . . 46
Exterior lighting . . . . . . . . . . . . . . . . . . . . . . 46
Light/rain sensor Light sensor package . . . . . . . . . . . . . . . . . . 46
Light/rain sensor defective . . . . . . . . . . . . . . 18
Lights Instrument panel illumination . . . . . . . . . . 49
sw itch ing on and off . . . . . . . . . . . . . . . . . . 46
Light sensor package . . . . . . . . . . . . . . . . . . . 46
Loading the luggage compartment . . . . . . . .
91
Locking
Power locking system . . . . . . . . . . . . . . . . .
31
Remote master key . . . . . . . . . . . . . . . . . . . 30
L uggage compartment. . . . . . . . . . . . . . . . . . 49
Emergency exit. . . . . . . . . . . . . . . . . . . . . .
199
light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Lo ading . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
91
M
Maint enance . . . . . . . . . . . . . . . . . . . . . . . . . 215
Malfunct ion Indicator Lamp (MIL) . . . . . 17, 26
Manual transmission Gearshift lever · .............. .. .. .. .. 74
Launch Control Program . . . . . . . . . . . . . . . 74
Matte finish paint cleaning . . . . . . . . . . . . . 145
Menu button . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Menu display . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Mirror Vanity mirror · · · · · ·........... ... .... 51
Mirrors Activating the digital compass . . . . . . . . . . 54
Adjusting the exterior mirrors . . . . . . . . . . . 49
dimm ing . .. .... ... .......... .. .. .. ..
so
Monitoring the Advanced Airbag System . . 112
N
Natural leather
Cleaning
New tires and wheels
NHTSA 148
186
Contact ing
· · · · · · · · · · · · · 92 .............
224
Number of seats · .. .. ................ .. 95
0
Octane rating . . . . . . . . . . . . . . . . . . . . . . . . 151
Odometer
· · · · · · · · · · · · · · · · · · · · . . . . . . . . 10
Oil
refer to Engine oil . . . . . . . . . . . . . . . . . . . 158
On-Board Diagnostic System (OBD)
Data Link Connector (DLC) . . . . . . . . . . . . . . 26
Malfunction Indicator Lamp (MIL) . . . . . . . 26
Open door or front lid warning . . . . . . . . . . . 20
Optional equipment Marked with an asterisk . . . . . . . . . . . . . . . . . 5
Outs ide mirro rs
refer to Ext erior mirrors . . . . . . . . . . . . . . . 49
Outs ide temperature display . . . . . . . . . . . . . 20
Owner's manual How the Owner's Manual is organized . . . . .
5
p
Paint damage
p . N aint o . .. ... .... .. .. ............. ..
147
212
Park assist Cleaning sensors/camera lenses . . . . . . . . 146
Parking on a decline · · · . ... .... ......... .. .. . 69
on an incline
· · ·.. .. ............... ... 69
Parking brake · · · .. .. .. .............. .. 68
Parking brake warning ................. .
13
Parking system advanced . . . . . . . . . . . . . . . . 80
Adjusting the display . . . . . . . . . . . . . . . . . . 85
Adjusting the warn ing tones . . . . . . . . . . . . 85
Parallel Parking . . . . . . . . . . . . . . . . . . . . . . 84
Reverse parking . . . . . . . . . . . . . . . . . . . . . . 83
Safety precautions . . . . . . . . . . . . . . . . . . . . 80
Switching on and off ............... .. . 82
Parts replacement . . . . . . . . . . . . . . . . . . . . 217
PASSENGER AIR BAG OFF light . . . . . . . . . . 112
Passive safety system . . . . . . . . . . . . . . . . . . . 86
Pedals · · · · · · · · · .. .. .. .. ........... .. . 90
Physical p rinciples of a frontal collision 96
Plastic parts Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
