Parking system
Parking system
Parking system advanced
Introduction
Applies to vehicles: with park ing system advanced
Ll
I
Fig. 89 Parking mode 1: Reverse park ing
F ig. 90 Parking mode 2: Parallel parking
Ll
I
Vehicles with the parking system are equ ipped
with a
rear view camera in addition to the acous­
tic and visual parking system.
You can choose between two modes to help you
when parking your vehicle. Use "parking mode 1"
when parking in a parking space or garage
c:;, fig. 89. If you are going to be parallel parking,
use "parki ng mode 2"
r=;,fig. 90.
80
General Information
Applies to vehicles: with parking system advanced
Fig. 91 View from top: Rearview camera coverage area
-------.. -..
Fig. 92 Side view: Rearv iew camera cove rage area
Sensors in the bumper
Sensors are located in the front and rear bump­
ers. If these detect an obstacle, audible and visu­
al signals warn you . The range at wh ich the sen­
sors begin to measure is approximately:
side 3 ft (0.90 m)
front center 4 ft (1.20 m)
side 2
ft (0.60 m)
rear center 5 .2 ft (1.60 m)
The closer you get to the obstacle, the shorter
the interval between the audible signals . A con­
tinuous tone sounds when the obstacle is less
than approximately 1 foot (0 .30 meters) away.
Do not continue dr iving farther.
If the distance to an obstacle remains constant,
the volume of the distance warning gradually
drops after about four seconds (this does not ap­
ply in the continuous tone range).
Rear view camera coverage area
The rearview camera shows you the area beh ind
your vehicle in the navigation system display. This..,_

..... N
r-­N "': ..... \!) 1.1'1
N 1.1'1 .....

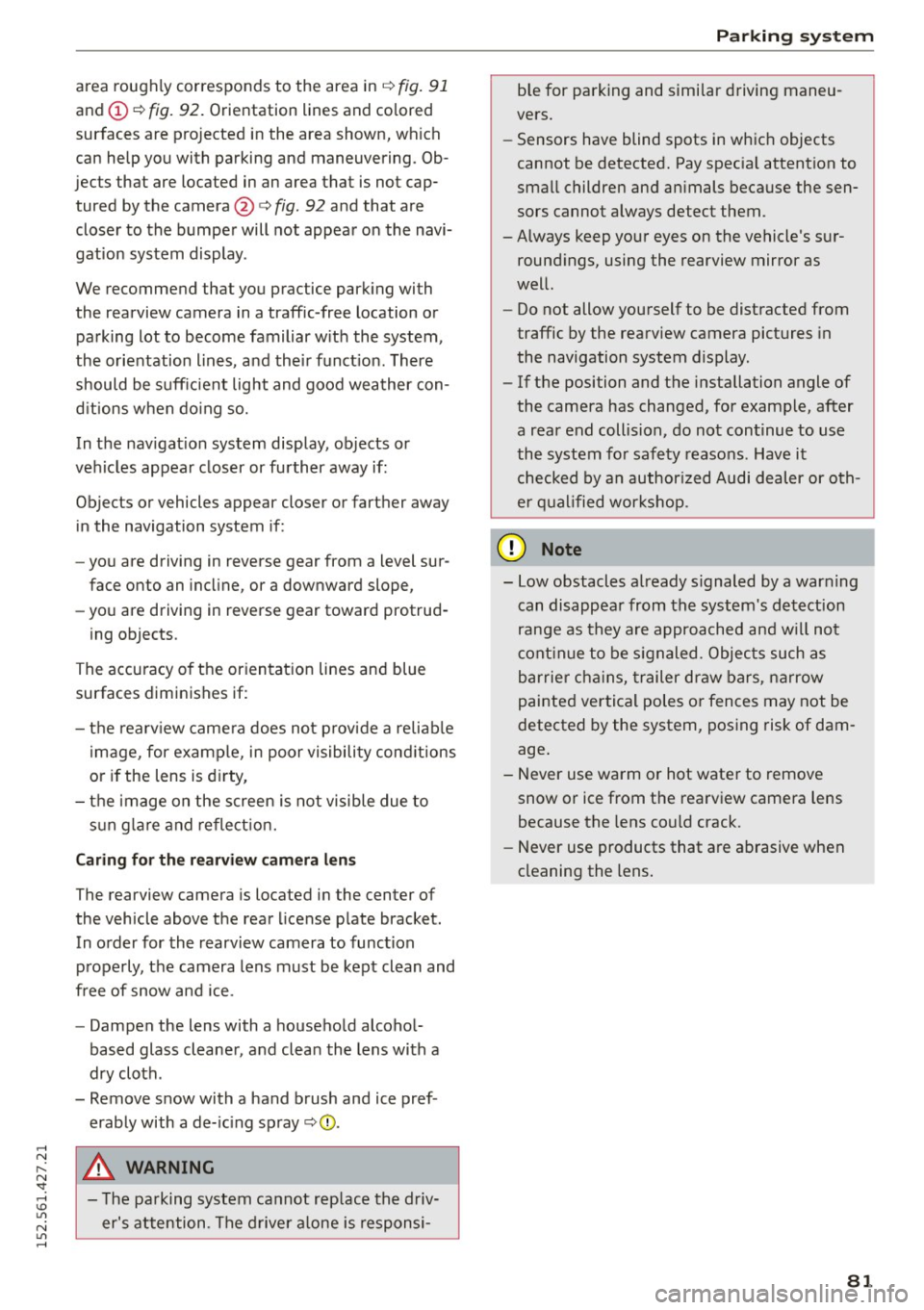

area roughly corresponds to the area in¢ fig. 91
and (D ~ fig . 92. Orientation lines and colored
surfaces are projected in the area shown, which
can help you with parking and maneuvering. Ob­
jec ts that are located in an area that is not cap­
tured by the camera@¢
fig. 92 and that are
closer to the bumper will not appea r on the navi­
gation system display .
We recommend that you practice park ing with
the rearview camera in a traffic -free location o r
parking lot to become familiar w ith the system,
the orientation lines, a nd their funct ion . There
should be suff icient light and good weather con­
d itions w hen do ing so.
In the nav igat io n system display, objects or
vehicles appear closer or fu rther away if:
Objects or vehicles appear closer or farther away in the navigation system if :
- you are driving in reverse gear from a level sur ­
face onto an incl ine, or a downward slope,
- you are driving in reverse gear toward protrud-
ing objects .
The accuracy o f the orientation lines and blue
surfaces diminishes if:
- the rearv iew came ra does not p rovide a reliab le
image, for example, in poor visibility cond itions
or if the lens is d irty,
- the image on the screen is not visible due to
s u n g lare and reflect ion.
Caring for th e rearvi ew cam era len s
The rearview camera is located in the center of
the vehicle above the rear license p late bracket.
In order for the rearview camera to function
p roperly, the camera lens must be kept clean and
free of snow and ice .
- Dampen the lens with a househo ld alcoho l­
based glass cleane r, and clea n the lens with a
dry cloth .
- Remove snow with a hand brush and ice pref ­
erably with a de- ic ing spray ¢(j) .
A WARNING
- T he pa rking system cannot rep lace the d riv­
er' s a ttention . The d rive r alone is responsi-
P a rk ing system
ble for parking and simi lar d riving maneu­
vers.
- Sensors have blind spots in whic h objects
cannot be detected. Pay spec ia l attention to
small children and an imals beca use the sen­
sors cannot always detect them.
- Always keep your eyes on the vehicle 's sur­
round ings, using the rearview mirror as
well.
- Do not allow yourself to be distracted from
traffic by the rearview camera pictures in
the navigation system display .
-If the position and the installation angle of
the camera has changed, for example, after
a rear end collision, do not continue to use
the system fo r safety reasons . Have it
checked by a n author ized Audi dealer or oth­
er q ua lif ied wor kshop .
(!) Note
-Low obstacles a lready s ignaled by a war ning
can disappea r from the system 's detection
range as they a re approached and w ill not
cont in ue to be s ignaled . Objec ts such as
barrie r cha ins, trailer draw ba rs, narrow
painted vertical poles o r fences may not be
detected by the system, pos ing risk of dam­
age .
- Never use warm or hot wate r to remove
snow or ice from the rearv iew camera lens
because the lens could crack .
- Never use products that a re abrasive when
cleaning the lens .
81

Parking syste m
Switching on /off
App lies to veh icles: w ith park ing system advanced
SPORT •
Fig. 93 Section of the cente r conso l-e : Park ass ist sw itch
F ig . 94 Naviga tio n sys tem display : v isual distance display
Sw itching on
... Switch the navigation system and the nav iga­
tion system display o n .
... Engage the reverse gea r, or
... Press the
!l¾ I switch in the center console
Q fig. 93. A short confirmation tone sounds and
the indicator light in the switch lights up.
Switching betwe en th e rear view c amera and
vi su al d isplay
... Press the Graphic control button ¢ page 83,
fig . 95
to see the visual disp lay .
... Press the
Rea r v iew contro l button to see the
rear view camera image¢
fig. 94.
Switch ing off
... Drive faster than 6 mph (10 km/h), or
... Press the
!P-<. I switch, or
... Switc h off the ignition .
Segments in the visual d isplay
The red segments in front of and be hind the vehi­
cle¢
fig. 94 help you to determine the distance
between you and a n obstacle. As your vehicle
82
comes closer to the obstacle, the segments move
closer to the vehicle . The collision area has been
reached when the next to last segment is dis ­
played. Do not continue driving farther
Q & in
General Information on page 81
!
A WARNING
-The navigation system display cannot show,
or cannot adequately show, certain objects (such as small posts or grating), recesses in
the ground and protrud ing parts on another
car.
- Only use the rearv iew camera to assist you if
it s hows a good, clear pictu re. For examp le,
the image may be affected by t he sun shin ­
ing i nto the lens, dirt oh the lens or if there
is a defect .
(1) Tips
- The sensors m ust be kept clean and free of
snow and ice for the park ass ist to operate.
- Yo u can change the vo lume and pit ch of the
signa ls
Qpage 85.
-What appears in the display is time-delayed.

.... N
l'­
N "1: .... I.O
"' N
"' ....
outside mirror or a corner of your veh icle does
not collide with any obstacles . This can dam­
age to your veh icle .
@ Tips
The left or right orientation lines and surfaces
w ill be displayed , depending on the turn sig­
na l being used .
Adjusting the warning tones
Applies to vehicles: with pa rking system advanced
Fig . 9 9 Nav igatio n system d isp lay: adjusting th e park ing
system
Requi rement: The parking system must be
switched on.
• Press the Settings control button .
-Front volume -front sensor volume
-Front frequency -front sensor frequency
- Rear volume -rear sensor volume
-Rear frequen cy -rear sensor frequency
The newly adjusted value is briefly heard from
the signa l gene rator.
0) Tips
Changed settings are activated when parking
system is switched on aga in .
Error messages
Applies to vehicles: with park ing system advanced
There is an e rror in the system if the L ED on the
~ switch is blinking and you he ar a co nti nu ous
ala rm for a few seconds a fter sw itch ing on the
pa rking system or when the park ing system is al­
ready activated . Have your authorized A udi dealer
correct the e rror.
Par king system
(D Tips
If an error has occ urre d before the ignition is
turned off, the LED in the ~ switch wi ll blink
the next time the ignition is switc hed on, re ­
verse gear selected, and t he acoustic pa rking
system is act ivated .
85

...... N
l'­
N "1: ...... I.O
"' N
"' ......
Transport Canada, D efect Inve sti­
gation s and R ecalls, ma y either
call Tran sport Canada toll-free at:
Tel.: 1-800-333-0510 or
Tel.: 1 -819-994-3328 (Ottawa re­
g ion and from other countries)
TTY for hearing impaired: Tel.:
1-888-6
7 5-6863
or contact Transport Canada by
mail at:
Transport Canada Motor Vehi cle Safety Investiga­
tion s Laboratory
80 Noel Street
Gatineau, QC
J8Z 0Al
For additional road safety infor­
mation, please visit the Road
Safety website at :
http ://www . tc .gc. ca/ e ng/
roadsafety/menu .htm
Driving Sa fely
Active rollover
protection system
Function
T he a ctive r ollover pro tec tion system hel ps pro ­
tec t vehi cle o ccup an ts in the even t of a rollover .
Fig. 102 Rollbar de ploy men t ran ge
Fig. 103 Rollb ar dep loye d
( ~ I,- ~ ~-1 . '
' . • • • • •• . '
The active ro llover protection system consists of :
- two ro llb ars
- t he sa fe ty bel ts wi th bel t t ensioner s
- t he wi ndsh ield frame
- the ro llov er se nsors .
The active roll over protection system provides
addi tional safety in the event of a r ollover . Within
milliseco nds, sensors d ep loy two rollbars located
behin d the hea drests
~fig . 10 3.
The roll bars , reinforced windshie ld frame and
belt tensioners he lp protect veh icle occupants in
the eve nt of a rollover .
The rollover protection system f unct ions when
the convertible top is both open and closed .
93

Driving Safely
_&. WARNING
Do not use the area behind the headrests
<=.> fig. 102 as a storage area . This is the area
where the rollbars deploy. If the rollover pro­
tection system is triggered, objects placed
there can be propelled through the vehicle
and make it more difficult for the rollbars to
deploy. This increases the risk for serious or
life-threatening injuries.
When is rollover protection deployed?
Rollover protection deploys in a collision or roll­
over .
Depending on the collision, sensors throughout
the vehicle and the control module trigger the
rollover system to deploy .
For safety reasons, rollover protection also de­
ploys during front, side and rear collisions above
a certain level of severity .
Retracting rollover protection
Fig. 104 Deployed ro llbar wit h release loop
Fig. 105 Deploye d ro llbar wit h convert ib le top frame fac·
ing upward
M
M
9 N
~
If the rollbars deployed but the vehicle was not
involved in a collision or rollover, you can retract
94
them without special tools. The system is ready
for use again once they are retracted.
.,. Remove the wind deflector, if necessary
<=.>page 40 .
.,. Lower the rear window, if necessary Q page 41 .
.,. Pull the loop upward in the direction of the ar­
row and hold it in place
(D r=.> fig. 104.
.,. Slide the rollbar down@¢.,&. .
.,. Release the loop just before the rollbar reaches
its end position 1 -2 in . (3-5 cm) .
.,. Press the rollbar down firmly until it stops.
.,. Make sure the rollbar is secure before releasing
it.
.,. Close the cover @
Q fig. 105.
.,. Repeat the procedure on the other rollbar.
& WARNING
-
-Make sure your head or other parts of your
body are not located in the area above the
rollbar when pressing the rollbar down. If
the rollbar is not secured correctly, it could deploy again as soon as you release it and
cause injuries .
- Have the rollover protection system checked
by your authorized Audi dealer if it malfunc­
tions. Otherwise the system may not deploy correctly in a collision .
- Modifying the rollover protection system or
individual components is not permitted.
- Work on the rollover protection system
should only be performed by your author­
ized Audi dealer . Otherwise the system may
not function correctly in a collision or it
could deploy unexpectedly .
- Have the system inspected at service inter­
vals. This ensures the system will always be
ready for use. Have your authorized Audi
dealer check the rollover protection system
every two years at the latest.
(D Note
If the rollbars deploy when the convertible
top is closed, do not open the top. Doing so
could result in damage to the vehicle. Please
see your authorized Audi dealer for assis­
tance.

..... N
r-­N "': ..... \!) 1.1'1
N 1.1'1 .....
system is activated by sensors in front, side and
rear-end collisions and in a rollover of great se­
verity. Th is tightens the belt and takes up belt
slack <=>&.
in Service and disposal of safety belt
pretensioner on page 101.
Taking up the slack
helps to reduce forward occupant movement dur ­
ing a collision.
(D Tips
The safety belt pretensioner can only be acti­
vated once.
-In minor frontal and side collisions, in rear­
end collisions and in accidents involving
very little impact force, the safety belt pre­
tensioners are not activated .
- When the safety belt pretensioner is activat­
ed , a fine dust is released . This is normal
and is not caused by a fire in the vehicle.
- The relevant safety requirements must be
observed when the vehicle or components
of the system are scrapped . An authorized
Audi dealer is familiar with these regula­
tions and w ill be pleased to pass on the in­
formation to you.
- Be sure to observe all safety, environmental
and other regulations if the vehicle or indi­
vidual parts of the system, particularly the
safety belt or airbag, are to be disposed . We
recommend you have your authorized Audi
dealer perform this service for you.
Service and disposal of safety belt preten­
sioner
The safety belt pretensioners are parts of the
safety be lts on your Audi . Installing, removing ,
servicing or repairing of belt pretensioners can
damage the safety belt system and prevent it
from working correctly in a collision.
There are some important things you have to know to make sure that the effectiveness of the
system wil l not be impaired and that discarded
components do not cause injury or pollute the
environment .
Safety belts
A WARNING
-
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing a safety belt preten­
sioner from activating when needed or acti­
vating it unexpectedly:
- The belt pretensioner system can be activat­
ed only once. If belt pretensioners have
been activated, the system must be re­
placed.
- Never repair, adjust, or change any parts of
the safety belt system.
- Safety belt systems including safety belt
p retens ioners cannot be repaired. Special
procedures are required for removal, instal­
lation and disposal of this system.
- For any work on the safety belt system, we
strongly recommend that you see your au­
thorized Audi dealer or qualified technician
who has an Audi approved repair manual,
training and special equipment necessary.
@ For the sake of the environment
Undeployed airbag modules and pretension­
ers might be classified as Perchlorate Material
-special handling may apply , see
www .dtsc.ca.gov/hazardouswaste/perchlo­
rate. When the vehicle or parts of the re­
straint system including airbag modules,
safety belts with pretensioners are scrapped,
all applicable laws and regulations must be
observed. Your authorized Audi dealer is fa­
miliar with these requirements and we recom­
mend that you have yo ur dealer perform th is
service for you.
101

Airbag syste m
If the front passenger airbag deploys, the Federal
Standard requires the airbag to meet the "low
risk" deployment criteria to help reduce the risk
of injury through interaction with the airbag.
"Low risk" deployment occurs in those crashes
that take place at lower decelerations as defined in the electron ic control unit
<:;> page 112.
Always remember: Please be sure to read the im­
portant information in the sections that follow
and be sure to heed a ll of the WARNINGS .
A WARNING
To reduce the risk of injury when an airbag in­
flates, always wear safety belts properly.
- If you are unrestrained, leaning forward, sit­
t ing s ideways o r out of position in any way,
you r risk of inju ry is much highe r.
- You w ill also receive serious injuries and
could even be killed if you are up against the
airbag or too close to it when it inflates -
even with an Advanced Airbag
<:;>page 102.
A WARNING
A child i n a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the front
airbag inflates -even with an Advanced Airbag
System.
- Although the Advanced Airbag System in
yo ur vehicle is designed to turn off the front
airbag when a rearward-facing child re­
straint has been installed on the front pas­
senger seat, nobody ca n absolutely guaran­
tee that deployment is impossible in all con­
ceivable s ituations that may happen dur ing
the useful life of you r vehicle.
- The inflating a irbag w ill hit the child safety
seat or infant carrier with great force and
will smash the chi ld safety seat and chi ld
against the bac krest, doo r, or roof.
- If you must install a rearward facing child
sa fety seat on the front passenge r seat be­
ca use of exceptional c ircumstances and the
PASSENGER AIR BAG O FF light does not
come on and stay on have the airbag system
inspected by your Audi dealer.
108
A WARNING , ~
If, in exceptiona l circumstances, you must in­
stall a forward-facing child restra int on the
front passenger's seat:
- Always make sure the forward-facing seat
has been des igned and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and s ide a irbag.
- Never put the forward-facing child restraint
up against or very near the inst rument pan­
el.
- Always move the passenger seat into its
rea rmost position in t he seat's fore and aft
adjustment range, as fa r away from the a ir­
bag as poss ible, be fore insta lling the for­
ward-facing child restrain t. T he backrest
m ust be adjusted to an upr ight position.
- Ma ke s ure that the
PAS SENGER AIR BAG
OFF
li ght comes on and stays on all the time
wheneve r the ignition is switched on .
Advanced Airbag System components
The front passenger seat in your vehicle has a lot
of very important parts of the Advanced Airbag
System in it. These parts include the weight­
sensing mat, sensors, wiring, brackets, and more.
The function of the system in the front passenger
seat is checked by the e lectronic control unit
whe n the ignition is on. The control unit mo nitors
the Advanced Airbag System and t urns the a irbag
i ndicator light on when a malf unct ion in the sys­
tem components is detected. The function o f the
airbag indicator light is described in greater de­
tai l below . Because the front passenger seat con­
ta ins important parts of the Advanced Airbag
System, you must take care to prevent it from be­
i ng damaged . Damage to the seat may prevent
the Advanced A irbag for the front passenger seat
from doing its job in a cras h.
The f ront Ad van ced Airbag S ystem consi sts
of the following:
- Crash sensors in the front of the vehicle that
measu re vehicle acceleration/deceleration to
provide i nfo rmation to the Advanced Airbag
System about the sever ity of the crash.
