2015 AUDI Q7 display

162 Adapti ve Air Su spen sion
this mode. If the suspension is switched from
this mode to another mode, dynamic mode
cannot be re-selected .
(D Tips
-For vehicles with a factory installed tow ­
ing hitch or a trailer hitch that was in­
stalled later accord ing to factory specifi­
cations, the system recognizes "Trailer
tow ing mode" and activates this specia l
mode automatically, as soon as the elec­
trical connection on the trailer socket is
connected. The mode ceases a utomat i­
ca lly when the elect rical connection to
t h e trai ler socket is d isconnected.
- If the tra iler towing mode has been acti­
vated, the vehicle will not drop to the
l ow or highway level.
Cargo mode
Applies to vehicles: with Adapt ive Air Suspe nsio n
The rear of the vehicle can be lowered to
make it easier to load.
Fig. 193 Luggage compa rtment detail: Cargo mode
sw itch
Using switch for activating c argo mode
.. Close all vehicle doors .
.. Open the trunk lid .
.,. Press the lower pa rt of the switch @
~ fig. 193. The rea r of the vehicle is low ­
ered.
.,. Press the uppe r part o f the switch @. T he
rear of the vehicle is raised again.
Activating cargo mode in the MMI*
.. Select: ICAR I funct io n button> !SETUP I func­
t ion button >
Lower for loading .
In cargo mode, the rear ax le is lowered by 2 .2
inches (S5 mm), compared to the normal lev ­
el.
While the veh icle is in ca rgo mode, the seg­
ments do not appear as filled in the segment
display.
Cargo mode i s automatic ally c an ce le d again
when a different mode is selected in the MM I
Display, or when a speed of about 3 mph (5
km/ h) has been exceeded.
If the system is tempora rily unavailable due
to, for instance, an empty compressed air
tank, the
Lower for loading * function appears
greyed out in the MMI Display. As soon as the
system is available again, the funct ion can
once more be selected in the disp lay.
While the vehicle is being lowered, the indica­
tor light @~
fig. 193 on the switch in the
l uggage compartment flashes. When the car ­
go leve l has been reached, the indicator light
comes on and remains on as long as the vehi­
cle is in cargo mode. When the vehicle is
r aised agai n, the indicator light flashes again.
(D Note
M ake sure before canceling cargo mode
that there is sufficient clearance above the
vehicle and around the trunk lid, if open.
(D Tips
- The vehicle w ill not be lowered if one of
the vehicle doors is open, or if the com­
pressed air tank is empty. The indicator
light on the switch flashes three times.
- Whe n the compressed air tank is empty,
it will refill when you drive at speeds
over 25 mph (40 km/ h). The vehicle can
be lowered to cargo level whe n the com­
pres sed air tan k is adequately filled.
- If the vehicle is i n lift or off road mode
when you act ivate cargo mode, the vehi­
cle will fi rst drop down to no rma l level.

M N
0 ...J
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
as defined in the electronic control unit
¢ page 193, PASSENGER AIR BAG OFF light .
Always remember, a chi ld safety seat or infant
carrier installed on the front seat may be
struck and knocked out of position by the rap ­
id ly inflating passenger's airbag in a frontal
coll is ion . The airbag cou ld greatly reduce the
effectiveness of the child restraint and even
seriously injure the child during inflat ion.
F or this reason, and because the back seat is
the safest p lace for children -when properly
restra ined accord ing to their age and si ze - we
strongly recommend that children always sit in the back seat¢
page 203, Child Safety.
A WARNING
A child in a rearward-facing child safety
seat insta lled on the front passenger seat
w ill be seriously injured and can be k illed if
t he fron t airbag inf lates - even with an Ad­
vanced Airbag System .
- The inflating a irbag w ill hit the child
sa fety seat or infant carrier w it h great
f orce and w ill smash the ch ild safety seat
and child against the backrest, center
armrest, door or roof.
- Always install rear -facing child sa fety
seats on the rear seat.
- If you mus t install a rearward facing
child safety seat on the front passenger
seat because of exceptional circ umstan­
ces and the
PASSENGER AIR BAG O FF
light does not come on and stay on, im­
med iately install the rear-facing child
safety seat in a rear seating posit ion and
have the a irbag system inspected by you r
authori zed Aud i dealer.
- Forward-fac ing ch ild safety seats instal­
led on the front passenger's seat may in­
terfere with the deployment of the air­
b ag and cause serious person al injury to
the ch ild .
WARNING
If, in exceptional c ir c umstances, you mus t
install a forwa rd -facing child restra int on
the front passenger's seat:
A irbag system 185
-Always ma ke sure the forward-facing
seat has been designed and certified by its manufacturer for use on a front seat
wit h a passenger front and s ide a irbag.
- Never put the forward-facing child re­
straint up against or very near the instru­ ment panel.
- Always move the passenger seat into its
rearmost position in t he seat's fore and
aft adj ustment range, as fa r away from
the airbag as possible before installing
the forward-fa cing ch ild restra int. The
backrest mu st be a dju ste d to an upright
posi tion.
- Ma ke sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the
time wheneve r the ignit ion is swi tched
on.
A WARNING
To reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG OFF
light wi ll be displayed whenever a child re­
straint is installed on the front passenger
seat and the ignition is sw itched on.
- If the
PASSENGER AIR BAG OFF light
does not stay on, perform the checks de­
scribed ¢
page 193, Monitoring the Ad­
vanced Airbag System .
-Take t he chi ld restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
li g ht does not stay on.
- Have the airbag system inspected by
your author ized Audi dealer immed iate­
ly.
- Always carefully follow instr uctions from
child r estraint manufa cture rs when in­
s tall ing c hild restra ints.
A WARNING
If, in exce ptiona l circumstan ces, you must
ins tall a forward or rearw ard-facing c hild
restra int on the front passenger's seat:
- Imp roper ins tal lation o f ch ild restraints
can reduce t heir effec tiveness or even
•
•

M N
0 ...J
'SI: ,...., \!) ..,.,
,...., ..,., ,....,
-accessory seat covers or cushions or other
things that may cause an incorrect reading
or impression on the weight-sens ing mat
under the upholstery of the seat have been
removed from the front passenger seat,
- a safety belt extender has not been left in
the safety belt latch for the front passenger
seat.
In addition to the
PASSENGER AIR BAG OFF
light in the center of the instrument panel,
the message
PASS ENGER AIR BA G OFF or
PAS SENGER AIR B AG ON will briefly appear
in the instrument cluster display . Th is is to in­
form the driver of the current front passenger
a ir bag status .
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not funct ioning
properly cannot provide supplemental pro­
tection in a frontal crash .
- If the airbag indicator l ight
c> page 16
comes when the vehicle is be ing used,
have the system inspected immediately
by you r autho rized Aud i dea ler. It is pos­
sible that the a irbag will inflate when it
is not supposed to, or w ill not inflate
when it sho uld .
A WARNING
If the front airbag inflates , a ch ild without
a child restraint, or in a rearward-facing
child safety seat, or in a forward-facing
child restraint that has not been properly
installed will be serious ly inju red and can
be killed.
- Even though your veh icle is equipped
with an Advanced Airbag System, make certain that al l children, especially 12
years and younge r, a lways rid e on the
back seat properly restr ained fo r their
age and size.
- Always install forward or rea r-facing
c hild safety seats on the rear se at - even
with an Advanced Airbag System.
A irbag sys tem 195
-If you must install a rearward-facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PASS ENG ER AIR BAG OFF
light does not appear and stay on, imme­
diate ly install the rear-facing child safety
seat in a rea r seat ing pos ition and have
the airbag system inspe cted by your au­
thorized A udi dealer.
- A t ight tether or other strap on a rea r­
ward- facing child rest raint attached to
the front passenger seat can p ut too
m uch pressure on the weight-sensing
mat in the seat and registe r more weight
than is actually on the seat. The heavier
weight registered can make the system
work as though an adult were on the seat
and deploy the Advanced Airbag when it
must be suppressed causing ser ious or
even fata l injury to the ch ild.
- If, in exceptiona l circumstances, you
must install a forward-fac ing ch ild re­
straint on the front passenger seat, al­
ways move the sea t into its rearmost po­
sition in the seat's fore and aft adjust­
ment range, as far away from the airbag
as possible . The backrest must be adjust­
ed to an upright pos ition. Make sure that
the
PASSENGER AIR BAG OFF light
comes on and stays on all the time when­
ever the ignit ion is switched on.
A WARNING
...---
- If the PASSENGER AIR BAG OFF light
does not go out when an adult is sitting
on the front passenger sea t after taking
the steps described above, make su re the
adu lt is prope rly seated and restr ained at
one o f the rear seat ing pos itions.
- Have the airbag system inspe cted by
your author ized Audi dealer befo re trans­
porting anyone on the front passenger
seat.
(D Tips
If the weight-sensing mat in the front pas­
senger seat detects an empty sea t, the
front airbag on the passenger side wi ll be ..,.
•
•

228 Intelligent technology
will have no warning from a sudden in­
crease in engine speed as with a front­
wheel drive vehicle. Always drive at speeds wh ich are suited to the road con­
ditions -risk of crash.
Energy management
Starting ability is optimized
Energy management controls the distribution
of electrical energy and thus optimizes the
availability of electrical energy for starting
the engine.
I f a vehicle with a conventional energy system
is not driven for a long period of time, the bat­
tery is discharged by idling current consumers
(e.g. immobilizer) . In certain circumstances it
can result in there being insufficient energy
available to start the engine.
I ntelligent energy management in your vehi­
cle handles the distribution of electrical ener­
gy . Starting ability is markedly improved and
the life of the battery is extended.
Basically , energy management consists o f
battery diagnosis, idling current manage­
ment
and dynamic energy management.
Battery diagnosis
Battery diagnosis continuously determines
the state of the battery. Sensors determine
battery vo ltage, battery current and battery
temperature. This determines the current
state of charge and the power of the battery.
Idling current management
I dling current management reduces energy
consumption while the vehicle is standing.
With the ignition switched off, it contro ls the
energy supply to the various e lectrica l compo­
nents. Data from battery diagnosis is consid­
ered.
Depending on the battery's state of charge,
individual consumers are gradually turned off
to prevent excessive discharge of the battery
and thus ma intain starting capability.
Dynamic energy management
While the vehicle is being driven, dynamic en­
ergy management distributes the energy gen ­
erated according to the needs of the individu­
al components.
It regulates consumption, so
that more electrical energy is not being used
than is being generated and ensures an opti­
mal state of charge for the battery.
(!) Tips
- But even energy management cannot
negate the limits of physics. Consider
that the power and life of a battery are
limited.
- If start ing ability is threatened, you are
informed by a warning
¢ page 229,
Driver notification in the instrument
cluster display.
What you should know
The highest priority is given to maintaining
starting capability.
The battery is severely taxed in short-distance
driv ing, in city traffic and during the cold time
of year. Abundant electrical energy is re­
quired, but only a little is generated . It is also
critical if the engine is not running and electri ­
cal components are turned on. In this in­
stance energy is being consumed but none is
being generated.
It i s in precise ly these s ituations that you will
notice energy management actively regu lat­
ing the distribution of energy.
Vehicle stands for an extended period
If you do not drive your vehicle over a period
of several days or weeks, e lectr ica l compo­
nents are gradually cut back or sw itched off.
T his reduces energy consumption and ma in­
ta ins starting capability over a longer period.
T ake into consideration that when you unlock
your vehicle, some convenience functions,
such as the interior lights or the power seat
adjustment, may not be availab le. The con­
venience functions will be availab le again

M N
0 ..J
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
when you turn on the ignition and start the
engine.
With the engine turned off
If you listen to the radio, for example, with
the engine turned off or use other MMI func­
tions, the battery is being d ischa rged.
I f starting capability is jeopardized due to en­
e rgy consumpt ion, the following warning ap­
pears in the MMI display:
Please start engine, otherwise system will
switch off in 3 minutes.
The warning ind icates that the system will be
turned off automatically after 3 minutes. If
you wish to cont inue using the functions, you
have to start the engine.
With the engine running
Although electrical energy is generated when
the vehicle is be ing driven, the battery can be­
come discharged . Th is happens mostly when
little energy is be ing generated and a great
deal consumed and the battery's state of
charge is not optimal.
To br ing the energy balance back into equili ­
brium, consumers which require especially
l arge amounts of energy are temporarily cut
back or swit ched off. Heating systems in par­
t icular requ ire a great deal of energy.
If you
notice, for example, that the heated seats* or
the heated rear window are not heating, they
have been temporari ly cut back or switched
off. These systems will be avai lab le again as
soon as the energy balance has been restored.
You will a lso notice that engine idle speed has
been increased slightly . This is norma l and not
a cause for concern . By increasing engine idle
speed the add itiona l energy required is gener­
ated and the battery is charged.
Driver notification in the instrument
cluster display
If battery power drops into the range where it
can limit the ability of the engine to start, this
Intelligent technology 229
is shown in the instrument cluster display
with the following driver message:
(•) I.ow battery charge: battery will be
charged while driving
T h is not ificat ion reminds you that the start ing
capability of the engine may be limited. As
soon as you start driv in g again, the battery
will be recharged and the not ific at ion w ill go
out.
Driver notification appears and goes out
again
If t his driver notification appears after the ig­
nition is tu rned on or whi le driving and it goes
out again after a while, the battery has been
adequately recharged.
Driver notification appears and does not
go out again
If this driver notification appears after the ig­
nition is turned on or whi le driving and does
not go out again, the battery's state of charge
is not in the optimal range. Starting ab ility is
restricted . Have the battery checked as soon
as possible by an authorized Aud i dealer or
qualified workshop.
•
•

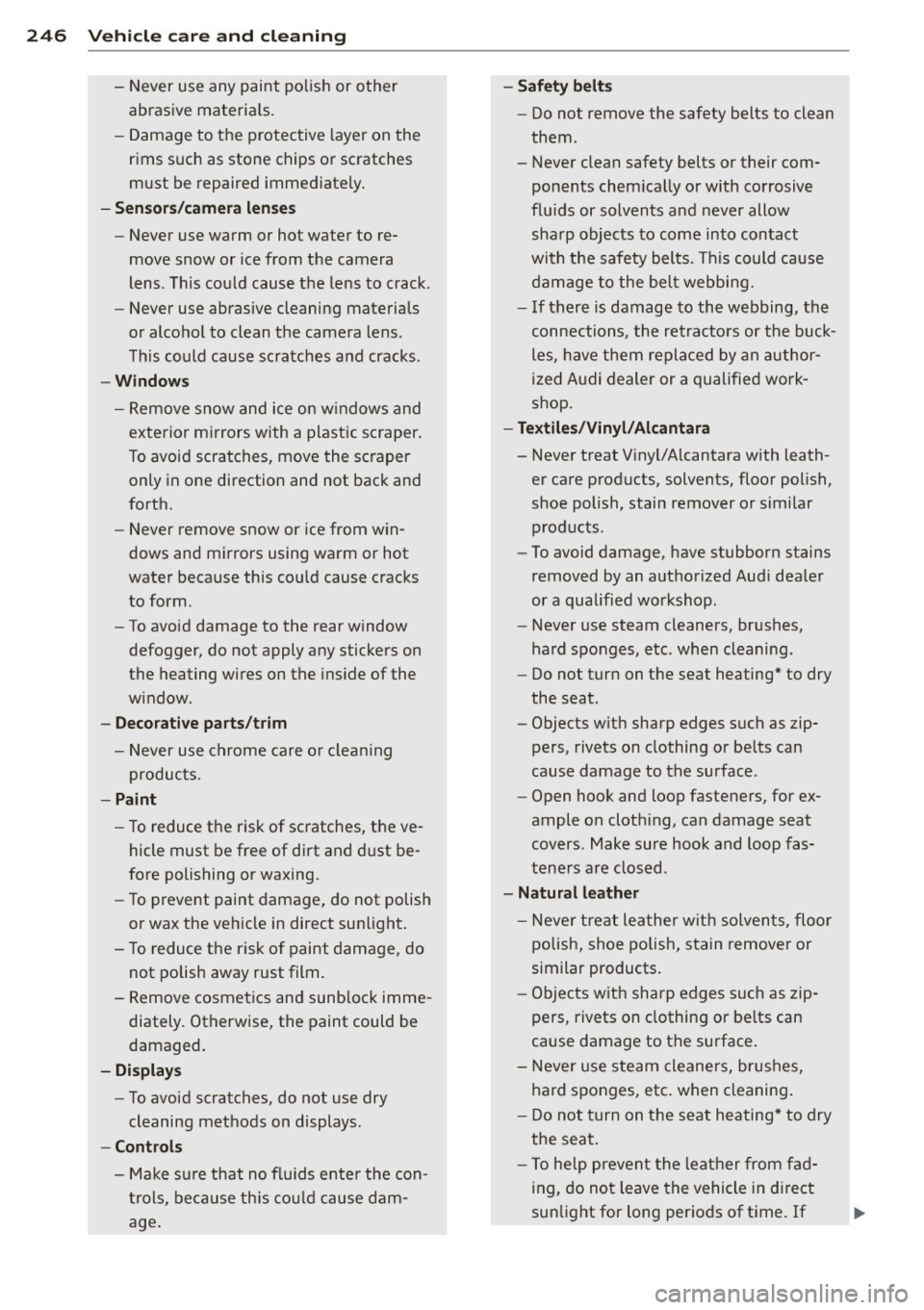

24 6 Vehicle care and cleaning
- Never use any paint polish or other
abrasive materia ls.
- Damage to the protective layer on the
rims such as stone chips or scratches
must be repaired immediately .
-Sen sors /cam era l ense s
- Never use warm or hot water to re-
move snow or ice from the camera
lens. This could cause the lens to crack.
- Never use abrasive cleaning materials
or alcohol to clean the camera lens.
Th is could cause scratches and cracks .
-Windows
- Remove snow and ice on w indows and
exte rior mirrors with a plastic scraper .
To avoid scratches, move the sc raper
only in one direction and not back and
forth.
- Never remove snow or ice from win­
dows and m irrors using wa rm or hot
water because this cou ld cause cracks
to form.
- To avoid damage to the rear window
defogger, do not apply any sticke rs on
the heating wires on the ins ide of the
w indow.
- Decorati ve parts /trim
- Never use chrome care o r cleaning
products.
- Paint
- To reduce the risk of scratches, the ve-
hicle must be free of dirt and d ust be­
fore polishing or waxing.
- To prevent paint damage, do not polish
or wax the veh icle in direct sun light .
- To reduce the risk of paint dama ge, do
not polish away rust film.
- Remove cosmet ics and sunblock imme ­
diately. Otherwise, the paint could be
damaged .
-Di splays
- To avoid scratches, do not use dry
cleaning methods on displays.
- Controls
- Ma ke s ure that no f lu ids ente r the con-
t rols, because th is co uld cause dam­
age .
-Safety belts
- Do not remove the safety belts to clean
them.
- Never clean safety belts or their com­
ponents chemically or with co rrosive
f lu ids or solvents and never allow
sha rp objects to come into contact
with the safety belts. This could cause
d amage to the bel t webbing.
- If there is damage to the webbing, the
connection s, the re tracto rs or the buck ­
les, have them repla ced by an author­
ized A udi dealer or a qualified work­
shop.
- Textile s/Viny l/Alcantara
- Never treat V inyl/Alcantara w ith leath-
er care products, solvents, floor polish,
shoe polish, stain remover or similar
p roducts.
- To avo id damage, have stubborn stains
removed by an autho rized Aud i dea le r
or a qualified workshop .
- Never use steam cleaners, brushes,
hard sponges, etc . w hen cleaning .
-Do not turn on t he seat heating* to dry
the seat.
- Objects w ith sharp edges s uch as zip­
pers, rivets on clothing or be lts can
cause damage to the surface.
- Open hook and loop fasteners, for ex­
ample on cloth ing, can damage seat
covers . Make sure hook and loop fas­
tene rs are closed .
-Natural leather
- N eve r trea t le at her wit h solven ts, floo r
polish, shoe polish, stain remover or
similar products.
- Objects with sharp edges s uch as zip­
pers, rivets on clothing or be lts can
cause damage to the su rface.
- Neve r use s team cleaners, br ushes,
hard sponges, etc . when cleaning .
- D o not turn on the seat heating * to dry
the seat.
- To help preve nt the leat her from f ad­
ing, do no t leave the vehicle in d irect
sunlight for long per iods of t ime. If

M
"' 0 ..J
"". rl I.O
"' rl
"' rl
@ Tips
-The instrument cluster display indicates
the distance remaining that can be driv­
en
c::.> page 253. If the AdBlue tank is
completely empty, the engine will not
start again after the ignition is sw itched
off .
- Ad Blue is required by law to operate this
vehicle .
Indicator in the instrument cluster
display
Applies to vehicles: with diesel engine
The display indicates if the Ad Blue level is low
or if it was filled incorrectly .
Fig. 23 7 Instr ume nt cluster : ind ic a tor in the d isp lay
AdBlue level low
You will be info rmed if the AdBlue in t he tank
drops be low a certain leve l.
AdBlue /9 1500 mi (2400 km) Refill
Ad Blu e. S ee owner 's manual
This indicator appears when there is only
enough Ad B lue left to dr ive the d istance ind i­
cated in the d river i nformat ion system . Please
add Ad Blue.
AdBlue /9 600 mi ( 1000 km) Refill
Ad Blue! No r estart in 600 miles (1000 km )!
See owner's manual
T his ind ica tor appe ars when there is only
e nough Ad B lue left to dr ive the d istance ind i­
cated in the d river informat ion system . Please
ad d Ad Blue. Otherw ise the eng ine will not
s tart aga in if you stop i t once the dist an ce in ­
d ic a ted h as been driven .
Fuel suppl y and filli ng your fuel t ank 253
Refill Ad Blue ! No
r e sta rt ! See owne r's manual
This message appears when the Ad Blue tank
is emp ty . Ple a se add Ad B lue . O therw ise you
will not be able to start the engin e aga in once
you stop it .
When the min imum Ad Blue leve l ha s bee n
reached, yo u m ust add Ad Blue
c::.> page 254.
¢,fj Filling incorrectly
If the AdBlue tank was filled with a different
fl ui d than Ad B lue and the system detects t hat
it i s inco rrect, a message will appear.
AdBl ue ,/' 600 m i (1000 km) AdBlue!
No restart in 600 mile s (1000 km)! See own­
er's manual
This message appears w hen it is on ly possible
to dr ive the distance indicated in the d river in ­
fo rmat ion system . Drive to the nearest quali­
fied wor kshop to have th e malfunction re­
paired. Othe rw ise the eng ine will not sta rt
again if yo u stop it once the distance indicated
has been driven .
AdBlue: system
fault . No restart! See owner' s manual
This message appears if the system detects it
was filled inco rrectly . Drive immediate ly to
the nearest qualified wor kshop to have the
malfu nction repaired. Ot he rwise you w ill not
be able to star t the eng ine again on ce you
stop i t.

254 Fuel supply and filling your fuel tank Filling AdBlue
Applies to vehicles: with diesel engine
A special refill bottle must be used to fill the
AdBlue .
Fig . 238 Rig ht rea r ve hicle side: re mov ing the Ad B lu e
ca p
Fig. 2 39 Ad Blue filler t ube: inse rt in g the ref ill bott le
The AdBlue fi ller tube is located near the die­
sel filler tube . A lways add 1 gallon (3 .8 liters)
of AdBlue (two bottles). This is the m inimum
amount requ ired to ensure the system detects
the ref illing a nd to start the engine . The Ad Bl­
ue tank capac ity is approximate ly 6 ga llons
(2 3 liters) .
Opening the filler tube and adding
AdBlue
Requirement : The requ est to add Ad B lue must
appear in the ins trumen t cl uste r display.
• Switch the ign ition off .
• Ope n th e tank cover ¢
page 250.
• Turn the cap counte rclockw ise wit h the lug
wrenc h fro m the veh icle tool kit to remove it
¢fig. 238.
• Remove the cap from the refill bottle.
• Pos ition the refill bott le on the filler tube
and tu rn the bottle clockwise until it stops
turning
(D ¢ fig . 239.
• Press ligh tly against the bottom of t he bot ­
tle @to empty it. Continue pressing the
bottom of the bottle unt il it is empty or un ­
til f lu id stops flow ing into the tank.
• Turn the bottle to t he left w ithout pressing
on the bottom .
Closing the filler tube
• Turn the cap clockwise on the filler tu be
w ith the l ug wrench until you hear it t ighten
completely .
• Close the tank cover.
After filling
The vehicle must be driven . The system may
take up to two minutes to detect that the
AdB lue has been f illed.
• If the re was no Ad Blue left in the tank and a
range of
O mi (0 km ) was displayed in the
instrument cluster, switch the ig nition on
for about 15 seconds before start ing the en­
gine.
A WARNING >=
Ad B lue can irritate the s kin, eyes and res-
p ira to ry system . If there is contac t wit h
the fluid, flush immediat ely with plenty of
w at er. Co nsult a phys icia n if necessa ry.
(D Note
- Only use Ad B lue that conforms to the
standard ISO 22241-1. Do not mix any
add itives w ith th e AdBl ue and do no t di­
l ut e it with water.
- Do not add Ad Bl ue to the d iese l tank or
ad d diese l fue l to t he Ad B lue tank . M ix­
ing can lead to d amage to t he e ngine
a nd the AdBl ue ta nk system. The Lim ite d
N ew Vehicle Warranty does not cove r
such damage .
- Ad Blue attacks surfaces s uch as p ain ted
vehicle components, p lastic a nd carpet.
Remove t he f lu id as quickly as possible
w ith a damp clot h and p lenty o f cold wa­
ter. If the AdB lue has already crystal-
lized, use warm water and a sponge. .,..
