Airbag system Important information
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For
airbags to do their job, occupants must always
properly wear their safety belts and be in a prop­
er seating position.
F or your safety and the safety of your passen­
ge rs, befo re drivi ng off, always:
.,. Adjust the dr iver's seat and steer ing wheel
properly
r::> page 113,
.,. Adjust the front passenger 's seat p roperly
9 page 55,
.,. Wea r sa fety be lts prope rly r::> page 123 ,
.. Always properly use the p roper child restra int
to protect children
r::> page 151.
In a coll is io n air bags must infl ate wi thin the b link
of an eye and with cons iderab le force . The s up­
p lemental a irbags can cause injuries if the drive r
or the front seat passenger is not seated p roper ·
Ly. Therefore in order to help the airbag to do its
job, it is importa nt, both as a dr iver and as a pas­
senger to sit properly at all times.
By keeping room between your body and the
steer ing whee l and the front of the passenger
compartment, the airbag can inflate fully and
comp letely and provide supplemental protection
in certa in fronta l col lisions
r:> page 113, Correct
passenger seating positions .
For details on the
ope rat ion of the seat adjustment cont ro ls
r::> page 55.
It's especially importa nt that children are prope r­
ly rest rained
r:> page 151 .
There is a lot that the driver and the passengers
can and must do to help the ind ividual safety fea­
tures ins talled in your Aud i wo rk together as a
system.
Prope r seat ing pos ition is important so that the
fro nt airbag on the dr iver side can do its job . If
you have a physical impairment or cond ition tha t
p reven ts you from sitt ing p roperly on the d river
seat with the safety be lt properly fastened and
Airbag syste m
reaching the peda ls, specia l mod ificat ions to your
vehicle may be necessa ry .
Co nta ct you r auth orized Aud i de aler, or call Aud i
Cu stome r Re lations at 1-800-822- 2834 .
When the airbag syst em dep loys , a gas gene rato r
will fill the airbags, brea k open the padded cov­
ers , a nd infl ate between the stee ring wheel and
the driver and between the ins trumen t pane l an d
the front passenger. The ai rbags wi ll deflate im­
mediate ly after deployment so that the front oc ­
c u pants can see th ro ugh the w indshie ld aga in
without interruption .
All o f th is takes p lace in the b lin k of an eye, so
fast that many people don't even realize that the airbags have dep loyed . The airbags also inflate
with a great deal of force and nothing should be in the ir way when they dep loy. Fron t airbags in
combination with properly worn safety belts s low
down and lim it the occupant's forwa rd move­
ment . Togethe r they he lp to p revent the dr iver
and fron t seat passenge r from hi tting parts of
t h e inside the ve hicle while re ducin g the for ces
acting on the occupa nt dur ing the crash . In this
way they help to reduce the ris k of i njury to the
head and uppe r body in the crash. Airbags do not
protect the a rms or the lower parts of the body.
B oth fron t airbags w ill not inf late in all fronta l
collisions . The t riggering of the a irbag system de ­
pends on the vehicle deceleration rate caused by
the coll is ion and registe red by the e lectronic con ­
trol unit. If t his rate is below the reference value
programmed into the contro l unit, the airbags
will not be t rigge red, even t hough the car may be
badly damaged as a result of t he collis ion . Vehi­
cl e damage, r epai r costs or even the lack of vehi­
cl e damage is no t necessari ly an indica tion of
whethe r an a irb ag should infl ate o r not.
It is not possib le to defin e a range of vehicle
speeds t hat w ill cove r ev ery possib le kind and an­
gle of i mpact tha t will a lways trigger the a irbags,
s in ce the circumst ances w ill vary conside rably be­
tween one collision and anot her. Impo rtant fa c­
tors include, for example, the nat ure (hard or
soft) of the object w hich the car hits, the angle of
impact, vehicle speed, etc . The front airbags will .,,.
129

M N
0 l­oo
rl I.O
"' N
"' rl
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu­
pants.
Fig . 132 Location of driver airbag: in steering wheel
Fig . 133 Location of front passenger's airbag: in the instru­
ment panel
Your vehicle is equipped with an "Advanced Air­
bag System" in compliance with United States
Federal Motor Vehicle Safety Standard
(FMVSS) 208 as applicable at the time your veh i­
cle was manufactured. The safety belts for the
seats have "pretensioners" that help to take slack
out of the belt system. The pretensioners are also
activated by the electronic control unit for the
airbag system .
The front safety belts also have load limiters to he lp reduce the forces applied to the body in a
crash.
The airbag for the driver is in the steer ing wheel
hub
c::> fig . 132 and the airbag for the front pas­
senger is in the instrument panel
~fig. 133. The
general location of the airbags is marked "AIR­
BAG".
Ai rb ag system
There is a lot you need to know about the airbags
in your vehicle. We urge you to read the detailed
information about airbags, safety belts and child
safety in this and the other chapters that make
up the owner's literature. Please be sure to heed
the WARNINGS -they are extremely important
for your safety and the safety of your passengers, especially infants and small children.
_&. WARNING
Neve r rely on airbags alone for protection.
- Even when they deploy, airbags provide only
supp lemental protection.
- Airbag work most effectively when used
with properly worn safety belts.
- Therefore, always wear your safety belts and
make sure that everybody in your vehicle is properly rest rained.
_&. WARNING
--A pe rson on the front passenger seat, espe­
cially infants and small ch ildren, will rece ive
se rious inj uries and can even be k illed by be­
i ng too close to the airbag when it inflates.
- Altho ugh the Advanced Airbag System in
your veh icle is designed to turn off the front
passenger airbag if an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle.
- The Advanced Airbag System can deploy in
accordance with the "low r isk" option under
the U.S. Federal Standard if a ch ild that is
heav ier than the typical one-year old child is
on the front passenger seat and the other
conditions for airbag deployment are met.
-Accident statistics have shown that children are generally safer in the rear seat area than
in the fron t seating position.
- For their own safety, all ch ildren, especially
12 years and yo unger, should a lways ride in
the back properly restrained for their age and size .
133

Airbag syste m
Advanced front airbag system
Your vehicle is equipped w ith a front Advanced
A irbag System in compl iance with Un ited States
F ederal Motor Vehicle Sa fety Standard 208 asap­
plicab le at the time your vehicle was manu fac­
tured .
The front Advanced Airbag System supplements
the safety belts to provide add itiona l protect ion
for the driver's and front passenger's heads and
upper bodies in frontal crashes. The airbags in­
flate only in fronta l impacts when the vehicle de­
celeration is high enough.
The front Advanced Airbag System for the front
seat occupants is not a substitute for your safety be lts. Rather, it is part of the overall occupant re ­
straint system in your veh icle. Always remember
that the airbag system can only help to protect
you, if you are sitting upright, wearing your safe ­
ty belt and weari ng it properly . This is why you
and your passengers must always be p roper ly re­
strained, not just because the law requires you to
be.
The Advanced Airbag System in your veh icle has
been ce rtified to meet the "low risk" require­
ments for 3 and 6 yea r-old ch ild ren o n the pas ­
senger side and very small ad ults on the drive r
side . The low risk deployment c riteria a re intend­
ed to he lp red uce the risk of injury through inter­
action with the front airbag t hat can occur, for
examp le, by being too close to the steering wheel
and instrument panel when the airbag inflates.
I n addition, the system has been certified to
comp ly with the "suppression" requirements of
the Safety Standard, to turn off the front airbag
for infants 12 months old and yo unger who are
restrained on the front passenger seat in ch ild re­
straints that are listed in the Standard
c::> page 153, Child restraints and Advanced Air­
bags.
"Suppression" requires the front airbag on the passenger side to be turned off if:
- a chi ld up to about one year of age is restrained
on the front passenger seat in one of the rear­
facing or forward-fac ing infant restraints listed
i n Federa l Motor Veh icle Safety Standard 208
134 with which the Advanced Airbag System in you
r
vehicle was certified. For a listing of the child
restraints that were used to certify your vehi ­
cle 's compliance with the US Safety Standard
c::> page 153,
- weight less than a thresho ld level stored in the
control unit is detected on the front passenger
seat.
When a person is detected on the front passen­
ger seat, weighing more than the tota l we ight of
a child that is about
1 year old restrained in one
of the rear-facing or forward-facing infant re­
stra ints (listed in Federal Motor Vehicle Safety
Standard 208 with which the Advanced Airbag
System i n your vehicle was certified), the front
a irbag on the passenger s ide may or may not de­
ploy.
The
PASSENGER AIR BAG OFF light comes on
whe n the elect ron ic cont ro l unit detects a total
weight on the fro nt passenger seat that requires
the front airbag to be tu rned off. If the
PASSEN ­
GER AIR BAG OFF
light does not come on, the
front airbag on the passenger side has not been
turned off by the control unit and can dep loy if
the control unit senses an impact that meets the cond it ions stored in its memory.
If the total weight on the front passenger seat is
more than that of a typical 1 year-o ld, but less
than the weight of a small adult, the front airbag
on the passenger s ide may deploy (the
PASSEN­
GER AIR BAG O FF
light does not come on).
For ex ample , the air b ag ma y deplo y if:
-a small ch ild that is heavier than a typical 1
year -old chi ld is on the front passenger seat (re ­
gardless of whether the chi ld is in one of the
child safety seats listed
c::, page 153),
- a child who has outgrown chi ld restraints is on
the front passenger seat.
If the fron t passenger airbag is turned off, the
PASSENGER AIR BAG OFF light in the center of
the i nstr ument pane l will come on and stay on.
The front airbag on the passenger side may
not
deploy (the PASSENGER AIR BAG OFF light does
not ill uminate and stay lit) if: .,..

Airbag syste m
detail below . Because the front passenger seat
contains important parts of the Advanced Airbag
System, you must take care to prevent it from be­ ing damaged. Damage to the seat may prevent
the Advanced Airbag for the front passenger seat
from doing its job in a crash .
The front Ad vanced Airb ag System con sis ts
of the follow ing :
-Crash sensors in the front of the veh icle that
measure veh icle acceleration/decelerat ion to
provide information to the Advanced Airbag
System about the severity of the crash .
- An electronic control unit, with integrated crash sensors for front and side impacts. The
control un it "decides" whether to fire the front
airbags based on the informa tion rece ived from
the crash sensors. The con trol un it also "de­
cides" whether the safety be lt pretensioners
shou ld be activated.
- An Advanced Airbag wi th gas generator and
control valve for the driver inside the steering
whee l hub.
- An Advanced Airbag with gas generator and
control va lve inside the instrument panel for
the front passenger.
- A weight -sensing mat under the upholste ry
padding of the front passenger seat cushion
that measures the total weight on the seat. The information registered is sent continuously to
the electronic control un it to regu late dep loy­
ment of the front Advanced Airbag on the pas­
senger side.
- An airbag monitoring system and indicator
light in the instrument cluster
r=> page 139.
-A sensor in each front seat registers the dis­
tance between the respect ive seat and the
steering wheel or instrument panel. The infor­
mation registered is sent cont inuously to the
electron ic co ntro l unit to regulate deployment
of the front Advanced Airbags.
- T he
PA SSENGER AIR B AG OFF light comes on
and stays on in the center of the instrument
pane l
c>page 139, fig . 135 and tells you when
the front Advanced A irbag on the passenger
side has been turned off.
- A sensor below the safety belt la tch for the
front seat passenge r to measure the tension on
136 the safety belt
. The tension on the safety be lt
and the weight registered by the weight-sens ­
ing mat help the control unit "decide" whether
the front a irbag for the front passenger seat
should be turned
off or not c> page 130, Child
restraints on the front seat -some important
things to know.
- A sensor in the safety belt latch for the driver
and for the front seat passenger that senses
whether that safety belt is latched or not and transm its this info rmat ion to the elect ro ni c
cont ro l unit .
_&. WARNING
Damage to the fron t passenger seat can pre­
vent the front a irbag from working properly.
- I mproper repa ir or d isassembly of the front
passenger and driver seat will p revent the
Advanced Airbag System from functioning properly.
- Repairs to the front passenge r seat must be
performed by qualified and properly trained
wo rkshop personne l.
- Never remove the front passenger o r driver
seat from the vehicle .
- Never remove the upho lstery from the front
passenger seat.
- Never d isassemble o r remove par ts from the
seat or disconnect w ires from it.
- Never carry sharp obje cts in yo ur pocke ts or
place them on the seat. If the weight-sens­
ing mat in the passenger seat is p unctured
it cannot work properly.
- Never carry things on you r lap or carry ob­
jects on the passenger seat. S uch items can
increase the weight registe red by the
weight-sensing mat and send the wrong in­ formation to the airbag contro l unit.
- Never store items under the front passenger
seat. Parts of the Advanced Airbag System
under the passenger seat could be dam­
aged, preventing them and the airbag sys­
tem from wo rking prope rly.
- Never p lace seat covers or rep lacement up­
holstery that have not been specifically ap­
proved by Audi on the front seats.
- Seat covers can prevent the Advanced Air­ bag System from recogniz ing ch ild

M N
0 l­oo
rl I.O
"' N
"' rl

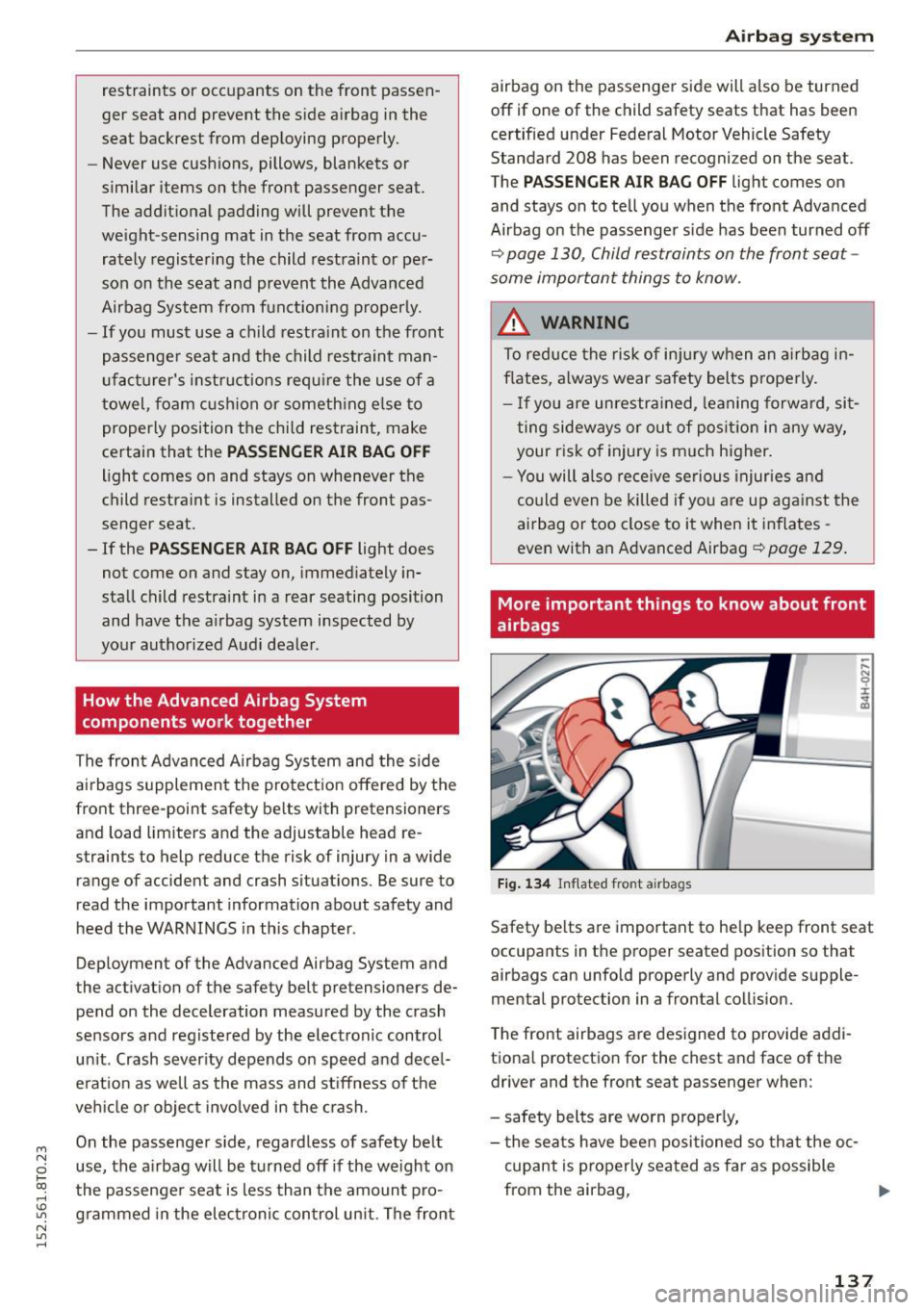

restraints or occupants on the front passen­
ger seat and prevent the side airbag in the
seat backrest from deploying properly.
- Never use cushions, pillows, blankets or
similar items on the front passenger seat.
The additional padding will prevent the
we ight-sensing mat in the seat from accu­
rately registering the child rest raint or per­
son on the seat and prevent the Advanced
Airbag System from functioning properly.
- If you must use a child restra int on the front
passenge r seat and the child rest rain t man­
ufac turer's instructions requ ire the use of a
towel, foam c ushion or someth ing e lse to
properly position the child restraint, make
certain that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever the
child restraint is installed on the front pas­
senger seat.
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in­
stall child restra int i n a rear seating position
and have the a irbag system inspected by
your authorized Aud i dealer.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the s ide
a irbags supplement the protect ion offered by the
front three-point safety belts with pretensioners
and load limiters and the adjustable head re­
straints to help reduce the risk of injury in a wide
range of accident and crash situations . Be sure to
read the important information about safety and
heed the WARNINGS in this chapter.
Dep loyment of the Advanced Airbag System and
the act ivation of the safety belt pretensioners de­
pend on the deceleration measured by the crash
sensors and registered by the electronic control
un it . Crash sever ity depends on speed a nd decel­
e rat ion as well as the mass and st iff ness of the
ve hicle or objec t involved in the crash.
On the passenger s ide, regard less of safety belt
use, the a irbag w ill be turned off if the weight on
the passenge r seat is less than the amount pro­
grammed in the electronic con trol un it . The front
Ai rb ag system
airbag on the passenger side will also be turned
off if one of the child safety seats that has been certified under Federal Motor Vehicle Safety
Standard 208 has been recogni zed on the seat .
The
P A SSENGER AIR B AG OFF light comes on
and stays on to tell you when the front Advanced
Airbag on the passenger side has been turned off
q page 130, Child restraints on the front seat -
some important things to know .
_&. WARNING
To reduce the risk of inju ry when an airbag i n­
flates, a lways wear safety belts properly.
- If you are unrestra ined, leaning forward, sit­
ting sideways or out of posi tion in any way,
your risk of injury is m uch higher.
- You will a lso receive serious injuries and
could even be killed if you are up aga inst the
airbag or too close to it when it inflates -
even with an Advanced Airbag
qpoge 129.
More important things to know about front
airbags
Fi g. 1 34 Inflated fro nt a irbags
-.... N 0 :i:
~
Safety be lts are important to he lp keep front seat
occupants in the proper seated position so that
airbags can unfold properly and provide supple­
mental protection in a frontal coll ision.
T he front airbags a re des igned to provide addi­
tiona l protection for the chest and face of the
driver and the front seat passenger when:
- safety belts are worn properly,
- t he seats have bee n positioned so tha t the oc-
cupant is properly seated as far as possible
from the airbag, ..,
137

Airbag syste m
-and the head restraints have been properly ad-
justed .
Because airbags inflate i n the blink of an eye with
g rea t force, things you have on yo ur lap or have
p laced on the seat cou ld become dangerous pro­
jectiles, and be pushed into you if the airbag in­
flates.
When an a irbag deploys , fine dust is released.
This is normal and is not caused by a fire in the
vehicle . This dust is made up most ly of a powder
used to lubricate the airbags as they deploy.
It
could irr itate sk in.
I t is important to remember that while the sup­
p lemental airbag system is designed to reduce
the likelihood of serious injuries, other injuries,
for example swel ling, bruising and m inor abra­
sions, can also happen when a irbags inflate. Air­
bags do not protect the arms or the lower parts
of the body. Front airbags only supplement the
three point safety belts in some fronta l collisions
i n which the veh icle deceleration is h igh enough
to deploy the airbags.
F ront airbags w ill not deplo y:
- if the ignit ion is switched off when a crash oc -
curs,
- in s ide collisions,
- in rear-end collisions,
- in ro llovers,
- when the crash deceleration measured by the
airbag system is less than the minimum thresh­
o ld needed for airbag deployment as registered
by the electronic control un it.
Th e front pas seng er airbag will a lso not
depl oy:
-when the front passenger seat is not occupied,
- when the weight on the front passenger seat as
sensed by the Advanced Airbag System indi­
cates that the front airbag on the passenger
s ide has to be turned off by the e lectronic con­
trol unit (the
PAS SENGE R AIR BAG O FF ligh t
comes on and stays on).
A WARNING
Sitting in the wrong position can increase the
r is k of serious injury in crashes .
138
-To reduce the risk of injury when the airbags
inflate, the driver and passengers must al­
ways sit in an upright pos ition, must not
lean aga inst or place any part of thei r body
too close to the area where the a irbags are
located.
- Occupants who are unbelted, out of position
or too close to the airbag can be seriously
injured by an a irbag as it unfolds with great
force in the blink of an eye
c:> page 130.
A WARNING
A child in a rearward-facing ch ild safety seat
installed on the front passenge r seat w il l be
seriously inju red and can be killed if the front
ai rbag inflates -even with an Advanced Airbag
System.
- The inflating airbag will hit the chi ld safety
seat or infant carrier with great force and
w ill smash the child safety seat and child
aga inst the backrest, center armrest, door
or roof.
- Always install rear-fac ing ch ild safety seats
on the rear seat.
- If you must install a rearward fac ing ch ild
safety seat on the front passenger seat be­
cause of exceptiona l circumstances and the
PAS SENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating posi tion and have the airbag system
inspected by your au thori zed Audi dealer .
A WARNING
Objects between you and the airbag will in­
crease the risk of inj ury in a crash by inte rfe r­
ing with the way the airbag unfolds or by be­
ing p ushed into you as the airbag inflates.
- Never hold things in your hands o r on your
lap when the vehicle is in use .
- Never transpor t items on or in the a rea of
the front passenger seat. Objects could move into the area of the front ai rbags dur­
ing brak ing or other sudden maneuver and
become dangerous project iles that can
cause serious persona l injury if the airbags
inflate.

M N
i? co ,...., \!) 1.1'1
N 1.1'1 ,....,
his or her back up against the backrest and the
backrest is not reclined
~ page 113, Correct
passenger seating positions,
- the ad ult is not taking weight off the seat by
holding on to the passenger assist handle
above the front passenger door or supporting
their weight on the armrest,
- the safety be lt is being proper ly worn and that
there is not a lot of slack in the safety be lt web ­
bing,
- accessory seat covers or cushions or other
th ings that may cause an incorrect read ing or
impression on the weig ht-sens ing mat under
the upholstery of the seat have been removed
from the front passenger seat,
- a safety be lt extender has not been left in the
safety belt latch for the front passenger seat .
In addition to the
PA SSENGER AIR BAG OFF
light in t he center of the instrument panel, the
message
PASS ENG ER AIR BAG OFF or PAS SEN­
GER AIR BAG ON
will br iefly appear in the instru­
ment cluster display . Th is is to inform the driver
of the current front passenger ai rbag status.
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not funct ioning prop­
erly cannot provide supplementa l protect ion
in a frontal crash.
- If the airbag indicato r light ~ page 19
comes when the vehicle is be ing used, have
the system inspected immed iate ly by your
authorized Audi dealer . It is possible that
the a irbag will inflate when it is not s up­
posed to, or wi ll not inflate when it should.
A WARNING
If the front airbag inflates, a ch ild without a
child restraint, in a rearward-facing child safe­
ty seat or in a forward-facing child restraint that has not been proper ly installed will be
ser iously injured and can be killed.
- Even though your veh icle is equipped with
an Advanced Airbag System, make certa in
that all ch ild ren, especially 12 years and
Airbag syste m
younger, a lways ride on the back seat prop­
erly restra ined for their age and size.
- Always install forward o r rear-facing child
safety seats on the rear seat -even with an
Advanced Airbag System.
- If you must install a rearward-facing child
safety seat on the front passenger seat be­
cause of except iona l circumstances and the
PASSENGER AIR BAG OFF light does not
appear and stay on, immediately install the
rea r-facing chi ld safety seat in a rear seating
position and have the airbag system inspect­
ed by your authori zed Audi dealer .
- A tight tether or o ther s trap on a rea rward­
facing ch ild restraint attached to the front
p assenger seat can put too much pressure
on the weight-sens ing mat in the seat and
register more weight than is actually on the
seat. The heavier weight registe red can
make the system work as though an adult
were on the seat and deploy the Advanced
Airbag when it must be suppressed causing
serio us or even fatal injury to the child.
- If, in exceptiona l circumstances, you must
install a forward-facing child restraint on
the front passenger seat, always move the seat into its rearmost pos ition in the seat's
fore and aft ad justmen t range, as fa r away
from the airbag as possib le. The b ackrest
m ust be adjus ted to an upr ight position.
Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the time
whenever the ignit ion is switched on.
A WARNING
--
- If the PASSENGER AIR BAG OFF light does
not go out when an adult is s itting on the
front passenger seat after tak ing the steps
described above, make sure the adult is
p roperly seated and restrained at one of the
rea r seat ing pos itions.
- Have the airbag system inspected by your
author ized Audi dealer befo re transpo rting
anyone on the front passenger seat.
141

M N
0 l­oo
rl I.O
"' N
"' rl
@ For the sake of the environment
Undep loyed airbag modu les and pretension­
ers might be classified as Perchlorate Mater ial
-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­ rate. When the vehicle or parts of the re­
straint system includ ing a irbag modules safe­
ty belts with pretensioners are scrapped, a ll
app licable laws and regu lations must be ob­
served. Your author ized Audi dealer is fam iliar
w ith these requirements and we recommend
that you have your dealer perform this service
for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced A irbag System
performs in a crash. For example, using t ire-rim
comb inat ions not approved by Audi, lowering the
vehicle, chang ing the stiffness of the s uspension,
including the springs, suspension struts, shock
absorbers etc . can change the forces that are
measured by the airbag sensors and sent to the
e lectronic control un it. Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in crashes in which it wou ld not deploy if
the changes had not been made . Other kinds of
changes may reduce the force levels measured by
the sensors and prevent the airbag from deploy­ ing when it should.
A WARNING
Changing the vehicle 's s uspension including
use of unapproved tire-rim combinations can
change Advanced Airbag performance and in ­
crease the risk of ser ious personal injury in a
crash.
- Never install suspens ion components that
do not have the same performance charac­
teristics as the components or iginally instal­
led on your veh icle.
- Never use tire-rim combinations that have
not been approved by Audi.
Ai rb ag system
A WARNING
-Items stored between the safety be lt buckle
and the center console can cause the sensors i n the buckle to send the w rong informat ion
to the electronic control module and prevent
the Advanced A irbag System from wor king
properly.
- Always ma ke sure that nothing can interfere
wit h the safety belt buckles a nd that they
are not obstr ucted.
Knee airbags
Description of knee airbags
Appl ies to vehicles: wit h knee airbags
The knee airbag system can provide supplemen­
tal protection to properly restrained front seat
occupants.
Fig. 136 Dr iver 's knee ai rbag
T he driver knee airbag is in the instrument panel
u nderneath the steer ing whee l~
fig. 136, the
knee airbag for the passenger is at abou t the
same height in the instrument pane l underneath
the g love compartment.
T he knee airbag offe rs additional p rotection to
the driver's and passenge r's knees and uppe r and
lower thigh areas and supp lements the protec­
tion provided by the safety belts.
If the front a irbags dep loy, the knee a irbags also
deploy in fronta l co llisions when the dep loyment
th resho ld stored in the control unit is met
~ page 13 7, More important things to know
about front airbags.
In add ition to their normal sa fety f unct ion, safe-
ty be lts he lp keep the driver or fro nt passenger in .,.
143
