2015 AUDI A5 Driver

Wheels
c:::> page 217, Tires and vehicle
load limits.
-The tire must flex more if the tire pressure is too low or if
the vehicle speed or load are
too high. This heats the tire up
too much. This increases the
risk of an accident because it
can cause the tire to burst and
result in loss of vehicle con­
trol.
-Incorrect tire pressure increas­
es tire wear and has a negative
effect on driving and braking
Tire pressure table
Please note that the information
contained in the following table
was correct at the time of print­
ing, and the information is sub­
ject to change. If there are differ­ ences between this information
and the tire pressures specified
on the label on the driver's side 8-pillar, always follow the specifica­
tion on the 8-pillar label
c:::> page 215, fig. 170.
216
behavior, which increases the
risk of an accident.
(D Note
Replace lost valve caps to re­
duce the risk of damage to the
tire valves.
@ For the sake of the environment
Tire pressure that is too low in­
creases fuel consumption.
(D Tips
Audi recommends using the
tire pressure specified for a nor­
mal load
c:::> page 216 or for a
full load when the vehicle is
partially loaded.
Make sure that the tire designa­
tion on your tire matches the des­ ignation on the tire pressure label
and the tire pressure table.
The following table lists recom­
mended tire pressures in cold
tires according to the load and the size of the tires installed. .,.

Wheels
plus maximum load. The maxi­
mum load includes the number of
passengers that the vehicle is in­
tended to carry ("seating capaci­
ty") with an assumed weight of 150 lbs. (68 kg) for each passen­
ger at a designated seating posi­
tion and the total weight of any luggage in the vehicle. If you tow
a trailer, the weight of the trailer
hitch and the tongue weight of
the loaded trailer must be includ­
ed as part of the vehicle load .
The
Gross Axle Weight Rating
("GAWR") is the maximum load
that can be applied at each of the
vehicle's two axles.
The fact that there is an upper
limit to your vehicle's Gross Vehi­
cle Weight Rating means that the
total weight of whatever is being
carried in the vehicle (including
the weight of a trailer hitch and
the tongue weight of the loaded
trailer) is limited . The more pas­
sengers in the vehicle or passen­
gers who are heavier than the
standard weights assumed mean
that less weight can be carried as
luggage.
The Gross Vehicle Weight Rating and the Gross Axle Weight Rating
218
are listed on the safety compli­
ance sticker label located on the
driver's side B-pillar
¢ page 215,
fig . 170.
.&_ WARNING ~ -
Overloading a vehicle can cause
loss of vehicle control, a crash
or other accident, serious per­
sonal injury, and even death.
-Carrying more weight than your vehicle was designed to
carry will prevent the vehicle
from handling properly and in­
crease the risk of the loss of
vehicle control.
-The brakes on a vehicle that
has been overloaded may not
be able to stop the vehicle
within a safe distance .
-Tires on a vehicle that has been overloaded can fail sud­
denly, including a blowout and
sudden deflation, causing loss
of control and a crash.
-Always make sure that the to­ tal load being transported -
including the weight of a trail­
er hitch and the tongue
weight of a loaded trailer­
does not make the vehicle
heavier than the vehicle's
Gross Vehicle Weight Rating.

M N
i? co ,...., \!) 1.1'1
N 1.1'1 ,....,
Determining correct load
limit
Use the example below to calcu­
late the total weight of the pas­
sengers and luggage or other
things that you plan to transport
so that you can ma ke sure that
your vehicle will not be overload­ ed .
Steps for Determining Correct
Load Limit
1 . Locate the statement "THE
COMBINED WEIGHT OF OCCU­ PANTS AND CARGO SHOULD
NEVER EXCEED XXX KG OR XXX
LBS"on your vehi cle's pla card
(tire inflation pressure label)
¢ page 215 , fig. 170.
2 . Determine the combined
weight of the driver and pas­
sengers that will be riding in
your vehicle.
3 . Subtract the combined weight
of the driver and passengers
from
"XXX " kilograms or "XXX"
pound s shown on the sticker
¢ page 215 , fig. 170 .
4. The resulting figure equals the
available amount of cargo and luggage load capacity. For ex­
ample, if the
" XXX" amount
equals 1400 lbs. and there will
Wheels
be five 1 SO lb s. passenger s in
your vehicle, the amount of available cargo and luggage load capa city is 650 lb s.
(1400-750 (5 X 150) = 650
lb s.)
5. Determine the combined
weight of luggage and cargo
being loaded on the vehicle .
That weight may not safely e x­
c eed the available cargo and
luggage load capa city cal culat­
ed in Step 4 .
6. If your vehicle will be towing a trailer, load from your trailer
will be transferred to your vehi­
cle. Con sult thi s manual to d e­
termine how this redu ce s the
available cargo and luggage load capacity of your vehicle .
.,.Check the tire sidewall
(¢ page 205 , fig. 168) to deter­
mine the designated load rating
for a specific tire.
Wheel bolts and rims
Wheel bolts
W heel bolts mus t be clean and loose n/tighten
easily .
Rims
Rims with a bo lted r im ring* or with bo lted wheel
cove rs* cons ist of multi ple p ieces . These compo­
nents were bolted together using specia l bolts
and a spec ia l procedu re . You must not repa ir or
disassemb le th em
i::> Li::,. . ..,.
219

also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop­
ping ability .
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire pressure telltale . When the system detects a
malfunct ion, the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent veh icle start-ups as long as the mal­
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function properly.
Wheels
If the Tire Pressure Monitoring System
indicator appears
Appl ies to vehicles : wi th t ir e p ress ure mo nito rin g system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Fig. 172 Instrument cluster: i ndicator light with message
Using the ABS sensors, the tire pressure monitor­
ing system compares the tire tread circumference
and vibration characteristics of the individual
tires .
If the pressure changes in one or more
tires, this is indicated in the instrument cluster
display with an indicator light
[I] and a message .
If only one tire is affected, the location of that
tire will be indicated .
The tire pressures must be stored in the Infotain­
ment system again each time the pressures
change (switching between partial and full load
pressure) or after changing or replacing a tire on
your vehicle ¢
page 224. The tire pressure moni­
toring system only monitors the tire pressure you have stored. Refer to the tire pressure label for
the recommended tire pressure for your vehicle
r=> page215, fig.171.
Tire tread circumference and vibration character­
istics can change and cause a tire pressure warn­
ing if:
- the tire pressure in one or more tires is too low .
- the tire has structural damage.
- the tir e was replaced or the tire pressure was
changed and it was not stored ¢
page 224.
-the spare t ire* is installed.
Indicator lights
[I] Loss of pressure in at least one tire¢.& .
Check the tires and replace or repair if necessary .
liJJ,-
223

Wheels
Check/correct the pressures of all four tires and
store the pressure again in the Infotainment sys­
tem
c!) page 224.
mm (Tire Pressure Monitoring System) Tire pres­
sure: System malfunction!.
If m appears after
switching the ignition on or while driving and the
[I] i ndicator light in the instrument cluster
blinks for approximately one minute and then
stays on, there is system malfunction. Try to
store the correct tire pressures
c:> page 224 . If
the indicator light does turn off or turns on again
after a short period of time, drive to your author­
ized Audi dealer or qualified repair facility imme­
diately to have the malfunction corrected.
A WARNING
-If the tire pressure indicator appears in the
display, reduce your speed immediately and
avoid any hard steering or braking maneu­
vers. Stop as soon as possible and check the
tires and their pressure.
- The driver is responsible for maintaining the
correct tire pressure. You must check the
tire pressure regularly.
-Under certain conditions (such as a sporty
driving style, winter conditions or unpaved
roads), the tire pressure monitoring system
indicator may be delayed.
- Do not use run-flat tires on your vehicle. Us­
ing them when not permitted can lead to
vehicle damage or accidents.
(D Tips
- The tire pressure monitoring system can al­
so stop working when there is an ESC mal­
function.
- Using snow chains may result in a system
malfunction.
- The tires with the identification "AO" or
"RO"
c:> page 212 have been matched with
your Audi tire pressure monitoring system.
We recommend that you use these tires.
224
· Storing tire pressures
App lies to vehicles: wit h tire press ure mo nitor ing system
If the tire pressure changes or a tire is replaced,
it must be confirmed in the Infotainment sys­
tem .
.,. Make sure before storing that the tire pressures
of all four tires meet the spec ified values and
are adapted to the load
c!) page 215.
.,. Switch the ignition on.
.,. Select: the
I CARI function button > Tire pres­
sure monitoring
control button. Or
.,. Select: the
I CARI function button > Car Sys­
tems*
control button > Servicing & checks >
Tire pressure monitoring.
(D Tips
Do not store the tire pressures if snow chains
a re i nsta lied.

M N
0 l­oo
rl I.O
"' N
"' rl
Emergency assistance
Vehicle tool kit
The tools ore stored underneath the floor panel
in the luggage comportment.
Fig. 173 Luggage compartme nt: tool kit
When you need access to the veh icle tool kit or
jack*, you will need to take out the spare t ire*
and cover¢
page 225.
The vehicle tool kit includes:
- Hook for removing wheel covers*
- Plastic hook to remove wheel bolt covers*
- Alignment pin for changing the whee l
- Screwdriver w ith reversible blade
- Tool for chang ing light bulbs
- Reversible bit (reversible Torx bit for changing
light bulbs)
- Rod for jack
- Jack*
- Lug wrench
- Towing eye
Some of the vehicle items listed above are prov id­
ed on certain models only or are optional extras.
Before returning the jack* to its place, retract the
jack arm fu lly.
_& WARNING
- Never use the screw driver hex head to
t ighten whee l bolts, since the bolts cannot
attain the necessary tightening torque if you
use the hex head, potentially causing an ac­
cident.
- The factory-suppl ied jack is intended only
for your vehicle model. Under no c ircum­
stances should it be used to lift heavy
Emergen cy assistance
vehicles or other loads; you risk injuring
yourself.
- Never start the engine when the vehicle is
raised, which could cause an accident.
- Support the vehicle securely with appropri­
ate stands if work is to be performed under­
neath the vehicle; otherwise, there is a po­
tential risk for injury.
Space-saving spare tire
(compact spare tire)
Applies to vehicles: with space-saving spare tire
The spore tire/wheel is located in the luggage
comportment under the cargo floor cover. It is
intended for short-term use only.
Fig. 174 Spare tire
Removing the spare tire
.,. Lift the cargo floor by the p lastic handle
¢fig. 174.
.,. Hook the handle into the luggage compart­
ment weather strip.
., Turn the large screw ¢
fig. 174 counter-clock­
wise.
., Take out the spare ti re .
., Always store the vehicle tool kit, the jack*, and
the replaced tire in the luggage compartment
¢page 118.
.,. Unhook the cargo floor before closing the rear
lid.
Using the spare tire (compact spare tire)
The compact spare tire is only intended for emer­
gencies until you can reach a repa ir shop. Replace
it as quickly as possible with a standard wheel
and tire. ..,
225

Emergency assistance

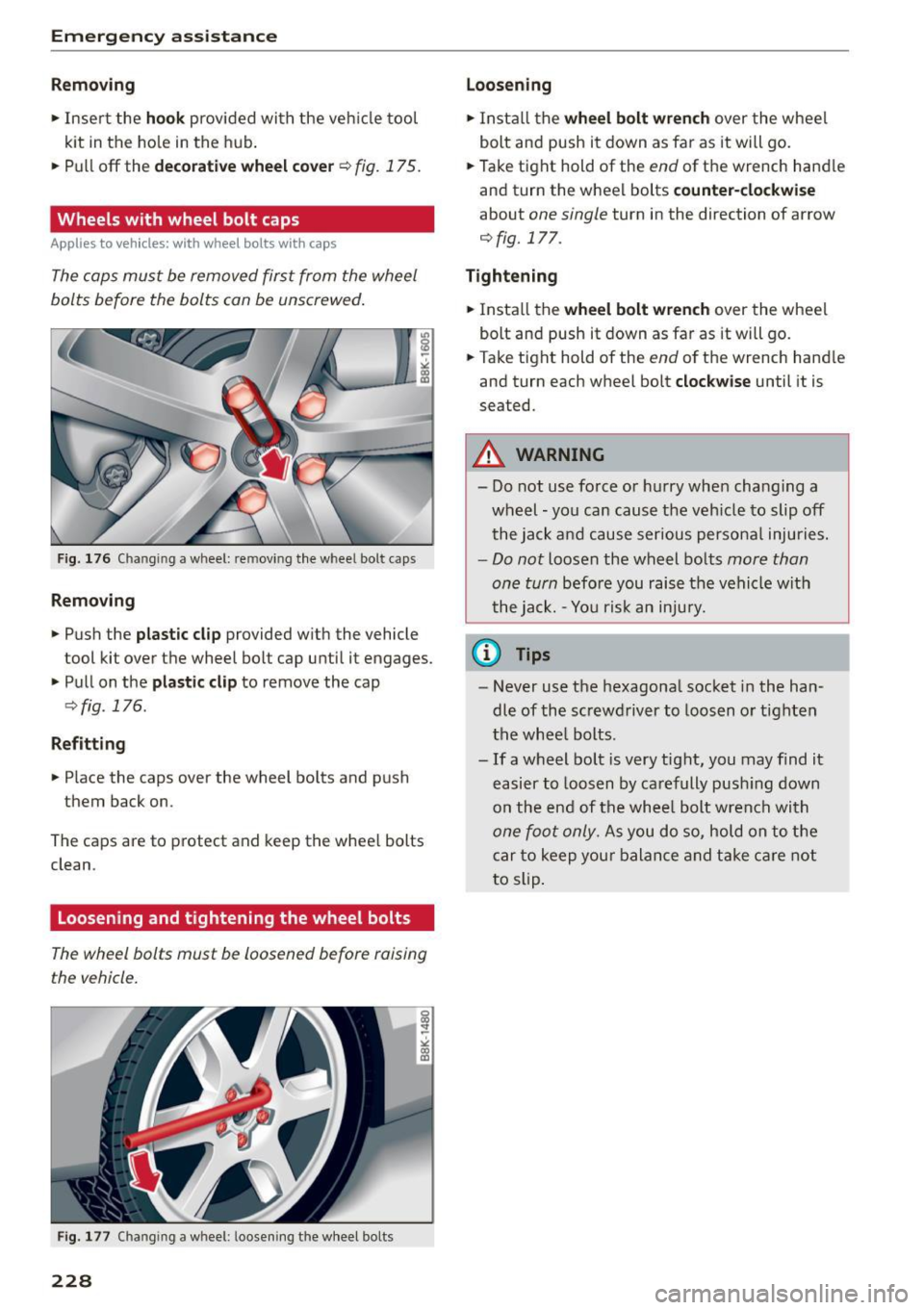

Removing
.. Inser t the hook provided wi th the veh icle tool
kit in the ho le in the h ub.
.. Pu ll
off the decorative wheel cover c::;, fig. 175.
Wheels with wheel bolt caps
Applies to veh icles: with wheel bolts wit h caps
The caps must be removed first from the wheel
bolts before the bolts can be unscrewed .
Fig. 176 Chan gin g a w hee l: r em ov ing the w hee l bo lt caps
Removing
.. Push the plastic cl ip provided w it h the vehicle
tool kit over t he wheel bolt cap unti l it engages.
• Pu ll on t he
plastic clip to remove the cap
¢ fig . 176 .
Refitting
.. Place the caps over the wheel bo lts and p ush
them back on.
The caps are to protect and keep the whee l bolts
clean.
Loosening and tightening the wheel bolts
The wheel bolts must be loosened before raising
the vehicle.
F ig . 177 Chan gin g a w hee l: l ooseni ng the w heel bo lts
228
Loosening
• Insta ll the whe el bolt wren ch over the wheel
bolt and push i t down as far as it will go .
.. Take tight hold of the
end of the wrench hand le
and turn the wheel bolts
counter -clockwise
about one single turn in the direction of arrow
¢fig. 177.
Tightening
.. Insta ll the wheel bolt wren ch over the wheel
bolt and push it down as fa r as it will go .
.. Take t ight hold of the
end o f th e wrench hand le
and turn each wheel bolt
clockwise until it is
seated.
A WARNING
- Do not use fo rce or hurry whe n cha nging a
whe el - you can c ause the veh icle to slip
off
the jac k and ca use serious persona l injuries .
-Do not loosen the wheel bol ts more than
on e turn
befo re you rais e the ve hicle with
t he ja ck . -Yo u ris k an inju ry .
(D Tips
- Never use the hexagona l socket in the han­
dle of the sc rew driver to loosen o r tighten
t h e whee l bolts .
- If a w heel bo lt is very tight, you may find it
easier to loosen by ca refully push ing down
on the en d of the wh ee l bol t wren ch with
one f oot only. As you d o so, hold on t o th e
ca r to keep you r balan ce and take c are not
to slip .

Emergency assistance
CD Note
Do not lift the vehicle by the sil l. Position the
vehicle jack only at the designated lifting points on the sill. Otherwise, your vehicle will
be damaged.
Taking the wheel off/installing the spare
tire
Follow these instructions step -by -step for chang­
ing the wheel .
Fig. 180 Changin g a w heel : us ing th e scr ewdr iver handle
(w ith t he blade removed) to turn the bolts
Fig. 181 Cha nging a whee l: al ignment pin inside the top
h ole
After you have loosened a ll wheel bolts and
raised the vehicle
off the ground, remove and re­
place the whee l as follows:
Removing the wheel
.,. Remove the topmost wheel bolt completely
with the
hexagonal socket in the screwdriver
hand le (vehicle too l kit)
c:;, fig . 180 and set it
aside on a
clean surface.
.,. Screw the threaded end of the
alignment pin
from the tool kit hand-tight into the empty bolt
hole
¢fig. 181 .
230
.,. Then remove the other wheel bolts as described
above.
.,. Take
off the wheel leaving the a lignment pin in
the bolt ho le
c:;, CI) .
Putting on the spare tire
""Push the spare tire over the alignment pin.
.,. Screw on the wheel bolts and tighten them
slightly using the hexagona l socket .
.,. Remove the alignment pin and insert and tight­
en the remaining wheel bolt slightly like the
rest .
.,. Turn the jack handle counter -clockwise to lower
the vehicle until the jack is fully released .
.,. Use the wheel bolt wrench to tighten all wheel
bolts firmly
c:;, page 228. Tighten them in a
crisscross pattern,
from one bolt to the (ap­
proximately) opposite one, to keep the wheel
centered .
.,. Perform the steps required after changing the
wheel
c:;, page 22 7, A~er changing a wheel.
The hexagonal socket makes it easier to remove
the wheel bolts from the rim. Care should be tak­
en when removing the reversib le blade.
CD Note
When removing or installing the whee l, the
rim could h it the brake rotor and damage the
rotor. Work carefully and have a second per-
son to he lp you.
@ Tips
- When mounting tires with unidirectional
tread design
make sure the tread pattern is
pointed the right way
c:;, page 231.
-The wheel bolts should be clean and easy to
turn. Check for dirt and corrosion on the
mating surfaces of both the wheel and the
hub. Remove all dirt from these surfaces be­
fore remounting the wheel.
- Do not use the hexagonal socket in the
screwdriver handle to loosen or tighten the
wheel bolts .
