2015.5 VAUXHALL CORSA Owner's Manual

In brief7Seat adjustmentSeat positioning
Pull handle, slide seat, release
handle.
Seat position 3 35, Seat adjustment
3 36.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Turn handwheel to adjust inclination.
Do not lean on backrest while
adjusting.
Seat position 3 35, Seat adjustment
3 36, Seat folding 3 37.
Seat height
Lever pumping motion
up=seat higherdown=seat lower
Seat position 3 35, Seat adjustment
3 36.

8In briefHead restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 34.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 35, Seat belts
3 38, Airbag system 3 41.

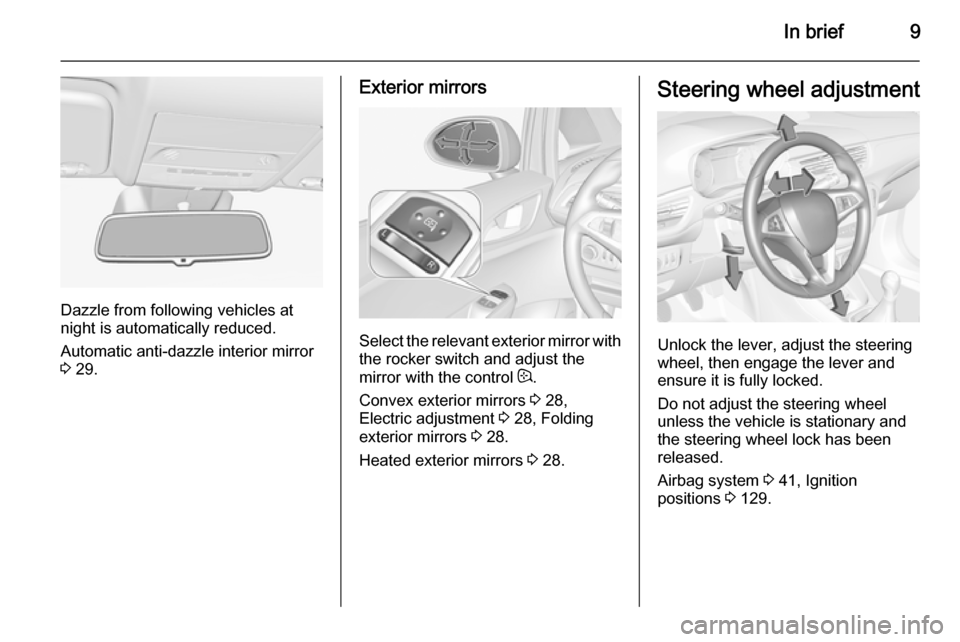

Mirror adjustment
Interior mirror
Manual anti-dazzle
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Interior mirror 3 29.
Automatic anti-dazzle
Depending on the version, there is an
automatic anti-dazzle interior mirror.

In brief9
Dazzle from following vehicles at
night is automatically reduced.
Automatic anti-dazzle interior mirror 3 29.
Exterior mirrors
Select the relevant exterior mirror with
the rocker switch and adjust the
mirror with the control :.
Convex exterior mirrors 3 28,
Electric adjustment 3 28, Folding
exterior mirrors 3 28.
Heated exterior mirrors 3 28.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 41, Ignition
positions 3 129.

10In briefInstrument panel overview

In brief11
1Power windows .....................30
2 Exterior mirrors .....................28
3 Cruise control .....................147
Speed limiter ...................... 149
Forward collision alert ........150
4 Turn and lane-change
signals, headlight flash,
low beam and high beam ....112
Exit lighting ......................... 116
Parking lights ...................... 113
Buttons for Driver
Information Centre ................93
5 Instruments .......................... 82
6 Forward collision alert
indicator ............................. 150
7 Driver Information Centre ...... 93
8 Infotainment controls ...........74
9 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer
system ................................... 7610 Central locking system ..........22
City mode ............................ 146
Eco button for stop-start
system ................................. 131
Parking assist ..................... 153
Seat heating .......................... 38
Heated steering wheel ..........75
11 Anti-theft alarm system
status LED ........................... 26
12 Hazard warning flashers ....112
Control indicator for airbag
deactivation .......................... 88
Control indicator for front
passenger seat belt .............87
13 Colour-Info-Display ..............98
Graphic-Info-Display .............99
14 Centre air vents .................. 126
15 Side air vents, passenger
side ..................................... 126
16 Airbag deactivation switch
(behind glovebox cover) ......46
17 Glovebox .............................. 56
Fuse box ............................ 19618Climate control system ........ 118
19 Power outlet .......................... 81
20 AUX input, USB input ...........10
21 Selector lever,
transmission ....................... 139
22 Parking brake ......................144
23 Ignition switch with
steering wheel lock ............129
24 Horn ..................................... 75
Driver airbag ........................ 44
25 Bonnet release lever ..........178
26 Steering wheel adjustment ..74
27 Light switch ........................ 108
Headlight range
adjustment ......................... 110
Rear fog light ...................... 113
Fuse box ............................ 196
Brightness of instrument
panel illumination ................114

12In briefExterior lighting
Light switch
Turn light switch:
7=lights off8=sidelights9=headlights
Fog lights Press buttons in light switch
>=front fog lightsr=rear fog lightLight switch with automatic light
controlAUTO=automatic light control:
exterior lighting is switched
on and off automaticallym=activation or deactivation of
the automatic light control8=sidelights9=headlights
Automatic light control 3 109.
Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
High beam 3 109, Headlight flash
3 109, High beam assist 3 111.

In brief13
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 112, Parking lights 3 113.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 112.
Horn
Press j.

14In briefWasher and wiper systems
Windscreen wiperHI=fastLO=slowINT=interval wiping
or
automatic wiping with rain
sensorOFF=off
For single wipe when the wiper is off, press lever down to position 1x.
Windscreen wiper 3 76.
Windscreen washer
Pull lever.
Windscreen washer system 3 76,
Washer fluid 3 181, Wiper blade
replacement 3 184.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch=continuous
operationlower switch=intermittent
operationmiddle position=off
