2015.5. PEUGEOT 3008 Owners Manual

07
327
SCREEN MENU MAP(S)
Audio functionsFM preferencesAlternative frequencies (RDS)
Audio functions
Activate
/ deactivate
Regional mode (REG)
Activate
/ deactivate
Radio-text information (RDTXT)1
2
3
4
3
4
3
4
Activate / deactivate
Play modes Album repeat (RPT)
Activate
/ deactivate
Track random play (RDM)
Activate
/ deactivate2
3
4
3
4
4
Trip computerDistance: x miles
Enter distance to destination
Vehicle diagnosis
Warning log
Systems activated or deactivated
State of systems1
2
3
3
2
3
2
Screen CPressing the MENU button displays:

07
328
SCREEN MENU MAP(S)
Bluetooth: Telephone - AudioConnect/Disconnect an equipment
Consult the paired equipment
Bluetooth configuration
Telephone function
Audio Streaming functionDelete a paired equipment
Perform a Bluetooth search
Calls list
Call
Directory
Terminate the current call
Manage the telephone call
Activate secret mode1
2
3
3
3
4
4
4
2
3
4
2
3
3
Brightness-video adjustment
Display configuration Define the vehicle parameters* Personalisation-configuration
Normal video
Inverse video
Brightness (- +) adjustment
Date and time adjustment Setting the day/month/year
Setting the hour/minute
Choice of 12 h
/ 24 h mode
Choice of units l/100 km - mpg - km/l
°Celsius
/ °Fahrenheit
Choice of language
1
2
4
3
2
4
4
3
4
4
2
3
4
4
4
* The settings vary according to vehicle.

329

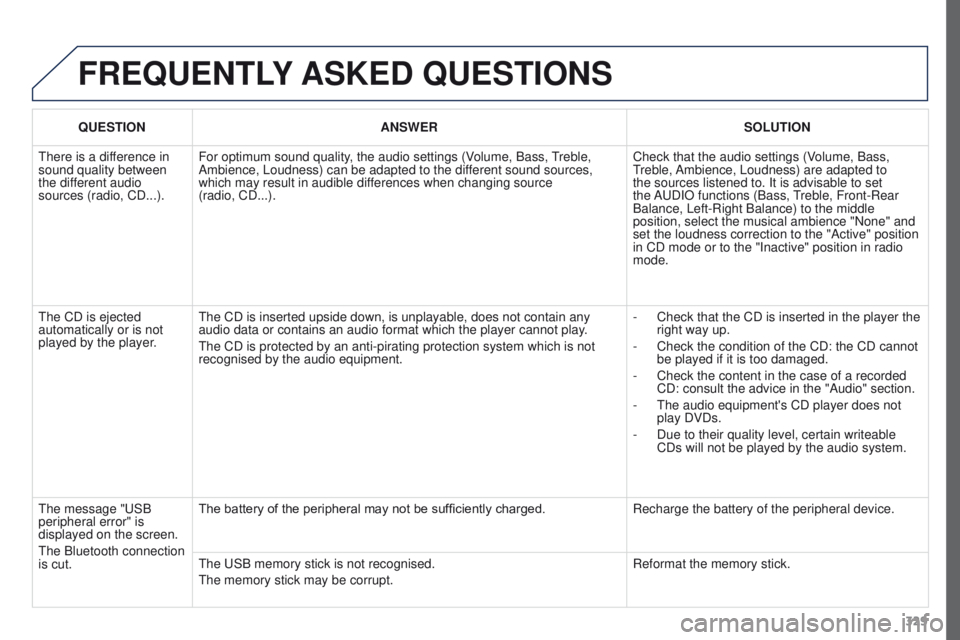

FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
There is a difference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source
(radio,
CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None" and
set the loudness correction to the "Active" position
in CD mode or to the "Inactive" position in radio
mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment. -

Check that the CD is inserted in the player the
right way up.
-


Check the condition of the CD: the CD cannot
be played if it is too damaged.
-


Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.
-


The audio equipment's CD player does not
play DVDs.
-


Due to their quality level, certain writeable
CDs will not be played by the audio system.
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth connection
is cut. The battery of the peripheral may not be sufficiently charged.
Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick.

330
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
I am unable to access my
voicemail. Few telephones or service providers allow the use of this function.
The CD player sound is
poor. The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable.\
Set the treble or bass level to 0, without selecting an ambience.
The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The traffic announcement
(TA) is displayed. I do
not receive any traffic
information. The radio station is not part of the regional traffic information network.
Tune to a radio station which broadcasts traffic
information.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5
Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened\

to or there is no transmitter in the geographical area through which the\

vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blo\
ck
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.

331
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
Sound cut-outs of 1 to
2

seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is t\
oo
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing of \
the CD. Switch the audio system off for a few minutes to
allow the system to cool.

332
Accessories .................................................. 240
Additive, AdBlue .............................. 23, 193 -200
Additive, Diesel


..................................... 19 0, 191
Adjusting headlamps


...................................... 84
Adjusting head restraints


................................69
Adjusting seats


.......................................... 67, 68
Adjusting the date


........................32, 34, 35, 39
Adjusting the height and reach of the steering wheel
.......................... 76
A

djusting the seat belt height

.......................129
Adjusting the time


........................32, 34, 35, 39
Advice on driving


.......................................... 13 6
Airbags


.................................................... 25, 132
Airbags, curtain
..................................... 13

4, 13 5
Airbags, front ......................................... 132, 13 5
Airbags, lateral


...................................... 13 4, 13 5
Air conditioning


......................................... 12, 60
Air conditioning, digital


...................................64
Air conditioning, manual


.................................61
Air vents


.......................................................... 59
Alarm


............................................................... 50
Anti-pinch


................................................ 52, 102
Anti-theft


................................................. 49, 137
Armrest, front
............................................ 94, 96
Armrest, rear
................................................. 10

0
Assistance call


.............................................. 252
Audible warning


............................................ 123
Audio streaming (Bluetooth)
................ 2

96, 323
Audio systems
....................................... 2 5 5 , 311
A
Checks ................................................... 18 6 -19 2
Checks, routine ..................................... 191, 192
Child lock
...............................

............52, 53, 122
Children (safety)
..................... 1

09 -122, 131, 133
Child seats

..............................
..............10 9 -121
Child seats, conventional


......................11 6 , 117
Child seats, ISOFIX

...............................11

8 -12 0
Closing the boot
........................................ 57, 58
Closing the doors


............................................ 54
Configuration, vehicle


..........32, 34, 36, 39, 328
Control, electric windows


................................52
Control, emergency door


................................56
Control, heated seats


...................................... 70
Control, panoramic sunroof blind


.................101
Control stalk, lighting
...................................... 77
C

ontrol stalk, wipers ...........................86, 87, 89
Courtesy lamps
............................................... 91
Cover, load space

......................................... 10

4
Cruise control
................................................ 15

5
Cup holder

...............................
........................94
Battery
........................................... 191, 228 -230
Battery, charging
........................................... 230
Battery, remote control
............................. 4

8, 49
Blanking screen (snow shield)
...................... 23

9
Blind, panoramic sunroof


.............................. 101
Blinds, side


.................................................... 108
BlueHDi


................................................... 23, 193
Bluetooth (hands-free)
.......................... 2

78, 321
Bluetooth (telephone)


............................ 278, 321
Bonnet


........................................................... 185
Boot


................................................................. 57
Brake discs
.................................................... 19

2
Brake lamps
...............................

................... 218
Brake pads


.................................................... 192
Braking, dynamic emergency


....................... 143
Bulbs (changing)
...............................

.... 215, 2 20
Capacity, fuel tank
..............................

.......... 180
Cap, fuel filler

................................................ 180
CD


......................................................... 293, 316
CD, MP3
........................................ 2

93, 316, 317
Central locking


................................................ 55
Changing a bulb


.................................... 215, 2 20
Changing a fuse


.................................... 221-227
Changing a wheel


......................... 201, 209 -213
Changing a wiper blade


.......................... 90, 232
Changing the remote control battery


.............. 48
Checking the engine oil level


.................. 29, 188
Checking the levels


............................... 18 8 -19 0
Checking tyre pressures (using the kit)

........ 208 DAB (Digital Audio Broadcasting) -
Digital radio


......................................... 290, 291
Date (setting)
...............................

.32, 34, 35, 39
Daytime running lamps, LED


..........81, 215, 216
Deactivating ESC


.......................................... 126
Deactivating the passenger airbag


...............13 3
Deadlocking


.................................................... 46
Defrosting


...................................... 62, 63, 64, 74
Demisting
...............................

.......62, 63, 64, 74
B
C
D
Alphabetical index

333
Eco-driving (advice) ........................................ 12
Economy mode ............................................. 231
Electronic stability control (ESC)
..................124
Emergency call
............................................. 2

52
Emergency warning lamps
........................... 12

3
Emissions control system, SCR
.............24, 193
Energy economy mode


.................................231
Engine compartment


............................186, 187
Engine, Diesel


..........182, 184, 187, 244, 245, 247, 249
Engine, petrol


........................ 182, 186, 242, 243
Engines


................................................. 242, 245
Environment
....... 1

2, 49, 63, 172, 190, 200, 230
ESC/ASR
...............................

........................124Gauge, fuel
.............................................. 14, 180
Gearbox, automatic


...........12, 14, 18, 140, 143,
144, 164, 192, 230
Gearbox, electronic


...........12, 14, 18, 140, 143,
144, 159, 169, 192, 230
Gearbox, manual


...................12, 140, 143, 144,
158, 169, 192
E
G
F
Dials and gauges ............................................ 14
Diesel ............................................................ 182
Dimensions


................................................... 250
Dipstick
................

.................................... 29, 188
Direction indicators


...............123, 215, 216, 218
Display screen, instrument panel


...........14, 168
Display screen, multifunction (with audio system)
....................33, 35, 38, 40
Display screen, multifunction (without audio system)
..................................31
Distance alert


................................................ 149
Door pockets
................................................... 94
D

oors

............................................................... 54
Driving economically ....................................... 12
Dynamic stability control (DSC)


.................................... 22, 125, 127, 143Filling the fuel tank
........................18
0, 182, 183
Filter, air ...............
.........................................191
Filter, oil


.........................................................191
Filter, particle


........................................19 0, 191
Filter, passenger compartment


.....................191
Fitting a wheel

...............................
................212
Fitting roof bars


.............................................238
Fittings, boot
................................................. 10

3
Fittings, interior


...............................................94
Flap, fuel filler

...............................
.........180, 183
Flashing indicators


........................................123
Floor, boot, adjustable


..................................107
Foglamps, front


...............................79, 215, 217
Foglamps, rear


................................79, 218, 219
Folding the rear seats


.....................................72
Folding/unfolding the door mirrors


.................74
Fuel ........................................................ 180, 182
Fuel consumption
...................................... 1

2, 41
Fuel tank ........................................................ 183
Fusebox, dashboard


.....................................222
Fusebox, engine compartment


.....................225
Fuses


.............................................................221Gear lever, automatic gearbox .....................
16
4
Gear lever, electronic gearbox
.....................159
Gear lever, manual gearbox


.........................15 8
Gear shift indicator


.......................................168
Glove box
........................................................95
GPS


...............................................................261
Grab handle on console

.................................94
G

rab handles
..................................................94
G

rip control ...................................................127
Guidance (Navigation)


..................................261
Guide-me-home


........................................81, 82
H
Hazard warning lamps ..................................123
Hazard warning lamps, automatic operation


.................................... 123
Headlamp adjustment


..................................... 84
Headlamps, automatic illumination


..........78, 82
Headlamps, dipped beam


................77, 215 -217
Headlamps, directional
........................... 8

5, 215
Headlamps, halogen


.............................215, 216
Headlamps, main beam
................... 7

7, 215 -217
Headlamps, Xenon


....................................... 215
Headlamp wash


.............................................. 88
Head restraints, front
...................................... 69
Head restraints, rear
....................................... 72
Head-up display


............................ 147, 152, 155
Heating


...................................................... 12, 61
Hill start assist

............................................... 14

4
Hooks


............................................................ 105
Horn ............................................................... 123
.
Alphabetical index

334
Key with remote control ....................4 5 - 49, 137
Kit, hands-free ...................................... 278, 321
Kit, temporary puncture repair


......................203
Jack
........

...............................................
201, 209
Jump starting
..............................
..................
229
J
K
Maintenance, routine ...................................... 12
Map reading lamps ......................................... 91
Markings, identification


.................................2 51
Mat


.................................................................. 97
Menu, main


................................................... 314
Menu short cuts
............................................ 260
Mirror, rear view
.............................................. 75
Mirrors, door .................................................... 74
Mirror, vanity
..............................

.....................95
Misfuel prevention
...............................

..........183
Mountings, Isofix


........................................... 118
MP3 CD
................................................. 293, 317
Multimedia, rear


.............................................. 98
MIL
Oil change ..................................................... 188
Oil consumption ............................................ 188
OIl, engine


..................................................... 188
Opening the bonnet
...................................... 18

5
Navigation


.....................................................
261
Net, luggage retaining ...................................10 6
Number plate lamps
.............................. 2
19, 220
O
N
Identification, vehicle ....................................
2 51
Ignition ................ ........................................... 137
Immobiliser, electronic


............................49, 137
Indicator, coolant temperature
........................ 26
I

ndicator, engine oil level ................................29
Indicator lamps, operation


........................16 -26
Indicators, direction


...................................... 123
Inflating tyres


.......................................... 12 , 2 51
Inflating tyres and accessories (using the kit)
..............................

................208
Input, auxiliary
............................... 2

95, 297, 318
Instrument panels


........................................... 14
ISOFIX


.......................................................... 11 9
Isofix mountings
...............................

.............118Labels, identification .....................................
2
51
Lamp, boot
......................................................93
LEDs - light-emitting diodes


.........215, 216, 218
Level, AdBlue
® additive ................................. 193
Level, brake fluid ........................................... 18
9
Level, Diesel additive


............................ 19 0, 191
Level, engine coolant


.............................. 26, 190
Level, engine oil

...............................
.......29, 188
Level, headlamp wash


............................ 88, 190
Level, power steering fluid

............................ 18

9
Levels and checks
................................ 18 6 -19 0
Level, screenwash fluid
.......................... 88, 190
Light-emitting diodes - LEDs


........215, 216, 218
Lighting
................

............................................ 92
Lighting dimmer
..............................

................30
Lighting, directional
......................................... 85
L

ighting, guide-me home

.......................... 81, 82
Lighting, interior


........................................ 91, 92
Lighting, mood


................................................ 92
Lighting, welcome


........................................... 83
Loading


................................................... 12, 23 8
Load reduction mode


.................................... 231
Locating your vehicle
...................................... 47
L

ocking from the inside
................................... 55
L

ocking the boot.............................................. 46
Locking the doors


........................................... 46
Long objects, transporting
...................... 7

1, 100
Low fuel level

................................................ 180
Luggage retaining rings


................................ 103
Alphabetical index
