2014 VOLVO XC90 display

02 Instruments and controls
12-volt sockets
02
80* Option/accessory, for more information, see Introduction.
These 12 volt sockets can be used to plug in certain accessories such as cellular tele-phones, etc. The ignition key must be in at least position I
for the sockets in the front seat and the optional socket at the rear of the center con-sole to function. The maximum current consumption is 10A (120W) if only one of the 12-volt sockets inthe passenger compartment is in use. If boththe front and rear sockets are used at thesame time, the maximum current consump-tion per socket is 7.5A (90W). 12-volt socket in the cargo compartment Fold down the lid to use the socket. This socket can be used even if the ignition isswitched off.NOTE
• If the 12-volt sockets are used while the engine is not running, there is arisk that the vehicle's battery will bedischarged.
• If the ignition is switched off and adevice drawing more than 0.1 A isconnected to a socket, a battery warn-ing will be displayed in the text win-dow.
• The covers should be kept on whenthe auxiliary sockets are not in use.
G028425
12-volt socket at the rear of the center console*
Ashtrays/cigarette lighterThe auxiliary socket can also be used to power a cigarette lighter. Accessory cigarettelighters and ashtrays can be purchased fromyour Volvo retailer.
12-volt socket in the cargo compartment

02 Instruments and controls
Mirrors
02
84* Option/accessory, for more information, see Introduction.
Rearview mirror
G026660
To reduce glare from the headlights of follow- ing vehicles, use the control to switchbetween the normal and night-driving posi-tions.
Normal position
Night position, reduces glare from follow- ing headlights
Autodim function*The autodim function reacts to headlightsfrom following traffic and automaticallyreduces glare.
NOTE
This function is automatically switched off when the gear selector is placed in theReverse position.
Rearview mirror with compass*
G026965
The upper left-hand corner of the rearview mirror has an integrated display that showsthe compass direction toward which the caris pointing. Eight different directions can be displayed:
N, NE, E, SE, S, SW, W and NW.
The display shows your car's orientation with respect to true north. If the compass is activated, it will be dis-played automatically when the ignition is inpostilion II or when the engine is running. Thecompass can be switched off or on by press-ing the inset button on the rear side of themirror (see the inset illustration). This can bedone with straightened paperclip or similarobject. The button is recessed approximately1 in. (2.5 cm) in the mirror.
G026409
Magnetic zonesThe earth is divided into 15 magnetic zones. The compass is initially set for the zone towhich the car was delivered, and shouldalways be adjusted if the car is driven to anew magnetic zone. To do so:

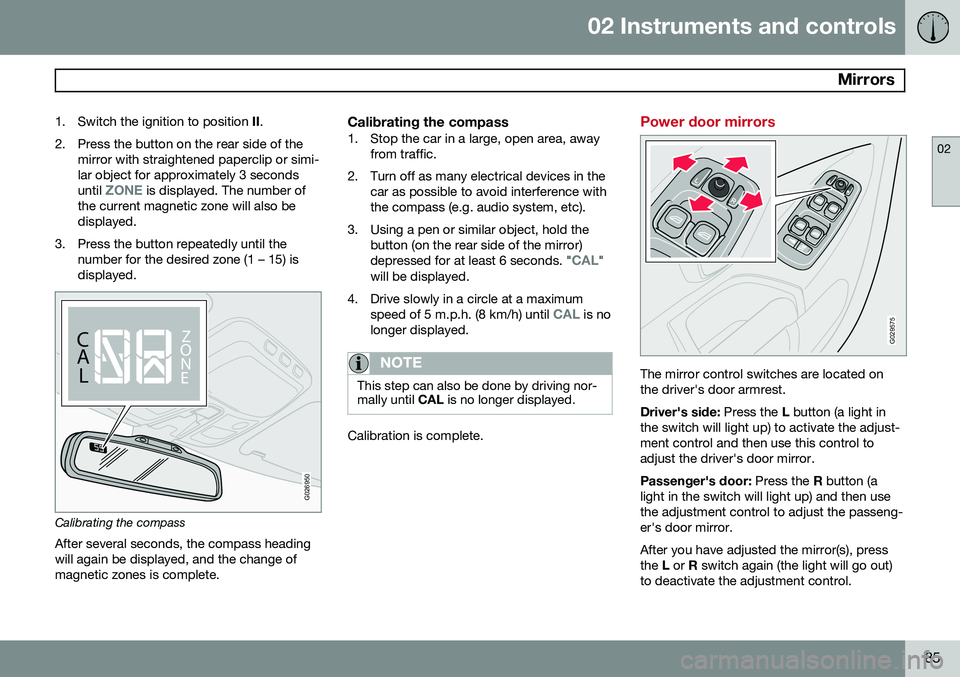

02 Instruments and controls
Mirrors
02
85
1. Switch the ignition to position
II.
2. Press the button on the rear side of the mirror with straightened paperclip or simi- lar object for approximately 3 seconds until
ZONE is displayed. The number of
the current magnetic zone will also be displayed.
3. Press the button repeatedly until the number for the desired zone (1 – 15) isdisplayed.
CALZ
O NE
C A
LZ
O
N
E
G026950
Calibrating the compass
After several seconds, the compass heading will again be displayed, and the change ofmagnetic zones is complete.
Calibrating the compass1. Stop the car in a large, open area, away from traffic.
2. Turn off as many electrical devices in the car as possible to avoid interference withthe compass (e.g. audio system, etc).
3. Using a pen or similar object, hold the button (on the rear side of the mirror) depressed for at least 6 seconds. "
CAL"
will be displayed.
4. Drive slowly in a circle at a maximum speed of 5 m.p.h. (8 km/h) until
CAL is no
longer displayed.
NOTE
This step can also be done by driving nor- mally until CAL is no longer displayed.
Calibration is complete.
Power door mirrors
G029575
The mirror control switches are located on the driver's door armrest. Driver's side: Press the L button (a light in
the switch will light up) to activate the adjust- ment control and then use this control toadjust the driver's door mirror. Passenger's door: Press the R button (a
light in the switch will light up) and then use the adjustment control to adjust the passeng-er's door mirror. After you have adjusted the mirror(s), press the L or R switch again (the light will go out)
to deactivate the adjustment control.

03 Climate
Climate control system – general information
03
95
Climate system blower
The climate system blower will be automati- cally switched off when the engine is not run-ning (even if the ignition key is in position I or
II ) to avoid unnecessary battery drain. To
activate the blower, turn the control to thedesired setting. The climate system blower may start auto- matically during a period of up to approxi-mately 50 minutes after the ignition has beenturned off to remove condensation in the A/Cevaporator. It will run for 15 minutes andswitch off automatically.
Passenger compartment blower
Approximately 50 minutes after the ignition is turned off, the blower may come on automati-cally, and run for seven minutes, to removecondensation in the A/C evaporator.
Blower function to reduce battery drain
The climate system's blower functions nor- mally while the engine is running. However, when the engine is switched off (even if the ignition is switched to positions I
or II), the blower control will be automatically
switched off to avoid unnecessary batterydrain. The following points pertain if the ignition ison but the engine in not running:
• To restart the blower, turn the control knob to the setting of your choice.
• After approximately 2 minutes, the blowerspeed will be reduced to avoid batterydrain.
You can reset the blower speed at any time. Please be aware that the system has beendesigned to reduce the blower's speed againafter 2 minutes, until the engine is started. If the battery becomes drained: • LOW BATTERY, FAN IS REDUCED
will
be displayed in the text window in the instrument panel.
• The yellow warning light in the instrumentpanel (see page 58) will also light up.

05 Locks and alarm
Locking and unlocking
05
130
G029646
Locking and unlocking the vehicle from
the inside
The switch on the driver's door armrest can be used to lock or unlock all doors and thetailgate, and to set the alarm. Each door can also be locked with the lock button on the respective door and opened bypulling the door handle on the door.
Alternative locking when parkingThe central locking button on the driver's door can also be used to lock the vehiclewhen you leave it. To do so:
1. Open the door. 2. Press the lock section of the button.
3. Close the door. This will lock the vehicle
completely and arm the alarm.
NOTE
Please be aware that locking the vehicle in this way makes it possible to lock theremote key in the passenger compartment.To help avoid this, lock the vehicle fromthe outside by pressing the lock button onthe remote key. If the vehicle is locked using the central locking button, be sure that the remote keyis in your possession before closing thedoor.
Automatic lockingThe function locks the doors automatically when the vehicle's speed exceeds approxi-mately 5 mph (7 km/h). The doors will thenremain locked until a door in opened from theinside or if all of the doors are unlocked fromthe control panel in the driver's door. This function can be activated/deactivated from the control panel in the driver's door.
Activating/deactivating automatic
locking
1. Turn the ignition key to position I or II. 2. Press the
READ button on the left-side
steering wheel lever to erase any mes- sages that may be displayed in the infor-mation display.
3. Depress the central locking button on the control panel until a new message aboutthe locking status is displayed.
The message
AUTOLOCK ON (the doors will
be locked when the vehicle begins to move) or
AUTOLOCK OFF will be displayed.
ATTENTIONPakjdskdl ioiuip kjöpp opoodidåuswi
CSOUND
MENU
80
ENTERLSEEEXITMY KEYRTO
AIRBAG
G027025
Locking the glove compartmentThe glove compartment can be locked with the master key.

05 Locks and alarm
Child safety locks
05
132* Option/accessory, for more information, see Introduction.
G021513
Child safety locks in the rear doors - driver's side and passenger's side respectively
Manual child safety locks – rear doorsThe controls are located on the rear door jambs. Use a key or small screwdriver toadjust these controls.
Turn outward: the door cannot be
opened from the inside. The door can be opened from the outside.
Turn inward: the door locks function
normally (the door can be opened from the inside).
WARNING
Remember, in the event of an accident, the rear seat passengers cannot open thedoors from the inside with the buttons inposition A.
REAR AC
G027105
Power child locks*To prevent the rear doors from being opened from the inside:
1. Turn the vehicle's ignition key to at least
position I or II.
2. Press the button in the center console (see the illustration). Indicator light in the button ON:
the rear
doors and windows cannot be opened from the inside. Indicator light in the button OFF: the rear
doors can be opened from the inside and the windows can be opened. A message will appear in the instrument panel display when the child safety locks areactivated/deactivated.

05 Locks and alarm
Alarm
05
134
•LED flashes rapidly before the ignition is switched on – the alarm has been trig-gered
• Fault in the alarm system:
If a fault has
been detected in the alarm system, amessage will be displayed in the text win-dow. Contact a trained and qualifiedVolvo service technician.
Automatic re-lock/re-arm systemIf the vehicle is unlocked with the remote, the vehicle will re-lock and the alarm will re-armafter 2 minutes unless a door or the tailgatehas been opened.

06 Starting and driving
Fuel requirements
06
140
WARNING
Driving with the tailgate open: Driving
with the tailgate open could lead to poi- sonous exhaust gases entering the pas-senger compartment.
• If the tailgate must be kept open for any reason, proceed as follows:
• Close the windows
• Set the ventilation system control to airflow to floor, windshield and side win-dows and blower control to its highestsetting.
Gasoline containing alcohol and ethers, "Oxygenated fuels"
Some fuel suppliers sell gasoline containing "oxygenates" which are usually alcohols orethers. In some areas, state or local lawsrequire that the service pump be marked indi-cating use of alcohols or ethers. However,there are areas in which the pumps areunmarked. If you are not sure whether there isalcohol or ethers in the gasoline you buy,check with the service station operator. Tomeet seasonal air quality standards, someareas require the use of "oxygenated" fuel. Volvo allows the use of the following "oxy- genated" fuels; however, the octane ratingslisted on page 139 must still be met.
Alcohol – EthanolFuels containing up to 10% ethanol by vol- ume may be used. Ethanol may also be refer-red to as Ethyl alcohol, or "Gasohol". Ethers – MTBE: Fuels containing up to 15% MTBE may be used.
MethanolDo not use gasolines containing methanol(methyl alcohol, wood alcohol). This practicecan result in vehicle performance deteriora-tion and can damage critical parts in the fuelsystem. Such damage may not be coveredunder the New Vehicle Limited Warranty.
Weight distribution affects handlingAt the specified curb weight your vehicle hasa tendency to understeer, which means thatthe steering wheel has to be turned morethan might seem appropriate for the curva-ture of a bend. This ensures good stability and reduces the risk of rear wheel skid. Remember that theseproperties can alter with the vehicle load. The heavier the load in the cargo area, the less the tendency to understeer.
Handling, roadholdingVehicle load, tire design and inflation pres-sure all affect vehicle handling. Therefore,check that the tires are inflated to the recom- mended pressure according to the vehicleload. See "Tire pressure" section. Loads should be distributed so that capacity weight or maximum permissible axle loadsare not exceeded.
Conserving electrical currentKeep the following in mind to help minimizebattery drain:
• When the engine is not running, avoid turning the ignition key to position
II (see
page 145). Many electrical systems (theaudio system, the optional infotainment/navigation systems, power windows, etc)will function with the ignition key in posi-tion I. This position reduces drain on the
battery.
• Please keep in mind that using systems,accessories, etc that consume a greatdeal of current when the engine is notrunning could result in the battery beingcompletely drained. Driving or having theengine running for approximately15 minutes will help keep the batterycharged.
NOTE
A warning message will be displayed in the text window in the instrument panel whenthe battery charge is low.
