2014 TOYOTA URBAN CRUISER headlight bulb

418
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

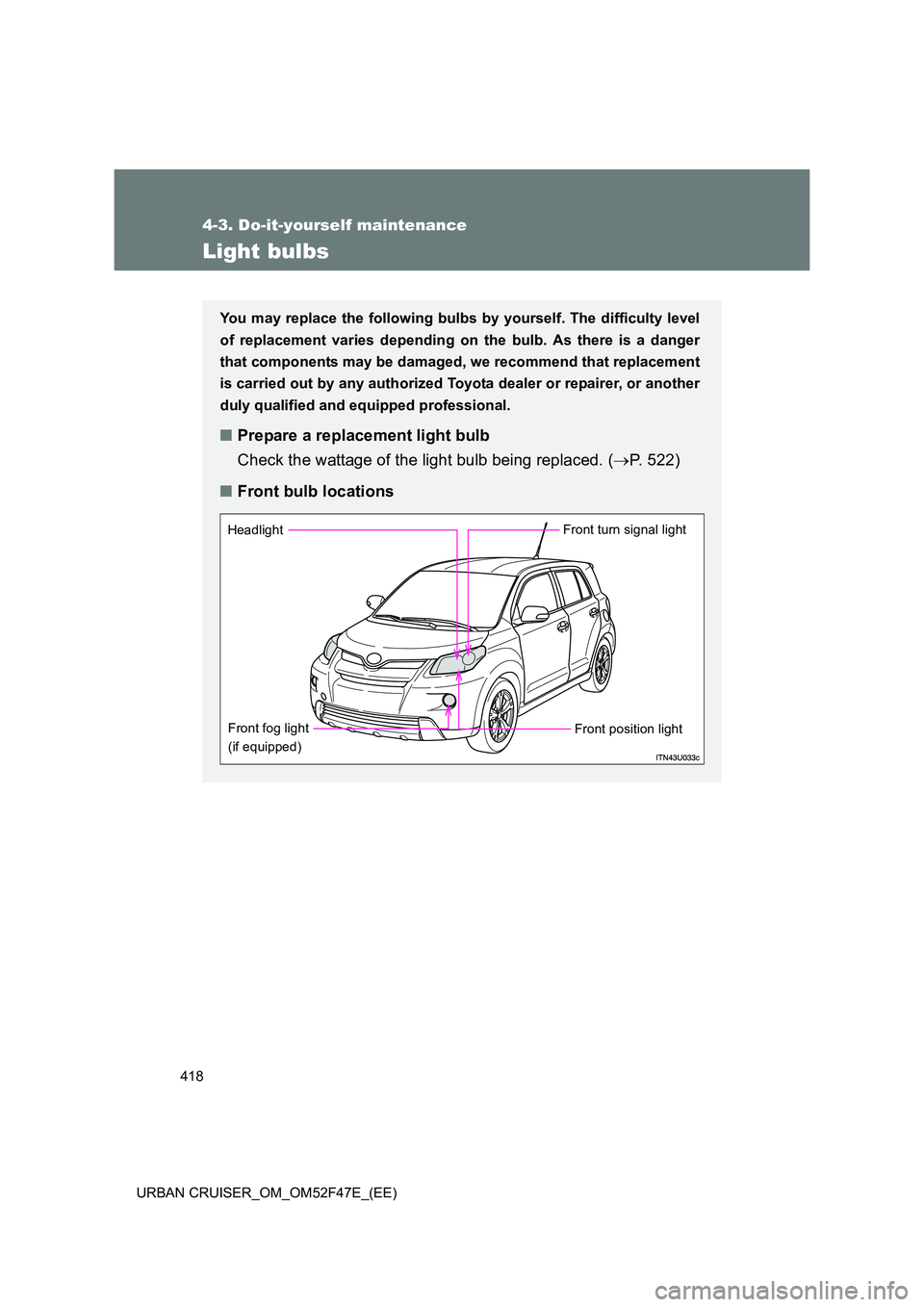

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
■Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 522)
■ Front bulb locations
Front turn signal light
Front position light
Headlight
Front fog light
(if equipped)

420
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

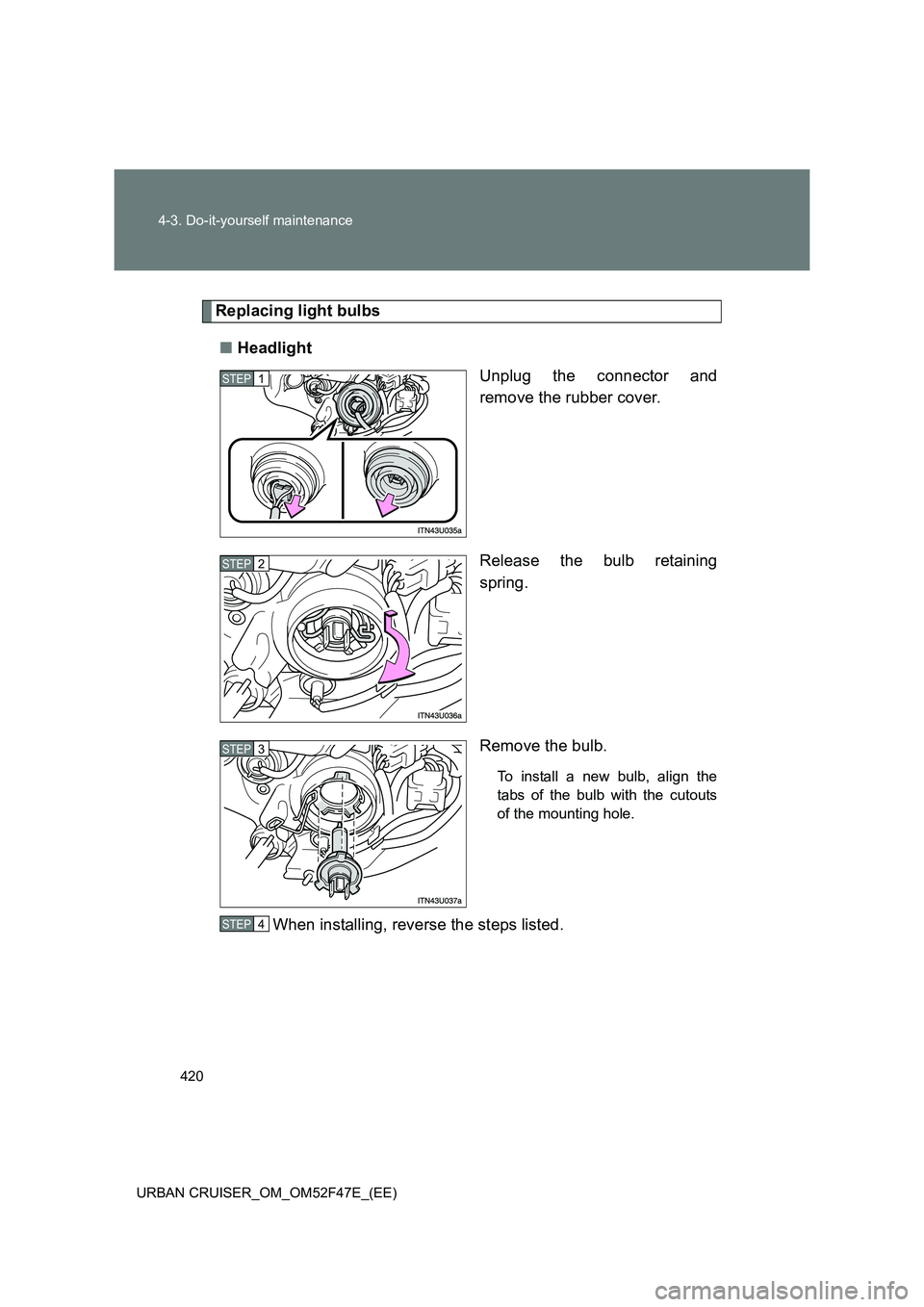

Replacing light bulbs ■ Headlight
Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

426
4-3. Do-it-yourself maintenance
URBAN CRUISER_OM_OM52F47E_(EE)

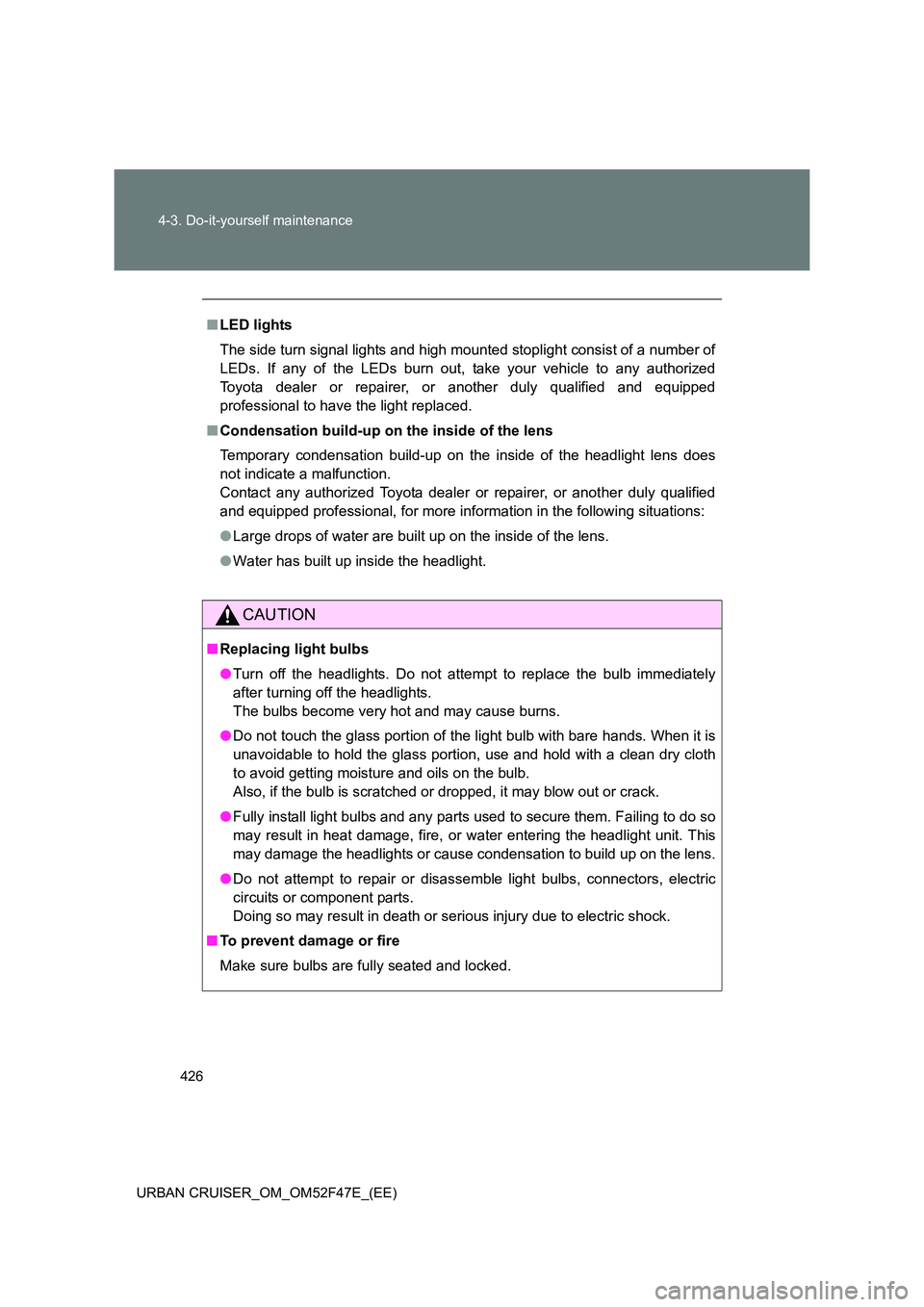

■ LED lights
The side turn signal lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of t he light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

522
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)

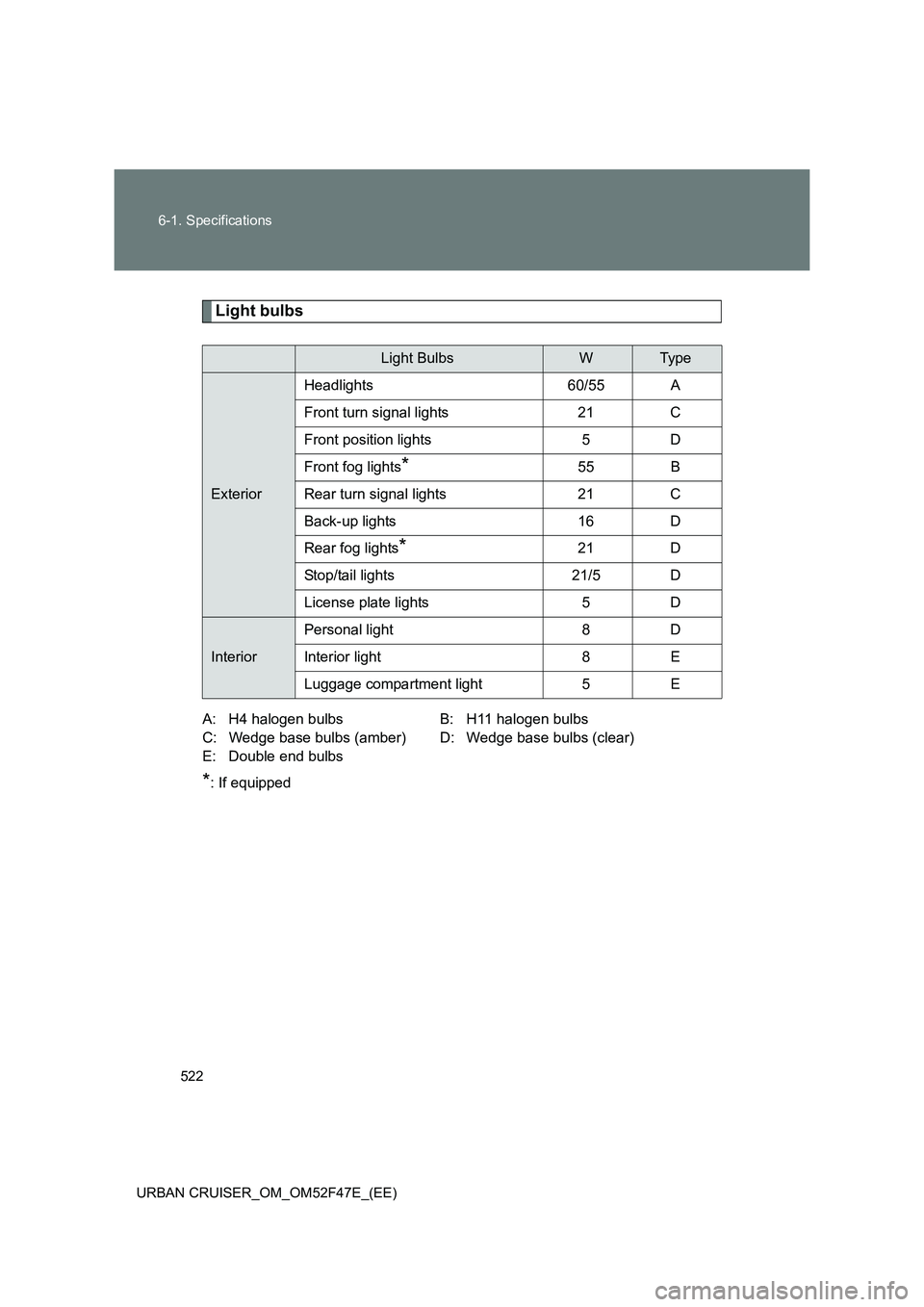

Light bulbs
A: H4 halogen bulbs B: H11 halogen bulbs
C: Wedge base bulbs (amber) D: Wedge base bulbs (clear)
E: Double end bulbs
*: If equipped
Light BulbsWTyp e
Exterior Headlights 60/55 A
Front turn signal lights 21 C
Front position lights 5 D
Front fog lights
*55 B
Rear turn signal lights 21 C
Back-up lights 16 D
Rear fog lights
*21 D
Stop/tail lights 21/5 D
License plate lights 5 D
Interior Personal light 8 D
Interior light 8 E
Luggage compartment light 5 E

534
Alphabetical index
URBAN CRUISER_OM_OM52F47E_(EE)
Front position lights
Replacing light bulbs ............. 418
Switch ................................... 207
Wattage................................. 522
Front seats
Adjustment .............................. 75
Front turn signal lights Replacing light bulbs ............. 418
Wattage................................. 522
Fuel Capacity ................................ 510
Fuel gauge ............................ 196
Fuel pump shut off system .... 438
Gas station information ......... 544
If you run out of fuel and
the engine stalls.................. 497
Information ............................ 523
Refueling ............................... 105
Type ...................................... 510
Fuel door .................................. 105
Fuel filler door .......................... 105
Fuel pump shut off system ..... 438
Fuses ........................................ 402
Gas station information .......... 544
Gauges...................................... 196
Glove box ................................. 331
Hands-free system (for cellular phone) ................ 299
Hazard lights switch ................ 428
Head restraint............................. 83
Headlights Replacing light bulbs ............. 418
Switch ................................... 207
Wattage................................. 522 Heaters
Power heater ........................ 267
Seat heaters ......................... 341
Side mirror ............................ 270
Hood ......................................... 366
Hooks
Cargo hook ........................... 346
Horn .......................................... 195
Identification Engine................................... 507
Vehicle .................................. 508
Ignition Engine switch................ 185, 181
Keys ........................................ 32
Ignition switch ............... 185, 181
Ignition switch ................. 185, 181
Illuminated entry system ........ 329
Indicator lights ......................... 198
Inside rear view mirror .............. 96
Instrument panel light control .................................... 197
Intercooler ................................ 379
Interior lights Interior lights ......................... 328
Switch ................................... 328
Wattage ................................ 522
Jack Positioning a floor jack .......... 368
Vehicle-equipped jack ............................. 449, 464
Jack handle ...................... 449, 464
G
H
I
J

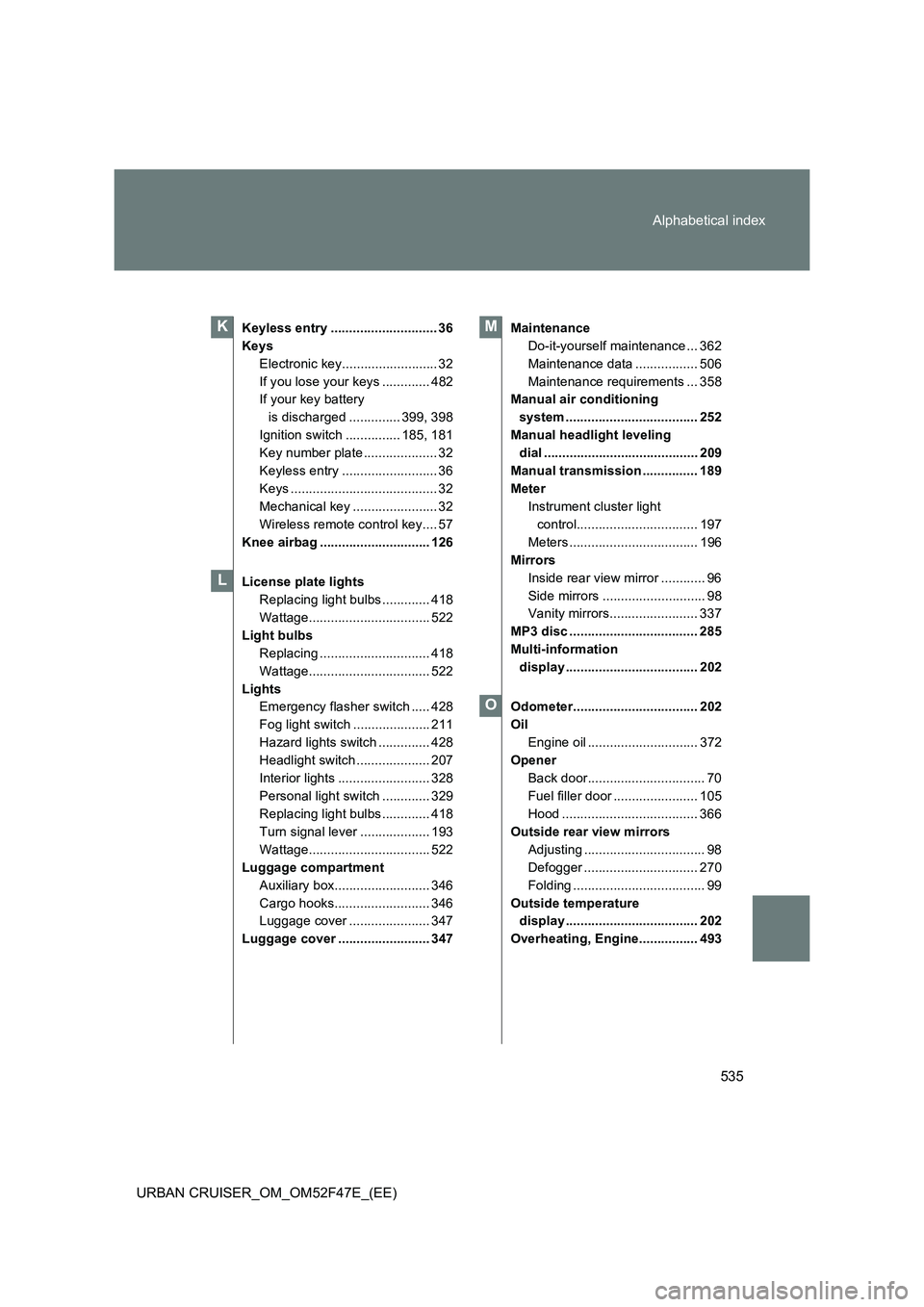

535
Alphabetical index
URBAN CRUISER_OM_OM52F47E_(EE)
Keyless entry ............................. 36
Keys
Electronic key.......................... 32
If you lose your keys ............. 482
If your key battery is discharged .............. 399, 398
Ignition switch ............... 185, 181
Key number plate .................... 32
Keyless entry .......................... 36
Keys ........................................ 32
Mechanical key ....................... 32
Wireless remote control key.... 57
Knee airbag .............................. 126
License plate lights Replacing light bulbs ............. 418
Wattage................................. 522
Light bulbs Replacing .............................. 418
Wattage................................. 522
Lights Emergency flasher switch ..... 428
Fog light switch ..................... 211
Hazard lights switch .............. 428
Headlight switch .................... 207
Interior lights ......................... 328
Personal light switch ............. 329
Replacing light bulbs ............. 418
Turn signal lever ................... 193
Wattage................................. 522
Luggage compartment Auxiliary box.......................... 346
Cargo hooks.......................... 346
Luggage cover ...................... 347
Luggage cover ......................... 347 Maintenance
Do-it-yourself maintenance ... 362
Maintenance data ................. 506
Maintenance requirements ... 358
Manual air conditioning
system .................................... 252
Manual headlight leveling dial .......................................... 209
Manual transmission ............... 189
Meter Instrument cluster light
control................................. 197
Meters ................................... 196
Mirrors Inside rear view mirror ............ 96
Side mirrors ............................ 98
Vanity mirrors........................ 337
MP3 disc ................................... 285
Multi-information display .................................... 202
Odometer.................................. 202
Oil Engine oil .............................. 372
Opener Back door................................ 70
Fuel filler door ....................... 105
Hood ..................................... 366
Outside rear view mirrors Adjusting ................................. 98
Defogger ............................... 270
Folding .................................... 99
Outside temperature display .................................... 202
Overheating, Engine................ 493K
L
M
O
