2014 TOYOTA RAV4 Owners Manual

RAV4_OM_OM42A04U_(U)
4975-5. Using the storage features
5
Interior features

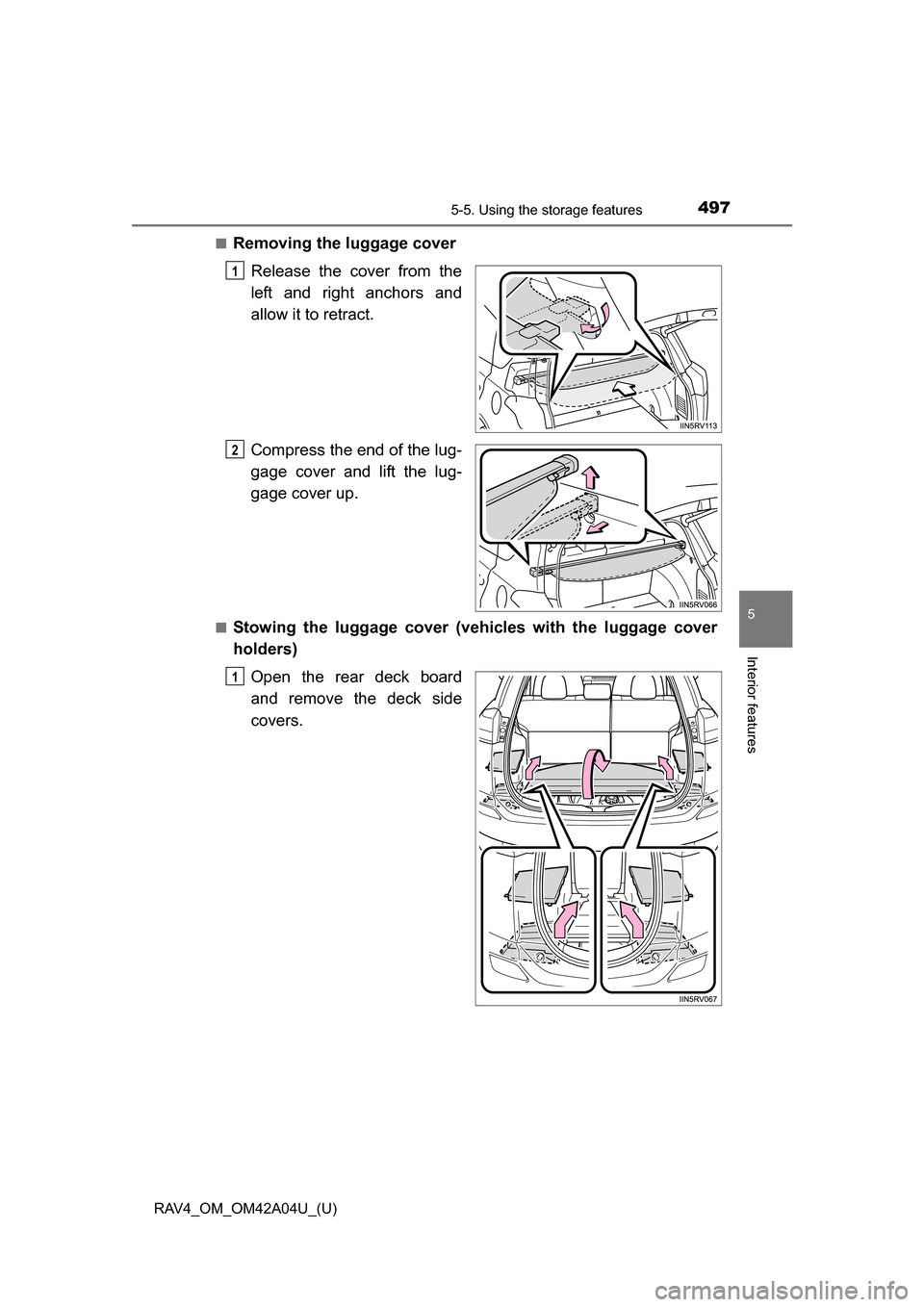

■Removing the luggage coverRelease the cover from the
left and right anchors and
allow it to retract.
Compress the end of the lug-
gage cover and lift the lug-
gage cover up.
■Stowing the luggage cover (vehicles with the luggage cover
holders)Open the rear deck board
and remove the deck side
covers.
1
2
1

498
RAV4_OM_OM42A04U_(U)
5-5. Using the storage features

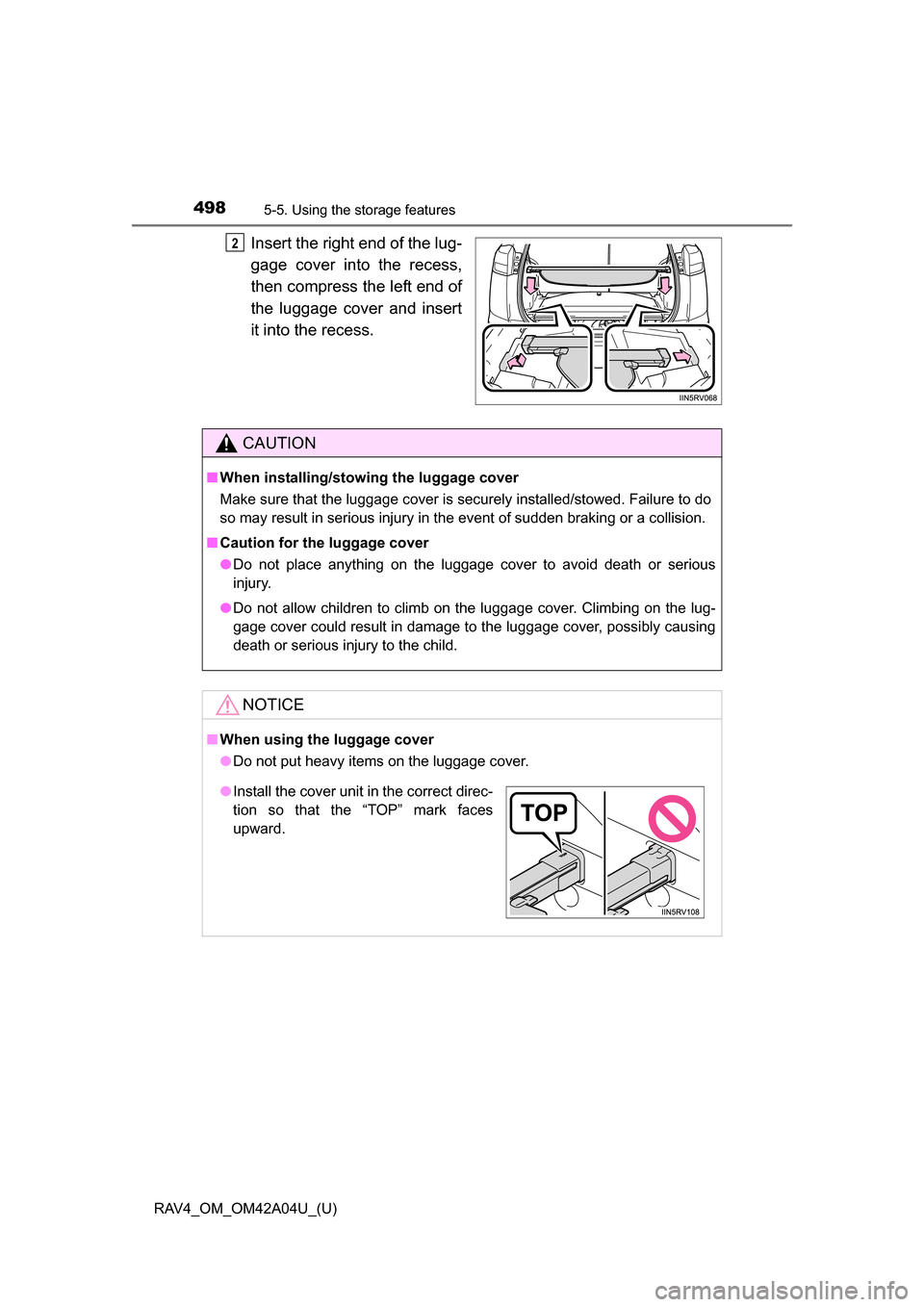

Insert the right end of the lug-
gage cover into the recess,
then compress the left end of
the luggage cover and insert
it into the recess.2
CAUTION
■When installing/stowing the luggage cover
Make sure that the luggage cover is securely installed/stowed. Failure to do
so may result in serious injury in the event of sudden braking or a collision.
■ Caution for the luggage cover
●Do not place anything on the luggage cover to avoid death or serious
injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
NOTICE
■When using the luggage cover
●Do not put heavy items on the luggage cover.
●Install the cover unit in the correct direc-
tion so that the “TOP” mark faces
upward.

RAV4_OM_OM42A04U_(U)
4995-5. Using the storage features
5
Interior features

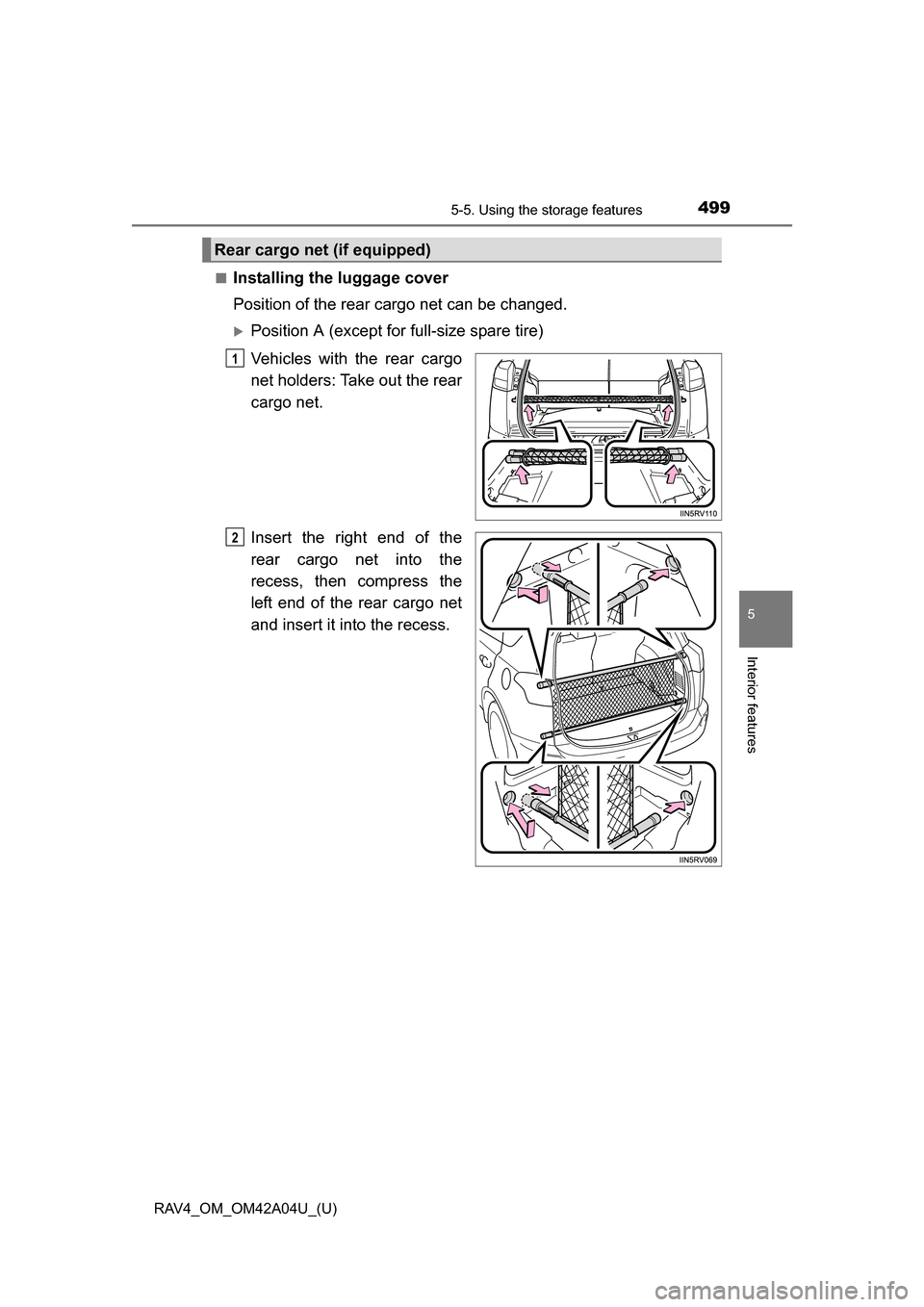

■Installing the luggage cover
Position of the rear cargo net can be changed.
Position A (except for full-size spare tire)
Vehicles with the rear cargo
net holders: Take out the rear
cargo net.
Insert the right end of the
rear cargo net into the
recess, then compress the
left end of the rear cargo net
and insert it into the recess.
Rear cargo net (if equipped)
1
2

500
RAV4_OM_OM42A04U_(U)
5-5. Using the storage features

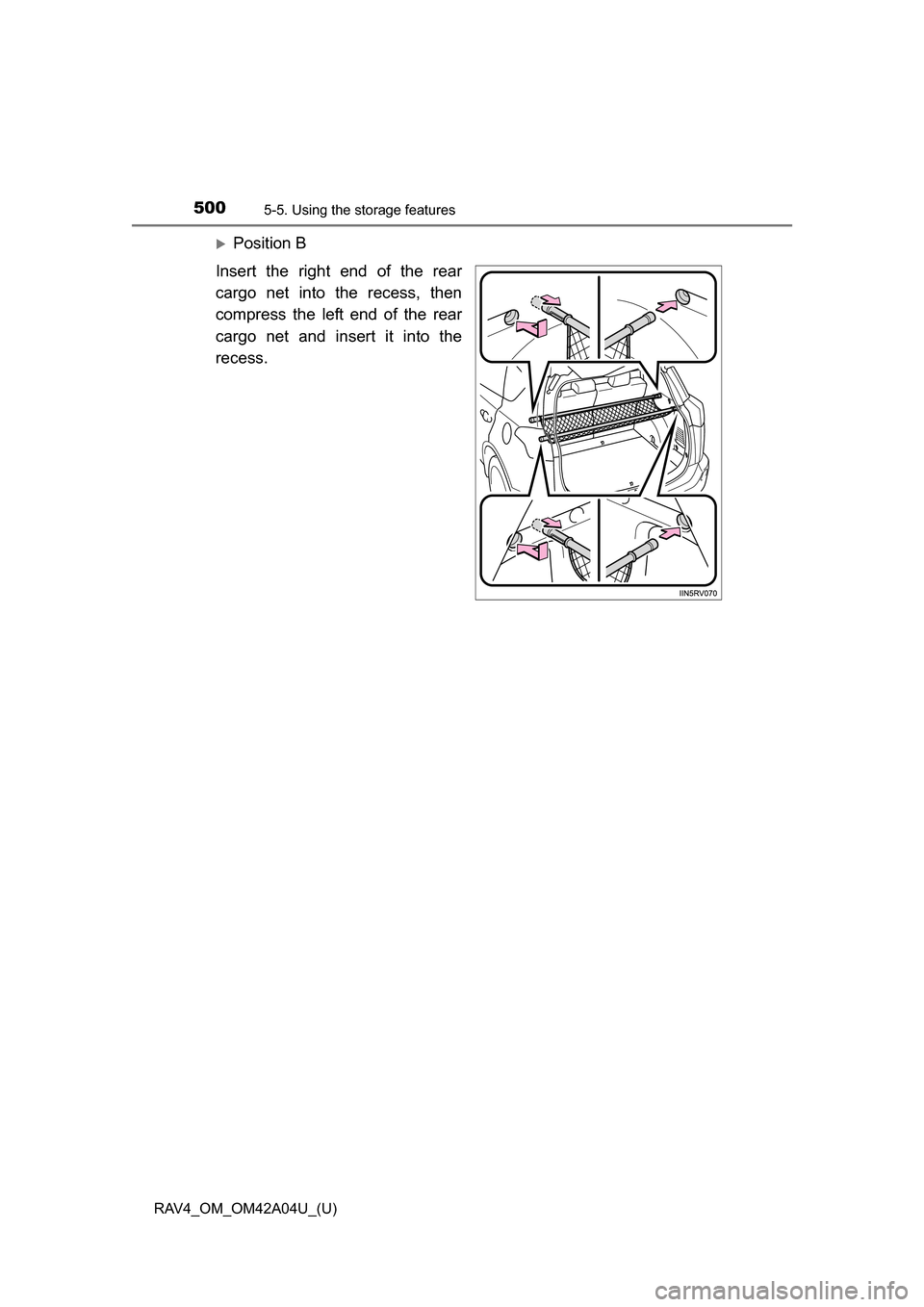

Position B
Insert the right end of the rear
cargo net into the recess, then
compress the left end of the rear
cargo net and insert it into the
recess.

RAV4_OM_OM42A04U_(U)
5015-5. Using the storage features
5
Interior features
■Stowing the rear cargo net (vehicles with the rear cargo net
holders)Open the rear deck board
and remove the deck side
covers.
Insert the right end of the
rear cargo net into the
recess, then compress the
left end of the rear cargo net
and insert it into the recess.
1
2

502
RAV4_OM_OM42A04U_(U)
5-5. Using the storage features

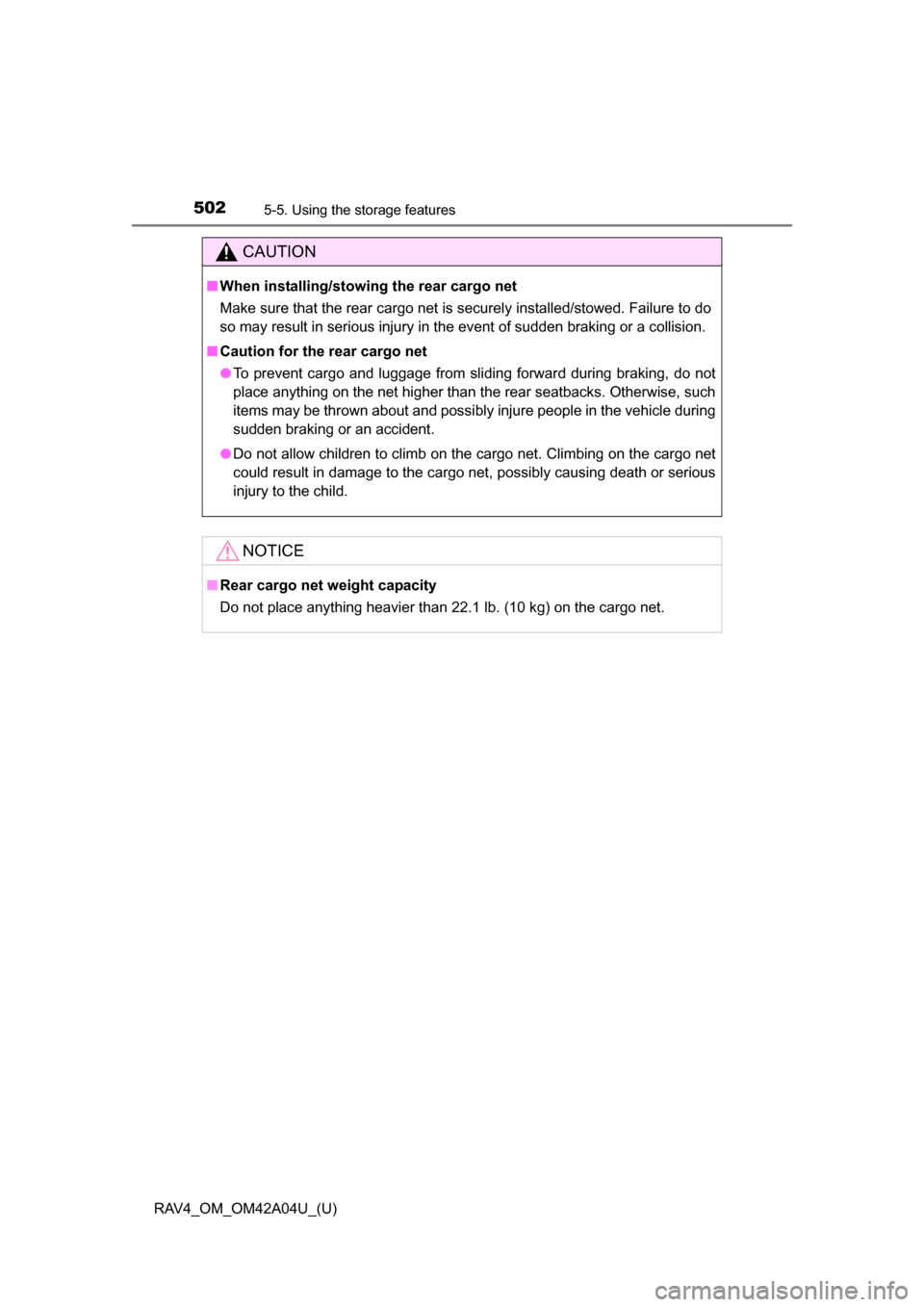

CAUTION
■When installing/stowing the rear cargo net
Make sure that the rear cargo net is securely installed/stowed. Failure to do
so may result in serious injury in the event of sudden braking or a collision.
■ Caution for the rear cargo net
●To prevent cargo and luggage from sliding forward during braking, do not
place anything on the net higher than the rear seatbacks. Otherwise, such
items may be thrown about and possibly injure people in the vehicle during
sudden braking or an accident.
● Do not allow children to climb on the cargo net. Climbing on the cargo net
could result in damage to the cargo net, possibly causing death or serious
injury to the child.
NOTICE
■Rear cargo net weight capacity
Do not place anything heavier than 22.1 lb. (10 kg) on the cargo net.

503
RAV4_OM_OM42A04U_(U)
5-6. Other interior features
5
Interior features
Sun visors and vanity mirrors
Forward position:
Flip down.
Side position:
Flip down, unhook, and swing
to the side.
Side extender (if equipped):
Place in side position then slide
backwards.
Slide the cover to open.
The light turns on when the cover
is opened.
Sun visors
1
2
3
Vanity mirrors
NOTICE
■ To prevent battery discharge
Do not leave the vanity lights on for extended periods while the engine is off.

504
RAV4_OM_OM42A04U_(U)
5-6. Other interior features
Clock
Adjusts the hours.
Adjusts the minutes.
■The clock is displayed when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When disconnecting and reco nnecting battery terminals
The clock data will be reset.
The clock can be adjusted by pressing the buttons.
1
2
