2014 TOYOTA RAV4 Owners Manual

RAV4_OM_OM42A04U_(U)
4735-3. Using the audio system (Entune Audio)
5
Interior features
When making/receiving a call
“Please check
your device set-
tings.” message is
displayed.
Bluetooth® func-
tion is not enabled
on the cellular
phone.Enable the
Bluetooth® func-
tion on the cellular
phone.
*2
Old registration
information
remains on either
this system or the
cellular phone.
Delete the exist-
ing registration
information from
both this system
and the cellular
phone, then regis-
ter the cellular
phone you wish to
connect to this
system.
*2P. 432
SymptomLikely causeSolution
Page
Cellular phoneThis
system
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
A call cannot be
made/received.
Your vehicle is in
a “Out of cellular
service area.
Please try again
later.” area.
Move to where
“Out of cellular
service area.
Please try again
later.” no longer
appears on the
display.


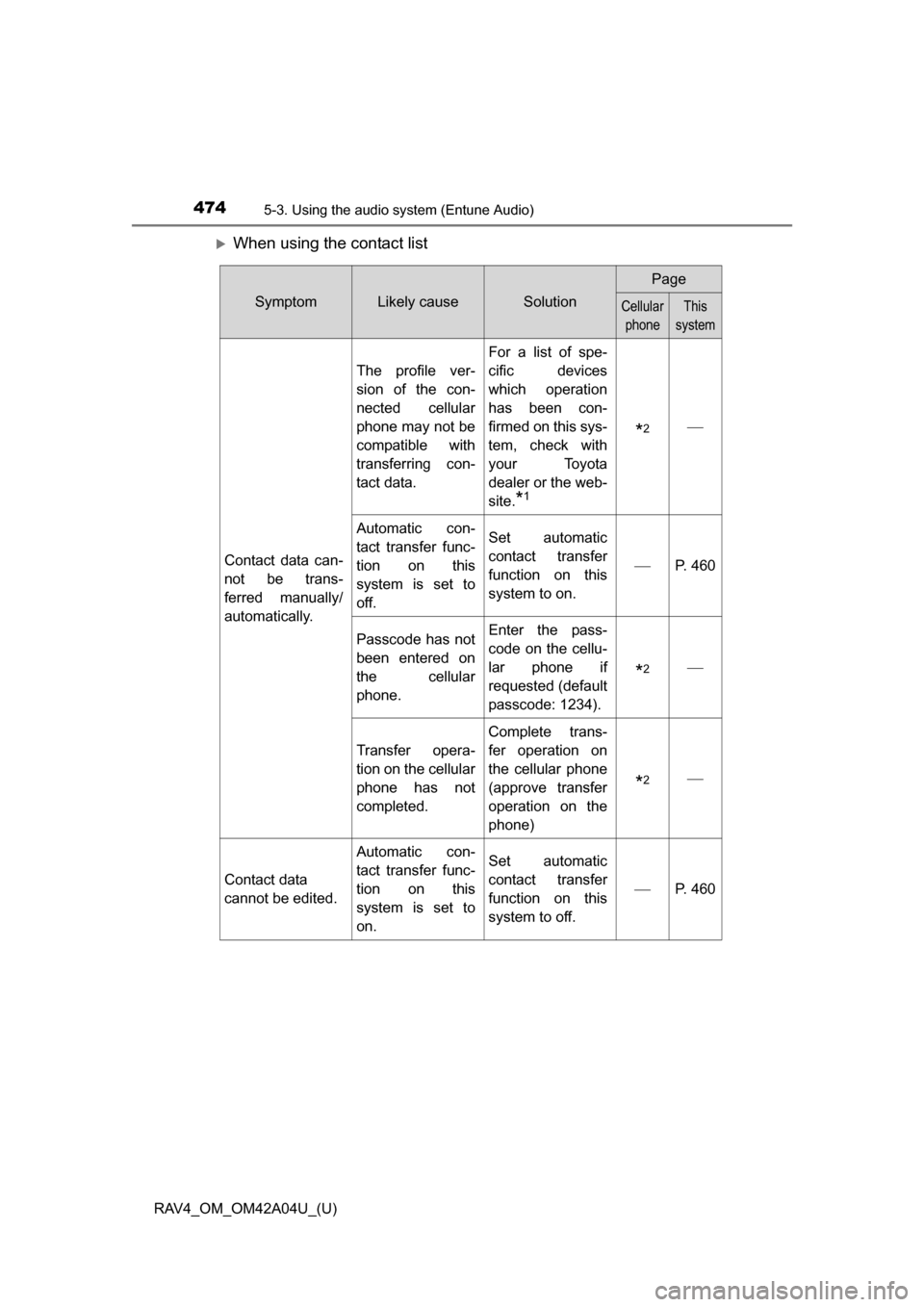

474
RAV4_OM_OM42A04U_(U)
5-3. Using the audio system (Entune Audio)
When using the contact list
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Contact data can-
not be trans-
ferred manually/
automatically.
The profile ver-
sion of the con-
nected cellular
phone may not be
compatible with
transferring con-
tact data.
For a list of spe-
cific devices
which operation
has been con-
firmed on this sys-
tem, check with
your Toyota
dealer or the web-
site.
*1
*2
Automatic con-
tact transfer func-
tion on this
system is set to
off.Set automatic
contact transfer
function on this
system to on.
P. 460
Passcode has not
been entered on
the cellular
phone.Enter the pass-
code on the cellu-
lar phone if
requested (default
passcode: 1234).
*2
Transfer opera-
tion on the cellular
phone has not
completed.
Complete trans-
fer operation on
the cellular phone
(approve transfer
operation on the
phone)
*2
Contact data
cannot be edited.
Automatic con-
tact transfer func-
tion on this
system is set to
on.Set automatic
contact transfer
function on this
system to off.
P. 460

RAV4_OM_OM42A04U_(U)
4755-3. Using the audio system (Entune Audio)
5
Interior features
When using the Bluetooth® message function (if equipped)
SymptomLikely causeSolution
Page
Cellular phoneThis
system
Messages cannot
be viewed.
Message transfer
is not enabled on
the cellular
phone.
Enable message
transfer on the
cellular phone
(approve mes-
sage transfer on
the phone).
*2
Automatic trans-
fer function on
this system is set
to off.Set automatic
transfer function
on this system to
on.
P. 468
New message
notifications are
not displayed.
Notification of
SMS/MMS/e-mail
reception on this
system is set to
off.Set notification of
SMS/MMS/e-mail
reception on this
system to on.
*2P. 468
Automatic mes-
sage transfer
function is not
enabled on the
cellular phone.Enable automatic
transfer function
on the cellular
phone.
*2P. 468

476
RAV4_OM_OM42A04U_(U)
5-3. Using the audio system (Entune Audio)
In other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The Bluetooth®
connection status
is displayed at the
top of the screen
each time the
engine switch is
turned to the
“ACC” or “ON”
position (vehicles
without a smart
key system) or
ACCESSORY or
IGNITION ON
mode (vehicles
with a smart key
system).
Connection con-
firmation display
on this system is
set to on.To turn off the dis-
play, set connec-
tion confirmation
display on this
system to off.
P. 438

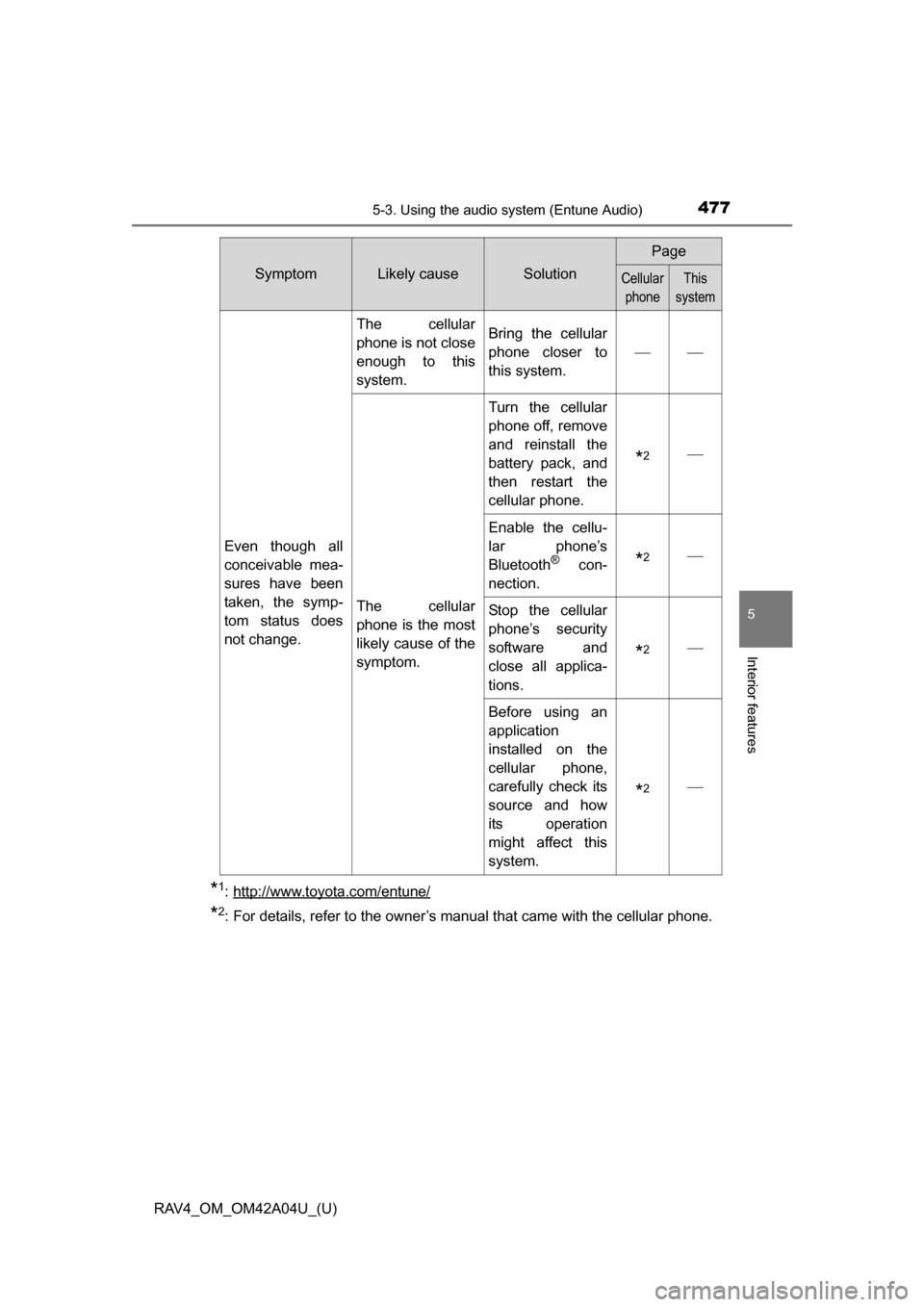

RAV4_OM_OM42A04U_(U)
4775-3. Using the audio system (Entune Audio)
5
Interior features
*1: http://www.toyota.com/entune/
*2: For details, refer to the owner’s manual that came with the cellular phone.
Even though all
conceivable mea-
sures have been
taken, the symp-
tom status does
not change.
The cellular
phone is not close
enough to this
system.Bring the cellular
phone closer to
this system.

The cellular
phone is the most
likely cause of the
symptom.
Turn the cellular
phone off, remove
and reinstall the
battery pack, and
then restart the
cellular phone.
*2
Enable the cellu-
lar phone’s
Bluetooth
® con-
nection.*2
Stop the cellular
phone’s security
software and
close all applica-
tions.
*2
Before using an
application
installed on the
cellular phone,
carefully check its
source and how
its operation
might affect this
system.
*2
SymptomLikely causeSolution
Page
Cellular phoneThis
system

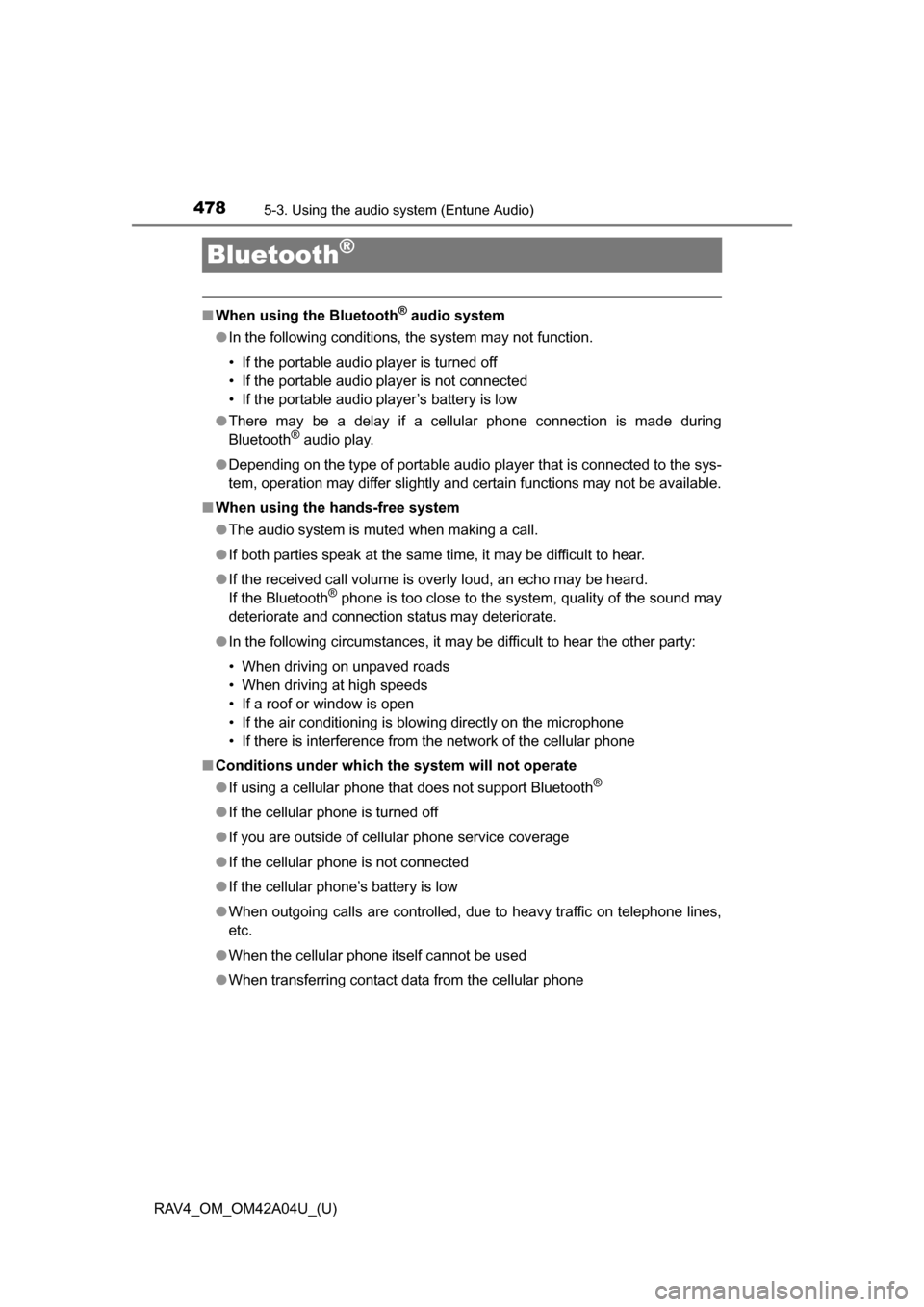

478
RAV4_OM_OM42A04U_(U)
5-3. Using the audio system (Entune Audio)
Bluetooth®
■When using the Bluetooth® audio system
● In the following conditions, the system may not function.
• If the portable audio player is turned off
• If the portable audio player is not connected
• If the portable audio player’s battery is low
● There may be a delay if a cellular phone connection is made during
Bluetooth
® audio play.
● Depending on the type of portable audio player that is connected to the sys-
tem, operation may differ slightly and certain functions may not be available.
■ When using the hands-free system
●The audio system is muted when making a call.
● If both parties speak at the same time, it may be difficult to hear.
● If the received call volume is overly loud, an echo may be heard.
If the Bluetooth
® phone is too close to the system, quality of the sound may
deteriorate and connection status may deteriorate.
● In the following circumstances, it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
• If a roof or window is open
• If the air conditioning is blowing directly on the microphone
• If there is interference from the network of the cellular phone
■ Conditions under which th e system will not operate
● If using a cellular phone that does not support Bluetooth
®
●If the cellular phone is turned off
● If you are outside of cellular phone service coverage
● If the cellular phone is not connected
● If the cellular phone’s battery is low
● When outgoing calls are controlled, due to heavy traffic on telephone lines,
etc.
● When the cellular phone itself cannot be used
● When transferring contact data from the cellular phone

RAV4_OM_OM42A04U_(U)
4795-3. Using the audio system (Entune Audio)
5
Interior features
■Bluetooth® antenna
The antenna is built into the display.
If the portable audio player is behind the seat or in the glove box or console
box, or is touching or covered by metal objects, the connection status may
deteriorate.
If the cellular phone is behind the seat or in the console box, or touching or
covered by metal objects, the connection status may deteriorate.
■ Battery charge/signal status
●This display may not correspond exactly with the portable audio player or
cellular phone itself.
● This system does not have a charging function.
● The portable audio player or cellular phone battery will be depleted quickly
when the device is connected to Bluetooth
®.
■ When using the Bluetooth
® audio and hands-free system at the same
time
The following problems may occur.
● The Bluetooth
® audio connection may be interrupted.
● Noise may be heard during Bluetooth
® audio playback.
■ About the contact in this system
The following data is stored for every registered cellular phone. When
another phone is connecting, you cannot read the registered data.
●Contact data
● Call history
● Favorite
● Message
When removing a Bluetooth
® phone from the system, the above-mentioned
data is also deleted.
■ About Bluetooth
®
The Bluetooth® word mark and logos are
registered trademarks owned Bluetooth
SIG, Inc. and any use of such marks by
Fujitsu Ten Limited is under license.
Other trademarks and trade names are
those of their respective owners.

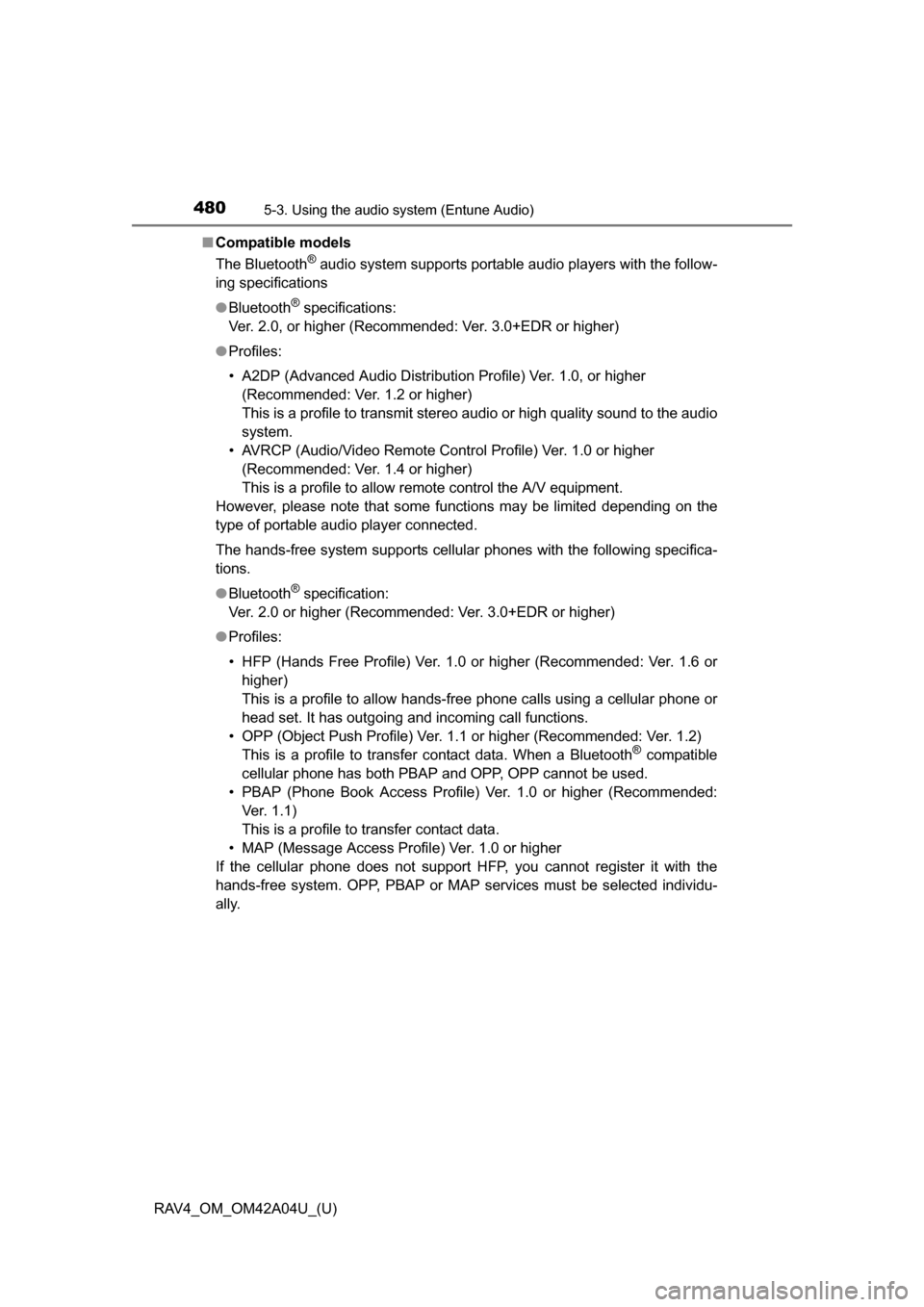

480
RAV4_OM_OM42A04U_(U)
5-3. Using the audio system (Entune Audio)
■Compatible models
The Bluetooth
® audio system supports portable audio players with the follow-
ing specifications
● Bluetooth
® specifications:
Ver. 2.0, or higher (Recommended: Ver. 3.0+EDR or higher)
● Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher
(Recommended: Ver. 1.2 or higher)
This is a profile to transmit stereo audio or high quality sound to the audio
system.
• AVRCP (Audio/Video Remote Contro l Profile) Ver. 1.0 or higher
(Recommended: Ver. 1.4 or higher)
This is a profile to allow remote control the A/V equipment.
However, please note that some functions may be limited depending on the
type of portable audio player connected.
The hands-free system supports cellular phones with the following specifica-
tions.
● Bluetooth
® specification:
Ver. 2.0 or higher (Recommended: Ver. 3.0+EDR or higher)
● Profiles:
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.6 or
higher)
This is a profile to allow hands-free phone calls using a cellular phone or
head set. It has outgoing and incoming call functions.
• OPP (Object Push Profile) Ver. 1.1 or higher (Recommended: Ver. 1.2) This is a profile to transfer contact data. When a Bluetooth
® compatible
cellular phone has both PBAP and OPP, OPP cannot be used.
• PBAP (Phone Book Access Profile) Ver. 1.0 or higher (Recommended: Ver. 1.1)
This is a profile to transfer contact data.
• MAP (Message Access Profile) Ver. 1.0 or higher
If the cellular phone does not support HFP, you cannot register it with the
hands-free system. OPP, PBAP or MAP services must be selected individu-
ally.
