2014 TOYOTA RAV4 Owners Manual

RAV4_OM_OM42A04U_(U)
2974-6. Driving tips
4
Driving

298
RAV4_OM_OM42A04U_(U)
5-1. Using the air conditioning system and defogger
Manual air conditioning system............................. 300
Automatic air conditioning system ... 306
Rear window and outside rear view mirror
defoggers ........................ 316
Windshield wiper de-icer ... 318
5-2. Using the audio system Audio system types ........... 319
Using the radio .................. 322
Using the CD player .......... 325
Playing back MP3 and WMA discs ...................... 330
Operating an iPod ............. 337
Operating a USB memory................... 345
Optimal use of the audio system ................... 353
Using the AUX port ........... 355
Using the steering wheel audio switches ................ 356
Bluetooth
® audio/phone .... 359
Using the Bluetooth®
audio/phone .................... 364
Operating a Bluetooth
®
enabled portable
player .............................. 369
Making a phone call .......... 372
Using the “SETUP” menu (“Bluetooth
*” menu) ........ 377
Using the “SETUP” menu (“PHONE” menu) ............ 382 5-3. Using the audio system
(Entune Audio)
Audio system .................... 387
Steering wheel audio switches .......................... 389
USB Port/AUX Port ........... 391
Basic Audio Operations .... 392
Setup menu....................... 394
General settings ................ 395
Audio settings ................... 399
Display settings ................. 400
Voice settings.................... 402
Selecting the audio source ............................. 403
List screen operation......... 404
Optimal use of the audio system ................... 406
Radio operation................. 407
CD player operation .......... 409
Listening to an iPod .......... 415
Listening to a USB memory device ............... 420
Using the AUX port ........... 425
Preparations to use wireless
communication ................ 426
5Interior features

299
RAV4_OM_OM42A04U_(U)
5Interior features
Registering a Bluetooth®
audio player for the
first time .......................... 429
Registering a Bluetooth
®
phone for the first time .... 430
Registering a Bluetooth
®
device.............................. 431
Connecting a Bluetooth
®
device.............................. 433
Displaying a Bluetooth
®
device details .................. 436
Detailed Bluetooth
®
system settings ............... 438
Listening to Bluetooth
®
Audio ............................... 440
Using a Bluetooth
®
Phone.............................. 442
Making a call ..................... 444
Receiving a call ................. 447
Speaking on the phone ..... 448
Bluetooth
® phone
message function ............ 452
Using the steering wheel switches ................ 457
Bluetooth
® phone
settings............................ 458
Contact/Call History Settings ........................... 460
What to do if... (Troubleshooting) ............ 470
Bluetooth
®......................... 478
Voice command system .... 483 5-4. Using the interior lights
Interior lights list ................ 486
• Interior lights ................. 487
• Personal lights .............. 487
5-5. Using the storage features List of storage features ..... 489
• Glove box...................... 490
• Console box .................. 491
• Cup holders .................. 492
• Bottle holders ................ 493
Luggage compartment features ........................... 494
5-6. Other interior features Sun visors and vanity mirrors ............................. 503
Clock ................................. 504
Power outlets .................... 505
Seat heaters...................... 506
Armrest ............................. 508
Coat hooks ........................ 509
Assist grips........................ 510
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

300
RAV4_OM_OM42A04U_(U)

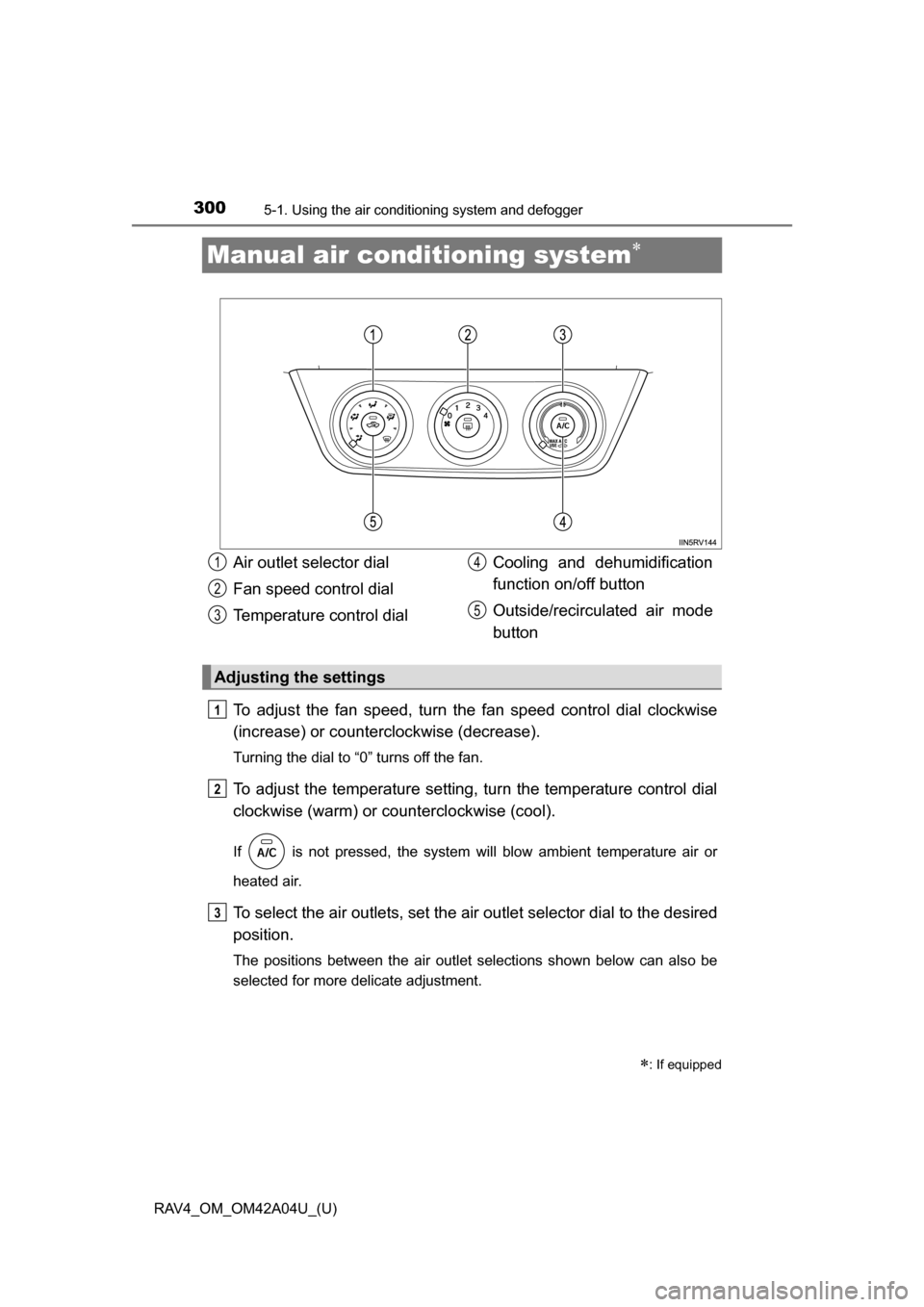

5-1. Using the air conditioning system and defogger
Manual air conditioning system
To adjust the fan speed, turn the fan speed control dial clockwise
(increase) or counterclockwise (decrease).
Turning the dial to “0” turns off the fan.
To adjust the temperature setting, turn the temperature control dial
clockwise (warm) or counterclockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
To select the air outlets, set the air outlet selector dial to the desired
position.
The positions between the air outlet selections shown below can also be
selected for more delicate adjustment.
: If equipped
Air outlet selector dial
Fan speed control dial
Temperature control dial Cooling and dehumidification
function on/off button
Outside/recirculated air mode
button1
2
3
4
5
Adjusting the settings
1
2
3

RAV4_OM_OM42A04U_(U)
3015-1. Using the air conditioning system and defogger
5
Interior features

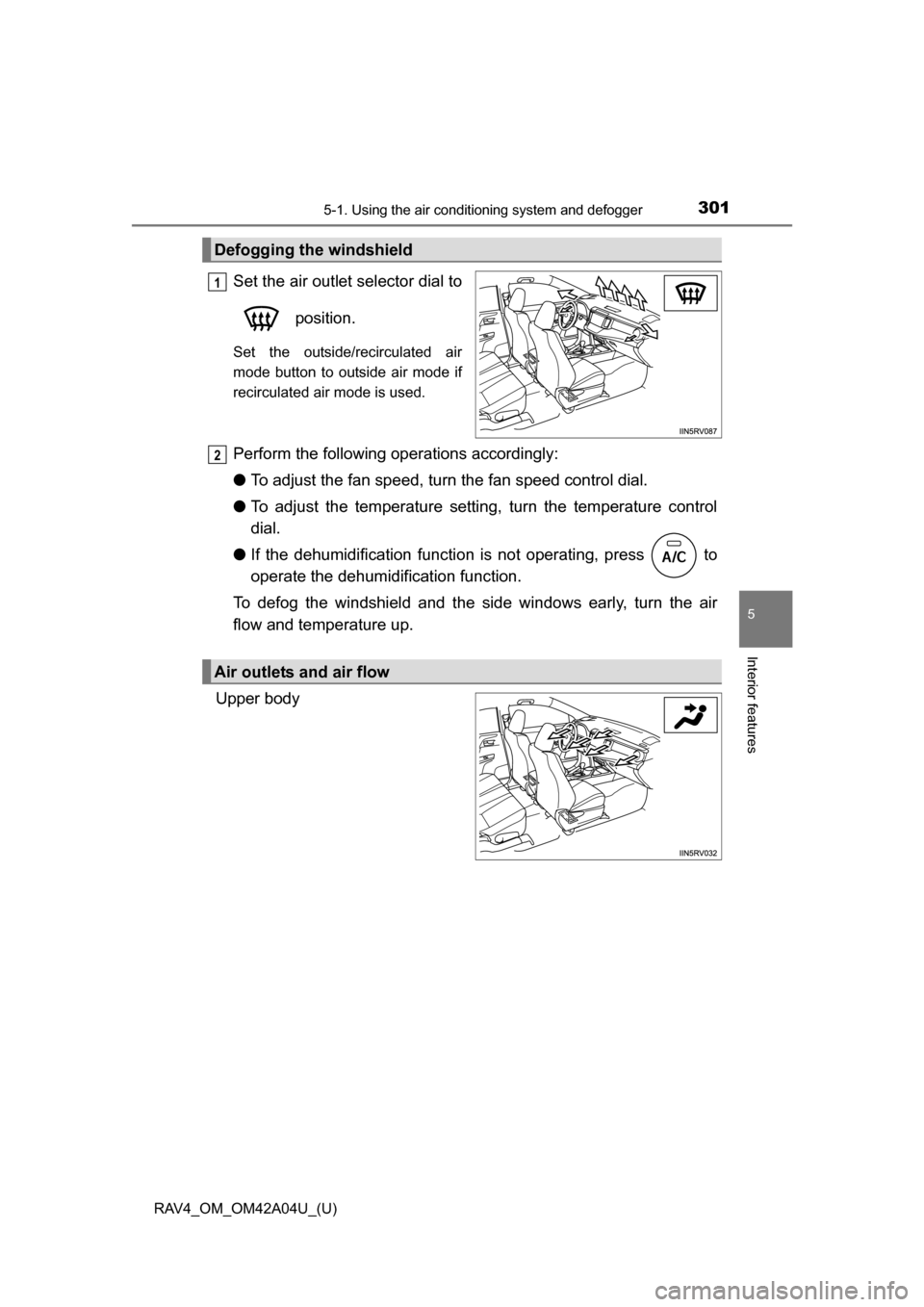

Set the air outlet selector dial to
position.
Set the outside/recirculated air
mode button to outside air mode if
recirculated air mode is used.
Perform the following operations accordingly:
●To adjust the fan speed, turn the fan speed control dial.
● To adjust the temperature setting, turn the temperature control
dial.
● If the dehumidification functi on is not operating, press to
operate the dehumidif ication function.
To defog the windshield and the side windows early, turn the air
flow and temperature up.
Upper body
Defogging the windshield
1
Air outlets and air flow
2

302
RAV4_OM_OM42A04U_(U)
5-1. Using the air conditioning system and defogger

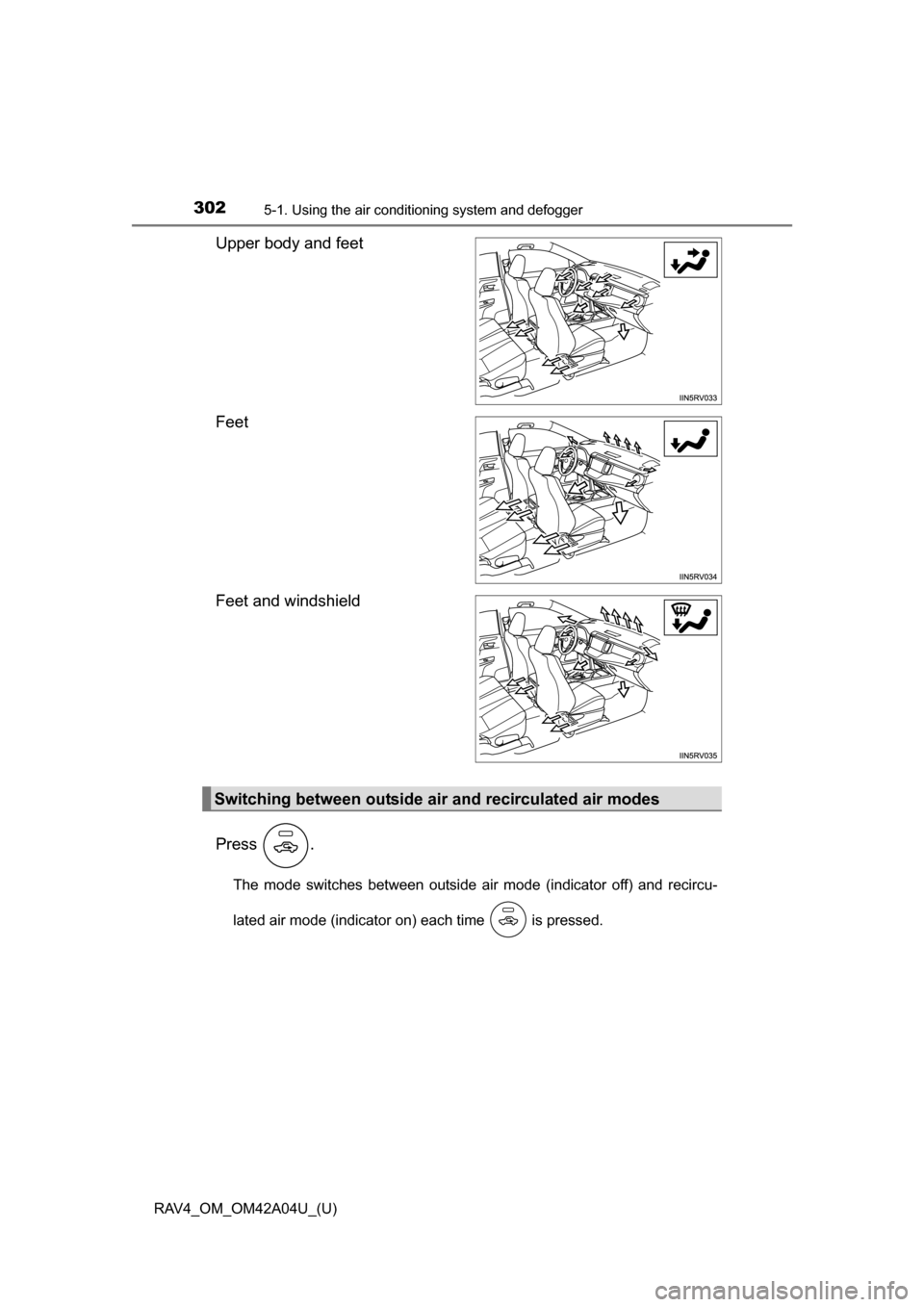

Upper body and feet
Feet
Feet and windshield
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.
Switching between outside air and recirculated air modes

RAV4_OM_OM42A04U_(U)
3035-1. Using the air conditioning system and defogger
5
Interior features

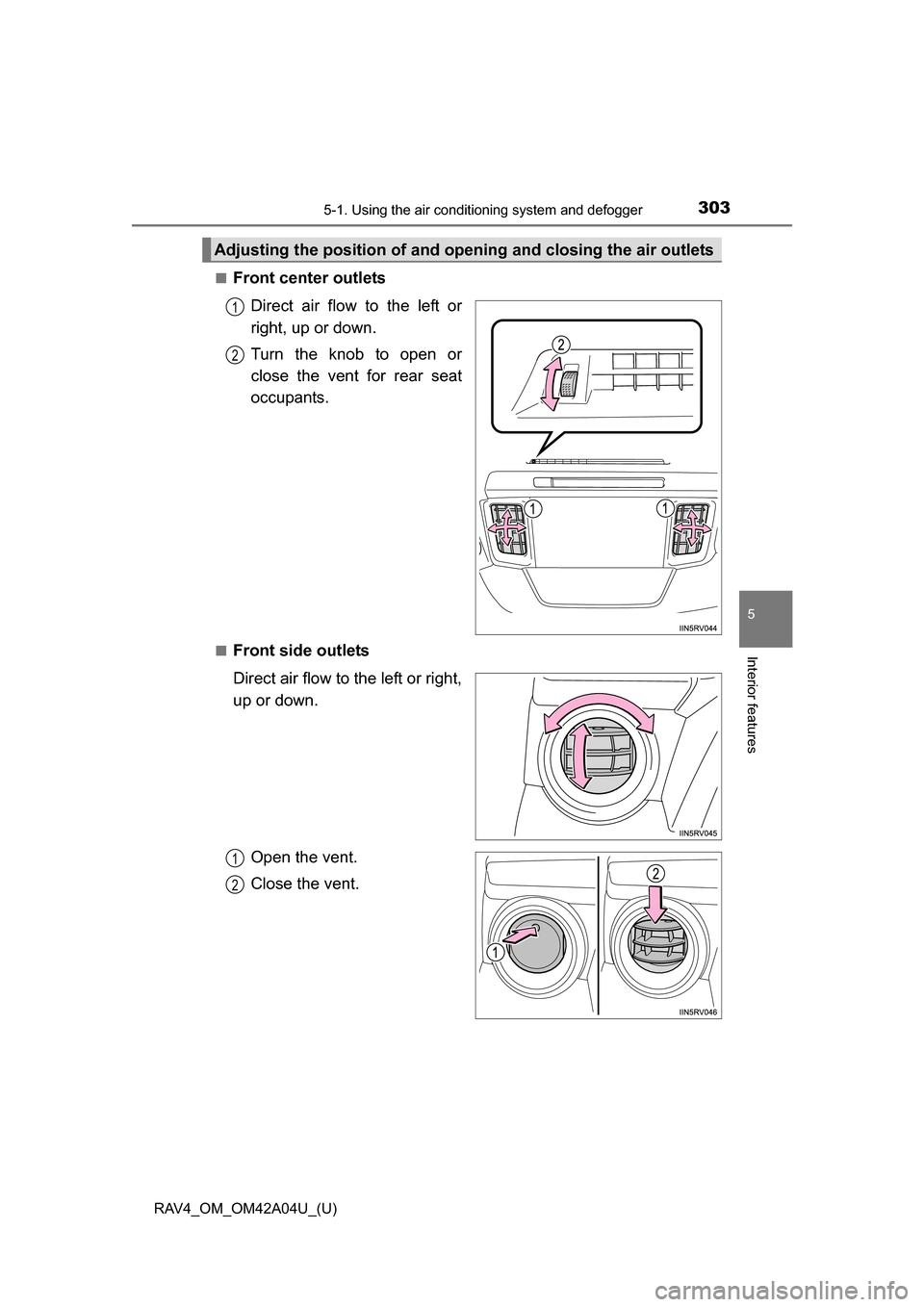

■Front center outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or
close the vent for rear seat
occupants.
■Front side outlets
Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.
Adjusting the position of and op ening and closing the air outlets
1
2
1
2

304
RAV4_OM_OM42A04U_(U)
5-1. Using the air conditioning system and defogger
■Operation of the air conditioning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled to prioritize fuel
efficiency by regulating the engine speed and compressor operation to
restrict the heating/cooling capacity.
To improve air conditioning performance, turn off Eco drive mode. ( P. 209)
■ Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effective
in preventing outside air from entering the vehicle interior. During cooling
operation, setting the recirculated air mode will also cool the vehicle interior
effectively.
■ When outside air temp erature approaches 32 F (0C)
The air conditioning system may not operate even when is pressed.
