1212. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM47D74U)
Press the “APPS” button.
Touch “ECO” on the “Apps”
screen.
If the “Energy monitor” or “Past
record” screen is displayed, touch
“Trip information”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since
the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range
This image is an example only, and may vary slightly from actual condi-
tions.
Trip Information (audio system screen)
1
2
1
2
3
4
5
6

1222. Instrument cluster
HIGHLANDER_HV_U (OM47D74U)
Press the “APPS” button.
Touch “ECO” on the “Apps” screen.
If the “Energy monitor” or “Trip information” screen is displayed, touch
“Past record”.
Resetting the past record
data
Best past fuel consumption
Average fuel consumption
Displays a maximum of five past
records of the average fuel con-
sumption.
Previous fuel consumption
record
Update
The average fuel consumption and graph are updated, and a new aver-
age fuel consumption record begins.
This image is an example only, and may vary slightly from actual condi-
tions.
■ Resetting the consumption data
Selecting “Clear” on the “Trip information” screen will reset the fuel consump-
tion and regenerated energy for the last 15 minutes. Selecting “Clear” on the
“Past record” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following screen will confirm resetting of all the
data.

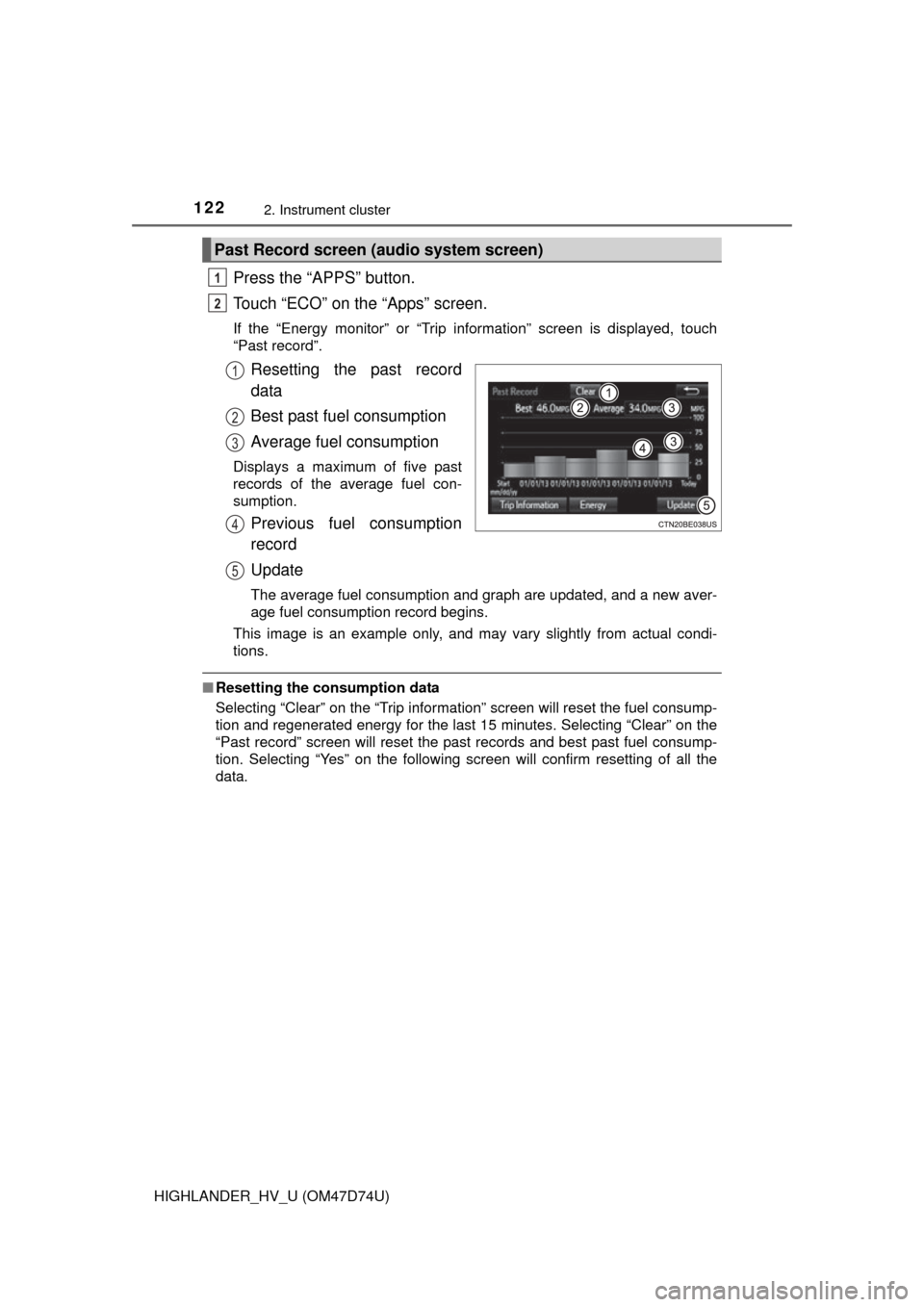

Past Record screen (audio system screen)
1
2
1
2
3
4
5

123
3
Operation of
each component
HIGHLANDER_HV_U (OM48D74U) 3-1. Key information
Keys .................................. 124
3-2. Opening, closing and locking the doors
Side doors ......................... 128
Back door .......................... 134
Glass hatch ....................... 144
Smart key system ............. 148
3-3. Adjusting the seats Front seats ........................ 156
Rear seats......................... 158
Driving position memory ... 165
Head restraints.................. 169
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 173
Inside rear view mirror ...... 175
Outside rear view mirrors ............................. 177
3-5. Opening and closing the windows
Power windows ................. 179
Moon roof .......................... 183
Panoramic moon roof........ 187

124
HIGHLANDER_HV_U (OM48D74U)
3-1. Key information
The following keys are provided with the vehicle.Electronic keys
• Operating the smart key system(P. 148)
• Operating the wireless remote control function
Mechanical keys
Key number plate
Locks the doors ( P. 129)
Unlocks the doors ( P. 129)
Opens the windows and moon
roof* ( P. 129)
Opens and closes the power
back door ( P. 135)
Sounds the alarm ( P. 125)
*: This setting must be customized at your Toyota dealer.
Keys
The keys
1
2
3
Wireless remote control
1
2
3
4
5

1253-1. Key information
3
Operation of each component
HIGHLANDER_HV_U (OM48D74U)
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. (P. 513)
■Panic mode
■ When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. ( P. 343)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
■ If you lose your keys
New genuine keys can be made by your Toyota dealer using the mechanical
key and the key number stamped on your key number plate. Keep the plate in
a safe place such as your wallet, not in the vehicle.
Using the mechanical key
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

1263-1. Key information
HIGHLANDER_HV_U (OM48D74U)■
When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press
any button on the electronic key while inside the aircraft cabin. If you are car-
rying an electronic key in your bag etc., ensure that the buttons are not likely
to be pressed accidentally. Pressing a button may cause the electronic key to
emit radio waves that could interfere with the operation of the aircraft.
■ Conditions affecting operation
P. 151
■ Electronic key battery depletion
●The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the hybrid
system stops. ( P. 482)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 428)
• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appl iances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■ When the electronic key battery is fully depleted
P. 428
■ Confirmation of the registered key number
The number of electronic keys already registered to the vehicle can be con-
firmed. Ask your Toyota dealer for details.
■ If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 556)
■ Certification for the wi reless remote control
P. 154

1273-1. Key information
3
Operation of each component
HIGHLANDER_HV_U (OM48D74U)
NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cooker s, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■ Carrying the electronic key on your person
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
■ When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit your Toyota dealer imm ediately with all remaining electronic
keys that was provided with your vehicle.

128
HIGHLANDER_HV_U (OM48D74U)
3-2. Opening, closing and locking the doors
◆Entry function
Carry the electronic key to enable this function.
Front doors
Grip the driver's door handle
to unlock the door. Grip the
passenger's door handle to
unlock all the doors.
*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
*: The door unlock settings can be changed. (P. 132)
Touch the lock sensor (indentation on the upper part of the door
handle) to lock all the doors.
Back door
Press the unlock button to
unlock all the doors.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Press the lock button to lock
all the doors.
Side doors
Unlocking and locking the doors from the outside
1
2
1
