When trouble arises
503
5-2. Steps to take in an emergency
Follow the correction procedures.

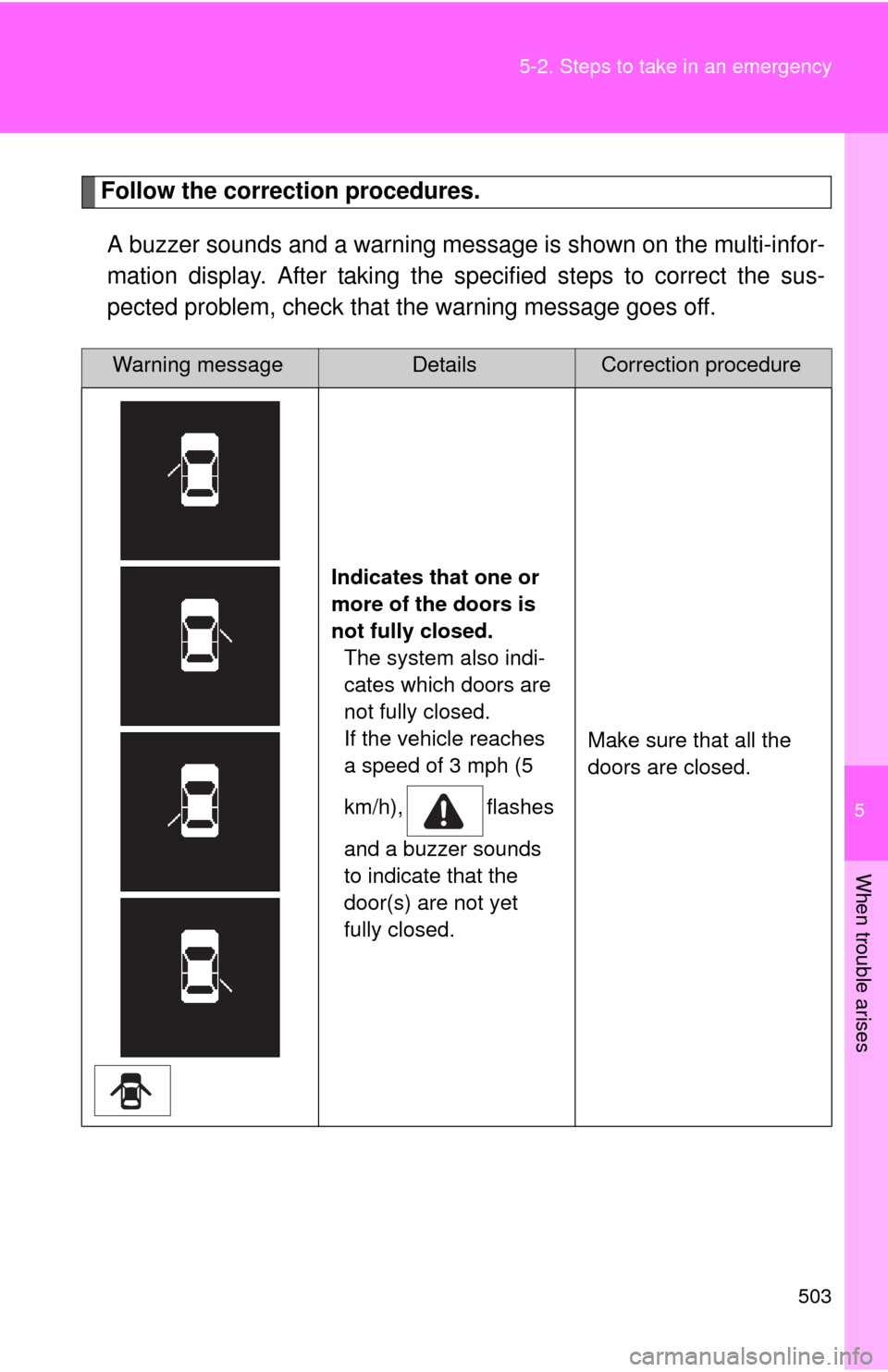

A buzzer sounds and a warning message is shown on the multi-infor-
mation display. After taking the s pecified steps to correct the sus-
pected problem, check that the warning message goes off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is
not fully closed. The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches
a speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
door(s) are not yet
fully closed. Make sure that all the
doors are closed.

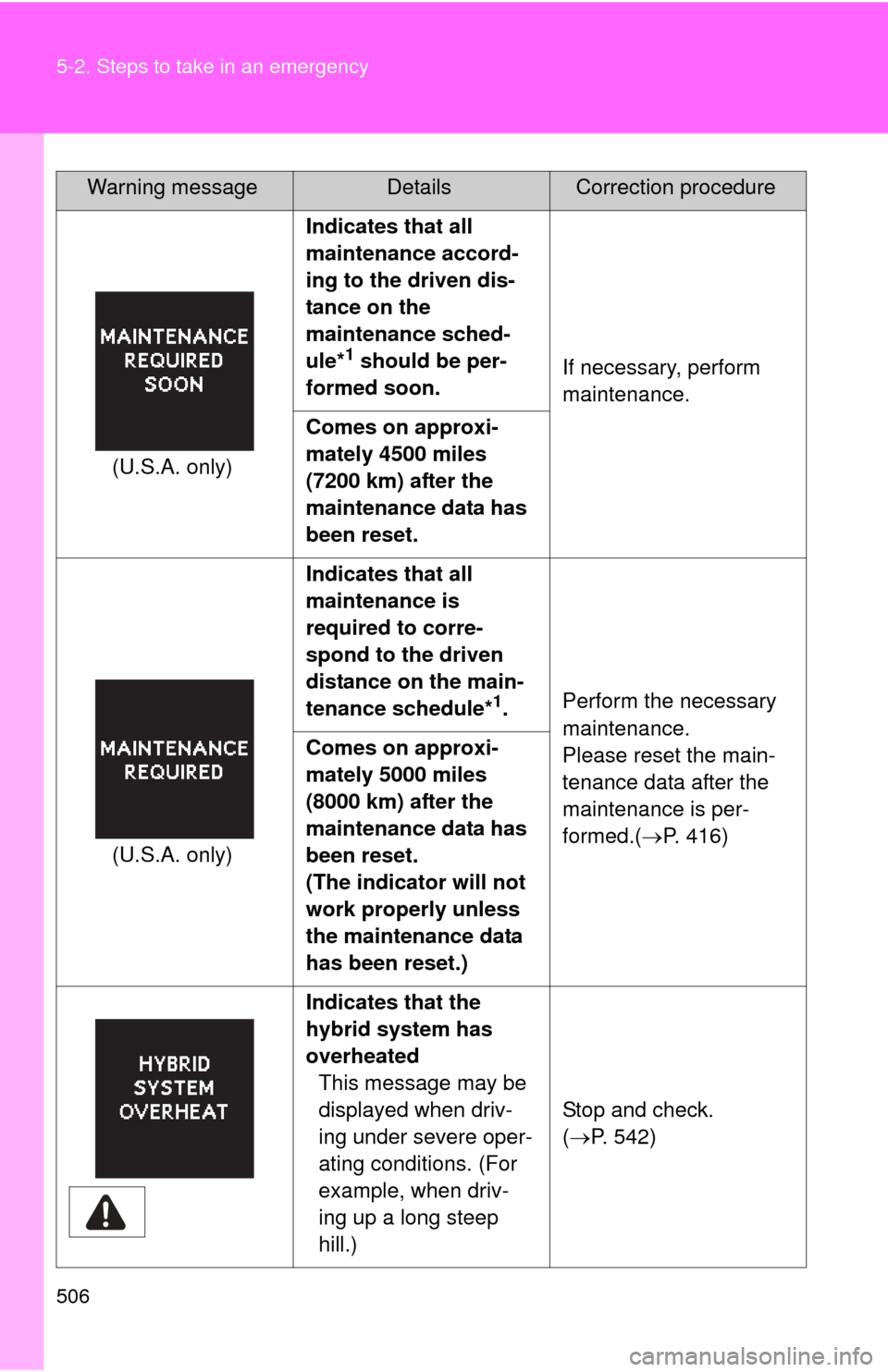

506 5-2. Steps to take in an emergency
(U.S.A. only)Indicates that all
maintenance accord-
ing to the driven dis-
tance on the
maintenance sched-
ule*
1 should be per-
formed soon. If necessary, perform
maintenance.
Comes on approxi-
mately 4500 miles
(7200 km) after the
maintenance data has
been reset.
(U.S.A. only) Indicates that all
maintenance is
required to corre-
spond to the driven
distance on the main-
tenance schedule*
1.
Perform the necessary
maintenance.
Please reset the main-
tenance data after the
maintenance is per-
formed.(
P. 416)
Comes on approxi-
mately 5000 miles
(8000 km) after the
maintenance data has
been reset.
(The indicator will not
work properly unless
the maintenance data
has been reset.)
Indicates that the
hybrid system has
overheated
This message may be
displayed when driv-
ing under severe oper-
ating conditions. (For
example, when driv-
ing up a long steep
hill.) Stop and check.
(
P. 542)
Warning messageDetailsCorrection procedure

508 5-2. Steps to take in an emergency
Indicates that the EV
drive mode is not
available*
2
A buzzer also sounds.
The reason the EV
drive mode is not
available (the vehicle
is idling, battery
charge is low, speed is
higher than the EV
drive mode operating
speed range, acceler-
ator pedal is
depressed too much)
may be displayed.Use the EV drive mode
when it becomes avail-
able.
(Flashes 3
times) Indicates that the EV
drive mode has been
automatically can-
celled*
2
A buzzer also sounds.
The reason the EV
drive mode is not
available (the battery
charge is low, speed is
higher than the EV
drive mode speed
range, accelerator
pedal is depressed too
much) may be dis-
played.
Drive the vehicle for a
while.
Warning messageDetailsCorrection procedure

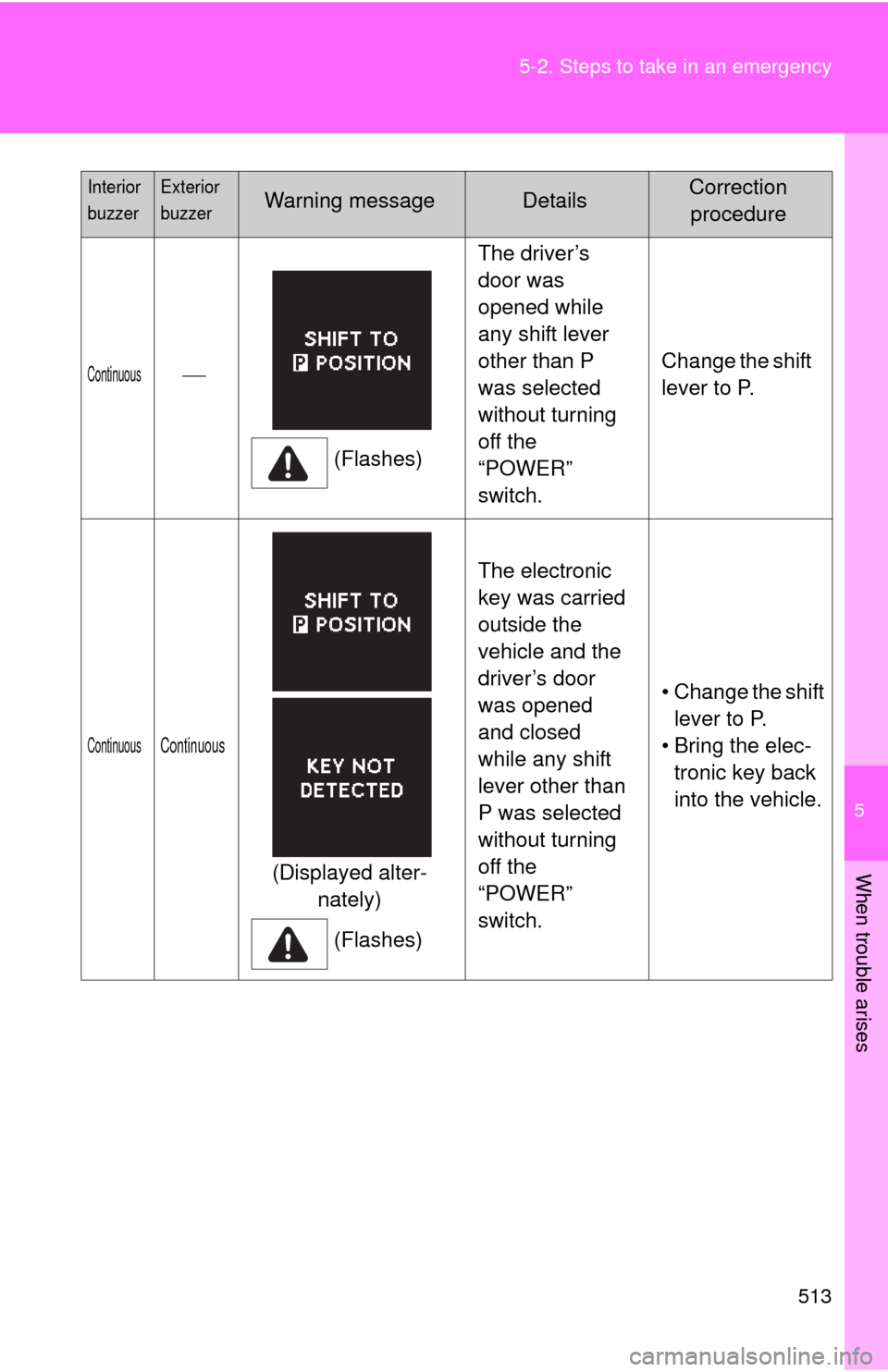

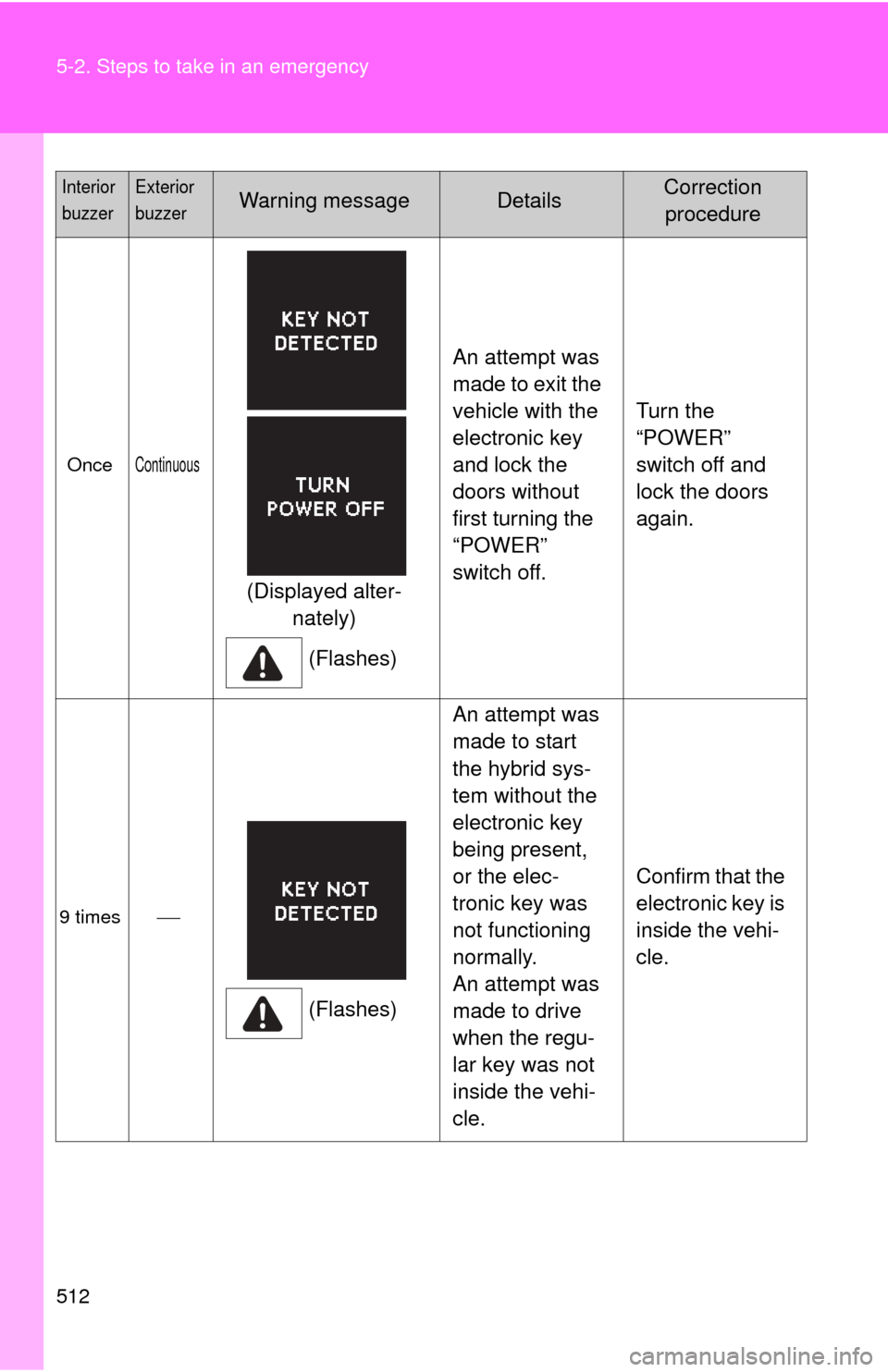

512 5-2. Steps to take in an emergency
OnceContinuous
(Displayed alter-nately)
(Flashes) An attempt was
made to exit the
vehicle with the
electronic key
and lock the
doors without
first turning the
“POWER”
switch off.
Turn the
“POWER”
switch off and
lock the doors
again.
9 times
(Flashes)An attempt was
made to start
the hybrid sys-
tem without the
electronic key
being present,
or the elec-
tronic key was
not functioning
normally.
An attempt was
made to drive
when the regu-
lar key was not
inside the vehi-
cle.
Confirm that the
electronic key is
inside the vehi-
cle.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5
When trouble arises
513
5-2. Steps to take in an emergency
Continuous
(Flashes)The driver’s
door was
opened while
any shift lever
other than P
was selected
without turning
off the
“POWER”
switch.
Change the shift
lever to P.
ContinuousContinuous
(Displayed alter-
nately)
(Flashes) The electronic
key was carried
outside the
vehicle and the
driver’s door
was opened
and closed
while any shift
lever other than
P was selected
without turning
off the
“POWER”
switch.
• Change the shift
lever to P.
• Bring the elec- tronic key back
into the vehicle.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

536 5-2. Steps to take in an emergency

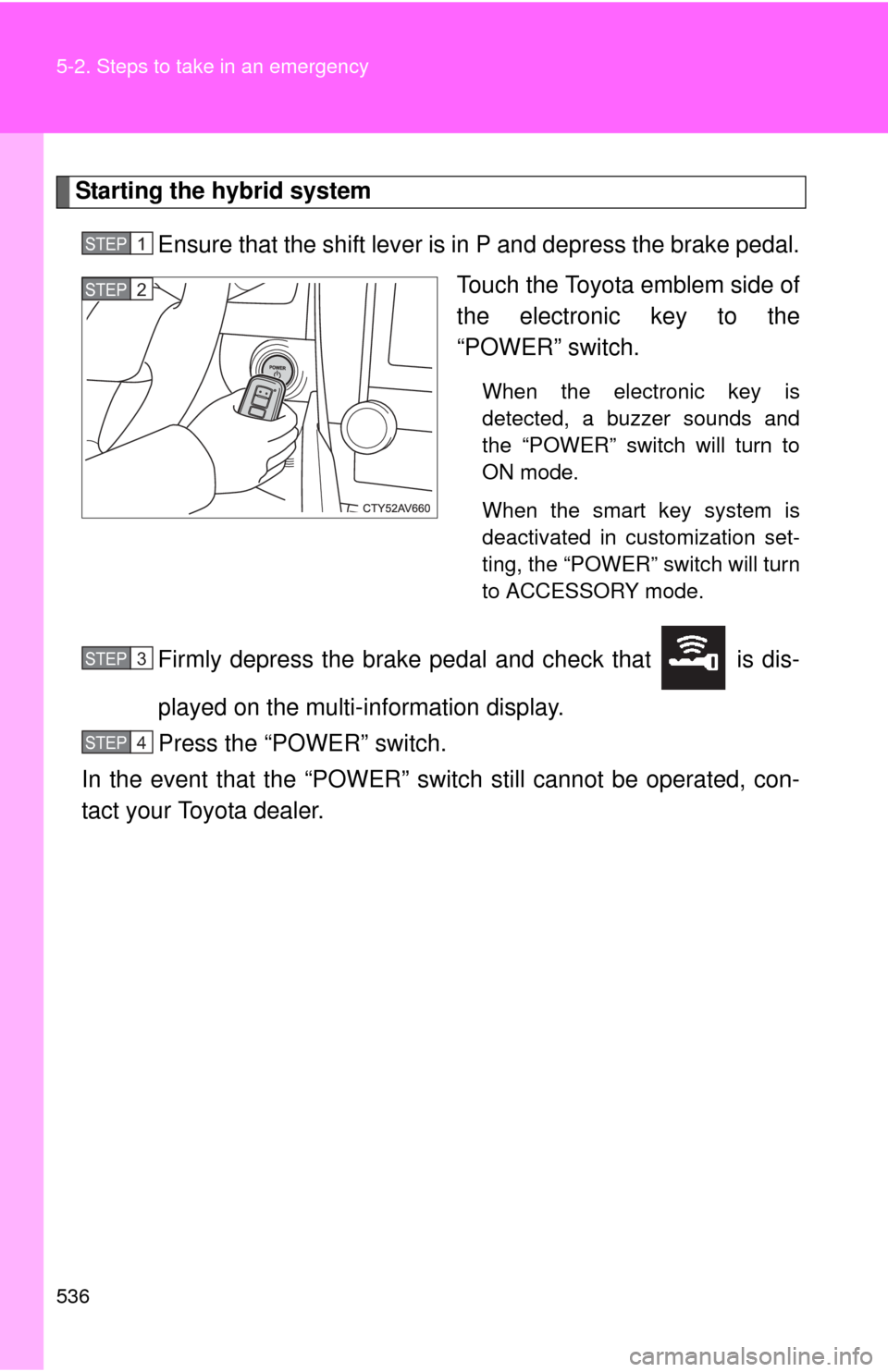

Starting the hybrid systemEnsure that the shift lever is in P and depress the brake pedal. Touch the Toyota emblem side of
the electronic key to the
“POWER” switch.
When the electronic key is
detected, a buzzer sounds and
the “POWER” switch will turn to
ON mode.
When the smart key system is
deactivated in customization set-
ting, the “POWER” switch will turn
to ACCESSORY mode.
Firmly depress the brake pedal and check that is dis-
played on the multi-information display.
Press the “POWER” switch.
In the event that the “POWER” swit ch still cannot be operated, con-
tact your Toyota dealer.
STEP1
STEP2
STEP3
STEP4

542
5-2. Steps to take in an emergency
If your vehicle overheats
Correction procedures■ If the rightmost segment of th e engine coolant temperature
display are flashing
Stop the vehicle in a safe place and turn off the air condition-
ing system, and then stop the hybrid system.
If you see steam: Carefully lift the hood after the steam subsides.
If you do not see steam: Carefully lift the hood.
After the hybrid system has
cooled down sufficiently, inspect
the hoses and radiator core
(radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Toyota
dealer.
The following may indicate that your vehicle is overheating.
●The rightmost segment of the engine coolant temperature dis-
play ( P. 174) is flashing or a lo ss of hybrid system power is
experienced. (For example, the vehicle speed does not
increase.)
● “HYBRID SYSTEM OVERHEAT” ( P. 503) is shown on the
multi-informat ion display.
● Steam comes out from under the hood.
STEP1
STEP2
STEP3

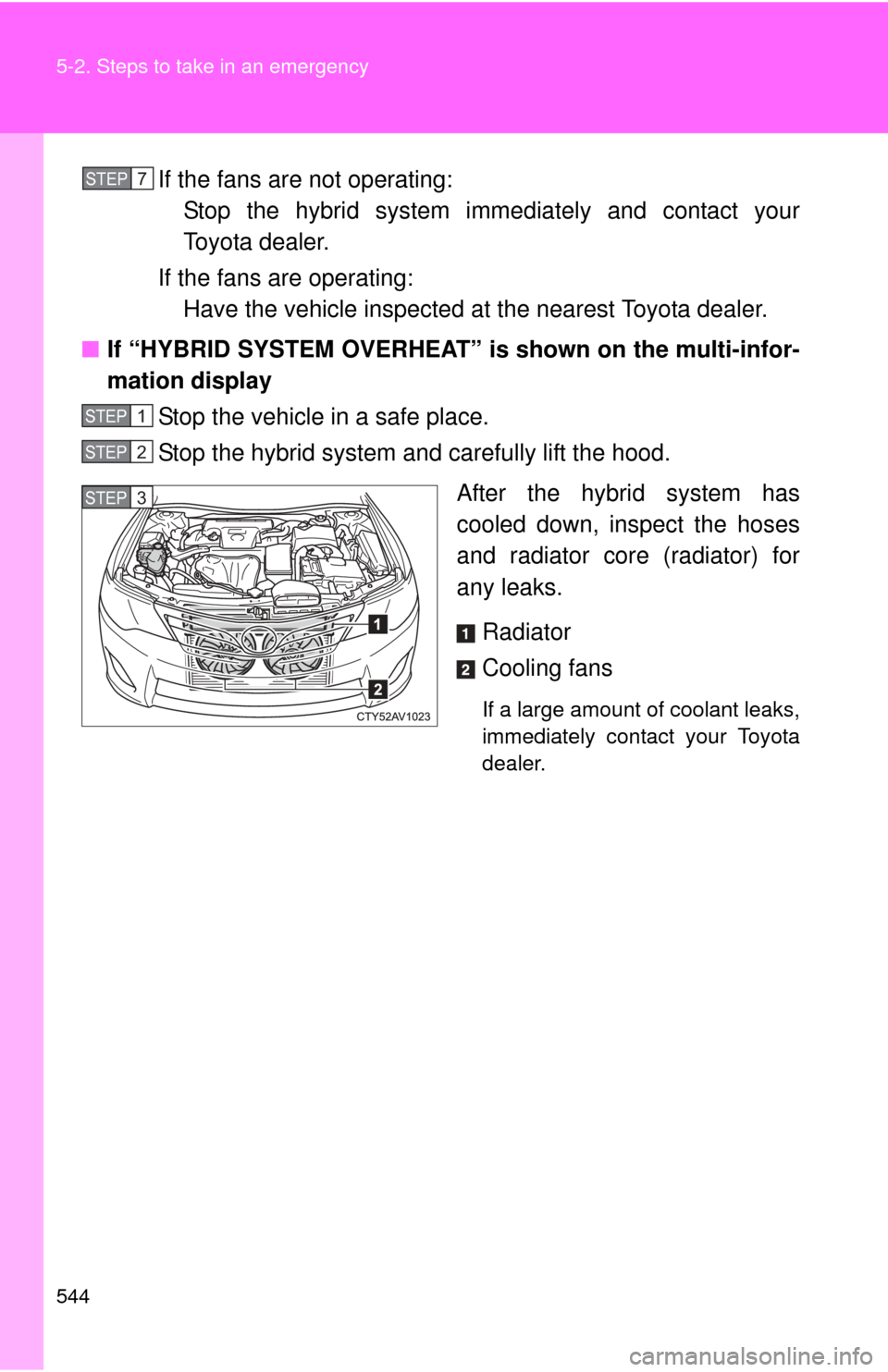

544 5-2. Steps to take in an emergency
If the fans are not operating:Stop the hybrid system im mediately and contact your
Toyota dealer.
If the fans are operating: Have the vehicle inspected at the nearest Toyota dealer.
■ If “HYBRID SYSTEM OVERHEAT” is shown on the multi-infor-
mation display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has
cooled down, inspect the hoses
and radiator core (radiator) for
any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Toyota
dealer.
STEP7
STEP1
STEP2
STEP3
