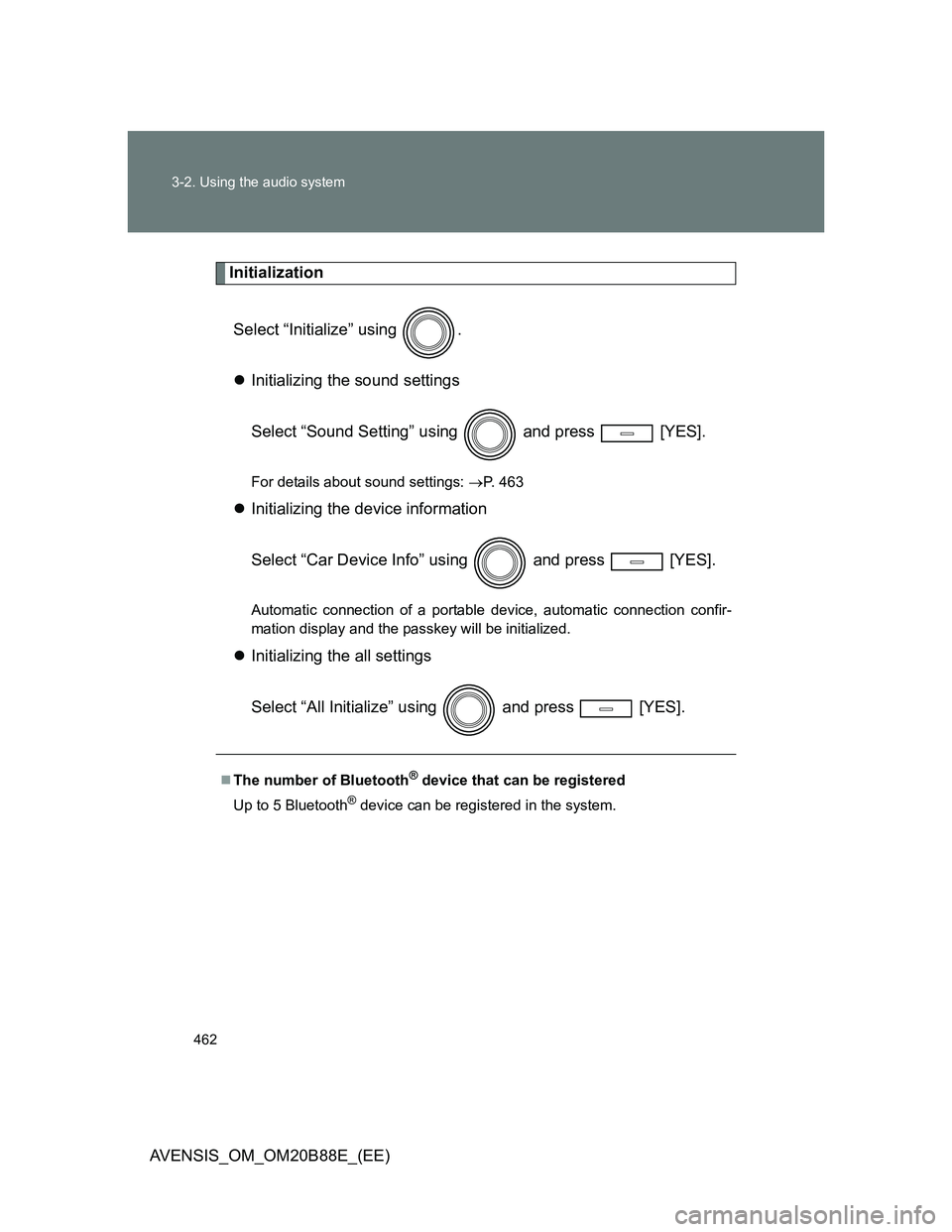

462 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Initialization
Select “Initialize” using .
Initializing the sound settings
Select “Sound Setting” using and press [YES].
For details about sound settings: P. 4 6 3
Initializing the device information
Select “Car Device Info” using and press [YES].
Automatic connection of a portable device, automatic connection confir-
mation display and the passkey will be initialized.
Initializing the all settings
Select “All Initialize” using and press [YES].
The number of Bluetooth® device that can be registered
Up to 5 Bluetooth
® device can be registered in the system.

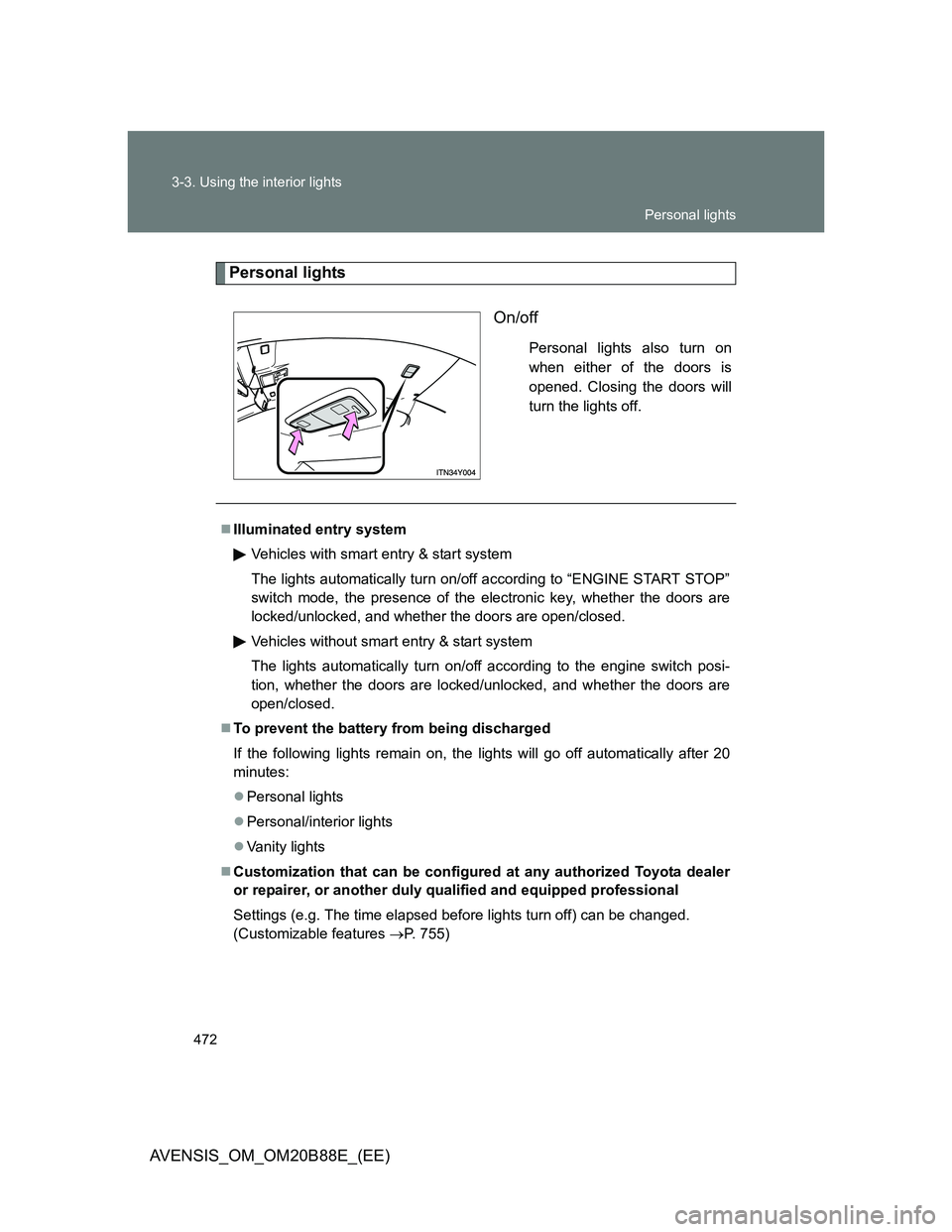

472 3-3. Using the interior lights
AVENSIS_OM_OM20B88E_(EE)
Personal lights
On/off
Personal lights also turn on
when either of the doors is
opened. Closing the doors will
turn the lights off.
Illuminated entry system
Vehicles with smart entry & start system
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are open/closed.
Vehicles without smart entry & start system
The lights automatically turn on/off according to the engine switch posi-
tion, whether the doors are locked/unlocked, and whether the doors are
open/closed.
To prevent the battery from being discharged
If the following lights remain on, the lights will go off automatically after 20
minutes:
Personal lights
Personal/interior lights
Vanity lights
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 755)
Personal lights

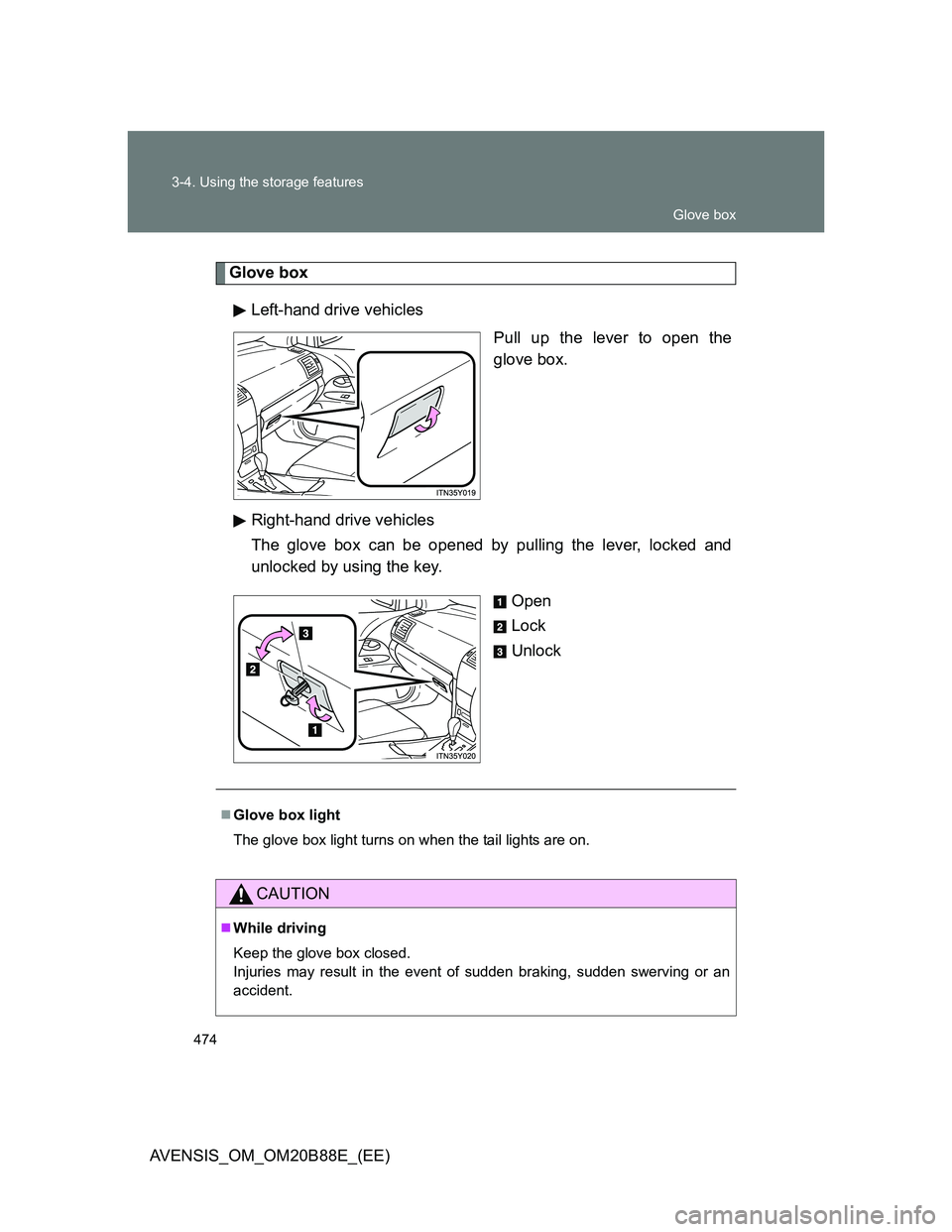

474 3-4. Using the storage features
AVENSIS_OM_OM20B88E_(EE)
Glove box
Left-hand drive vehicles
Pull up the lever to open the
glove box.
Right-hand drive vehicles
The glove box can be opened by pulling the lever, locked and
unlocked by using the key.
Open
Lock
Unlock
Glove box light
The glove box light turns on when the tail lights are on.
CAUTION
While driving
Keep the glove box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
Glove box

4Maintenance and care
507
AVENSIS_OM_OM20B88E_(EE)
4-1. Maintenance and care
Cleaning and
protecting the
vehicle exterior ............... 508
Cleaning and
protecting the
vehicle interior ................ 513
4-2. Maintenance
Maintenance
requirements................... 516
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 519
Hood ................................. 523
Positioning a floor jack ...... 525
Engine compartment......... 527
Tires .................................. 545
Tire inflation pressure ....... 549
Wheels .............................. 551
Air conditioning filter ......... 553
Key battery........................ 556
Checking and
replacing fuses ............... 560
Light bulbs ........................ 576

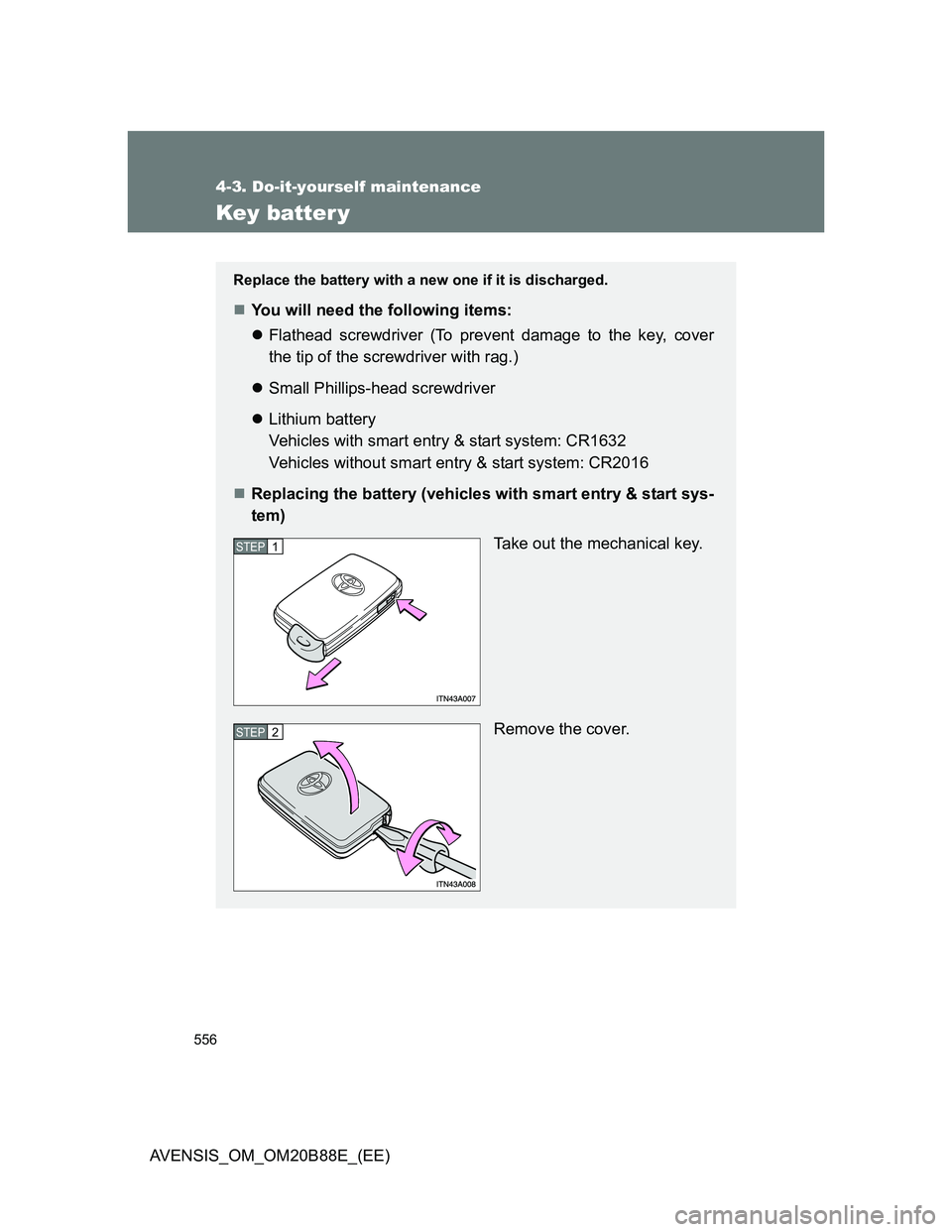

556
4-3. Do-it-yourself maintenance
AVENSIS_OM_OM20B88E_(EE)
Key batter y
Replace the battery with a new one if it is discharged.
You will need the following items:
Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with rag.)
Small Phillips-head screwdriver
Lithium battery
Vehicles with smart entry & start system: CR1632
Vehicles without smart entry & start system: CR2016
Replacing the battery (vehicles with smart entry & start sys-
tem)
Take out the mechanical key.
Remove the cover.
STEP1
STEP2

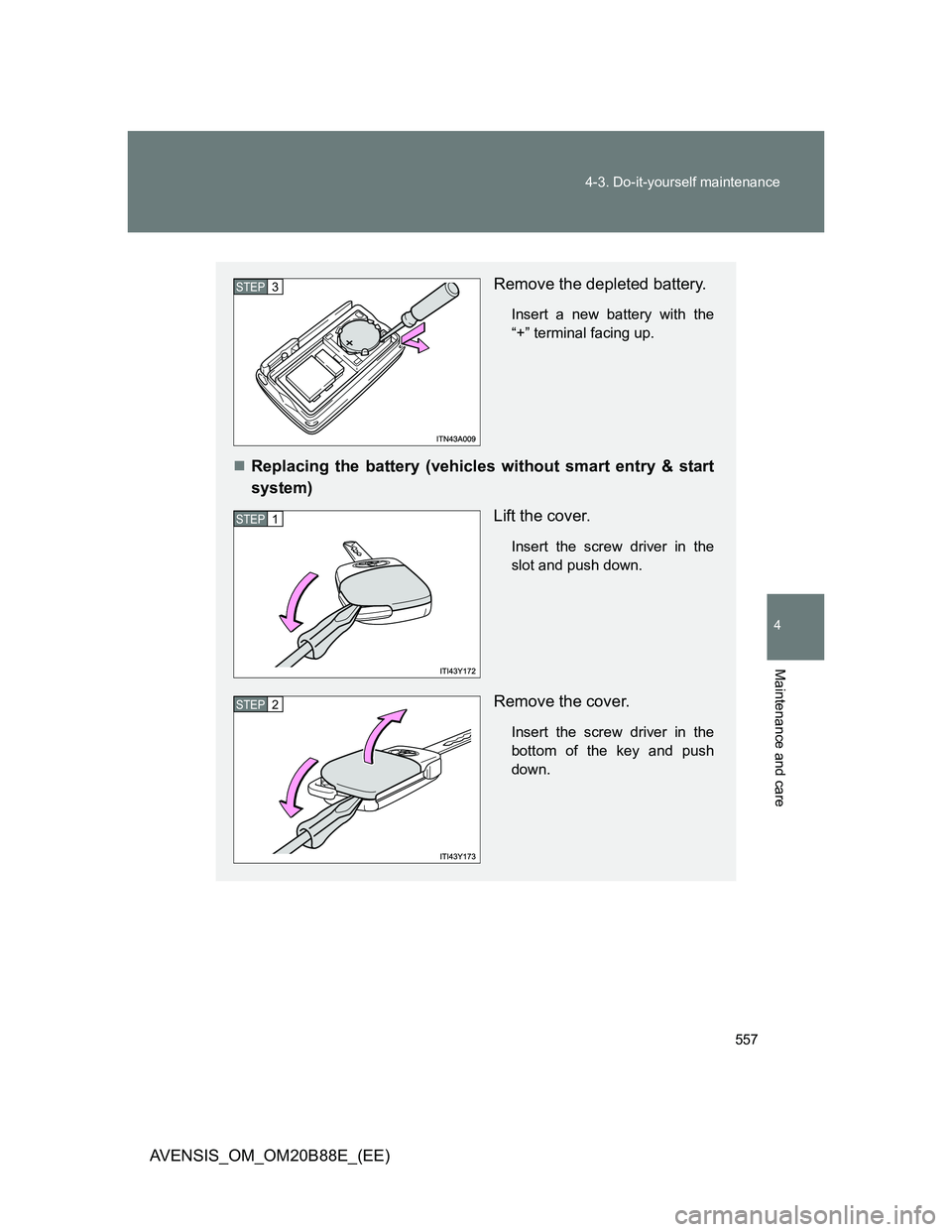

557 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
Replacing the battery (vehicles without smart entry & start
system)
Lift the cover.
Insert the screw driver in the
slot and push down.
Remove the cover.
Insert the screw driver in the
bottom of the key and push
down.
STEP3
STEP1
STEP2

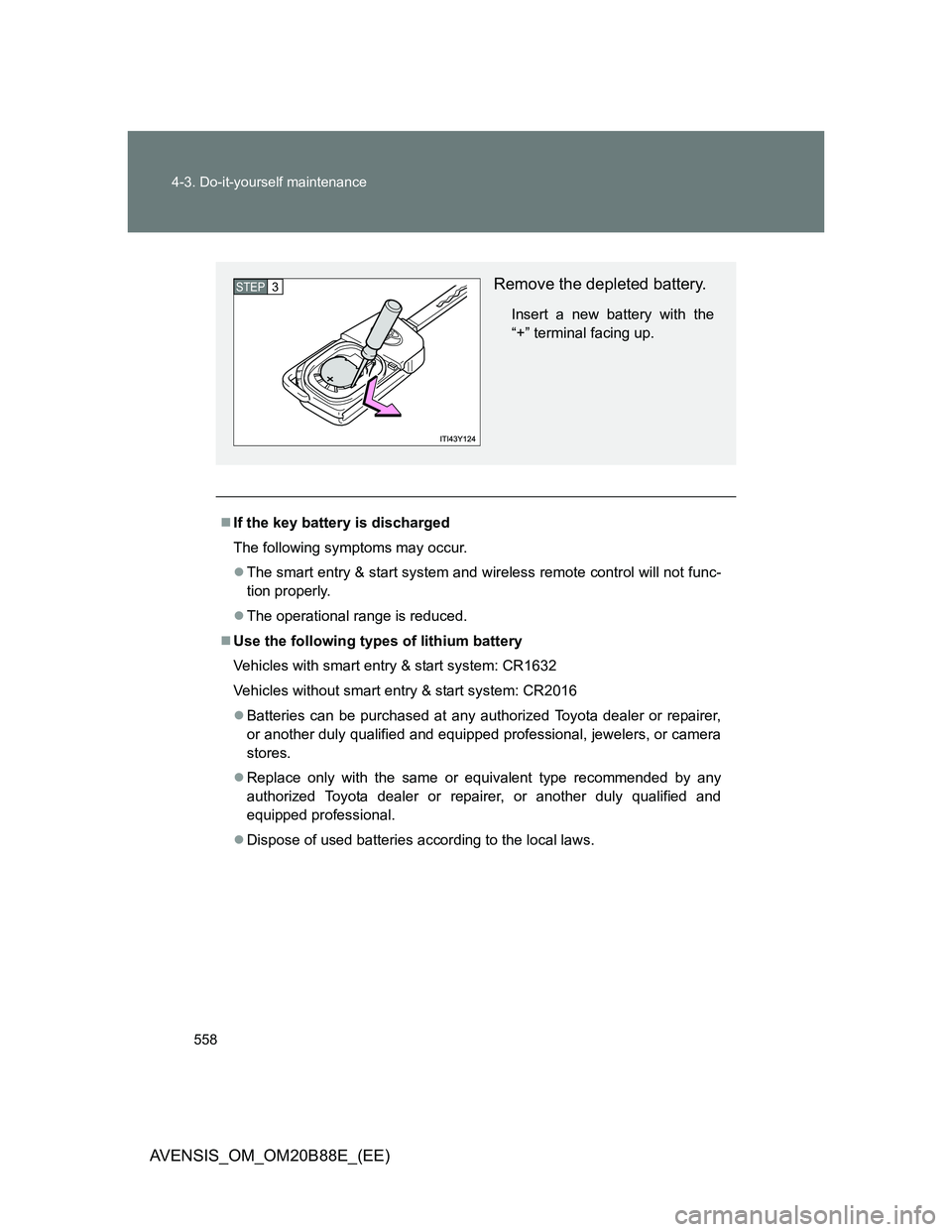

558 4-3. Do-it-yourself maintenance
AVENSIS_OM_OM20B88E_(EE)
If the key battery is discharged
The following symptoms may occur.
The smart entry & start system and wireless remote control will not func-
tion properly.
The operational range is reduced.
Use the following types of lithium battery
Vehicles with smart entry & start system: CR1632
Vehicles without smart entry & start system: CR2016
Batteries can be purchased at any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional, jewelers, or camera
stores.
Replace only with the same or equivalent type recommended by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Dispose of used batteries according to the local laws.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3

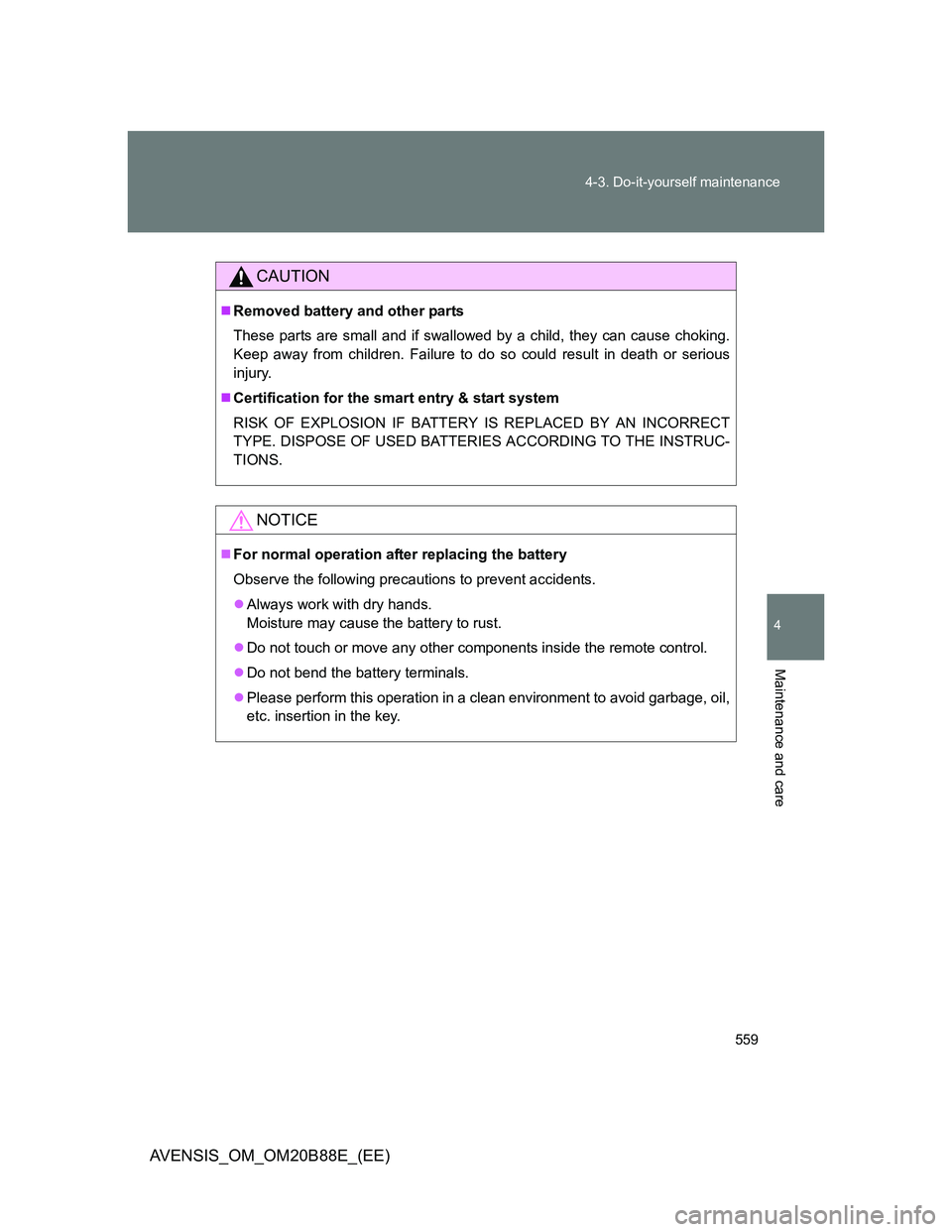

559 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)
CAUTION
Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
Certification for the smart entry & start system
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS.
NOTICE
For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
Always work with dry hands.
Moisture may cause the battery to rust.
Do not touch or move any other components inside the remote control.
Do not bend the battery terminals.
Please perform this operation in a clean environment to avoid garbage, oil,
etc. insertion in the key.
