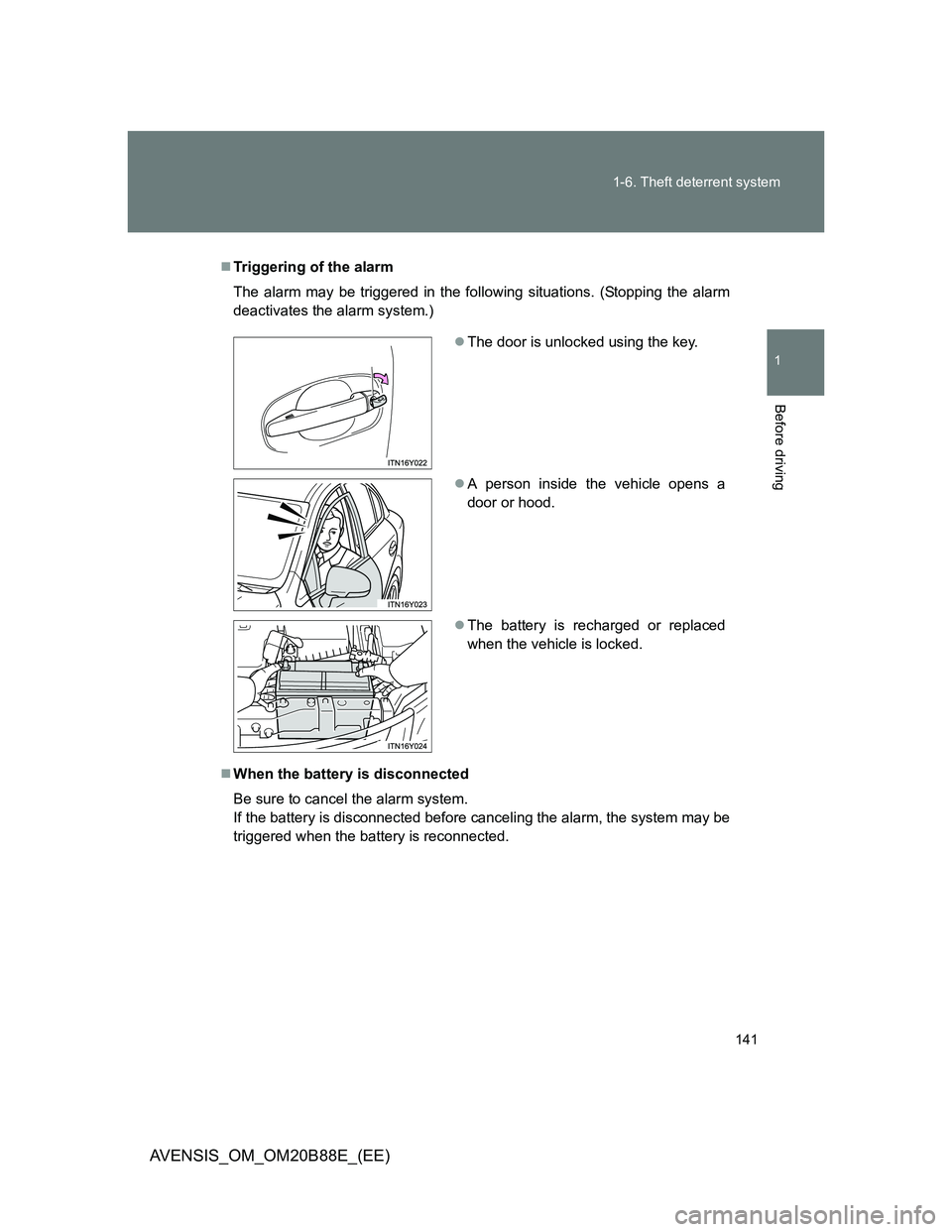

141 1-6. Theft deterrent system
1
Before driving
AVENSIS_OM_OM20B88E_(EE)
Triggering of the alarm
The alarm may be triggered in the following situations. (Stopping the alarm
deactivates the alarm system.)
When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is disconnected before canceling the alarm, the system may be
triggered when the battery is reconnected.
The door is unlocked using the key.
A person inside the vehicle opens a
door or hood.
The battery is recharged or replaced
when the vehicle is locked.

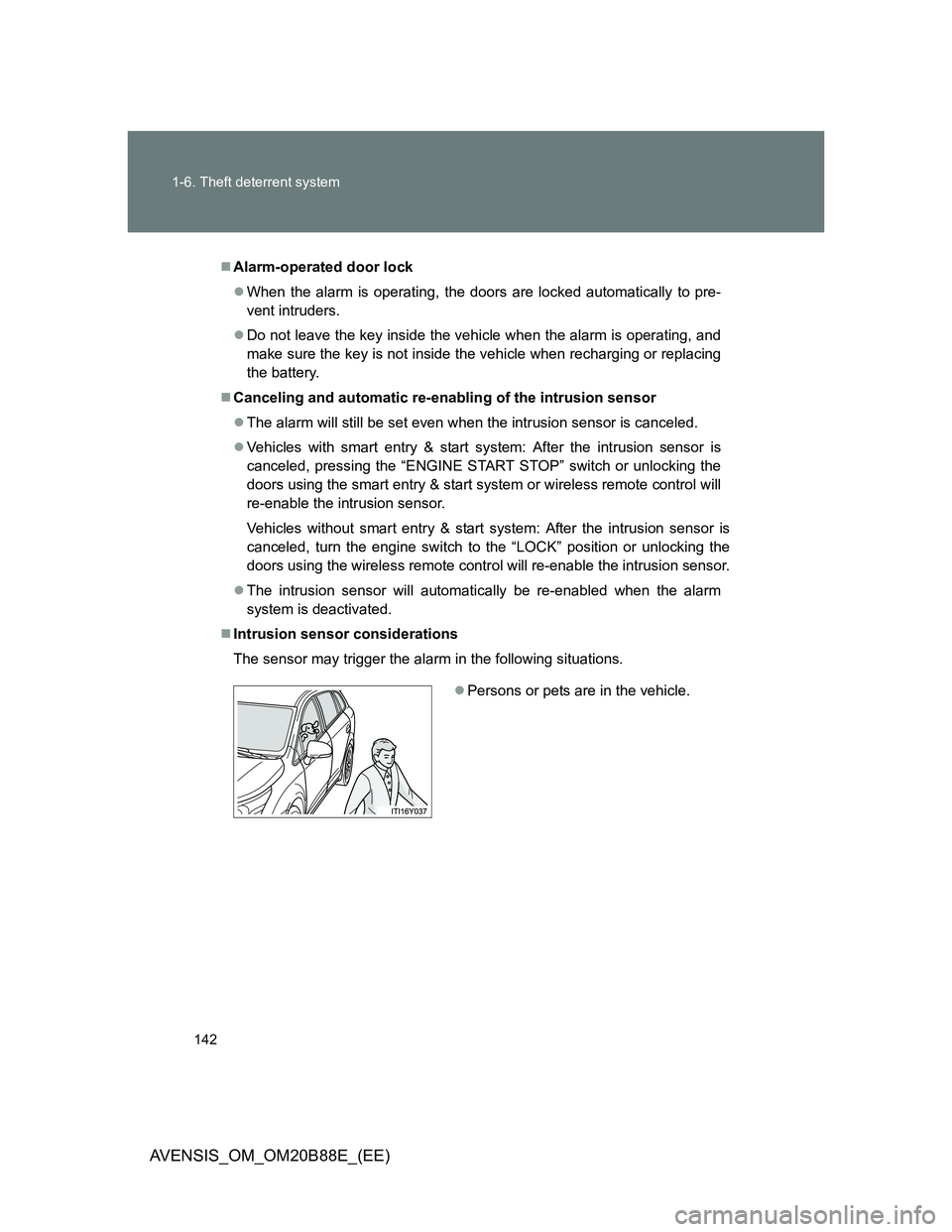

142 1-6. Theft deterrent system
AVENSIS_OM_OM20B88E_(EE)
Alarm-operated door lock
When the alarm is operating, the doors are locked automatically to pre-
vent intruders.
Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing
the battery.
Canceling and automatic re-enabling of the intrusion sensor
The alarm will still be set even when the intrusion sensor is canceled.
Vehicles with smart entry & start system: After the intrusion sensor is
canceled, pressing the “ENGINE START STOP” switch or unlocking the
doors using the smart entry & start system or wireless remote control will
re-enable the intrusion sensor.
Vehicles without smart entry & start system: After the intrusion sensor is
canceled, turn the engine switch to the “LOCK” position or unlocking the
doors using the wireless remote control will re-enable the intrusion sensor.
The intrusion sensor will automatically be re-enabled when the alarm
system is deactivated.
Intrusion sensor considerations
The sensor may trigger the alarm in the following situations.
Persons or pets are in the vehicle.

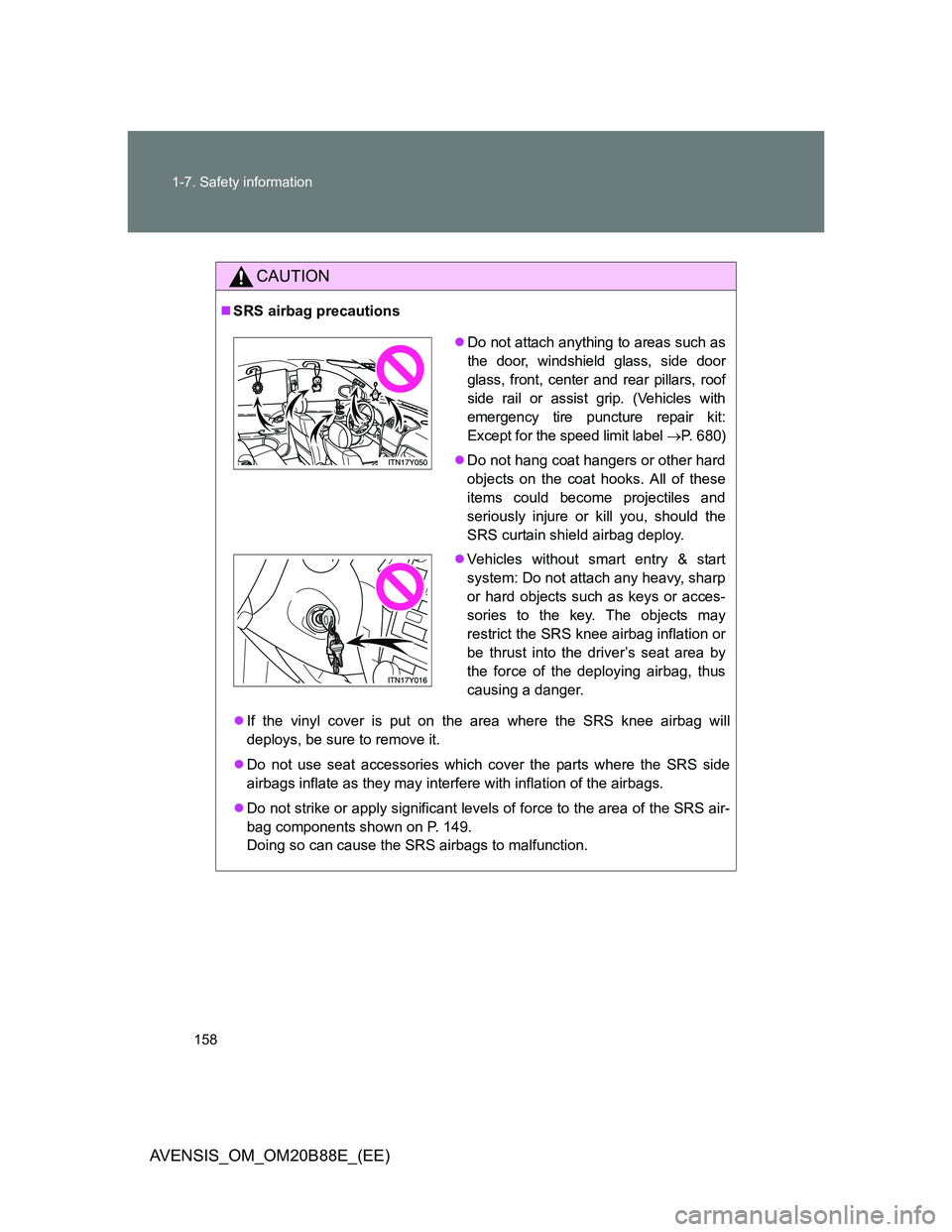

158 1-7. Safety information
AVENSIS_OM_OM20B88E_(EE)
CAUTION
SRS airbag precautions
If the vinyl cover is put on the area where the SRS knee airbag will
deploys, be sure to remove it.
Do not use seat accessories which cover the parts where the SRS side
airbags inflate as they may interfere with inflation of the airbags.
Do not strike or apply significant levels of force to the area of the SRS air-
bag components shown on P. 149.
Doing so can cause the SRS airbags to malfunction.
Do not attach anything to areas such as
the door, windshield glass, side door
glass, front, center and rear pillars, roof
side rail or assist grip. (Vehicles with
emergency tire puncture repair kit:
Except for the speed limit label P. 6 8 0 )
Do not hang coat hangers or other hard
objects on the coat hooks. All of these
items could become projectiles and
seriously injure or kill you, should the
SRS curtain shield airbag deploy.
Vehicles without smart entry & start
system: Do not attach any heavy, sharp
or hard objects such as keys or acces-
sories to the key. The objects may
restrict the SRS knee airbag inflation or
be thrust into the driver’s seat area by
the force of the deploying airbag, thus
causing a danger.

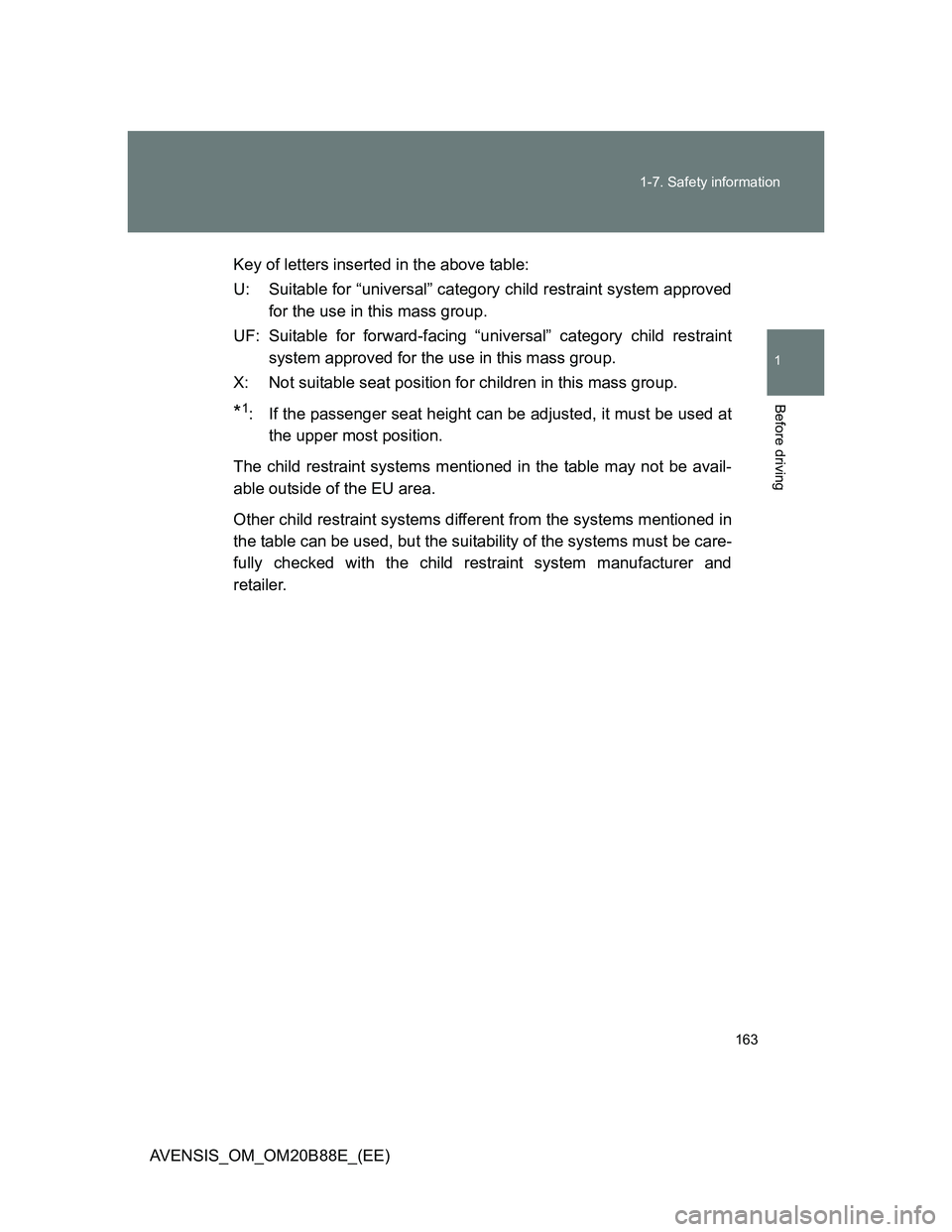

163 1-7. Safety information
1
Before driving
AVENSIS_OM_OM20B88E_(EE)Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
system approved for the use in this mass group.
X: Not suitable seat position for children in this mass group.
*1: If the passenger seat height can be adjusted, it must be used at
the upper most position.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.

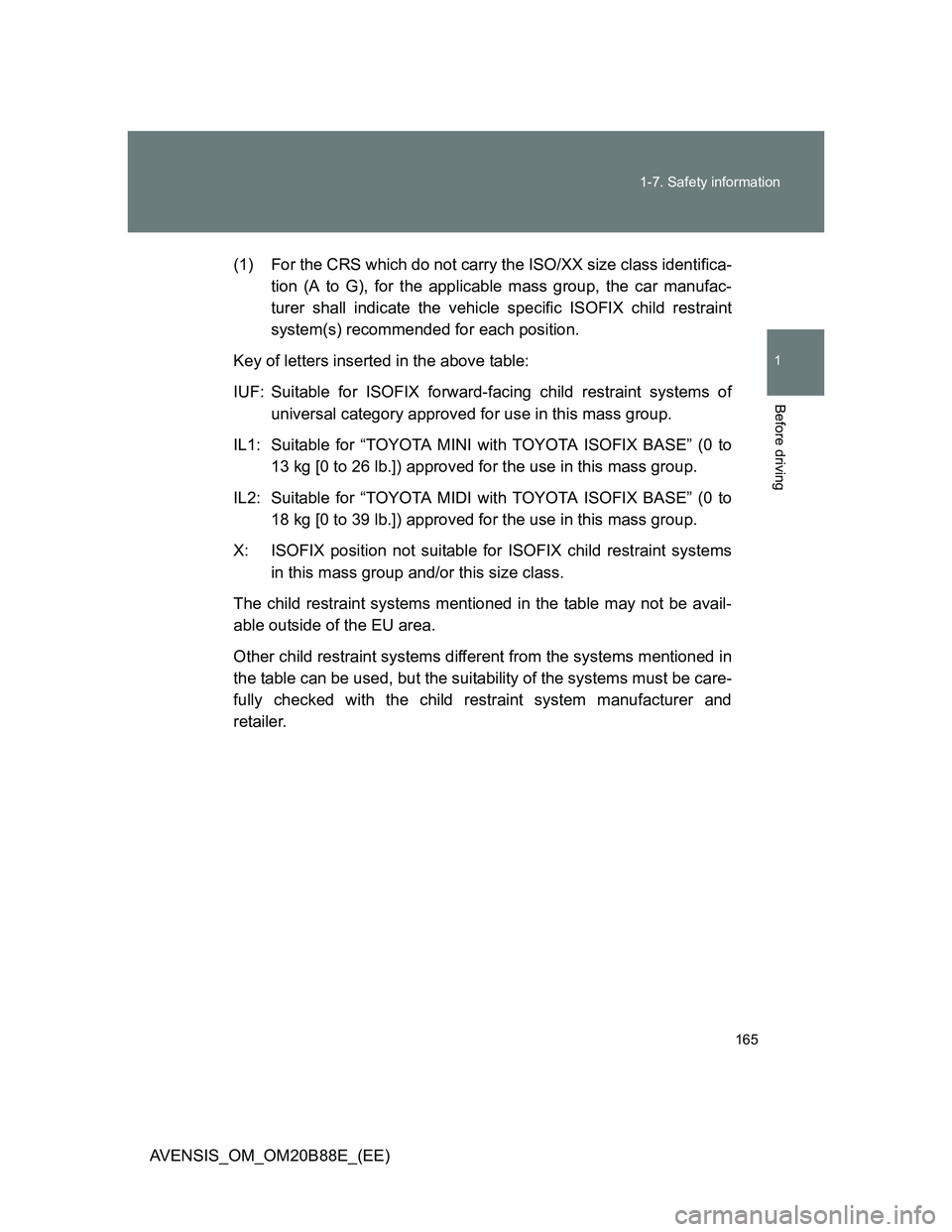

165 1-7. Safety information
1
Before driving
AVENSIS_OM_OM20B88E_(EE)(1) For the CRS which do not carry the ISO/XX size class identifica-
tion (A to G), for the applicable mass group, the car manufac-
turer shall indicate the vehicle specific ISOFIX child restraint
system(s) recommended for each position.
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of
universal category approved for use in this mass group.
IL1: Suitable for “TOYOTA MINI with TOYOTA ISOFIX BASE” (0 to
13 kg [0 to 26 lb.]) approved for the use in this mass group.
IL2: Suitable for “TOYOTA MIDI with TOYOTA ISOFIX BASE” (0 to
18 kg [0 to 39 lb.]) approved for the use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems
in this mass group and/or this size class.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.

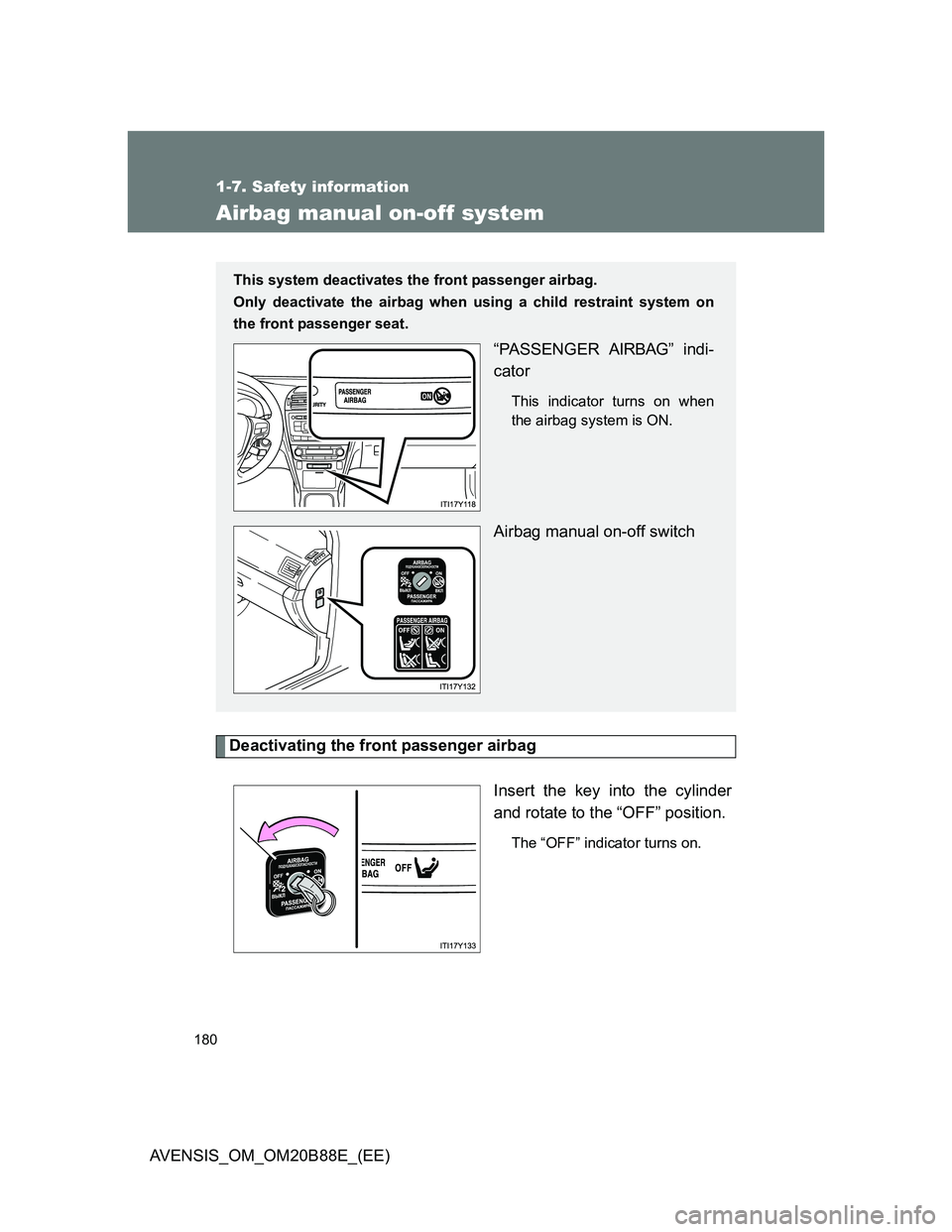

180
1-7. Safety information
AVENSIS_OM_OM20B88E_(EE)
Airbag manual on-off system
Deactivating the front passenger airbag
Insert the key into the cylinder
and rotate to the “OFF” position.
The “OFF” indicator turns on.
This system deactivates the front passenger airbag.
Only deactivate the airbag when using a child restraint system on
the front passenger seat.
“PASSENGER AIRBAG” indi-
cator
This indicator turns on when
the airbag system is ON.
Airbag manual on-off switch

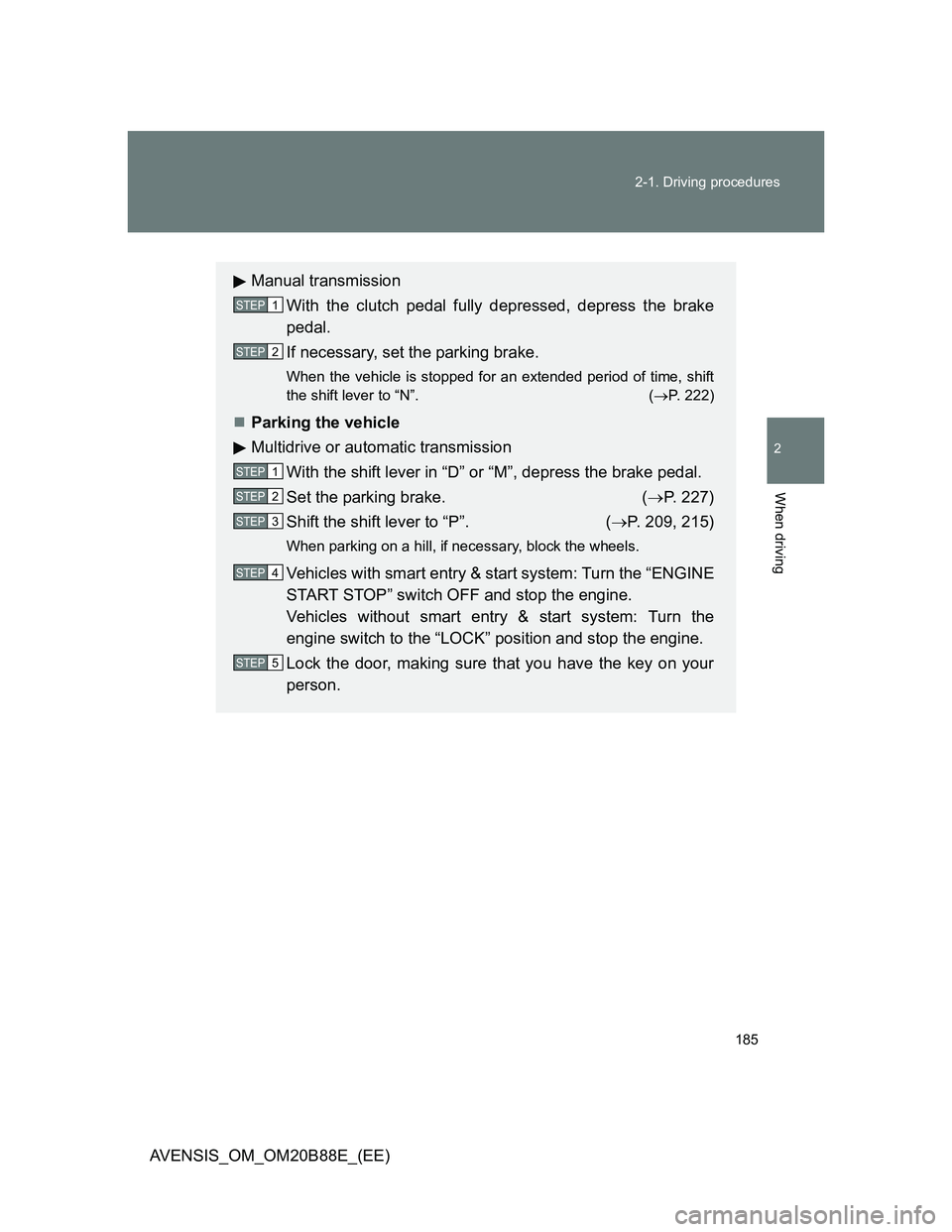

185 2-1. Driving procedures
2
When driving
AVENSIS_OM_OM20B88E_(EE)
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to “N”. (P. 222)
Parking the vehicle
Multidrive or automatic transmission
With the shift lever in “D” or “M”, depress the brake pedal.
Set the parking brake. (P. 227)
Shift the shift lever to “P”. (P. 209, 215)
When parking on a hill, if necessary, block the wheels.
Vehicles with smart entry & start system: Turn the “ENGINE
START STOP” switch OFF and stop the engine.
Vehicles without smart entry & start system: Turn the
engine switch to the “LOCK” position and stop the engine.
Lock the door, making sure that you have the key on your
person.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5

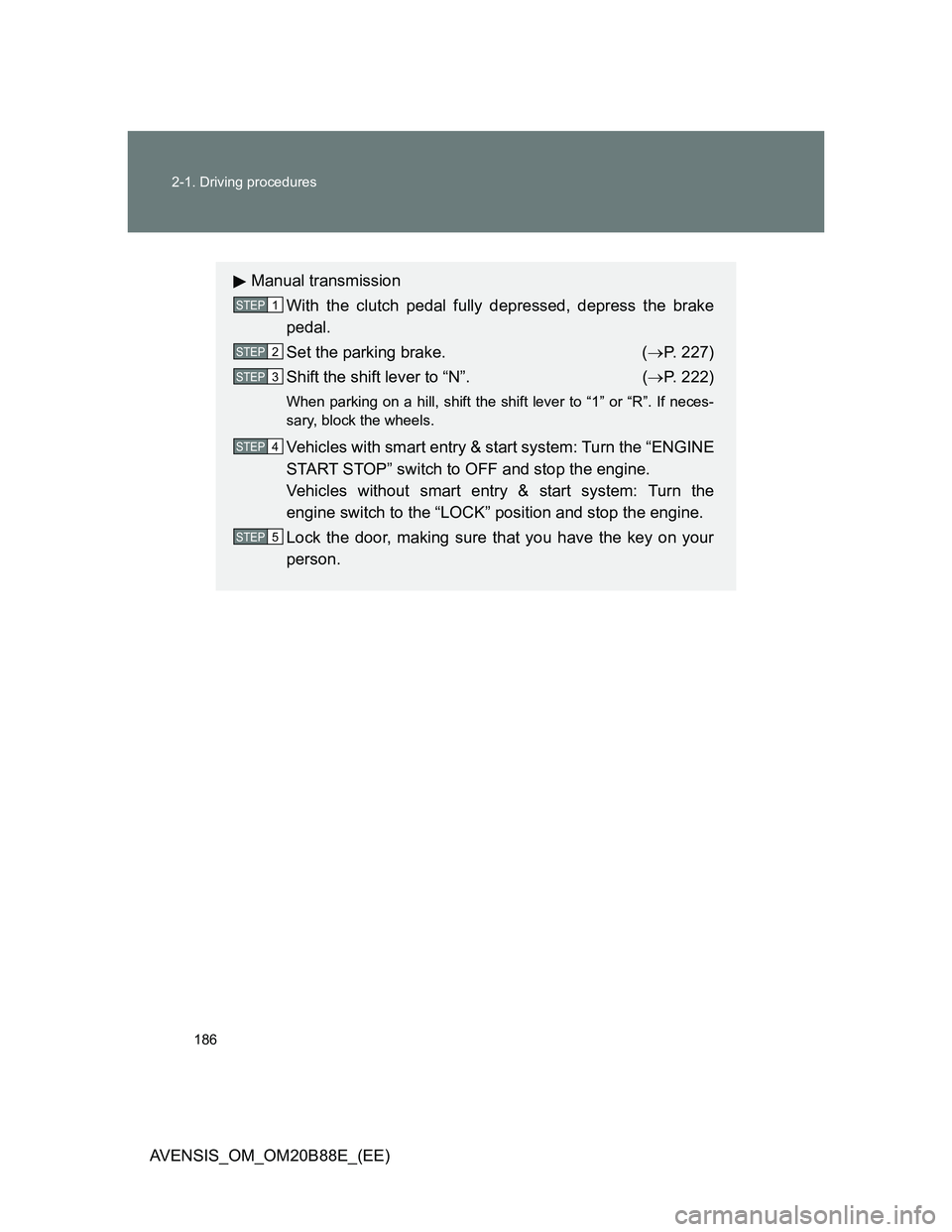

186 2-1. Driving procedures
AVENSIS_OM_OM20B88E_(EE)
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
Set the parking brake. (P. 227)
Shift the shift lever to “N”. (P. 222)
When parking on a hill, shift the shift lever to “1” or “R”. If neces-
sary, block the wheels.
Vehicles with smart entry & start system: Turn the “ENGINE
START STOP” switch to OFF and stop the engine.
Vehicles without smart entry & start system: Turn the
engine switch to the “LOCK” position and stop the engine.
Lock the door, making sure that you have the key on your
person.
STEP1
STEP2
STEP3
STEP4
STEP5
