2014 TOYOTA AURIS HYBRID engine

6737-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Before repairing the tire
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Except hybrid model: Shift the shift lever to P (vehicles with a
Multidrive) or N (vehicles with a multi-mode manual transmission
and manual transmission).
Hybrid model: Shift the shift position to P.
Except hybrid model: Stop the engine.
Hybrid model: Stop the hybrid system.
Turn on the emergency flashers. (P. 600)
If you have a flat tire (vehicles with an
emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is equipped
with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can
be repaired temporarily using the emergency tire puncture repair kit.
(The kit contains a bottle of sealant. The sealant can be used only once
to temporarily repair one tire without removing the nail or screw from
the tire.) Depending on the damage, this kit cannot be used to repair the
tire. (P. 678)
After temporarily repairing the tire with the kit, have the tire repaired or
replaced by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. Repairs conducted using the
emergency tire puncture repair kit are only a temporary measure. Have
the tire repaired and replaced as soon as possible.

6827-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 750)
Except hybrid model: Start the vehicle’s engine.
Hybrid model: Start the hybrid system.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
11
Left-hand drive vehiclesRight-hand drive vehicles
12
13

6897-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 750)
Except hybrid model: Start the vehicle’s engine.
Hybrid model: Start the hybrid system.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
12
Left-hand drive vehiclesRight-hand drive vehicles
13
14

6987-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
One of the following may be the cause of the problem:
There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(P. 268, 272)
There may be a malfunction in the engine immobilizer system.
(P. 91)
One of the following may be the cause of the problem:
The battery may be discharged. (P. 708)
The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as electronic key battery depletion or a blown fuse.
However, an interim measure is available to start the engine.
(P. 699)
If the engine will not start (except hybrid
model)
If the engine will not start even though correct starting proce-
dures are being followed (P. 268, 272), consider each of the fol-
lowing points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.
The starter motor does not turn over (vehicles with a smart entry
& start system)

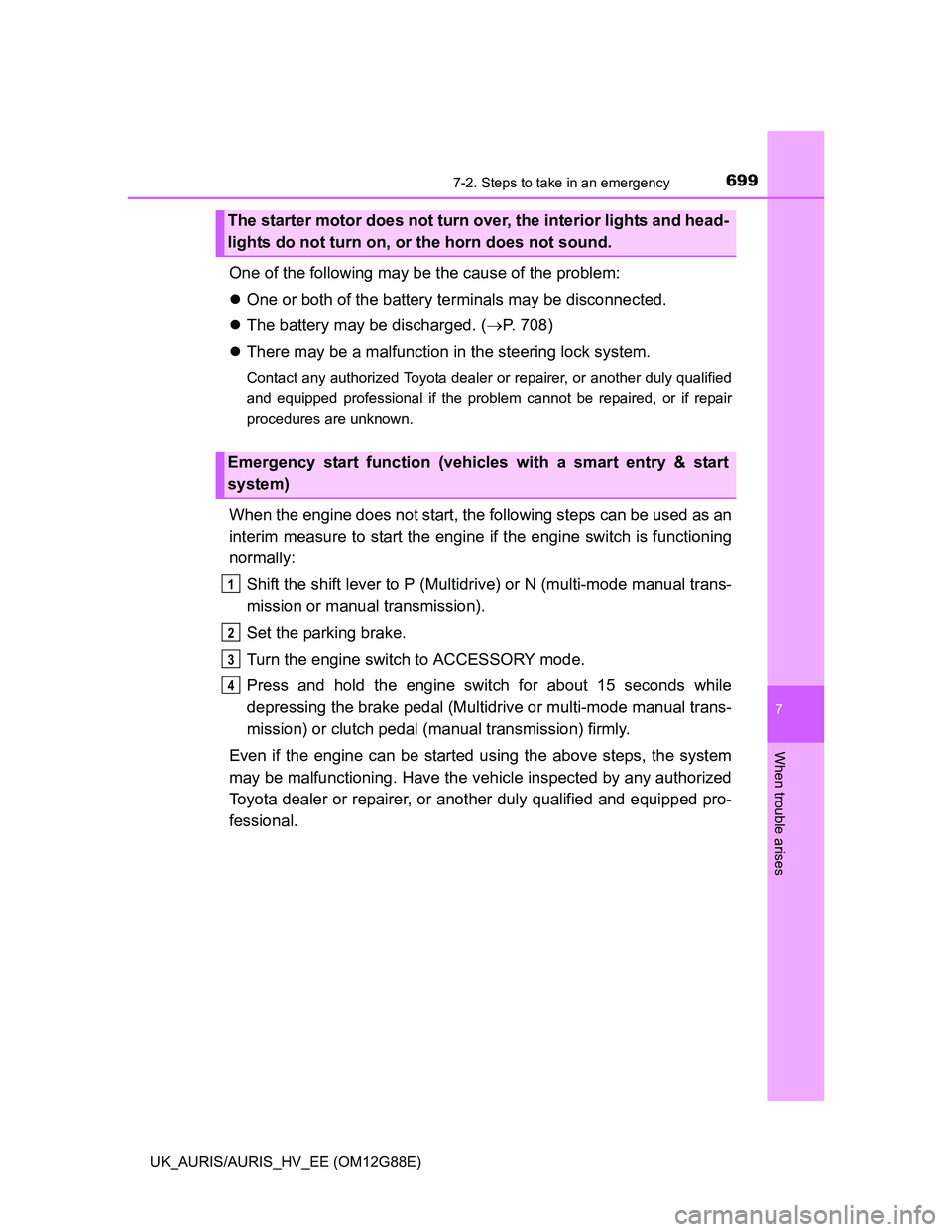

6997-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
One of the following may be the cause of the problem:
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 708)
There may be a malfunction in the steering lock system.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional if the problem cannot be repaired, or if repair
procedures are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:
Shift the shift lever to P (Multidrive) or N (multi-mode manual trans-
mission or manual transmission).
Set the parking brake.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal (Multidrive or multi-mode manual trans-
mission) or clutch pedal (manual transmission) firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
Emergency start function (vehicles with a smart entry & start
system)
1
2
3
4

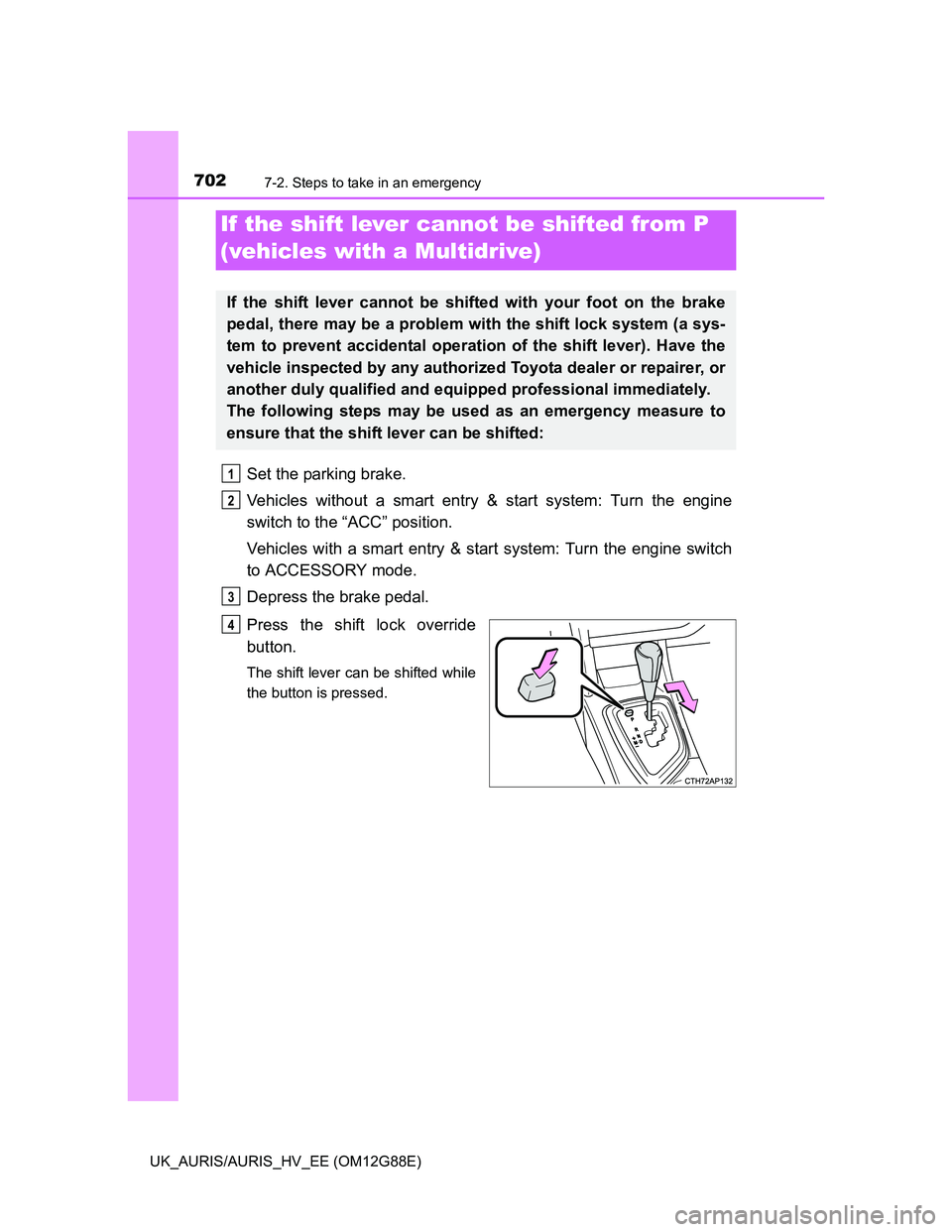

7027-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Set the parking brake.
Vehicles without a smart entry & start system: Turn the engine
switch to the “ACC” position.
Vehicles with a smart entry & start system: Turn the engine switch
to ACCESSORY mode.
Depress the brake pedal.
Press the shift lock override
button.
The shift lever can be shifted while
the button is pressed.
If the shift lever cannot be shifted from P
(vehicles with a Multidrive)
If the shift lever cannot be shifted with your foot on the brake
pedal, there may be a problem with the shift lock system (a sys-
tem to prevent accidental operation of the shift lever). Have the
vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
1
2
3
4

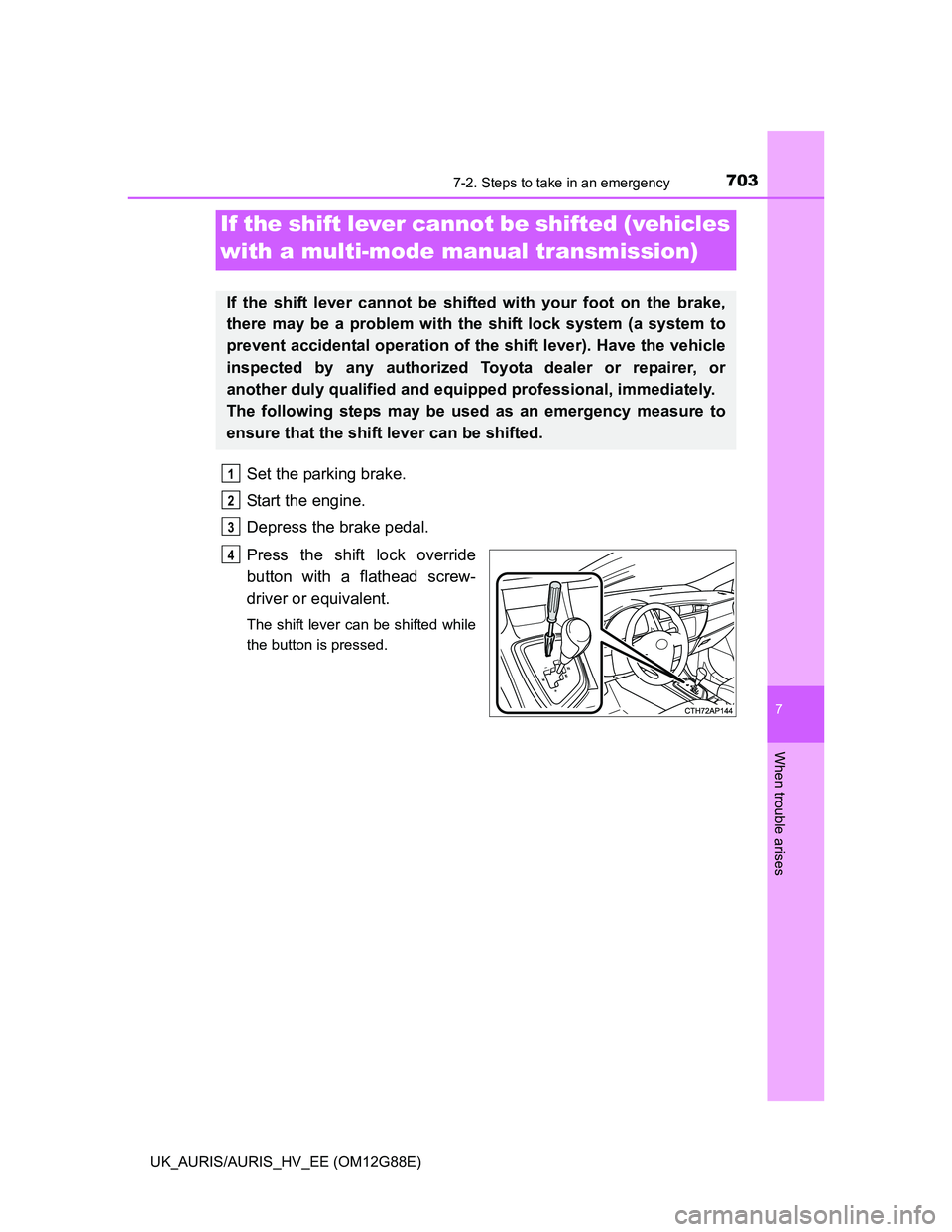

7037-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Set the parking brake.
Start the engine.
Depress the brake pedal.
Press the shift lock override
button with a flathead screw-
driver or equivalent.
The shift lever can be shifted while
the button is pressed.
If the shift lever cannot be shifted (vehicles
with a multi-mode manual transmission)
If the shift lever cannot be shifted with your foot on the brake,
there may be a problem with the shift lock system (a system to
prevent accidental operation of the shift lever). Have the vehicle
inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
1
2
3
4

7047-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Use the mechanical key
(P. 155) in order to perform the
following operations:
Locks all the doors
Unlocks all the doors
If the electronic key does not operate properly (vehicles
with a smart entr y & start system or push button start)
If communication between the electronic key and vehicle is
interrupted (P. 164) or the electronic key cannot be used
because the battery is depleted, the smart entry & start system,
push button start and wireless remote control cannot be used. In
such cases, the doors can be opened and the engine can be
started by following the procedure below.
Locking and unlocking the doors
1
2
