2014 TOYOTA AURIS HYBRID gas type

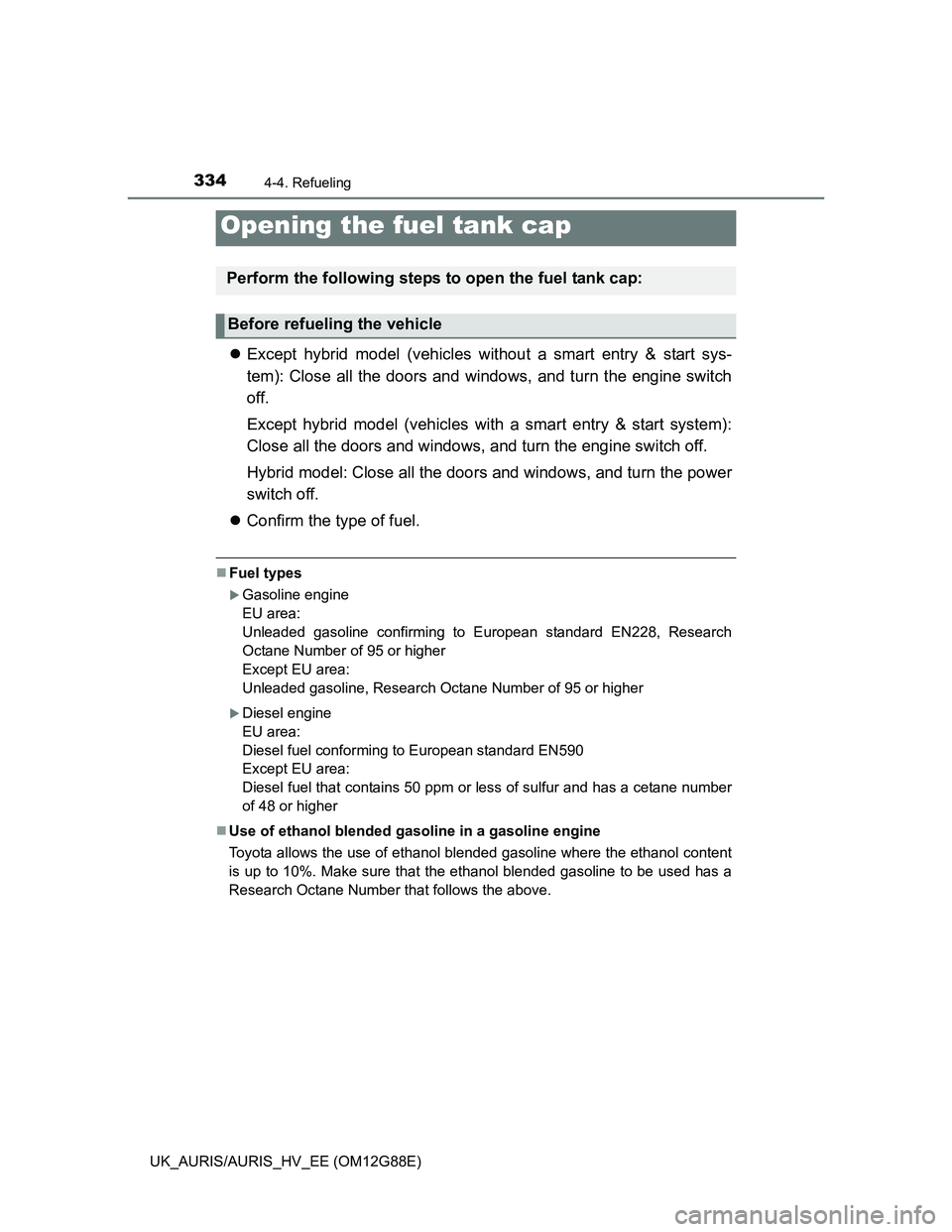

334
UK_AURIS/AURIS_HV_EE (OM12G88E)
4-4. Refueling
Except hybrid model (vehicles without a smart entry & start sys-
tem): Close all the doors and windows, and turn the engine switch
off.
Except hybrid model (vehicles with a smart entry & start system):
Close all the doors and windows, and turn the engine switch off.
Hybrid model: Close all the doors and windows, and turn the power
switch off.
Confirm the type of fuel.
Fuel types
Gasoline engine
EU area:
Unleaded gasoline confirming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Diesel engine
EU area:
Diesel fuel conforming to European standard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur and has a cetane number
of 48 or higher
Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle

4966-1. Maintenance and care
UK_AURIS/AURIS_HV_EE (OM12G88E)
NOTICE
Cleaning detergents
Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol
Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
Remove any dust or dirt from leather surfaces immediately.
Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
Cleaning the inside of the rear window
Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
Be careful not to scratch or damage the heater wires.

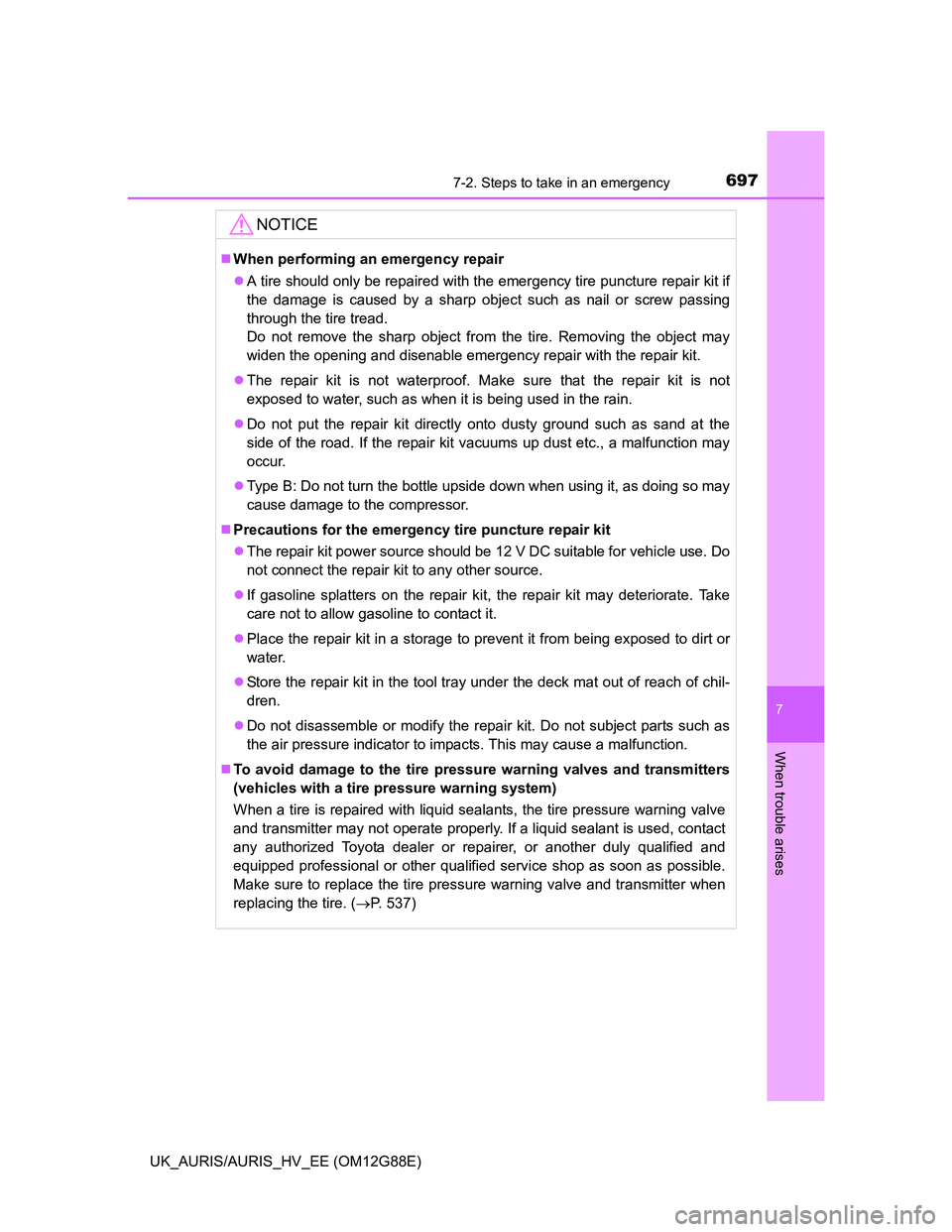

6977-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
NOTICE
When performing an emergency repair
A tire should only be repaired with the emergency tire puncture repair kit if
the damage is caused by a sharp object such as nail or screw passing
through the tire tread.
Do not remove the sharp object from the tire. Removing the object may
widen the opening and disenable emergency repair with the repair kit.
The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.
Do not put the repair kit directly onto dusty ground such as sand at the
side of the road. If the repair kit vacuums up dust etc., a malfunction may
occur.
Type B: Do not turn the bottle upside down when using it, as doing so may
cause damage to the compressor.
Precautions for the emergency tire puncture repair kit
The repair kit power source should be 12 V DC suitable for vehicle use. Do
not connect the repair kit to any other source.
If gasoline splatters on the repair kit, the repair kit may deteriorate. Take
care not to allow gasoline to contact it.
Place the repair kit in a storage to prevent it from being exposed to dirt or
water.
Store the repair kit in the tool tray under the deck mat out of reach of chil-
dren.
Do not disassemble or modify the repair kit. Do not subject parts such as
the air pressure indicator to impacts. This may cause a malfunction.
To avoid damage to the tire pressure warning valves and transmitters
(vehicles with a tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional or other qualified service shop as soon as possible.
Make sure to replace the tire pressure warning valve and transmitter when
replacing the tire. (P. 537)

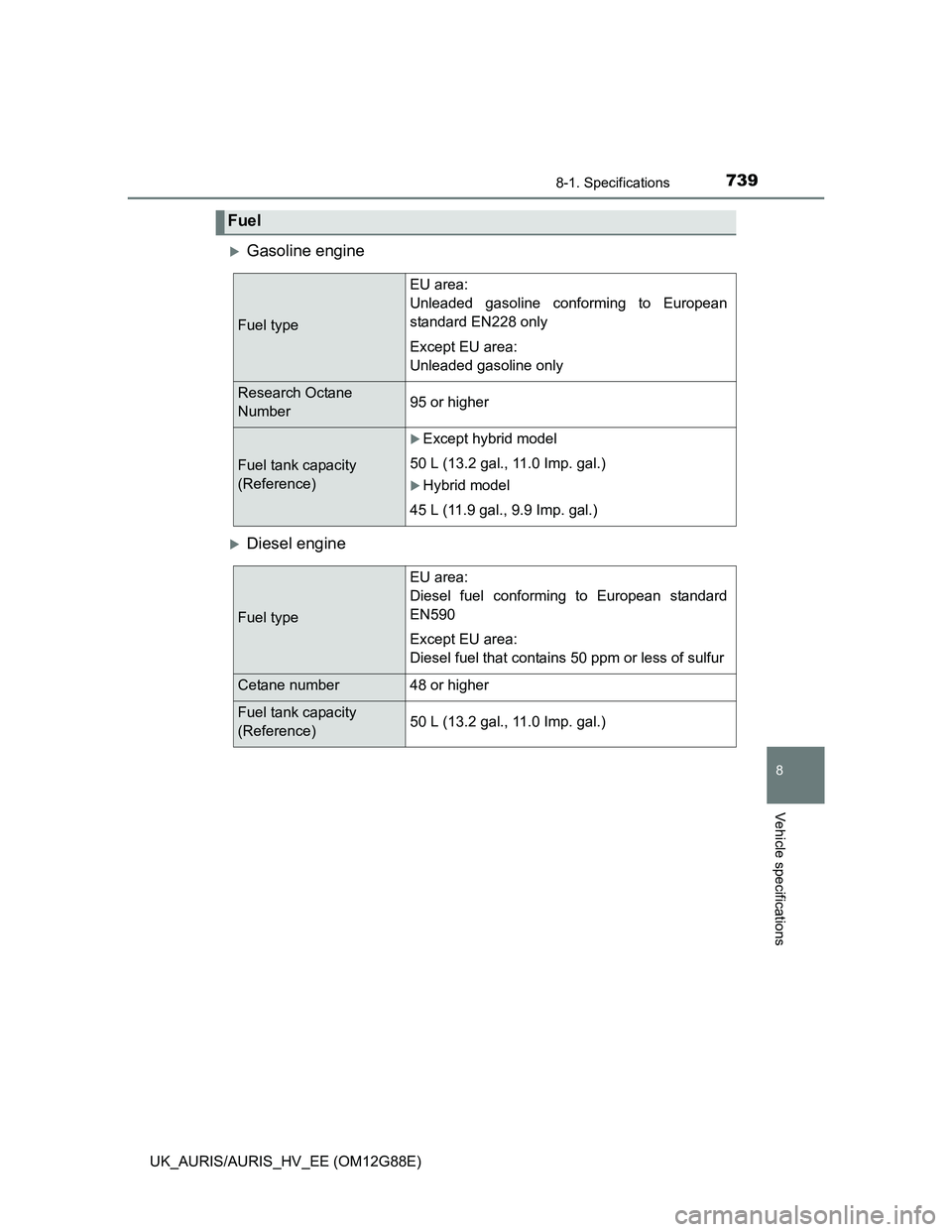

7398-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12G88E)
8
Vehicle specifications
Gasoline engine
Diesel engine
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)
Except hybrid model
50 L (13.2 gal., 11.0 Imp. gal.)
Hybrid model
45 L (11.9 gal., 9.9 Imp. gal.)
Fuel type
EU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number48 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)

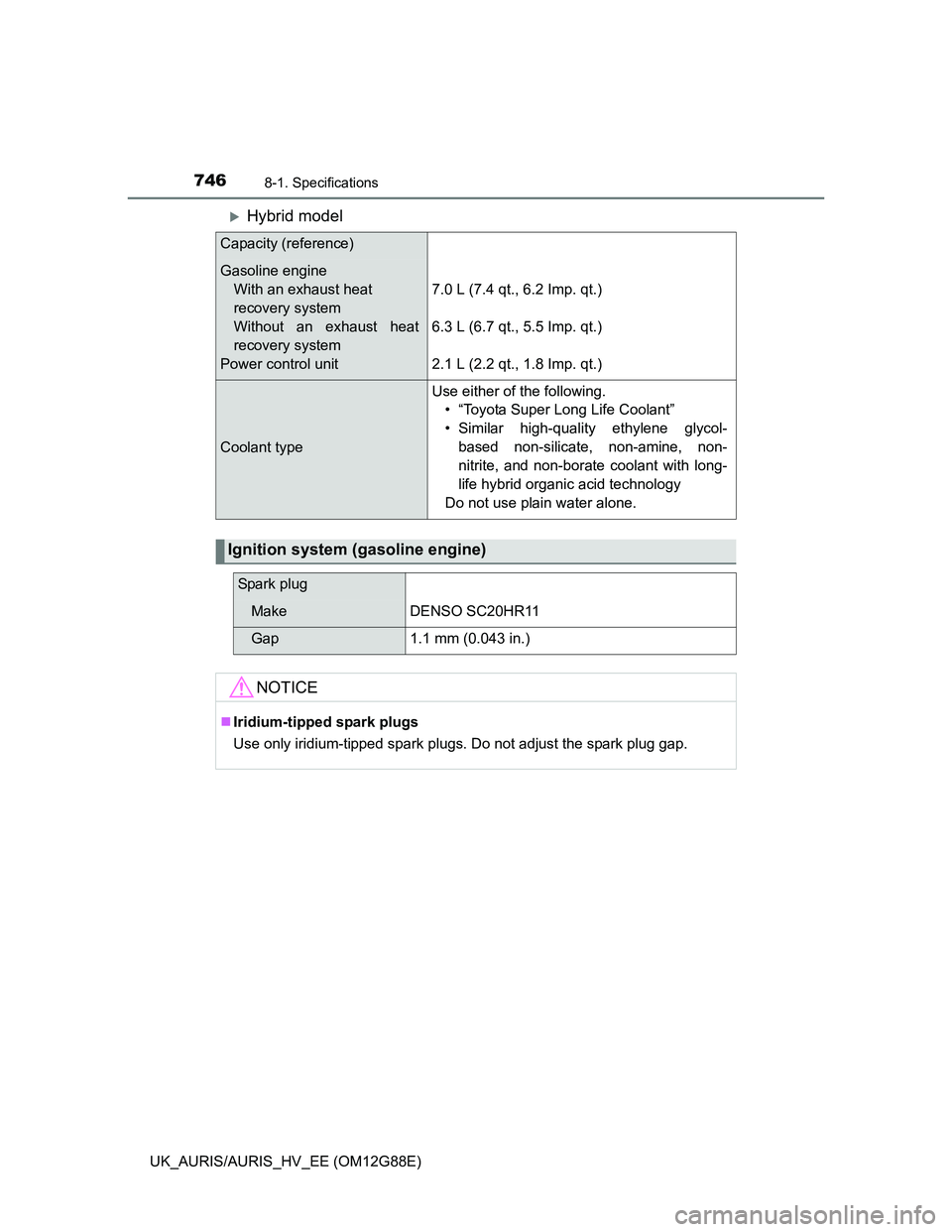

7468-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12G88E)
Hybrid model
Capacity (reference)
Gasoline engine
With an exhaust heat
recovery system
Without an exhaust heat
recovery system
Power control unit
7.0 L (7.4 qt., 6.2 Imp. qt.)
6.3 L (6.7 qt., 5.5 Imp. qt.)
2.1 L (2.2 qt., 1.8 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system (gasoline engine)
Spark plug
MakeDENSO SC20HR11
Gap1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

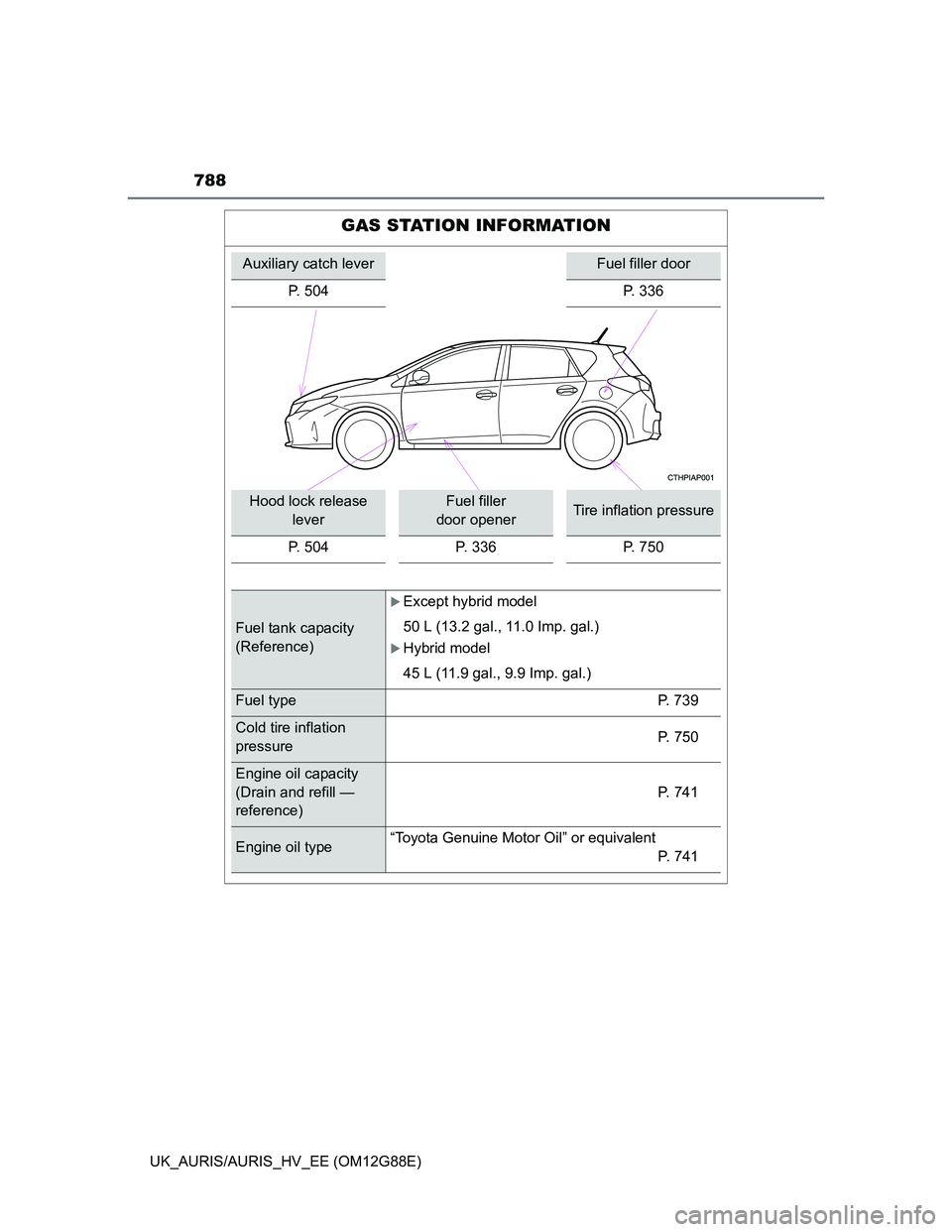

788
UK_AURIS/AURIS_HV_EE (OM12G88E)
GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 504 P. 336
Hood lock release
leverFuel filler
door openerTire inflation pressure
P. 504 P. 336 P. 750
Fuel tank capacity
(Reference)
Except hybrid model
50 L (13.2 gal., 11.0 Imp. gal.)
Hybrid model
45 L (11.9 gal., 9.9 Imp. gal.)
Fuel type P. 739
Cold tire inflation
pressureP. 750
Engine oil capacity
(Drain and refill —
reference)P. 741
Engine oil type“Toyota Genuine Motor Oil” or equivalent
P. 741
