2014 TOYOTA AURIS HYBRID display

599
7When trouble arises
UK_AURIS/AURIS_HV_EE (OM12G88E)7-1. Essential information
Emergency flashers ........... 600
If your vehicle has to
be stopped in an
emergency ....................... 601
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed .......................... 603
If you think something is
wrong ............................... 611
Fuel pump shut off
system ............................. 612
If a warning light turns
on or a warning
buzzer sounds ................. 613
If a warning message is
displayed ......................... 631
If you have a flat tire
(vehicles with a
spare tire) ........................ 659
If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit).......................... 673
If the engine will not
start ................................. 698If the hybrid system will
not start............................ 700
If the shift lever cannot
be shifted from P
(vehicles with a
Multidrive) ........................ 702
If the shift lever cannot
be shifted (vehicles with
a multi-mode manual
transmission) ................... 703
If the electronic key does
not operate properly ........ 704
If the vehicle 12-volt
battery is discharged
(except hybrid model) ...... 708
If the 12-volt battery is
discharged
(hybrid model).................. 715
If your vehicle overheats
(except hybrid model) ...... 720
If your vehicle overheats
(hybrid model).................. 723
If you run out of fuel and
the engine stalls............... 728
If the vehicle becomes
stuck ................................ 729

6047-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional before towing.
Except hybrid model
The engine is running but the vehicle will not move.
The vehicle makes an abnormal sound.
Hybrid model
A warning message for the hybrid system is shown on the multi-
information display and the vehicle does not move.
The vehicle makes an abnormal sound.
Do not tow with a sling-type truck
to prevent body damage.
Situations needs to contact dealers before towing
Towing with a sling-type truck

6117-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
Flat-looking tires or uneven tire wear
Except hybrid model (vehicles without a multi-information display):
High engine coolant temperature warning light comes on.
Except hybrid model (vehicles with a multi-information display):
High engine coolant temperature gauge needle continually points
higher than normal.
Hybrid model: The high engine coolant temperature display is
shown on the multi-information display.
Changes in exhaust sound
Excessive tire squeal when cornering
Strange noises related to the suspension system
Pinging or other noises related to the engine
Engine missing, stumbling or running roughly
Appreciable loss of power
Vehicle pulls heavily to one side when braking
Vehicle pulls heavily to one side when driving on a level road
Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
If you think something is wrong
If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

6147-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
The following warning indicates the possibility of damage to the
vehicle that may lead to an accident. Immediately stop the vehicle
in a safe place and take the specified steps to correct the sus-
pected problem.
Stop the vehicle immediately.
Warning lightWarning light/Details
Charging system warning light (vehicles with a drive
monitor display)
Indicates a malfunction in the vehicle’s charging system
Low engine oil pressure warning light (vehicles with a
drive monitor display)
Indicates that the engine oil pressure is too low.
andHigh engine coolant temperature warning light (vehicles
with a drive monitor display)
Indicates that the engine is almost overheating. (P. 720)
Warning lightWarning light/DetailsCorrection procedure
(Comes on)Multi-mode manual trans-
mission warning light
(vehicles with a multi-
mode manual transmis-
sion)
Indicates a malfunction in
the multi-mode manual
transmission system. Have the system checked
by any authorized Toyota
dealer or repairer, or
another duly qualified and
equipped professional.

6227-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)

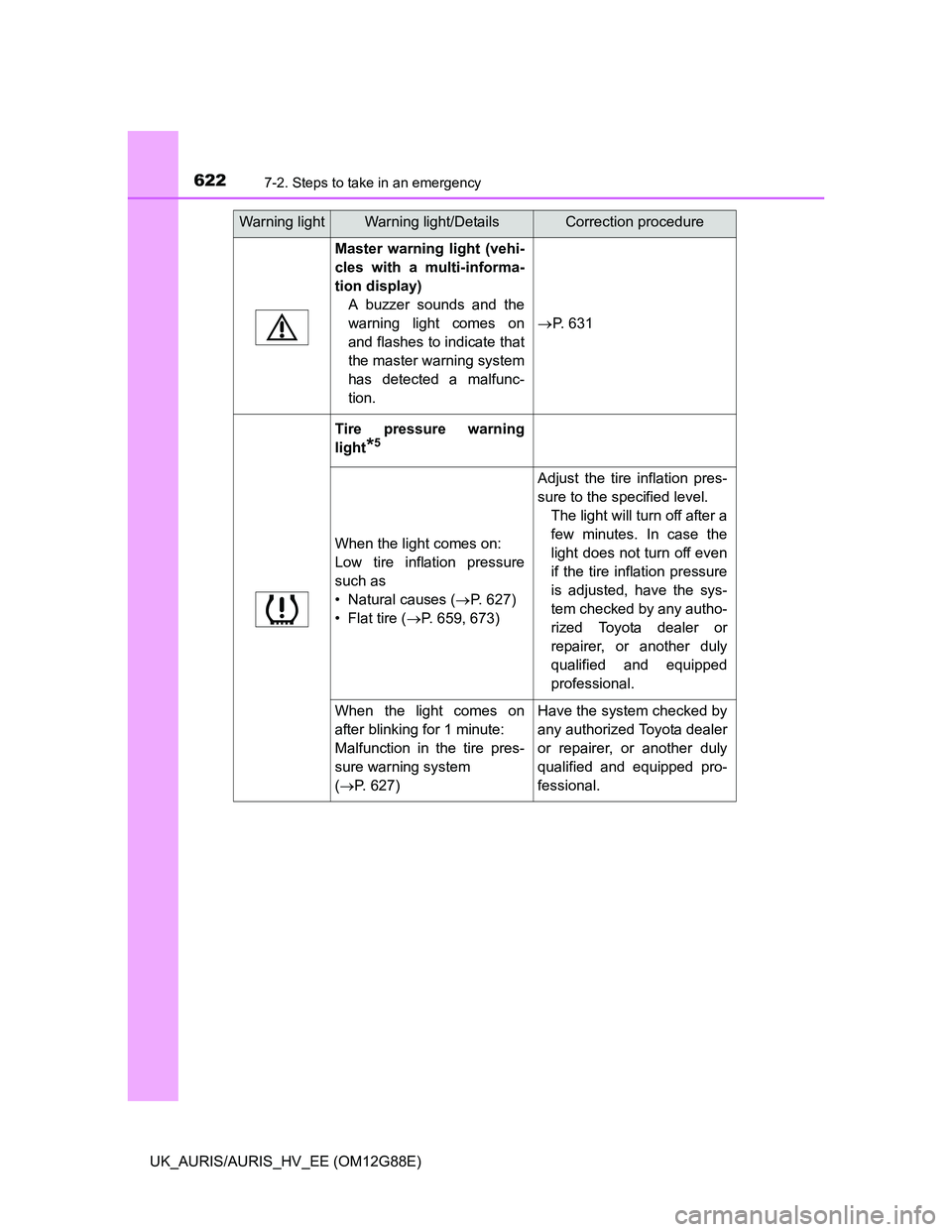

Master warning light (vehi-
cles with a multi-informa-
tion display)
A buzzer sounds and the
warning light comes on
and flashes to indicate that
the master warning system
has detected a malfunc-
tion.
P. 6 3 1
Tire pressure warning
light
*5
When the light comes on:
Low tire inflation pressure
such as
• Natural causes (P. 627)
•Flat tire (P. 659, 673)
Adjust the tire inflation pres-
sure to the specified level.
The light will turn off after a
few minutes. In case the
light does not turn off even
if the tire inflation pressure
is adjusted, have the sys-
tem checked by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
When the light comes on
after blinking for 1 minute:
Malfunction in the tire pres-
sure warning system
(P. 627)Have the system checked by
any authorized Toyota dealer
or repairer, or another duly
qualified and equipped pro-
fessional.
Warning lightWarning light/DetailsCorrection procedure

6237-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
*1: Open door warning buzzer:
P. 634
*2: Vehicles with a drive monitor display
*3: Driver’s and passengers’ seat belt buzzer:
The driver’s and passengers’ seat belt buzzer sounds to alert the driver
and passengers that his or her seat belt is not fastened. The buzzer
sounds for 30 seconds after the vehicle reaches a speed of at least 20 km/
h (12 mph). Then, if the seat belt is still unfastened, the buzzer will sound
in a different tone for 90 more seconds.
*4: The DPF system warning light may not turn off when the engine oil change
reminder is on. In this event, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
*5: If equipped

6247-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Follow the correction procedures. (vehicles with a smart entry &
start system without a multi-information display)
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure
ContinuousContinuous(Flashes
in yellow)Smart entry & start system
indicator light (vehicles with
a Multidrive)
The electronic key was car-
ried outside the vehicle and
the driver’s door was opened
and closed while any shift
position other than P was
selected without turning off
the engine switch.• Change the
shift position
to P.
• Bring the
electronic
key back into
the vehicle.
Once3 times
(Flashes
in yellow)
Smart entry & start system
indicator light (vehicles with
a Multidrive)
The electronic key was car-
ried outside the vehicle and
the driver’s door was opened
and closed while the shift
position P was selected with-
out turning off the engine
switch.
Turn the
engine switch
off or bring the
electronic key
back into the
vehicle.
Smart entry & start system
indicator light
Indicates that a door other
than the driver’s door has
been opened and closed with
the engine switch in any
mode other than OFF and the
electronic key outside of the
detection area.
Confirm the
location of the
electronic key.

6317-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning light comes on again after the following actions
have been performed, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
A buzzer sounds and a warning message is shown on the multi-infor-
mation display. The following warning indicates the possibility of dam-
age to the vehicle that may lead to an accident. Immediately stop the
vehicle in a safe place and contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

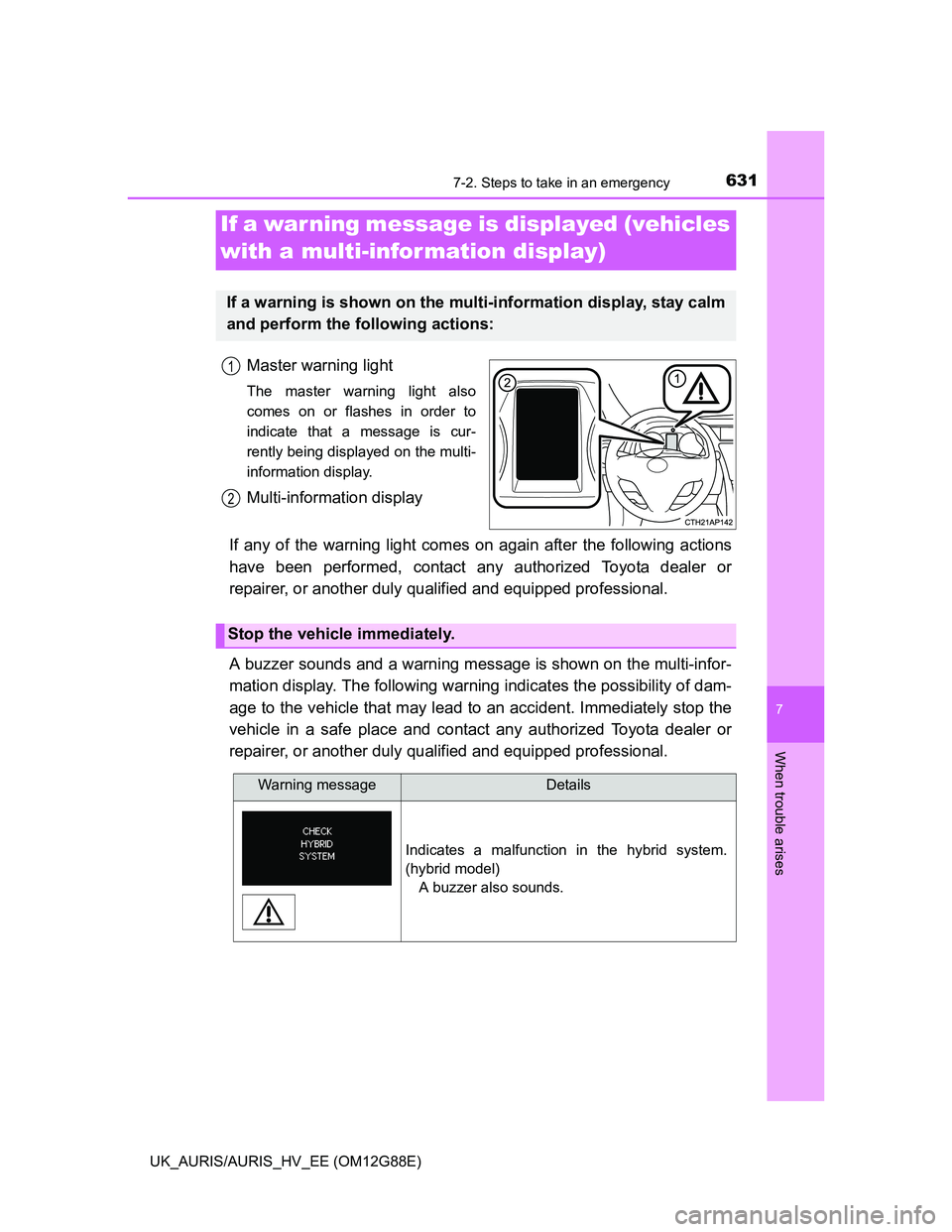

If a warning message is displayed (vehicles
with a multi-infor mation display)
If a warning is shown on the multi-information display, stay calm
and perform the following actions:
1
2
Stop the vehicle immediately.
Warning messageDetails
Indicates a malfunction in the hybrid system.
(hybrid model)
A buzzer also sounds.
