2014 TOYOTA AURIS HYBRID display

3684-5. Using the driving support systems
UK_AURIS/AURIS_HV_EE (OM12G88E)
Stopping the engine
With the clutch pedal fully depressed, stop the vehicle. Then shift
the shift lever to N.
Release the clutch pedal.
The engine will stop and Stop &
Start indicator will come on
*1 or
Stop & Start indicator will be dis-
played on the multi-information
display
*2.
*1: Vehicles without a multi-informa-
tion display
*2: Vehicles with a multi-information
display

Restarting the engine
Check that the shift lever is in N and depress the clutch pedal.
The engine will restart. The Stop & Start indicator will go off.
(In this situation, releasing the clutch pedal will not stop the engine
again.)
Stop & Star t system
: If equipped
The Stop & Start system stops and restarts the engine according
to the clutch pedal operation for stopping and starting the vehi-
cle.
1
*1
*2
2

3724-5. Using the driving support systems
UK_AURIS/AURIS_HV_EE (OM12G88E)When to use the Stop & Start system
Use the Stop & Start system when stopping the vehicle temporarily at red
lights, intersections, etc. When stopping the vehicle for a longer period of
time, turn off the engine completely.
Stop & Start system warning buzzer
If the engine is stopped by the Stop & Start system and the following action is
performed, a buzzer will sound and the Stop & Start indicator will flash. This
indicates that the engine is only stopped by the Stop & Start system, not that
the engine has been turned off completely.
The shift lever is shifted to a position other than N with the clutch pedal
released.
If the Stop & Start cancel indicator continues to flash
The Stop & Start system may be malfunctioning. Contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.
If the windshield is fogged up while the engine is stopped by the Stop &
Start system
Turn the windshield defogger on. (The engine will start due to the automatic
engine start function.) (P. 397, 406)
If the windshield fogs up frequently, press the Stop & Start cancel switch to
deactivate the system.
The Stop & Start system operation time and Stop & Start system total
operation time display
P. 126, 132
Replacing 12-volt battery
The installed 12-volt battery is specific to the Stop & Start system. It should
only be replaced with a 12-volt battery of identical type and rating.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for further details.

391
5Interior features
UK_AURIS/AURIS_HV_EE (OM12G88E)5-1. Using the air conditioning
system and defogger
Heater system ................... 392
Automatic air conditioning
system (without dual
operation) ........................ 397
Automatic air conditioning
system (with dual
operation) ........................ 406
Power heater ..................... 414
Rear window and
outside rear view
mirror defoggers .............. 416
5-2. Using the audio system
Audio system types ........... 418
Using the radio .................. 420
Using the CD player .......... 424
Playing back MP3 and
WMA discs....................... 429
Operating an iPod.............. 435
Operating a USB
memory............................ 444
Optimal use of the audio
system ............................. 451
Using the AUX port ............ 453
Using the steering wheel
audio switches ................. 4545-3. Using the interior lights
Interior lights list ................. 457
• Interior lights .................. 458
• Vanity lights ................... 458
• Personal lights ............... 459
5-4. Using the storage
features
List of storage features ...... 461
• Glove box ...................... 462
• Console box .................. 462
• Bottle holders ................ 463
• Cup holders ................... 464
• Auxiliary boxes .............. 465
Luggage compartment
features............................ 467
5-5. Other interior features
Sun visors and vanity
mirrors ............................. 474
Clock .................................. 475
Outside temperature
display ............................. 476
Portable ashtray................. 478
Power outlets ..................... 479
Seat heaters ...................... 481
Armrest .............................. 484
Coat hooks......................... 485
Assist grips ........................ 486
Panoramic roof shade........ 487

392
UK_AURIS/AURIS_HV_EE (OM12G88E)
5-1. Using the air conditioning system and defogger
Heater system
: If equipped
Temperature control dial
Temperature level
Air outlet display
Fan speed display
Fan speed control dialWindshield defogger
Changes the air outlets used
On/off button
Recirculated air mode
Outside air mode1
2
3
4
5
6
7
8
9
10

3975-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features

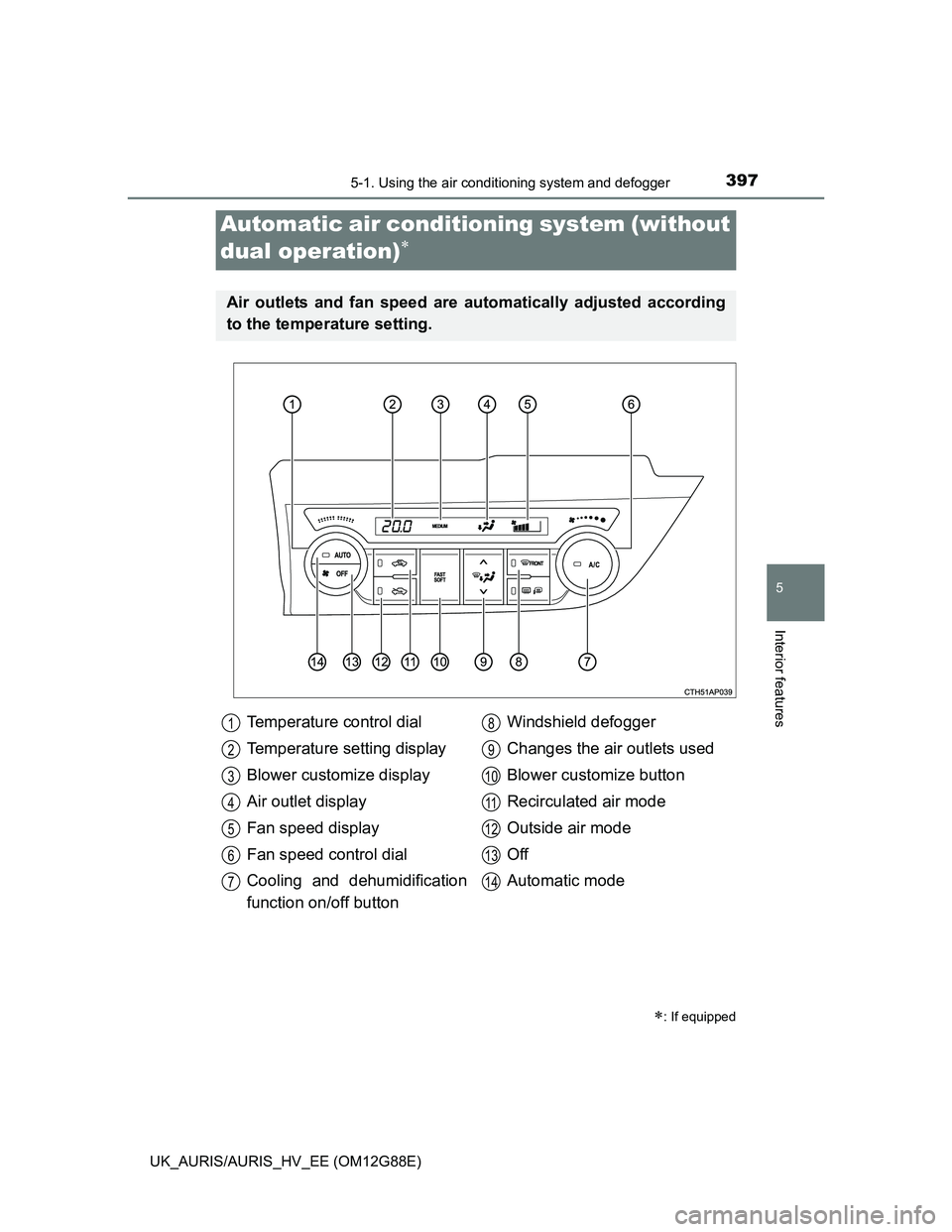

Automatic air conditioning system (without
dual operation)

: If equipped
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Temperature control dial
Temperature setting display
Blower customize display
Air outlet display
Fan speed display
Fan speed control dial
Cooling and dehumidification
function on/off buttonWindshield defogger
Changes the air outlets used
Blower customize button
Recirculated air mode
Outside air mode
Off
Automatic mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14

4065-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
Automatic air conditioning system (with
dual operation)

: If equipped
Air outlets are automatically selected and fan speed is automati-
cally adjusted according to the set temperature setting.
Driver’s side temperature con-
trol
Driver’s side temperature set-
ting display
Fan speed display
Blower customize display
Air outlet display
Front passenger’s tempera-
ture setting display
Front passenger’s tempera-
ture control“DUAL” button
Cooling and dehumidification
function on/off button
Windshield defogger
Changes the air outlets used
Fan speed
Blower customize button
Outside air or recirculated air
mode
Off
Automatic mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

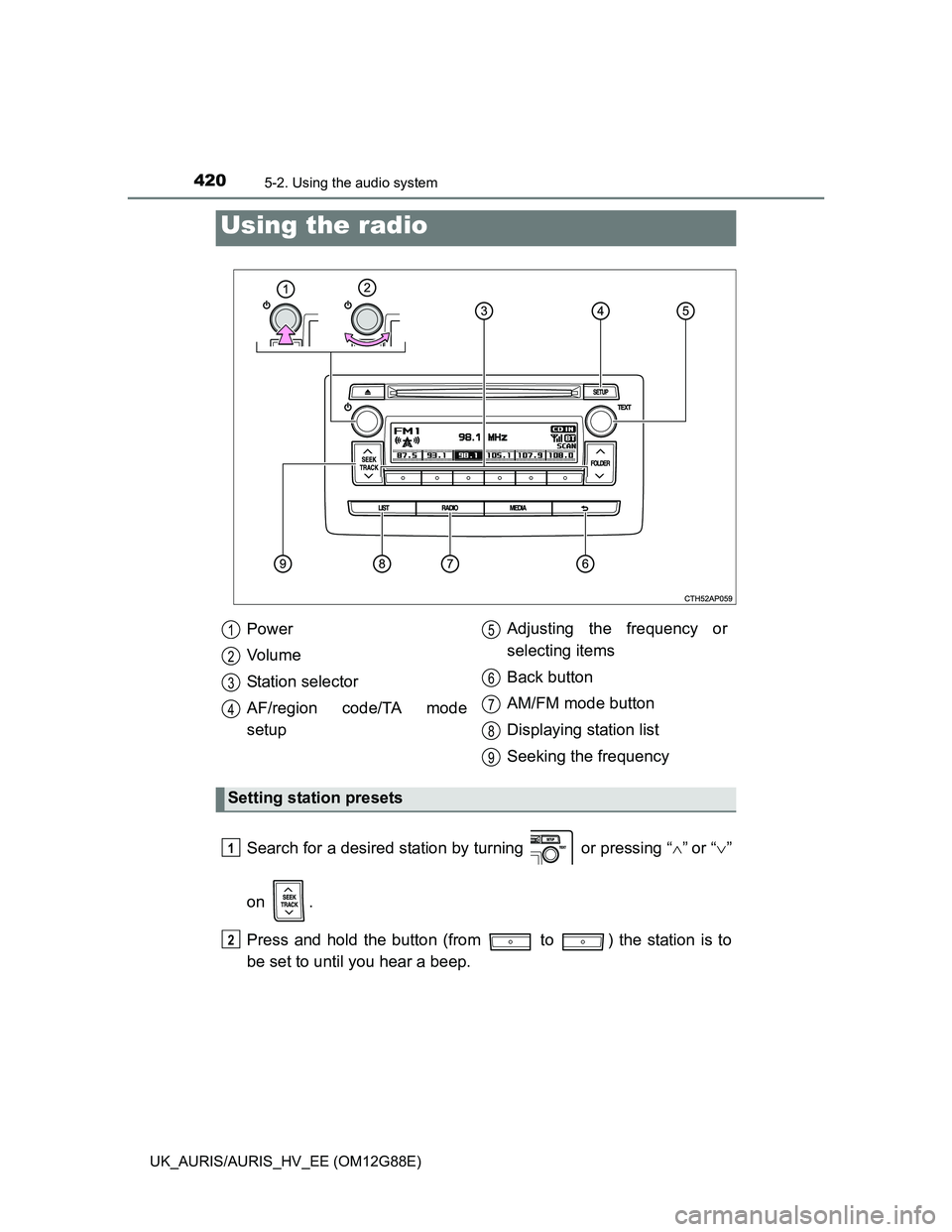

4205-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
Search for a desired station by turning or pressing “”or “”
on .
Press and hold the button (from to ) the station is to
be set to until you hear a beep.
Using the radio
Power
Vo l u m e
Station selector
AF/region code/TA mode
setupAdjusting the frequency or
selecting items
Back button
AM/FM mode button
Displaying station list
Seeking the frequency
Setting station presets
1
2
3
4
5
6
7
8
9
1
2

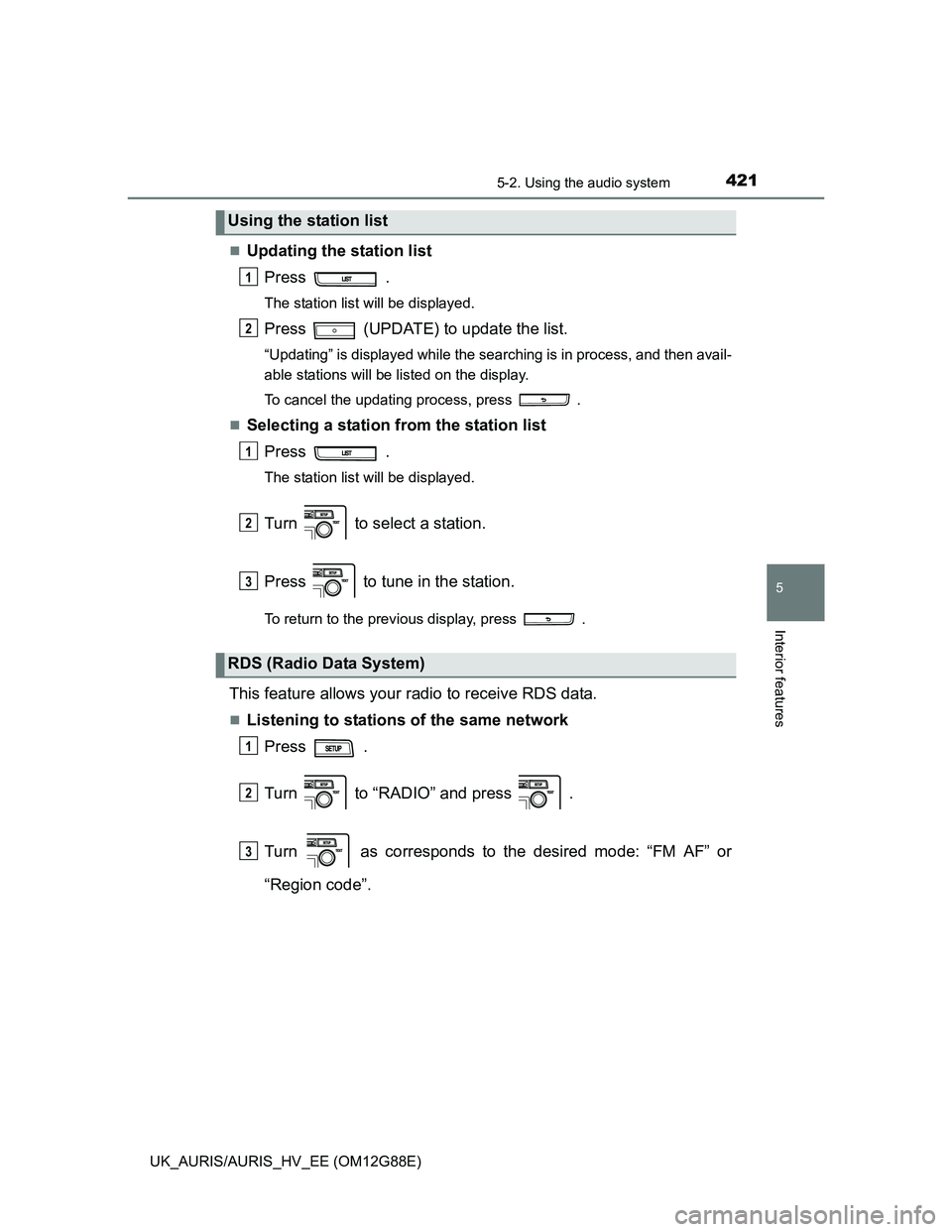

4215-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
Updating the station list
Press .
The station list will be displayed.
Press (UPDATE) to update the list.
“Updating” is displayed while the searching is in process, and then avail-
able stations will be listed on the display.
To cancel the updating process, press .

Selecting a station from the station list
Press .
The station list will be displayed.
Turn to select a station.
Press to tune in the station.
To return to the previous display, press .
This feature allows your radio to receive RDS data.
Listening to stations of the same network
Press .
Turn to “RADIO” and press .
Turn as corresponds to the desired mode: “FM AF” or
“Region code”.
Using the station list
RDS (Radio Data System)
1
2
1
2
3
1
2
3
