2014 TOYOTA AURIS HYBRID display

4515-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
Displays the current mode
Changes the following setting
• Sound quality and volume bal-
ance (P. 452)
The sound quality and balance set-
ting can be changed to produce the
best sound.
• Automatic Sound Levelizer
(P. 452)
Selecting the mode
Changing sound quality modes
Press .
Turn to select “Sound Setting”.
Press .
Turn to select the desired mode.
“BASS”,“TREBLE”,“FADER”,“BALANCE”, or“ASL”
Press .
Optimal use of the audio system
1
2
Using the audio control function
3
1
2
3
4
5

4525-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.

Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, turning to the right changes the
amount of ASL in the order of “LOW”, “MID” and “HIGH”.
Turning to the left turns ASL off.
ASL automatically adjusts the volume and tone quality according to
vehicle speed.
Sound quality
modeMode
displayedLevelTurn to the
leftTurn to the
right
Bass*“BASS”-5 to 5LowHighTreble*“TREBLE”-5 to 5
Front/rear
volume
balance
“FADER”F7 to R7Shifts to rearShifts to front
Left/right
volume
balance
“BALANCE”L7 to R7Shifts to leftShifts to right

4535-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
Except hybrid model
Open the cover and connect
the portable audio device.
Hybrid model
Open the cover and connect
the portable audio device.
Press repeatedly until “AUX” is displayed.
Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other
adjustments must be made on the portable audio device itself.
When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
Using the AUX por t
: If equipped
This port can be used to connect a portable audio device and lis-
ten to it through the vehicle’s speakers.
1
1
2MEDIA

4755-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour*
*: e.g.1:00 to 1:29  1:00
1:30 to 1:59  2:00
The clock is displayed when
Vehicles without a smart entry & start system (except hybrid model)
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system (except hybrid model)
The engine switch is in ACCESSORY or IGNITION ON mode.
Hybrid model
The power switch is in ACCESSORY or ON mode.
When the 12-volt battery is disconnected
The time display will automatically be set to 1:00.
Clock
The clock can be adjusted by pressing the buttons.
1
2
3

4765-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12G88E)
Outside temperature display
The temperature display shows temperatures within the
range of -40C (-40F) to 50C (122F).
Ty p e AType B
Ty p e CType D

4775-5. Other interior features
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
The outside temperature is displayed when
Vehicles without a smart entry & start system (except hybrid model)
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system (except hybrid model)
The engine switch is in IGNITION ON mode.
Hybrid model
The power switch is in ON mode.
Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
When the vehicle is stopped, or moving at low speeds (less than 15 km/h [9
mph]).
When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
Vehicles with a multi-information display: If the outside temperature is 3°C
(37F) or less, the ice warning indicator flashes 10 times, and then
illuminates.
When “--C” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.

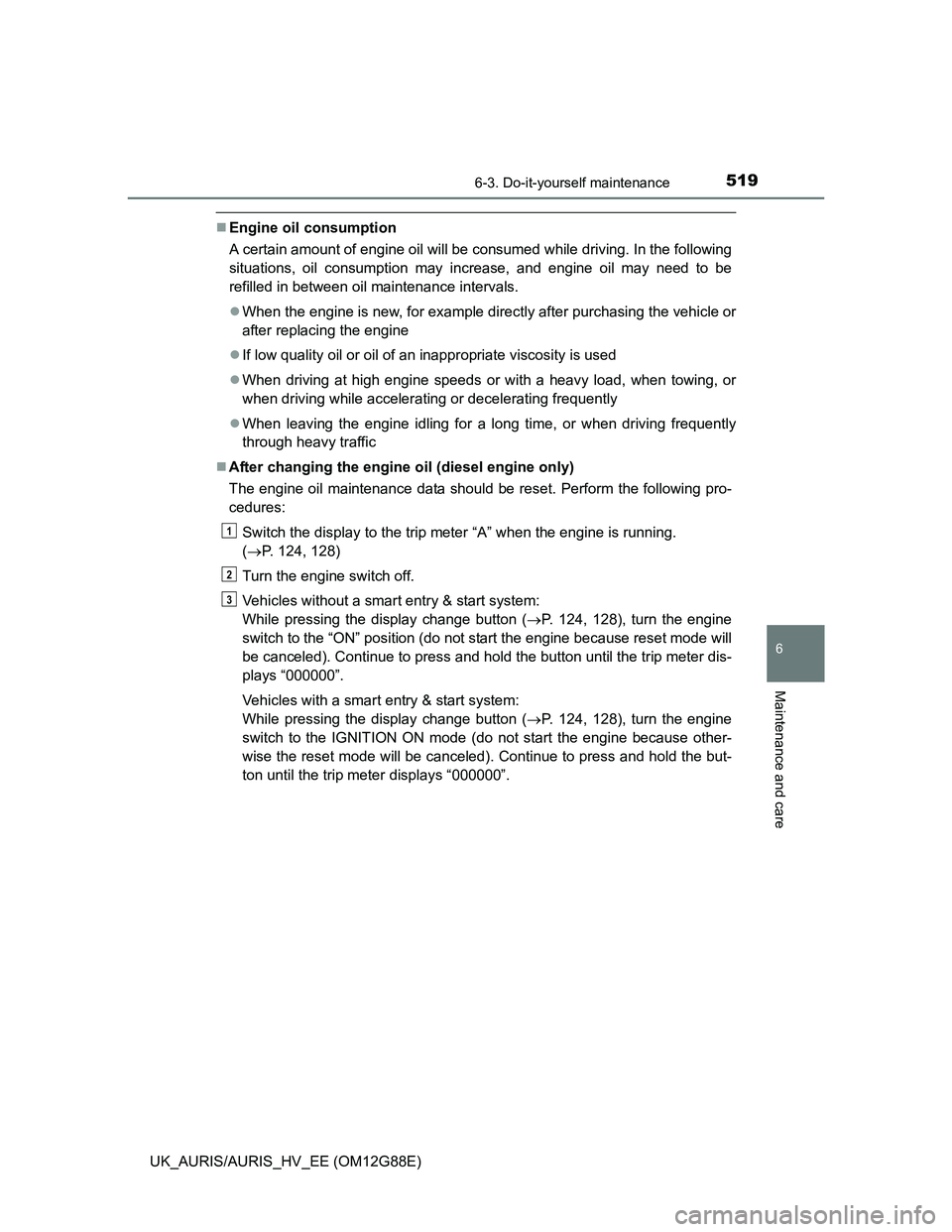

5196-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care
Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
If low quality oil or oil of an inappropriate viscosity is used
When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently
When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
After changing the engine oil (diesel engine only)
The engine oil maintenance data should be reset. Perform the following pro-
cedures:
Switch the display to the trip meter “A” when the engine is running.
(P. 124, 128)
Turn the engine switch off.
Vehicles without a smart entry & start system:
While pressing the display change button (P. 124, 128), turn the engine
switch to the “ON” position (do not start the engine because reset mode will
be canceled). Continue to press and hold the button until the trip meter dis-
plays “000000”.
Vehicles with a smart entry & start system:
While pressing the display change button (P. 124, 128), turn the engine
switch to the IGNITION ON mode (do not start the engine because other-
wise the reset mode will be canceled). Continue to press and hold the but-
ton until the trip meter displays “000000”.
1
2
3

5286-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
You may drain the fuel filter yourself. However, as the operation is dif-
ficult, we recommend having it drained by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional. Even if you decide to drain it yourself, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Vehicles without a multi-information display
The water in the fuel filter needs to be drained if the fuel filter warn-
ing light comes on and a buzzer sounds. (P. 617)
Vehicles with a multi-information display
When the “DRAIN WATER FROM FUEL FILTER” warning mes-
sage is shown on the multi-information display and a buzzer
sounds. (P. 639)
Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position.
Vehicles with a smart entry & start system: Turn the engine
switch off.
Place a small tray under the drain plug to catch the water and
any fuel that comes out.
NOTICE
Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.
Fuel filter (diesel engine only)
1
2
