5086-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

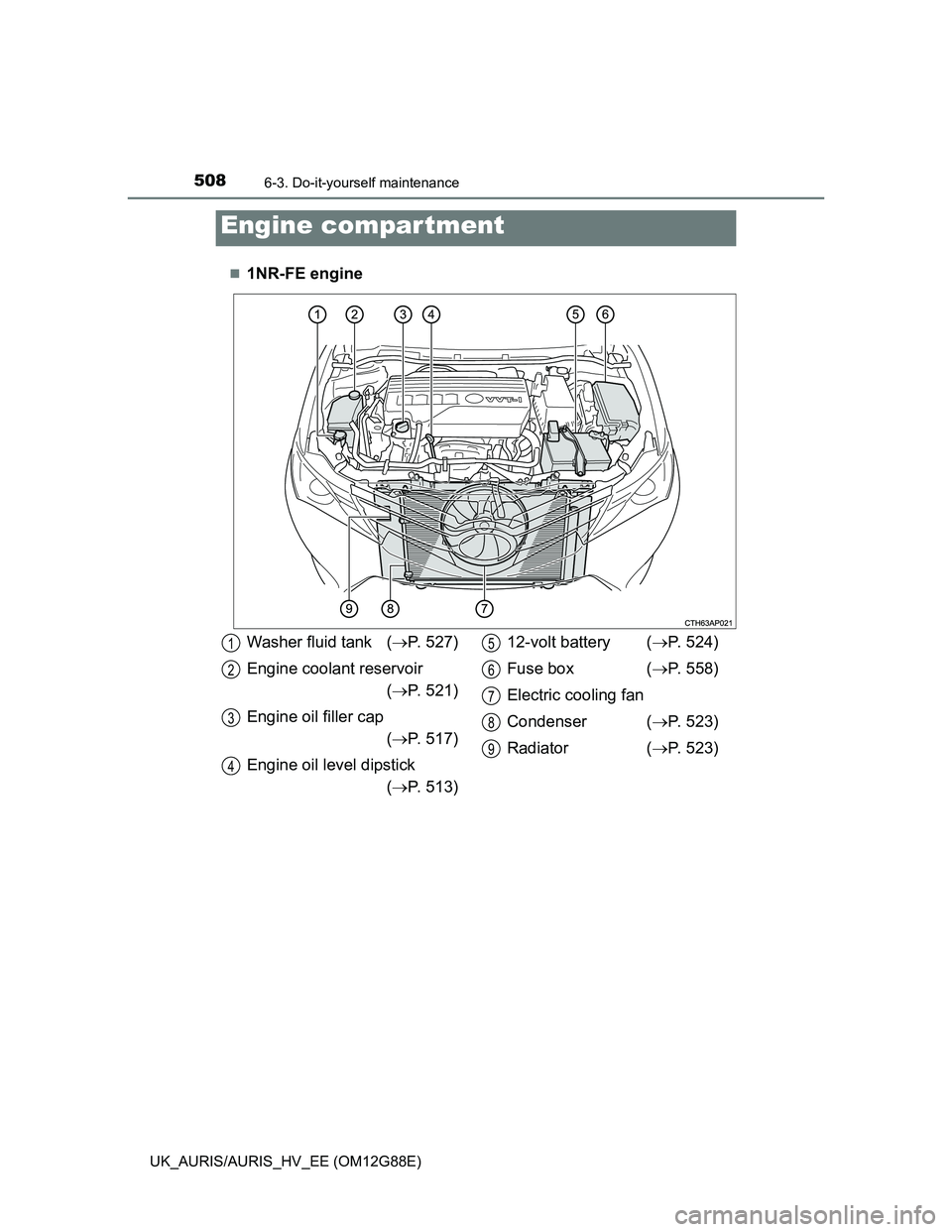

1NR-FE engine
Engine compar tment
Washer fluid tank (P. 527)
Engine coolant reservoir
(P. 521)
Engine oil filler cap
(P. 517)
Engine oil level dipstick
(P. 513)12-volt battery (P. 524)
Fuse box (P. 558)
Electric cooling fan
Condenser (P. 523)
Radiator (P. 523)1
2
3
4
5
6
7
8
9
5096-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

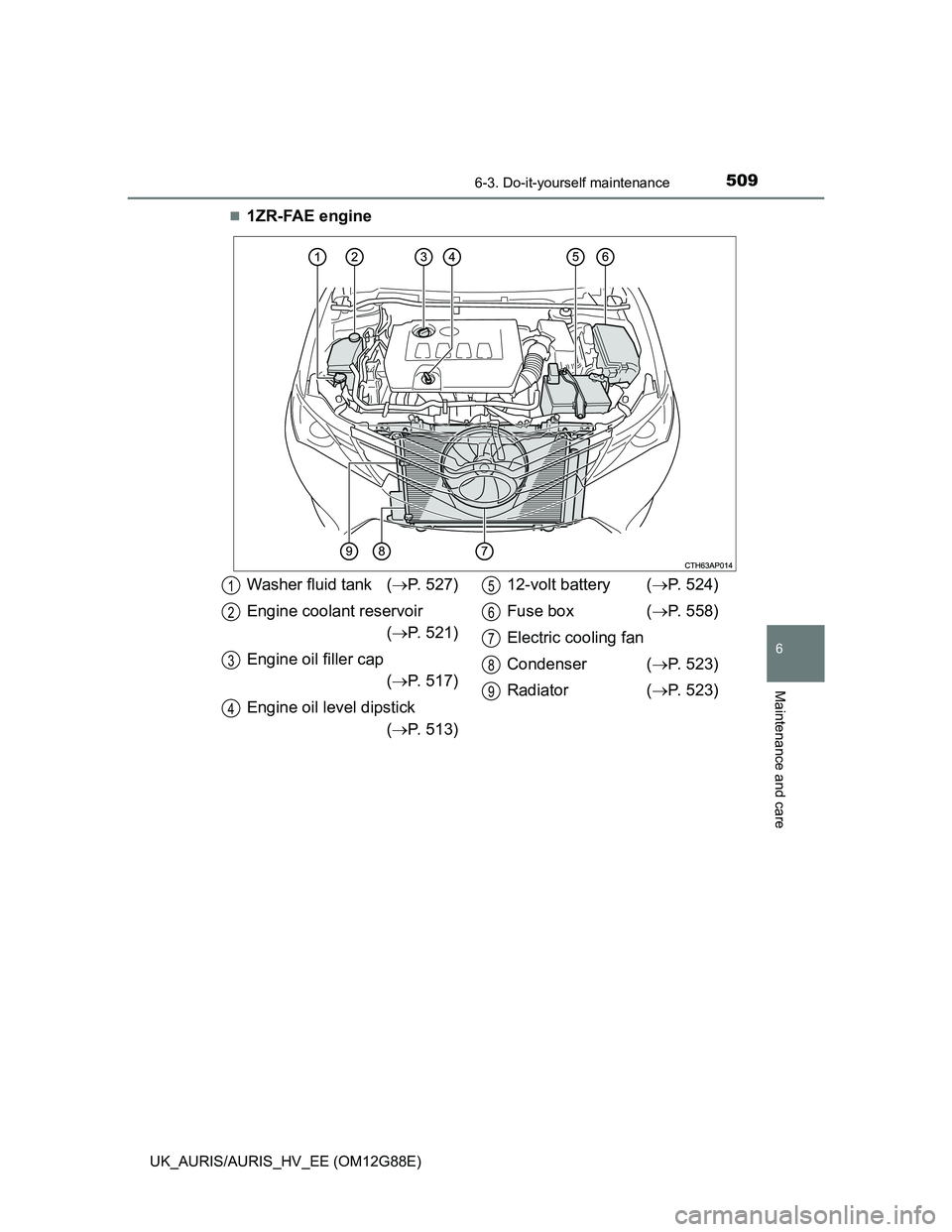

1ZR-FAE engine
Washer fluid tank (P. 527)
Engine coolant reservoir
(P. 521)
Engine oil filler cap
(P. 517)
Engine oil level dipstick
(P. 513)12-volt battery (P. 524)
Fuse box (P. 558)
Electric cooling fan
Condenser (P. 523)
Radiator (P. 523)1
2
3
4
5
6
7
8
9
5106-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
1ND-TV engine
Washer fluid tank (P. 527)
Engine coolant reservoir
(P. 521)
Engine oil filler cap
(P. 517)
Engine oil level dipstick
(P. 513)Fuel filter (P. 528)
12-volt battery (P. 524)
Fuse box (P. 558)
Radiator (P. 523)
Electric cooling fan
Condenser (P. 523)
Intercooler (P. 523)1
2
3
4
5
6
7
8
9
10
11
5116-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care
1AD-FTV engine
Washer fluid tank (P. 527)
Engine coolant reservoir
(P. 521)
Engine oil level dipstick
(P. 513)
Engine oil filler cap
(P. 517)Fuel filter (P. 528)
12-volt battery (P. 524)
Fuse box (P. 558)
Electric cooling fans
Condenser (P. 523)
Intercooler (P. 523)
Radiator (P. 523)1
2
3
4
5
6
7
8
9
10
11
5126-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

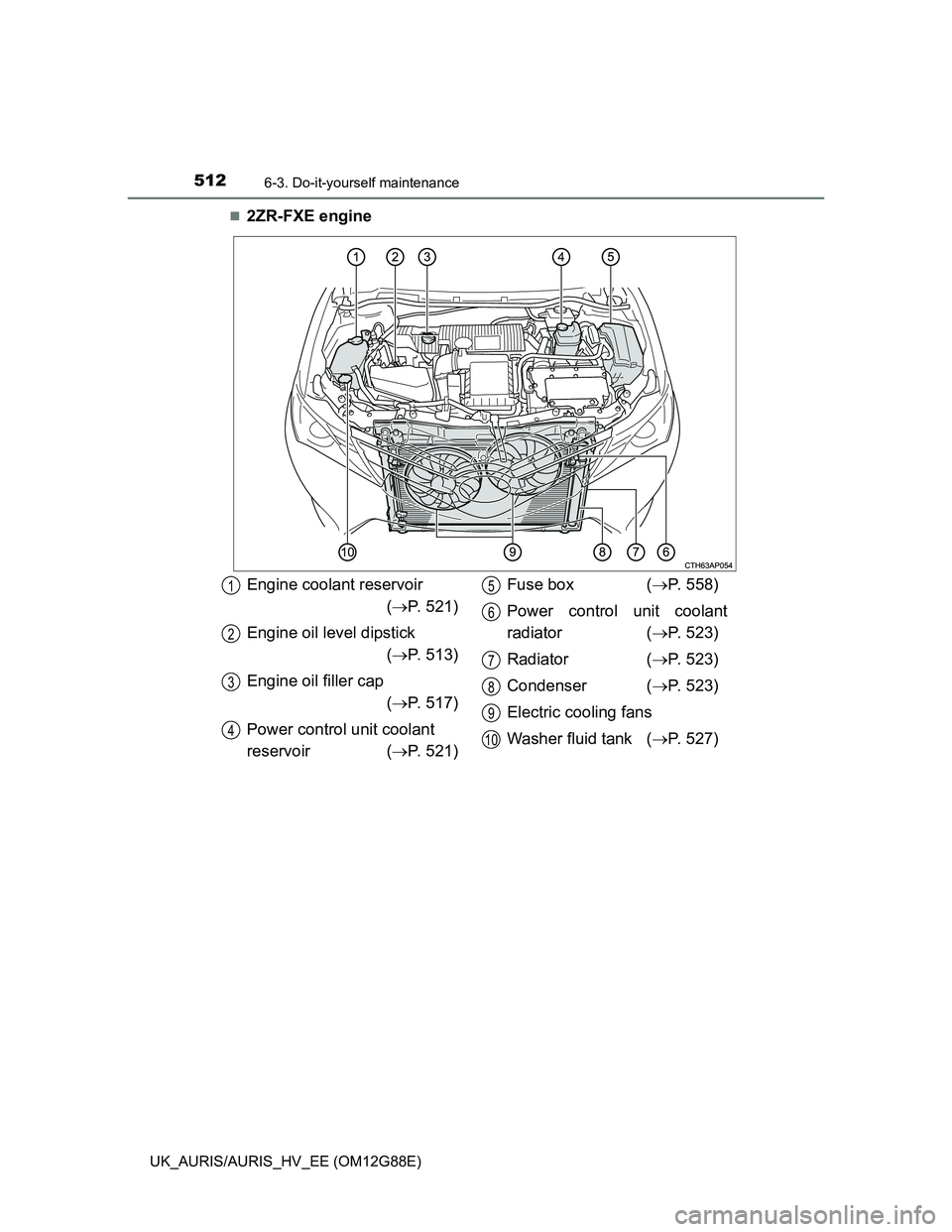

2ZR-FXE engine
Engine coolant reservoir
(P. 521)
Engine oil level dipstick
(P. 513)
Engine oil filler cap
(P. 517)
Power control unit coolant
reservoir (P. 521)Fuse box (P. 558)
Power control unit coolant
radiator (P. 523)
Radiator (P. 523)
Condenser (P. 523)
Electric cooling fans
Washer fluid tank (P. 527)1
2
3
4
5
6
7
8
9
10
5586-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
Except hybrid model: Turn the engine switch off.
Hybrid model: Turn the power switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. (P. 563)
Open the fuse box cover.
Engine compartment (except hybrid model)
Push the tab in and lift the lid
off.
Engine compartment (hybrid model)
Push the tab in and lift the lid
off.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
3
5626-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

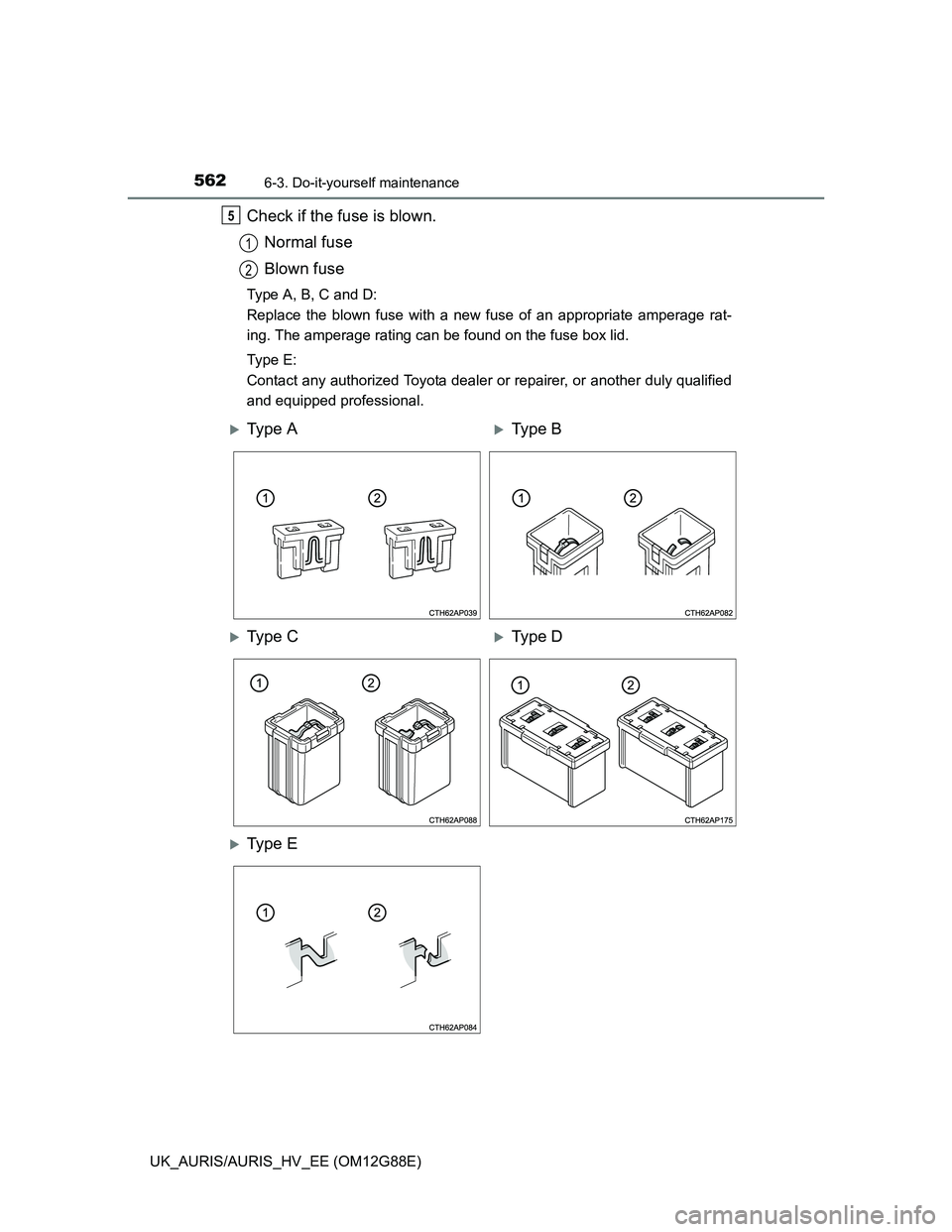

Check if the fuse is blown.
Normal fuse
Blown fuse
Type A, B, C and D:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
5
1
2
Ty p e AType B
Ty p e CType D
Ty p e E
5676-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio system,
main body ECU, clock, charging system,
power outlet, Stop & Start system, audio
system
19SFT LOCK-ACC5 AShift lock control system
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 ACharging system
23ECU-IG NO.17.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
view mirror, shift lock control system,
headlight cleaner, audio system, AFS,
panoramic roof shade, windshield
washer, tire pressure warning system
26HTR-IG7.5 AAir conditioning system, rear window
defogger, Stop & Start system
27ECU-IG NO.47.5 A
Main body ECU, front passenger seat
belt reminder light, airbag manual on-off
system, outside rear view mirrors, Toyota
parking assist-sensor
28ECU-IG NO.55 AElectric power steering, Stop & Start sys-
tem
29IGN7.5 A
Smart entry & start system, multiport fuel
injection system/sequential multiport fuel
injection system, steering lock system
FuseAmpereCircuit
