268 Minor Repairs
Row B
Row C
No. Designation A
1 Front lid light Front lid actuator
High beam, FL
Low beam, FL
Side marker light, FR
Turn signal lights, RL, FL
40
2 Raised brake light, spoiler
Rear lid actuator
Rear fog light, right
Reversing light, left
Brake light, left
Tail light, left
Daytime driving light, FL
15
3 Alarm horn 15
4 Interior lighting
Hall sensors
Orientation light
License plate light
Rear wiper electronics activation
Heated rear window relay
Central locking LED
Door panels LED
Ambient light
Raised brake light
Rear fog light, left
Brake light, right
Reversing light, right
Daytime driving light, FR
Tail light, right
15
5 Fuel pump relay and control unit 20
6 Filler flap close/open
Washer pump, front/rear
10
7 Front spoiler control unit 30
8 Air conditioning control unit 7,5
9 Instrument cluster Steering columnstopwatch
10
10 PCM 25
No. Designation A
1 Center console button panel Gateway control unit
Diagnostic socket Ignition lock Passenger compartment monitoring sensorLight switch
Bluetooth phone charger
15
2 Start-relevant loads
Footwell lights
Electric ignition lock anti-removal lock
Turn signal light indicator, FL/FR
Emergency flasher button LED
Electric ignition lock light
Side turn signal lights, FR/FL
High beam, FR
Low beam, FR
Turn signal light indicator, RR
Side marker light, FL
40
3 Vehicle Tracking System control unit 5
4 Horn 15
No. Designation A
5 Cabriolet: Convertible-top lock closing mechanism open/closed
Filler flap
Cabriolet: Convertible top storage compartment catch open/close
Rear spoiler control extend/retract
30
6 Power window control unit, FL 25
7 Headlight cleaning system 30
8 PSM control unit 25
9 Alarm siren 5
10 Not used
No. Designation A
14_991_Turbo_21.book Seite 268 Mittwoch, 9. April 2014 2:19 14

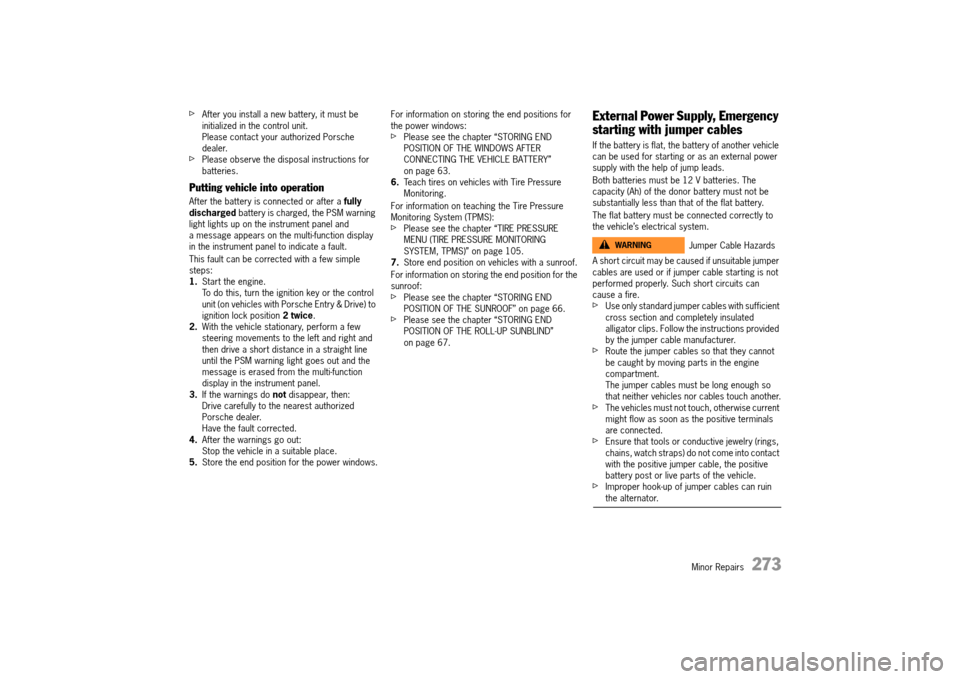

Minor Repairs 273
fAfter you install a new battery, it must be initialized in the control unit.Please contact your authorized Porsche dealer.fPlease observe the disposal instructions for batteries.
Putting vehicle into operation
After the battery is connected or after a fully discharged battery is charged, the PSM warning light lights up on the instrument panel and a message appears on the multi-function display in the instrument panel to indicate a fault.
This fault can be corrected with a few simple steps: 1. Start the engine. To do this, turn the ignition key or the control unit (on vehicles with Porsche Entry & Drive) to ignition lock position 2 twice. 2. With the vehicle stationary, perform a few steering movements to the left and right and then drive a short distance in a straight line until the PSM warning light goes out and the message is erased from the multi-function display in the instrument panel.3. If the warnings do not disappear, then: Drive carefully to the nearest authorized Porsche dealer.Have the fault corrected.4. After the warnings go out: Stop the vehicle in a suitable place.5. Store the end position for the power windows.
For information on storing the end positions for the power windows: fPlease see the chapter “STORING END POSITION OF THE WINDOWS AFTER CONNECTING THE VEHICLE BATTERY” on page 63.6. Teach tires on vehicles with Tire Pressure Monitoring.
For information on teaching the Tire Pressure Monitoring System (TPMS): fPlease see the chapter “TIRE PRESSURE MENU (TIRE PRESSURE MONITORING SYSTEM, TPMS)” on page 105.7. Store end position on vehicles with a sunroof.
For information on storing the end position for the sunroof: fPlease see the chapter “STORING END POSITION OF THE SUNROOF” on page 66.fPlease see the chapter “STORING END POSITION OF THE ROLL-UP SUNBLIND” on page 67.
External Power Supply, Emergency
starting with jumper cables
If the battery is flat, the battery of another vehicle can be used for starting or as an external power supply with the help of jump leads.
Both batteries must be 12 V batteries. The capacity (Ah) of the donor battery must not be substantially less than that of the flat battery.
The flat battery must be connected correctly to the vehicle’s electrical system.
A short circuit may be caused if unsuitable jumper cables are used or if jumper cable starting is not performed properly. Such short circuits can cause a fire.fUse only standard jumper cables with sufficient cross section and completely insulated alligator clips. Follow the instructions provided by the jumper cable manufacturer.fRoute the jumper cables so that they cannot be caught by moving parts in the engine compartment.The jumper cables must be long enough so that neither vehicles nor cables touch another.fThe vehicles must not touch, otherwise current might flow as soon as the positive terminals are connected.fEnsure that tools or conductive jewelry (rings, chains, watch straps) do not come into contact with the positive jumper cable, the positive battery post or live parts of the vehicle.fImproper hook-up of jumper cables can ruin the alternator.
Jumper Cable HazardsWARNINGh
14_991_Turbo_21.book Seite 273 Mittwoch, 9. April 2014 2:19 14

290 Index
Index
AA/C button Air-conditioning system .......................................56A/C MAX buttonAir-conditioning system .......................................56ABD (automatic brake differential)Functional description .......................................182ABS (anti-lock brake system)Functional description .......................................184Warning light on instrument panel ......................185ACCAdaptive cruise control .....................................157Active Safe (PAS)Settings in multi-purpose display........................128Adaptive cruise control ................................................157Display principle ...............................................160Exceptions.......................................................165Functional description .......................................157Interrupting/resuming control ............................164Operating principle ...........................................159Operating states ..............................................161Porsche Active Safe .........................................167Radar sensor ...................................................158Setting the desired distance ..............................162Setting/changing desired speed ........................161Switching on/off...............................................161 Adaptive light system, driving light assistant ....................79Adhesive foils, care instructions ....................................235Adjusting seat position ...................................................32Aftermarket Alarms......................................................169Air cleaner, maintenance instructions ............................244Air distribution ...............................................................58Air vents Adjusting ...........................................................59Opening/closing .................................................59AirbagAirbag warning light on the tachometer ................42Automatic deactivation of the passenger airbag....41Care instructions ..............................................237Disposal ............................................................39Function ............................................................39Functional description .........................................38Installation location .............................................38Passenger airbag warning light............................42Air-conditioning compressorInformation on air-conditioning compressor ..........55
Air-conditioning system Automatic load switch-off ................................... 55Extended ventilation panel .................................. 59Information on air-conditioning compressor.......... 55Setting air distribution ........................................ 58Setting air quantity............................................. 58Setting automatic air-recirculation mode .............. 57Setting temperature ........................................... 58Switching A/C MAX mode on/off ......................... 56Switching A/C mode on/off ................................ 56Switching air-conditioning compressor on/off....... 56Switching air-recirculation mode on and off .......... 57Temperature sensor ........................................... 55 Air-recirculation button Air-conditioning system ...................................... 57 Alarm button................................................................. 17Alarm system Avoiding false alarms ....................................... 217Functional description ...................................... 216Persons/animals remaining in the locked vehicle 216Switching off ................................................... 216Switching off interior surveillance and inclination sensor............................................. 216Switching on ................................................... 216 Alcantara, care instructions ......................................... 237Alloy wheels Care instructions ............................................. 235Inscription ....................................................... 253Allwheel driveFunctional description ...................................... 180Torque distribution ................................... 114, 116AlternatorVehicle electrical system warning ........................ 95 Aluminum rims Care instructions ............................................. 235Inscription ....................................................... 253 Ambient lighting ............................................................ 84Antifreeze in coolant ........................................................ 242In washer fluid ................................................. 224Anti-lock brake system (ABS)Functional description ...................................... 184Anti-slip control (ASR)Functional description ...................................... 182ArmrestOpening front oddments tray ............................ 194AshtrayEmptying ........................................................ 195
Opening .......................................................... 195 ASR (Anti-slip control) Functional description....................................... 182 Assigning MFS button (◊ )............................................. 127 Assistance systemsActive Safe (PAS) ............................................. 128Assistance when driving uphill Functional description....................................... 184 AudioTips ................................................................ 168 Audio interface, installation position .............................. 171AUTO (light switch) ........................................................ 79 Driving light assistant ......................................... 79 Auto Start Stop function Display ............................................................ 151Exceptions ...................................................... 149Operating principle ........................................... 149Preconditions................................................... 149Starting engine automatically ............................ 149Stopping engine automatically........................... 149Switching on and off................................. 150, 175 Automatic brake differential (ABD) Functional description....................................... 182Automatic Coming Home lights, courtesy lighting Entry function .................................................... 80Welcome Home function ..................................... 80 Automatic driving light assistant High Beam Assistant .......................................... 81 Automatic speed control (cruise control)Accelerating .................................................... 156Decelerating .................................................... 156Functional description....................................... 155Interrupting operation ....................................... 156Storing speed .................................................. 156Switching off ................................................... 157Switching on .................................................... 156 Automatic transmission................................................ 172AUX interface, installation position ................................ 171
BBaby seat Installing with LATCH system............................... 46LATCH restraint system ...................................... 46Prescribed installation direction (depending onweight of child) .................................................. 43BatteryCare ............................................................... 272
14_991_Turbo_21.book Seite 290 Mittwoch, 9. April 2014 2:19 14

292 Index
Coasting mode............................................................ 150 Cockpit......................................................................... 10Adjusting lighting................................................ 82Cooling system, temperature gauge .................... 92Engine oil temperature gauge ............................. 92Fuel gauge ........................................................ 94Odometer .......................................................... 93Speedometer..................................................... 92Tachometer ....................................................... 92Warning and indicator lights, overview ................. 90 Comfort Entry function ................................................... 34Comfort memory ......................................................... 143Comfort pressureSelecting ......................................................... 110Speed warning ................................................. 111 Comfort settings Storing on memory buttons .............................. 143Storing on the car key ...................................... 143 Comfort tire pressureSpeed warning ................................................. 111CompressorTire pressure ................................................... 198Control systemsOverview (PTM, PSM, PASM, PDCC, PTV Plus) .... 179Convertible top ............................................................. 67Care ............................................................... 233Closing.............................................................. 69Emergency operation ......................................... 70Opening ............................................................ 68 Convertible-top compartment lid Service position ................................................. 26Coolant Checking level ................................................. 242Topping up ...................................................... 242 Cooling systemWarning on multi-function display ......................... 92Cornering lightDynamic ............................................................ 80 Countersteering assistance .......................................... 182Courtesy lighting, Entry function ..................................... 80Crankcase ventilation ................................................... 226Cruise control Accelerating .................................................... 156Decelerating .................................................... 156Functional description....................................... 155Interrupting operation ....................................... 156Storing speed .................................................. 156Switching off ................................................... 157Switching on .................................................... 156Cupholder ................................................................... 194
DData carrier for vehicle data ........................................ 284Daytime driving lights .................................................... 79Diagnostic socket ............................................... 146, 267Digital speedometer ...................................................... 93Dimensions ................................................................ 288DimmingAdjusting brightness of instrument lighting ........... 82Adjusting brightness of interior lighting ................ 84Direction indicator, stalk ................................................ 82Displacement, Technical data ....................................... 285DoorDe-icing door lock............................................ 232Locking if persons/animals are remaining in vehicle .............................................................. 22Locking with car key (remote control) .................. 22Locking with Porsche Entry & Drive (keyless) ....... 22Malfunctions when opening and closing ............... 26Opening and locking from inside ......................... 23Unlocking with car key (remote control) ............... 21Unlocking with Porsche Entry & Drive (keyless) .... 21Door locking, automatic ................................................ 22Door opening in an emergency situation ......................... 22DoorsCabriolet windows ............................................. 68 Drink holder................................................................ 194Drive The vehicle cannot be unlocked .......................... 26 Drive-Off Assistant....................................................... 184Driver memory package .............................................. 143DrivingIn Sport mode ..................................................... 3On the race circuit ............................................... 3 Driving light assistantDaytime driving lights......................................... 79Dynamic cornering light ..................................... 80Low beam ......................................................... 79Switching on ..................................................... 79Driving offAutomatic parking brake release upondriving off ....................................................... 152Launch Control ................................................ 175Driving performance, Technical data ............................. 285DVDInstallation location .......................................... 170Navigation....................................................... 170Player ............................................................. 170Dynamic cornering light ................................................. 80Dynamic Engine Mounting (PADM)................................. 188
EElectric parking brake Automatic parking brake release upon driving off ........................................................ 151Emergency braking function .............................. 151Operating ........................................................ 151Releasing ........................................................ 151Testing on brake test stand....................... 221, 241Warning light.................................................... 151 Electrical SystemEmergency unlocking, front luggage compartment lid .............................................. 270Emergency flasher......................................................... 83Emergency key ....................................................... 17, 29Emergency operationFiller flap ......................................................... 229of ignition key/control unit in ignition lock............. 28of luggage compartment lid ................................ 26of sunroof.......................................................... 65of tailgate .......................................................... 26Emergency operation convertible top .............................. 70Emergency release Lids ................................................................ 270 Emergency starting for flat battery ............................... 273Emergency starting with jumper cables ......................... 273Emission control (Check Engine)Functional description......................................... 95Engine Break in hints ....................................................... 6Checking oil level ..................................... 101, 222Cooling system .................................................. 92Oil-level gauge ................................................. 101Starting ........................................................... 148Starting engine automatically (Auto Start Stop function) Starting manually (Auto Start Stop function) ....... 150Stopping ......................................................... 148Stopping automatically (Auto Start Stop function) 149Technical data.................................................. 285Topping up oil .................................................. 222Engine compartment lid Cabriolet ........................................................... 26Service position ................................................. 26Engine drag torque control (MSR)Functional description....................................... 182Engine oil.................................................................... 221Change quantity ............................................... 289Checking level ................................................. 222Checking oil level ............................................. 101Consumption ................................................... 285Engine oil pressure........................................... 129
14_991_Turbo_21.book Seite 292 Mittwoch, 9. April 2014 2:19 14

Index 297
Storing vehicle settings ......................................34 Why have the settings changed? ........................144Shifting gearsPorsche Doppelkupplung (PDK) .........................172Shift prompt ......................................................93Side lightsSwitching on ......................................................79Slicks .............................................................................1Snow chainsGeneral information ..........................................251 Snow tires...................................................................250Socket (12 V) ..............................................................196Speed code letter on tire .............................................252Speed control (cruise control) Accelerating ....................................................156Decelerating ....................................................156Functional description .......................................155Interrupting operation .......................................156Storing speed ..................................................156Switching off....................................................157Switching on ....................................................156Speed limit..................................................................252Speedometer ..........................................................92, 93Spoiler, operating principle ...........................................190Sport Chrono ..............................................................114Sport mode ....................................................................3 Porsche Doppelkupplung ..................................175Switching on/off...............................................188 Sport tires ......................................................................2Stainless steel tailpipesCare instructions ..............................................236Standstill management Functional description .......................................184 Start/Stop function ......................................................149StartingEngine .............................................................148Steam-jet cleaners, instructions for use .........................232Steering......................................................................244 Countersteering assistance ...............................182 Steering torque pulse...................................................182Steering wheel Adjustment ........................................................51Multi-function steering wheel withtelephone function ..............................................53Multi-function steering wheel, functional description ........................................................52Switching Easy Entry function on/off ....................34Switching heating on/off .....................................51 StoppingEngine .............................................................148
Stopping engine automatically (Auto Start Stop function).......................................................... 149Stopwatch .................................................................. 114StorageGlove box........................................................ 193Opening storage compartment in front armrest .. 194Storage options............................................... 193Storage compartmentGlove box........................................................ 193In front armrest, opening .................................. 194Storage .......................................................... 193StoringPersonal settings ............................................. 143 Storing end position of the sunroof ................................. 66Storing the end position for the power windows............... 63Summer tiresChanging tires ................................................. 256Storage .......................................................... 250 Sun visor ...................................................................... 53Sunblind ....................................................................... 65SunroofCleaning the air deflector ................................... 67Emergency operation ......................................... 65Functional description ........................................ 63Malfunctions ...................................................... 65Storing end position ........................................... 66 Switching automatic anti-dazzle function on and off .......... 50Switching emergency flasher on/off................................ 83Switching on air-recirculation modeAir-conditioning system ...................................... 57 Switching on parking light .............................................. 83
TTachometerDisplay.............................................................. 92 Tailpipes Stainless steel, care instructions ....................... 236TankVentilation system ............................................ 231Technical dataDriving performance ........................................ 285Engine ............................................................ 285Tire pressure (bar/psi) ..................................... 287Tires, wheels ................................................... 286Weights........................................................... 288Technical modifications to the vehicle, information ......... 220Telephone ................................................................... 169Using via multi-function display .......................... 103Test standsBrake test ............................................... 221, 241Performance test..................................... 221, 241
Theft protection .....................................................16, 217 TireCare................................................................248Life .................................................................248Traction ...........................................................247Wear ...............................................................248Tire filling compressor .................................................198Tire pressureAir pressure (bar/psi)........................................287Comfort pressure .............................................110Comfort pressure speed warning.......................111Current settings ...............................................108Data (bar/psi) ..................................................287Fill info ............................................................108Speed warning .................................................112System learning ...............................................111Tire pressure plate ...........................................284Warnings .........................................................111Tire pressure monitoringWarning light ....................................................106Tire Pressure Monitoring System (TPMS) .......................105Tire pressure plate.......................................................284Tire sealing compound/sealing set for defective tires .....265TiresBreaking in new tires ............................................6Changing .........................................................256Checking pressure ...........................................256Damage ..........................................................248Fixing a flat tire ................................................265General information ..........................................244Inscription on radial tire ....................................252Replacing ........................................................249Sealant ............................................................265Setting type and size ........................................109Sidewall...........................................................252Snow chains (general information) .....................251Snow tires (general information) ........................250Sport ..................................................................2Storage ...........................................................250Tire pressure plate ...........................................284Tire pressure, data (bar/psi)..............................287Valves .............................................................249Tool kit........................................................................198Tools ..........................................................................198Torque ........................................................................116Torque display .............................................................116Torque, Technical data .................................................285TowingScrewing in towing lug ......................................280Towing lugIn the tool kit....................................................198
14_991_Turbo_21.book Seite 297 Mittwoch, 9. April 2014 2:19 14
