CARACTERÍSTICAS TÉCNICAS
   Dimensiones

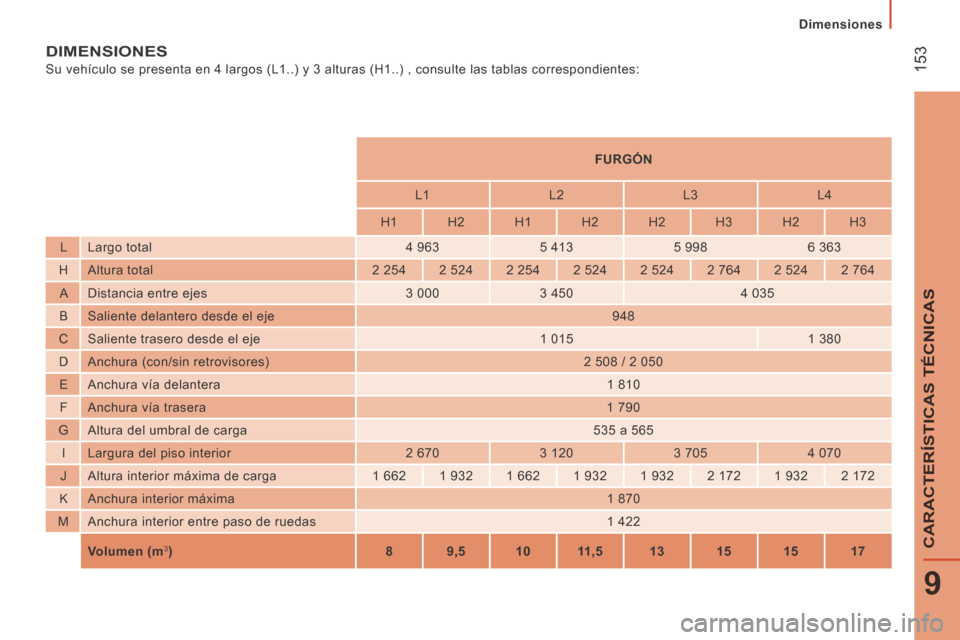

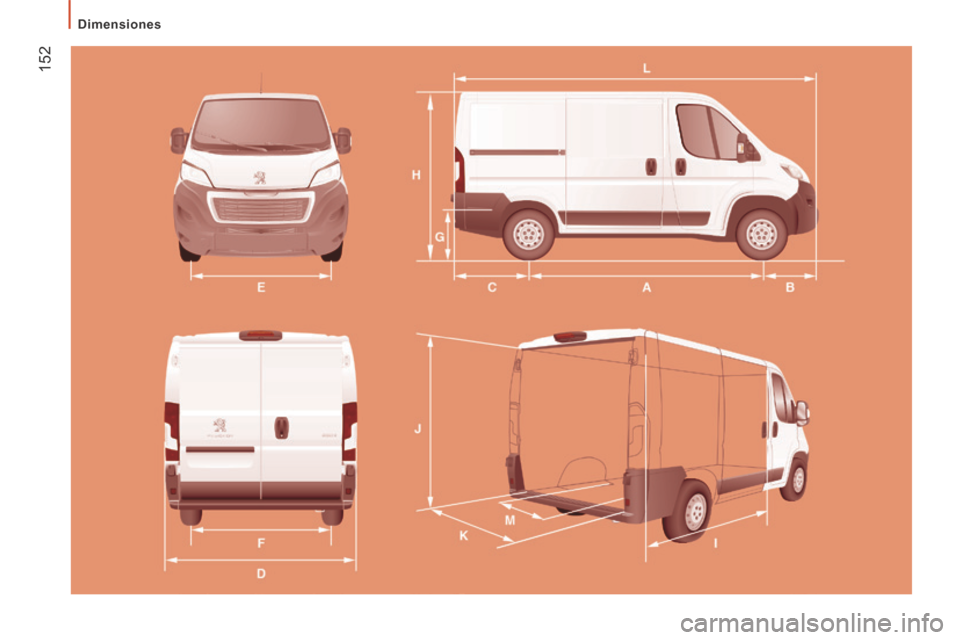

 DIMENSIONES
 Su vehículo se presenta en 4 largos (L1..) y 3 alturas (H1..) , c\
onsulte las tablas correspondientes:            FURGÓN

Page 156 of 240

Peugeot Boxer 2014  Manual del propietario (in Spanish)  154
   Dimensiones

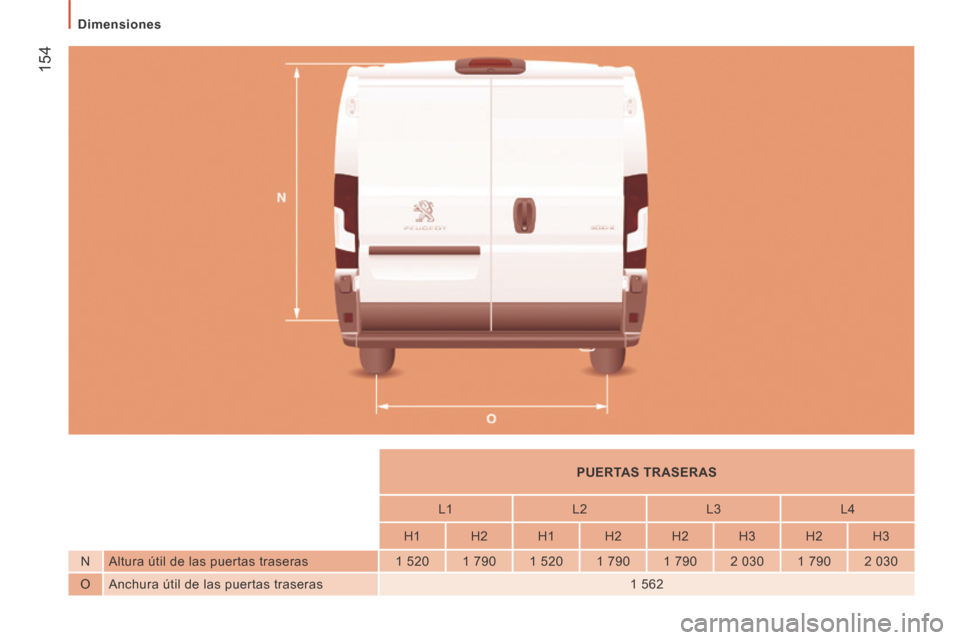

           PUERTAS TRASERAS
          L1    L2    L3    L4
          H1    H2    H1    H2    H2    H3    H2    H3
  N    Altura útil de las puertas traseras    1  520

Page 157 of 240

Peugeot Boxer 2014  Manual del propietario (in Spanish)  155
9
CARACTERÍSTICAS TÉCNICAS
   Dimensiones

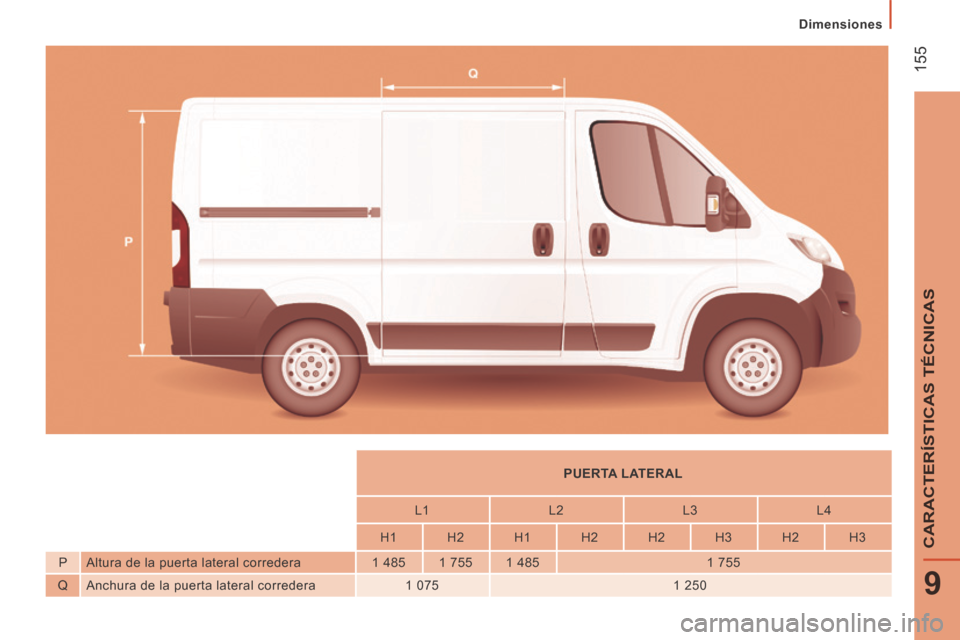

           PUERTA LATERAL
          L1    L2    L3    L4
          H1    H2    H1    H2    H2    H3    H2    H3
  P    Altura de la puerta la

Page 158 of 240

Peugeot Boxer 2014  Manual del propietario (in Spanish)  156
   Dimensiones

Page 159 of 240

Peugeot Boxer 2014  Manual del propietario (in Spanish)  157
9
CARACTERÍSTICAS TÉCNICAS
   Dimensiones

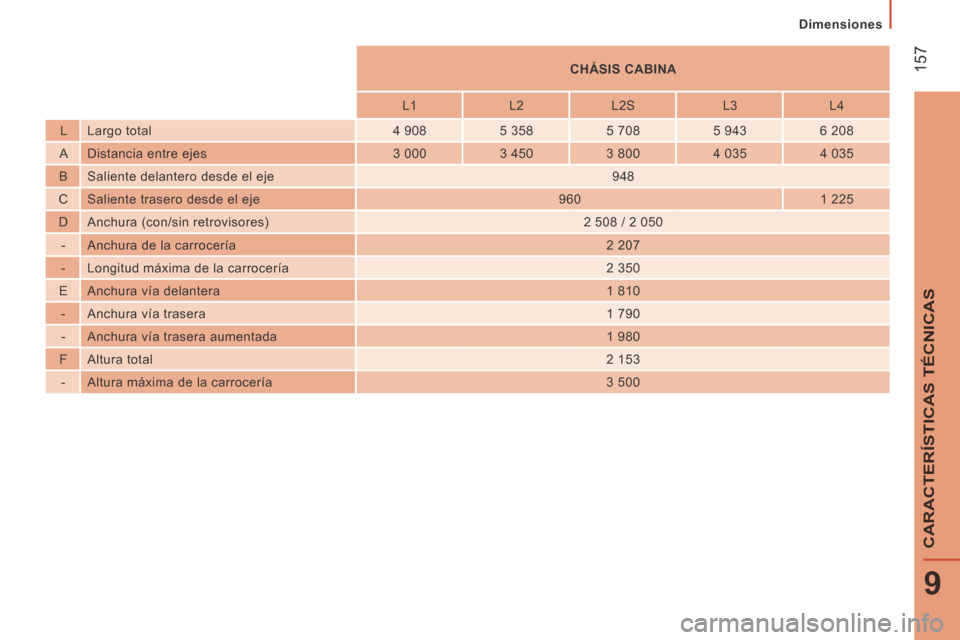

           CHÁSIS CABINA
          L1    L2    L2S     L3    L4
  L    Largo  total    4  908    5  358    5  708    5  943    6  208
  A

Page 160 of 240

Peugeot Boxer 2014  Manual del propietario (in Spanish)  158
   Dimensiones

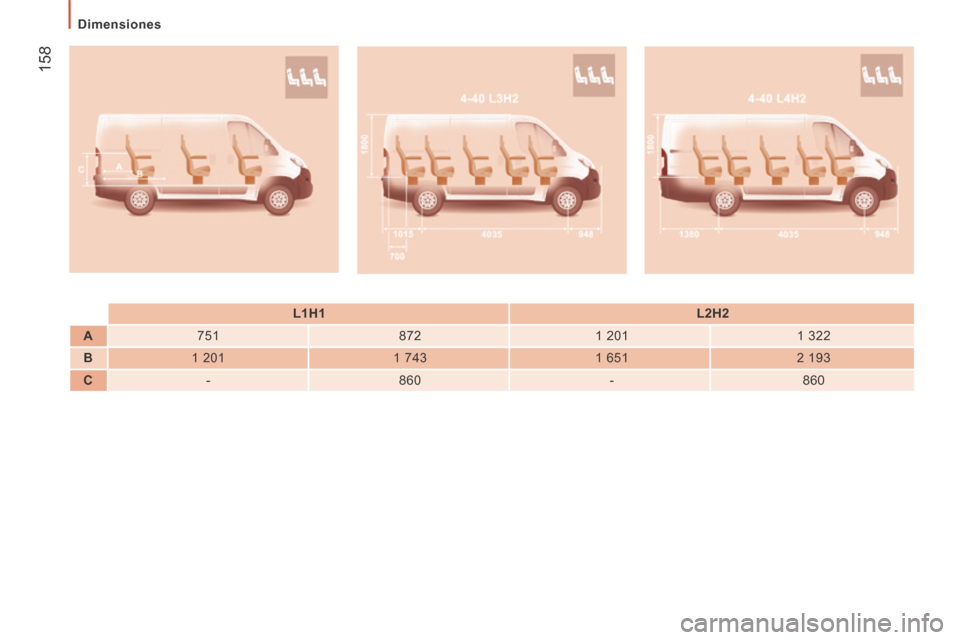

     L1H1       L2H2
   A      751     872    1  201     1  322
   B      1  201     1  743    1  651    2  193
   C      -     860     -    860
