2014 Peugeot 308 ECO mode

04
SRC
BAND
LIST
MENU
369
308_EN_CHAP10D_RD45_ED02_2013
AUDIO
Press the SRC button several times in succession and select the radio.
Press the BAND button to select a waveband: FM1, FM2, FMast, AM.
Briefl y press one of the buttons to carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search up / down for radio frequencies.
Press the LIST button to display the list of stations received locally (30 stations maximum).
To update this list, press for more than two seconds.
The external environment (hills, buildings, tunnels, basement car parks, ...) may block reception, including in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failu\
re of the audio system.
RDS
Radio Selecting a station
Press the MENU button.
Select AUDIO FUNCTIONS then press OK.
Select the FM WAVEBAND PREFERENCES function then press OK.
Select ACTIVATE RDS then press OK. RDS appears on the screen.
In radio mode, press OK directly to activate / deactivate RDS mode.
The RDS, if displayed, enables you to continue listening to the same station by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured throughout the\
country as radio stations do not cover 100 % of the territory. Under conditions of very weak reception, the system may change to a regional station.

06
MENU
377
308_EN_CHAP10D_RD45_ED02_2013

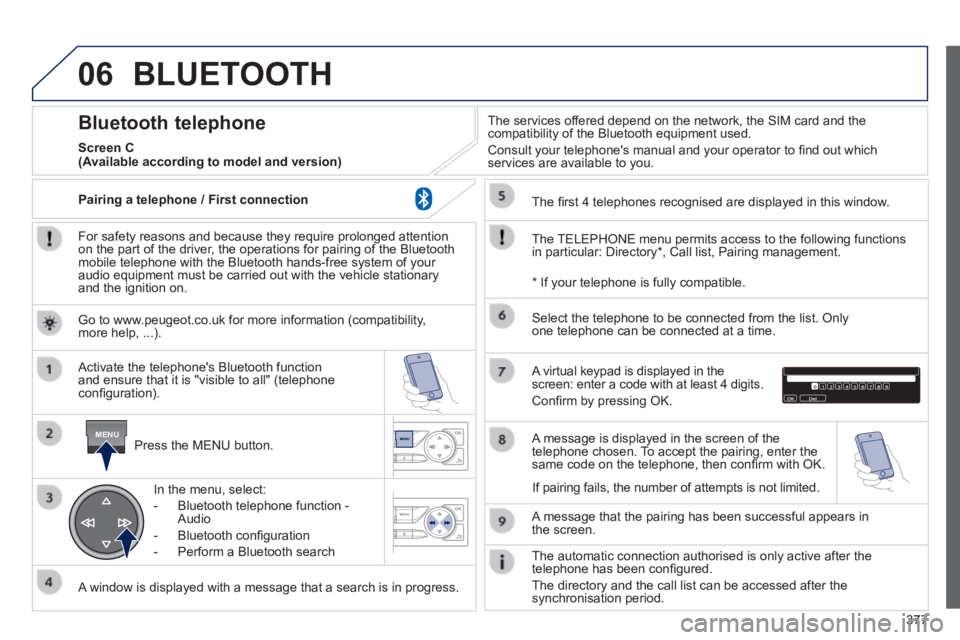

BLUETOOTH
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your audio equipment must be carried out with the vehicle stationary and the ignition on.
Press the MENU button.
A window is displayed with a message that a search is in progress.
Activate the telephone's Bluetooth function and ensure that it is "visible to all" (telephone confi guration).
In the menu, select:
- Bluetooth telephone function - Audio
- Bluetooth confi guration
- Perform a Bluetooth search
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which services are available to you.
Bluetooth telephone
Screen C
The TELEPHONE menu permits access to the following functions in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed in the screen: enter a code with at least 4 digits.
Confi rm by pressing OK.
A message that the pairing has been successful appears in the screen.
Select the telephone to be connected from the list. Only one telephone can be connected at a time.
A message is displayed in the screen of the telephone chosen. To accept the pairing, enter the same code on the telephone, then confi rm with OK.
The automatic connection authorised is only active after the telephone has been confi gured.
The directory and the call list can be accessed after the synchronisation period.
(Available according to model and version)
* If your telephone is fully compatible.
If pairing fails, the number of attempts is not limited.
Go to www.peugeot.co.uk for more information (compatibility, more help, ...).
Pairing a telephone / First connection

383
308_EN_CHAP10D_RD45_ED02_2013
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not play DVDs.
- Due to their quality level, certain writeable CDs will not be played by the audio system.
The message "USB peripheral error" is displayed on the screen.
The Bluetooth connection is cut.
The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.

385
308_EN_CHAP10D_RD45_ED02_2013
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is t\
oo high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of \
the CD.
Switch the audio system off for a few minutes to allow the system to cool.

388
Alphabetical index
308_EN_CHAP11_INDEX ALPHA _ED02-2013
Filling with fuel ...........................................7 2 -74Fitting a wheel ...............................................232Fitting roof bars .....................................262, 263Fittings, boot .............................................90, 91Flashing indicators ........187, 235, 238, 240, 242Foglamps ......................................................175Foglamps, front ....................................235, 239Foglamps, rear ......................Foglamps, rear ......................Foglamps, rear240, 241, 243, 244Folding the rear seats .....................................82Frequency (radio) .................................305, 369Front seats ................................................76 -78Fuel............................................................10 , 74Fuel consumption ............................................10Fuel filler cap ...................................................72Fuel filler flap ...................................................72Fuel gauge ..........................................12, 22, 72Fuel tank..............................................12, 22, 72Fuses .....................................................245 -250
Gearbox, automatic ...automatic ...automatic10, 12, 15, 121, 124, 129, 130, 284Gearbox, manual ..............10, 12, 15, 121, 122, 129, 284Gear lever, automatic gearbox .....................124Gear lever, manual gearbox .........................12 2Gear shift indicator .......................................Gear shift indicator .......................................Gear shift indicator123Glove box, cooled ...........................................84Guidance .......................................................320Guide-me-home ....................................17 7, 178Jack ...............................................................227Jack cable .....................................................314
Identification plates .......................................287Ignition on......................................104, 108, 110Indicator lamps, status ..............................13 -25Indicators, direction ......................................187Inflating accessories (using the kit) ..............226Inflating tyres ..........................................10, 287Inputs for audio system .....................84, 87, 310, 314, 374, 376Instrument panel .............................................12Instrument panel screen ...................12, 2 2, 123Intelligent Traction Control ............................19 4Interior fittings .................................................84Interior mood lighting ....................................18 6ISOFIX ..........................................................213ISOFIX mountings.................................213, 214
Halogen headlamps ..............................235, 237Hands-free kit .......................................352, 377Hazard warning lamps ............................94, 187Headlamp adjustment ...................................180Headlamp wash ............................................182Headlamp wash reservoir .............................Headlamp wash reservoir .............................Headlamp wash reservoir282Head restraints, front ......................................79Head restraints, rear .................................Head restraints, rear .................................Head restraints, rear82, 83Heated seats ...................................................79Heating ..............................................97, 99, 101Height and reach adjustment, steering wheel ..............................................75High load retaining net ..................................396Hill start assist ...............................................121
F
G
J
I
H
Eco-driving .....................................................10Economy mode .............................................255Electric window controls .................................69Electronic engine immobiliser...........50, 63, 112Electronic stability control (ESC) ..................193Emergency boot release .................................60Emergency call ............................188, 289, 290Emergency starting .......................................253Emergency warning lamps .....................94, 187Energy economy mode .................................255Engine compartment ...........................268, 269Engine compartment fusebox .......................249Engine, Diesel .................................74, 269, 270Engine oil level ........................................29, 280Engine, petrol ..................................74, 268, 285
Defrosting ..............................................10 6, 107Demisting ..............................................10 6, 107Denon (audio system) ...................................291Diesel ..............................................................74Diesel additive level ......................................282Diesel engine pre-heat warning lamp ............15Digital Audio Broadcasting (DA B) .................................308, 309, 372, 373Dimensions ...................................................286Dipped beam .................................173, 235, 237Dipstick ....................................................29, 280Direction indicators .......187, 235, 238, 240, 242Distance alert ................................................147Doors backup control ......................................61Driving economically ......................................10Driving positions (storing) ...............................78Dynamic emergency braking ........................118Dynamic (sport) .............................................128Dynamic stability control (DSC) ........17, 21, 195
E
Environment .................10, 52, 62, 96, 254, 282ESC/ASR .......................................................193
