2014 Peugeot 207 CC fuse box

3
CONTENTS
207CC_EN_CHAP00A_SOMMAIRE_ED01-2014

■ Direction indicators 97

■ Emergency or assistance call 97

■ Warning triangle 97

■ Hazard warning lamps 98

■ Horn 98

■ Tyre under-infl ation detection 99

■ Braking assistance systems 100

■ Trajectory control systems 101

■ Seat belts 102

■ Airbags 105
SAFETY 97  108

■ Parking brake 109

■ Manual gearbox 109

■ Gear shift indicator 110

■ Automatic gearbox 111

■ Speed limiter 114

■ Cruise control 116

■ Parking sensors 118
DRIVING 109  11 9

■ Bonnet 121

■ Running out of fuel (Diesel) 121

■ Petrol engines 122

■ Diesel engine 123

■ Checking levels 124

■ Checks 126
CHECKS
120  127

■ Temporary puncture
repair kit 128

■ Changing a wheel 133

■ Snow chains 137

■ Changing a bulb 138

■ Changing a fuse 142

■ Battery 147

■ Energy economy mode 149

■ Changing a wiper blade 149

■ Towing the vehicle 150

■ Towing a trailer 151

■ Accessories 153
PRACTICAL
INFORMATION 128  153

■ Petrol engines 154

■ Weights (petrol) 155

■ Diesel engine 156

■ Weights (Diesel) 157

■ Dimensions 158

■ Identifi cation markings 159
TECHNICAL DATA 154  160
AUDIO EQUIPMENT and
TELEMATICS 161  214

■ Emergency or assistance 161
■ PEUGEOT Connect Navigation
(RNEG) 163
■ PEUGEOT Connect Sound (RD5) 195
ALPHABETICAL
INDEX 219 223
7
86
9
10
VISUAL
SEARCH 215  218

9
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

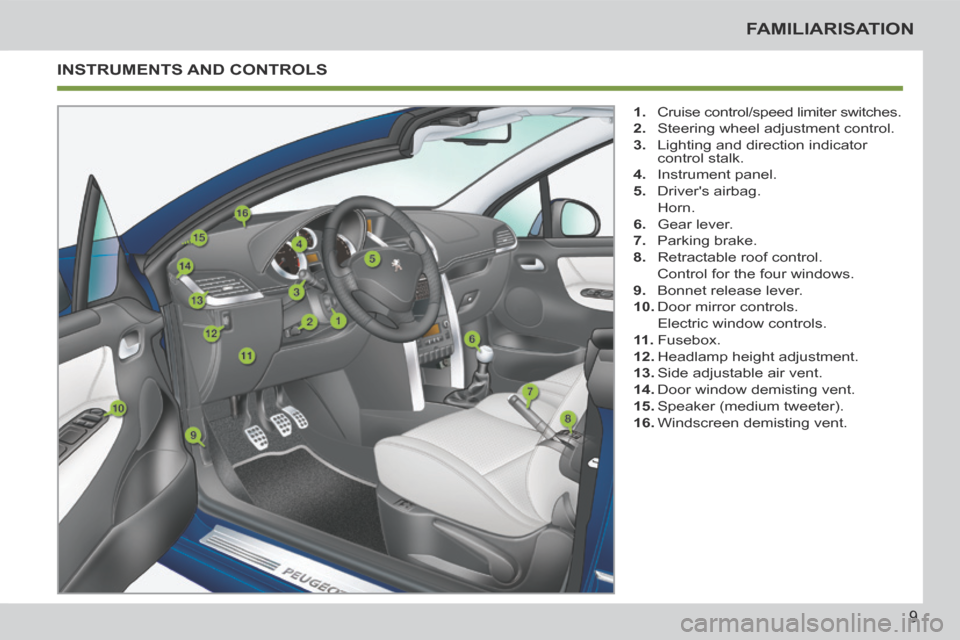

INSTRUMENTS AND CONTROLS
1. Cruise control/speed limiter switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicator control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. Retractable roof control.
Control for the four windows.
9. Bonnet release lever.
10. Door mirror controls.
Electric window controls.
11 . Fusebox.
12. Headlamp height adjustment.
13. Side adjustable air vent.
14. Door window demisting vent.
15. Speaker (medium tweeter).
16. Windscreen demisting vent.

8CHECKS
122
207CC_EN_CHAP08_VERIFICATIONS_ED01-2014
PETROL ENGINES
The caps and covers provide access for checking the levels of the various fl uids and to replace certain components.
1. Coolant reservoir.
2. Passenger compartment fi lter.
3. Screenwash and headlamp wash reservoir. 4. Air fi lter.
5. Brake fl uid reservoir.
6. Fusebox.
7. Battery.
8. Engine oil dipstick.
9. Engine oil fi ller cap.

8CHECKS
123
207CC_EN_CHAP08_VERIFICATIONS_ED01-2014
DIESEL ENGINE
The caps and covers provide access for checking the levels of the various fl uids, to replace certain components and to prime
the fuel system.
1. Coolant reservoir.
2. Passenger compartment fi lter.
3. Screenwash and headlamp wash reservoir. 4. Priming pump.
5. Brake fl uid reservoir.
6. Fusebox.
7. Battery. 8. Engine oil dipstick.
9. Engine oil fi ller cap.
10. Air fi lter.

9
!
i
PRACTICAL INFORMATION
142
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all of
the additional equipment connect-
ed exceeds 10 milliamperes. Installation of electrical acces-
sories
Your vehicle's electrical circuit
is designed to operate with the
standard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT dealer
or a qualifi ed workshop.
CHANGING A FUSE
Procedure for the replacement of a
failed fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
The extraction tweezer is installed on the
back of the dashbaord fusebox cover.
To gain access to it:
 unclip the cover pulling at the top,
 remove the cover completely,
 remove the tweezer.
Replacing a fuse
Before replacing a fuse, the cause of the
failure must be identifi ed and rectifi ed.
 Identify the failed fuse by examining the condition of its fi lament.
 Use the special tweezer to extract the fuse from its housing.
 Always replace the faulty fuse with a fuse of the same rating.
 Check that the number marked on the box and the rating marked on
the top of the fuse correspond to the
following tables. Good
Failed

9PRACTICAL INFORMATION
143
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Dashboard fuses
The fusebox is placed in the lower
dashboard (left-hand side).
Access to the fuses
 refer to the "Access to the tools" paragraph. Fuse table
Fuse N° Rating Functions
G37 30 A Retractable roof unit supply.
G38 20 A Hi-Fi amplifi er.
G39 20 A Driver and passenger heated seats.
G40 40 A Trailer fusebox supply.
Fuse N° Rating Functions
F1 - Not used.
F2 - Not used.
F3 5 A Airbags and pre-tensioners control
unit.
F4 10 A Clutch pedal switch, diagnostic socket,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, particle emission fi lter
pump (Diesel).
F5 30 A Rear electric windows, retractable roof.
F6 30 A Front electric windows, folding mirrors
supply.
F7 5 A Front courtesy lamp, map reading reading lamps,
sun visor lighting, glove box lighting.

9PRACTICAL INFORMATION
144
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Fuse N° Rating Functions
F8 20 A Audio/telephone, multifunction screen, steering
mounted controls, tyre under-infl ation detection,
trailer fusebox, alarm (accessory).
F9 30 A Front 12 V socket, front courtesy lamp, map
reading lamps, sun visor lighting, glove box lighting.
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F 11 15 A Diagnostic socket, low current ignition switch,
automatic gearbox control unit.
F12 15 A Sunshine sensor, trailer fusebox,
retractable roof.
F13 5 A Engine fusebox, ABS relay, dual-function brake
switch.
F14 15 A
Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, audio equipment,
Bluetooth system, rear parking sensors control unit.
F15 30 A Locking and deadlocking.
F17 40 A Heated rear screen and door mirrors.
SH - PARC shunt.

9PRACTICAL INFORMATION
145
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Engine compartment fuses
The fusebox is placed in the engine
compartment, near the battery (left-
hand side).
Access to the fuses
 Unclip the cover.
 Replace the fuse (refer to the cor-responding paragraph).
 When you have fi nished, close the cover carefully to ensure correct
sealing of the fuse box. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister electrovalves (1.6 l 16V THP),
air fl ow sensor (Diesel), injection pump
(Diesel), water in Diesel sensor (Diesel), EGR
electrovalves, air heating (Diesel).
F2 15 A Horn.
F3 10 A Front wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Fuel pump (petrol), Turbo electrovalves
(1.6 l 16V THP).
F6 10 A Vehicle speed sensor, automatic gearbox.
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
protection unit (Diesel).
F8 20 A Starter motor control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters,
electronic thermostat) (Diesel: electrovalves,
heaters).
F 11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
F13 40 A Built-in systems interface supply (ignition positive).
