2014 PEUGEOT 108 Owners Manual

63
Rear screen demist - defrost
Switching off
Switching on
F Press this button again to switch off the
heated rear screen.


t
h
e indicator lamp associated with the
button goes off.th
e heated rear screen can only operate when
the engine is running. F

S
witch off the demisting/defrosting
of the rear screen and door mirrors
(depending on version) as soon
as appropriate, as lower current
consumption results in reduced fuel
consumption.
F

P

ress this button to demist /defrost the rear
screen and, depending on version, the
door mirrors.


t
h

e indicator lamp associated with the
button comes on.
th

e control button is located on the heating / ventilation or air conditioning system control
panel.
3
Comfort

64

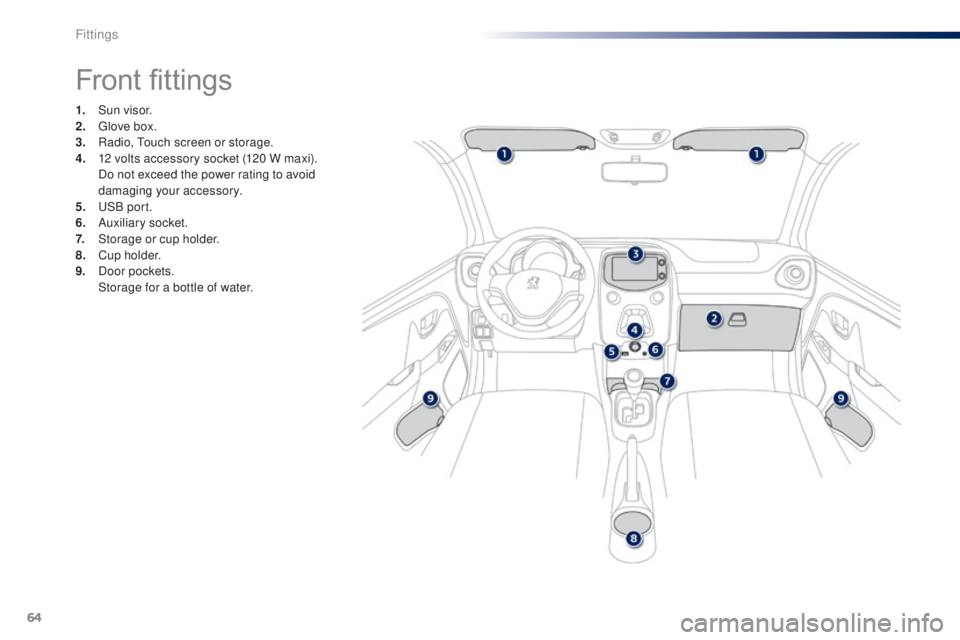

Front fittings
1. Sun visor.
2. gl ove box.
3.
R

adio, t
o
uch screen or storage.
4.
1

2 volts accessory socket (120 W maxi).
D

o not exceed the power rating to avoid
damaging your accessory.
5.


u
S
B port.
6.
Au

xiliary socket.
7.
St

orage or cup holder.
8.
C

u p h o l d e r.
9.
D

oor pockets.
S

torage for a bottle of water.
Fittings

65
Glove box
Sun visor
Component which protects against sunlight
from the front or the side.
th

e sun visors are fitted with a vanity mirror,
with a concealing flap and a map holder
(or ticket holder). It can be used to hold the vehicle's handbook
pack...
F
t
o o
pen the glove box, raise the handle.
It houses the front passenger airbag
deactivation switch A and the reinitialisation
button (B) for the tyre under-inflation detection
system (depending on equipment).
On one side there is a location C
intended to
hold a water bottle (1 litre maximum). F
to c onnect a 12 V accessory (maximum
power: 120 Watts), lift the cover and
connect a suitable adaptor.
12 V accessory socket
Do not exceed the maximum power
rating of the socket (risk of damage to
your device).
4
Fittings

66
It permits the connection of a portable device
to listen to your music files using the vehicle's
speakers.
th
e management of the files is done using your
portable device.
It permits the connection of a portable device,
such as a digital audio player of the iPod® type
or
uS
B memory stick.
It reads the audio files which are sent to your
audio system, to be heard via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or those on the audio system
control panel.
Auxiliary socket
USB port
For more information on the use of
this equipment, refer to the "Audio
equipment and telematics" section.
For more information on the use of this
equipment, see the "Audio equipment
and telematics" section.
Connected to the
u
S

B port, the
portable device charges automatically
while in use.
Fittings

67
to remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

un
clip the fixings,
F

r
emove the mat.
Mats
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
th
e other mats are simply placed on the
carpet.
to a
void any risk of jamming of the
pedals:
-
o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-
n
ever fit one mat on top of another.
th

e use of mats not approved by
P
e
uge
Ot
may inter fere with access
to the pedals and hinder the operation
of the speed limiter or etg electronic
gearbox.
to r
efit the mat on the driver's side:
F
p
osition the mat correctly,
F r efit the fixings by pressing,
F c heck that the mat is secured correctly.
FittingRemoval
Refitting
Removable carpet protection.
4
Fittings

68
Rear parcel shelf
to facilitate loading of the boot, the rear parcel
shelf is fitted to the tailgate.
When closing the tailgate, check that nothing
could inter fere with the return to position of the
shelf.Do not place heavy loads on the shelf,
as they may cause the shelf to unclip.to remove the shelf:
F

o
pen the tailgate,
F

u
nclip the two cords,
F

p
ull firmly on the shelf to disengage it from
its hinges on the tailgate inner trim.
You can then stow the shelf behind the front
seats.to r efit the shelf:
F

o
pen the tailgate,
F

p
osition the underside of the shelf facing
you,
F

c
lip the shelf into the two hinges,
F

p
ass the two cords through the guides
either side of the struts,
F

c
lip the two cords in place.
Fittings

69
Boot fittings
1. Hooks
2. te mporary use spare wheel and tools.


or
St

orage box
th

e wheel or storage box must be put
in place under the carpet before loading
the boot.
4
Fittings

70
Storage box
F Remove the boot carpet for access to the storage box.
Depending on the configuration, it is laid out for
storing:
-

a t
owing eye,
-

a t
emporary puncture repair kit,
-


... For versions with storage box: it must
be in place before loading the boot.th
e hooks can be used to secure shopping
bags.
Hooks
Maximum authorised load on the
hooks: 2 kg .
Fittings
