2014 PEUGEOT 108 bluetooth

181
7-Inch touch screen
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
to prevent discharging of the battery
, the system cuts off
following activation of energy economy mode, 20 minutes
after switching off the engine on vehicles fitted with the
"Keyless
e ntry and Starting" system.
Multimedia system
Bluetooth
® telephone
Mirror Screen
®
CONTENTS
182
01

General
operation p.
184
02

First steps - Control
panelp.
198
05
Telephone p. 186
04
Media p.
206
06
Connections p.
206
p.
210
06-1
iPhone
® connection
06-2

MirrorLink
® connection p.
214
07

Configuration p.
218
Frequently asked questions
p. 185
03

Steering mounted
controls
p.
B3_en_Chap12a_Autoradio-t oyota-tactile-1_ed01-2014

01

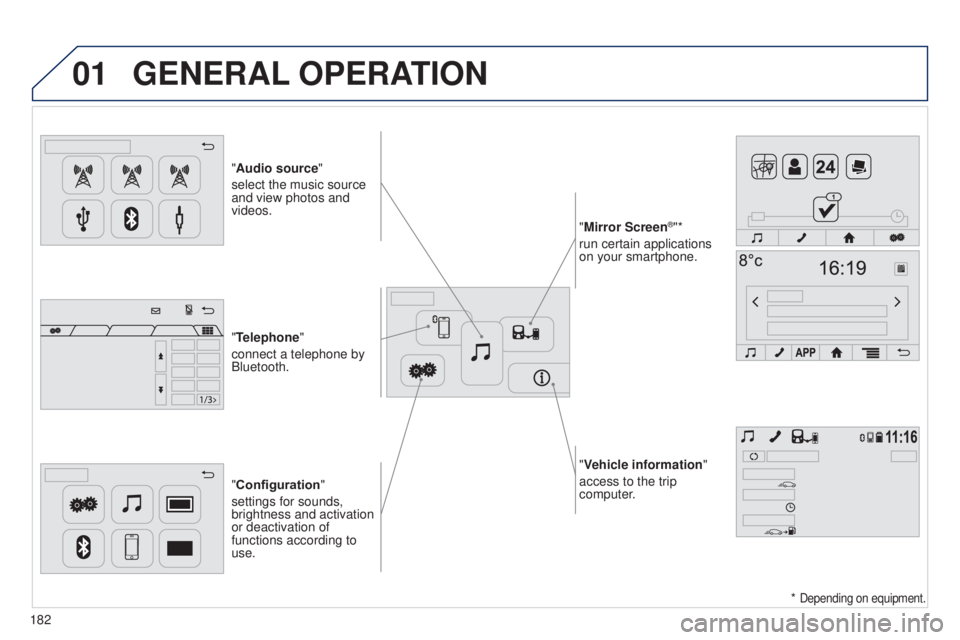

"Vehicle information"
access to the trip
computer.
"Audio source"
select the music source
and view photos and
videos.
"Configuration
"
settings for sounds,
brightness and activation
or deactivation of
functions according to
use. "Mirror Screen
®"*
run certain applications
on your smartphone.
"Telephone"
connect a telephone by
Bluetooth.
GENERAL OPERATION
182 *
Depending on equipment.

02

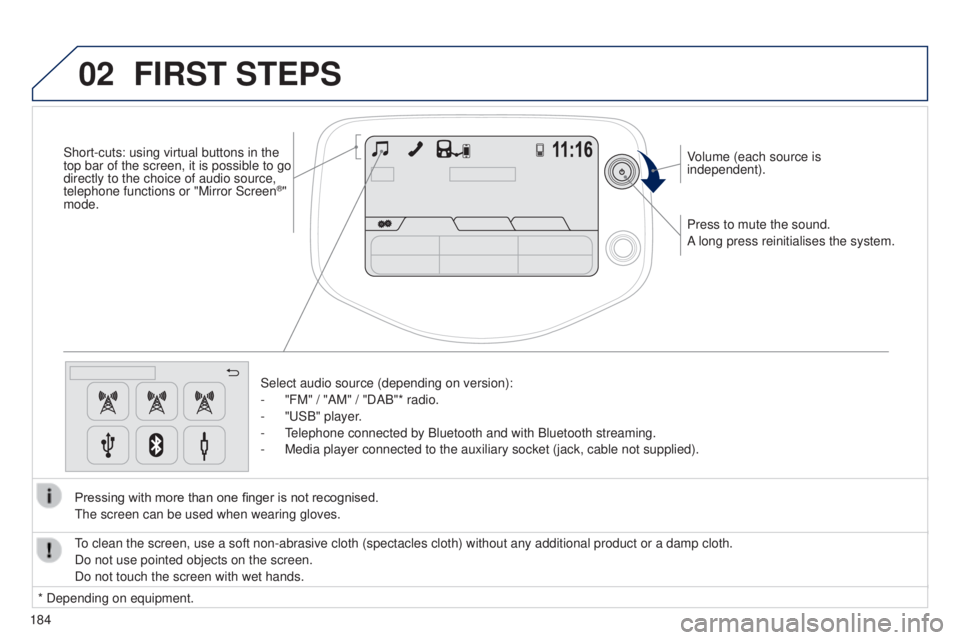

184Press to mute the sound.
A long press reinitialises the system. Volume (each source is
independent).
Select audio source (depending on version):
-
"FM" / "AM" / "DAB"* radio.
-

"
u SB" player.
- t
elephone connected by Bluetooth and with Bluetooth streaming.
-

Media player connected to the auxiliary socket (jack, cable not supplie\
d).
Pressing with more than one finger is not recognised.
t
he screen can be used when wearing gloves.
FIRST STEPS
* Depending on equipment.
to clean the screen, use a soft non-abrasive cloth (spectacles cloth) w\
ithout any additional product or a damp cloth.
Do not use pointed objects on the screen.
Do not touch the screen with wet hands.
Short-cuts: using virtual buttons in the
top bar of the screen, it is possible to go
directly to the choice of audio source,
telephone functions or "Mirror Screen
®"
mode.

189
Level 1
Level 2 Level 3 Comment
Audio source USB Scan
Choose the play setting.
Random play
Repeat play
Previous track
Play
Next track
Audio source
Bluetooth audio Telephone
First connection, refer to the telephone section.
Audio play
System configuration
Activate or deactivate options.
Random play
Choose the play setting.
Repeat play
Previous track
Play
Next track
Audio source A / V Screen format
Normal
Choose the most suitable screen format.Stretched
Zoom
Full screen
Display in full screen mode.
B3_en_Chap12a_Autoradio-t oyota-tactile-1_ed01-2014

04
195
MUSIC

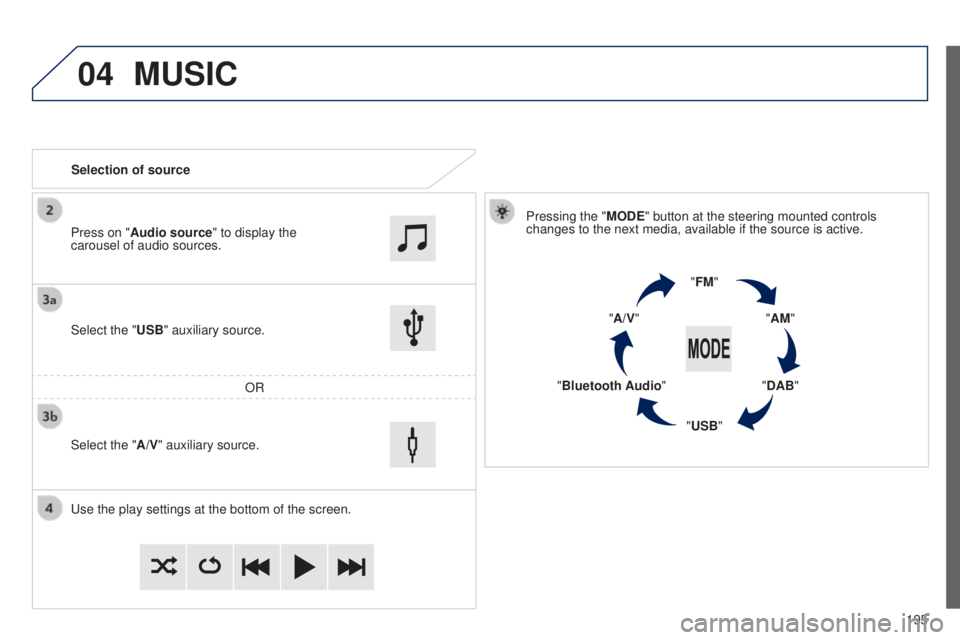

Selection of sourcePressing the "MODE" button at the steering mounted controls
changes to the next media, available if the source is active.
"FM""AM"
"DAB"
"USB"
"Bluetooth Audio" "A/V"
u

se the play settings at the bottom of the screen.
Select the "USB" auxiliary source.
OR
Select the "A/V" auxiliary source. Press on "Audio source" to display the
carousel of audio sources.
B3_en_Chap12a_Autoradio-t oyota-tactile-1_ed01-2014

04MUSIC
196
MP3 / USB player
Information and advice
t
he system supports u SB mass storage devices or Apple
® players
via
u
SB ports. t
he adaptor cable not supplied.
Control of the peripheral device is with the audio system controls.
Other peripherals, not recognised on connection, must be connected
to the auxiliary socket using a Jack cable (not supplied).
In order to be read, a
u
SB memory stick must be formatted FA
t 16
or 32. The system can alternatively read files via the Bluetooth
® system
and the
u
SB port.
It is recommended that official Apple
® uSB cables are used to
ensure correct operation.
The audio system plays files with the extension:
".wma", type V
er7 and Ver8 with bit rate between 48 and 192 Kbps
and type Ver9 with bit rate between 48 and 320 Kbps.
".aac", with bit rate between 16 and 320 Kbps.
".mp3 - MP
eg
1" with bit rate between 32 and 320 Kbps and ".mp3 -
MP
eg
2" with bit rate between 8 and 160 Kbps.
t

he sampling rates supported are 11, 22, 44 and 48 KHz.
It is advisable to restrict file names to 20 characters, without using of
special characters (e.g.: " " ? ; ù) to avoid any playing and displ\
aying
problems.

04
197
Audio streaming
Streaming allows audio files on your telephone to be played via the
vehicle's speakers.
Connect the telephone : see the "Telephone" section, then
Bluetooth.
Choose either " Connect all" or "Connect as audio player" profile.
If play does not start automatically, it may be necessary to start
audio play from the telephone.
Control is from the peripheral device or by using the audio system
controls.
Once connected for streaming, the telephone is considered as a
media source.
It is recommended that "Repeat" mode be activated in the Bluetooth
device.
Connecting Apple® players
Connect the Apple® player to the uSB port
using a suitable cable (not supplied).
Play starts automatically
.
Control is via the audio system.
The classifications available are those of the portable device
connected (artists / albums / genres / tracks / playlists / audio
books

/ podcasts).
The default classification used is by artist. To modify the
classification used, return to the first level of the menu then select
the desired classification (playlists for example) and confirm to go
down through the menu to the desired track.
MUSIC
the version of software in the audio system may not be compatible
with the generation of your Apple® player.
B3_en_Chap12a_Autoradio-t oyota-tactile-1_ed01-2014

05
200

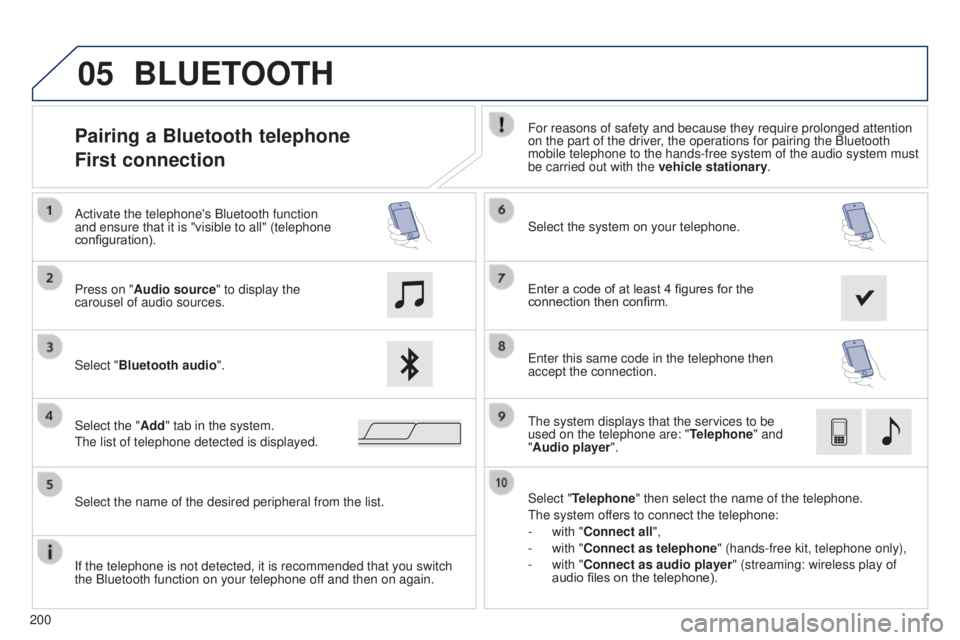

Pairing a Bluetooth telephone
First connectionFor reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio system must
be carried out with the vehicle stationary.
Select "Bluetooth audio ". Select the system on your telephone.
Select the "Add" tab in the system.
t

he list of telephone detected is displayed.
Press on "Audio source" to display the
carousel of audio sources. Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (telephone
configuration).
Select "Telephone" then select the name of the telephone.
t

he system offers to connect the telephone:
-

with "
Connect all",
-

with "
Connect as telephone" (hands-free kit, telephone only),
-

with "
Connect as audio player" (streaming: wireless play of
audio files on the telephone).
Select the name of the desired peripheral from the list.
BLUETOOTH
If the telephone is not detected, it is recommended that you switch
the Bluetooth function on your telephone off and then on again. Enter a code of at least 4 figures for the
connection then confirm.
e

nter this same code in the telephone then
accept the connection.
t
he system displays that the services to be
used on the telephone are: " Telephone" and
"Audio player".
