2014 PEUGEOT 108 tow

68
Rear parcel shelf
to facilitate loading of the boot, the rear parcel
shelf is fitted to the tailgate.
When closing the tailgate, check that nothing
could inter fere with the return to position of the
shelf.Do not place heavy loads on the shelf,
as they may cause the shelf to unclip.to remove the shelf:
F

o
pen the tailgate,
F

u
nclip the two cords,
F

p
ull firmly on the shelf to disengage it from
its hinges on the tailgate inner trim.
You can then stow the shelf behind the front
seats.to r efit the shelf:
F

o
pen the tailgate,
F

p
osition the underside of the shelf facing
you,
F

c
lip the shelf into the two hinges,
F

p
ass the two cords through the guides
either side of the struts,
F

c
lip the two cords in place.
Fittings

71
Starting - stopping the engine with the key
1. "LOCK " position.
2. " AC
C" position.
3.


"ON " position.
4.
" S

TA R T" position.
Ignition switch
Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
Key in ignition
For vehicle fitted with a manual gearbox:
F
I nsert the key in the ignition switch.
F
t
u
rn the key to position 2 and unlock the
steering column, by turning wheel slightly.
F

F
ully depress the clutch pedal.
F

P
ut the gear lever into neutral.
F

O
perate the starter by turning the key to
position 4 (S TA R T ) .
F

O
nce the engine is running, release
t h e


key.


t
h
e key returns automatically to
position


3

(ON).
Starting using the key
If the key has been left in the ignition,
an audible signal is heard on opening
the driver's door.
For vehicles fitted with an ETG electronic
gearbox:
F

I

nsert the key in the ignition switch.
F
t
u

rn the key to position 2 and unlock the
steering column, by turning wheel slightly.
F

P

ress and hold the brake pedal
.
F

P

ut the gear lever into position N
.
F

O

perate the starter by turning the key to
position 4 (S TA R T ) .
F

O

nce the engine is running, release
t h e
key.
th
e key returns automatically to
position


3


(ON) .
If you use the accessories for a
prolonged period (key in position 2
or 3),
you risk discharging the battery. Starting
your vehicle will then no longer be
possible. Be aware . F

Imm
obilise the vehicle.
F

P

ut the gear lever into neutral (vehicles
fitted with a manual gearbox), or position N
(vehicles fitted with an etg electronic
gearbox).
F
t
u
rn the key towards you to
position

2

(ACC)
.
F

P

ress in and turn the key to
position

1 (LOCK)
.
F

R

emove the key from the ignition switch.
F
t
u
rn the steering until the steering column
locks.
Stopping
5
Driving

86
the speed limiter cannot, in any
circumstances, replace the need to
observe speed limits, nor can it replace the
need for vigilance on the part of the driver.
Speed limiter (Vti 82 engine)
the speed limiter is switched on manually:
this can be done whatever the speed of the
vehicle. However, if you are driving at less than
20 mph (30 km/h), the programmed speed will
be fixed at 20 mph (30 km/h).
th

e speed limiter is paused by operation of the
control.
th

e programmed speed can be exceeded
temporarily by pressing the accelerator firmly
beyond the point of resistance.
to r

eturn to the programmed speed, simply
release the accelerator pedal until the vehicle
returns to the programmed speed limit. System which prevents the vehicle from exceeding the speed programmed by the driver.Steering mounted controls
the controls are grouped together on this
control stalk at the steering wheel.
1.
S

peed limiter on / off: by pressing the end
of the control stalk.
2.
D

ecrease setting: by pushing the control
stalk down.
3.
I

ncrease setting: by pushing the control
stalk up.
4.
S

peed limiter on / pause: by pulling the
control stalk towards you.
Displays in the instrument
panel
the information is grouped together in the
instrument panel screen.
5.
Spe

ed limiter mode selection indication.
6.
S

peed limiter on / pause indication.
7.
Spe

ed value setting.
th

e programmed speed remains in the
memory when the ignition is switched off.
Driving

87

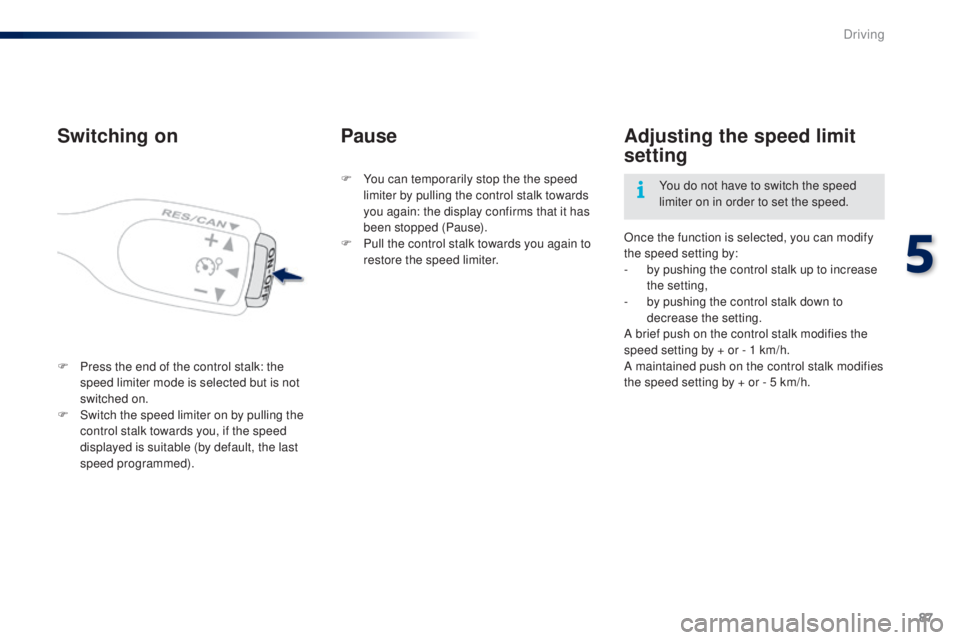

Switching on
F Press the end of the control stalk: the speed limiter mode is selected but is not
switched on.
F

S
witch the speed limiter on by pulling the
control stalk towards you, if the speed
displayed is suitable (by default, the last
speed programmed). Once the function is selected, you can modify
the speed setting by:
-

b
y pushing the control stalk up to increase
the setting,
-
b
y pushing the control stalk down to
decrease the setting.
A brief push on the control stalk modifies the
speed setting by + or - 1 km/h.
A maintained push on the control stalk modifies
the speed setting by + or - 5 km/h.
Adjusting the speed limit
setting
You do not have to switch the speed
limiter on in order to set the speed.
Pause
F You can temporarily stop the the speed limiter by pulling the control stalk towards
you again: the display confirms that it has
been stopped (Pause).
F

P
ull the control stalk towards you again to
restore the speed limiter.
5
Driving

89
Speed limiter (Vti 68 engine)
System which prevents the vehicle from exceeding the speed programmed by the driver.
th

e speed limiter is switched on manually:
this can be done whatever the speed of the
vehicle. However, if you are driving at less than
20 mph (30 km/h), the programmed speed will
be fixed at 20 mph (30 km/h).
th

e speed limiter is paused by operation of the
control.
th

e programmed speed can be exceeded
temporarily by pressing the accelerator firmly
beyond the point of resistance.
to r

eturn to the programmed speed, simply
release the accelerator pedal until the vehicle
returns to the programmed speed limit.
th

e programmed limit speed is erased
when switching off the ignition.
Steering mounted controls
the controls are grouped together on this
control stalk at the steering wheel.
1.
S

peed limiter on / off: by pressing the end
of the control stalk.
2.
P

rogramming the speed, then
D

ecrease the setting: by pushing the
control stalk down.
3.
R

estore speed limiter
I

ncrease the setting: by pushing the control
stalk up.
4.
P

ause speed limiter: by pulling the control
stalk towards you.
Displays in the instrument
panel
the information is grouped together in the
instrument panel screen.
5.
S

peed limiter on / pause indication.
6.
Spe

ed value setting.
the speed limiter cannot, in any
circumstances, replace the need to
observe speed limits, nor can it replace the
need for vigilance on the part of the driver.
If you choose to display other information
(trip A for example), the speed limiter
information is automatically displayed again
after about 6 seconds.
5
Driving

90

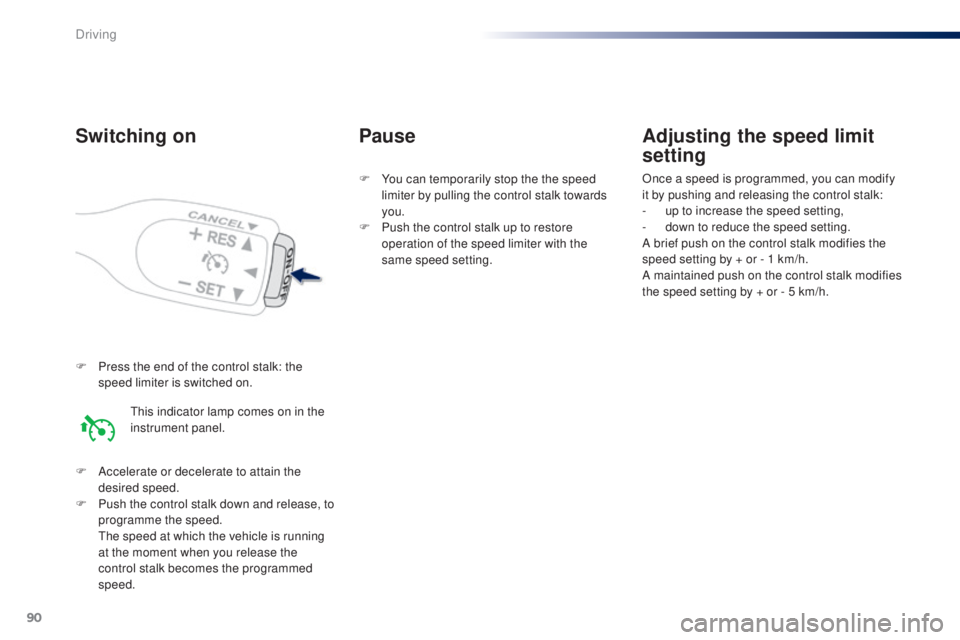

F Press the end of the control stalk: the speed limiter is switched on.
F

A
ccelerate or decelerate to attain the
desired speed.
F

P
ush the control stalk down and release, to
programme the speed.


t
h
e speed at which the vehicle is running
at the moment when you release the
control stalk becomes the programmed
speed.
Adjusting the speed limit
setting
Once a speed is programmed, you can modify
it by pushing and releasing the control stalk:
-

u
p to increase the speed setting,
-

d
own to reduce the speed setting.
A brief push on the control stalk modifies the
speed setting by + or - 1 km/h.
A maintained push on the control stalk modifies
the speed setting by + or - 5 km/h.
Switching on
this indicator lamp comes on in the
instrument panel.
Pause
F You can temporarily stop the the speed limiter by pulling the control stalk towards
you.
F

P
ush the control stalk up to restore
operation of the speed limiter with the
same speed setting.
Driving

94
Model without AUTO lighting
Model with AUTO lightingSelection ring for main lighting
mode
turn the ring to position the symbol required
facing the mark.
Lighting off / Daytime running lamps.
Sidelamps only.
Dipped or main beam headlamps.
Automatic illumination of
headlamps.
Dipping the headlamps
With dipped beam on, push the control stalk
away from you to change to main beam. Pull
the stalk toward you change back to dipped
beam.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Displays
Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting
switched on.
Visibility

100

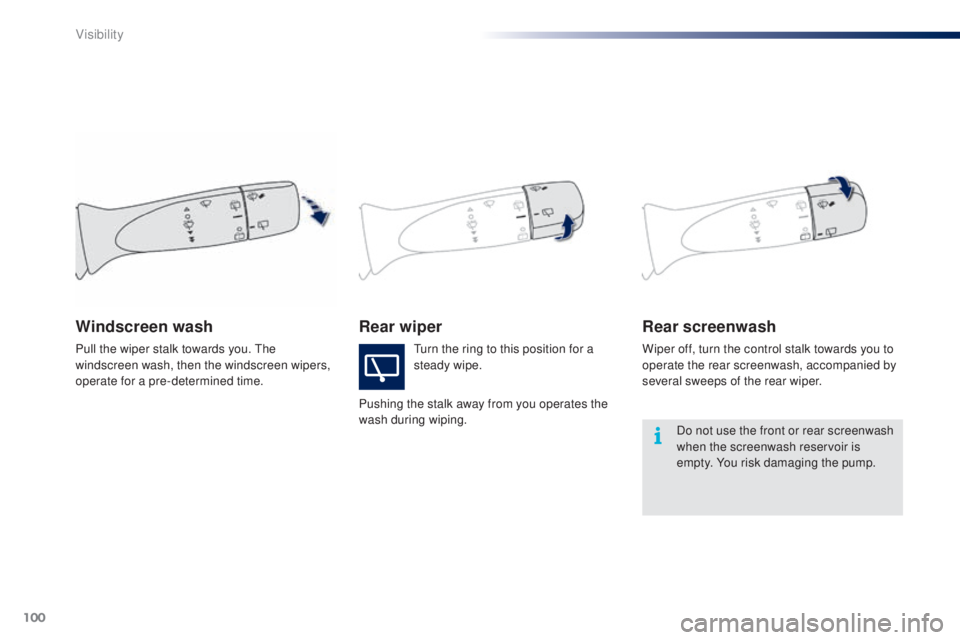

Rear wiperRear screenwash
Wiper off, turn the control stalk towards you to
operate the rear screenwash, accompanied by
several sweeps of the rear wiper.
Windscreen wash
turn the ring to this position for a
steady wipe.
Pushing the stalk away from you operates the
wash during wiping.
Pull the wiper stalk towards you.
th
e
windscreen wash, then the windscreen wipers,
operate for a pre-determined time.
Do not use the front or rear screenwash
when the screenwash reservoir is
empty. You risk damaging the pump.
Visibility
