2014 NISSAN TEANA sensor

TM-196
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
OUTPUT SPEED SENSOR
OUTPUT SPEED SENSOR
Exploded ViewINFOID:0000000009464139
Removal and InstallationINFOID:0000000009464140
REMOVAL
1. Disconnect the battery negative terminal. Refer to
PG-73, "Removal and Installation (Battery)".
2. Disconnect the harness connector from output speed sensor (1).
3. Remove the output speed sensor bolt, then the output speed sensor (1).
4. Remove the O-ring (2) from the output speed sensor (1). CAUTION:
Do not reuse O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-ring.
• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.
Inspection and AdjustmentINFOID:0000000009464141
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-178, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-84, "Adjustment".
Transaxle assembly Output speed sensor O-ring
: Always replace after every disassembly.
: N·m (kg-m, in-lb)
: Apply CVT Fluid
JSDIA4209GB
ALDIA0363ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PRECAUTIONSTM-213
< PRECAUTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

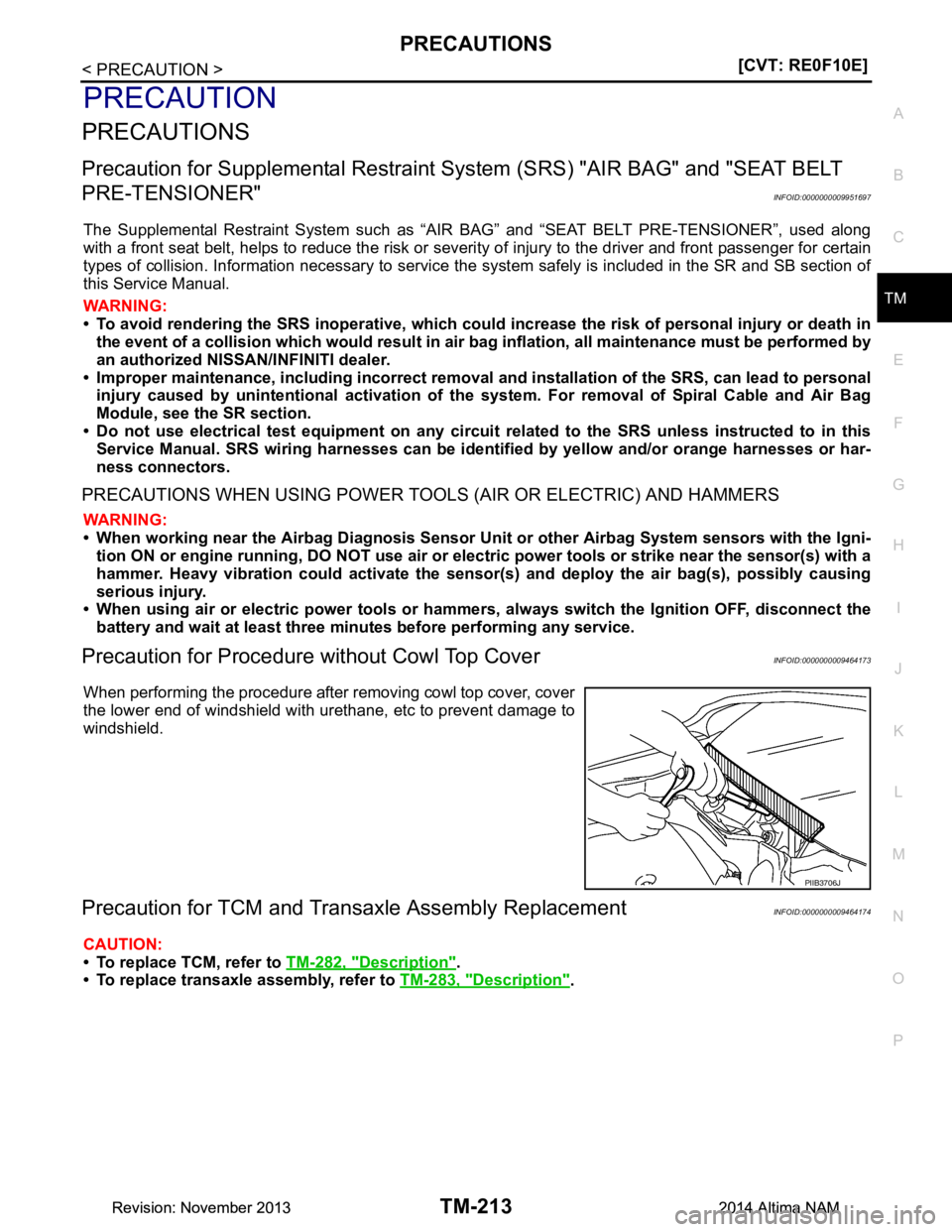

PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951697
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service t he system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Precaution for Procedure without Cowl Top CoverINFOID:0000000009464173
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.
Precaution for TCM and Tran saxle Assembly ReplacementINFOID:0000000009464174
CAUTION:
• To replace TCM, refer to TM-282, "Description"
.
• To replace transaxle assembly, refer to TM-283, "Description"
.
PIIB3706J
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PRECAUTIONSTM-215
< PRECAUTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
On Board Diagnosis (OBD) System of CVT and EngineINFOID:0000000009464176
The TCM and ECM have an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to
warn the driver of a malfunction causing emission deterioration.
CAUTION:
• Be sure to turn the ignition switch OFF and di sconnect the battery cable from the negative terminal
before any repair or inspection work. The open/s hort circuit of related switches, sensors, solenoid
valves, etc. will cause the MIL to light up.
• Be sure to connect and lock the connectors secure ly after work. A loose (unlocked) connector will
cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
• Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. may cause the MIL to light up due to a short circuit.
• Be sure to connect rubber tubes properly afte r work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to a malfunction of the EGR system or fuel injection system, etc.
• Be sure to erase the unnecessary malfunction informa tion (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.
Removal and Installation Proc edure for CVT Unit ConnectorINFOID:0000000009464177
REMOVAL
• Rotate bayonet ring counterclockwise. Pull out CVT unit har-
ness connector upward and remove it.
INSTALLATION
1. Align marking on CVT unit harness connector terminal with marking on bayonet ring. Insert CVT unit harness connector.
2. Rotate bayonet ring clockwise.
3. Rotate bayonet ring clockwise until marking on CVT unit har- ness connector terminal body is aligned with the slit on bayo-
net ring as shown in the figure (correctly fitting condition).
CAUTION:
SCIA6685J
JPDIA0294ZZ
JPDIA0295ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSTM-219
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
*: These components are included in control valve assembly.
CVT CONTROL SYSTEM : TCMINFOID:0000000009464181
• The vehicle driving status is judged based on the signals from the sensors, switches, and other control units,
and the optimal transaxle control is performed.
• For TCM control items, refer to TM-232, "CVT CONTROL SYSTEM : System Description"
.
CVT CONTROL SYSTEM : Transmission Range SwitchINFOID:0000000009464182
• The transmission range switch is installed to upper part of transaxle case.
• The transmission range switch detects the selector lever position.
CVT CONTROL SYSTEM : Primary Speed SensorINFOID:0000000009464183
• The primary speed sensor is installed to side cover of transaxle.
• The primary speed sensor detects primary pulley speed.
Combination meter The TCM receives the following signal via CAN communications from the
combination meter for judging the driving request from the driver.
• Paddle shift up signal
• Paddle shift down signal
• Vehicle speed signal
The TCM transmits the following signal via CAN communications to the
combination meter.
• Shift position indicator signal
Refer to MWI-6, "METER SYSTEM : Component Parts Location"
for de-
tailed installation location.
O/D OFF indicator lamp When the ignition switch is pushed to the ON position, the light comes on
for 2 seconds.
Malfunction indicator lamp (MIL) TM-243, "DIAGNOSIS DESCRIPTION : Malfunction Indicator Lamp (MIL)"
Shift position indicator TM-223, "CVT CONTROL SYSTEM : Shift Position Indicator"
ABS actuator and electric unit (control unit)The TCM receives the following signal via CAN communications from the
ABS actuator and electric unit (control unit).
• ABS operation signal
Refer to BRC-8, "Component Parts Location"
for detailed installation loca-
tion.
BCM Refer to
BCS-4, "BODY CONTROL SYSTEM : Component Parts Location"

for detailed installation location.
Transmission range switch TM-219, "CVT CONTROL SYSTEM : Transmission Range Switch"
Input speed sensor TM-220, "CVT CONTROL SYSTEM : Input Speed Sensor"
CVT unit connector —
Primary speed sensor TM-219, "CVT CONTROL SYSTEM : Primary Speed Sensor"
Output speed sensor TM-220, "CVT CONTROL SYSTEM : Output Speed Sensor"
Control
valve CVT fluid temperature sensor*
TM-221, "CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor"
Primary pressure sensor* TM-221, "CVT CONTROL SYSTEM : Primary Pressure Sensor"
Secondary pressure sensor* TM-222, "CVT CONTROL SYSTEM : Secondary Pressure Sensor"
Primary pressure solenoid valve* TM-222, "CVT CONTROL SYSTEM : Primary Pressure Solenoid Valve"
Secondary pressure solenoid valve* TM-222, "CVT CONTROL SYSTEM : Seco ndary Pressure Solenoid Valve"
Select solenoid valve* TM-223, "CVT CONTROL SYSTEM : Select Solenoid Valve"
Torque converter clutch solenoid
valve* TM-223, "CVT CONTROL SYSTEM : Torq
ue Converter Clutch Solenoid
Va l v e "
Line pressure solenoid valve* TM-223, "CVT CONTROL SYSTEM : Line Pressure Solenoid Valve"
Paddle shifter TM-223, "CVT CONTROL SYSTEM : Paddle Shifter"
No. Component Function
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-220
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
COMPONENT PARTS

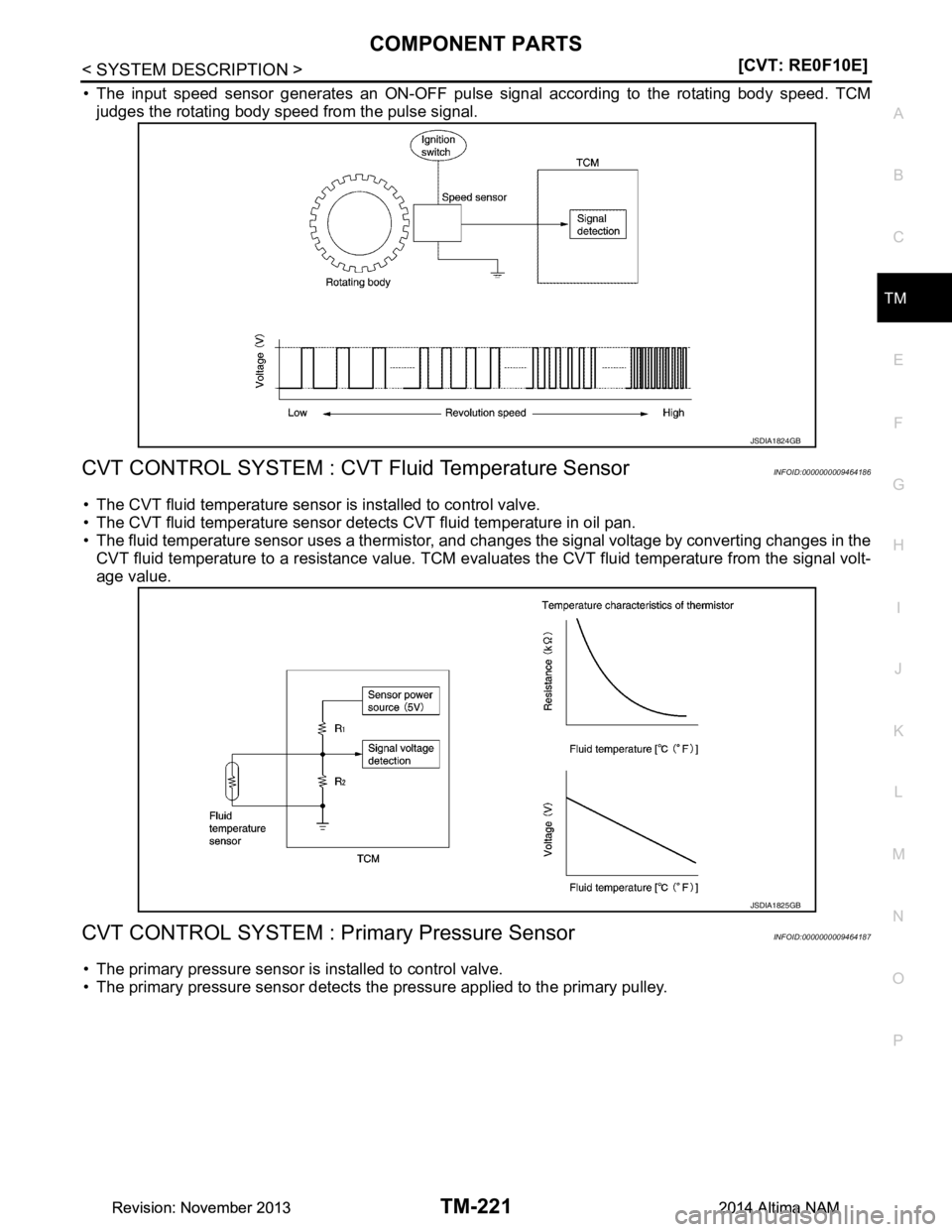

• The primary speed sensor generates an ON-OFF pulse
signal according to the rotating body speed. TCM
judges the rotating body speed from the pulse signal.
CVT CONTROL SYSTEM : Output Speed SensorINFOID:0000000009464184
• The output speed sensor is installed to back side of transaxle.
• The output speed sensor detects final gear speed.

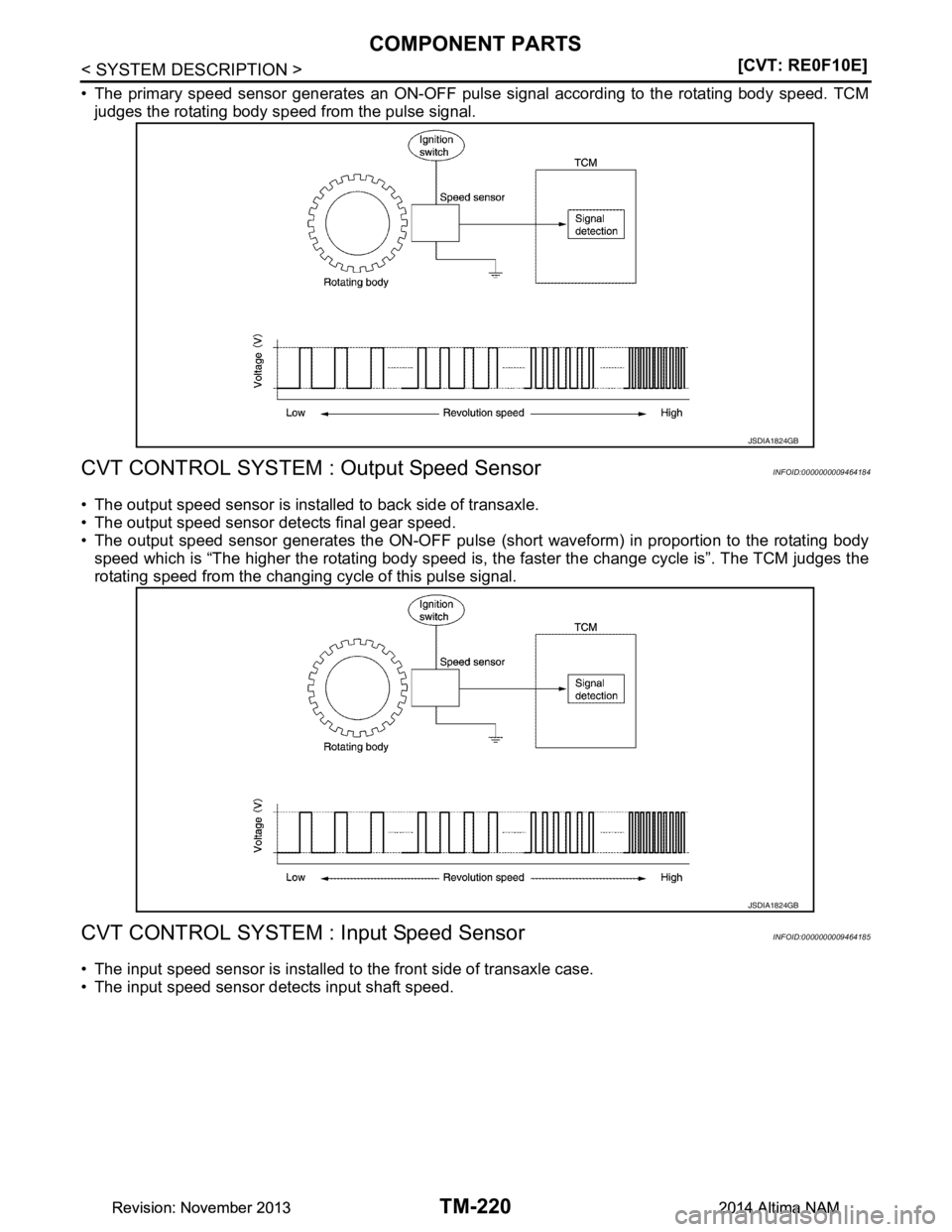

• The output speed sensor generates the ON-OFF pulse (short waveform) in proportion to the rotating body
speed which is “The higher the rotating body speed is, t he faster the change cycle is”. The TCM judges the
rotating speed from the changing cycle of this pulse signal.
CVT CONTROL SYSTEM : Input Speed SensorINFOID:0000000009464185
• The input speed sensor is installed to the front side of transaxle case.
• The input speed sensor detects input shaft speed.
JSDIA1824GB
JSDIA1824GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSTM-221
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
• The input speed sensor generates an ON-OFF pulse signal according to the rotating body speed. TCM
judges the rotating body speed from the pulse signal.
CVT CONTROL SYSTEM : CVT Fluid Temperature SensorINFOID:0000000009464186
• The CVT fluid temperature sensor is installed to control valve.
• The CVT fluid temperature sensor detects CVT fluid temperature in oil pan.
• The fluid temperature sensor uses a thermistor, and changes the signal voltage by converting changes in the
CVT fluid temperature to a resistance value. TCM eval uates the CVT fluid temperature from the signal volt-
age value.
CVT CONTROL SYSTEM : Pr imary Pressure SensorINFOID:0000000009464187
• The primary pressure sensor is installed to control valve.
• The primary pressure sensor detects the pressure applied to the primary pulley.
JSDIA1824GB
JSDIA1825GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-222
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
COMPONENT PARTS

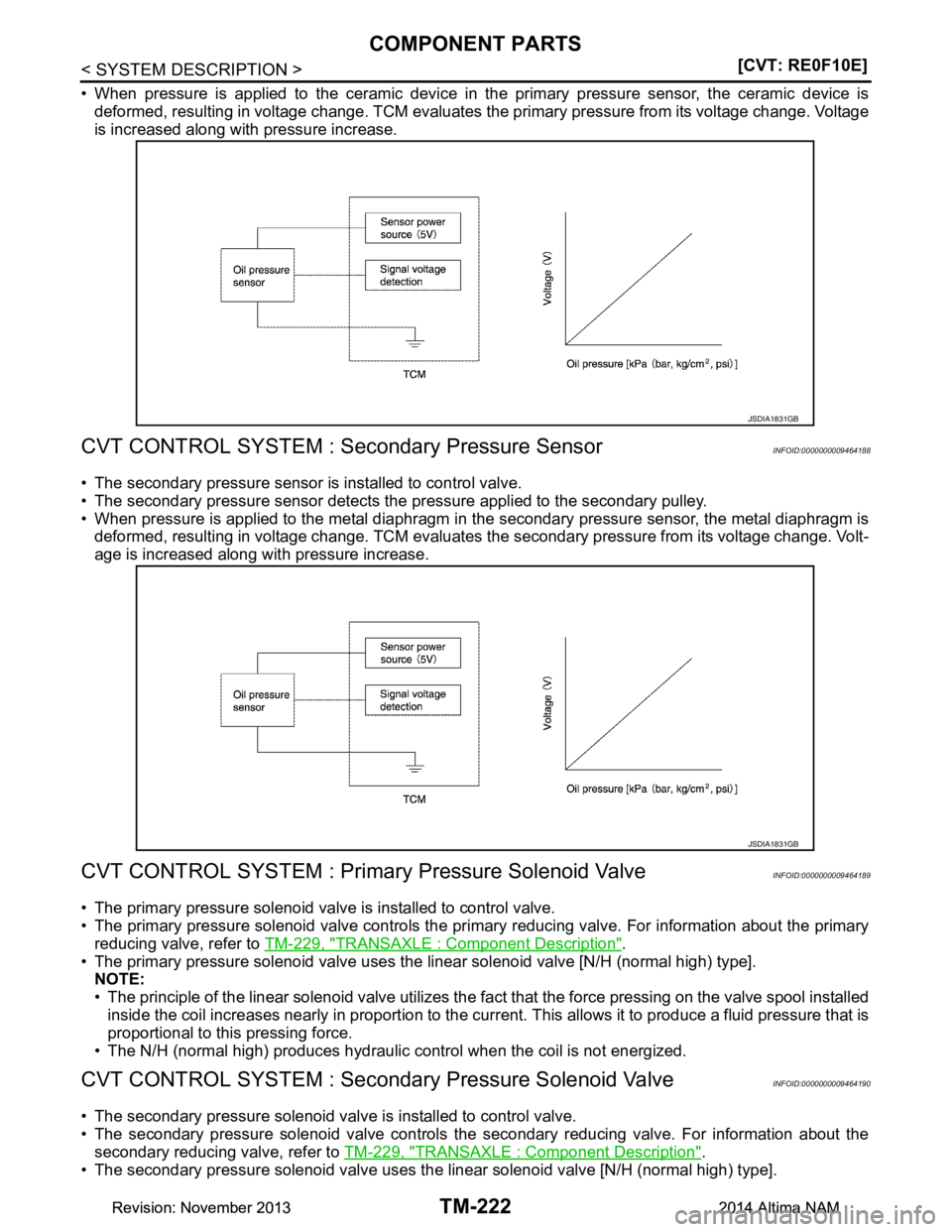

• When pressure is applied to the ceramic device in
the primary pressure sensor, the ceramic device is
deformed, resulting in voltage change. TCM evaluates the primary pressure from its voltage change. Voltage
is increased along with pressure increase.
CVT CONTROL SYSTEM : Secondary Pressure SensorINFOID:0000000009464188
• The secondary pressure sensor is installed to control valve.
• The secondary pressure sensor detects the pressure applied to the secondary pulley.
• When pressure is applied to the metal diaphragm in the secondary pressure sensor, the metal diaphragm is
deformed, resulting in voltage change. TCM evaluates the secondary pressure from its voltage change. Volt-
age is increased along with pressure increase.
CVT CONTROL SYSTEM : Primary Pressure Solenoid ValveINFOID:0000000009464189
• The primary pressure solenoid valve is installed to control valve.
• The primary pressure solenoid valve controls the prim ary reducing valve. For information about the primary
reducing valve, refer to TM-229, "TRANSAXLE : Component Description"
.
• The primary pressure solenoid valve uses the linear solenoid valve [N/H (normal high) type].
NOTE:
• The principle of the linear solenoid valve utilizes the fa ct that the force pressing on the valve spool installed
inside the coil increases nearly in proportion to the current . This allows it to produce a fluid pressure that is
proportional to this pressing force.
• The N/H (normal high) produces hydraulic control when the coil is not energized.
CVT CONTROL SYSTEM : Secondary Pressure Solenoid ValveINFOID:0000000009464190
• The secondary pressure solenoid valve is installed to control valve.
• The secondary pressure solenoid valve controls t he secondary reducing valve. For information about the
secondary reducing valve, refer to TM-229, "TRANSAXLE : Component Description"
.
• The secondary pressure solenoid valve uses the linear solenoid valve [N/H (normal high) type].
JSDIA1831GB
JSDIA1831GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SYSTEMTM-233
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
• CVT detects the vehicle driving status from switc hes, sensors and signals, and controls the vehicle so that
the optimum shift position and shift timing may always be achieved. It also controls the vehicle to reduce
shift and lockup shock, etc.
• Receives input signals from switches and sensors.
• Sends the output signal necessary for operation of so lenoid valves, and evaluates the line pressure, shift
timing, lockup operation, engine brake performance, etc.
• If a malfunction occurs on the electric system, activa te the fail-safe mode only to drive the vehicle.
LIST OF CONTROL ITEMS AND INPUT/OUTPUT
*: If these input/output signals show errors, TCM activates the fail-safe function.
CVT CONTROL SYSTEM : Fail-safeINFOID:0000000009464205
TCM has a fail-safe mode. The mode functions so that operation can be continued even if the signal circuit of
the main electronically controlled input/output parts is damaged.
If the vehicle shows following behaviors including “poor acceleration”, a malfunction of the applicable system
is detected by TCM and the vehicle may be in a fail-s afe mode. At this time, check the DTC code and perform
inspection and repair according to the malfunction diagnosis procedures.
Fail-safe function
Control Item Shift control Line pressure
control Select control Lock-up con-
trol Fail-safe func-
tion*
Input Engine torque signal
(CAN communication) ×××××
Engine speed signal
(CAN communication) ×××××
Accelerator pedal position signal
(CAN communication) ××××
Closed throttle position signal
(CAN communication) ×× ×
Stop lamp switch signal
(CAN communication) ××××
Primary pressure sensor ×
Secondary pressure sensor ×× ×
CVT fluid temperature sensor ×××××
Primary speed sensor ×××××
Output speed sensor ×× ××
Input speed sensor ×××××
Transmission range switch ×××××
Paddle shifter
(CAN communication) ×× ×
Output Line pressure solenoid valve
××× ×
Primary pressure solenoid valve ×× ×
Torque converter clutch solenoid
valve ××
Secondary pressure solenoid valve ×× ×
Select solenoid valve ×××
Shift position indicator
(CAN communication) ×
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
