2014 NISSAN ROGUE Owners Manual

MANUAL OPERATION
Tilt and telescopic operation
Pull the lock lever1down:
● Adjust the steering wheel forward or back-
ward in direction
3to the desired position.
● Adjust the steering wheel up or down in
direction
2to the desired position.
Push the lock lever
1up firmly to lock the
steering wheel in place.
1To block glare from the front, swing down the
main sun visor.
2To block glare from the side, remove the
main sun visor from the center mount and
swing the visor to the side.
3To extend the sun visor, slide in or out as
needed.
CAUTION
● Do not store the sun visor before return-
ing the extension to its original
position.
● Do not pull the extension sun visor
forcedly downward.
LPD2123
WPD0344
SUN VISORS
3-30Pre-driving checks and adjustments

VANITY MIRRORS
To access the vanity mirror, pull the sun visor
down and flip open the mirror cover. Some vanity
mirrors are illuminated and turn on when the
mirror cover is open.
CARD HOLDER (driver’s side only)
To access the card holder, pull the sun visor
down and slide card in the card holder. Do not
view information while operating the vehicle.
REARVIEW MIRROR (if so equipped)
Use the night position1to reduce glare from
the headlights of vehicles behind you at night.
Use the day position
2when driving in daylight
hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view clarity.
LPD2067LPD2120WPD0126
MIRRORS
Pre-driving checks and adjustments3-31

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)
The inside mirror is designed so that it automati-
cally dims during night time conditions and ac-
cording to the intensity of the headlights of the
vehicle following you. The automatic anti-glare
feature is activated when the ignition switch is in
the ON position.
The indicator light will illuminate when the auto-
matic anti-glare feature is operating.
NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.
Type A and Type B
The indicator light will illuminate when the auto-
matic anti-glare feature is operating.
With the ignition switch in the ON position, press
the
button as described:
● To turn off the anti-glare feature, press
the
button. The indicator light will turn
off.
● To turn on the anti-glare feature, press
the
button again. The indicator light
will turn on. For information on HomeLink® Universal Trans-
ceiver (if so equipped) operation, refer to the
“HomeLink® Universal Transceiver” in the “In-
struments and controls” section of this manual.
For additional information about the compass
2
and compass features (if so equipped) , refer to
“Compass display” in the “Instruments and con-
trols” section of this manual.
Type A
LPD0446
Type B
LPD0470
3-32Pre-driving checks and adjustments

OUTSIDE MIRRORS
The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.
Move the small switch
1to select the right or left
mirror. Adjust each mirror to the desired position
using the large switch
2.
WARNING
● Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
● Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
Manual folding outside mirrors
Pull the outside mirror toward the door to fold it.
Heated mirrors (if so equipped)
Some outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, refer to “Rear window and
outside mirror defroster switch” in the “Instru-
ments and controls” section of this manual.
LPD2083LPD2084
Pre-driving checks and adjustments3-33

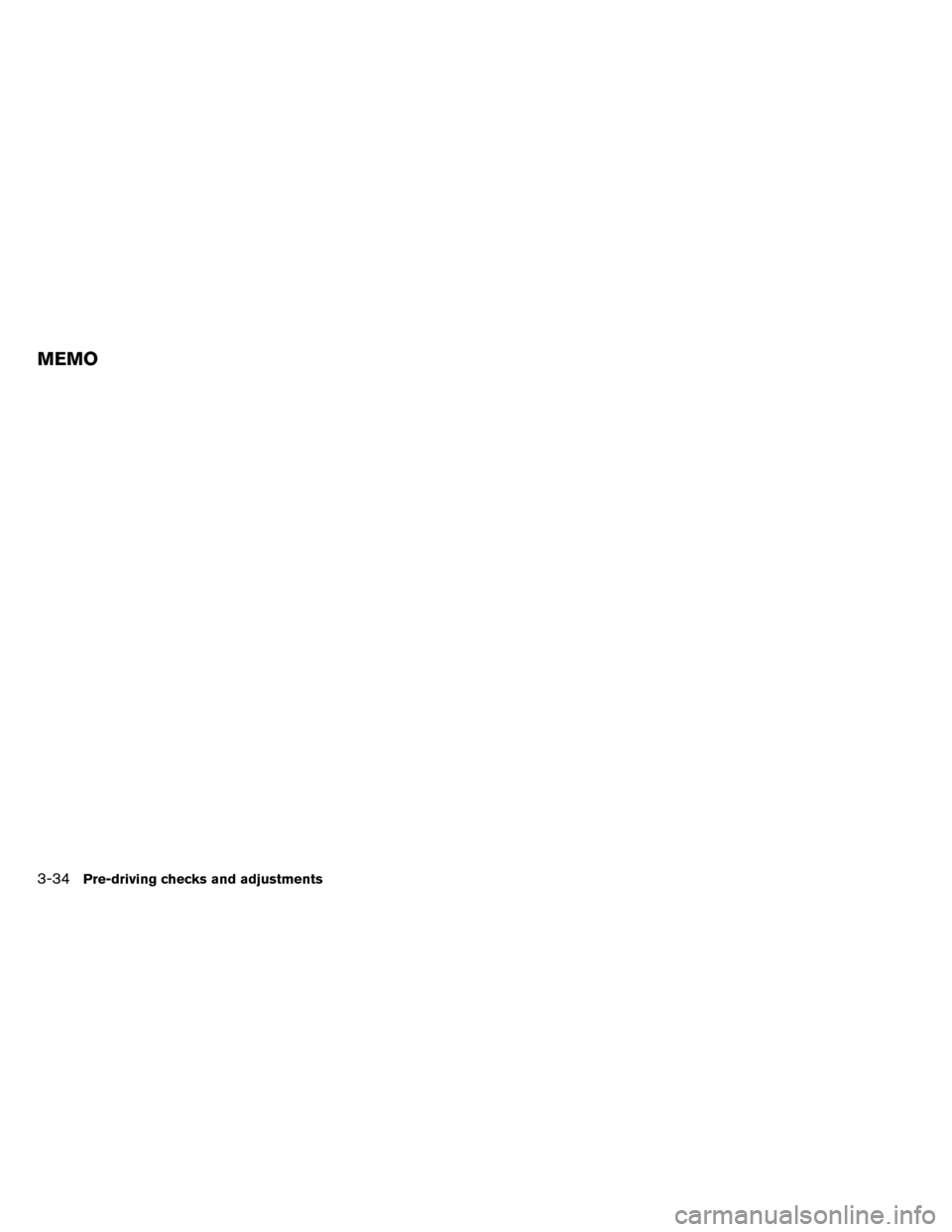

MEMO
3-34Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen with
Navigation System (if so equipped)..................4-4
How to use the touch-screen ....................4-5
How to use the
(BACK) button .............4-7
How to use the [
] button ..................4-7
button...................................4-9
How to use the POWER button/VOLUME
control knob ...................................4-9
How to use the CAMERA button .................4-9
RearView Monitor (if so equipped) ..................4-10
How to read the displayed lines .................4-11
Adjusting the screen ........................... 4-11
Difference between predicted and actual
distances ..................................... 4-12
Around View® Monitor (if so equipped) .............4-15
Available views ................................ 4-16
Difference between predictive and actual
distances ..................................... 4-19
How to switch the display ......................4-21
How to adjust the Camera Settings ..............4-22
Moving Object Detection (MOD)
(if so equipped) ............................... 4-22Operating tips
................................. 4-24
Vents ........................................... 4-25
Heater and Air Conditioner (manual)
(if so equipped) .................................. 4-26
Controls ...................................... 4-27
Heater operation .............................. 4-28
Air conditioner operation .......................4-29
Air flow charts ................................. 4-30
Heater and Air Conditioner (automatic)
(if so equipped) .................................. 4-34
Automatic operation ........................... 4-35
Manual operation .............................. 4-36
Operating tips ................................. 4-36
Servicing air conditioner ........................... 4-37
Audio system .................................... 4-37
Radio ........................................ 4-37
FM radio reception ............................ 4-38
AM radio reception ............................ 4-38
Satellite radio reception (if so equipped) . . . ......4-38
Audio operation precautions ....................4-39
FM/AM radio with compact disc (CD) player
(Type A) (if so equipped) .......................4-46

FM/AM radio with compact disc (CD) player
(Type B) (if so equipped).......................4-50
FM/AM/SAT radio with compact disc (CD)
player (Type A) (if so equipped) .................4-54
FM/AM/SAT radio with compact disc (CD)
player (Type B) (if so equipped) .................4-60
USB interface (models without Navigation
System) (if so equipped) .......................4-64
USB interface (models with Navigation
System) (if so equipped) .......................4-66
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-68
iPod®* player operation with Navigation
System (if so equipped) ........................ 4-70
Bluetooth® streaming audio without
Navigation System (if so equipped) ..............4-73
Bluetooth® streaming audio with Navigation
System (if so equipped) ........................ 4-74
CD care and cleaning .......................... 4-75
Steering wheel switch for audio control ..........4-76
Antenna ...................................... 4-77
NissanConnect™ App Smartphone Integration
(if so equipped) .................................. 4-78
Registering with NissanConnect™ App ...........4-78 Connect Phone
............................... 4-78
Application Download .......................... 4-78
Car phone or CB radio ............................ 4-79
Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped) .................4-79
Regulatory Information ......................... 4-81
Using the system .............................. 4-81
Control buttons ............................... 4-83
Connecting procedure ......................... 4-83
Voice commands .............................. 4-85
Making a call .................................. 4-86
Receiving a call ............................... 4-87
During a call .................................. 4-87
Ending a call .................................. 4-87
Text messaging ................................ 4-88
Bluetooth® settings ........................... 4-89
Manual control ................................ 4-90
Bluetooth® Hands-Free Phone System with
Navigation
System (if so equipped) .................4-91
Regulatory Information ......................... 4-92
Voice commands .............................. 4-93
Connecting Procedure ......................... 4-93
Vehicle phonebook ............................ 4-94

Making a call.................................. 4-94
Receiving a call ............................... 4-94
During a call .................................. 4-94
Ending a call .................................. 4-94
Text messaging ................................ 4-95
Phone settings ................................ 4-96
Bluetooth® settings ........................... 4-97
NISSAN Voice Recognition System
(if so equipped) .................................. 4-98
Using the system .............................. 4-98System features
............................... 4-99
Bluetooth® Hands-Free Phone System
voice commands ............................. 4-100
Navigation System voice commands ............4-101
Audio system voice commands .................4-101
Information voice commands ...................4-101
My Apps Voice Commands ....................4-101
Help voice commands ........................ 4-102
Troubleshooting guide ........................ 4-102
