2014 NISSAN ROGUE Owners Manual

QR25DE engine
1. Engine coolant reservoir (P. 8-12)
2. Engine oil filler cap (P. 8-21)
3. Brake fluid reservoir (P. 8-21)
4. Battery (P. 8-9)
5. Air cleaner (P. 8-9)
6. Fuse/Fusible link box (P. 8-21)
7. Radiator cap (P. 8-17)
8. Engine oil dip stick (P. 8-16)
9. Drive belt location (P. 8-16)
10. Windshield-washer fluid reservoir(P. 8-13)
See the page number indicated in paren-
theses for operating details.
LDI2434
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-10
or
Brake warning light 2-10
Charge warning
light
2-10
Low tire pressure
warning light2-11
Master warning light 2-12
Power steering
warning light2-13
Warning
light Name Page
Seat belt warning
light and chime 2-13
Supplemental air
bag warning light2-14
Indicator
light Name Page
All Wheel Drive
(AWD) AUTO indi-
cator light (if so
equipped) 2-14
All Wheel Drive
(AWD) LOCK indi-
cator light (if so
equipped)2-14
Front fog light indi-
cator light (if so
equipped)
2-14
Indicator
light Name Page
Front passenger air
bag status light 2-14
High beam indicator
light (blue)2-14
Hill descent indica-
tor light (if so
equipped)2-14
Malfunction Indica-
tor Light (MIL)
2-15
Overdrive off indica-
tor light2-15
Security indicator
light2-15
Slip indicator light 2-16
SPORT mode indi-
cator light (if so
equipped)2-16
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9

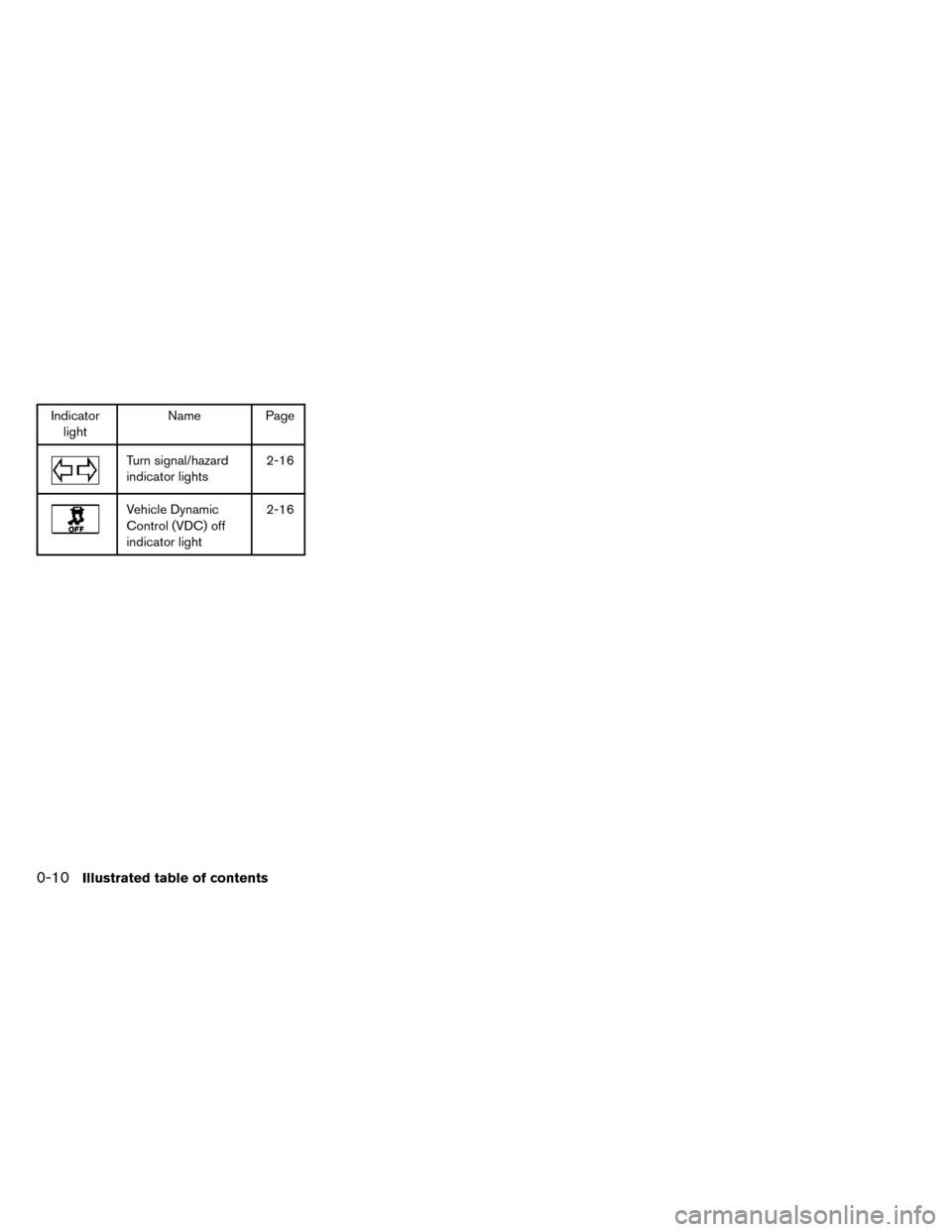

Indicatorlight Name Page
Turn signal/hazard
indicator lights 2-16
Vehicle Dynamic
Control (VDC) off
indicator light2-16
0-10Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats ............................................1-2
Front manual seat adjustment
(if so equipped) ................................1-2
Front power seat adjustment
(if so equipped) ................................1-4
2nd row bench seat adjustment ..................1-5
Head restraints/Headrests .......................1-6
Flexible seating ................................ 1-10
Seat belts ....................................... 1-13
Precautions on seat belt usage ..................1-13
Pregnant women .............................. 1-16
Injured persons ................................ 1-16
Three-point type seat belt with retractor ..........1-16
Seat belt extenders ............................ 1-19
Seat belt maintenance ......................... 1-19
Child safety ...................................... 1-20
Infants ........................................ 1-21
Small children ................................. 1-21
Larger children ................................ 1-21Child restraints
................................... 1-22
Precautions on child restraints ..................1-22
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-24
Rear-facing child restraint installation using
LATCH....................................... 1-27
Rear-facing child restraint installation using
the seat belts ................................. 1-29
Forward-facing child restraint installation
using LATCH. . . ............................... 1-32
Forward-facing child restraint installation
using the seat belts ............................ 1-34
Installing top tether strap
(2nd row bench seat) .......................... 1-37
Booster seats ................................. 1-38
Supplemental restraint system (SRS) ...............1-41
Precautions on SRS ........................... 1-41
Supplemental air bag warning labels .............1-56
Supplemental air bag warning light ..............1-56

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” in this section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of con-
trol of the vehicle.
● The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped)
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

Forward and backward
Pull the center of the bar up and hold it while you
slide the seat forward or backward to the desired
position. Release the bar to lock the seat in
position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in the P (Park) position.
Seat lifter (if so equipped for driver’s
seat)
Pull up or push down the adjusting lever to adjust
the seat height until the desired position is
achieved.
LRS2160LRS2161LRS2202
Safety—Seats, seat belts and supplemental restraint system1-3

FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch. ●
Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in P (Park) .
LRS2388
1-4Safety—Seats, seat belts and supplemental restraint system

Seat lifter (driver’s seat)
Push the switch up or down to achieve desired
seat height.
Lumbar support (driver’s seat)
The lumbar support feature provides adjustable
lower back support to the driver. Move the switch
forward or backward to adjust the seatback lum-
bar area.2ND ROW BENCH SEAT
ADJUSTMENT
Forward and backward
Pull the center of the bar1up and hold it while
you slide the seat forward or backward to the
desired position. Release the bar to lock the seat
in position.
Reclining
To recline the seatback, pull up on the lever2
and lean back. To bring the seatback forward, pull
the lever
2up and lean your body forward.
Release the lever to lock the seatback in position.
LRS2131LRS2270
Outboard seats
LRS2364
Safety—Seats, seat belts and supplemental restraint system1-5
